USER MANUAL 10013205 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Technical Data

Item number 10006681, 10006682, 10026364, 10013205

Power supply 220-240 V ~ 50-60 Hz

Power 2400 W

Steam pressure 3.5 bar

Volume wasser container 1.7 litres

Safety Instructions

• Make sure to read all the safety precautions below and look at the illustrations before you start using the appliance.
• Use the appliance for its intended use only described in this manual.
• The appliance is intended for household use only.
• In order to protect against the risk of electric short, do not immerse ironpower base into water or any other liquids.
• Connect the appliance only to an alternating current of the voltage specified on the rating plate and only to an earthed socket. To avoid a circuit overload, do not operate another high wattage appliance in the same circuit
• Turn the appliance to OFF before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
• Do not allow power cord or supply hose to touch hot surface.
• Unplug the appliance from main socket before filling or empty or when not in use.
• Do not operate the appliance with a damaged cord or if the appliance has been dropped or damaged. To avoid a hazard such as the risk of electric shock, do not disassemble the appliance, it must be taken to a qualified serviceman or manufacturer or its service agent for examination and repair. Incorrect re-assembly can cause a risk of electric shock when the iron is used.
• Place the iron out of reach of children; close supervision is necessary for any appliance being used by or near children. Do not leave the iron unattended while connected to the supply mains.
• During use, always place its stand on a stable, level and horizontal surface or ironing board.
• Always place the iron on its stand, and do not allow the hot soleplate touch power cord or supply hose
• Burns can occur from touching hot metal parts, hot water or steam. Use caution when using the appliance.
• Never use the iron facing towards people because the steam can cause burns.

CAUTION

Risk of burns! The surfaces with the symbol are liable to get hot during use. Do not touch them during use in order to prevent burns.

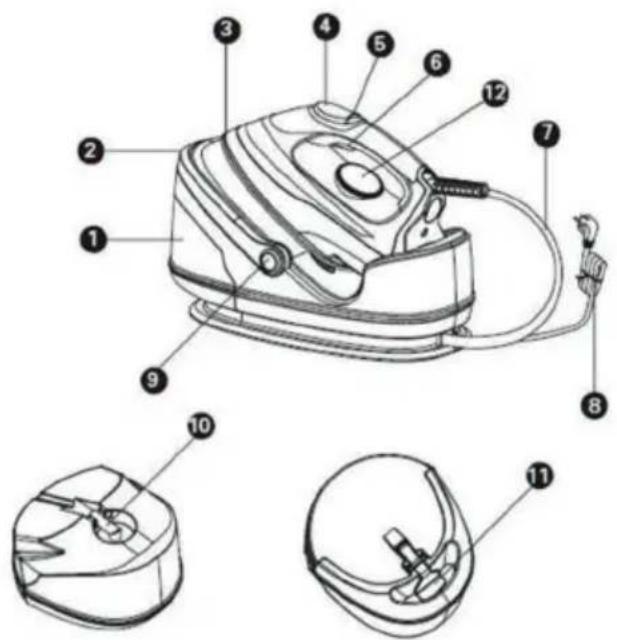

Product Description

1 Water tank
2 Handle
3 Soleplate
4 Decorated cover
5 Heating indicator light
6 Steam Release button
7 Power cord/supply hose
8 Power cord
9 Handle Button
10 Filter
11 Water tank lock
12 Temperature control dial

Ironing Temperature Settings

Temperature Setting · Synthetic · Wool / Silk · Cotton
Fabric Synthetic, Silk, Nylon	Wool, Silk, polyester Cotton, Linen
Ironing Instruction	Dry Ironing	Steam iron on the wrong side oft he fabric	Steam Ironing
Steam Selection	---	◇	◇

• Follow up the ironing instructions on the garment label. If there is not any instruction label, but you know what kind of the fabric is, please refer to the fabric setting chart described in this instruction manual. The fabric setting chart is only valid for plain fabrics and not for materials to which finishes, glosses etc, have been applied. Textile to which some kind of finish has been applied (gloss, crinkle, relief etc.) is best ironed at lower temperature. First sort laundry according to ironing temperature setting guide: wool with wool, cotton with cotton, etc.
• The iron heats up more quickly than it cools down. Therefore, start ironing articles that need to be ironed at the lowest temperature, such as those made of synthetic fibres. If the fabric consists of various kinds of fibres, always select the temperature required by the most delicate fibres, i.e. the lowest temperature.
• If you do not know what kind of fabric the article is made of, iron a piece of the material which is not visible when you wear to find out the appropriate temperature for your articles. Pure woolen fabrics (100% wool) should be ironed with the iron setting to steam ironing position. It is advisable to set the temperature control dial to "Max-position and use a dry pressing cloth. When steam ironing woolen fabrics, shiny patches may occur. You may prevent this by turning the article inside out and ironing the reverse side."
  After using of steam ironing for cotton fabrics, do not iron articles required by lower temperature (such as nylon etc.) immediately.

IMPORTANT: Do not fill water tank with vinegar, perfume, starch, chemically descaled water or descending agents.

Use and Operation

Prepare the appliance for use

1. Check if the rating indicated in the rating plate corresponding to the main voltage in your home.
2. Press handle button to lay handle down.
3. Remove the protective foil or sticker or card from the soleplate.(Fig. 1)
4. Fully unwind and straighten the power cord and the supply hose.
5. Place the appliance on a stable, level and horizontal surface such as ironing board
6. Place the iron onto the iron rest plate horizontally at the base unit.

Fill water tank:

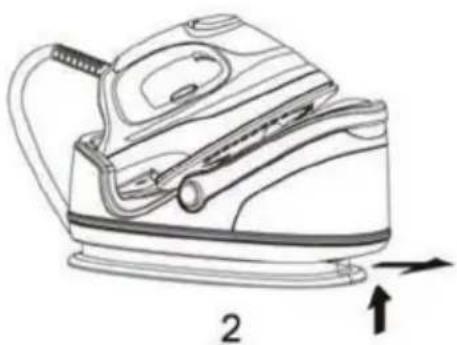

1. Press the water tank lock upwards and slide the detachable water tank outwards from the base.(Fig.2)
2. Take the filter upwards out from the water fill hole. (You can take the filter out of the opening for filling water into water tank, or fill water into water tank directly with the filter existing in the opening). (Fig.3)
3. Fill the water tank up to or below the MAX- fill line with clean tap water. (Fig.4)
4. Replace filter back into water tank. When move, please hold the water tank by two hands. (Fig.5)

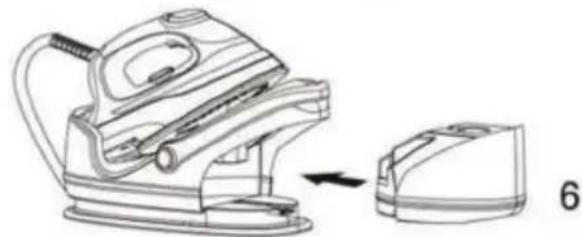

5. Replace the water tank into the base unit again. It will be locked in place with the base unit until a " click- sound is provided. (Fig.6)
6. Always pour out the remaining water after use. (Fig.7)

Note: When the water level reaches a low level or empty, pump will provide sound to indicate refilling. It must stop to use the appliance immediately and refill water tank as the methods mentioned above.

Steam function setting:

After power on, set temperature control dial to steam ironing position. Heating the indicator light on an iron unit lights up to indicate the unit being heated up. When desired temperature has been reached, heating indicator light turns off, it is ready for using. During use, heating indicator light will cycle from ON to OFF and then OFF to ON, it indicates that the iron is automatically heat preservation. Press steam button to start steam ironing. When you adjust the temperature control dial, steam rate will be adjusted accordingly. MAX steam will be obtained when set at MAX position, it will be smaller gradually when turn to -WOOL/SILK-position.

Note: When temperature control dial is located at SYNTHETIC , it is proposed not to activate steam ironing since temperature is too low to produce steam, it only suits for dry ironing.

Steam Ironing

1. Fill water tank with clean tap water.
2. Connect the unit into a suitable main socket. Turn temperature control dial to steam ironing position.
3. Before first time use of steam ironing, please clean the iron as below methods: Take the iron unit up from the base unit, press steam button underneath the handle to allow steam release for 30 seconds and then stop for 30 seconds, do so as a cycle, and repeat above cycle again. The iron is not ready for using until the heating indicator light turns OFF.
4. During steam ironing, steam rate will be varied when temperature control dial is adjusted to different positions. This can prevent water leakage caused from soleplate.
5. After using, take the iron unit back onto base unit, turn temperature control dial to MIN-, and then unplug from main socket. Slide water tank out from the base unit and empty it.

NOTE: For every first time use, it is normal that's a slightly vibration sound may be occurred from electrical pump inside the base unit for a few seconds when steam ironing started. If this abnormal conditions routinely happen for more than 60 seconds, please check whether water tank and filter assembled correctly or not.

Vertical steam ironing:

Follow the steam ironing process, and then hold the iron in vertical position between 5cm and 15cm away from the hanged fabrics. Press down steam switch, this will create vertical steam. This feature is especially used for removing creases from hanging clothes and curtains. Never directly perform steam ironing on people. (Fig.8)

Handle

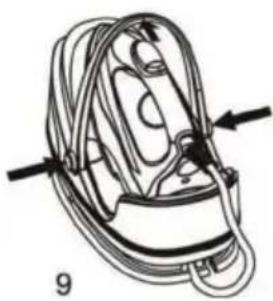

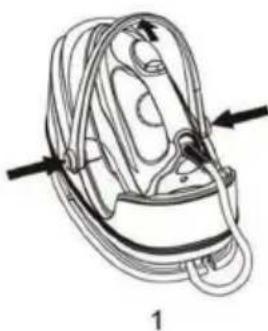

Handle attached to the base unit used to carry the appliance. Before use, press down two handle buttons synchronously, and then lay the handle down. (Fig.9) After use, allow the appliance completely cool down, before you lift handle up until a "pa- sound is provided.

Cord Storage (optional)

1. After use, unplug the unit from main socket, pour out the remaining water from water tank after the unit has been completely cooled down.

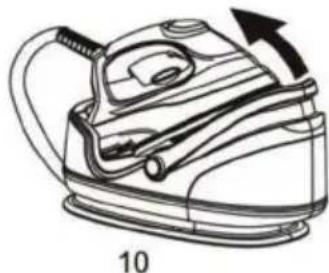

2. Place iron on base unit, fold supply hose and wind it clockwise around the cord slots of the base unit. Tie power cord and folded supply hose together, then wind power cord clockwise around the cord slots of the base unit, and lock the plug with supply hose. (Fig.11 - Fig.14)

11

12

13

14

Replacement of filter

Slide water tank out from base unit, take the filter out from water tank, and then replace with a new one. After new filter has been installed well into water tank, fill water into water tank to Max fill level, and then slide water tank back into base unit.(Immerse filter in water for several minutes in order to gain better performance in future use.)

Anti-calc-system

1. The filter is designed to reduce the build-up of limescale which occurs during steam ironing, this will prolong the working life of your iron. However, please note that the filter will not completely stop the natural process of limescales build-up.
2. The filter should be replaced with a new one after 2-3 months, in case of using one time each day. Working life of the filter depends on water you used. Before replace, the filter can still be used continuously. However, limescales may be most probably built up in steam chamber. This happens always depending on your local water quality. It is proposed that replace filter as soon as possible or mix your water with 50% proportion of distilled water.

Emptying and storing

1. Disconnect the appliance from the power supply and allow the appliance to cool down for 60 minutes at least.
2. After use, slide out the water tank and pour out all the remaining water.
3. Wind the power cord around cord storage of the base unit.
4. The iron should be placed on the iron rest plate, lay handle down.

Cleaning and Maintenance

1. Unplug the appliance from the main supply and let the iron cool down.
2. Clean the iron with a damp cloth.
3. Wipe off scale and any other deposits on the soleplate with a damp cloth or non-abrasive(liquid) cleaner.
4. Never clean the appliance under the tap water.

Troubleshooting

Problems Possible causes Solution
Iron won't heat Inc	rect connection to the main socket Re- plug the unit to main socket.
	Temperature control dial is set “MIN”position	Set temperature control dial to desired position according to Fabric setting chart.
	Unknown malfunctions Take to a qualified	serviceman or manufacturer or its service agent for examination and repair.
No steam go out when pressing steam switch after the desired temperature is reached.	Temperature control dial is at SYNTHETIC position	Set temperature control dial to the desired set position.
	No water in water tank Fill water into water tank	water tank
	Filter has not been well installed into water tank.	Install filter into water tank Slide water tank into the power
	Water tank has not been well installed. base and it will be locked in place until a “click” sound produced.
Water leakage from soleplate	Iron has not been heated up to desired temperature	The desired temperature has been reached when heating indicator light turn OFF
	Unknown malfunctions Take to a qualified	serviceman or manufacturer or its service agent for examination and repair.

Hints on Disposal

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
