USER MANUAL RDNE480K21W BEKO

ELPlease read this user manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well. The user manual will help you use the product in a fast and safe way.

Read the manual before nstallng and operatng the product.

Make sure you read the safety nstructons.

Keep the manual n an easly accessble place as you may need t later.

Read the other documents gven wth the product. Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual. Explanation of symbols Throughout this user manual the following symbols are used:

Rsk of njury and damage to the property.

Rsk of electrc shock. Packagng materals of the product are manufac- tured from recyclable ma- terals n accordance wth our Natonal Envronment Regulatons.2 /38EN Refrgerator / User Manual

1. Safety and environment

1.1.2 For models with water dispenser 5

5.15.Humidity controlled crisper . . . .25

5.16.Auto Icematic . . . . . . . . . . . . . . . . . .25

5.17.Description and cleaning of odor

5.21.Filling the water dispenser's tank 28

5.29.Changing the door opening

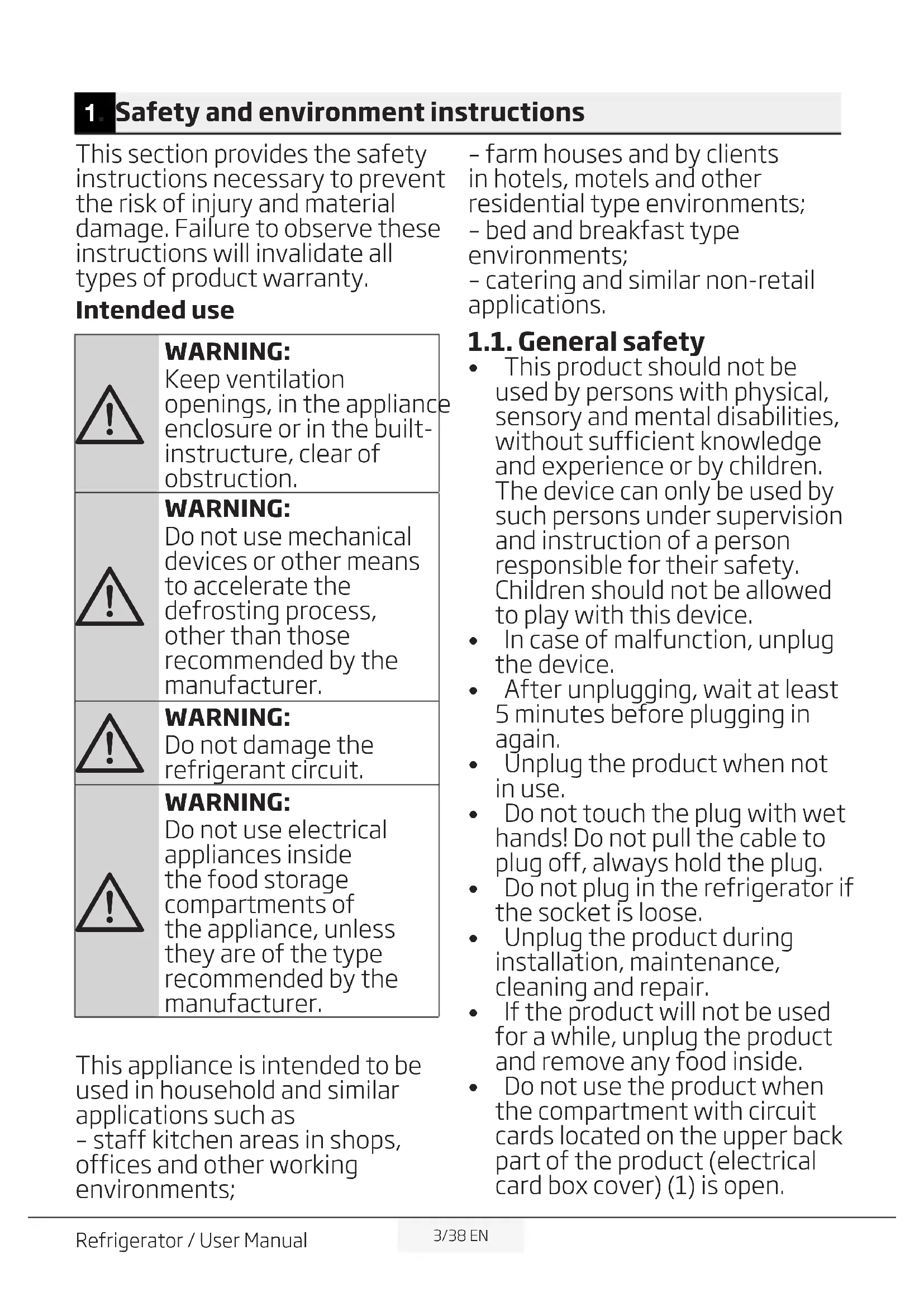

Contents3/38 EN Refrigerator / User Manual This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty. Intended use

Keep ventilation openings, in the appliance enclosure or in the built- instructure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications. 1.1. General safety

This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.

In case of malfunction, unplug the device.

After unplugging, wait at least 5 minutes before plugging in again.

Unplug the product when not in use.

Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug.

Do not plug in the refrigerator if the socket is loose.

Unplug the product during installation, maintenance, cleaning and repair.

If the product will not be used for a while, unplug the product and remove any food inside.

Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

1. Safety and environment instructionsInstructions for safety and environment

Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!

Do not wash the product by spraying or pouring water on it! Danger of electric shock!

In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorised service before doing anything.

Plug the product into an earthed socket. Earthing must be done by a qualified electrician.

If the product has LED type lighting, contact the authorised service for replacing or in case of any problem.

Do not touch frozen food with wet hands! It may adhere to your hands!

Do not place liquids in bottles and cans into the freezer compartment. They may explode.

Place liquids in upright position after tightly closing the lid.

Do not spray flammable substances near the product, as it may burn or explode.

Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.

Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.

Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.

Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.

Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.

Take care not to trap the power cable.Instructons for safety and envronment 5/38 EN Refrigerator / User Manual

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with

Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.

If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.

Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum.

Use drinking water only. 1.2. Intended use

This product is designed for home use. It is not intended for commercial use.

The product should be used to store food and beverages only.

Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.

The manufacturer assumes no responsibility for any damage due to misuse or mishandling.

Original spare parts will be provided for 10 years, following the product purchasing date. 1.3. Child safety

Keep packaging materials out of children’s reach.Instructons for safety and envronment 6 / 38 EN Refrgerator / User Manual

Do not allow the chldren to play wth the product.

If the product’s door comprses a lock, keep the key out of chldren’s reach. 1.4. Compliance with WEEE Directive and Disposing of the Waste Product Ths product comples wth EU WEEE Drectve (2012/19/EU). Ths product bears a classfcaton symbol for waste electrcal and electronc equpment (WEEE). Ths product has been manufactured wth hgh qualty parts and materals whch can be reused and are sutable for recyclng. Do not dspose of the waste product wth normal domestc and other wastes at the end of ts servce lfe. Take t to the collecton center for the recyclng of electrcal and electronc equpment. Please consult your local authortes to learn about these collecton centers. 1.5. Compliance with RoHS Directive

Ths product comples wth EU WEEE Drectve (2011/65/EU). It does not contan harmful and prohbted materals specfed n the Drectve. 1.6. Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.7/38 EN Refrigerator / User Manual

Fridge - compartment door shelf

Water dispenser filling tank

Water dispenser reservoir

Fridge - compartment glass shelf

Freezer compartment shelf

Icebox / Ice-making compartment

Fridge compartment 2 Your applance

*optional:Figures in this user manual are given as an example and may not match the product exactly. If the relevant parts are not available in the product you purchased, the figure applies to other models.

*15 *16 *16 88 /38EN Refrgerator / User Manual 3 Installaton 3.1. Appropriate installation location Contact an Authorized Service for the installation of the product. In order to prepare the product for use, refer the information in the user manual and ensure that electrical installation and water installation are appropriate. If not, call a qualified electrician and technician to have any necessary arrangements carried out.

WARNING: Manufacturer shall

not be held lable for damages that may arse from procedures carred out by unauthorzed persons.

WARNING: Product must not

be plugged n durng nstallaton. Otherwse, there s the rsk of death or serous njury!

of the room where the product shall be place s so tght to prevent passng of the product, remove the door of the room and pass the product through the door by turnng t to ts sde; f ths does not work, contact the authorzed servce.

Placetheproductonanevenfloor surface to prevent jolts.

Installtheproductatleast30cm away from heat sources such as hobs, heater cores and stoves and at least 5 cm away from electrcal ovens.

Productmustnotbesubjectedto drect sun lght and kept n humd places.

Appropriateairventilationmustbe provded around your product n order to acheve an effcent operaton. If the product s to be placed n a recess n the wall, pay attenton to leave at least 5 cm dstance wth the celng and sde walls.

Donotinstalltheproductinplaces where the temperature falls below -5°C. 3.2. Installing the plastic wedges Plastc wedges suppled wth the product are used to create the dstance for the ar crculaton between the product and the rear wall.

1. To nstall the wedges, remove the

screws on the product and use the screws suppled together wth the wedges.

2. Insert the 2 plastc wedges onto the

rear ventlaton cover as llustrated n the fgure.Installation 9 /38 EN Refrigerator / User Manual 3.3. Adjusting the feet If the product stands unbalanced after installation, adjust the feet on the front by rotating them to the right or left. 3.4. Electrical connection

connections via extension cables or multi-plugs.

WARNING: Damaged power

cable must be replaced by the Authorized Service Agent. If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

Our company shall not be liable for any damages that will arise when the product is used without grounding and electrical connection in accordance with the national regulations.

Power cable plug must be within easy reach after installation.

Connect your refrigerator to a grounded outlet rated for a voltage value of 220-240V /50 Hz. Outlet shall have 10 to 16A fuse.

Do not extension cords or cordless multiple outlets between your product and the wall outlet.

Hot Surface Warning!Side walls of your product is equipped with refrigerant pipes to improve the cooling system. Refrigerant with high temperatures may flow through these areas, resulting in hot surfaces on the side walls. This is normal and does not need any servicing. Please pay attention while touching these areas.Installation 10 / 38 EN Refrgerator / User Manual 3.5. Reversing the doors Proceed in numerical order .

Connecting the product to electric energy saving systems is risky as it may cause damage on the product.

Do not leave the doors of your refrigerator open for a long time.

Do not put hot food or drinks in your refrigerator.

Do not overload the refrigerator, cooling capacity will fall when the air circulation inside is hindered.

In order to store maximum amount of food in the freezer compartment, the icematic, available in the freezer compartment and easily removable by hand, shall be taken out. Net volume and energy consumption values declared on the power data plate of your refrigerator are measured and tested by removing the icematic. Do not remove the shelves inside the freezer compartment and on the door of freezer compartment shall not be removed and they shall always be used they provide ease of use and efficiency in energy consumption.

Airflow should not be blocked by placing foods on the sides of the freezer compartment fan. A minimum distance of 3 cm shall be provided on the sides of protective fan cover.

The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

Depending on the features of your product, thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality. 4 Preparaton

Do not allow contact of the food with the fridge compartment temperature sensor shown in the figure below. 4.2. Initial use Before starting to use your refrigerator, ensure that all preparations are made in accordance with the instructions in sections "Instructions for safety and environment" and "Installation".

Run the product without putting any food for 6 hours and do not open its door unless certainly required.

You will hear a noise when the compressor starts up. The liquids and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal. Front edges of the product may feel warm. This is normal. These areas are designed to be warm to avoid condensation. In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.13/38 EN Refrgerator / User Manual 5 Operating the product 5.1. Temperature setting button The interior temperature of your refrigerator changes for the following reasons;

Seasonal temperatures,

Frequent openng of the door and leavng the door open for long perods,

Food put nto the refrgerator wthout coolng down to the room temperature,

The locaton of the refrgerator n the room (e.g. exposng to sunlght).

You may adjust the varyng nteror temperature due to such reasons by usng the settng button.

The numbers around the control knob ndcate the temperature values n “°C”.

If the ambent temperature s 25°C, we recommend you to use the temperature control knob of your refrgerator at 4°C. Ths value may be ncreased or decreased as requred n other ambent temperatures. 5.2. Fast freeze If large amounts of fresh food are going to be frozen, adjust the temperature control knob to ( ) max. 24 hours before putting the fresh food in the fast freeze compartment. It is strongly recommended to keep the knob at this position at least 24 hours to freeze maximum amount of fresh food declared as freezing capacity. Take special care not to mix frozen food and fresh food.

*Optonal: Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.Operating the product 14 / 38 EN Refrgerator / User Manual Remember to turn the temperature control knob back to its previous position once food has frozen. 5.3. Vacation function If the doors of the product are not opened for 12 hours after the temperature control knob is switched to the hottest position, then the vacation function will be activated automatically. To cancel the function, change the knob setting. It is not recommended to store food in cooler compartment when the vacation function is active.

When the settng operaton s completed, you may press the temperature control knob and have t hdden.Operating the product 15/38 ENRefrgerator / User Manual 5.4. Indicator panel Indcator panels may vary accordng to the product model. Audo – vsual functons on the ndcator panel helps you n usng your product.

1. Frdge Compartment Indcator

6. Compartment selecton button

7. Freezer compartment ndcator

1. Frdge compartment ndcator

Fridge compartment light is illuminated while the fridge compartment temperature is set.

2. Error status ndcator

If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated. When this indicator is activated, “E” is displayed on the freezer compartment temperature indicator, and numbers such as “1,2,3...” are displayed on the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error.

3. Temperature ndcator

Indicates freezer, fridge compartment temperature.

4. Vacaton functon button

Press on Vacation Button for 3 seconds to activate this function. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature. To cancel this function press Vacation button again.

5. Temperature settng button

Changes the temperature of the relevant compartment between -24°C... -18°C and 8°C...1°C.

6. Compartment selecton button

Selection button: Press compartment selection button to switch between fridge and freezer compartments.

7. Freezer compartment ndcator

Fridge compartment light is illuminated while the freezer compartment temperature is set.

8. Economy mode ndcator

Indicates that the refrigerator operates in energy saving mode. This display shall be activated if the freezer compartment temperature is set to -18°C.

9. Vacaton functon ndcator

Indicates that vacation is activated.Operating the product 17/38 ENRefrgerator / User Manual a long time energy saving function is automatically activated and energy saving symbol is illuminated. ( ) When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal. Energy saving function is activated during delivery from factory and cannot be canceled. 3.Quck frdge functon

*Optonal: Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models. 5.5. Indicator panel Indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the product. Just press the inscriptions on relevant buttons for function settings.

1. Power falure/Hgh temperature / error warnng ndcator

This indicator ( ) illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment ( ) press the alarm off button to clear the warning.

2. Energy savng functon (dsplay off):

If the product doors are kept closed forOperating the product 18 / 38 EN Refrgerator / User Manual The button has two functons. To actvate or deactvate the quck cool functon press t brefly. Quck Cool ndcator wll turn off and the product wll return to ts normal settngs. ( )

Use quck coolng functon when you want to quckly cool the food placed n the frdge compartment. If you want to cool large amounts of fresh food, actvate ths functon before puttng the food nto the product.

If you do not cancel t, quck coolng wll cancel tself automatcally after 8 hours or when the frdge compartment reaches to the requred temperature.

If you press the quck coolng button repeatedly wth short ntervals, the electronc crcut protecton wll be actvated and the compressor wll not start up mmedately.

Ths functon s not recalled when power restores after a power falure.

4. Frdge compartment temperature

settng button Press this button to set the temperature of the fridge compartment to 8, 7,6, 5,4,3, 2, 8... respectively. Press this button to set the fridge compartment temperature to the desired value. ( ) 5.Vacation Function In order to activate vacation function, press the this button ( ) for 3 seconds, and the vacation mode indicator ( ) will be activated. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature. To cancel this function press Vacation function button again.

6. Alarm off warnng:

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button ( ) to clear the warning.

Press key lock button ( ) simultaneously for 3 seconds. Key lock symbol ( ) will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited. Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator ( ).

Press and hold eco fuzzy button for 1 seconds to activate eco fuzzy function. Refrigerator will startOperating the product 19/38 EN Refrgerator / User Manual operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active ( ). Press and hold eco fuzzy function button for 3 seconds to deactivate eco fuzzy function. This indicator is illuminated after 6 hours when eco fuzzy is activated.

9. Freezer compartment

temperature settng button Press this button to set the temperature of the freezer compartment to -18,-19,-20,-21, -22, -23,-24, -18... respectively. Press this button to set the freezer compartment temperature to the desired value.( )

10. Icematic off indicator

Indicates whether the icematic is on or off. ( )If On, then the icematic is not operating. To operate the icematic again press and hold the On- Off button for 3 seconds.

Water flow from water tank wll stop when ths functon s selected. However, ce made prevously can be taken from the cematc.

11. Quck freeze functon button/

cematc on-off button Press this button to activate or deactivate the quick freezing function. When you activate the function, the freezer compartment will be cooled to a temperature lower than the set value. ( ) To turn on and off the icematic press and hold it for 3 seconds.

Use the quck freeze functon when you want to quckly freeze the food placed n frdge compartment. If you want to freeze large amounts of fresh food, actvate ths functon before puttng the food nto the product.

If you do not cancel t, Quck Freeze wll cancel tself automatcally after 4 hours or when the frdge compartment reaches to the requred temperature.

Ths functon s not recalled when power restores after a power falure.

12. Economc usage ndcator

Indicates that the product is running in energy-efficient mode. ( )This indicator will be active if the Freezer Compartment temperature is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

Economc usage ndcator s turned off when quck coolng or quck freeze functons are selected.Operating the product 20 / 38 EN Refrgerator / User Manual

This symbol is illuminated when the freezer compartment is set to -18°C'ye as the most economical setting value ( ). Economy indicator is turned off when quick cooling or quick freeze functions are selected.

2. Hgh temperature / error

warnng ndcator This indicator ( ) illuminates during high temperature failures and error warnings.

Quick cooling indicator ( ) is

*Optonal: Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models. illuminated when quick cooling function is activated and fridge compartment temperature indicator value is displayed as 1. To cancel this function press Quick cooling button again. Quick cooling indicator will turn off and refrigerator will return to its normal settings. Quick cooling function is canceled automatically in 1 hour if you do not cancel it before. If you want to cool large amounts of fresh food, press the Quick cooling button before putting the food into the fridge compartment.

In order to activate vacationOperating the product 21/38 EN Refrgerator / User Manual function, press the button no. (4) ( ) for 3 seconds, and the vacation mode indicator activates. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature. To cancel this function press Vacation function button again.

5. Frdge compartment temperatu-

re settng When the button no. (5) is pressed, you may set the temperature of the fridge compartment to 8,7,6,5,4,3,2 and 1 respectively ( ).

6. Energy savng functon (dsplay

off): Energy saving symbol ( ) is illuminated and Energy saving function is activated when you press this button ( ). When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal. Energy saving symbol is turned off and energy saving function is deactivated when you press this button ( ) again.

Press and hold eco fuzzy button for 1 seconds to activate eco fuzzy function. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active ( ). Press and hold eco fuzzy function button for 3 seconds to deactivate eco fuzzy function. This indicator is illuminated after 6 hours when eco fuzzy is activated.

9. Freezer compartment tempera-

ture settng Temperature setting for freezer compartment is performed here. When button no. 9 is pressed, you may set the temperature of the freezer compartment to -18, -19, -20, -21, -22, -23 and -24 respectively.

Press button no. (10) for fast freeze operation, quick freeze indicator ( ) shall be activated. Quick freeze indicator is illuminatedOperating the product 22 / 38 EN Refrgerator / User Manual 5.6. Twist Ice – matic (Ths feature s optonal)

Remove the water tank by rotatng t to the left.

Open the water tank cover by turnng t and add water to the water tank up to the lower part of the water tank cover.

Place the water tank on ts place as shown n the fgure after addng water and have t seated by rotatng t on the drecton of the arrow. Water shall be poured down to the cebank.

When ce has formed, rotate cebank knob n the drecton of the arrow to allow that the ce s dropped down to the ce drawer.

Take the ce cubes by pullng ce drawer out.

Pull the front face towards you n order to wash the cebank, and put t on the sldes on the nteror area and push t to ts place n order to replace t.

Pull the twst cematc unt towards you n order to remove the unt, and put t on the sldes on the celng and push t to ts place n order to replace t. when quick freeze function is activated and fridge compartment temperature indicator is displayed as -27. To cancel this function press quick freeze button ( ) again. Quick freeze indicator will turn off and refrigerator will return to its normal settings. Quick freeze function is canceled automatically in 24 hour if you do not cancel it before. If you want to freeze large amounts of fresh food, press the quick freeze button before putting the food into the freezer compartment.Operating the product 23/38 EN Refrgerator / User Manual 5.7. Ice container

Remove the ce contaner from the freezer compartment.

Fll the ce contaner wth water.

Place the ce contaner n the freezer compartment. About two hours later, the ce s ready.

Remove the ce contaner from the freezer compartment and bend t over the servce plate. Ice cubes wll easly fall down to the servce plate. 5.8. Egg holder You can install the egg holder to the desired door or body shelf. If it will be placed on body shelves than the lower cooler shelves are recommended.

Never place the egg holder n the freezer compartment 5.9. Fan Fan is designed to ensure homoge- neous distribution and circulation of the cold air inside your refrigerator. Operation time of the fan may vary depending on the properties of your product. While the fan works only with the compressor in some products, the control system determines its opera- tion time in some products in accor- dance with the cooling requirement. 5.10. Crisper Crisper of the product is designed specially to keep the vegetables fresh without loosing their humidity. For this purpose, cool air circulation is intensified around the crisper in general. 5.11. Chiller compartment (Ths feature s optonal) Use this compartment to store delicatessen that shall be stored in a lower temperature or meat products that you will consume in a short time. Chiller compartment is the coolest place in your refrigerator where you can keep dairy products, meat, fish and poultry under ideal storage conditions. Fruits and vegetables should not be stored in this compartment.Operating the product 24 / 38 EN Refrgerator / User Manual 5.12. Moving door shelf (Ths feature s optonal) Moving door shelf may be fixed in 3 different positions. Press the buttons shown in the sides at the same amount in order to move the shelf. Shelf shall be movable. Move the shelf up or down. Release the buttons when you have the shelf in the desired position. Shelf shall be fixed on the position where you release the buttons. 5.13. Sliding storage container (Ths feature s optonal) This accessory is designed to increase the usable volume of the door shelves. It allows you to easily place the tall bottles, jars and tins to the lower bottle shelf thanks to its ability to move right or left. 5.14. Blue light (Ths feature s optonal) This accessory is designed to increase the usable volume of the door shelves. It allows you to easily place the tall bottles, jars and tins to the lower bottle shelf thanks to its ability to move right or left.Operating the product 25/38 EN Refrgerator / User Manual 5.15. Humidity controlled crisper (FreSHelf) (Ths feature s optonal) Humidity rates of the vegetables and fruit are kept under control with the feature of humidity-controlled crisper and the food is ensured to stay fresh for longer. We recommend you to place the leafy vegetables such as lettuce, spinach and the vegetables which are sensitive to humidity loss, in a horizontal manner as much as possible inside the crisper, not on their roots in a vertical position. While the vegetables are being placed, specific gravity of the vegetables should be taken into consideration. Heavy and hard vegetables should be put at the bottom of the crisper and the lightweight and soft vegetables should be placed over. Never leave the vegetables inside the crisper in their bags. If the vegetables are left inside their bags, this will cause them to decompose in a short period of time. In case contacting with other vegetables is not preferred for hygiene concerns, use a perforated paper and other similar packaging materials instead of a bag. Do not place together the pear, apricot, peach, etc. and apple in particular which have a high level of generation of ethylene gas in the same crisper with the other vegetables and fruit. The ethylene gas which is emitted by these fruit may cause the other fruit to ripen faster and decompose in a shorter time. 5.16. Auto Icematic (Ths feature s optonal) The Auto Icematic allows you to make ice in the fridge easily. Remove the water tank in the fridge compartment, fill it wilt water and install it back to obtain ice from the Icematic. First ice cubes will be ready in approximately 2 hours in the Icematic drawer located in the freezer compartment. If you fill the water tank completely, you will be able to obtain approximately 60-70 ice cubes. Change the water in water tank if it has waited around 2-3 weeks.

For the products having automatic Icematic, sound may be heard during ice pouring. This sound is normal and does not signal any error.Operating the product 26 / 38 EN Refrgerator / User Manual 5.17. Description and cleaning of odor filter (Ths feature s optonal) Odor filter prevents unpleasant odor build-up in your product.

1. Pull the cover nto whch the odor

flter s nstalled downwards from the front secton and remove as llustrated.

2. Leave the flter under sunlght

for one day. Flter wll be cleaned durng ths tme.

3. Install the flter back to ts place.

Odor flter must be cleaned once n a year. 5.18. HerbBox/ HerbFresh Remove the flm contaner from HerbBox/HerbFresh+ Take the flm out of the bag and put t nto the flm contaner as shown n the mage. Seal the contaner agan and replace t nto HerbBox/HerbFresh+ unt. HerbBox-HerbFresh+ sectons are especally deal for storage of varous herbs that are supposed to be kept n delcate condtons. You can store your unbagged herbs (parsley, dll, etc.) n ths secton horzontally and keep them fresh for a much longer perod. The flm shall be replaced n every sx months.Operating the product 27/38 EN Refrgerator / User Manual 5.19. Using the water dispenser *optonal

It is normal for the first few glasses of water taken from the dispenser to be warm.

If the water dispenser is not used for a long period of time, dispose of first few glasses of water to obtain fresh water.

1. Push n the lever of the water ds-

penser wth your glass. If you are usng a soft plastc cup, pushng the lever wth your hand wll be easer.

2. After fllng the cup up to the level

you want, release the lever.

Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow. If you slightly press the arm, the water will drip; this is quite normal and not a failure. 5.20. Using the water dispenser *optonal

It is normal for the first few glasses of water taken from the dispenser to be warm.

If the water dispenser is not used for a long period of time, dispose of first few glasses of water to obtain fresh water.

1. Push n the lever of the water ds-

penser wth your glass. If you are usng a soft plastc cup, pushng the lever wth your hand wll be easer.

2. After fllng the cup up to the level

you want, release the lever.Operating the product 28 / 38 EN Refrgerator / User Manual

1. Open the cover of the tank.

2. Fill the tank with fresh drinking

Do not fill the water tank with any other liquid except for water such as fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank.

Use clean drinking water only.

Capacity of the water tank is 3 litres; do not overfill.Operating the product 29/38 EN Refrgerator / User Manual 5.22. Cleaning the water tank

1. Remove the water fllng reservor

2. Remove the door rack by holdng

3. Grab the water tank from both s-

des and remove t wth an angle of 45°C.

4. Remove the cover of the water

tank and clean the tank.

Components of the water tank and water dispenser should not be washed in dishwasher.Operating the product 30 / 38 EN Refrgerator / User Manual 5.23. Drip tray Water that dripped while using the water dispenser accumulates in the spillage tray. Remove the plastic filter as shown in the figure. With a clean and dry cloth, remove the water that has accumulated.Operating the product 31/38 EN Refrgerator / User Manual 5.24. Freezing fresh food

In order to preserve the quality of the food, it shall be frozen as quickly as possible when it is placed in the freezer compartment, use the fast freezng feature for ths purpose.

You may store the food longer n freezer compartment when you freeze them whle they are fresh.

Pack the food to be frozen and close the packng so that t would not allow entrance of ar.

Ensure that you pack your food before puttng them n the freezer. Use freezer contaners, fols and mosture-proof papers, plastc bags and other packng materals nstead of tradtonal packng papers.

Label each pack of food by addng the date before freezng. You may dstngush the freshness of each food pack n ths way when you open your freezer each tme. Store the food frozen before n the front sde of compartment to ensure that they are used frst.

The freezer compartment defrosts automatically.

Frozen food must be used mmedately after they are thawed and they should not be re-frozen.

Do not freeze too large quanttes of food at one tme. Freezer Compartment SettingFridge compartment SettingRemarks-18°C 4°C This is the normal recommended setting.-20,-22 or -24°C 4°C These settings are recommended when the ambient temperature exceeds 30°C.Quick Freeze 4°CUse when you wish to freeze your food in a short time. Your product will return to its previous mode when the process is over.-18°C or colder 2°CUse these settings if you think that your fridge compartment is not cold enough because of the hot ambient conditions or frequent opening and closing of the door.Operating the product 32 / 38 EN Refrgerator / User Manual 5.25. Recommendations for preserving the frozen food Compartment shall be set to -18°C at least.

Put packages n the freezer as quckly as possble after purchase wthout allowng the to thaw.

Check whether the “Use By” and “Best Before” dates on the packagng are expred or not before freezng t.

Ensure that the package of the food s not damaged. 5.26. Deep-freeze information According to IEC 62552 standards, the product shall freeze at least 4.5 kg of food at 25°C ambient temperature to -18°C or lower within 24 hours for every 100-litres of freezer volume. It is possible to preserve the food for a long time only at -18°C or lower temperatures. You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze). Foods to be frozen should not be allowed to come in contact with the previously frozen items to prevent them from getting thawed partially. Boil the vegetables and drain their water in order to store vegetables for a longer time as frozen. After draining their water, put them in air-proof packages and place them inside the freezer. Food such as bananas, tomatoes, lettuce, celery, boiled eggs, potatoes are not suitable for freezing. When these foods are frozen, only their nutritional value and taste shall be affected negatively. They shall not be spoiled so that they would create a risk for human health. 5.27. Placing the food Freezer compartment shelves Various frozen food such as meat, fish, ice cream, vegetables and etc. Refrigerator compartment shelves Food in pans, covered plates and closed containers, eggs (in closed container) Door shelves of fridge compartment Small and packaged food or beverage Crisper Vegetables and fruits Fresh zone compartment Delicatessen (breakfast food, meat products that shall be consumed in a short time) 5.28. Door open warning (Ths feature s optonal) Door open warning is given to user both visually and acoustically. If the warning continues for 10 minutes, interior lights will be turned off.Operating the product 33/38 EN Refrgerator / User Manual 5.29. Changing the door opening direction Door openng drecton of your ref- rgerator can be changed accordng to the place you are usng t.If ths s necessary, please call your nearest Authorzed Servce. Above descrpton s a general exp- resson.For nformaton on changng the openng drecton of the door, you must refer to the warnng label loca- ted on the nner sde of the door. 5.30. Illumination lamp LED lamps are used as llumnaton lamps. Contact authorzed servce n case of any problem wth ths type of lght. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.34 /38EN Refrgerator / User Manual 6 Mantenance and cleanng Service life of the product is increase if it is regularly cleaned

WARNING: Frst unplug the product

before cleanng your refrgerator.

Never use any sharp and abrasve tools, soap, household cleaners, detergent and wax polsh for cleanng.

Dssolve one teaspoon of carbonate n half lter of water. Soak a cloth wth the soluton and wrung t thoroughly. Wpe the nteror of the applance wth ths cloth and the dry thoroughly.

Make sure that no water enters the lamp housng and other electrcal tems.

Clean the door wth a damp cloth. To remove door and body shelves, remove all of ts contents. Remove door shelves by movng them upwards. After cleanng, slde them from top to bottom to nstall.

Never use cleanng agents or water that contan chlorne to clean the outer surfaces and chromum coated parts of the product. Chlorne causes corroson on such metal surfaces.

Do not use sharp, abrasve tools, soap, household cleanng agents, detergents, kerosene, fuel ol, varnsh etc. to prevent removal and deformaton of the prnts on the plastc part. Use lukewarm water and a soft cloth for cleanng and then wpe t dry. 6.1. Avoiding bad odors Materials that may cause odor are not used in the production of our appliances. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the appliance as required can bring forth the problem of odor. Therefore, clean the refrigerator wth carbonate dssolved n water every 15 days.

Keep the food n closed contaners. Mcroorgansms spreadng out from uncovered contaners can cause unpleasant odours.

Never keep the food that have expred best before dates and spoled n the refrgerator. 6.2. Protecting the plastic surfaces Clean with arm water immediately as the oil may cause damage on the surface when it is poured on plastic surfaces. 6.3. Door Glasses Remove the protective foil on the glasses. There is a coating on the surface of the glasses.This coating minimizes the stain build-up and helps to remove the possible stains and dirt easily.Glasses that are not protected with such a coating may be subject to persistent binding of air or water based organic or inorganic dirt such as limescale, mineral salts, unburned hydrocarbons, metal oxides and silicones that can easily and quickly cause stains or material damage. Keeping the glass clean becomes too difficult despite the regular cleaning. Consequently, the appearance and the transparency of the glass deteriorates. Harsh and corrosive cleaning methods and compounds will intensify these defects and speed up the deterioration process. Water-based cleaning products that are not alkaline and corrosive must be used for regular cleaning purposes. Non-alkaline and non-corrosive materials must be used for cleaning so that the35/38 EN Refrgerator / User Manual 6 Maintenance and cleaning service life of this coating lasts for a long time. These glasses are tempered to increase their durability against impacts and breaking.A safety film is also applied to their rear surfaces as an extra safety measure in order to prevent them from causing damage to their surrounding in case of a breakage. *Alkali is a base that forms hydroxide ions (OH¯) when it is dissolved in water. Li (Lithium), Na (Sodium), K (Potassium) Rb (Rubidium), Cs (Cesium) and artificial and radioactive Fr (Fan-sium) metals are called ALKALI METALS.36 /38EN Refrigerator / User Manual

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product. The refrigerator is not working.

The power plug is not fully settled. >>> Plug it in to settle completely into the socket.

The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses. Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

The door is opened too frequently >>> Take care not to open the product’s door too frequently.

The environment is too humid. >>> Do not install the product in humid environments.

Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.

The product’s door is left open. >>> Do not keep the product’s door open for long periods.

The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature. Compressor is not working.

In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product’s cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.

Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.

The product is not plugged in. >>> Make sure the power cord is plugged in.

The temperature setting is incorrect. >>> Select the appropriate temperature setting.

The power is out. >>> The product will continue to operate normally once the power is restored. The refrigerator’s operating noise is increasing while in use.

The product’s operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction. The refrigerator runs too often or for too long.

The new product may be larger than the previous one. Larger products will run for longer periods.

The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.

The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.

Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.

The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.

The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.

The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature. The freezer temperature is very low, but the cooler temperature is adequate.

The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.37/38 EN Refrigerator / User Manual Troubleshooting The cooler temperature is very low, but the freezer temperature is adequate.

The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The food items kept in cooler compartment drawers are frozen.

The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The temperature in the cooler or the freezer is too high.

The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.

The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.

The door may be ajar. >>> Fully close the door.

The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.

Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product. Shaking or noise.

The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.

Any items placed on the product may cause noise. >>> Remove any items placed on the product. The product is making noise of liquid flowing, spraying etc.

The product’s operating principles involve liquid and gas flows. >>> This is normal and not a malfunction. There is sound of wind blowing coming from the product.

The product uses a fan for the cooling process. This is normal and not a malfunction. There is condensation on the product’s internal walls.

Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.

The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.

The door may be ajar. >>> Fully close the door. There is condensation on the product’s exterior or between the doors.

The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced. The interior smells bad.

The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.

Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour.

The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro- organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product. The door is not closing.

Food packages may be blocking the door. >>> Relocate any items blocking the doors.

The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.38 /38EN Refrigerator / User Manual Troubleshooting

The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product. The vegetable bin is jammed.

The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer. If The Surface Of The Product Is Hot.

High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance!Be careful when touching these areas.

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.EWWERQWEW

1W7 QJ=,B>*H'( K38$* >

("5D !"#$%$ O R(T-L(C ,*-1>#'( M8%L( Z*AB$' Q*1C3J'( 234 UN K5%$* Q*1C3J'>N =]$B&'( Q& !C1J'>5 ,*38&'( =,*B"V&'( M8%L( sWX )Jz$ ,S*1J'( Me(C1'( KB-$ [*BH$ "B4 Me(C1 ]$B$ "@ U$'( "(C&'( !("#$%( !$* !' K5%5 Me(C1 b>V5B( ,3Jf& Z">H$ "@ YBD O: =>B$>-$B& M8%'( Z*AB$ !"4C !>V8'( AI7' ,5%>B&'( 1*E )(C7L( =KC38& CX >&J ,-./3' U3#("'( )J R>&'( UN ,5(W& G>BC51J5 ,-./'( Z*AB$5 !@ `j'W'

=8_N ,I*AB'( K1f'( s>*& !"#$%(

8E; 9' (I- !n;37'( )7 0
