USER MANUAL HND 6515A85S HOOVER

RICERCA PICCOLI GUASTI

CHARGEMENT DU PRODUIT

“FASES DO PROGRAMA”/ “INÍCIO

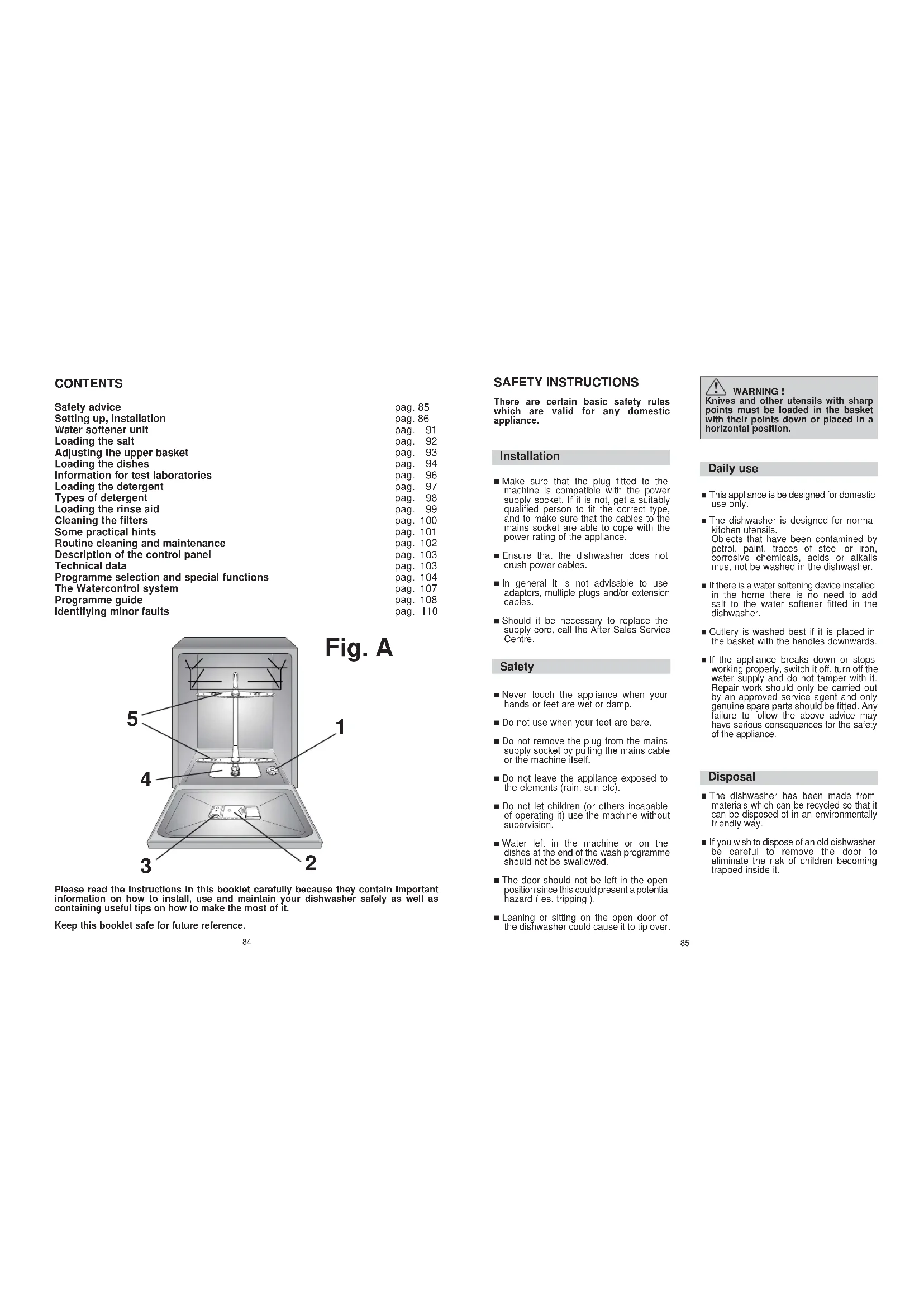

SAFETY INSTRUCTIONS There are certain basic safety ruleswhich are valid for any domesticappliance. Installation ■ Make sure that the plug fitted to themachine is compatible with the powersupply socket. If it is not, get a suitablyqualified person to fit the correct type,and to make sure that the cables to themains socket are able to cope with thepower rating of the appliance.■ Ensure that the dishwasher does notcrush power cables.■ In general it is not advisable to useadaptors, multiple plugs and/or extensioncables.■ Should it be necessary to replace thesupply cord, call the After Sales ServiceCentre. Safety ■ Never touch the appliance when yourhands or feet are wet or damp.■ Do not use when your feet are bare.■ Do not remove the plug from the mainssupply socket by pulling the mains cableor the machine itself.■ Do not leave the appliance exposed tothe elements (rain, sun etc).■ Do not let children (or others incapableof operating it) use the machine withoutsupervision.■ Water left in the machine or on thedishes at the end of the wash programmeshould not be swallowed.■ The door should not be left in the openposition since this could present a potentialhazard ( es. tripping ).■ Leaning or sitting on the open door ofthe dishwasher could cause it to tip over.WARNING !Knives and other utensils with sharppoints must be loaded in the basketwith their points down or placed in ahorizontal position. Daily use ■ This appliance is be designed for domesticuse only.■ The dishwasher is designed for normalkitchen utensils.Objects that have been contamined bypetrol, paint, traces of steel or iron,corrosive chemicals, acids or alkalismust not be washed in the dishwasher.■ If there is a water softening device installedin the home there is no need to addsalt to the water softener fitted in thedishwasher.■ Cutlery is washed best if it is placed inthe basket with the handles downwards.■ If the appliance breaks down or stopsworking properly, switch it off, turn off thewater supply and do not tamper with it.Repair work should only be carried outby an approved service agent and onlygenuine spare parts should be fitted. Anyfailure to follow the above advice mayhave serious consequences for the safetyof the appliance. Disposal ■ The dishwasher has been made frommaterials which can be recycled so that itcan be disposed of in an environmentallyfriendly way.■ If you wish to dispose of an old dishwasherbe careful to remove the door toeliminate the risk of children becomingtrapped inside it.86 INSTALLATION (Technical notes) ■ After unpacking, adjust the height of the dishwasher. For the dishwasher to work correctly it must be level. Adjust the feet so that the machine does not tilt by more than 2 degrees. ■ If it you need to move the machine after removing the packaging, do not try to lift it by the bottom of the door. Follow the instructions in the figure below. Open the door slightly and lift the machine by holding on the top. IMPORTANT When the appliance is located on a carpet floor, attention must be paid to ensure that there is no obstruction to the bottom vents. Make sure that the plug on the appliance remains accessible after installation. Electrical connection This appliance complies with international safety standards, and is fitted with a 3 pin plug with earth connection to ensure complete earthing of the product. Before connecting the appliance to the mains supply it is important to ensure:

1. that the supply socket is properly

2. that your electricity supply is capable of

meeting the consumption requirements listed on the rating plate of your appliance. WARNING! Ensure that your product is properly earthed. In the absence of adequate earthing you will notice that when touching the metal parts of your appliance an electrical dispersion can be felt, due to the presence of a radio interference suppressor. Manufacturer declines all responsibility for any damage due to non-earthing of the machine. This appliance complies with Directives 89/336/EEC, 73/23/EEC and following changes.

Electrical connection (for U.K. only) Plug your dishwasher into the power socket. If the plug we supply does not fit : ■ CUT IT OFF AND DESTROY IT! You can't use it on other appliances, and the exposed wires could be dangerous if anyone plugged it in. ■ Fit a suitable plug, as follows: WARNING! THIS APPLIANCE MUST BE EARTHED. Fuses and plugs This appliance should be used only on a socket with a minimum rating of 13 Amp. Our ready-fitted plug is already equipped with a 13 amp fuse which is BS 1362 ASTA approved. Any replacement should be exactly the same. If the fuse cover is lost, do not use the plug until it is replaced. A correct replacement fuse cover (obtaina- ble from your dealer or Electricity board) must be the same colour as shown or named on the insert on the base of the plug. Green and yellow wire Marked with the letter E, OR marked with the Earth symbol, OR coloured green, OR coloured green and yellow. Blue wire Brown wire Marked N, OR coloured black. Marked L, OR coloured red. Connect to the terminal in the plugWater connection IMPORTANT The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. ■ The inlet and drain hoses can be directed to left or right. IMPORTANT The dishwasher can be connected to either cold or hot water, as long as it is no hotter than 60 °C. ■ Water pressure must be between 0,08 MPa and 0,8 MPa. If the pressure is below the minimum consult our service department for advice. ■ The inlet hose must be connected to a tap so that the water supply can be cut off when the machine is not in use (fig. 1 B). ■ The dishwasher is fitted with 3/4" threaded connector (fig. 2). ■ Connect inlet hose “A” to water tap “B” with a 3/4" attachment making sure that it has been properly tightened. ■ If it is necessary, the inlet pipe can be lengthened up to 2,5 m. The extension pipe is available from the After Sales Service Centre. ■ If limescale deposits or sand are present in the water, it is advisable to obtain the appropriate filter, art. 9226085, from the After Sales Service Centre (fig. 3). The filter “D” must be inserted between the tap “B” and the inlet hose “A”, remembering to fit the washer “C”. ■ If the dishwasher is connected to new pipes or to pipes which have not been in use for a long time run water through for a few minutes before connecting the inlet hose. In this way no deposits of sand or rust will clog up the water inflow filter.

Connecting the outlet hose ■ The outlet hose should disharge into a standpipe, making sure that there are no kinks (fig. 4). ■ The standpipe must be at least 40 cm above floor level and it must have an internal diameter of at least 4 cm. ■ It is advisable to fit an anti-odour air trap (fig. 4X). ■ If necessary the outlet hose can be extended up to 2,5 m, provided that it is kept at a maximum height of 85 cm above floor level. The extension pipe is available from the After Sales Service Centre. ■ The hose can be hooked over the side of the sink, but it must not be immersed in water, in order to prevent water from being syphoned back to the machine when this is in operation (fig. 4Y). ■ When installing the appliance under a worktop the hose pipe clamp must be attached to the wall in the highest possible position under the worktop (fig. 4Z). ■ Check that there are no kinks in the inlet and outlet hoses.

KITCHENS Fitting between existing cabinets ■ The height of the dishwasher, 85 cm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The feet can be adjusted so that correct height is reached. ■ The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof (fig. 5). Opening the door Put your hand into the recess and pull. If the machine comes open while it is working, an electrical safety device automatically switches everything off. IMPORTANT For the machine to work properly, the door should not be opened while it is in operation. Closing the door Place the baskets in the machine. Make sure that both the spray arms are free to rotate and are not obstructed by cutlery, crockery or pans. Close the door, pressing on it to make sure it is firmly shut. Underneath existing work top (when fitting beneath a work top) ■ In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (fig. 6a). IMPORTANT After removing the work top, the screws MUST BE screwed again under the rear edge of the top (fig. 6b). ■ The height will then be reduced to 82 cm, as scheduled by the International Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top (fig. 7).

• The water softener unit is set in the factory at level 3, as this is suitable for the majority of users. According to the degree of hardness of your water, regulate the softener unit in the following way: IMPORTANT The dishwasher must be ALWAYS off before start this procedure.

1. When the dishwasher is off, OPEN

2. Hold down the FIRST and the THIRD

"PROGRAMME" button (from the left) while simultaneously pushing the "ON/OFF" button.

3. Release the buttons when some

"PROGRAMME SELECTION" indicator lights up.

4. Press the "PROGRAMME" button for

the required water softener level (each time the button is pressed a light will go on). For level 5, press the "HALF LOAD" button.

5. Turn off the dishwasher pressing the

"ON/OFF" button to confirm the new setting. WARNING! If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company. Regulating the water softener The softener unit can treat water with a hardness of up to 90°fH (French grading) or 50°dH (German grading) through 6 different settings. The table below lists different degrees of water hardness with the corresponding setting for the softener unit. LevelºfH (French grading) ºdH (Germangrading)

“HALF LOAD”option buttonLevelsLOADING THE SALT ■ On the bottom of the machine there is a container for the salt for regenerating the softener. ■ It is important to use only a salt that is specifically designed for dishwasher. Other types of salt contain small quantities of insoluble particles which over a long period of time may affect and deteriorate the softener performance. ■ To add salt, unscrew the cap of the con- tainer on the bottom and then refill the container. ■ During this operation a little water will overflow; but keep adding salt until the container is full. When the container is full, clean the thread of salt residue and retighten the tap. ■ After loading the salt, it is recommended running a complete washing cycle, or COLD RINSE programme. The salt dispenser has a capacity of between 1.5 and 1.8 kg and, for efficient use of the appliance, it should be refilled from time to time according to the regulation of the water softener unit.

IMPORTANT (Only for first start up) When the appliance is used for the first time, after completely filling the salt container, it is necessary to add water until the container overflows. Salt loading indicator This model is provided with an indicator light on the control panel which will light up when it is necessary to reload the salt container. IMPORTANT The appearance of white stains on dishes is generally an important sign that the salt container needs filling.

UPPER BASKET If 27 cm to 31 cm plates are normally used, load them onto the lower basket after the upper basket has been placed in its upper position and proceed as detailed below:

1. Pull out the upper basket;

2. Then grasp the basket from both sides

and lift it upwards (fig. 1). Dishes that are bigger than 20 cm in diameter can no longer be loaded onto the upper basket and the mobile supports cannot be used when the basket is in the upper position.

1. Grasp the basket from both sides and lift

slightly upwards (fig. 2a);

2. Then slowly release into the correct

LOADING DISHES Using the upper basket■ The upper basket is provided withmobile racks hooked to the sides of thebasket which can be regulated in twopositions: upright and lowered. In thelowered position the racks may be usedfor tea and coffee cups, kitchen knivesand ladles. Glasses with stems may besafely hung on the ends of the racks.Glasses, cups, saucers and dessertplates may be loaded under the racks.■ Soup plates and ordinary plates may beloaded with the rack in the uprightposition. Plates should be loadedvertically with the underside of the platetowards the back of the dishwasher witha space between each plate to allowwater to pass freely.■ It is advisable to load plates of the samesize together in order to utilize maximumbasket capacity.■ Plates may be loaded in a single row(fig. 1) or on both rows (fig. 2).■ It is advisable to load large plates(approx. 27 or more cm) slightly tiltedtowards the rear to facilitate introductionof the basket into the machine.■ Salad bowls and plastic bowls may alsobe loaded on the upper basket. It isadvisable to block these in place so thatthe jets of water do not make themoverturn.■ The upper basket has been designed tooffer maximum flexibility in use and canbe loaded with up to 24 plates on tworows, up to 30 glasses on five rows or amixed load.A standard daily load is represented infigs. 1 and 2.Upper basket (fig. 1)A = soup platesB = dinner platesC =dessert platesUpper basket (fig. 2)A = soup platesB = dinner platesC =dessert platesD = saucersE = cupsUsing the lower basket■ Saucepans, oven dishes, tureens, saladbowls, lids, serving dishes, dinnerplates, soup plates and ladles can beloaded on the lower basket.■ Place the cutlery in the plastic cutleryholder with the handles pointingupwards.■ Place the cutlery holder on the lowerbasket (fig. 6), making sure that thecutlery does not get in the way of therotating arms.D = saucersE = cupsF = glassesF = glasses with stemsG = glassH = cutlery basket

■ The lower basket is fitted with a special adjustable central rack (fig. 3 and 4). This permits stable and optimumloading, even when the size and/orshape of the dishes is non-standard.- POSITION “A”: for a standard load, orone that excludes pans, salad bowls andthe like.- POSITION “B”: for dishes which,although standard size, have a particularshape (very deep bowls, square dishesor ones without borders etc.).- POSITION “C”: for larger than averageflat plates and/or ones with non-standard shapes (square, hexagonal,oval, pizza dishes etc.).■ The small plates, as those used fordesserts for example, must be placed inthe lower basket as shown in the figure 5,with the support flap placed outwards ("B").For normal or large plates the flap mustbe in the position ("A").WARNING!If the small plates are placed in thebasket with the support flap in theincorrect position, the plates willinterfere with the lower spraying armpreventing it to rotate.A standard daily load is represented infig. 6.Lower basket (fig. 6)A = medium-sized saucepanB = large saucepan C = frying panD = tureens, serving dishesPlease load the dishwasher sensibly toensure the best wash results.IMPORTANTThe lower basket has a safety-stopdevice, for its safe extraction, alsoespecially useful with a full load.For loading salt, cleaning filter and forordinary maintenance, the completeextraction of the basket is necessary. Cutlery basketThe top of cutlery basket can be removed,for enable various loading options.

E = cutleryF = oven dishesG = medium bowlH = small bowl

LOADING THE DETERGENT

The detergent IMPORTANTIt is essential to use a detergentthat is specifically designed fordishwashers either in powder, liquidor tablet form.“FINISH” gives very good results and canbe easily obtained.Unsuitable detergents (like those forwashing up by hand) do not contain theproper ingredients for use in a dishwasher,and stop the dishwasher from workingcorrectly. Filling the detergent container The detergent container is inside the door(fig. A “2”). If the lid of the container is closed, press the button (A) to open. At the end of every wash cycle the lid isalways open and ready for the next timethe dishwasher is used.WARNING!When loading the lower basket, pleaseensure that the plates or others do notobstruct the detergent dispenser.The amount of detergent to be used variesaccording to how dirty the dishes are andon the type of dishes to be washed.We advise using 20÷30 g of detergent in thewash section of detergent compartment (B). After pouring the detergent into the container,close the lid, firstly pushing (1) and thenpressing on it (2) until you hear the click.Since not all detergents are the same theinstructions on the boxes of detergent canvary. We should just like to remind usersthat too little detergent does not clean thedishes properly whilst too much detergentwill not produce better results and is also awaste. IMPORTANTDo not use an excessive amount ofdetergent and help limit damage tothe environment at the same time.

Lower basket (fig. 2)M = 15 soup platesN = 15 dinner platesO = 7 + 7 dessert platesUpper basket (fig. 1) A = 5 + 5 + 5 glassesB = 12 + 3 saucersC = 5 + 5 + 5 cupsD = small bowlE = medium bowlF = large bowlG = dessert plateH = 1 + 1 serving spoonsI = ladleL = cutlery Cutlery basket (fig. 3)Insert the cutlery as indicated infigure.3 = teaspoons4 = serving fork1 =15 dessert spoons2 =15 forks3 =12 teaspoons1 = spoons2 = knives

P = serving dishQ = cutleryATTENTION!Before loading the lower basket, pleaseremove the adjustable central rack.

INFORMATION FOR THE TEST LABORATORIES

General programme comparison (Ref. EN 50242 Standards) (see programmes selection)1. Upper basket position: low2. Normal load3. Shine setting: 6 15 international place load (Ref. EN 50242 Standards) Correct loading is indicated, in fig. 1 for the upper basket, in fig. 2 for the lower basket and in fig. 3 for the cutlery basket.4. Amount of detergent:- 9,5 g for pre-wash;- 28 g for wash.98

LOADING THE RINSE AID

The rinse aid The rinse aid, which is automatically released during the last rinsing cycle, helps the dishes to dry quickly and prevents spots and stains forming. Filling the rinse aid container The rinse aid container can be found to the left of the detergent container (fig. A "3"). To open the lid, push the reference mark and, in the same time, pull the tab of opening. It is always advisable to use rinse aid that is specifically designed for dishwasher. Check the rinse aid level through the indicator eye (C) which is located on the dispenser. Regulating the rinse aid from 1 to 6 The regulator (D) is placed under the lid and can be turned using a coin. The recommended position is 4. The limestone content of the water considerably affects the formation of limescale and the drying performance. It is therefore important to regulate the quantity of rinse aid to achieve good washing results. If, after the wash, streaks occur on the dishes, decrease the amount by one position. If whitish spots occur, increase the amount by one position.

Detergent tablets Detergent tablets of different manufacturers dissolve at different speeds, for this reason, during short programmes, some detergent tablets may be not fully effective, because they are not completely dissolved. If these products are used, is recommended to choose longer programmes to guarantee the complete use of the detergent. IMPORTANT To get satisfactory washing results, the tablets MUST be placed in the wash section of the detergent container and NOT directly in the tub. Concentrated detergents The concentrated detergents, with reduced alkalinity and with natural enzymes, in conjunction with 50°C wash programmes, have a smaller impact on the environment and they protect the dishes and the dishwasher. The 50°C wash programmes purposely exploit the dirt-dissolving properties of the enzymes, allowing therefore, with the use of the concentrated detergents, to achieve the same results of the 65°C programmes but at a lower temperature. Combined detergents The detergents that also contain the rinse aid must be placed in the wash section of the detergent container. The rinse aid container must be empty (if it is not empty, set the rinse aid regulator to lowest position before using combined detergents). "3 in 1"/"4 in 1"/"5 in 1" combined detergents If you are planning to use combined detergents i.e. those with built in salt and/or rinse agent, we would advise the following: ■ read carefully and follow the manufacturer’s instructions given on the packaging; ■ the effectiveness of detergents containing the built in water softener/salt depends on the hardness of your water supply. Check that the hardness of your water supply is within the effective range given on the detergent packaging. If when using this type of product, you don't get satisfactory washing results, please contact the detergent manufacturer. In certain circumstances use of combined detergents can cause: ■ limescale deposits on dishes or in the dishwasher; ■ a reduction in washing and drying performance. IMPORTANT Any problems which arise as a direct result of the use of these products are not covered by our warranty. Please note that using the "3 in 1"/ "4 in 1"/”5 in 1" combined detergents, the rinse aid and salt indicator lights (only used on selected models) are superfluous, so you must ignore the lights. If washing and/or drying problems occur, we recommend you return to use traditional separate products (salt, detergent and rinse agent). This will ensure that the water softener in the dishwasher operates correctly. In this case, we recommends that you: ■ refill both the salt and rinse aid container; ■ run one normal washing cycle without a load. Please note that on return to the use of conventional salt, a number of cycles will be required before the system becomes fully efficient again.100

CLEANING THE FILTERS

The filter system (fig.A “4”) consists of: a central container that traps the larger particles; a flat gauze that continuously filters the wash water; a micro filter, located beneath the gauze, that traps the tiniest particles ensuring a perfect rinse. ■ To achieve excellent results every time, the filters should be checked and cleaned after each wash. ■ To remove the filter unit, simply turn the handle anticlockwise (fig. 1). ■ For ease of cleaning, the central container is removable (fig. 2). ■ Remove the gauze filter (fig.3) and wash the whole unit under a jet of water. If necessary a small brush can be used. ■ With the Self-cleaning Micro filter, maintenance is reduced and the filter unit need only be checked every two weeks. Nevertheless, after each wash it is advisable to check that the central container and the gauze filter are not clogged. WARNING! After cleaning the filters, make sure that they are correctly reassembled and that the gauze filter is properly positioned at the bottom of the dishwasher. Make sure that the filter is screwed back, clockwise, into the gauze, as poor seating of the filter unit could have an adverse effect on the efficiency of the appliance. IMPORTANT Never use the dishwasher without the filters.

PRATICAL HINTS How to get really good wash results ■ Before placing the dishes in the dishwasher, remove any remaining food (bones, shells, pieces of meat or vegetables, coffee grounds, skin of fruit, cigarette ash, tooth picks etc. to avoid blocking the filters, water outlet and washing arm nozzles. ■ Try not to rinse the dishes before loading them into the dishwasher. ■ If saucepans and oven dishes are encrusted with the remains of burnt or roast food, it is advisable to leave them to soak before washing. ■ Place the dishes face downwards. ■ Try to place the dishes in such a way that they are not touching one another. If they are loaded properly you will get better results. ■ After loading the dishes check that the washing arms can rotate freely. ■ Pans and other dishes that have particularly stubborn food particles or remnants of burnt food should be left to soak in water with dishwasher detergent. ■ To wash silver properly: a) rinse the silver immediately after use, especially if it has been used for mayonnaise, eggs, fish etc.; b) do not sprinkle detergent onto it; c) keep it separate from other metals. How to make savings ■ If you want the dishwasher to give a complete wash, place the dishes in the dishwasher at the end of each meal and if necessary turn on the COLD RINSE cycle to soften the food remains and remove bigger particles of food from the new load of dishes. When the dishwasher is full start the complete wash cycle programme. ■ If the dishes are not very dirty or if the baskets are not very full select an ECONOMY programme, following the instructions in the program list. What not to wash ■ It should be remembered that not all dishes are suitable for washing in a dishwasher.We advise against using the dishwasher to wash items in thermoplastic, cutlery with wooden or plastic handles, saucepans with wooden handles, items in aluminium, crystal, leaded glass unless otherwise stated. ■ Certain decorations may fade. It is therefore a good idea before loading the whole batch to wash just one of the items first so as to be sure that others like it will not fade. ■ It is a good idea not to put silver cutlery with non-stainless steel handles into the dishwasher as there could be a chemical reaction between them. IMPORTANT When buying new crockery or cutlery always make sure that they are suitable for washing in a dishwasher. Useful hints ■ In order to avoid any dripping from the top rack, remove the lower rack first. ■ If the dishes are to be left in the machine for some time, leave the door ajar, to let some air circulate and to improve the drying performance.102

WHEN CYCLE IS FINISHED

After every wash it is essential to turn off water supply and to switch off the machine by pressing the On/Off button to the off position. If the machine is not going to be used for some time, it is advisable to follow these rules:

1. do an empty wash with detergent in order

to clean the machine of any deposits;

2. pull out the electric plug;

3. turn off the water tap;

6. keep the inside of the machine clean;

7. If the machine is left in places where the

temperature is below 0°C any water left inside the pipes may freeze. Wait until the temperature rises above zero and then wait for about 24 hours before starting up the dishwasher. CLEANING AND MAINTENANCE ■ To clean the dishwasher outside, do not use solvents (degreasing action) neither abrasives, but only a cloth soaked with water. ■ The dishwasher does not require special maintenance, because the tank is self-cleaning. ■ Regularly wipe the door gasket with a damp cloth to remove any food remains or rinse aid. ■ It is advisable to remove limestone deposits or dirt periodically, by doing an empty wash; pour a glass of vinegar on the bottom of the tank and select the light wash. ■ If, in spite of the routine cleaning of the filters, you notice that the dishes or pans are not properly washed or rinsed, check that all the spray heads on the rotor arms (fig. A “5”) are clear. If they are blocked, clean them in the following way:

1. to remove the upper rotor arm, turn it

until it lines up with the stop marked by the arrow (fig. 1). Push it upwards (fig. 1b) and, keeping it pushed in, unscrew it in a clockwise direction (to reassemble it repeat the same operation, but turn it anticlockwise). The lower rotor arm can be removed simply by pulling it upwards (fig. 2);

2. wash the rotor arms under a jet of water

to clear any blockage in the spray heads;

3. when you have finished, refit the rotor

arms in the same position, remembering to re-align the arrow and screw into position. ■ Both the door lining and the tank lining are in stainless steel; however, should spots caused by oxidation occur, this is probably due to a high level of iron salts presents in the water. ■ The spots can be removed with a mild abrasive agent; never use chlorine based materials, steel wool, etc.

EN 50242 place load Capacity with pans and dishes Water supply pressure Fuse Power input Supply voltage

(Use in conjunction with programme guide) IMPORTANT The dishwasher has one very practical functions: the "recommended" programme (which is ideal for full load daily use) for quick and accurate selection. Programme settings ■ Open the door and place the dirty dishes inside the appliance. ■ Press the "ON/OFF" button . ■ After pressing the "ON/OFF" button, the indicator light which is factory set at "recommended” will flash. ■ If you wish to select an option, press the option button (the corresponding indicator light will light up). The option button can be selected or deselected WITHIN 2 minutes of the programme commencing. ■ Choose a programme by pressing the corresponding button. ■ When the door is shut, after an audible signal has sounded, the programme will start automatically. WITHIN 2 minutes of the programme commencing another programme can be selected, simply by pressing the corresponding button. IMPORTANT To select the "COLD RINSE" programme, simultaneously press the "RAPID" programme button and "HALF LOAD" option button. Programme interruption Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically. Close the door, without pressing any buttons. The cycle will start from where it left off. IMPORTANT A running program can be interrupted without opening the door by pressing the "ON/OFF" button. In this case, simply press the "ON/OFF" button again to restart the cycle from where it left off. WARNING! If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished. Changing a running programme Proceed as follows to change or cancel a running program: ■ Hold down the current programme button (with the indicator light on) for at least 5 seconds. The programme indicator lights (except for the "RAPID" programme indicator light) will flash. ■ The running programme will be cancelled and the indicator light for the “recommended” programme will start to flash. ■ At this point a new programme can be set. IMPORTANT To cancel the "COLD RINSE" programme, simultaneously hold down the "RAPID" programme button and "HALF LOAD" option button.

WARNING! Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser. If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off. Programme operations When a programme is running the relevant indicator light will remain on and the 3 “PROGRAMME STATUS” indicator lights ("WASH" , "RINSE" , and "DRY" ) will light singularly and in sequence to indicate the current phase. Programme end A5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended. The “PROGRAMME STATUS” indicator lights will turn off and the selected programme indicator light (2 indicator lights for the “COLD RINSE” programme) will start to flash. Dishes can now be removed and the dishwasher turned off by pressing the "ON/OFF" button or dishes can be loaded for new cycle. Option button "HALF LOAD" button In response to your everyday washing requirement in addition to the normal wash functions this dishwasher is equipped with the “HALF LOAD” function. This function enables the uses to wash a reduced number of dishes yet retaining the freedom of loading them both on the top and bottom basket. When this function is activated the dishwasher will automatically reduce the water and energy consumption and the wash time. When selecting the “HALF LOAD” ensure a reduced amount of detergent is used. "DELAY START" button The dishwasher start time can be set with this button, delaying the start by 3, 6 or 9 hours. Proceed as follows to set a delayed start: ■ Press the "DELAY START" button (each time the button is pressed the start will be delayed by 3, 6 or 9 hours respectively and the corresponding time indicator light will illuminate). ■ To start the countdown, press the selected programme button (the relevant indicator light will come on, while the set time indicator light will start to flash). If a 9 hour delay is set, countdown will be displayed by the 6h indicator light after 3 hours and the 3h indicator light after 6 hours. At the end of the last 3 hours (at the end of countdown) the 3h indicator light will stop flashing and remain on to indicate the washing phase and the programme will start automatically. If countdown has not ended, whereby the programme has not yet started, it is possible to change or cancel the delayed start and select another programme or to select/deselect the option button, proceeding as follows: ■ Hold down the selected programme button for at least 5 seconds. The programme indicator lights (except for the "RAPID" programme indicator light) will flash. ■ The selected programme will be cancelled and the indicator light for the "recommended" programme will start to flash.106 ■ Press the "DELAY START" button to set another delayed start time (the corresponding indicator light will turn on). ■ A new programme can be set after a delayed time has been changed or cancelled or an option button has selected or deselected. Alarm mute for the PROGRAMME END The alarm for the programme end may be muted as follows: ■ With the dishwasher off, hold down the "HALF LOAD" button for few seconds while simultaneously pushing the "ON/OFF" button, releasing them only after the alarm sound. ■ Press the "HALF LOAD" button again: the relevant indicator light (turned on to indicate that the alarm is activated) will flash (to indicate that the alarm is off). ■ Wait for the alarm to sound to indicate that the settings were saved. ■ To turn the alarm on again, follow the same procedure. Fault signals If malfunctions or faults occur when a programme is running the indicator light that corresponds to the selected cycle (2 indicator lights for the "COLD RINSE" programme) will flash rapidly and the alarm sounds. In this event, turn the dishwasher off by pressing the "ON/OFF" button. After checking to make sure the water inlet hose tap is open, that the drain hose is not bent and that the siphon or filters are not clogged, set the selected programme again. If the anomaly persists, contact Customer Service Department. IMPORTANT This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur. WARNING! To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.

The water-stop device protects against water damages caused by leaks on the fill hose which could develop due to natural ageing of the hose. In the water-stop system the leaking water fills the corrugated hose and activates a stop valve which cuts off the water supply to the machine. This fault is shown by a red sector on the window «A». Would this occur, please refer to your Service Agent. If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent. Red button blocked valve indicator Safety antitwist device (press and twist to remove the washer)

YES YES YES YES N/A N/A Programme PROGRAMME GUIDE YES Check list Avaragedurationin minutesSpecial functionbuttons availableDetergent for soaking(Prewash)Detergent for washingClean filterCheck rinse aid dispenserCheck salt containerHot pre-washCold pre-washMain washFirst cold rinseSecond cold rinseHot rinse with rinse aidWith cold water (15°C)-Tolerance ± 10%-"DELAY START" button"HALF LOAD" buttonProgramme contentsDescription YES Wash with prewash If setting the BACTIZERO wash programme, a second dose of about 20 g of detergent (1 table-spoon) must be added directly in the machine.N/A = OPTION NOT AVAILABLE(“RECOMMENDED” PROGRAMME)Once a day - for normal soiled pans and anyother items that have been left all day forwashing. Once a day - for heavily soiled pans and anyother items that have been left all day forwashing.Energy Saving Programme suitable fornormal soiled items. Using detergents withenzyme.Programme standardised to EN 50242.Quick wash for dishes which are to bewashed immediately after the meal. Washload of 4/6 persons.Short cold pre-wash for items that are storedin the dishwasher until you are ready towash a full load. UNIVERSAL BACTIZERO ECO RAPID 29’ COLD RINSE

+IDENTIFYING MINOR FAULTS

Should the dishwasher fail to operate, before contacting the Service Centre, make the following checks:

1 - Machine completely dead

2 - Machine does not

3 - Machine does not

5 - Spray arms are not heard

6 - On electronic appliances

without a display: one or more LED flashing quickly. Plug is not connected to wall socket O/I button has not been pressed Door is open No electricity See causes for no. 1 Water tap is turned off Programme selector is not at correct position The inlet hose is bent The inlet hose filter is not correctly connected Filter is dirty Outlet hose is kinked The outlet hose extension is not correctly connected The outlet connection on the wall is pointing downwards not upwards Position of outlet hose is too low Excessive amount of detergent Item prevents arms from rotating Plate and cup filter very dirty Water inlet tap turned off Connect electric plug Press button Close door Check the fuse in the plug and the electricity supply Check Turn water tap on Turn programme selector to correct position Eliminate the bends in the hose Clean the filter at the end of the hose Clean filter Straighten outlet hose Follow the instructions for connecting the outlet hose carefully Call a qualified technician Lift outlet hose to at least 40 cm above floor level Reduce amount of detergent Use suitable detergent Check Clean plate and cup filter Switch off the appliance. Turn on the tap. Re-set the cycle.

N.B.: Should any of the situations occur and should the machine give a bad wash performance, it is necessary to remove the deposits from the dishes by hand since the final drying cycle hardens the deposits which a second wash in the machine would not be able to remove. If the malfunction continues contact a Service Centre quoting the serial number of the dishwasher. This is found on the plaque on the inside of the dishwasher door at the top or on the guarantee. This information will make it possible to take more effective action more quickly. The manufacturers decline any responsibility for any printing mistakes in this instruction booklet. They also reserve the right to modify their own appliances as necessary without altering the essential characteristics.

7 - Load of dishes is only

8 - Detergent not dispensed

or partially dispensed

9 - Presence of white spots

on dishes 10 -Noise during wash

11 - The dishes are not
