USER MANUAL 15858 Lotus
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH

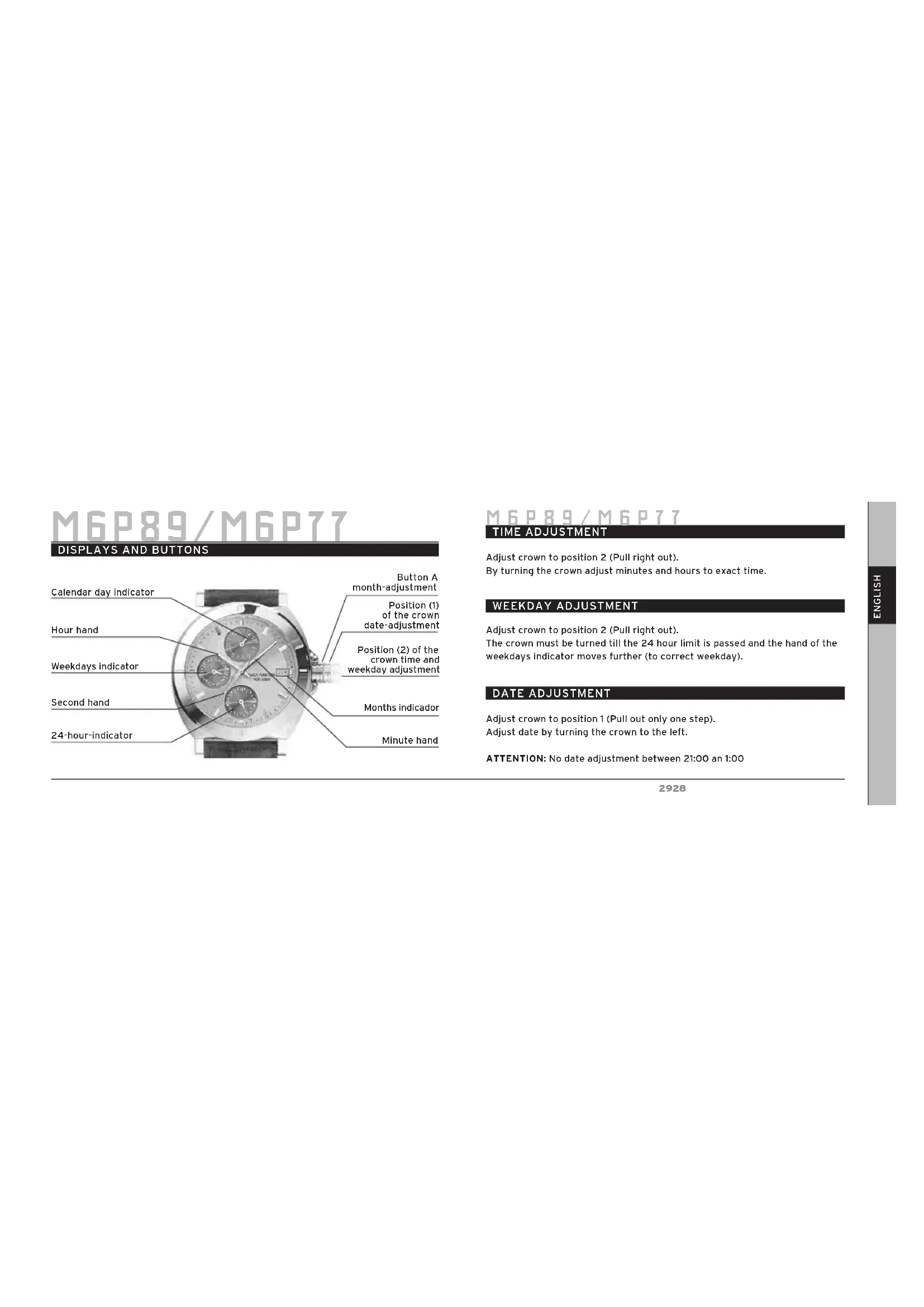

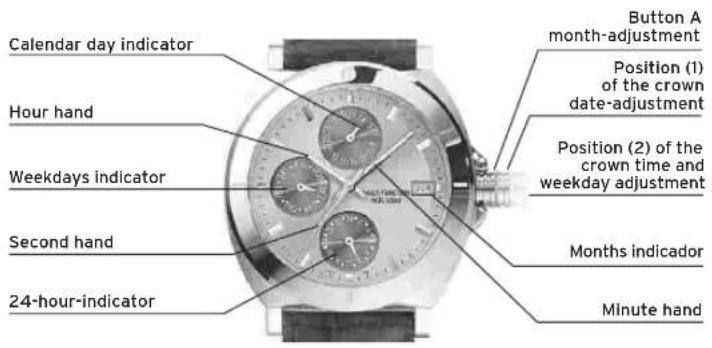

M6P89/M6P77 Calendar day indicator Hour hand Weekdays indicator Button A month-adjustment Months indicador Minute hand M6P89/M6P77 Second hand 24-hour-indicator Position (1) of the crown date-adjustment Position (2) of the crown time and weekday adjustment WEEKDAY ADJUSTMENT Adjust crown to position 2 (Pull right out). The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday). DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the left. ATTENTION: No date adjustment between 21:00 an 1:00 2928TIME ADJUSTMENT Adjust crown to position 2 (Pull right out). By turning the crown, adjust the minute; hour and 24 hour hands to exact time. ATTENTION: No date adjustment between 21:00 and 01:00!
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH

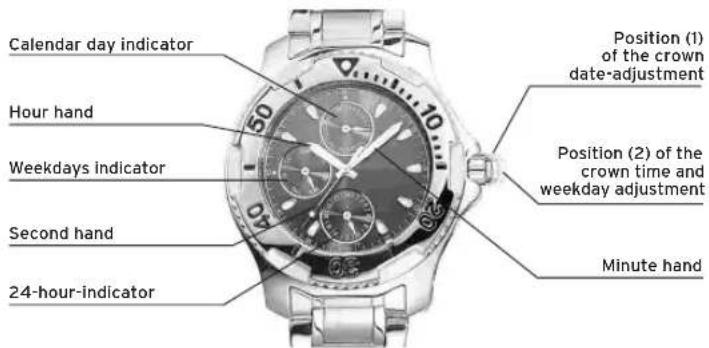

M6P27 Calendar day indicator Hour hand Weekdays indicator Minute hand M6P27 Second hand 24-hour-indicator Position (1) of the crown date-adjustment Position (2) of the crown time and weekday adjustment WEEKDAY ADJUSTMENT Adjust crown to position 2 (Pull right out). The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday). DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the left. ATTENTION: No date adjustment between 21:00 and 01:00! 3130TIME ADJUSTMENT Adjust crown to position 2 (Pull right out). By turning the crown adjust minutes and hours to exact time. ATTENTION: No date adjustment between 21:00 and 01:00!
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH

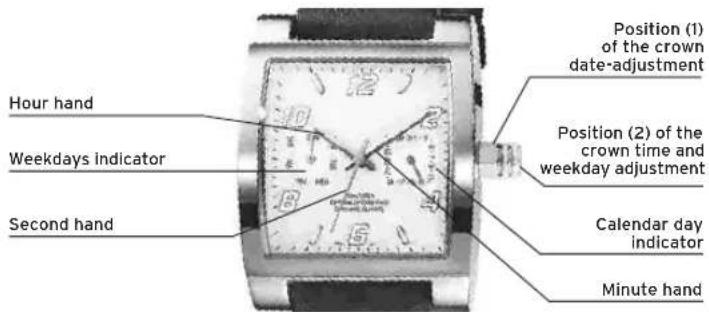

M6P25 Hour hand Weekdays indicator Minute hand M6P25 Second hand Position (1) of the crown date-adjustment Position (2) of the crown time and weekday adjustment WEEKDAY ADJUSTMENT Adjust crown to position 2 (Pull right out). The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday). DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the left. ATTENTION: No date adjustment between 21:00 and 01:00! Calendar day indicator 3332TIME ADJUSTMENT Adjust crown to position 2 (Pull right out). By turning the crown adjust minutes and hours to exact time.
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH

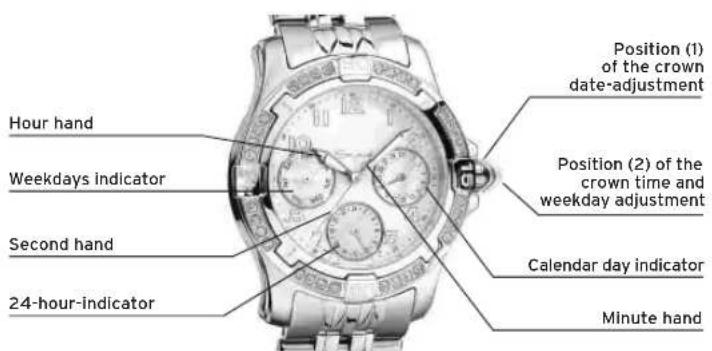

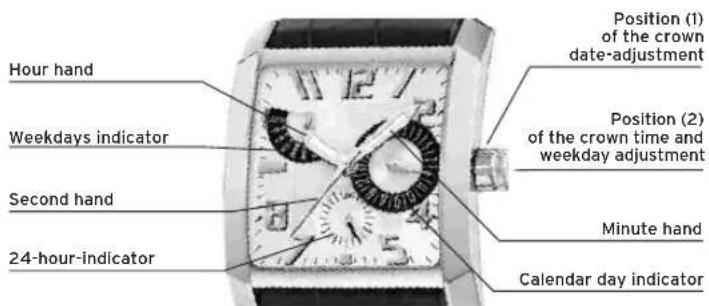

M6P29/M6P79 Hour hand Weekdays indicator Minute hand M6P29/M6P79 Second hand 24-hour-indicator Position (2) of the crown time and weekday adjustment WEEKDAY ADJUSTMENT Adjust crown to position 2 (Pull right out). The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday). DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the left. ATTENTION: No date adjustment between 21:00 and 01:00! Calendar day indicator Position (1) of the crown date-adjustment 3534TIME ADJUSTMENT Adjust crown to position 2 (Pull right out). By turning the crown adjust minutes and hours to exact time.
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH

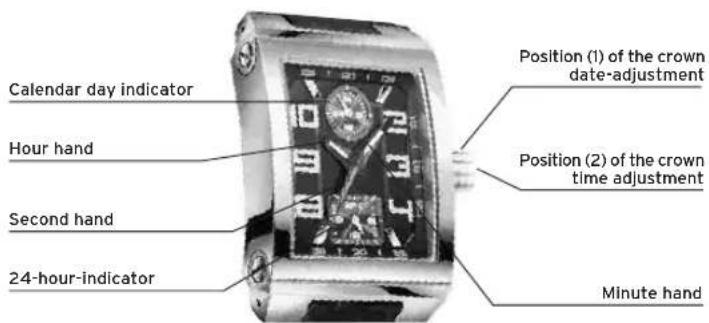

M6P23 Hour hand Minute hand M6P23 Second hand 24-hour-indicator Position (1) of the crown date-adjustment Position (2) of the crown time adjustment DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the left. ATTENTION: No date adjustment between 21:00 and 01:00! Calendar day indicator 3736TIME ADJUSTMENT Adjust crown to position 2 (Pull right out). By turning the crown adjust minutes and hours to exact time.
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH

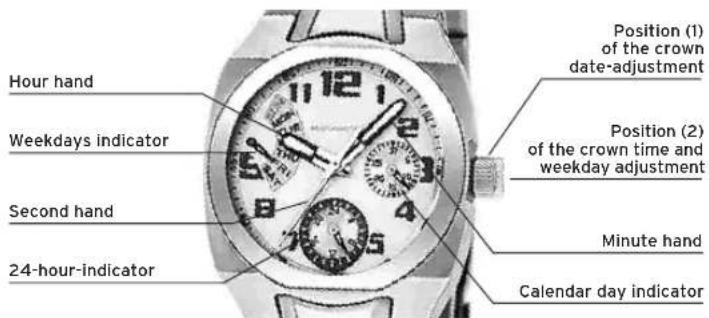

MVX3L Weekdays indicator Minute hand MVX3L Second hand 24-hour-indicator Position (1) of the crown date-adjustment Position (2) of the crown time and weekday adjustment WEEKDAY ADJUSTMENT Adjust crown to position 2 (Pull right out). The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday). Hour hand Calendar day indicator DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the right. ATTENTION: No date adjustment between 21:00 and 01:00! 3938TIME ADJUSTMENT Adjust crown to position 2 (Pull right out). By turning the crown adjust minutes and hours to exact time.
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH

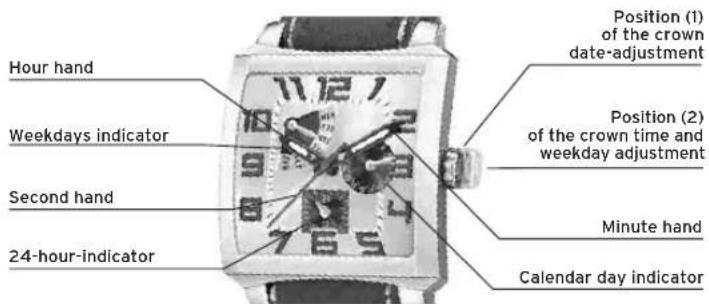

MVX3SE Weekdays indicator Minute hand MVX3SE Second hand 24-hour-indicator Position (1) of the crown date-adjustment Position (2) of the crown time and weekday adjustment WEEKDAY ADJUSTMENT Adjust crown to position 2 (Pull right out). The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday). Hour hand Calendar day indicator DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the left. ATTENTION: No date adjustment between 21:00 and 01:00. 4140TIME ADJUSTMENT Adjust crown to position 2 (Pull right out). By turning the crown adjust minutes and hours to exact time.
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH

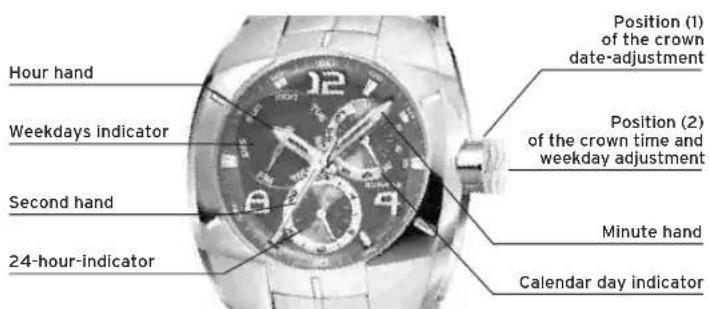

MVX3JA Weekdays indicator Minute hand MVX3JA Second hand 24-hour-indicator Position (1) of the crown date-adjustment Position (2) of the crown time and weekday adjustment WEEKDAY ADJUSTMENT Adjust crown to position 2 (Pull right out). The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday). Hour hand Calendar day indicator DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the left. ATTENTION: No date adjustment between 21:00 and 01:00. 4342TIME ADJUSTMENT Adjust crown to position 2 (Pull right out). By turning the crown adjust minutes and hours to exact time.
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH

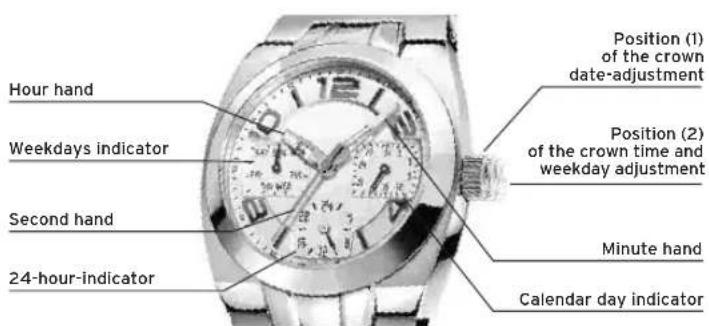

MVX3T Weekdays indicator Minute hand MVX3T Second hand 24-hour-indicator Position (1) of the crown date-adjustment Position (2) of the crown time and weekday adjustment WEEKDAY ADJUSTMENT Adjust crown to position 2 (Pull right out). The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday). Hour hand Calendar day indicator DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the left. ATTENTION: No date adjustment between 21:00 and 01:00. 4544TIME ADJUSTMENT Adjust crown to position 2 (Pull right out). By turning the crown adjust minutes and hours to exact time.
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH
MVX3TE Weekdays indicator Minute hand MVX3TE Second hand 24-hour-indicator Position (1) of the crown date-adjustment Position (2) of the crown time and weekday adjustment WEEKDAY ADJUSTMENT Adjust crown to position 2 (Pull right out). The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday). Hour hand Calendar day indicator DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the left. ATTENTION: No date adjustment between 21:00 and 01:00. 4746TIME ADJUSTMENT Adjust crown to position 2 (Pull right out). By turning the crown adjust minutes and hours to exact time.
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH

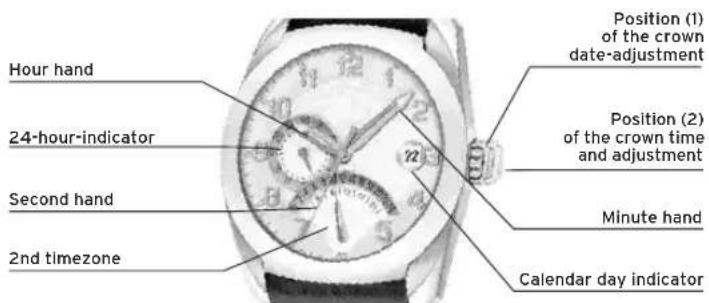

MGP03 24-hour-indicator Minute hand MGP03 Second hand 2nd timezone Position (1) of the crown date-adjustment Position (2) of the crown time and adjustment DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown clock wise. Hour hand Calendar day indicator
2ND TIMEZONE ADJUSTMENT
Adjust crown to position 1. Adjust 2nd timezone by turning the crown anti clock wise. 4948TIME ADJUSTMENT Adjust crown to position 2 (Pull right out). By turning the crown adjust minutes and hours to exact time.
DISPLAYS AND BUTTONS
FRANÇAISDEUTSCHITALIANO ESPAÑOLENGLISH

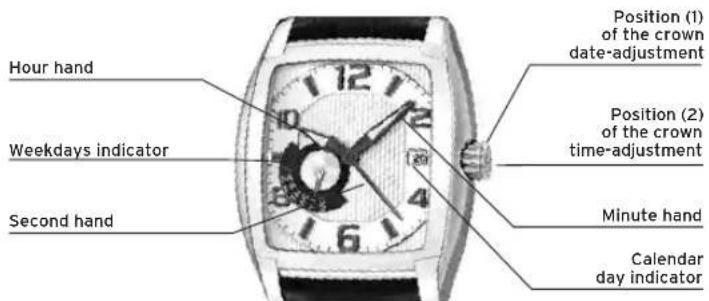

MVX46 Weekdays indicator Minute hand MVX46 Second hand Position (1) of the crown date-adjustment Position (2) of the crown time-adjustment WEEKDAY ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust weekday by turning the crown clock wise. Hour hand Calendar day indicator DATE ADJUSTMENT Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown anti clock wise. ATTENTION: No date adjustment between 21:00 and 1:00. 5150ILMULTIFUNCTION
ILMULTIFUNCTION By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.RÉGLAGE HORE Tirer la couronne en position 2. Régler les minutes et les heures en tournant la couronne.
MGP03 Cadran 24 heures Aiguille minutes MGP03 Aiguille heures 2nd timezone Position (2) of the crown time and adjustment
MVX46 Aiguille minutes MVX46 Aiguille secondes Position (2) of the crown time-adjustment
RÉGLAGE JOUR DE LA SEMAINE
Adjust crown to position 1 (Pull out only one step). Adjust weekday by turning the crown clock wise. Aiguille heures Cadran date
