Brand	Lotus
Model	15262
Product type	Quartz wristwatch
Movement	Quartz, caliber FS00/FS01
Display	Analog (hands)
Functions	Hours, minutes, seconds, date, 24-hour indicator
Chronograph	1/1 second, measurement up to 1 hour
Tachymeter	Average speed measurement up to 60 seconds
Battery	SR626SW, lifespan approximately 2 years (1 hour/day chronograph)
Dimensions (line)	23.7 x 22 mm
Total height	4.13 mm (FS00) / 4.28 mm (FS01)
Accuracy	±20 seconds per month under normal conditions
Pushers	Button A (start/stop), Button B (reset)
Crown	3 positions: normal, date setting, time setting
Maintenance	Clean with a soft, dry cloth
Safety	Have the battery replaced by a professional
Repairability	Standard battery, repair by an authorized watchmaker
Included accessories	User manual
Regulation	Compliant with WEEE directive

Frequently Asked Questions - 15262 Lotus

How to set the time on the Lotus 15262 watch?

Pull the crown out to the second click to stop the seconds hand. Turn the crown to set the hour and minute hands. Push the crown back to its normal position.

How to set the date?

Pull the crown out to the first click. Turn it clockwise to set the date. Avoid setting between 9 PM and 1 AM to ensure correct change. Push the crown back after adjustment.

How to use the chronograph?

Press button A to start the chronograph. Press A again to stop the measurement. Press button B to reset the hands to zero. The chronograph measures up to 1 hour with 1/1 second precision.

What to do if the chronograph hand does not return exactly to zero?

Pull the crown out to the second click. Press button A to move the chronograph seconds hand to the 0 position. For quick movement, hold button A pressed. Once at zero, set the time and push the crown back.

How to use the tachymeter?

Start the chronograph at the beginning of a 1 km distance. Stop it after exactly 1 km. The position of the seconds hand indicates the average speed (e.g., 45 seconds = 80 km/h).

What battery does the watch use and what is its lifespan?

The watch uses an SR626SW battery. Its lifespan is approximately 2 years, based on one hour of chronograph use per day.

How to replace the battery?

It is recommended to have the battery replaced by a professional. After replacement, perform the chronograph reset procedure if necessary.

Is the Lotus 15262 watch water-resistant?

The manual does not provide water resistance indication. Avoid any contact with water and excessive humidity.

Where to find the complete user manual?

The manual is available for free in PDF format on the notice-facile.com website. You can download it or request a translation in your language.

How to maintain the watch?

Clean the case and crystal with a soft, dry cloth. Avoid shocks and extreme temperatures. Respect the WEEE regulations for recycling.

USER MANUAL 15262 Lotus

Empty white rectangle with black rounded corners (no text or symbols)

CHRONOGRAPH

CALENDAR

ILMFS01

MANUAL DE INSTRUCCIONES
INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
BETRIEBSANLEITUNG
MANUALE DI FUNZIONAMENTO

ILMFSO1

CRONOGRAPH

CALENDAR

■ MANUAL DE INSTRUCCIONES ____ 3
■ INSTRUCTION MANUAL ____ 15
■ MANUEL D'INSTRUCTION ____ 27
■ BETRIEBSANLEITUNG ____ 39
■ MANUALE DI FUNZIONAMENTO ____ 51

LOTUS

LOTUS

ILMFS01

Displays and buttons 16

Setting the time 17

Setting the date ____ 17

Using the chronograph ____ 18

Tachymeter 22

Basic specifications 24

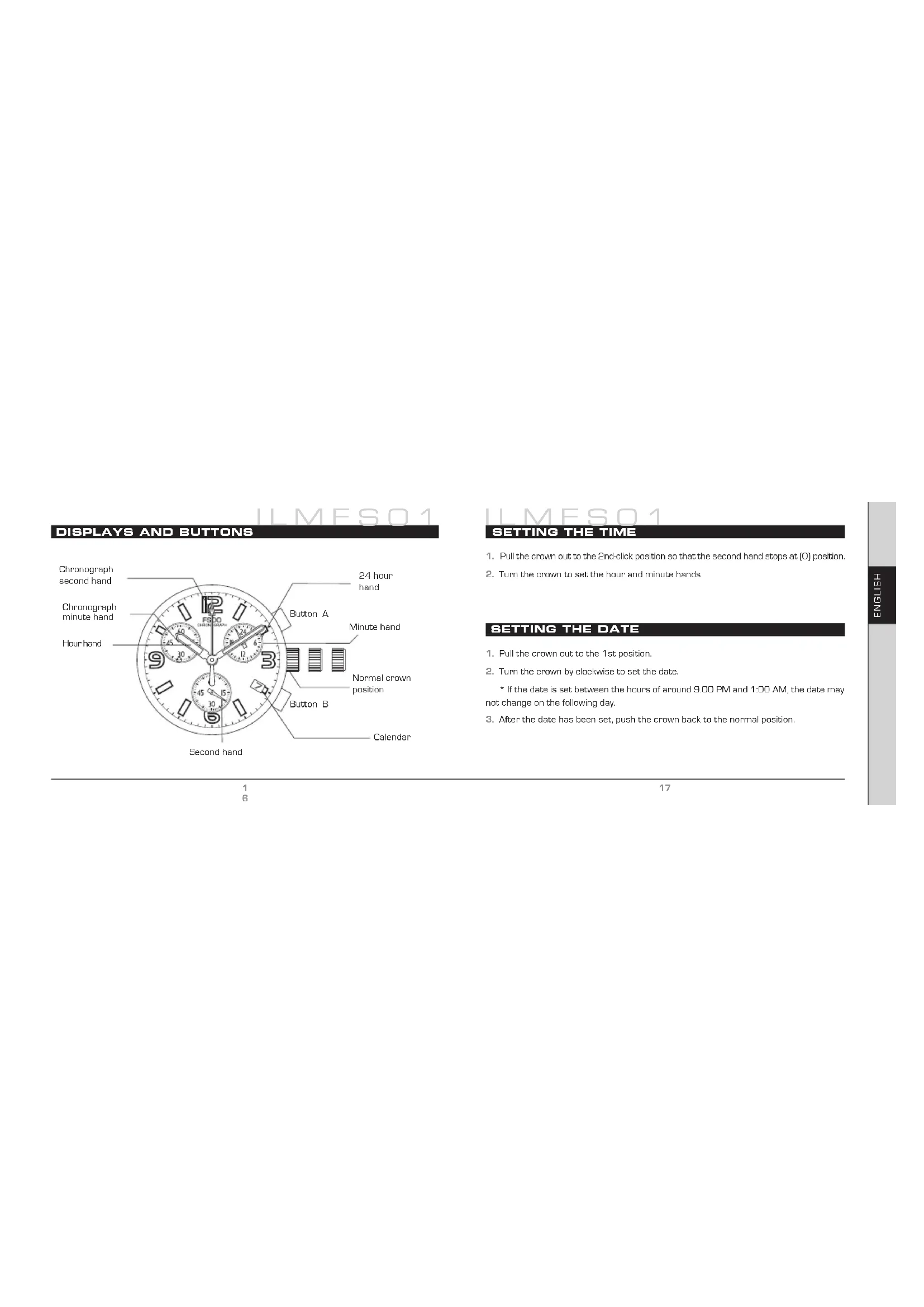

DISPLAYS AND BUTTONS

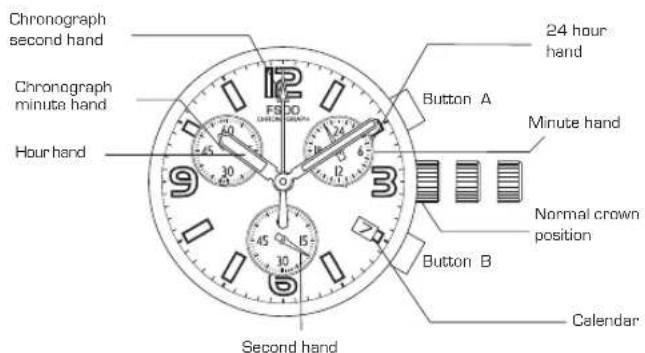

Chronograph second hand Chronograph minute hand Hour hand 24 hour hand Button A Minute hand Normal crown position Button B Second hand Calendar

ILMFS01

SETTING THE TIME

1. Pull the crown out to the 2nd-click position so that the second hand stops at (0) position.
2. Turn the crown to set the hour and minute hands

SETTING THE DATE

1. Pull the crown out to the 1st position.
2. Turn the crown by clockwise to set the date.

* If the date is set between the hours of around 9.00 PM and 1:00 AM, the date may not change on the following day.

1. After the date has been set, push the crown back to the normal position.

USING THE CHRONOGRAPH

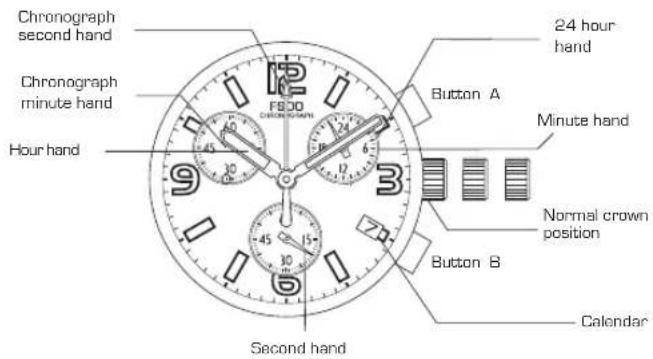

Chronograph second hand Chronograph minute hand Hour hand 24 hour hand Button A Minute hand Normal crown position Button B Second hand Calendar

ILMFSO1

USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 1 hour.

(Measuring time with the chronograph)

1. The chronograph can be started and stopped each time button [A] is pressed.
2. To reset, press button (B) and the chronograph second & minute hands return to their (O) positions.

[Chronograph reset, incl. after replacing battery]

USING THE CHRONOGRAPH

This procedure should be performed when the chronograph second hand do not return to the [0] second position after the chronograph has been reset, and including after battery has been replaced.

1. Pull the crown out to the 2nd. position.
2. Press button (A) to set the chronograph second hand to the [O] position.
3. The chronograph hands can be advanced rapidly by continuously pressing button (A).
4. Once the hands have been zeroed, reset the time and return the crown to its normal position. *Do not return crown to normal position while chronograph second hand return to 12:00 [Zero] position.

Hand stops on the way when crown are returned to normal position and these positions are recognized as 12:00 [zero] position.

ILMFS01

USING THE CHRONOGRAPH

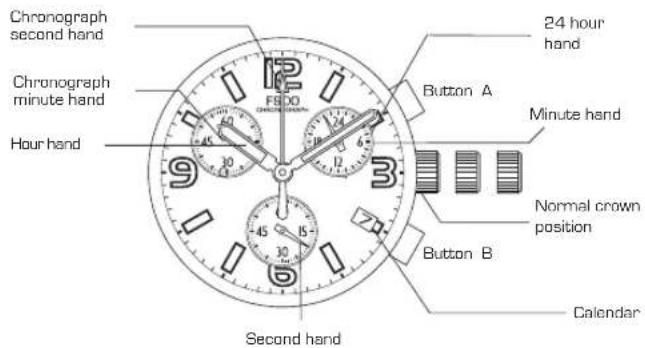

Chronograph second hand Chronograph minute hand Hour hand 24 hour hand Button A Minute hand Normal crown position Button B Second hand Calendar

TACHYMETER

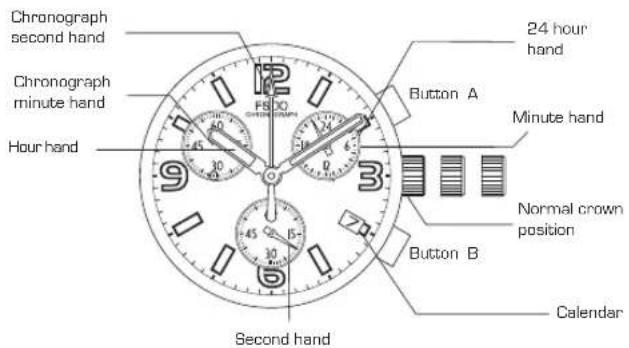

Chronograph second hand Chronograph minute hand Hour hand 24 hour hand Button A Minute hand Normal crown position Button B Second hand Calendar

ILMFS01

TACHYMETER

• The tachymeter is the device which measures the speed of an automobile. Knowing is how many seconds the car covers a distance of 1Km , the meter can measure the approximate average speed per hour during a journey [up to the maximum measurable range of tachymeter is 60 seconds].
• If the chronograph is started at the same time as measurement, and stopped after 1 Km, the average speed per hour can be determined according to the position of the second hand.
• If the car covers the distance of 1 Km in 45 seconds, the average hourly speed during the journey will be about 80 Km.

BASIC SPECIFICATIONS

Calibre FS00 FS01
Pusher	Slanted Parallel
Ligne Size* mm	10-1/2ø 23,7 x 22 mm (3H-9H)
Date	0
Total height	4.13 mm 4.28 mm
Figure[push button placed angle]
Power cell and life SR626SW 2 years*

* Based on the chronograph being used 1 hour per day

ILMES01

BASIC SPECIFICATIONS

[Time standard]

Type of quartz: Tuning fork type quartz crystal

Frequency: 32.768 Hz.

Accuracy: ± 20 s/month worn under normal circumstances

[Balanceable weight of hand]

Minute hand: Max. 0,4 × N.m

Second hand: Max. 0,035 ∝ N.m

Other small hands: Max. 0,02 ≈ N.m

[Function]

CAL. IFMFS00/01: Chronograph 1/1 sec. basis (Up to 59 min. 59 sec.)

Powercell Saving Reset Mechanism (PSRM)

Over-loading Compensation Device (OLCD)

Digital Frequency Control (DFC) for time adjustment

ILMFS01

MANUEL D'INSTRUCTION

CHRONOGRAPHE

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products are selectively collected for processing. You may therefore dispose of your quartz watching products at any of our retail outlets or any other authorized collection point. The we collection, processing, rating and recycling of these products helps contribute to regarding the environment and protecting our health.
