USER MANUAL 15746 Lotus
MANUAL DE INSTRUCCIONES
INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
BETRIEBSANLEITUNG
MANUALE DI FUNZIONAMENTO


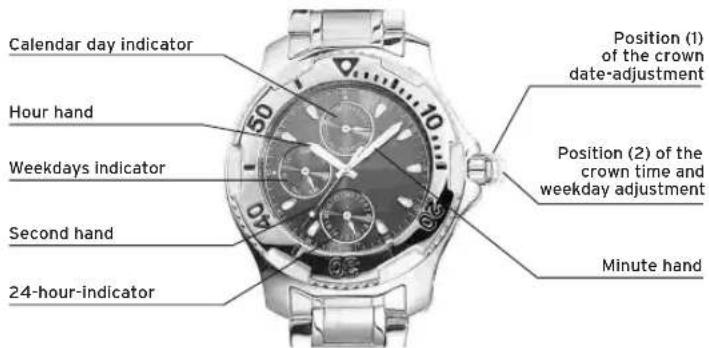

DISPLAYS AND BUTTONS
TIME ADJUSTMENT
Adjust crown to position 2 (Pull right out).
By turning the crown adjust minutes and hours to exact time.
WEEKDAY ADJUSTMENT
Adjust crown to position 2 (Pull right out).
The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday).
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step).
Adjust date by turning the crown to the left.
ATTENTION: No date adjustment between 21:00 an 1:00

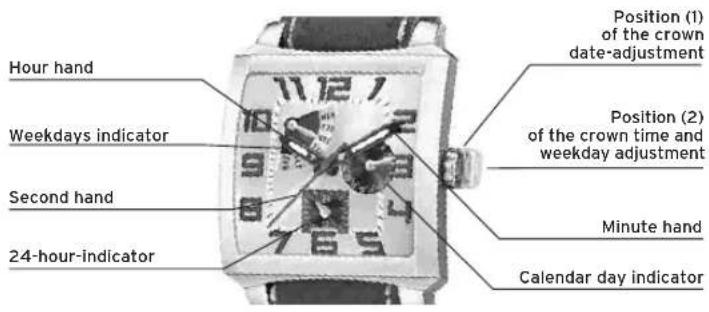

DISPLAYS AND BUTTONS
Adjust crown to position 2 (Pull right out). By turning the crown, adjust the minute; hour and 24 hour hands to exact time.
ATTENTION: No date adjustment between 21:00 and 01:00!
WEEKDAY ADJUSTMENT
Adjust crown to position 2 (Pull right out). The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday).
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the left.
ATTENTION: No date adjustment between 21:00 and 01:00!
M6P25

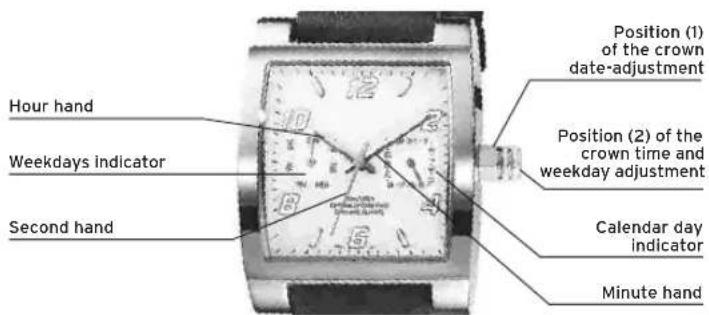

DISPLAYS AND BUTTONS
TIME ADJUSTMENT
Adjust crown to position 2 (Pull right out).
By turning the crown adjust minutes and hours to exact time.
ATTENTION: No date adjustment between 21:00 and 01:00!
WEEKDAY ADJUSTMENT
Adjust crown to position 2 (Pull right out).
The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday).
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step). Adjust date by turning the crown to the left.
ATTENTION: No date adjustment between 21:00 and 01:00!
M6P29/M6P79

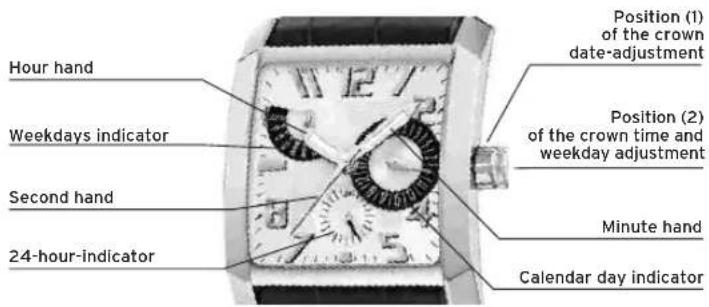

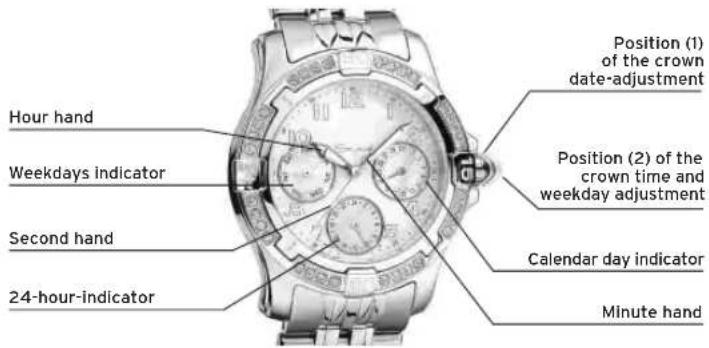

DISPLAYS AND BUTTONS
TIME ADJUSTMENT
Adjust crown to position 2 (Pull right out).
By turning the crown adjust minutes and hours to exact time.
WEEKDAY ADJUSTMENT
Adjust crown to position 2 (Pull right out).
The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday).
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step).
Adjust date by turning the crown to the left.
ATTENTION: No date adjustment between 21:00 and 01:00!
M6P23

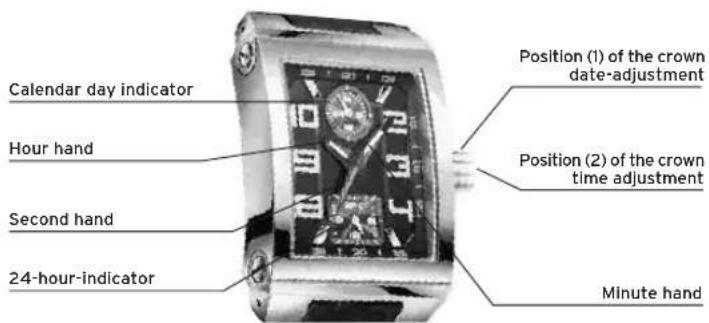

DISPLAYS AND BUTTONS
TIME ADJUSTMENT
Adjust crown to position 2 (Pull right out).
By turning the crown adjust minutes and hours to exact time.
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step).
Adjust date by turning the crown to the left.
ATTENTION: No date adjustment between 21:00 and 01:00!

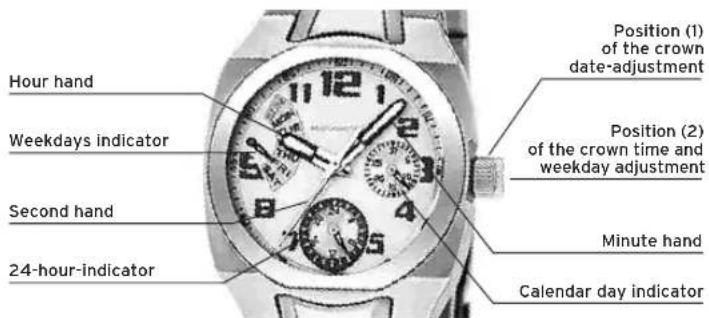

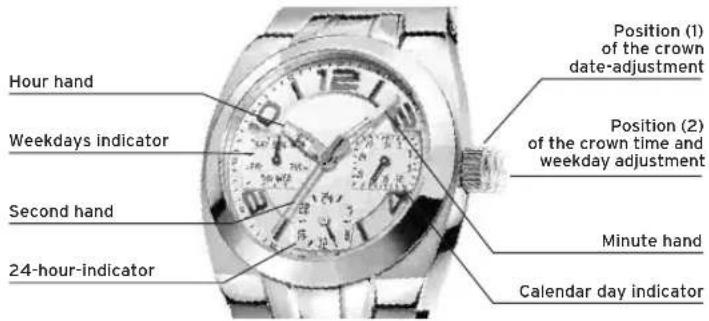

DISPLAYS AND BUTTONS
Adjust crown to position 2 (Pull right out).
By turning the crown adjust minutes and hours to exact time.
WEEKDAY ADJUSTMENT
Adjust crown to position 2 (Pull right out).
The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday).
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step).
Adjust date by turning the crown to the right.
ATTENTION: No date adjustment between 21:00 and 01:00!
MVX3SE

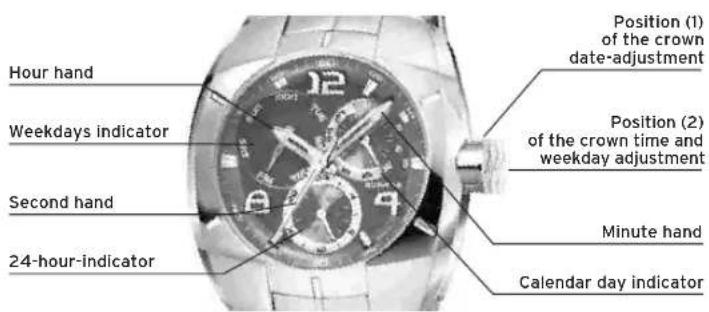

DISPLAYS AND BUTTONS
TIME ADJUSTMENT
Adjust crown to position 2 (Pull right out).
By turning the crown adjust minutes and hours to exact time.
WEEKDAY ADJUSTMENT
Adjust crown to position 2 (Pull right out).
The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday).
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step).
Adjust date by turning the crown to the left.
ATTENTION: No date adjustment between 21:00 and 01:00.
MVX3JA
DISPLAYS AND BUTTONS
TIME ADJUSTMENT
Adjust crown to position 2 (Pull right out).
By turning the crown adjust minutes and hours to exact time.
WEEKDAY ADJUSTMENT
Adjust crown to position 2 (Pull right out).
The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday).
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step).
Adjust date by turning the crown to the left.
ATTENTION: No date adjustment between 21:00 and 01:00.
MVX3T
DISPLAYS AND BUTTONS
TIME ADJUSTMENT
Adjust crown to position 2 (Pull right out).
By turning the crown adjust minutes and hours to exact time.
WEEKDAY ADJUSTMENT
Adjust crown to position 2 (Pull right out).
The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday).
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step).
Adjust date by turning the crown to the left.
ATTENTION: No date adjustment between 21:00 and 01:00.
MVX3TE
DISPLAYS AND BUTTONS
TIME ADJUSTMENT
Adjust crown to position 2 (Pull right out).
By turning the crown adjust minutes and hours to exact time.
WEEKDAY ADJUSTMENT
Adjust crown to position 2 (Pull right out).
The crown must be turned till the 24 hour limit is passed and the hand of the weekdays indicator moves further (to correct weekday).
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step).
Adjust date by turning the crown to the left.
ATTENTION: No date adjustment between 21:00 and 01:00.

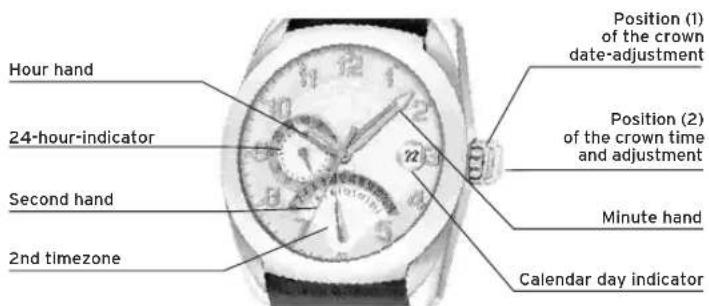

DISPLAYS AND BUTTONS
TIME ADJUSTMENT
Adjust crown to position 2 (Pull right out).
By turning the crown adjust minutes and hours to exact time.
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step).
Adjust date by turning the crown clock wise.
2ND TIMEZONE ADJUSTMENT
Adjust crown to position 1.
Adjust 2nd timezone by turning the crown anti clock wise.

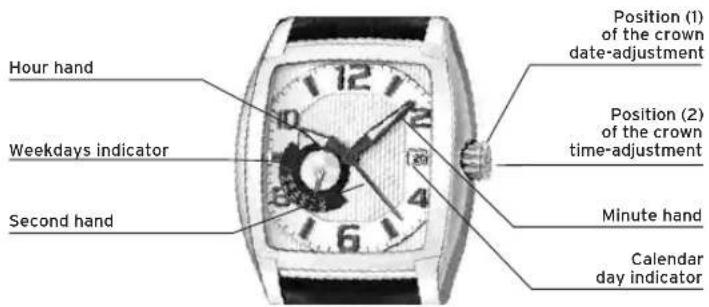

DISPLAYS AND BUTTONS
Adjust crown to position 2 (Pull right out).
By turning the crown adjust minutes and hours to exact time.
WEEKDAY ADJUSTMENT
Adjust crown to position 1 (Pull out only one step).
Adjust weekday by turning the crown clock wise.
DATE ADJUSTMENT
Adjust crown to position 1 (Pull out only one step).
Adjust date by turning the crown anti clock wise.
ATTENTION: No date adjustment between 21:00 and 1:00.
ILMULTIFUNCTION
By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
ILMULTIFUNCTION
■ Instructions M6P89 / M6P77 54
■ Instructions M6P27 ____ 56
■ Instructions M6P25 58
■ Instructions M6P29 / M6P79 60
■ Instructions M6P23 62
■ Instructions MVX3L 64
■ Instructions MVX3SE 66
■ Instructions MVX3JA 68
■ Instructions MVX3T 70
■ Instructions MVX3TE 72
■ Instructions MGPO3 74
■ Instructions MVX46 76

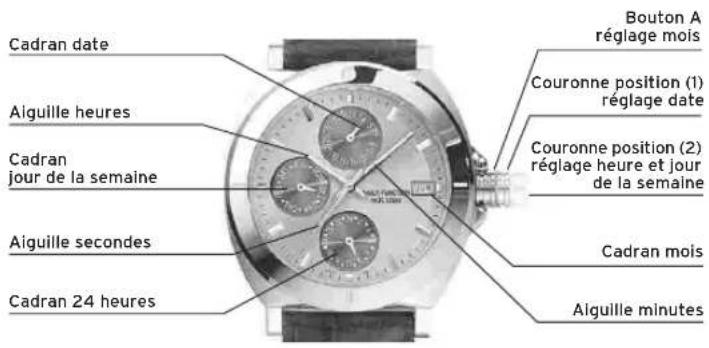

M6P89/M6P77
AFFICHAGE ET BOUTONS
Adjust crown to position 1 (Pull out only one step).
Adjust date by turning the crown clock wise.
RÉGLAGE 2e FUSEAU HORAIRE
Tirer la couronne en position (1).
Adjust crown to position 1 (Pull out only one step).
Adjust weekday by turning the crown clock wise.
