Brand	JUNO
Model	JCN08820S7
Product type	Freestanding refrigerator
Height	873 mm
Width	540 mm
Depth	549 mm
Voltage	230-240 V
Frequency	50 Hz
Climate class	SN (10°C to 32°C), N (16°C to 32°C), ST (16°C to 38°C), T (16°C to 43°C)
Refrigerant	Isobutane (R600a)
Defrosting	Automatic (refrigerator defrosting)
Interior lighting	Yes, replaceable bulb
Shelves	Removable and height-adjustable
Door shelves	Can be positioned at different heights
Temperature indicator	Yes, coldest zone indicated by symbol
Temperature setting	Rotary thermostat (from minimum to maximum positions)
Periodic maintenance	Interior cleaning with warm water and mild detergent; clean the drain hole
Condenser cleaning	Accessible at the back, brush periodically
Bulb replacement	Bulb of identical power and shape, specific for household appliances
Spare parts	Available from authorized after-sales service (e.g., door gaskets, bulb)
Installation required	By a qualified professional; do not install near a heat source; wait 4 hours before starting up
Safety	Do not block ventilation openings; do not use mechanical devices to defrost; flammable refrigerant circuit (R600a)

Frequently Asked Questions - JCN08820S7 JUNO

How to adjust the temperature of my JUNO JCN08820S7 refrigerator?

Turn the rotary thermostat to the right to increase cold (maximum position) or to the left to decrease (minimum position). An intermediate position is generally recommended. The internal temperature depends on several factors: ambient temperature, door opening frequency, amount of food and placement.

Why is water flowing inside my refrigerator?

This is often due to a blocked defrost water drain hole. Clean this hole located in the middle of the refrigerator compartment. Also ensure that food does not touch the back plate.

What to do if the compressor runs continuously?

Check if the thermostat is set to the maximum position, if the door is properly closed, if the ambient temperature is not too high, or if too many warm foods have been introduced. If the problem persists, wait a few hours and adjust the thermostat. Refer to the manual for more details.

How to defrost my JUNO refrigerator?

The refrigerator is automatic defrost: frost melts on the back plate when the compressor stops. Water flows through a hole to an evaporation tray. Clean the hole regularly to avoid overflow.

How to replace the interior light bulb?

First unplug the appliance. Replace with a bulb of identical power and shape, specially designed for household appliances. The maximum power is indicated on the diffuser. Reassemble the diffuser, plug in and check.

What to do if my refrigerator no longer cools?

Check that the appliance is plugged in and that the thermostat is not set to the 'O' position. Ensure the socket works. If the light does not turn on, the bulb may be defective. Consult the fault table in the manual for other causes.

How to adjust the door if it does not close properly?

First clean the door gaskets. If necessary, adjust the door following the installation instructions. If the gaskets are defective, contact authorized after-sales service to replace them.

What are the normal refrigerator noises?

A slight gurgling (refrigerant being pumped), a hum from the compressor, sudden crackling (thermal expansion), and a clicking sound from the thermostat when the compressor turns on/off are normal.

How to save energy with my refrigerator?

Avoid opening the door too often and do not leave it open longer than necessary. If the ambient temperature is high and the thermostat is at maximum, set it to a higher position to facilitate automatic defrosting and reduce consumption.

What are the required installation conditions?

Install the appliance in a dry, well-ventilated indoor room, away from heat sources (radiator, direct sunlight). Respect the climate class indicated on the rating plate. Wait at least 4 hours before plugging in to allow the compressor oil to return.

USER MANUAL JCN08820S7 JUNO

Illustration of a hand using a tool to lift a tray with two small bowls, showing an upward arrow (no text or symbols)

Technical line drawing of a door frame with a curved lid and an arrow indicating upward motion (no text or symbols)

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Diagram illustrating a hand holding a device with labeled parts and directional arrows, showing a magnified view of a component.

MONTAGE

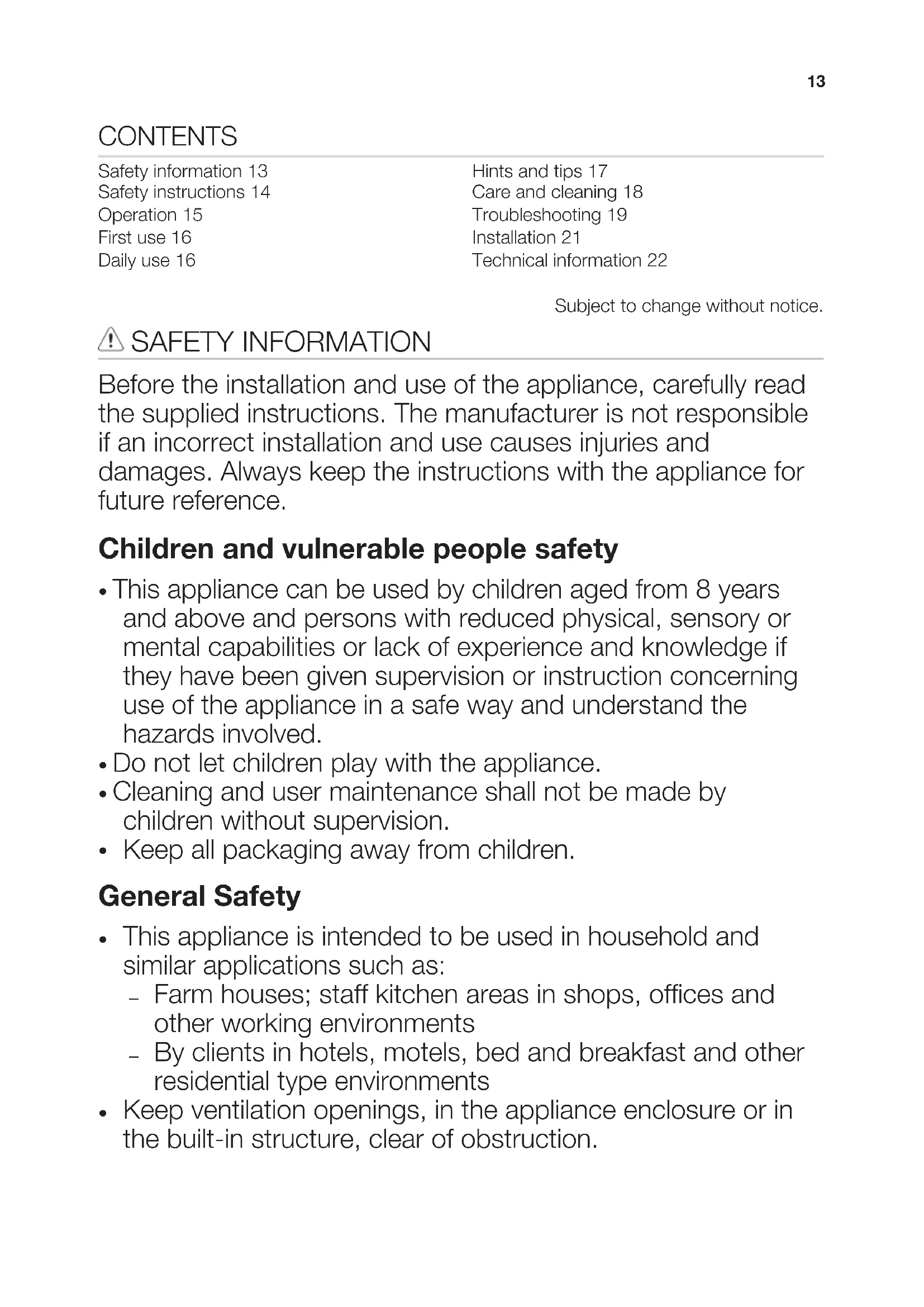

Safety information 13
Safety instructions 14
Operation 15
First use 16
Daily use 16

Hints and tips 17 Care and cleaning 18 Troubleshooting 19 Installation 21 Technical information 22

Subject to change without notice.

⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep all packaging away from children.

General Safety

• This appliance is intended to be used in household and similar applications such as:
• Farm houses; staff kitchen areas in shops, offices and other working environments
• By clients in hotels, motels, bed and breakfast and other residential type environments

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
  • Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Make sure the air can circulate around the appliance.
• Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Do not install the appliance close to radiators or cookers, oven or hobs.
• The rear of the appliance must stand against the wall.

• Do not install the appliance where there is direct sunlight.

• Do not install this appliance in areas that are too humid or too colds, such as the construction appendices, garages or wine cellars.

• When you move the appliance, lift it by the front edge to avoid scratching the floor.

Electrical connection

WARNING! Risk of fire and electrical shock.

• The appliance must be earthed.
- Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an

electrician to change the electrical components.

• The mains cable must stay below the level of the mains plug.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING! Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.

Internal light

- The type of lamp used for this appliance is not suitable for household room illumination

OPERATION

Switching on

1. Insert the plug into the wall socket.

Care and cleaning

WARNING! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.

• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

• Turn the Temperature regulator clockwise to a medium setting.

Switching off

To turn off the appliance, turn the temperature regulator to the "O" position.

Temperature regulation

The temperature is regulated automatically.

A medium setting is generally the most suitable. However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature,
  • how often the door is opened,
  • the quantity of food stored,

• the location of the appliance.

• Turn the Temperature regulator toward lower settings to obtain the minimum coldness.

• Turn the Temperature regulator toward higher settings to obtain the maximum coldness.

CAUTION! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

FIRST USE

Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

DAILY USE

CAUTION! Do not use detergents or abrasive powders, as these will damage the finish.

WARNING! Refer to Safety chapters.

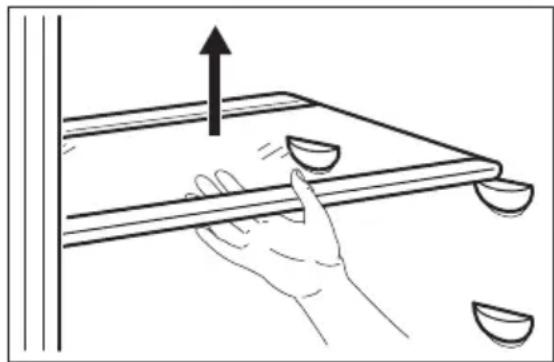

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Illustration of a hand holding a metal rod with two small bowls, above a wall with an upward arrow (no text or symbols)

Do not move the glass shelf above the vegetable drawer and the bottle shelf to ensure correct air circulation.

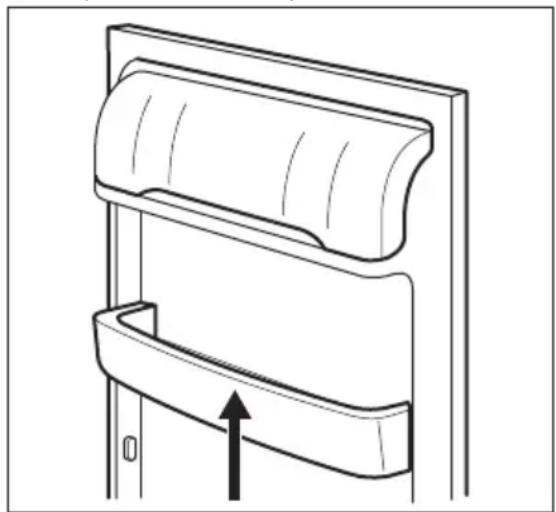

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

1. Gradually pull the shelf in the direction of the arrows until it comes free.
2. Reposition as required.

Technical line drawing of a door frame with a curved lid and an arrow indicating upward motion (no text or symbols)

Temperature indicator

For proper storage of the food the refrigeration is equipped with temperature

HINTS AND TIPS

Normal operating sounds

The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).
• A faint click noise from the temperature regulator when the compressor switches on or off.

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully

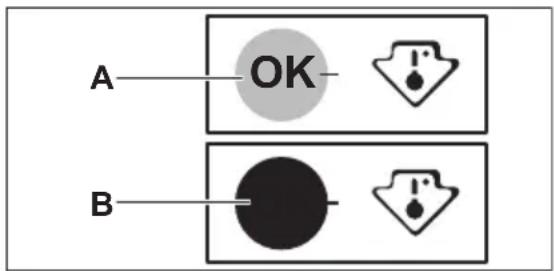

indicator. The symbol at the side indicates the coldest area in the refrigeration.

If “OK” is displayed (A), put fresh food into area indicated by symbol, if not (B), adjust the temperature controller to a colder setting and wait 12 hours before checking the temperature indicator again.

A—OK B—

After putting fresh food into the appliance or after opening the door repeatedly or for a long period, it is normal for the indicator not to show "OK"; wait at least 12 hours before readjusting the temperature controller.

loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
- do cover or wrap the food, particularly if it has a strong flavour
- position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

• Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

• Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

• Bottles: these need a cap and should be stored on the door bottle shelf, or (if equipped) on the bottle rack.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

General warnings

CAUTION! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

Periodic cleaning

CAUTION! Do not pull, move or damage any pipes and/or cables inside the cabinet.

CAUTION! Take care of not to damage the cooling system.

CAUTION! When moving the cabinet, lift it by the front edge to avoid scratching the floor.

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with lukewarm water and some neutral soap.

2. Regularly check the door seals and wipe clean to ensure they are clean and free from debris.

3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and the compressor at the back of the appliance with a brush.
   This operation will improve the performance of the appliance and save electricity consumption.

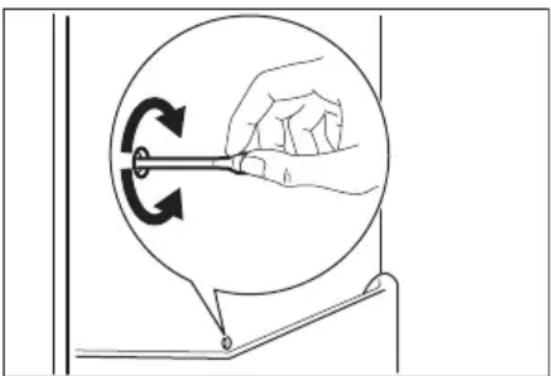

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1. Disconnect the appliance from electricity supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the door/doors open to prevent unpleasant smells.

WARNING! If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

What to do if...

Problem Possible cause Solution
The appliance does not operate.	The appliance is switched off.	Switch on the appliance.
The mains plug is not connected to the mains socket correctly.	Connected to the mains socket correctly.	Connect the mains plug to the mains socket correctly.
There is no voltage in the mains socket.	mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The appliance is noisy. The appliance is not supported properly.	Check if the appliance stands stable.
The lamp does not work. The lamp is in stand-by. Close and open the door.	The lamp is defective. Refer to "Replacing the lamp".
The compressor operates continually.	Temperature is set incorrectly.	Refer to "Operation" chapter.
Many food products to be frozen were put in at the same time.	frozen were put in at the same time.	Wait some hours and then check the temperature again.
The room temperature is too high.	high.	Refer to climate class chart on the rating plate.
Food products placed in the appliance were too warm.	above were too warm.	Allow food products to cool to room temperature before storing.
Problem Possible cause Solution
	The door is not closed correctly.	Refer to "Closing the door".
Water flows on the rear plate of the refrigerator.	During the automatic defrost-ing process, frost melts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged. Clean the water outlet.
	Food products prevent that water flows into the water collector.	Make sure that food products do not touch the rear plate.
Water flows on the floor. The melting water outlet is not connected to the evaporative tray above the compressor.		Attach the melting water outlet to the evaporative tray.
The temperature in the appli-ance is too low/too high.	The temperature regulator is not set correctly.	Set a higher/lower temperature.
	The door is not closed correctly.	Refer to "Closing the door".
	The food products' tempera-ture is too high.	Let the food products tempera-ture decrease to room temperature before storage.
	Many food products are stor-ed at the same time.	Store less food products at the same time.
	The door has been opened often.	Open the door only if neces-sary.
	There is no cold air circula-tion in the appliance.	Make sure that there is cold air circulation in the appli-ance.

If the advice does not lead to the desired result, call the nearest Authorized Service Centre.

cover and unhook it in the direction of the arrows.

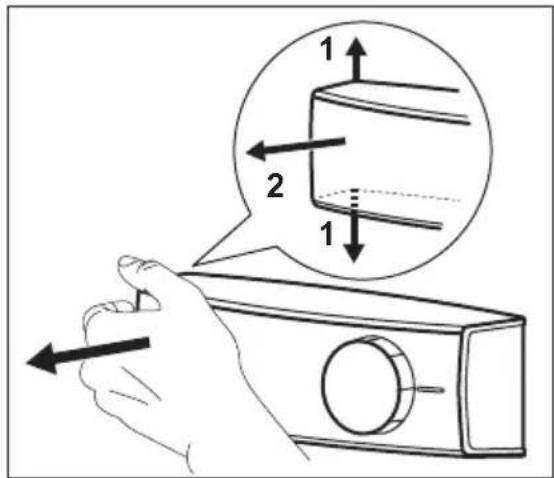

Replacing the lamp

CAUTION! Disconnect the plug from the mains socket.

1. At the same time, with the fingers expand up and down the transparent

Diagram illustrating a hand holding a device with labeled parts and directional arrows, showing a magnified view of a cylindrical object.

1. Replace the lamp with one of the same power and shape, specifically designed

INSTALLATION

WARNING! Refer to Safety chapters.

Location

Refer to the assembly instructions for the installation.

To ensure best performance, install the appliance well away from sources of heat such as radiators, boilers, direct sunlight etc. Make sure that air can circulate freely around the back of the cabinet.

Positioning

This appliance can be installed in a dry, well ventilated indoor where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

for household appliances. (the maximum power is shown on the light bulb cover).

1. Reassemble the lamp cover.

2. Connect the plug to the mains socket.

3. Open the door.

Make sure that the light comes on.

Closing the door

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
• The manufacturer declines all responsibility if the above safety precautions are not observed.
• This appliance complies with the E.E.C. Directives.

TECHNICAL INFORMATION

Technical data

Height mm 873
Width mm 540
Depth mm 549
Voltage Volts 230 - 240
Frequency Hz 50

The technical information are situated in the rating plate, on the external or internal side of the appliance and in the energy label.

ENVIRONMENT CONCERNS

Please recycle all materials marked with the symbol ♡ Dispose of all packaging materials appropriately and help to protect the environment, and future generations. Do not dispose of electrical equipment marked with the ⚙ symbol along with the

general house hold waste. Dispose all electrical goods via applicable local authority collections, or at local authority or, commercial recycling centres.

TABLE DES MATIÈRES

Illustration of a hand holding a horizontal bar with two small bowls on a table, no text or symbols present

Technical line drawing of a door frame with a curved lid and an arrow indicating upward motion (no text or symbols)

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Diagram illustrating a device with labeled parts and directional arrows, showing a hand holding a pen.

Illustration of a hand holding a tray with a ruler and two small bowls on the side, no text or symbols present.

Technical line drawing of a door handle assembly with an arrow indicating direction (no text or symbols)

Temperaturanzeige

Diagram showing a hand holding a tool inside a circular device with rotational arrows, no text or symbols present.

Stillstandszeiten

Diagram illustrating a hand holding a device with labeled parts and directional arrows, showing a magnified view of a component.
