JKSI605F9 - Cooker JUNO - Free user manual and instructions

Product type	Induction hob
Brand	JUNO
Model	JKSI605F9
Number of cooking zones	4 induction cooking zones
Electrical supply	220-240 V / 400 V, 50-60 Hz
Total power	7.35 kW
Control type	Touch controls
Main functions	PowerBoost, automatic start, countdown timer, independent timer, lock, child safety device, power management
Residual heat indicator	Yes, H indicator
Automatic shut-off	Yes, according to cooking level (from 1.5 h to 6 h)
Cooking zone diameter	Front left 21.0 cm, rear left 18.0 cm, front right 14.5 cm, rear right 26.5 x 17.0 cm
Surface material	Ceramic glass
Care and cleaning	Soft damp cloth, neutral detergent, special scraper for stubborn residues
Child safety	Yes, lock and child safety device
Spare parts	Contact approved after-sales service for original parts
Reparability	Intervention by a qualified professional, exclusive use of original parts
Approximate weight	Approximately 10 kg
Approximate dimensions (W x D x H)	60 x 52 x 5 cm

Frequently Asked Questions - JKSI605F9 JUNO

How to correctly install the JKSI605F9 induction hob?

Installation must be carried out by a qualified professional. Respect minimum clearances, do not install near a door or under a window, and ensure the cabinet allows sufficient ventilation.

What to do if the hob does not turn on?

Check that the appliance is properly plugged in and the fuse has not tripped. If the problem persists, contact a qualified electrician or after-sales service.

How to use the PowerBoost function?

Press the P key to activate the function on the desired cooking zone. It provides a power boost for a limited time (e.g., 10 min for the front left).

Why does the display show 'F'?

The symbol F means that no suitable cookware is detected on the cooking zone. Place an induction-compatible cookware with a sufficient diameter.

How to clean burnt sugar stains on the ceramic glass?

Use a special hob scraper as soon as the surface has cooled. Keep the blade inclined and scrape off residues. Then clean with a soft cloth and a non-abrasive product.

The residual heat indicator does not light up, is this normal?

If the zone has been used little, it may not be hot enough. If it has been heated for a long time and the indicator remains off, the sensor may be defective. Contact after-sales service.

How to activate the child safety device?

Turn on the hob (key 1) without selecting a cooking level. Press key 2 for 4 seconds. 'L' appears, turn off the hob. To deactivate, repeat the operation.

Can I use aluminum cookware on this induction hob?

No, only cookware made of cast iron, steel, enameled steel or stainless steel with a magnetic base are suitable. Aluminum, copper, glass or ceramic are not suitable.

What does the display 'E' followed by a number mean?

It is an operational error. Turn off the hob, wait 30 seconds and turn it on again. If the error persists, unplug the appliance for 30 seconds then plug it back in. If still present, contact after-sales service.

How to save energy with this hob?

Use pots with lids, choose the right zone size for each cookware, and use residual heat to finish cooking.

USER MANUAL JKSI605F9 JUNO

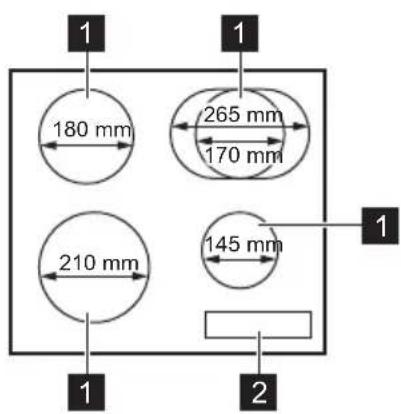

BESCHRIJVING VAN HET PRODUCT

Indeling kookplaat

Hints and tips 27
Care and cleaning 29
Troubleshooting 29
Technical data 31
Energy efficiency 31

Subject to change without notice.

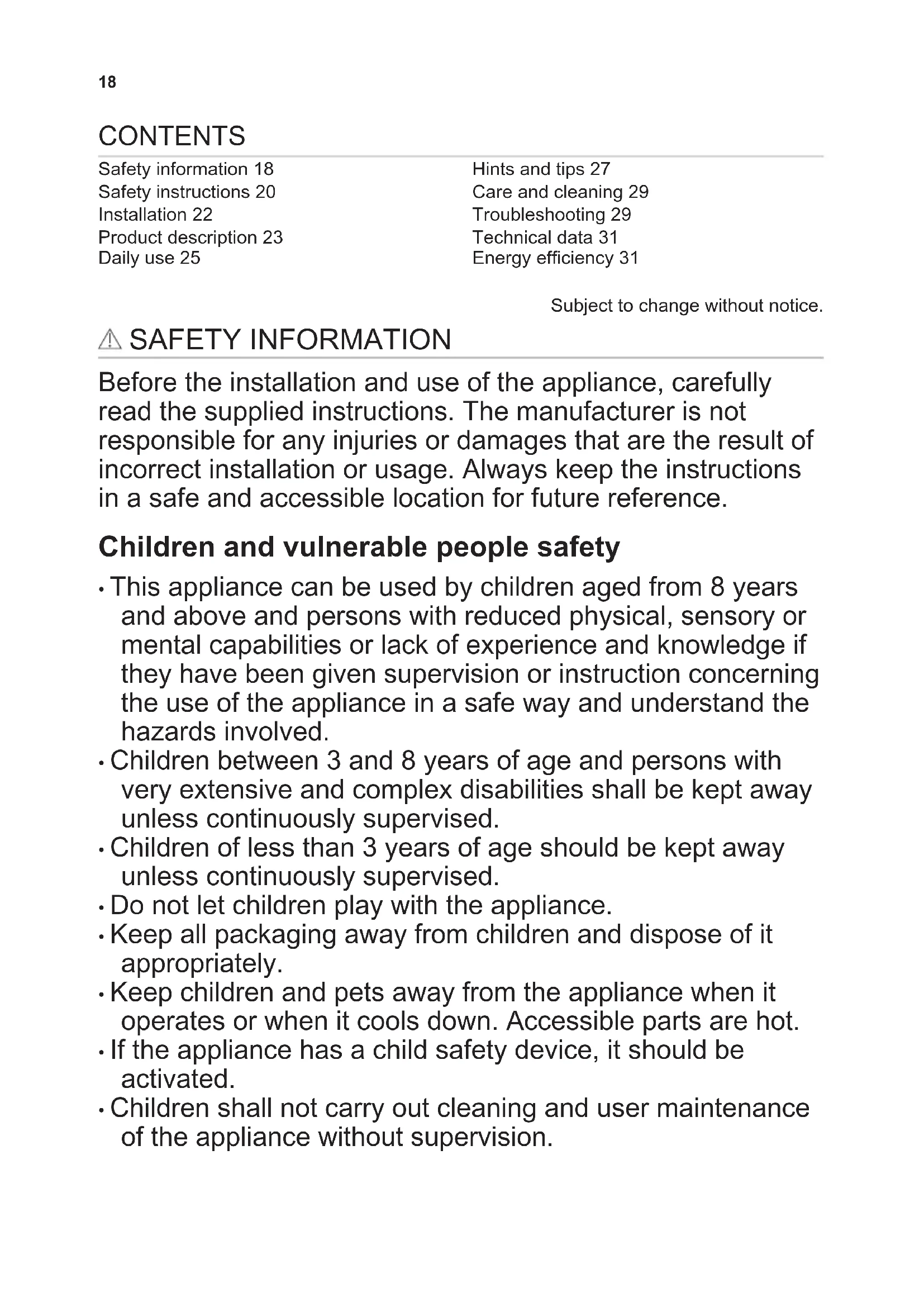

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• WARNING: Danger of fire: Do not store items on the cooking surfaces.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use a steam cleaner to clean the appliance.
  After use, switch off the hob element by its control and do not rely on the pan detector.
• If the glass ceramic surface / glass surface is cracked, switch off the appliance and unplug it from the mains. In case the appliance is connected to the mains directly using junction box, remove the fuse to disconnect the appliance from power supply. In either case contact the Authorised Service Centre.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

WARNING! Risk of injury or damage to the appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Keep the minimum distance from other appliances and units.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware falling from the appliance when the door or the window is opened.
  Each appliance has cooling fans on the bottom.

• If the appliance is installed above a drawer:

• Do not store any small pieces or sheets of paper that could be pulled in, as they can damage the cooling fans or impair the cooling system.

• Keep a distance of minimum 2 cm between the bottom of the appliance and parts stored in the drawer.

• Remove any separator panels installed in the cabinet below the appliance.

Electrical Connection

WARNING! Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.

• The appliance must be earthed.

• Before carrying out any operation make sure that the appliance is disconnected from the power supply.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you

disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

Use

WARNING! Risk of injury, burns and electric shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.
• This appliance is for household use only.
• Do not change the specification of this appliance.
  Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to "off" after each use.
• Do not rely on the pan detector.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• Users with a pacemaker must keep a distance of minimum 30~cm from the induction cooking zones when the appliance is in operation.
• When you place food into hot oil, it may splash.

WARNING! Risk of fire and explosion

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
  The vapours that very hot oil releases can cause spontaneous combustion.

Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
- Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not put a hot pan cover on the glass surface of the hob.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Care and cleaning

• Clean the appliance regularly to prevent the deterioration of the surface material.
• Deactivate the appliance and let it cool down before you clean it.
• Disconnect the appliance from the electrical supply before maintenance.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use any abrasive products, abrasive cleaning pads, solvents or metal objects.

Service

To repair the appliance contact an Authorised Service Centre.
- Use original spare parts only.

Disposal

WARNING! Risk of injury or suffocation.

INSTALLATION

WARNING! Refer to Safety chapters.

Before the installation

Before you install the hob, write down the information bellow from the rating plate. The rating plate is on the bottom of the hob.

Serial number

Built-in hobs

Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards.

Connection cable

• The hob is supplied with a connection cable.
  To replace the damaged mains cable, use the cable type: H05V2V2-F which withstands a temperature of 90^ or higher. Speak to your local Service Centre.

• Contact your municipal authority for information on how to discard the appliance correctly.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

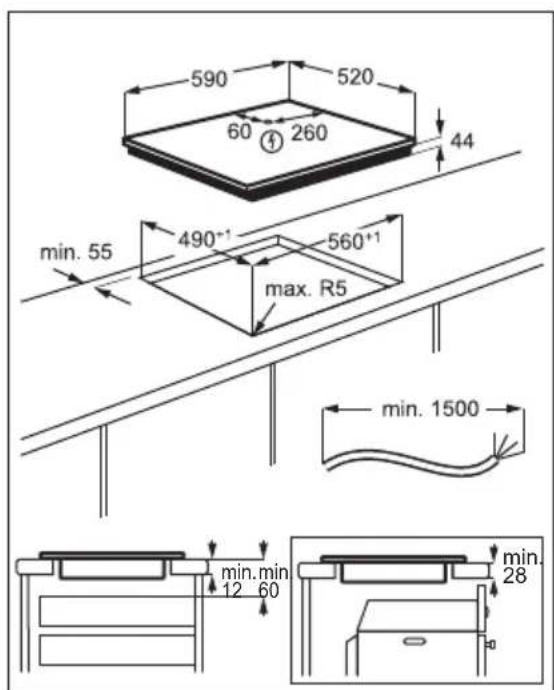

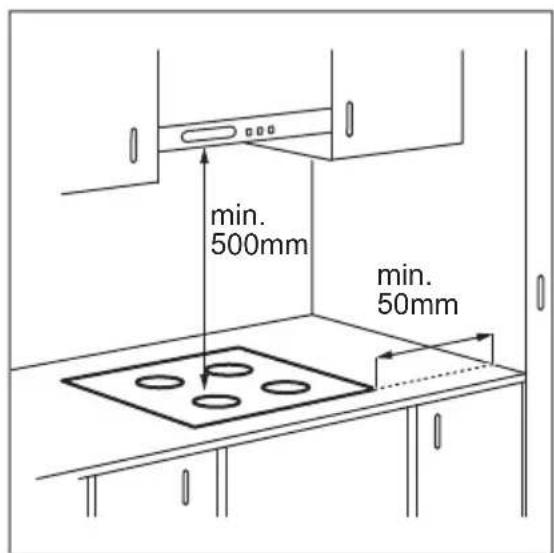

Assembly

PRODUCT DESCRIPTION

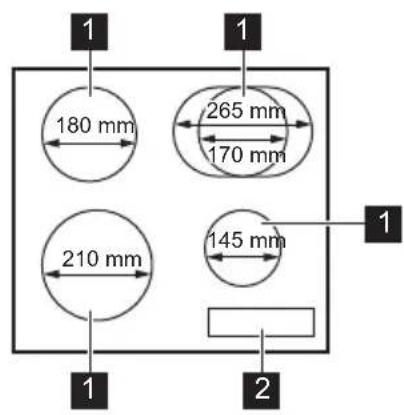

Cooking surface layout

1 Induction cooking zone
2 Control panel

Control panel layout

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

	Sensor field	Function Comment
1	①	ON / OFF To activate and deactivate the hob.
2	②	Lock / Child Safety Device To lock / unlock the control panel.
3	- Heat setting display To show the heat setting.
4	- Timer indicators of cooking zones	To show for which zone you set the time.
5	- Timer display To show the time in minutes.
6	④	- To select the cooking zone.

	Sensor field	Function Comment
7	+/-	- To increase or decrease the time.
8	+/-	- To set a heat setting.
9	P	PowerBoost To activate the function.

Heat setting displays

Display Description
0	The cooking zone is deactivated.
I-9	The cooking zone operates.
A	Automatic Heat Up operates.
P	PowerBoost operates.
E+ digit	There is a malfunction.
H	A cooking zone is still hot (residual heat).
L	Lock / Child Safety Device operates.
F	Incorrect or too small cookware or no cookware on the cooking zone.
-	Automatic Switch Off operates.

Residual heat indicator

WARNING! There is a risk of burns from residual heat. The indicators show the level of the residual heat for the cooking zones you are currently using. The indicators may also come on for the neighbouring cooking zones even if you are not using them.

The induction cooking zones produce the heat necessary for the cooking process directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.

WARNING! Refer to Safety chapters.

Activating and deactivating

Touch for 1 second to activate or deactivate the hob.

Automatic Switch Off

The function deactivates the hob automatically if:

• all cooking zones are deactivated,
• you do not set the heat setting after you activate the hob,
• you spill something or put something on the control panel for more than 10 seconds (a pan, a cloth, etc.). An acoustic signal sounds and the hob deactivates. Remove the object or clean the control panel.
• the hob gets too hot (e.g. when a saucepan boils dry). Let the cooking zone cool down before you use the hob again.
• you use incorrect cookware. The symbol comes on and the cooking zone deactivates automatically after 2 minutes.
• you do not deactivate a cooking zone or change the heat setting. After some time comes on and the hob deactivates.

The relation between the heat setting and the time after which the hob deactivates:

Heat setting The hob deacti- vates after
u, 1 - 2	6 hours
3 - 4 5 hours
5 4 hours
6 - 9 1.5 hour

The heat setting

Touch to increase the heat setting.

Touch to decrease the heat setting.

Touch and at the same time to deactivate the cooking zone.

Automatic Heat Up

If you activate this function you can get a necessary heat setting in a shorter time. The function sets the highest heat setting for some time and then decreases to the correct heat setting.

To activate the function the cooking zone must be cold.

To activate the function for a cooking zone: touch R comes on).

Immediately touch comes on).

Immediately touch until the correct heat setting comes on. After 3 seconds comes on.

To deactivate the function: touch

PowerBoost

This function makes more power available to the induction cooking zones. The function can be activated for the induction cooking zone only for a limited period of time. After this time the induction cooking zone automatically sets back to the highest heat setting.

Refer to "Technical data" chapter.

To activate the function for a cooking zone: touch P comes on.

To deactivate the function: touch P or

PowerBoost with a double ring cooking zone

The function is activated for the inner ring when the hob senses the cookware with a smaller diameter than the inner ring. The function is activated for the outer ring when the hob senses the cookware with a bigger diameter than the inner ring.

Timer

Count Down Timer

You can use this function to set how long the cooking zone should operate for a single cooking session.

First set the heat setting for the cooking zone then set the function.

To set the cooking zone: touch again and again until the indicator of a necessary cooking zone comes on.

To activate the function or change the time: touch for of the timer to set the time (00 - 99 minutes). When the indicator of the cooking zone starts to flash slowly the time counts down.

To see the remaining time: set the cooking zone with The indicator of the cooking zone starts to flash quickly. The display shows the remaining time.

To deactivate the function: set the cooking zone with and touch . The remaining time counts back to 00. The indicator of the cooking zone goes out.

When the time comes to an end, the sound operates and 00 flashes. The cooking zone deactivates.

To stop the sound: touch

Minute Minder

You can use this function as a Minute Minder when the hob is activated and the cooking zones do not operate. The heat setting display shows

To activate the function: touch Touch of the timer to set the time. When the time comes to an end, the sound operates and 00 flashes.

To stop the sound: touch

To deactivate the function: touch and then touch . The remaining time counts back to 00

The function has no effect on the operation of the cooking zones.

Lock

You can lock the control panel while cooking zones operate. It prevents an accidental change of the heat setting.

Set the heat setting first.

To activate the function: touch L comes on for 4 seconds. The Timer stays on.

To deactivate the function: touch The previous heat setting comes on.

When you deactivate the hob, you also deactivate this function.

Child Safety Device

This function prevents an accidental operation of the hob.

To activate the function: activate the hob with ①. Do not set the heat setting. Touch ② for 4 seconds. ③ comes on. Deactivate the hob with ①.

To deactivate the function: activate the hob with ① do not set the heat setting. Touch ② for 4 seconds. ③ comes on. Deactivate the hob with ④

To override the function for only one cooking time: activate the hob with ①. L comes on. Touch for 4 seconds. Set

the heat setting in 10 seconds. You can operate the hob. When you deactivate the hob with the function operates again.

Power management

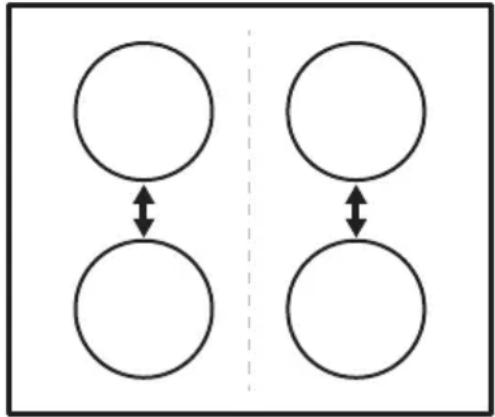

• Cooking zones are grouped according to the location and number of the phases in the hob. See the illustration.
  Each phase has a maximum electricity loading of 3700 W.
  The function divides the power between cooking zones connected to the same phase.
  The function activates when the total electricity loading of the cooking zones connected to a single phase exceeds 3700 W.

The function decreases the power to the other cooking zones connected to the same phase.
- The heat setting display of the reduced zones changes between two levels.

HINTS AND TIPS

WARNING! Refer to Safety chapters.

Cookware

For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly.

Use the induction cooking zones with suitable cookware.

Cookware material

• correct: cast iron, steel, enamelled steel, stainless steel, multi-layer bottom (with a correct marking from a manufacturer).
  not correct: aluminium, copper, brass, glass, ceramic, porcelain.

Cookware is suitable for an induction hob if:

water boils very quickly on a zone set to the highest heat setting.
- a magnet pulls on to the bottom of the cookware.

The bottom of the cookware must be as thick and flat as possible.

Ensure pan bases are clean and dry before placing on the hob surface.

Cookware dimensions

Induction cooking zones adapt to the dimension of the bottom of the cookware automatically.

The cooking zone efficiency is related to the diameter of the cookware. The cookware with a diameter smaller than the minimum receives only a part of the power generated by the cooking zone.

Refer to "Technical data".

The noises during operation

If you can hear:

• crack noise: cookware is made of different materials (a sandwich construction).
  whistle sound: you use a cooking zone with a high power level and the cookware is made of different materials (a sandwich construction).

• humming: you use a high power level.

• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.

The noises are normal and do not indicate any malfunction.

Examples of cooking applications

The correlation between the heat setting of a zone and its consumption of power is

not linear. When you increase the heat setting, it is not proportional to the increase of the consumption of power. It means that a cooking zone with the medium heat setting uses less than a half of its power.

The data in the table is for guidance only.

Heat setting Use to: Time		(min)	Hints
ü-1	Keep cooked food warm. as	nec-essary	Put a lid on the cookware.
1 - 2 Hollandaise sauce, melt: but-ter, chocolate, gelatine.		5 - 25 Mix from time to time.
1 - 2 Solidify: fluffy omelettes, baked eggs.		10 - 40	Cook with a lid on.
2 - 3 Simmer rice and milkbased dishes, heat up ready-cooked meals.		25 - 50	Add at least twice as much liq-uid as rice, mix milk dishes halfway through the proce-dure.
3 - 4 Steam vegetables, fish, meat. 20 -		45	Add a couple of tablespoons of liquid.
4 - 5 Steam potatoes. 20 -		60	Use max. ¼ l of water for 750 g of potatoes.
4 - 5 Cook larger quantities of food, stews and soups.		60 - 150	Up to 3 l of liquid plus ingredi-ents.
6 - 7 Gentle fry: scallope, veal cor-don bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts.		as nec-essary	Turn halfway through.
7 - 8 Heavy fry, hash browns, loin steaks, steaks.		5 - 15 Turn halfway through.
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
P	Boil large quantities of water. PowerBoost is activated.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

General information

• Clean the hob after each use.
• Always use cookware with a clean base.
• Scratches or dark stains on the surface have no effect on how the hob operates.
• Use a special cleaner suitable for the surface of the hob.
• Use a special scraper for the glass.

Cleaning the hob

• Remove immediately: melted plastic, plastic foil, sugar and food with sugar,

TROUBLESHOOTING

otherwise, the dirt can cause damage to the hob. Take care to avoid burns. Use a special hob scraper on the glass surface at an acute angle and move the blade on the surface.

• Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and a non-abrasive detergent. After cleaning, wipe the hob dry with a soft cloth.
• Remove shiny metallic discoloration: use a solution of water with vinegar and clean the glass surface with a cloth.

WARNING! Refer to Safety chapters.

What to do if...

Problem Possible cause Remedy
You cannot activate or operate the hob.	The hob is not connected to an electrical supply or it is connected incorrectly.	Check if the hob is correctly connected to the electrical supply. Refer to the connection diagram.
The fuse is blown. Make sure that the fuse is	the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
You do not set the heat setting for 10 seconds.	Activate the hob again and set the heat setting in less than 10 seconds.
You touched 2 or more sensors at the same time.	Touch only one sensor field.
There is water or fat stains on the control panel.	Clean the control panel.
Problem Possible cause Remedy
An acoustic signal sounds and the hob deactivates. An acoustic signal sounds when the hob is deactivated.	You put something on one or more sensor fields.	Remove the object from the sensor fields.
The hob deactivates. You put something on the sensor field ➀		Remove the object from the sensor field.
Residual heat indicator does not come on.	The zone is not hot because it operated only for a short time or the sensor is damaged.	If the zone operated sufficiently long to be hot, speak to an Authorised Service Centre.
Automatic Heat Up does not operate.	The zone is hot. Let the zone become sufficiently cool.
The highest heat setting is set.		The highest heat setting has the same power as the function.
The heat setting changes between two levels.	Power management operates.	Refer to "Daily use".
The sensor fields become hot.	The cookware is too large or you put it too near to the controls.	Put large cookware on the rear zones if possible.
L comes on.	Child Safety Device or Lock operates.	Refer to "Daily use".
F comes on.	There is no cookware on the zone.	Put cookware on the zone.
The cookware is unsuitable. Use suitable cookware. Re-		fer to "Hints and tips".
The diameter of the bottom	of the cookware is too small for the zone.	Use cookware with correct dimensions. Refer to "Technical data".
E and a number come on.	There is an error in the hob. Deactivate the hob and activate it again after 30 seconds. If E comes on again, disconnect the hob from the electrical supply. After 30 seconds, connect the hob again. If the problem continues, speak to an Authorised Service Centre.
Problem Possible cause Remedy
You can hear a constant beep noise.	The electrical connection isincorrect.	Disconnect the hob from theelectrical supply. Ask aqualified electrician to checkthe installation.

If you cannot find a solution...

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Give also three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an

error message that comes on. Make sure, you operated the hob correctly. If not the servicing by a service technician or dealer will not be free of charge, also during the warranty period. The instructions about the Service Centre and conditions of guarantee are in the guarantee booklet.

TECHNICAL DATA

Rating plate

ModelJKSI605F9PNC94949232600

Typ 61 B4A 00 AA 220 - 240 V / 400 V 2N 50 - 60 Hz

Induction 7.35 kW Made in Romania

Ser.Nr. 7.35 kW

JUNO

Cooking zones specification

Cooking zone	Nominal pow- er (maximum heat setting) [W]	PowerBoost [W]	PowerBoost maximum du- ration [min]	Cookware di- ameter [mm]
Left front 2300	3700 10 180 - 210
Left rear 1800 -	- 145 - 180
Right front 1400	2500 4 125 - 145
Right rear	2300 - - 145 - 265

The power of the cooking zones can be different in some small range from the data in the table. It changes with the material and dimensions of the cookware.

For optimal cooking results use cookware no larger than the diameter in the table.

ENERGY EFFICIENCY

Product information according to EU 66/2014

Model identification

JKSI605F9

Type of hob Built-In Hob
Number of cooking zones 4
Heating technology Induction
Diameter of circular cooking zones (Ø)	Left front	21.0 cm
	Left rear	18.0 cm
	Right front	14.5 cm
Lenght (L) and width (W) of non circular cooking zone	Right rear L 26.5 cm	W 17.0 cm
Energy consumption per cooking zone (EC electric cooking)	Left front	188.9 Wh / kg
	Left rear	178.8 Wh / kg
	Right front	183.4 Wh / kg
	Right rear	178.8 Wh / kg
Energy consumption of the hob (EC electric hob)	182.5 Wh / kg

EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance

Energy saving

You can save energy during everyday cooking if you follow below hints.

• When you heat up water, use only the amount you need.

• If it is possible, always put the lids on the cookware.

• Before you activate the cooking zone, put the cookware on it.
• Put the smaller cookware on the smaller cooking zones.
• Put the cookware directly in the centre of the cooking zone.
• Use the residual heat to keep the food warm or to melt it.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES
