Product type	Microwave oven
Brand	JUNO
Model	JM60200210
Power supply	230 V / 50 Hz
Microwave power	800 W (estimated)
Capacity	20 L (estimated)
Functions	Microwave, Grill, Combined cooking, Defrost (weight/time), Automatic programs, Timer, Child safety, Quick start
Automatic programs	8 menus: Pizza, Meat, Vegetables, Gratin, Potatoes, Fish, Drinks, Popcorn
Defrost	By weight (100 g - 2000 g) or by time
Number of power levels	5 (100%, 80%, 50%, 30%, 10%)
Display type	LED
Interior light	Yes
Included accessories	Glass turntable, roller support, wire rack
Child safety	Yes (key lock by long press 3 seconds)
Interlock system	Yes
Installation type	On worktop or built-in under conditions
Maintenance	Clean after each use with a soft damp cloth and neutral products
Repairability	Requires a qualified professional for any internal intervention
Manual pages	76 pages (French)

Frequently Asked Questions - JM60200210 JUNO

How to set the time on my Juno JM60200210 microwave?

When first powered on or after a power cut, the screen shows 0:00. Press the Clock button (probably the ◇ button) twice, then turn the adjustment knob to select the hours. Press ◇ to confirm, then set the minutes in the same way.

How to use the defrost by weight function?

Press the ☆ button (defrost by weight). Turn the adjustment knob to enter the food weight (between 100 g and 2000 g). Press _+30 to start. The duration is automatically calculated.

What to do if the microwave does not turn on?

Check that the appliance is plugged in and the door is properly closed. Make sure the circuit breaker hasn't tripped. If the problem persists, contact a qualified electrician.

How to activate child safety?

Press and hold the ◇ button for 3 seconds. A beep sounds and the safety icon appears. To deactivate, repeat the same action.

Can I use metal containers in the microwave?

No, metal containers can cause electrical arcing. Use only microwave-safe utensils (glass, ceramic, compatible plastic).

How to clean the inside of the microwave?

Use a soft damp cloth with warm soapy water. For stubborn residues, boil a glass of water at full power for 2-3 minutes. Avoid abrasive products.

What is the maximum timer duration?

The timer can be set for up to 95 minutes maximum.

What to do if sparks appear in the cavity?

Immediately turn off the appliance. Remove any metal objects or aluminum foil. Make sure skewers are not touching the walls. If the problem persists, contact customer service.

How to use combined cooking?

Press the Grill button (or corresponding button) once or several times to select the combined mode (C-1: 55% microwave + 45% grill, C-2: 36% microwave + 64% grill). Set the duration and start.

The turntable makes a squeaking noise, what to do?

Clean the underside of the glass cooking plate and the roller support. Remove any object or dirt that could block rotation.

USER MANUAL JM60200210 JUNO

BESCHRIJVING VAN HET PRODUCT

Algemeen overzicht

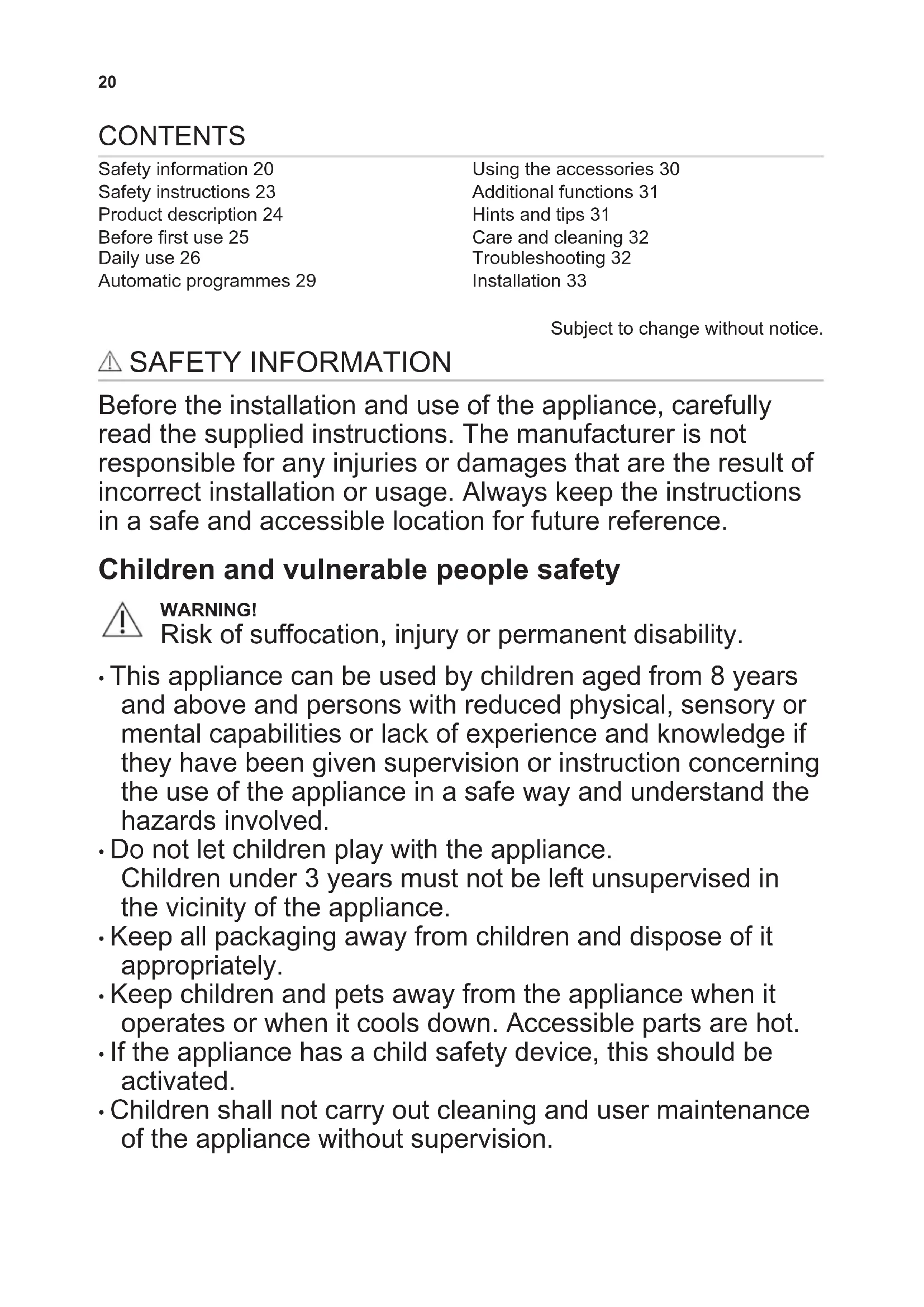

Safety information 20
Safety instructions 23
Product description 24
Before first use 25
Daily use 26
Automatic programme

Using the accessories 30
Additional functions 31
Hints and tips 31
Care and cleaning 32
Troubleshooting 32
Installation 33

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

WARNING! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance. Children under 3 years must not be left unsupervised in the vicinity of the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, this should be activated.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

• Keep the appliance and its cord out of reach of children less than 8 years.

General Safety

• This appliance is intended to be used in household and similar applications such as:
  -Farm houses, staff kitchen areas in shops, offices and other working environments
• By clients in hotels, motels, bed and breakfast and other residential type environments.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• Always use oven gloves to remove or put in accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a qualified person.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Only a qualified person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• Do not heat liquids and other foods in sealed containers. They are liable to explode.

• Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

• Only use utensils that are suitable for use in microwave ovens.

• When heating food in plastic or paper containers, keep an eye on the appliance due to the possibility of ignition.
• The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.
• The appliance should be cleaned regularly and any food deposits removed.
• Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The temperature of accessible surfaces may be high when the appliance is operating.
• The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
• The rear surface of appliances shall be placed against a wall.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

• Do not activate the appliance when it is empty. Metal parts inside the cavity can create electric arcing.

• Pay attention to the minimum dimensions of the cabinet (if applicable). Refer to the installation chapter.

• The appliance must be operated with the decorative door open (if applicable).

SAFETY INSTRUCTIONS

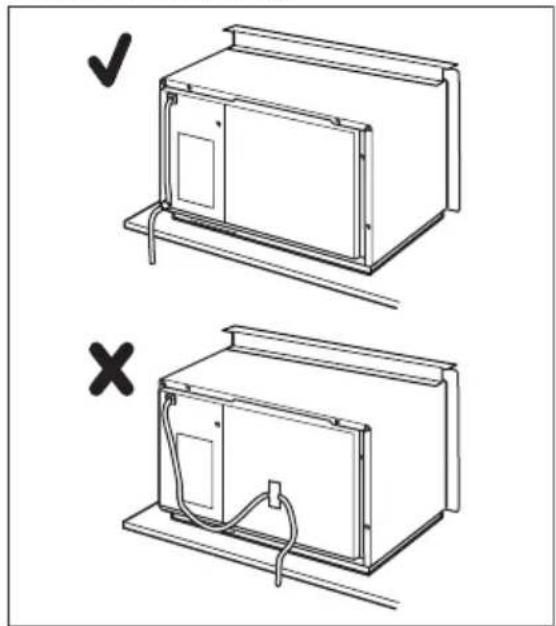

Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with the appliance.
  Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other appliances and units.
• Make sure that the appliance is installed below and adjacent safe structures.
• The sides of the appliance must stay adjacent to appliances or to units with the same height.

Electrical Connection

WARNING! Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
  The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• If the appliance is connected to the socket via an extension cord, make sure the cord is earthed.
  Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING! Risk of injury, burns and electrical shock or explosion.

• Do not change the specification of this appliance.
• Do not let the appliance stay unattended during operation.
• Do not apply pressure on the open door.
  Make sure that the ventilation openings are not blocked.
• Do not use the appliance as a work surface and do not use the cavity for storage purposes.

Care and Cleaning

WARNING! Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Do not allow food spills or cleaner residue to accumulate on door sealing surfaces.
• Fat and food remaining in the appliance can cause fire and electric arcing when the microwave function operates.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• If you use an oven spray, obey the safety instructions on the packaging.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

PRODUCT DESCRIPTION

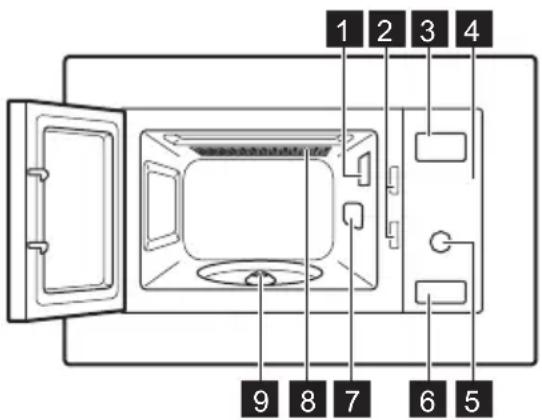

General overview

1 Lamp
2 Safety interlock system
3 Display
4 Control panel
5 Knob
6 Door opener
Waveguide cover
8 Grill
9 Turntable shaft

Control Panel

Display element Function description

1

Display Shows the settings and current time.

	Display element Function description
2		To set the microwave function.
3		To set the grilling or combination cooking function.
4		To set the clock and timer.
5		To deactivate the microwave or to delete the cooking settings.
6	+30	To start the appliance or increase the cooking time for 30 seconds at full power.
7	Setting knob	To set the cooking time or weight or function.
8		To defrost food by weight.
9		To defrost food by time.

Accessories

Turntable set

Always use the turntable set to prepare food in the microwave.

BEFORE FIRST USE

WARNING! Refer to Safety chapters.

Glass cooking tray and roller guide.

Grill Rack

Use for:

• grilling food
• combi cooking

Initial Cleaning

CAUTION! Refer to chapter "Care and Cleaning".

• Remove all the parts and additional packaging from the microwave.

• Clean the appliance before first use.

Setting the time

Set the time to operate the microwave.

When you connect the appliance to the electrical supply or after a power cut, the display shows 0:00 and an acoustic signal sounds.

DAILYUSE

You can set the time in a 24 hour clock system.

1. Press twice.
2. Turn the Setting knob to set the hours.
3. Press confirm.
4. Turn the Setting knob to set the minutes.
5. Press to confirm.

WARNING! Refer to Safety chapters.

General information about using the appliance

After you deactivate the appliance, let the food stand for some minutes.
- Remove the aluminium foil packaging, metal containers, etc. before you prepare the food.

Cooking

• If possible, cook food covered with material suitable for use in the microwave. Only cook food without a cover if you want to keep it crusty
• Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or catch fire in some places.
• Do not use the appliance to cook eggs or snails in their shells, because they can explode. With fried eggs, pierce the yolks first.
• Pierce skin or peel of potatoes, tomatoes, sausages and similar types of food with a fork several times before cooking so that the food does not burst.
• For chilled or frozen food, set a longer cooking time.
• Dishes which contain sauce must be stirred from time to time.
  Vegetables that have a firm structure, such as carrots, peas or cauliflower, must be cooked in water.

• Turn larger pieces of food after half of the cooking time.

• If possible, cut vegetables into similar-sized pieces.

• Use flat, wide dishes.
• Do not use cookware made of porcelain, ceramic or earthenware with unglazed bottoms or small holes for example on handles. Moisture going into the holes can cause the cookware to crack when it is heated.
• The glass cooking tray is necessary for the operation of the microwave. Place the food or liquids on it.

Defrosting meat, poultry, fish

• Put the frozen, unwrapped food on a small upturned plate with a container below it so that the defrosting liquid collects in the container.
• Turn the food after half of the defrosting time. If possible, divide and then remove the pieces that started to defrost.

Defrosting butter, portions of gateau, quark

• Do not fully defrost the food in the appliance, but let it defrost at room temperature. It gives a more even result. Remove all metal or aluminium packaging before defrosting.

Defrosting fruit, vegetables

• If fruit and vegetables should remain raw, do not defrost them fully in the appliance. Let them defrost at room temperature.
• To cook fruit and vegetables without defrosting them first use a higher microwave power.

Ready meals

• You can prepare ready meals in the appliance only if their packaging is suitable for microwave use.
• You must follow the manufacturer's instructions printed on the packaging

(e.g. remove the metal cover and pierce the plastic film).

Suitable cookware and materials

Cookware / Material Microwave Grilling
	Defrost-ing	Heating	Cook-ing
Ovenproof glass and porcelain with no metal components, e. g. Pyrex, heat-proof glass	✓	✓	✓	✓
Non-ovenproof glass and porcelain 1)	✓	XXXX
Glass and glass ceramic made of oven-proof/frost-proof material (e. g. Arco-flam), grill shelf	✓	✓	✓	✓
Ceramic 2), earthenware 2)	✓	✓	✓	X
Heat-resistant plastic up to 200 °C 3)	✓	✓	✓	X
Cardboard, paper XXX	✓
Clingfilm XXX	✓
Roasting film with microwave safe closure 3)	✓	✓	✓	X
Roasting dishes made of metal, e. g. enamel, cast iron	XXX			✓
Baking tins, black lacquer or silicon-coated 3)	XXX			✓
Baking tray XXX				✓
Browning cookware, e. g. crisp pan or crunch plate	X	✓	✓	X
Ready meals in packaging 3)	✓	✓	✓	✓

1) With no silver, gold, platinum or metal plating / decorations
2) Without quartz or metal components, or glazes which contain metals
3) You must follow the manufacturer's instructions about the maximum temperatures.

suitable

X not suitable

Activating and deactivating the microwave

CAUTION! Do not let the microwave operate if there is no food in it.

1. Press once.
2. Repeatedly press turn the Setting knob to set the desired function.
3. Press confirm.

4. Turn the Setting knob to set the time.

5. Press to confirm and activate the microwave.

6. The microwave deactivates automatically when the set time comes to an end. An acoustic signal sounds. To deactivate the microwave earlier:

7. press.

8. open the door. The microwave stops automatically. Close the door and press _+30 to continue cooking. Use this option to inspect food.

Power setting table

Press	Power setting	Approximate Percentage of Power
1 time P100 100 %
2 times P 80 80 %
3 times P 50 50 %
4 times P 30 30 %
5 times P 10 10 %

Grilling and Combi cooking

Press	Power setting Function mode
Grill
1 time G Full Grill
Combi Cooking
2 times C - 1 55 % Microwaves, 45 % Grill
3 times C - 2 36 % Microwaves, 64 % Grill

Quick Start

The maximum cooking time is 95 minutes.

To activate the microwave for 30 seconds at full power press

The cooking time increases by 30 seconds with each additional press of the button.

To set the cooking time in standby mode, turn the Setting knob counterclockwise

then press to activate the microwave at full power.

Defrosting

You can choose between 2 defrosting modes:

Weightdefrosting

Time defrosting

Do not use weight defrosting on food that is left out of the freezer for more than 20 minutes, or for frozen ready-made food.

To activate weight defrosting you must use more than 100g of food and less than 2000g .

To defrost less than 200g of food place it on the edge of the turntable.

1. Press weight defrosting or for time defrosting.
2. Turn the Setting knob to set the weight or time. For weight defrosting the time is set automatically.
3. Press confirm and activate the microwave.

Multistage cooking

If one stage is defrosting, set it as the first stage.

AUTOMATIC PROGRAMMES

WARNING! Refer to Safety chapters.

Auto cooking

Use this function to easily cook favourite food. The microwave automatically sets the optimum settings.

You can cook food in maximum 2stages.

1. Press weight defrosting or for time defrosting.
2. Turn the Setting knob to set the defrosting time or weight.
3. Press to confirm.
4. Press repeatedly to choose a power level.
5. Turn the Setting knob to set the time.
6. Press to confirm and activate the microwave. After each step an acoustic signal sounds.

Grilling and Combi Cooking

1. Press set the desired function.
2. Turn the Setting knob to set the time.

3. Press _+30 to confirm and activate the microwave. You can change the power setting or time, while the Grilling or Combi cooking mode is active.

4. Turn the Setting knob clockwise to choose the desired menu.

5. Press to confirm.
6. Turn the Setting knob to set the weight of the menu.
7. Press confirm and activate the microwave.

Menu Amount
A - 1	200 g
Pizza	400 g
A - 2	250 g
Meat	350 g
	450 g
A - 3 Vegetables	200 g 300 g 400 g
A - 4 Pasta	50 g (add 450 ml of water) 100 g (add 800 ml of water)
A - 5 Potato	200 g 400 g 600 g
A - 6 Fish	250 g 350 g 450 g
A - 7 Beverage	1 cup (120 ml) 2 cups (240 ml) 3 cups (360 ml)
A - 8 Popcorn	50 g 100 g

USING THE ACCESSORIES

WARNING! Refer to Safety chapters.

Inserting the turntable set

CAUTION! Do not cook food without the turntable set. Use only the turntable set provided with the microwave.

Never cook food directly on the glass cooking tray.

1. Place the roller guide around the turntable shaft.
2. Place the glass cooking tray on the roller guide

Inserting the grill rack

Place the grill rack on the turntable set.

ADDITIONAL FUNCTIONS

Child Safety Lock

The Child Safety Lock prevents an accidental operation of the microwave.

Press and hold for 3 seconds. An acoustic signal sounds.

When the Child Safety Lock is active the display shows

To deactivate the Child Safety Lock Press and hold for 3 seconds.

Kitchen Timer

You can set a maximum 95 minutes.

HINTS AND TIPS

WARNING! Refer to Safety chapters.

Tips for the microwave

Problem Remedy
You cannot find details for the amount of food prepared.	Look for a similar food. Increase or shorten the length of the cooking times according to the following rule: Double the amount = almost double the time, Half the amount = half the time
The food got too dry. Set shorter cooking time or select lower microwave power.
The food is not defrosted, hot or cooked after the time came to an end.	Set longer cooking time or set higher power. Note that large dishes need longer time.
After the cooking time comes to an end, the food is overheated at the edge but is still not ready in the middle.	Next time set a lower power and a longer time. Stir liquids halfway through, e.g. soup.

To get better results for rice use a flat, wide dish.

Defrosting

Always defrost roast with the fat side down.

Do not defrost covered meat because this may cause cooking instead of defrosting.

Always defrost whole poultry breast side down.

1. Press
2. Turn the Setting knob to set the time.
3. Press to confirm.

The Timer still works when you open the door or pause the microwave.

Press to cancel.

When the set time is reached, an acoustic signal sounds.

Cooking

Always remove chilled meat and poultry from the refrigerator at least 30 minutes before cooking.

Let the meat, poultry, fish and vegetables stay covered after cooking.

Brush a little oil or melted butter over the fish.

All vegetables should be cooked at full microwave power.

Add 30 - 45 ml of cold water for every 250 g of vegetables.

Cut the fresh vegetables into even size pieces before cooking. Cook all vegetables with a cover on the container.

Reheating

When you reheat packed ready meals always follow the instruction written on the packaging.

Grilling

Grill flat food items in the middle of the grill rack.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

Notes and tips on cleaning

• Clean the front of the appliance with a soft cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a usual cleaning agent.
• Clean the appliance interior after each use. The dirt does not burn on and can be removed easily.

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

What to do if...

Problem Possible cause Remedy
The appliance does not operate.	The appliance is deactivated. Activate the appliance.
The appliance does not operate.	The appliance is not plugged in. Plug in the appliance.

Turn the food over halfway through the set time and continue grilling.

Combi Cooking

Use the Combi Cooking to keep the crispness of certain foods.

At the half of the cooking time, turn over the foods then continue.

Each mode combines the microwave and the grill functions at different time periods and power levels.

• Clean stubborn dirt with a special cleaner.
• Clean all accessories regularly and let them dry. Use a soft cloth with warm water and a cleaning agent.
• To soften the hard to remove remains, boil a glass of water at full microwave power for 2 to 3 minutes.
• To remove odours, mix a glass of water with 2 tsp of lemon juice and boil at full microwave power for 5 minutes.

Problem Possible cause Remedy
The appliance does not operate.	The fuse in the fuse box is blown.	Check the fuse. If the fuse blows more than one time, contact a qualified electrician.
The appliance does not operate.	The door is not closed properly. Make sure that nothing blocks the door.
The lamp does not operate.	The lamp is defective. The lamp has to be replaced.
The display shows[ ]	The Child Safety Lock is active. Deactivate the Child Safety Lock. Hold for 3 seconds.
There is sparking in the cavity.	There are metal dishes or dishes with metal trim.	Remove the dish from the appliance.
There is sparking in the cavity.	There are metal skewers or aluminium foil that touches the interior walls.	Make sure that the skewers or foil do not touch the interior walls.
The turntable set makes scratching or grinding noise.	There is an object or dirt below the glass cooking tray.	Clean the area below the glass cooking tray.
The appliance stops operating without a clear reason.	There is a malfunction. If this situation repeats call the Authorised Service Center.

Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the appliance. Do not remove the rating plate from the appliance.

We recommend that you write the data here:
Model (MOD.)
Product number (PNC)
Serial number (S.N.)

INSTALLATION

WARNING! Refer to Safety chapters.

Electrical installation

WARNING! Only a qualified person must do the electrical installation.

The manufacturer is not responsible if you do not follow the safety precautions from the chapter "Safety Information".

This microwave is supplied with a main cable and main plug.

The cable has an earth wire with an earthing plug. The plug must be plugged

into an outlet that is properly installed and earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock.

Installation - preliminary preparation

• To install the microwave in a cupboard with dimensions as specified below, remove the 4 screws and the bracket from the bottom of the appliance.

• To install the microwave in a cupboard with dimensions as specified below, no modification is needed.

• Follow the steps below, starting from number 1.

• Follow the steps below, starting from number 1.

Installation

1. The electrical cable must not be trapped in any way.

1. Insert the microwave inside the cupboard.

1. Fix the upper bracket with 2 screws.

1. Keep the minimum distance between the microwave and the adjacent furniture.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES
