USER MANUAL B30IB900SP BOSCH
Register your new Bosch now: www.bosch-home.com/welcome
Freezer refrigerator
Réfrigérateur / congélateur combiné
Refrigerador/congelador
B36IT900NP B36BT930NS
B30IB900SP B30BB930SS
BOSCH
en Instruction manual ......2
Important safety instructions .... 3
Definitions 3
About these instructions .... 3
Introduction 3
Risk of explosion....3
Risk of electric shock 3
Risk of cold burns 4
Risk of Injury 4
Avoiding placing children and vulnerable
people at risk 4
Damage 4
Weight 4
State of California Proposition 65 Warnings ..... 4
Intended use 5
Environmental protection .... 5
Packaging 5
Old appliances 5
Installation and connection .... 5
Contents of package....5
Technical data. 5
Installing the appliance .... 5
Check built-in cut-out. 5
Side-by-side installation 5
Saving energy 6
Before using for the first time ..... 7
Water connection 7
Electrical connection 7
Getting to know your appliance ....8
2-door appliance 8
3-door appliance 9
Operating controls....10
Interior fittings 11
Operating the appliance 13
Switching the appliance on....13
Switching off and disconnecting the appliance. 13
Setting the temperature....13
Super cooling 13
Super freezing .....14
Eco mode 14
Vacation mode 14
Sabbath mode....14
Switching ice cube production on or off .....14
Switching Prevent condensation on or off ..... 14
Home Connect....15
Setting up Home Connect 15
Connecting the refrigerator to the
Home Connect app 15
Installing updates for the Home Connect
software 16
Customer Service access....16
Deleting network settings 16
Switching the WiFi connection on or off ..... 16
Information on data protection 16
Alarm.... 16
Door alarm 16
Refrigerator compartment. 17
Note when storing food 17
Note the chill zones in the refrigerator compartment 17
Vegetable container with humidity controller .... 17
Chill compartment 17
Freezer compartment. 18
Fully utilizing the freezer volume....18
Purchasing frozen food. 18
When loading products 18
Freezing fresh food. 18
Thawing frozen food 19
Defrosting.... 19
Freezer compartment 19
Cleaning 19
Cleaning the display 19
Cleaning the appliance interior....19
Cleaning the fittings 19
Care instructions for stainless steel surfaces .... 19
Odors. 20
Changing the odor filter 20
Lighting.... 20
Noises 20
Normal noises 20
Preventing noises 20
Faults – what to do? 21
Appliance 21
Ice maker 22
Customer service.... 23
Appliance self-test 23
Repair order and advice on faults 23
Important safety instructions
READ INSTRUCTIONS - DO NOT DISCARD!
Definitions
WARNING
Non-observance of this warning could result in death or serious injuries.
CAUTION!
Non-observance of this warning could result in slight or moderately serious injuries.
NOTICE: Non-observance of this information could damage the appliance.
Note: This indicates important information and/or tips.
About these instructions
- Read and follow the operating and installation instructions. They contain important information on how to install, use and maintain the appliance.
■ The manufacturer is not liable if you disregard the instructions and warnings in the operating and installation instructions.
■ Retain all documents for subsequent use or for the next owner.
Introduction
■ This appliance complies with the relevant safety regulations for electrical appliances.
■ The refrigeration circuit has been checked for leaks.
Risk of explosion
■ Never use electric devices inside the appliance (e.g. heaters or electric ice makers).
- Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.
■ Only store high-proof alcohol tightly closed and standing up.
- Do not use other means to accelerate the defrosting process other than those recommended by the manufacturer.
Risk of electric shock
Improper installations or repairs may put the user at considerable risk.
- When installing the appliance, make sure that the power cord does not get jammed or is not damaged.
■ If the power cord is damaged, immediately disconnect appliance from the power supply.
- Do not use multiple outlets, extension leads, or adapters.
■ Before servicing or modifying the appliance, pull out the power plug or switch off the circuit breaker. Before cleaning the appliance, press main On/Off switch to switch the appliance off.
Glass shelves or other fittings can be safely moved while the appliance is switched on.
■ Never cut through or remove the power cord's third conductor (earthing conductor).
■ Never defrost or clean the appliance with a steam cleaner. The steam may penetrate electrical parts and cause a short circuit.
■ The appliance, cable and accessories should only be repaired or replaced by the manufacturer, customer services, or a similarly qualified person.
■ Only use original parts supplied by the manufacturer.
Important safety instructions
READ INSTRUCTIONS - DO NOT DISCARD!
Risk of cold burns
■ Never put frozen food straight from the freezer compartment into your mouth.
- Avoid prolonged contact of skin with frozen food, ice and the tubes in the freezer compartment.
Risk of Injury
Containers which contain carbonated drinks may burst.
Do not store containers which contain carbonated drinks in the freezer compartment.
Avoiding placing children and vulnerable people at risk
At risk are:
Children,
■ People who have limited physical, mental or sensory abilities,
■ People who have inadequate knowledge concerning safe operation of the appliance.
Measures:
■ Never allow children to play with the appliance.
■ Ensure that children and vulnerable people have understood the hazards.
■ Supervise children who are cleaning and maintaining the appliance.
Risk of suffocation
If the appliance features a door lock: keep the key out of the reach of children.
- Keep children away from the packaging and its parts.
Damage
To prevent damage:
- Do not stand or support yourself on the base, runners or doors.
- Keep plastic parts and door seals free of oil and grease.
- Pull the power cord plug – not the power cord.
Weight
The appliance is very heavy. The appliance should always be transported and set up by at least 2 people.
→ "Installing the appliance" on page 5
State of California Proposition 65 Warnings
This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
Intended use
Use this appliance
■ only for cooling and freezing food and for making ice.
■ only in the home and in the home environment.
■ only according to these operating instructions.
This appliance is intended for use at an elevation of no more than 2000 meters above sea level.
Environmental protection
Packaging
All materials are environmentally safe and recyclable:
■ Dispose of packaging in an environmentally responsible manner.
■ Please ask your dealer or inquire at your local authority about current means of disposal.
Old appliances
Valuable raw materials can be reclaimed by recycling old appliances.
WARNING
CHILDREN MAY BECOME LOCKED IN THE APPLIANCE AND SUFFOCATE!
Before disposing of your old appliance:
■ Remove the door.
■ Leave shelves and containers in the appliance to prevent children from climbing in.
- Keep children away from the discarded appliance.
CAUTION!
REFRIGERANT AND HARMFUL GASES MAY ESCAPE.
Do not damage the tubes of the refrigeration circuit and insulation.
- Pull out the power cord plug.
- Cut through the power cord.
- Have the appliance disposed of properly.
Installation and connection
Contents of package
After unpacking all parts, check for any damage during transport.
If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.
→ "Customer service" on page 23
The delivery consists of the following parts:
■ Built-in appliance
■ Interior fittings (depending on model)
■ Installation material
■ Instruction manual
■ Installation instructions
■ Customer service booklet
■ Guarantee enclosure
■ Information on the energy consumption and noises
Technical data
Refrigerant, cubic capacity and further technical specifications can be found on the rating plate. → "Getting to know your appliance" on page 8
Installing the appliance
Installation location
The weight of the appliance may be up to 460 kg depending on the model. The base must be sufficiently stable and should not give. If necessary, reinforce the bottom.
Check built-in cut-out
The cut-out must fulfill these criteria:
■ Anti-tilt bracket must be fitted
- Cut-out depth min. 24" (610 mm), for flush installation 25" (635 mm)
- rectangular
■ stable – the side panels and the top must be min. 5/8" (16 mm) thick and securely attached to the floor or wall
■ Depth of shortest side panels min. 4" (100 mm)
Side-by-side installation
Observe the specifications in the installation instructions for a side-by-side installation.
If a partition wall is required between the appliances it must be at least 5/8" (16 mm) wide.
Saving energy
If you follow the instructions below, your appliance will use less power.
Note: The arrangement of the fittings does not affect the energy consumption of the appliance.
| Installing the appliance |
| Keep the appliance out of direct sunlight. The appliance needs to cool less frequently at low ambient temperatures and therefore consumes less power. |
| Install the appliance as far away as possible from heating elements, cooker and other heat sources:At least 1 14 " (3 cm) from electric or gas cookers.At least 11 34 " (30 cm) from oil or solid-fuel cookers.NOTICE: If this is not possible, attach an insulating plate between the appliance and heat source. |
| Select an installation location at a room temperature of approx. 68 °F (20 °C). |
| Do not cover or block the ventilation openings. The appliance needs to cool less frequently if the warm air can |
| Ventilate the room daily. | escape and therefore consumes less power. |
| Using the appliance |
| Open the appliance door only briefly. | The air in the appliance does not warm up so intensely. The appliance needs to cool less frequently and therefore consumes less power. |
| Transport purchased food in a cool bag and place in the appliance quickly. |
| Allow warm food and drink to cool down before placing in the appli-ance. |
| Thaw frozen food in the refrigerator compartment to utilize the low temperature of the frozen food. |
| Always leave a space between the food and the back panel. | The air can circulate and the humidity will remain constant.The appli-ance needs to cool less frequently and therefore consumes less power. |
| Pack food airtight. |
| Do not cover or block the ventilation openings. The appliance consumes less power if the warm air can escape. |
| Vacuum the ventilation openings once a year. |
Before using for the first time
- Remove information material, adhesive tape and protective foil.
- Clean the appliance.
→ "Cleaning" on page 19
Water connection
CAUTION!
■ Installation and connection of the appliance must be carried out by authorized technicians according to the installation instructions supplied.
■ To avoid damage to the appliance and to ensure its proper functioning, it should only be connected to a drinking water system.
■ To avoid water damage, a shut-off valve must be installed.
Water pressure of drinking water system
CAUTION!
To avoid damage to the appliance, a pressure relief valve must be installed between the drinking water connection and the tubing, should the water pressure exceed the maximum value.
Note: If the water pressure is too low, this will impair the relevant functions of the appliance.
■ Min. 0.2 Mpa (2 bar / 29 psi)
■ Max. 0.8 Mpa (8 bar / 116 psi)
Electrical connection
CAUTION!
Do not connect the appliance to electronic energy saver plugs.
Note: You can connect the appliance to mains-controlled and sine-controlled inverters.
Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications. Isolated applications, e.g. on ships or in mountain lodges, are not directly connected to the national grid.
- After installing the appliance, wait at least 1 hour before connecting it to prevent damaging the compressor.
- Check that the outlet was installed according to the regulations and complies with the requirements.
Requirements for outlets
Outlet with 110 V ... 120 V
Protective conductor 60 Hz
Fuse 10 A ... 16 A
Maximum simultaneous load
Appliance 6 A
- Connect the appliance to an outlet near the appliance.
The outlet must also be freely accessible following installation of the appliance.
WARNING
RISK OF ELECTRIC SHOCK!
Never use multiple outlets, extension leads or adapters.
The appliance must be correctly grounded. Never cut through or remove the third (ground) conductor of the power cord.
WARNING
RISK OF ELECTRIC SHOCK!
If the length of the power cord is inadequate, never use multiple outlets or extension leads. Instead, please contact Customer Service for alternatives.
Getting to know your appliance

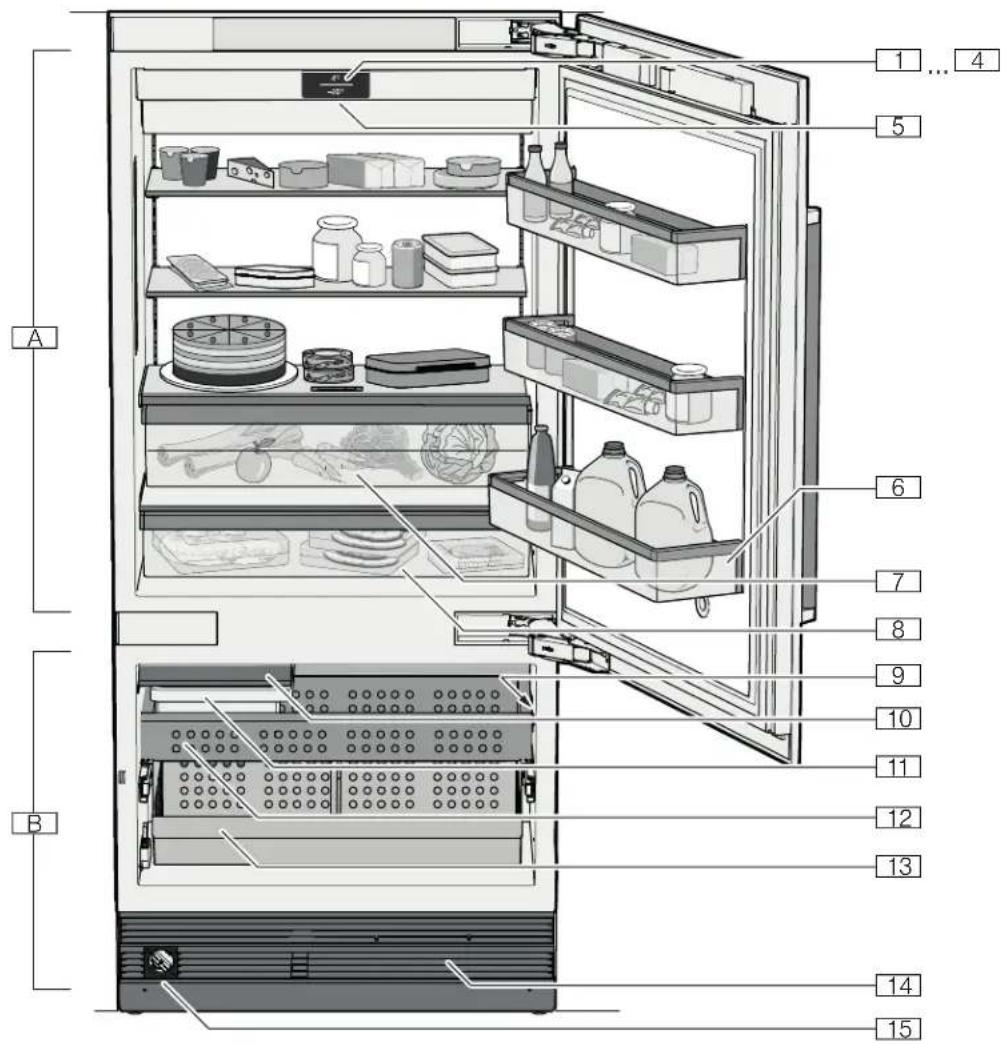

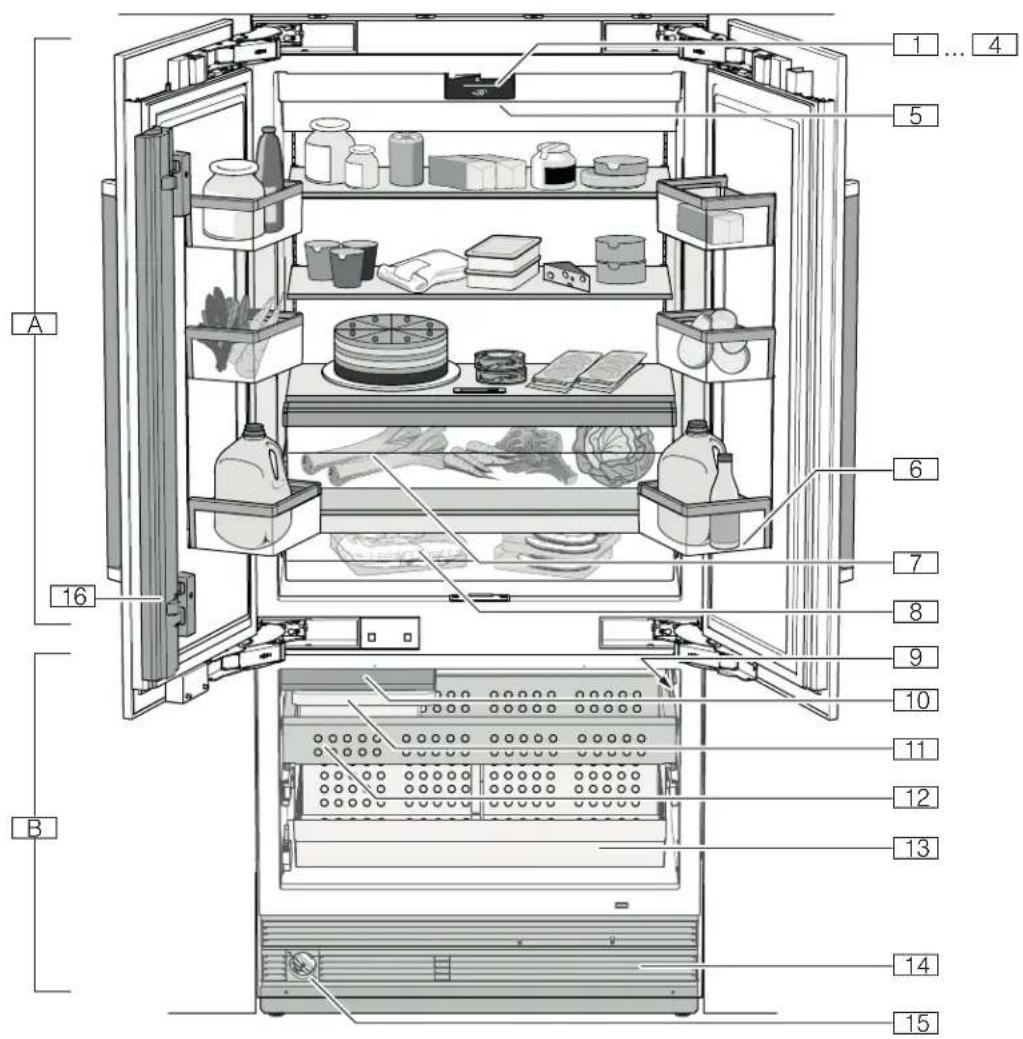

2-door appliance
A Refrigerator compartment
14 Ventilation opening
B Freezer compartment
15 Water filter

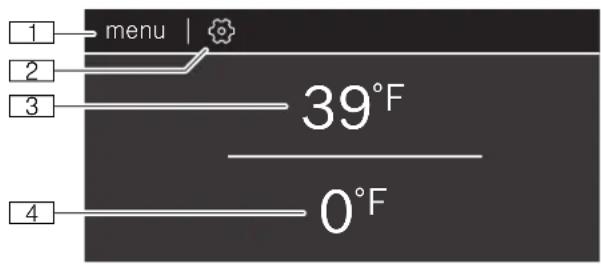

1...4 Operating controls
5 Main On/Off switch
6 Shelf for large bottles
7 Vegetable container with humidity controller
8 Chill compartment
9 Rating plate
10 Ice maker
11 Ice cube container
12 Frozen food container
13 Frozen food container (large)
3-door appliance
A Refrigerator compartment
B Freezer compartment
1...4 Operating controls
5 Main On/Off switch
6 Shelf for large bottles
7 Vegetable container with humidity controller
8 Chill compartment
9 Rating plate
10 Ice maker
11 Ice cube container
12 Frozen food container
13 Frozen food container (large)
14 Ventilation opening
15 Water filter
16 Door pillar with condensation protection
Operating controls
1 menu button
Opens mode selection.
2 button
Opens the Settings menu.
→ "Settings" on page 10
3 Refrigerator compartment temperature display
Indicates the set temperature in °C/°F.
4 Freezer compartment temperature display Indicates the set temperature in °C/°F.
Mode selection
To open mode selection, press menu button.
To switch on a mode, tap on it. When a mode is switched on, it, is highlighted in red in the mode selection menu.
An Info window with additional information on the mode selected appears.
Eco mode
Switch the appliance to energy-saving mode.
→ "Eco mode" on page 14
Vacation mode
If absent for a long time, you will save energy here.
→ "Vacation mode" on page 14
Sabbath mode
All non-essential functions are switched off so you can also use the appliance on the Sabbath.
→ "Sabbath mode" on page 14
Settings
Tap ⚙ to open the settings.
Language
Change the display language.
Home Connect
Connect your refrigerator to your mobile device.
"Home Connect" on page 15
Tones
Set the volume of the button tone and the signal tone.
Display brightness
Adjust the brightness of the display.
8% Temperature unit
Select the temperature unit °C/°F.
Ice cube production
Start or stop ice cube production. Stopping ice cube production is a good idea before cleaning the freezer compartment, or if you are going to be absent for a long time.
Water filter counter
If you have changed the water filter, you must reset the water filter counter. If you have replaced it with a particle filter, you can switch the water filter counter off.
→ "Water filter" on page 12
Factory settings
Set the settings of the appliance back to its factory settings on delivery.
Self-test
Start fault analysis on your appliance.
Condensation protection (only on 3-door appliances)
On 3-door appliances, a heater is built into the door pillar to prevent condensation. This menu is used to switch condensation protection on or off.
→ "Switching Prevent condensation on or off" on page 14
Demo mode
Note: Do not store any food items while in demo mode, as the appliance then remains at room temperature.
The cooling function of the appliance is switched off. You can use all other functions. After switching on the appliance, this menu item is displayed for 3 minutes. To switch demo mode on or off later, switch the appliance off and back on. The mode is displayed again for 3 minutes.
Interior fittings
(not all models)

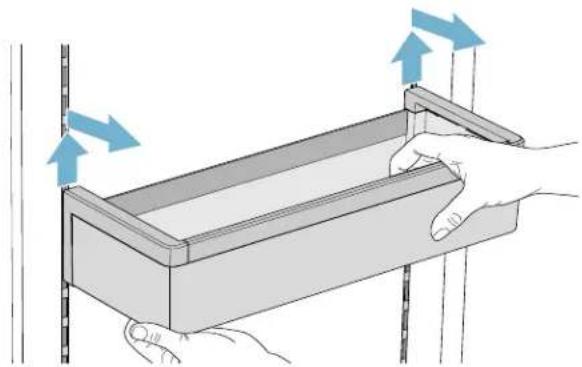

Storage compartment
You can remove and adjust the height of the storage compartments:
- Lift up the storage compartment and remove.
- When re-inserting, insert hooks on back of storage compartment at same height to make it level.
Note: Insert the storage compartment carefully to avoid scratching the appliance.

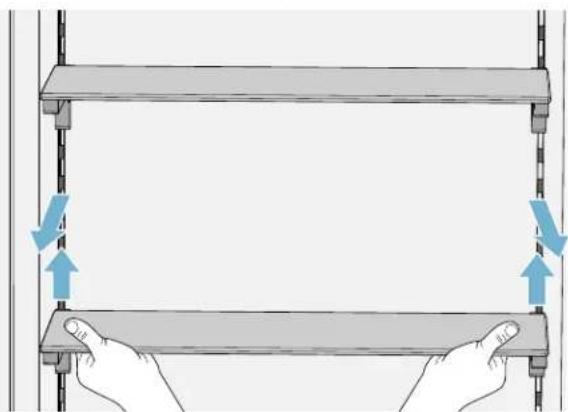

Shelf
You can remove and adjust the shelf:
-
Lift shelf and remove.
-
When re-inserting, insert hooks on back of shelf at same height to make it level.
Note: Insert shelf carefully to avoid scratching the appliance.

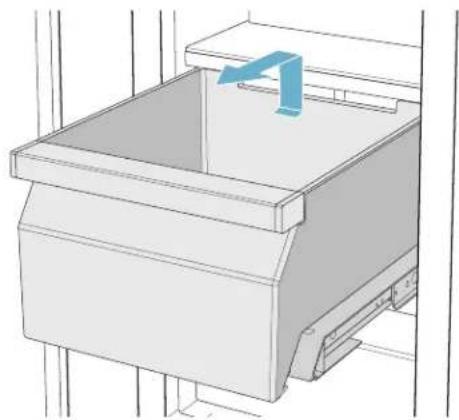

Container
You can remove the container:
■ Press container to the rear,
■ lift the container at the rear and remove.


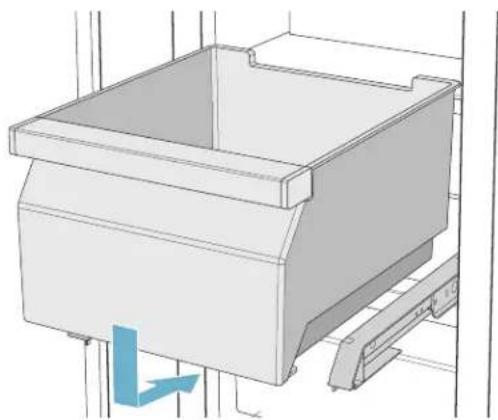

You can insert the container:
■ Pull out telescopic rails all the way
- Place the container on the telescopic rails and push into the appliance until it engages.
en-us Getting to know your appliance
Ice pack
In the event of a power failure or a fault:
■ The ice pack delays the warming of stored frozen food.
Note: The longest storage time is obtained by placing the ice pack on the food in the top compartment.
You can take out the ice pack to temporarily keep food cool, e.g. in a cool bag.
Ice maker
CAUTION!
DAMAGE TO THE APPLIANCE!
Never store bottles or food in the ice cube container, even for short periods. This can block and damage the ice maker.
Ice cube production starts as soon as the appliance has reached the set temperature.
Notes
- Discard the first 30-40 ice cubes for hygiene reasons.
■ Ice cube production stops automatically when the ice cube container is full.
Information about switching ice cube production on and off
→ "Switching ice cube production on or off" on page 14
Water filter
Change the water filter after 6 months at the latest. If the ice tastes stale, discard the rest of the ice cubes and the ones produced over the next 24 hours. If the ice still tastes stale, change the water filter.
A new water or particle filter can be obtained from customer service or a specialist dealer.
Note: You can also use the appliance without a water filter. Replace the water filter with a particle filter and switch the water filter counter off. There is no need to change the particle filter.
→ "Water filter counter" on page 10

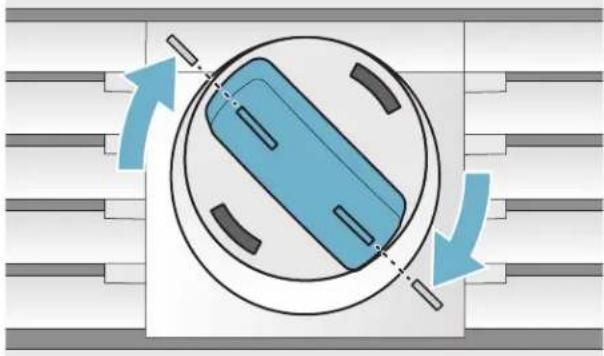

Changing the water filter or replacing with a particle filter
You can change the water filter, or replace it with a particle filter. The particle filter can remain in the appliance permanently: it does not need to be changed.
Note: After installing a water or particle filter, discard all ice cubes produced over the first 24 hours.
- Turn the cap of the water filter counterclockwise.
- Take the water filter out.
- Remove the protective cap from the new filter.
- Take off the cap of the old water filter and put it on the new water or particle filter.
- Slide the new water or particle filter to the stop in the filter opening.
Note: The cap must be horizontal here.
- Turn the water or particle filter clockwise to the marking.
Note: If the water or particle filter is not turned far enough, damage will be caused by water leaking out.
-
When using a water filter: Reset water filter counter.
→ "Water filter counter" on page 10
When using a particle filter: Switch off water filter counter.
→ "Water filter counter" on page 10
-
Discard the ice cubes produced over the first 24 hours.
-
Drain the water out of the old water filter.
Note: You can dispose of the old water filter with your household garbage.
Operating the appliance
Switching the appliance on
- Press the main On/Off switch.
The appliance starts cooling and the light is switched on when the door is open.
- Set the required temperature.
→ "Setting the temperature" on page 13
Operating tips
- When the appliance has been switched on, it may take several hours until the set temperatures have been reached. Do not put in any food until the selected temperature has been reached.
■ The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is not required.
■ The front sides of the housing are partly heated slightly. This prevents condensation in the area of the door seal.
If the freezer compartment door cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalized.
Switching off and disconnecting the appliance
Switching off the appliance
■ Press the main On/Off switch.
The appliance is no longer cooling.
Disconnecting the appliance
CAUTION!
Deterioration in water quality
The water supply must be turned off 3 hours before disconnecting. This prevents mold forming with any unused water.
If you do not use the appliance for a prolonged period:
- Turn off the water supply to the appliance and wait 3 hours.
- Remove groceries.
- Press the main On/Off switch.
- Pull out the mains plug or switch off the fuse. The appliance is no longer cooling.
-
Empty the ice cube container and clean the appliance.
→ "Cleaning" on page 19
-
Leave appliance open.
Setting the temperature
Recommended temperature
Cooling compartment: +39 °F (+4 °C)
Freezer compartment: 0 °F (-18 °C)
Setting the refrigerator and freezer compartment temperature
- Select the required compartment by tapping the temperature display.
- Move the displayed temperature to the required value.
- Return to the main screen with the « button. If the button is not pressed, the appliance saves the setting and automatically returns to the main screen after a few seconds.
Super cooling
Super cooling cools the refrigerator compartment as cold as possible.
Switch on super cooling, e.g.:
■ Before placing large quantities of food into the compartment
■ For cooling drinks quickly
Note: When super cooling is switched on, increased operating noises may occur.
After approx. 6 hours, the appliance switches to normal operation.
Switching super cooling on or off
- Select the refrigerator compartment by tapping the temperature display.
- Tap ✿ button.
When the function is switched on, a pop-up window appears, explaining the function.
- Tap Continue.
The pop-up window is closed, and you return to the main screen.
Note: If you have made a setting to stop the pop-up window from appearing, you can return to the main screen with the < button. If the button is not pressed, the appliance saves the setting and automatically returns to the main screen after a few seconds.
Super freezing
Super freezing cools the freezer compartment as cold as possible.
Switch on super freezing, e.g.:
■ to quickly freeze food right through to the center
■ 4 ... 6 hours before freezing food weighing 2 kg or more
Note: When super freezing is switched on, increased operating noise may occur.
After approx. 2 12 days the appliance switches to normal operation.
Switching super freezing on or off
- Select the freezer compartment by tapping the temperature display.
- Tap ✿ button.
When the function is switched on, a pop-up window appears, explaining the function.
- Tap Continue.
The pop-up window is closed, and you return to the main screen.
Note: If you have made a setting to stop the pop-up window from appearing, you can return to the main screen with the « button. If the button is not pressed, the appliance saves the setting and automatically returns to the main screen after a few seconds.
Eco mode
Eco mode switches the appliance to energy-saving operation.
The appliance automatically sets the following temperatures:
■ Refrigerator compartment: +43 °F (6 °C)
■ Freezer compartment: +3 °F (-16 °C)
Vacation mode
If leaving the appliance for a long period, you can switch it over to energy-saving vacation mode.
Do not store any food in the refrigerator compartment during this time.
The appliance automatically sets the following temperatures:
■ Refrigerator compartment: +57 °F (+14 °C)
■ Freezer compartment: unchanged Ice cube production is deactivated.
Sabbath mode
All non-essential functions are switched off so you can also use the appliance on the Sabbath.
Once Sabbath mode is switched on, you can also use the appliance on the Sabbath.
- You can select a time between 1–96 hours.
■ After the selected time elapses, the appliance switches to normal operation.
■ To end Sabbath mode before the selected time elapses, touch the display and tap Switch off.
The appliance switches off the following:
Ice maker
Audible signals
Interior light
■ Messages on the display
■ Background illumination of display is reduced
Switching ice cube production on or off
CAUTION!
Damage to the appliance!
Never store bottles or food in the ice cube container, even for short periods. This can block and damage the ice maker.
Ice cube production starts as soon as the appliance has reached the set temperature.
Note: Ice cube production stops automatically when the ice cube container is full.
Switching Prevent condensation on or off
This function is only available with 3-door appliances. 3-door appliances are equipped with a door pillar featuring condensation protection.
You can open the left-hand door of the refrigerator compartment without opening the right-hand door beforehand.
CAUTION!
Never unfold the door pillar when the door is open! It can get jammed when closing the door and become damaged, or itself damage the front panel of the right-hand door.
A heater is built into the door pillar to prevent condensation. Switching condensation protection on or off switches the heater on and off.
→ "Condensation protection (only on 3-door appliances)" on page 10
Home Connect
This appliance is Wi-Fi-capable and can be controlled remotely using a mobile device.
Note: Wi-Fi is a registered trade mark of the Wi-Fi Alliance.
In the following cases, the appliance functions like a refrigerator without a network connection and can still be operated manually via the controls:
■ The appliance is not connected to a home network.
■ The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on www.home-connect.com.
Note: Please observe the safety information in this instruction manual. Ensure that this is also observed if you operate the appliance via the Home Connect app and are not at home when doing so.
→ "Important safety instructions" on page 3
Follow the instructions in the Home Connect app as well.
Setting up Home Connect
Notes
■ Wait at least 2 minutes after switching on the appliance before setting up Home Connect. Only then is internal appliance initialization complete.
Take note of the Home Connect supplementary sheet, which is available for download at www.bosch-home.com together with the instructions. Enter the E-number of your appliance in the search field.
The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel. For further information, please also see the following chapters.
The following submenus can be found in the Home Connect menu:
■ Switching Wi-Fi on and off
■ Connect to app
■ Software update
■ Deleting network settings
Setting up the connection to the home network (WLAN)
The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel.
- Install the Home Connect app on your mobile device.
-
Open the Home Connect menu on your refrigerator.
-
Open the app on your mobile device.
-
Log in or register with the app if access is not yet available.
-
Check the router of your home network to see if a WPS function is available for automatic connection.
-
If this function is available, start automatic network connection and follow the instructions on the control panel.
-
Start manual network connection if this function is not available, if you're not sure whether the function is available, or if automatic network connection failed.
The refrigerator temporarily generates its own network for connecting the mobile device.
- Start manual network connection in the app of your mobile device.
As soon as the refrigerator is connected to the mobile device, a connection between the refrigerator and your home network (WLAN) is established.
Note: If the connection cannot be established, check whether there is sufficient reception.
Verifying signal strength
The signal strength is displayed on the control panel. The signal strength should be at least 1 bar in addition to the dot. If the signal strength is too weak, the connection may be interrupted temporarily.
Improving signal strength
■ Place the router closer to the refrigerator.
- Check that screening walls do not interfere with the connection.
■ Install a repeater to make the signal stronger.
Connecting the refrigerator to the Home Connect app
Use this menu to connect your refrigerator to mobile devices.
- Install the Home Connect app on your mobile device and log in or register.
- Open the Home Connect menu on your refrigerator.
- Tap menu item Connect to app.
- Confirm the prompt to display the refrigerator in the app.
- Open the app and wait until the refrigerator is displayed.
Press Add to confirm the connection between the app and the refrigerator.
If the refrigerator is not automatically displayed, click on Add appliance in the app and follow the instructions. As soon as your refrigerator is displayed, add it with +.
- Follow the instructions in the app until the process is complete.
Installing updates for the Home Connect software
The refrigerator checks at regular intervals whether updates are available for the Home Connect software.
The note window appears on the control panel when an update is available.
To install the update, tap Install now.
Install the update later:
- Open the Home Connect menu.
- Tap Software update.
Note: This menu is only visible if an update is available.
A note window appears.
- To install the update, tap Install now.
Customer Service access
If you contact Customer Service, they can access your appliance and view its status after you have given your consent. You need to have your appliance connected to your home network for this.
Further information about Customer Service access and its availability in your country is available under www.home-connect.com in the Help & Support area.
- Contact Customer Service.
→ "Customer service" on page 23
- Confirm the start of Customer Service access in the app.
During Customer Service access the symbol 📋 appears on the control panel.
- As soon as Customer Service has obtained the necessary data, they end access.
Note: You can interrupt remote diagnosis early by switching off Customer Service access in the Home Connect app.
Deleting network settings
If there is a problem when trying to establish a connection, or if you would like to register the appliance in a different home network (WLAN), the Home Connect settings can be reset.
- Open the Home Connect menu on your refrigerator.
- Tap the menu item Reset settings.
- Confirm the prompt to delete the network settings.
To then reconnect the appliance to the home network, perform initial setup again.
→ "Setting up the connection to the home network (WLAN)" on page 15
Switching the WiFi connection on or off
- Open the Home Connect menu on your refrigerator.
Note: The first time you open the menu, you will be automatically guided through initial setup. Follow the instructions on the control panel.
- Select Switch off Wi-Fi.
- To start the switching off process, press Continue.
- As soon as the connection to the home network has been switched off, the message Wi-Fi switched off will appear. Press OK to confirm the message.
Note: While the home network connection is switched off, you will no longer be able to operate the appliance with your mobile device.
The first time your Home Connect appliance is registered on the WLAN network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):
■ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
■ Security certificate of the WiFi communication module (to ensure a secure data connection).
■ The current software and hardware version of your domestic appliance.
■ Status of any previous resetting to factory settings.
This initial registration prepares the Home Connect functions for use and is only required when you want to use these Home Connect functions for the first time.
Note: Please note that the Home Connect functions can only be utilized with the Home Connect app. Information on data protection can be called up in the Home Connect app.
Alarm
Door alarm
If the appliance door is open for a long time, the door alarm (continuous audible signal) switches on.
- Close door.
The audible warning signal is switched off.
Refrigerator compartment
The refrigerator compartment is suitable for storing meat, sausages, fish, dairy products, eggs, ready meals and pastries.
The temperature can be set from +36 °F (+2 °C)... +46 °F (+8 °C).
The refrigerator compartment can also be used to store highly perishable groceries in the short to medium term. The lower the selected temperature, the slower the enzymatic and chemical processes and deterioration by microorganisms. A temperature of +39 °F (+4 °C) or lower ensures optimum freshness and safety of the stored groceries.
Note when storing food
Note: Avoid contact between food and the back panel.
Otherwise, the air circulation will be impaired and food or packaging may freeze to the back panel.
■ Store fresh, undamaged food.
The quality and freshness will then be retained for longer.
In the case of ready products and bottled goods, do not exceed the minimum sell-by date or use-by date indicated by the manufacturer.
■ To retain aroma, color and freshness, pack or cover food well before placing it into the appliance.
This will prevent flavors being transferred between foods and the plastic parts from becoming discolored.
■ Leave warm food and drinks to cool down before placing them into the refrigerator compartment.
Note the chill zones in the refrigerator compartment
The air circulation in the refrigerator compartment creates different chill zones.
Coldest zone
The coldest zone is in the interior at the back panel and in the chill compartment.
Note: Store delicate food (e.g. fish, sausages and meat) in the coldest zone.
Warmest zone
The warmest zone is at the very top of the door.
Note: Store e.g. hard cheese and butter in the warmest zone. Cheese can continue to release its aroma and the butter will still be easy to spread.
Vegetable container with humidity controller
The vegetable container is the optimum storage location for fresh fruit and vegetables. You can adjust the humidity in the vegetable container via the humidity controller and a special seal. This allows fresh fruit and vegetables to be stored up to twice as long as with conventional storage.
The humidity in the vegetable container can be set according to the type and quantity of products to be stored:
■ Mainly fruit as well as for a large load – set lower humidity with controller position 🌐
- Mainly vegetables as well as for a mixed or small load – set higher humidity with controller position
Notes
For optimum preservation of quality and flavor store fruit sensitive to cold (e.g. pineapple, banana, papaya and citrus fruit) and vegetables sensitive to cold (e.g. eggplant, cucumbers, zucchini, peppers, tomatoes and potatoes) outside of the appliance at temperatures of approx. +46 °F (+8 °C) ... +54 °F (+12 °C).
- Condensation may form in the vegetable container depending on the type and quantity of products stored. Remove condensation with a dry cloth and adjust the humidity in the vegetable container with the humidity controller.
Chill compartment
The chill compartment has lower temperatures than the refrigerator compartment. Temperatures below +32 °F (0 °C) may occur.
Ideal for storing fish, meat and sausage. Not suitable for salads, vegetables and groceries sensitive to cold.
The temperature in the chill compartment can be adjusted.
Freezer compartment
The freezer compartment is suitable for:
■ storing frozen food
■ making ice cubes
- freezing food
The temperature can be set from -11 °F (-24 °C)... +7 °F (-14 °C).
The freezer compartment can be used to store perishable foods long-term almost without any noticeable reduction in quality, as the low temperatures considerably slow down or stop deterioration. Appearance, flavor and all valuable ingredients are largely retained.
The time between putting fresh food in the freezer compartment and it freezing solid depends on the following factors:
■ temperature set
■ type of food
■ amount of food in the freezer compartment
■ quantity and type of storage
Fully utilizing the freezer volume
To place the maximum quantity of frozen food in the freezer compartment:
■ Remove all fittings.
■ Store food directly on the shelves and on the floor of the freezer compartment.
Purchasing frozen food
■ Ensure the packaging is not damaged.
- Check there is a sell-by date.
■ The temperature in the supermarket freezer must be 0 °F (-18 °C) or lower.
- Do not interrupt the freezing chain. If possible, transport frozen food in a cool bag and place in the freezer compartment quickly.
When loading products
■ Freeze large quantities of food in the top compartment.
This is where it will freeze especially quickly and gently.
- Distribute food in the compartments or frozen food containers.
- Do not bring food which is to be frozen into contact with frozen food.
If required, restack frozen food in the frozen food containers.
■ Important for unrestricted air circulation in the appliance:
push in frozen food containers up to the limit stop.
Freezing fresh food
Freeze only fresh and undamaged food.
Food which is boiled, fried or baked is more suitable for freezing than food which is eaten raw.
Before freezing food, make preparations appropriate to the food in order to retain the best possible nutritional value, flavor and color:
■ Vegetables: wash, chop, blanch.
- Fruit: wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution.
Information on how to do this can be found in relevant literature.
Suitable for freezing
Baked goods
■ Fish and seafood
Meat
■ Poultry and game
■ Vegetables, fruit and herbs
■ Eggs without shells
■ Dairy products, e.g. cheese, butter and quark
■ Ready meals and leftovers, e.g. soups, stews, cooked meat and fish, potato dishes, soufflés and desserts
Not suitable for freezing
■ Types of vegetables which are usually eaten raw, e.g. lettuce or radishes
■ Unpeeled or hard-boiled eggs
■ Grapes
■ Whole apples, pears and peaches
■ Yoghurt, soured milk, sour cream, creme fraiche and mayonnaise
Packing frozen food
The correct type of packaging and material selection are decisive factors in the retention of the product quality and prevent the development of freezer burn.
- Place food in packaging.
- Remove air.
- Pack food airtight to prevent it from losing flavor or drying out.
- Label packaging with contents and date of freezing.
Suitable packaging:
■ Plastic foil
■ Tubular foil made of polyethylene (PE)
- Aluminum foil
■ Freezer containers
Suitable closures:
Rubber bands
■ Plastic clips
■ Cold-resistant adhesive tape
Unsuitable packaging:
Wrapping paper
■ Greaseproof paper
Cellophane
■ Garbage bags and used grocery bags
Shelf life of frozen food at 0 °F (-18 °C)
Fish, sausage, ready meals, and cakes up to 6 months and pastries:
Meat, poultry: up to 8 months
Vegetables, fruit: up to 12 months
Thawing frozen food
The thawing method must be adjusted to the food and application in order to retain the best possible product quality.
Thawing methods:
■ in the refrigerator compartment (especially suitable for animal-based foods such as fish, meat, cheese, quark)
■ at room temperature (bread)
■ in the microwave (food for immediate consumption or immediate preparation)
■ in the oven/cooker (food for immediate consumption or immediate preparation)
CAUTION!
Do not refreeze partly or completely thawed food. You can only refreeze food once it has been cooked (boiled or fried).
The frozen food can no longer be stored for the maximum duration.
Defrosting
Freezer compartment
The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is no longer required.
Cleaning
CAUTION!
AVOID DAMAGING THE APPLIANCE AND THE FITTINGS.
- Do not use abrasive, chloride or acidic cleaning agents or solvents.
- Do not use abrasive, chloride or acidic cleaning agents or solvents.
- Do not use scouring or abrasive sponges. The metallic surfaces may corrode.
- Never clean the shelves or containers in the dishwasher.
The parts may become deformed.
Cleaning the display
The change in temperature and humidity can cause the controls to steam up.
Use a clean micro-fiber cloth for cleaning.
Cleaning the appliance interior
Proceed as follows:
- Press the main On/Off switch.
- Take out food and store in a cool location. Place ice pack (if available) on the food.
- Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid.
CAUTION!
The rinsing water must not run into the light or through the drainage hole into the evaporation area.
- Wipe door seal with clear water and dry thoroughly with a cloth.
- Switch appliance back on and put in food.
Cleaning the fittings
To clean, take the variable parts out of the appliance.
→ "Interior fittings" on page 11
Care instructions for stainless steel surfaces
When taking care of and cleaning stainless steel surfaces, use only cleaning agents suitable for stainless steel and a stainless steel cleaning cloth.
You can purchase a suitable stainless steel cleaning cloth from customer service.
To prevent visible scratches, clean the stainless steel surface in the direction of the structure.
Odors
If you experience unpleasant odors:
- Switch off the appliance with the main On/Off switch.
- Take all food out of the appliance.
- Clean the inside.
→ "Cleaning" on page 19
- Clean all packaging.
- Seal strong-smelling food in order to prevent odors from forming.
- Switch the appliance on again.
- Store food in the appliance.
- Check whether the formation of odors is still occurring after 24 hours.

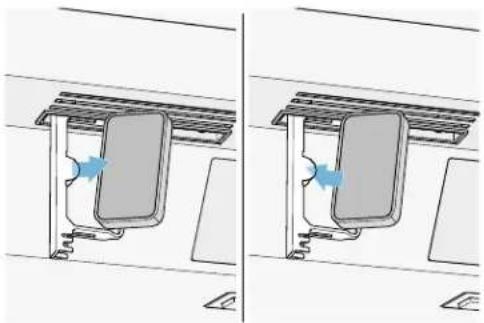

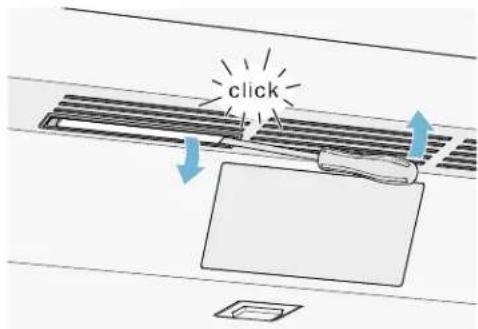

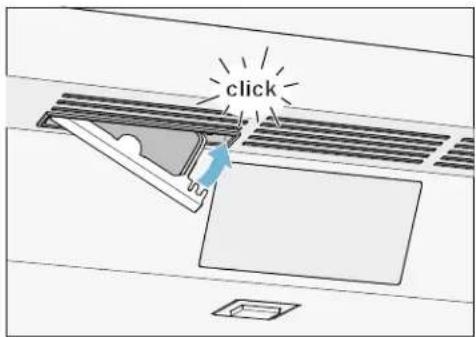

- Change the odor filter.
→ "Changing the odor filter" on page 20
Changing the odor filter
Replacement filters are available from your customer service.
- Open the filter holder with a slotted screwdriver.
- Remove the used odor filter and replace with a new odor filter.
- Close the filter holder.
Lighting
Your appliance features a maintenance-free LED light.
Only customer service or authorized technicians may repair the light.
Noises
Normal noises
Droning: A motor is running, e.g. refrigerating unit, ventilator.
Bubbling, buzzing or gurgling: Refrigerant is flowing through the tubes.
Clicking: Motor, switches or solenoid valves are switching on or off.
Cracking: Automatic defrosting is running.
Preventing noises
Appliance is not level: Align appliance using a water level. If required, place a little packing underneath.
Containers, shelves or storage compartments wobble or stick: Check the removable fittings and re-insert if required.
Faults – what to do?
Before you call customer service, use this table to check whether you can rectify the fault yourself.
Appliance
Temperature differs greatly from the set value.
| Switch off appliance for 5 minutes.→ "Switching off and disconnecting the appliance" on page 13If the temperature is too warm, check temperature again after a couple of hours.If the temperature is too cold, check temperature again on the following day. |
Displays do not illuminate.
| The mains plug has not been inserted properly. Connect the mains plug. |
| The fuse has tripped. Check the fuses. |
| The power has failed. Check whether the power is on. |
The refrigeration unit is switching on more frequently and for longer.
| The appliance was opened frequently. Do not open the appliance unnecessarily. |
| The ventilation openings are covered up. Remove obstacles. |
| Large quantities of fresh food have been put in. Switch on super cooling promptly in advance. |
Appliance is not cooling, display and lighting are lit.
| Demo mode is switched on. Switch demo mode off. | → | "Settings" on page 10 |
Ice maker
| The ice maker is not functioning. |
| Ice cube production is switched off. Switch on ice cube production. |
| Freezer compartment is too warm. Set the temperature lower. → "Operating the appliance" on page 13 |
| Ice cube container is not properly inserted. Insert ice cube container fully. |
| Ice maker without power. Call customer service. → "Customer service" on page 23 |
| No water supply. Check water connection and contact technician if necessary. |
| Low water pressure. Only connect appliance to pipes with sufficient water pressure. |
| Kink in water hose. Turn off water supply, straighten out kink. Replace water hose, if necessary. |
| Too few or deformed ice cubes, water pressure lower than usual. |
| After switching on or removing many ice cubes, there will be too few in the ice cube container. | It takes around 24 hours for an empty ice cube container to fill up. |
| Ice cube production stops even though the ice cube container is still not full. | Do not store the ice shovel on the ice in the ice cube container. Otherwise, the sensor will not detect the actual fill level of the container. |
| Low water pressure. Only connect appliance to pipes with sufficient water pressure. |
| The water filter is blocked or needs to be replaced. Replace water filter. |
| Freezer compartment is too warm. Set the temperature lower. → "Operating the appliance" on page 13 |
| Water is leaking out of the appliance. |
| Water connection is not tight. Check if the connections are fastened firmly and the water hose is undamaged.If the water hose is damaged, contact customer service and have it replaced. Replacement must be performed by customer service or a similarly qualified person only. Use original parts supplied by the manufacturer only. |
Customer service
If you are unable to rectify the fault, please contact our customer service. We will always find an appropriate solution in order to avoid unnecessary visits by engineers.
The contact information for your nearest customer service can be found here or on the enclosed customer service list.
When calling, please state the product number (E-Nr.) and the production number (FD), which can be found on the rating plate.
→ "Getting to know your appliance" on page 8
Trust the expertise of the manufacturer. You can therefore be sure that the repair is carried out by trained service engineers who carry original spare parts for your home appliances.
Appliance self-test
Your appliance features a self-test program which displays the fault your customer service can rectify.
- Press ⚙ button to open the settings.
- Tap the menu item Self-test.
- Tap Start.
The self-test program starts.
- If faults are present, they will be displayed.
In this case, follow the instructions on the display.
- The appliance restarts.
- A message that the self-test has finished is displayed for 10 seconds.
When the self-test has ended, the appliance switches to normal operation.
Repair order and advice on faults
Contact information for all countries can be found on the enclosed customer service list.
GB 0344 892 8979 Calls charged at local or mobile rate
IE 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute.
US 800 944 2904 toll-free
Supercongélation .....38
Mode éco 38
Mode Vacances ....38
Mode Sabbat. 38
Remarques
- Fermez le compartiment de filtre.
Éclairage
GB 0344 892 8979 Calls charged at local or mobile rate
IE 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute.
US 800 944 2904 toll-free
es Índice
www.P65Warnings.ca.gov
Uso previsto
Use este aparato
Para colocar el recipiente:
Accumulador de frío
GB 0344 892 8979 Calls charged at local or mobile rate
IE 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute.
US 800 944 2904 toll-free
BSH Home Appliances Corporation
1901 Main Street, Suite 600,
Irvine CA 92614, USA
www.bosch-home.com
