USER MANUAL B21CT80SNS BOSCH

Modern architectural interior with glass balconies and recessed lighting (no text or symbols visible)

Register your new Bosch now: www.bosch-home.com/welcome

Close-up of fresh green lettuce leaves (no text or symbols visible)

Close-up of a modern stainless steel door handle and door frame against a plain background (no text or symbols visible)

en Operating and installation instructions

IMPORTANT SAFETY INSTRUCTIONS 4. .... Fresh food compartment .... 16

Disposal information 5.... Freezer compartment 16....

Scope of Delivery 6. ........ Freezing food ........ 16

Installing the appliance 6.... Freezing fresh food .... 17

Aligning the appliance 7.... Thawing frozen food 17....

Connecting the appliance 7.... Ice maker .... 17

Installing the handles 9.... Water filter .... 18

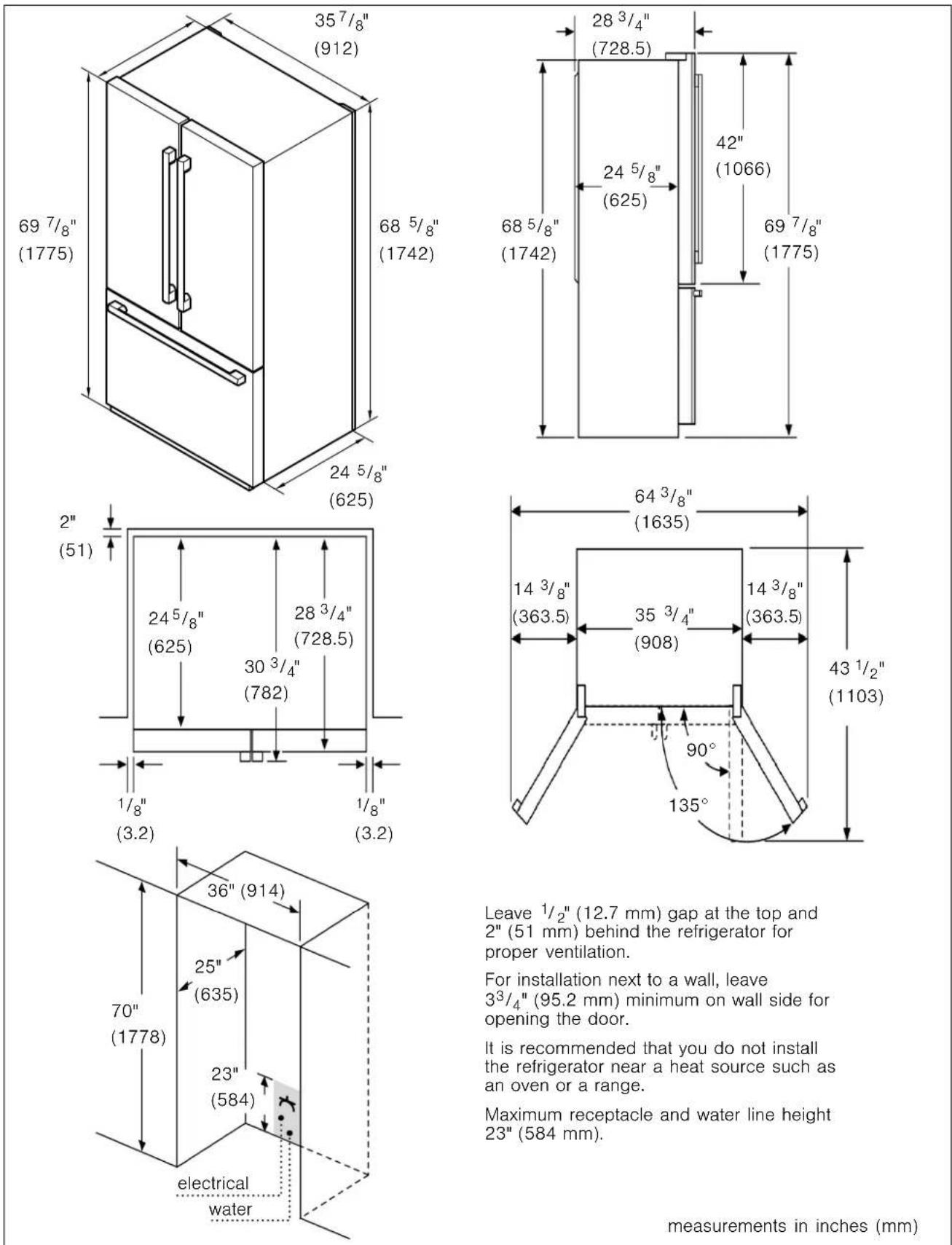

Appliance and Installation Dimensions 10.... Performance data sheet .... 19

Getting to know your appliance 11 Interior Fittings 20

Control and display panel 12....Switching off and disconnecting the appliance. 21

Operating tips 13 Defrosting 21

Switching on the appliance 13 Cleaning 21

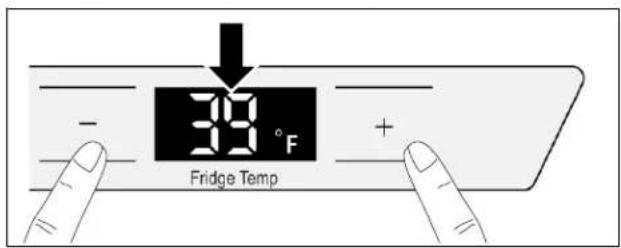

Setting the temperature 13 LED light 22

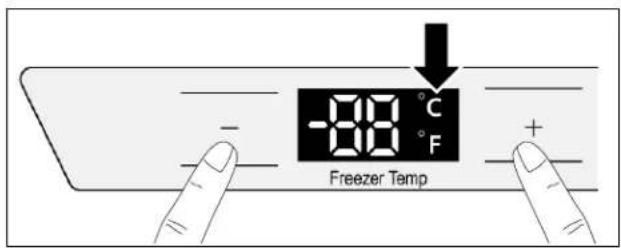

Temperature unit 14.....Energy.saving.tips....22

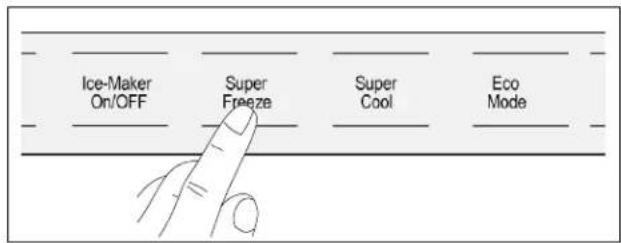

Super Freeze 14 Operating noises 22.

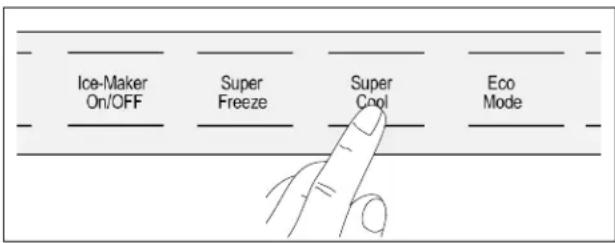

Super Cool 15 Before Calling for Service 23

Eco Mode 15 Customer Service 24.

Refrigerator compartment 15.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS!

Definitions

WARNING

This indicates that death or serious injuries may occur as a result of not observing this warning.

CAUTION

This indicates that minor to moderate injuries may occur as a result of not observing this warning.

NOTICE

This indicates that damage to appliance or property may occur as a result of not observing this warning.

WARNING: Before you turn on the appliance

Please read the Operating and Installation Instructions carefully, including the following. They contain important safety information and instructions for installation, use and maintenance of the appliance. Retain all documents for subsequent use or for the next owner.

Technical safety

Improper installations and repairs may put the user at risk.

Repairs must be performed by an authorized service provider.

Only use original parts supplied by the manufacturer. Only original manufacturer supplied parts satisfy safety requirements.

If the power cord of this appliance is damaged, it must be replaced by an authorized servicer.

The appliance comes with a UL listed 3-wire Power Cord.

Never sever or remove the third (ground) conductor from the power cord.

The appliance requires a 3-wire receptacle. The plug must be installed by a licensed electrician only and comply with local codes.

Where there is a 2-wire standard wall receptacle, it is the responsibility of the customer to have this receptacle replaced with a correctly grounded 3-wire wall receptacle. Do not use any adapter plugs.

Important information when using the appliance

■Never use electrical devices inside the appliance. Risk of explosion!
■Never use a steam cleaner to defrost or clean the appliance. The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
■Do not use pointed or sharp-edged objects to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may ignite or cause eye injuries.
■Do not store products that contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!
■Do not stand or support yourself on the base, drawers or doors or other parts of the appliance. You could damage the appliance or be injured.
■To clean the appliance, pull out the power cord plug or switch off the electrical breaker or fuse! Do not pull out the power cord plug by tugging the cable.
■Bottles that contain a high percentage of alcohol must be sealed and stored in an upright position.
- Keep plastic parts and the door seals free of oil and grease. Otherwise, plastic parts and door seal will become porous.
■Never cover or block the ventilation openings for the appliance. This forces the appliance to work harder, increasing its power consumption.
■This appliance must not be used by children without adult supervision.
■Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode!
■Do not place popsicles or ice cubes straight from the freezer compartment into your mouth. Risk of low-temperature burns!
■Do not touch frozen surfaces or food in the freezer with wet hands. Skin may adhere to these extremely cold surfaces. Risk of injury!
■Do not scrape off frost or stuck frozen food with a knife or pointed object. You could damage the appliance or be injured.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS!

Children in the household

WARNING

Risk of suffocation from cardboard boxes and plastic film! Keep packaging and packaging components away from children.

Do not allow children to play with the appliance! If the appliance features a lock, keep the key out of the reach of children.

General requirements

The appliance is suitable for

■refrigerating food

■freezing food

■making ice.

This appliance is intended for use in the home and the home environment.

The refrigeration circuit has been tested for leaks before leaving the factory.

State of California Proposition 65 Warnings

WARNING

This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information go to

www.P65Warnings.ca.gov.

Disposal information

Disposal of packaging

The packaging protects your appliance from damage during transit. All utilized materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Remove handles from the packaging before disposal.

Please ask your dealer or inquire at your local authority about current means of disposal.

WARNING

Risk of suffocation from cardboard boxes and plastic film!

Keep packaging and packaging components away from children.

Disposal of your old appliance

Old appliances are useful! Valuable raw materials can be reclaimed by recycling old appliances.

WARNING

Risk of child entrapment!

Children can lock themselves in the appliance.

Before disposing of the old refrigerator:

Remove the doors and the freezer compartment drawer.

Leave the shelves and containers in place so that children may not easily climb inside.

Proper disposal of appliances:

1. Pull out the power plug.
2. Cut off the power cord and discard with the power plug.
3. Do not take out the trays and shelves. This helps to prevent children from climbing in!
4. Do not allow children to play with the appliance. Could cause suffocation!

Refrigerators contain refrigerants and their insulation contains gases. Refrigerant and gases must be disposed of properly. Follow local ordinances for disposal. Ensure that the tubing of the refrigerant circuit is not damaged prior to proper disposal.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS!

Scope of Delivery

After unpacking all parts, check for any damage in transit.

If there is damage, do not plug in your appliance. Please contact the dealer.

The following parts are included:

■Free-standing appliance
■Interior fittings (depending on model)
■Bag containing installation materials
■Operating instructions
■Installation instructions
■Registration card
■Information on energy consumption and noises

Installing the appliance

Have a qualified technician install and connect the appliance according to the enclosed Installation Instructions.

WARNING

Do not install the appliance:

■outdoors,
■in an environment subject to drips of water,
■in rooms with risk of freezing temperatures.

Transporting

The appliance is heavy and must be secured during transport and installation.

The castors are provided for installation purposes only.

Do not use the castors for transporting the appliance.

WARNING

Risk of injury!

The appliance is very heavy. It can fall over and cause serious injuries during transport and installation. At least two people are required to install the appliance safely. Keep the refrigerator doors closed until the appliance is upright and level at the installation location.

Hidden surfaces may have sharp edges. Use caution when reaching behind or under appliance.

Installation location

WARNING

Risk of explosion!

Do not install the appliance near explosive or flammable substances.

A dry, well-ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight or placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

■1 ^1/4 " (3 cm) to electric or gas stoves.
■11 ^3/16 (30 cm) to oil or solid fuel stoves.

To ensure that the Ice Maker functions correctly, the appliance must be upright and level.

Climatic classes

The climate class can be found on the rating plate. The climate class indicates within which ambient temperatures the appliance can be operated.

Climatic class	Permitted ambient temperature
SN 50 °F to 90 °F	(+10 °C to 32 °C)
N 61 °F to 90 °F	(+16 °C to 32 °C)
ST 61 °F to 100 °F	(+16 °C to 38 °C)
T 61 °F to 110 °F	(+16 °C to 43 °C)

Subsurface

NOTICE

The appliance is very heavy. The floor on which the appliance is to be installed must be rigid. Reinforce the floor, if necessary.

Ventilation

The refrigeration unit is ventilated only via the ventilation grille in the base. Never cover the ventilation grille or place anything in front of it. Otherwise the refrigeration unit must work harder, increasing the power consumption.

Aligning the appliance

NOTICE

Please kindly note there's a bag inside the refrigerator compartment, which contains some accessories used for aligning the appliance (except user manual), including four supplied fastener-rings, three screws and one hex wrench.

NOTICE

To ensure that the appliance operates correctly, use a level to align the appliance.

If the appliance is not level, water may flow out of the ice maker, ice cubes may be irregular, or the doors may not close properly.

1. Place the appliance in the designated location.
2. So that the appliance cannot move, unscrew the two front feet until they are standing firmly on the floor.
3. Screw the feet in/out until the appliance is exactly level.
4. Use the level to check if the appliance is level.

NOTICE

To ensure that the appliance does not move, the front feet must be firmly planted on the floor.

1. If the height of the refrigerator compartment doors are uneven or if the freezer compartment drawer is slanted after adjusting the level of the appliance, use the following method to adjust them.

Adjusting the refrigerator doors

The appliance must be level in order to get the doors to align.

Line drawing of a double-door refrigerator with two doors and a side panel (no text or symbols)

Line drawing of a refrigerator with two doors and a front pane (no text or symbols)

1. Raise the lower door up to the level of the higher door.

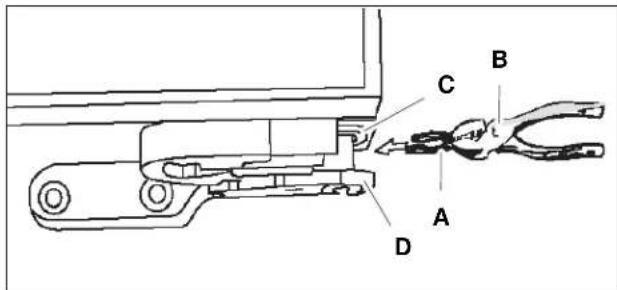

2. Insert the supplied fastener-ring (A) using a pair of pliers (B) in the gap between the hinge-grommet (C) and the lower hinge (D). The number of fasten-rings you will need to insert depends on the gap.

Technical diagram of a mechanical assembly with labeled parts A, B, C, D and a tool tip

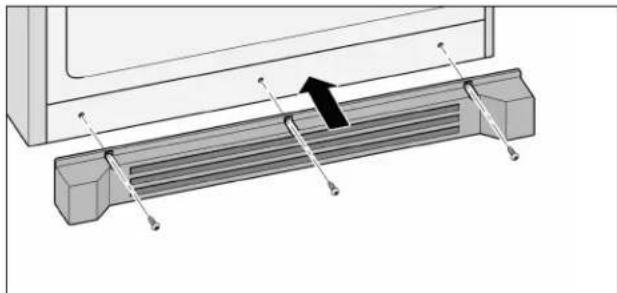

Installing the base plate

1. Mount the base plate.
2. Insert the three screws and tighten (the screws are located in the manual kit).

Technical diagram of a mechanical assembly with a lever and rod, showing no text or symbols

Connecting the appliance

Have a technician install and connect the appliance according to the enclosed Installation Instructions.

Do not remove the transportation protection devices from the shelves and storage compartments until the appliance has been installed and aligned.

Always connect the water before the power.

Apart from statutory national regulations, you should comply with all applicable local electricity and water companies' codes and requirements.

After installing the appliance, wait at least 6 hours before switching the appliance on. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching the appliance on for the first time, clean the interior of the appliance (see chapter "Cleaning the Appliance").

en-us

Water connection

WARNING

Risk of electric shock and damage to the appliance!

Disconnect the appliance from the power source before performing any work on the water connection.

Only a qualified installation technician may connect the appliance to the water supply in accordance with plumbing and relevant water utility company regulations.

Connect the appliance to a drinking water line only:

■Minimum pressure:

0.17 MPa (1.72 bar, 24.95 PSI)

■Maximum pressure:

0.82 MPa (8.25 bar, 119.66 PSI)

■Pressure over 0.82 MPa (8.25 bar, 119.66 PSI): install a pressure limiter between drinking water connection and hose set.

The water should be connected only by a competent plumber according to the local regulations of the appropriate Water Supply company.

A cold water connection is necessary for operating the ice maker. The water pressure must be between 0.17 MPa (1.72 bar, 24.95 PSI) and 0.82 MPa (8.25 bar, 119.66 PSI). The installation must correspond to the local plumbing regulations.

A separate Shut-Off-Valve should be installed in the cold-water inflow.

It is recommended that you mount the Shut-Off-Valve directly next to the appliance or at another place that is easily accessible.

When installing the water connection, pay attention to the permissible installation area for the water line.

For connection to the drinking water line use only water pipes that are suitable for drinking water. Observe national regulations and the connection conditions of the local Water Supply companies.

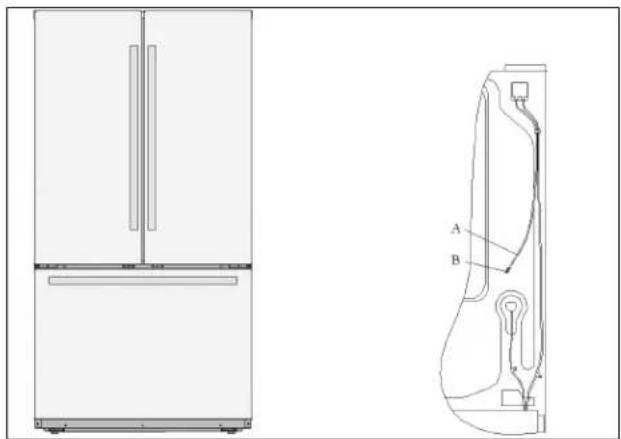

Technical line drawing of a refrigerator and its side view showing internal components (no text or symbols)

NOTICE

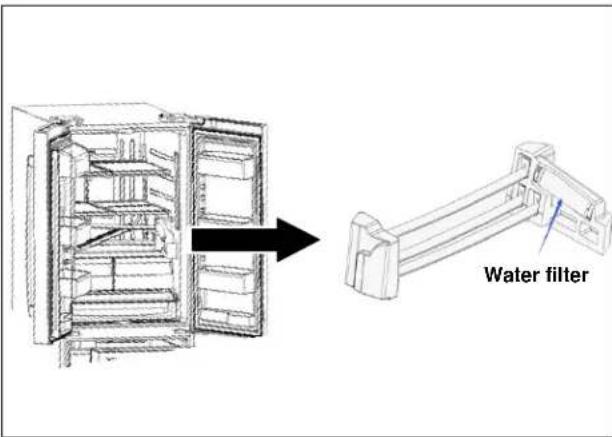

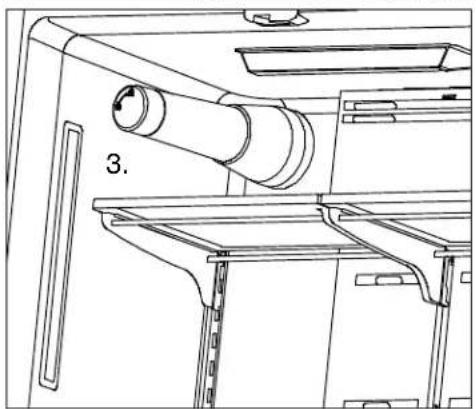

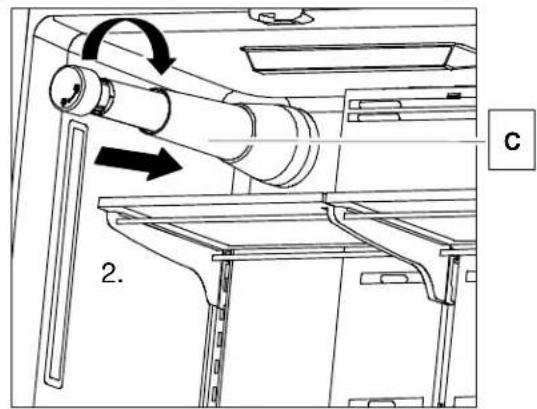

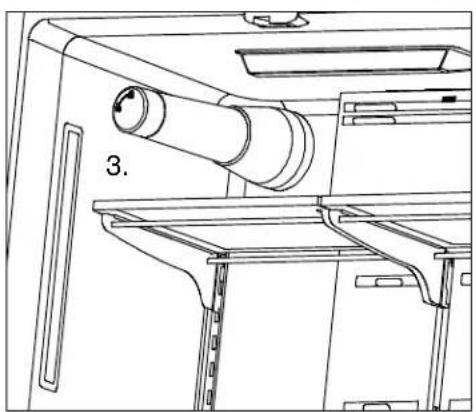

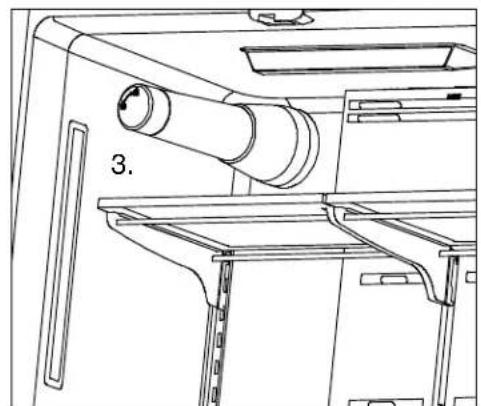

As the photo shows, there's a water filter fixed and located inside the EPS put in the cavity of the refrigerator compartment. Please kindly note.

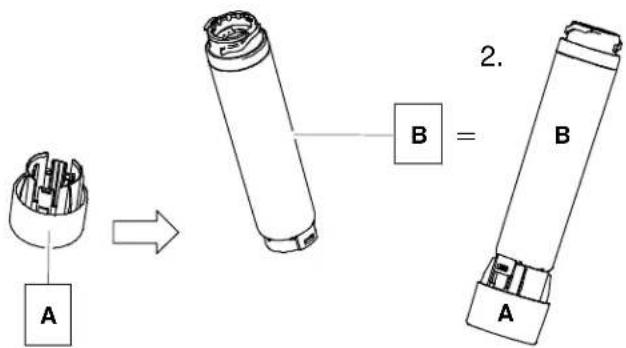

Water filter

Electrical connection

WARNING

Risk of electric shock and fire if electrical connection is not installed properly!

Plug into a fixed, grounded 3-prong outlet only. The outlet must be installed and grounded according to code by a qualified electrician. If necessary, have the installation inspected by a qualified electrician to ensure it is properly grounded.

Never remove grounding conductor.

Do not use an extension cord, adapters or power strip.

Non-compliance with these instructions may result in death, fire or an electric shock. Improper connection of the grounding conductor may result in an electric shock. If you are in doubt whether the appliance has been grounded properly, have the appliance tested by a qualified electrician.

The receptacle must be installed according to the Installation Manual.

Connect the appliance to 115 V/60 Hz AC through a correctly installed 3-pole grounded receptacle. The receptacle must be protected with a 15 to 20 A fuse.

The appliance comes with a UL registered 3-wire Power Cord.

Please see the following table:

Appliance

Maximum simultaneous load

Fridge-freezer 6.0 amps

Check on the Rating Plate whether the indicated voltage and current type correspond with the values of your power supply. The location of the Rating Plate can be found in the chapter "Customer Service".

WARNING

Never connect the appliance to electronic energy saving devices.

This appliance can be used with power line and sine-controlled inverters. Power line-controlled inverters are used for photovoltaic systems which are connected directly to the national grid.

Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

Installing the handles

NOTICE

Please remove protective film BEFORE installing handles.

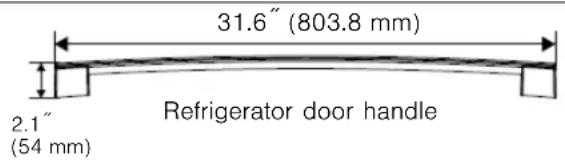

Difference between the freezer and the refrigerator door handle

Handles are located inside of the carton box.

31.6" (803.8 mm) 2.1" (54 mm) Refrigerator door handle

31.6" (802.3 mm) 2.1" (54 mm) Freezer door handle

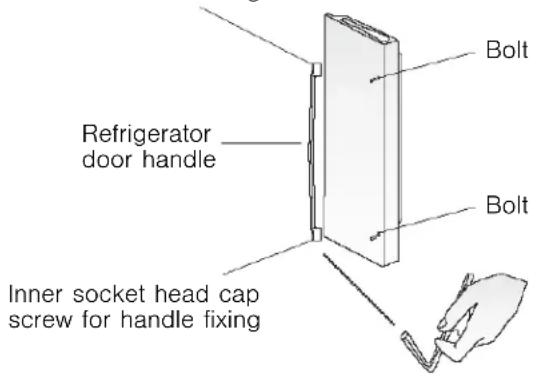

Refrigerator door handle

1. Take the refrigerator door handle out of the box and place it as per the direction shown in the figure (Note: i.e. the direction which both screw holes on the handle are close to the edge) and hang the handle above the set bolt.

2. Use the small hexagon wrench supplied in the box to set the handle screws into both the small screwed holes on the handle. After they are screwed down, gently shake the handle to confirm the handle is tightened.

Inner socket head cap screw for handle fixing

Refrigerator door handle Bolt Bolt Inner socket head cap screw for handle fixing

Freezer door handle

The assembly steps of the freezer door handle are the same as the ones of the refrigerator door handle.

During the assembly of the handle the direction of tapping hole is downward (towards the ground).

Appliance and Installation Dimensions

Leave 12 " (12.7 mm) gap at the top and 2" (51 mm) behind the refrigerator for proper ventilation.
For installation next to a wall, leave 3^3/_4 " (95.2 mm) minimum on wall side for opening the door.
It is recommended that you do not install the refrigerator near a heat source such as an oven or a range.
Maximum receptacle and water line height 23" (584 mm).

measurements in inches (mm)

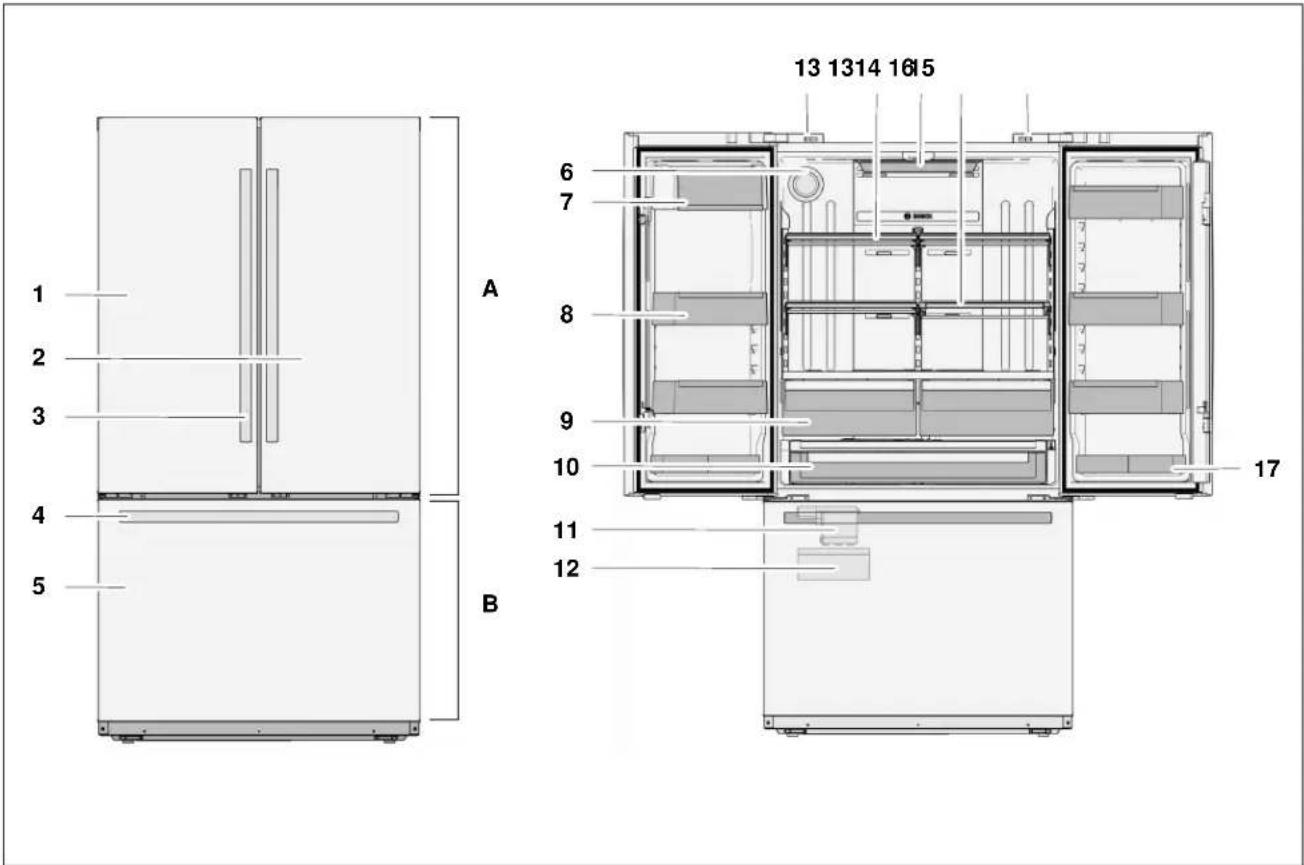

Getting to know your appliance

These operating and installation instructions apply to several models. The illustrations may differ from your particular model.

1 2 3 4 5 A 6 7 8 9 10 11 12 13 1314 1615 17 B

A Refrigerator compartment can be adjusted between 34 °F (+1 °C) and 44 °F (+7 °C)

B Freezer compartment can be adjusted between 9 °F (-13 °C) and -8 °F (-22 °C)

1 Left door for refrigerator compartment
2 Right door for refrigerator compartment
3 Door handle
4 Drawer handle

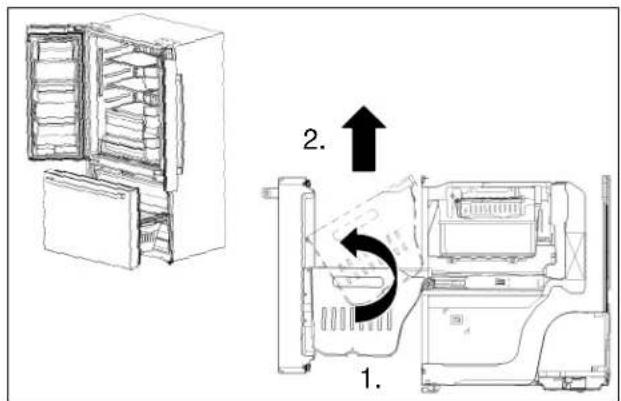

5 Freezer drawer
6 Water filter
7 Dairy bin

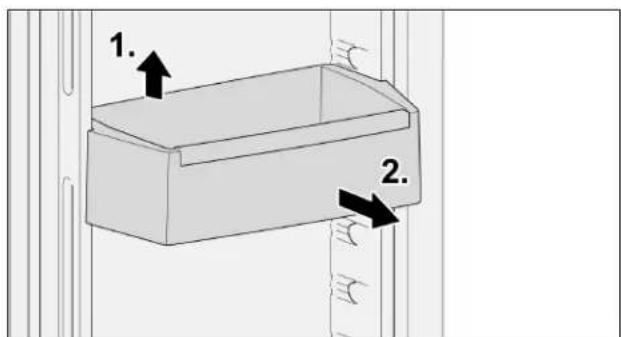

8 Door bin
9 Crisper drawers

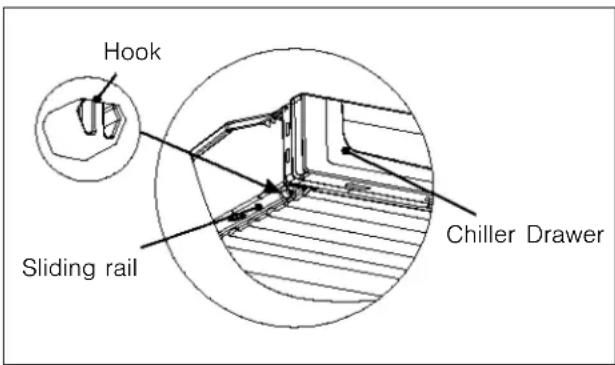

10 Chiller drawer
11 Ice maker
12 Ice storage box
13 Switch for refrigerator compartment lamp
14 Adjustable shelf
15 Control and display panel

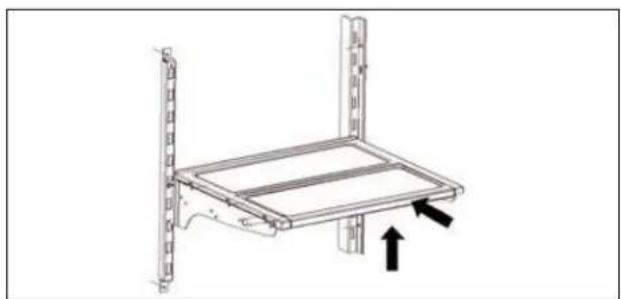

16 Retractable Shelf
17 Small tray

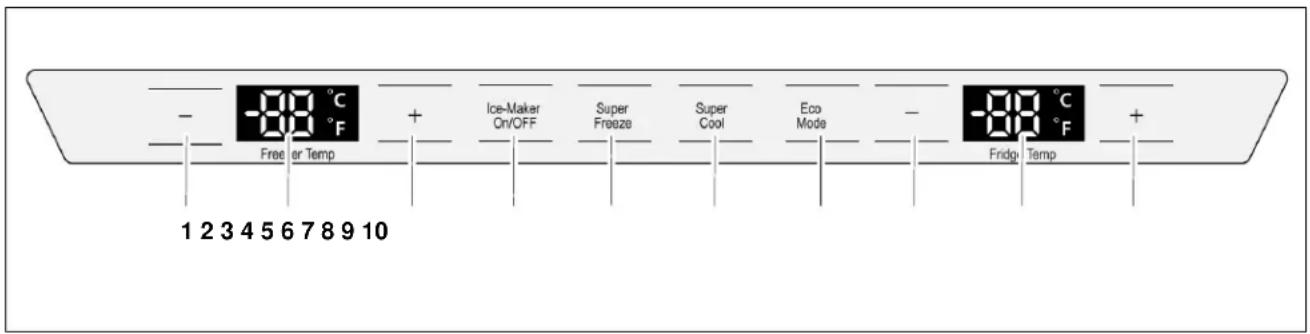

Control and display panel

Display

After the appliance is switched on and the refrigerator door is opened, the display panel light illuminates and stays lit up for 30 seconds. Then the lights go out.

Display control

After 30 seconds with no actions for door opening and no button operation the display panel light will go out. Every time the door is opened, closed or the display is touched, the display panel returns to normal.

- 00 °C Freeer Temp + Ice-Maker On/OFF Super Freeze Super Cool Eco Mode - 00 °C 1 2 3 4 5 6 7 8 9 10 Fridge Temp +

1 "Freezer Temp. -" button

Button for down-regulation of the temperature in the freezer compartment

2 Freezer compartment temperature display

Displays the temperature set for the freezer compartment.

3 "Freezer Temp. +" button

Button for up-regulation of the temperature in the freezer compartment

4 "Ice Maker On/OFF" button

Button for switching the ice maker on and off.

5 "Super Freeze" button

Button for switching the "Super freeze" function on and off.

6 "Super Cool" button

Button for switching the "Super Cool" function on and off.

7 "Eco Mode" button

Button for switching the Eco Mode on and off.

8 "Fridge Temp. -" button

Button for down-regulation of the temperature in the refrigerator compartment

9 Refrigerator compartment temperature display

Displays the temperature set for the refrigerator compartment.

10 "Fridge Temp. +" button

Button for up-regulation of the temperature in the refrigerator compartment

Operating tips

Opening and closing the refrigerator compartment doors

The refrigerator compartment doors can be opened and closed independently.

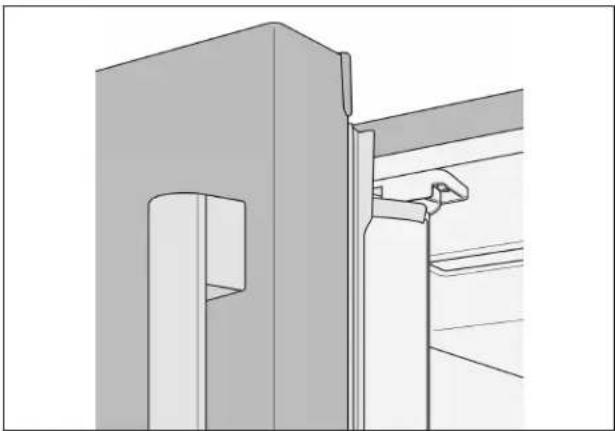

The left refrigerator compartment door has a foldaway door bar.

NOTICE

Risk of damage to the appliance!

The door bar could become damaged if you attempt to close the left refrigerator compartment door when the door bar is not folded back.

Before closing the refrigerator compartment doors, make sure that the door bar is folded at a right angle to the door.

Technical line drawing of a cabinet or enclosure with a handle, showing structural components without any text or symbols.

When closing the left refrigerator compartment door, the door bar folds behind the right refrigerator compartment door, forming a seal between the refrigerator compartment doors.

Switching on the appliance

NOTICE

After installing the appliance, wait at least 6 hours before plugging in the appliance. The oil in the compressor may have flowed into the refrigeration system during transport.

Connect the appliance plug to the outlet.

After the appliance has been plugged in, the refrigeration process will begin. The interior light in the refrigerator compartment switches on when the door is open.

It will take several hours for the inside of the appliance to reach the temperatures set at the factory. Do not place food in the appliance until these temperatures are reached.

Initial temperature

Refrigerator compartment: 39 °F (+4 °C)

Freezer compartment: 0 °F (-18 °C).

Setting the temperature

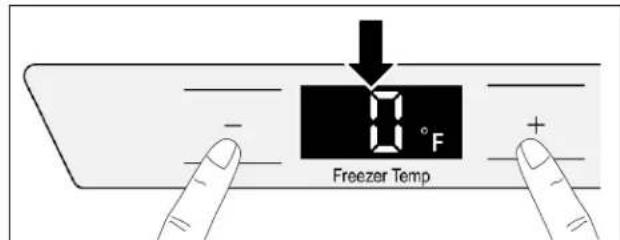

Freezer compartment

The temperature can be adjusted between 9 °F (-13 °C) up to -8 °F (-22 °C).

1. Press the "Freezer Temp. -" or the "Freezer Temp. +" button.

The freezer compartment temperature illuminate.

1. Repeatedly press the "Freezer Temp. -" or the "Freezer Temp. +" button until the desired freezer compartment temperature is set.

Freezer Temp - °F +

The temperature cannot be set circularly; every time the temperature will increase by 1^ F ( 1^ C) after the button is pressed once.

After the temperature adjustment is completed, the new temperature setting will be active for 15 seconds after button was pressed.

We recommend a setting of 0 °F (-18 °C).

en-us

Refrigerator compartment

The temperature can be adjusted between 34^ F (+1 °C) up to 44^ F (+7 °C).

1. Press the "Fridge Temp. -" or the "Fridge Temp. +" button.
   The refrigerator compartment temperature illuminate.
2. Repeatedly press the "Fridge Temp. -" or the "Fridge Temp. +" button until the desired refrigerator compartment temperature is set.

- 38 °F Fridge Temp + +

The temperature cannot be set circularly; every time the temperature will increase by 1 °F (1 °C) after the button is pressed once.

After the temperature adjustment is completed, the new temperature setting will be active for 15 seconds after button was pressed.

We recommend a setting of 39 ^ (+4 ^) .

Perishable foods should not be stored at temperatures higher than 39 ^ (+4 ^ ).

Temperature unit

The temperature can be displayed in degrees Fahrenheit (°F) or Celsius (°C).

After the appliance is switched on, the temperature appears in degrees Fahrenheit (°F).

To set the temperature unit:

Press the "Freezer Temp. -" and the "Freezer Temp. +" button for 3 seconds.

- -88 °C - F Freezer Temp +

The temperature unit switches.

Super Freeze

Food should be frozen as quickly as possible in order to retain their vitamins, nutritional value, appearance and flavor.

To prevent an undesirable rise in temperature when placing fresh food in the freezer compartment, switch on Super Freeze several hours beforehand.

As a rule, 4 to 6 hours is adequate. Allow for a minimum of 24 hours if planning to use the maximum freezing capacity.

Smaller quantities of food can be frozen without Super Freeze.

To switch on Super Freeze:

Press the "Super Freeze" button.

Ice-Maker On/OFF Super Freeze Super Cool Eco Mode

The corresponding button lamp lights up.

The temperature is set to -8 °F (-22 °C).

To switch off Super Freeze:

Press the "Super Freeze" button.

The corresponding button lamp goes out.

After 6 hours Super Freeze mode will turn off automatically.

Super Cool

Super Cool cools the refrigerator compartment down as low as possible.

Super Cool is particularly recommended for the following:

■Before placing large quantities of food in the refrigerator compartment.
■To cool drinks quickly.

To switch on Super Cool:

Press the "Super Cool" button.

Ice-Maker On/OFF Super Freeze Super Cool Eco Mode

The corresponding button lamp lights up.

The temperature is set to 34 ^ (+1 ^) .

To switch off Super Cool:

Press the "Super Cool" button.

The corresponding button lamp goes out.

After 2.3 hours, Super Cool mode will turn off automatically.

Eco Mode

This mode is for going on vacation or not using the refrigerator for a long period of time.

The temperature of refrigerator compartment is automatically set to 44 °F (7 °C) and the temperature of the freezer compartment is set to 5 °F (-15 °C).

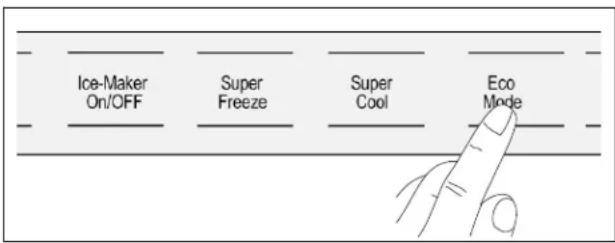

To switch on Eco Mode:

Press the "Eco Mode" button.

Ice-Maker On/OFF Super Freeze Super Cool Eco Mode

The corresponding button lamp lights up.

To switch off Eco Mode:

Press the "Eco Mode" button.

The corresponding button lamp goes out.

Refrigerator compartment

WARNING

Risk of explosion!

Do not store explosive substances in the appliance.

The Refrigerator compartment is the ideal storage location for ready meals, cakes and pastries, preserved food, condensed milk, milk, cheese, spreads, sauces, dips and eggs.

When purchasing food, please note

The freshness at point of purchase is important for the shelf-life of your food. In principle, the fresher the produce when placed in the crisper drawers, the longer it stays fresh. Therefore, when buying food, always pay attention to the degree of freshness.

Observe the expiration date specified by the manufacturer for ready products and bottled products.

Arranging Food in the Appliance

■Wrap or cover food before placing in the appliance. This will retain the aroma, color and freshness of the food. In addition, flavors will not be transferred between foods and the plastic parts in the appliance will not become discolored.
- Allow warm food and drinks to cool down before placing in the appliance.
■Do not block air outlet openings with food in the refrigerator compartment, otherwise the air circulation will be impaired. Food which is stored directly in front of the air outlet openings may be frozen by the cold air flowing out.
■Avoid contact of oil and fat with the plastic parts and door seal.

Fresh food compartment

The following foods are suitable for keeping in the fresh food compartment

■Fish, seafood, meat, sausage and cold meats, dairy products, ready meals
■Vegetables (e.g. carrots, asparagus, celery, leeks, beetroot, mushrooms, cabbage, broccoli, cauliflower, sprouts, kohlrabi)
■Lettuce varieties (e.g. lamb's lettuce, iceberg, chicory, round lettuce)
■Herbs (e.g. dill, parsley, chives, basil)
■Fruit (varieties not sensitive to cold, e.g. apples, peaches, berries, grapes).

CAUTION

After power failure or disconnection of the appliance from the power source, the temperature of the fresh food compartment must be readjusted.

Freezer compartment

WARNING

Risk of explosion! Never store products containing flammable propellants (such as spray cans) or explosive or easily combustible substances in the appliance.

CAUTION

Do not refreeze thawing or thawed food. Never keep frozen food longer than the maximum storage duration.

Using the freezer compartment

■To store deep-frozen food.
■To freeze food.
■To make and store ice cubes.

NOTICE

Make sure that the freezer compartment drawers are always kept closed. The frozen food will thaw if the freezer compartment drawers are open. The freezer compartment will become covered with thick ice.

Also: Energy will be lost due to high power consumption.

When the freezer compartment drawers are closed, low pressure occurs inside the compartment.

If you cannot reopen the freezer compartment drawers right away, wait two to three minutes until the low pressure has adjusted itself.

Freezing food

Purchasing Frozen Food

■Packaging must not be damaged.
■Use by the “expiration” date.
■Temperature in the supermarket freezer must be 0 °F (-18 °C) or lower.
■If possible, transport deep-frozen food in an insulated bag and place immediately in the Freezer Compartment.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavor and color, vegetables should be blanched before freezing. Eggplants, peppers, zucchini and asparagus do not require blanching.

Literature on freezing and blanching can be found in bookshops.

NOTICE

Keep food that is to be frozen away from food that is already frozen.

■The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, and ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
■The following foods are not suitable for freezing: Types of vegetables that are usually consumed raw such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yogurt, butter milk, sour cream, crème fraîche and mayonnaise.

Packing Frozen Food

To prevent food from losing its flavor or drying out, place in airtight containers.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and date of freezing.

Suitable Packaging:

Cling wrap, polyethylene hose film, aluminum foil, freezer containers. These products are available from specialist outlets.

Unsuitable Packaging:

Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.

Items Suitable for Sealing Packaged Food:

Rubber bands, plastic clips, string, cold-resistant adhesive tape, etc. Bags and tubular film made of polyethylene can be sealed with a film heat sealer.

Storage life of frozen food

The storage life depends on the type of food. At a temperature setting of 0 °F (-18 °C):

■Fish, sausage, ready meals, cakes and pastries: up to 6 months
■Cheese, poultry and meat: up to 8 months
■Fruit and vegetables: up to 12 months.

Thawing frozen food

CAUTION

Risk of poisoning!

Do not refreeze food that is beginning to thaw or has already thawed. The food cannot be refrozen until it has been prepared (boiled or fried). Do not store these refrozen products for the maximum storage period.

Depending on the type of food and its intended use, frozen food can be thawed as follows:

■in the refrigerator compartment
■in an electric oven with/without fan-assisted hot air
■in the microwave.

Ice maker

The ice maker makes ice cubes.

When the ice storage box is full, the ice maker stops ice production automatically.

The ice maker is capable of producing 2.8 - 3.3 lb (1.3 - 1.5 kg) of ice in 24 hours depending on the temperature of freezer compartment, surrounding temperature, frequency of door opening/closing and other working conditions.

Points to observe when switching on for the first time

The ice maker only functions when the appliance is connected to the water supply.

The ice maker starts to make ice cubes as soon as the appliance has reached the set temperature.

When using the ice maker for the first time, do not use the first 30 to 40 ice cubes for reasons of hygiene.

en-us

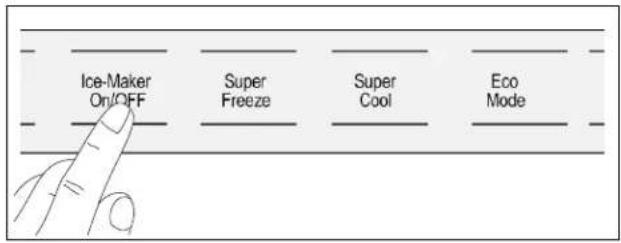

Switching on

1. Make sure that ice storage box is in its place and locked into position.
2. Press the "Ice Maker On/OFF" button.

Ice-Maker On/OFF Super Freeze Super Cool Eco Mode

The corresponding button lamp lights up.

Before the ice maker is switched on again after a long period, clean the ice cube maker and the ice storage box.

When the ice maker is switched on, the temperature for the freezer compartment automatically shown on the display is 0^ F (-18 °C).

Notes on using the ice-maker

You will hear the sound of the motor after about two hours. This is the sound of the valve providing water to the ice maker and does not indicate a malfunction.

It is normal that several ice cubes may stick together or get crushed.

Ice making takes longer if you open the drawer frequently.

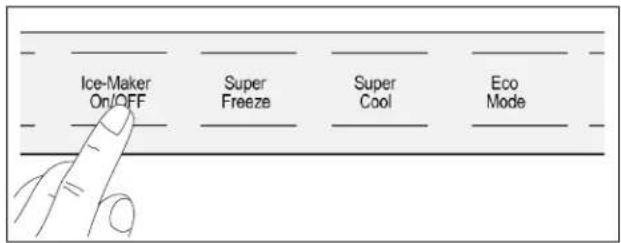

Switching off

Before switching the ice maker off, it is most important that you switch the water supply to the appliance off for a few hours.

1. Press the "Ice Maker On/OFF" button.

Ice-Maker On/OFF Super Freeze Super Cool Eco Mode

The corresponding button lamp goes out.

1. Taking out and cleaning the ice storage box.
2. Taking out and cleaning the ice cube box.

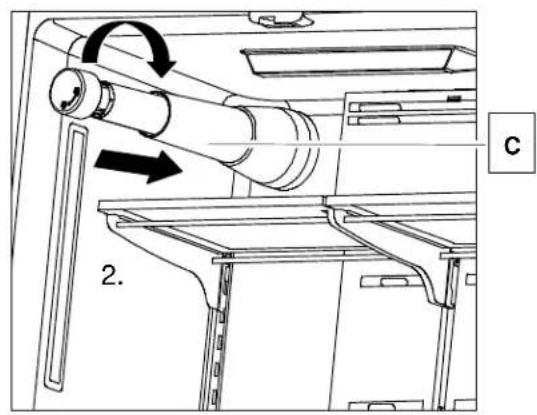

Water filter

A B = 2. B A

2. C

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Remove water filter B from box.
2. Attach A (cap) onto to B (filter) (refer to picture above)
3. With A (cap) end facing you, insert the combined A-B unit from Step 2 into housing C and rotate clockwise (approximately 34 turn) until it is locked into place. Do not over-rotate.
4. We recommend changing the filter every 6 months. When the filter has expired, turn knob counterclockwise until is loose and pull straight out. A small amount of water may drip out during the transition so we recommend having a towel available.
5. Remove cap A from old water filter and discard the old filter.
6. Repeat steps 1-3 to install the new filter. Use a permanent marker to write the filter change date on the new filter.

Performance data sheet

Model: 9000 077 508, 9000 705 475 and 9000 225 170

Use Replacement Cartridge 9000 674 655

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53.

System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for the reduction of the claims specified on the Performance Data Sheet.

Capacity 739.68 Gallons (2,800 Liters)
Contaminant Reduction Determined by NSF testing.

Contaminant Reduction	Average Influent	NSF specified Challenge Concentration	Avg % Reduction	Average Product Water Concentration	Max Permissible Product Water Concentration	NSF Reduction Requirements	NSF Test Report
Chlorine Taste and Odor	2.1 mg/L 2.0 mg/L ±10 %		97.6 %	0.05 mg/L	N/A	≥ 50 %	J-00121313
Nominal Particulate Class I, ≥ 0.5 to < 1.0 μm	9,100,000 pts/mL	At least 10,000 particles/mL	98.8 %	111,817 pts/ml	N/A	≥ 85 %	J-00099871
Cysts * 170,000 cysts/L		Minimum 50,000 cysts/L	99.99 %	0.001 cyst/L	N/A	≥ 99.95 %	J-00109715

* Based on the use of Cryptosporidium parvum oocysts.

Application Guidelines/Water Supply Parameters

Service flow 0.75 gpm (2.83 lpm)

Water Supply Potable Water

Water pressure 30 - 120 psi (207 - 827 kPa)

Water temperature 33 °F - 100 °F (0.6 °C - 38 °C)

It is essential that the manufacturer's recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as advertised. See Installation Manual for Warranty information.

Note: While the testing was performed under standard laboratory conditions, actual performance may vary.

Replacement Cartridge: 9000 674655. For estimated costs of replacement elements please contact your local dealer or call 1-800-578-6890.

WARNING

To reduce the risk associated with ingestion of contaminants:

DO NOT use this product with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after connection to the system. Systems certified for cyst reduction may be used in disinfected water that may contain filterable cysts.

EPA Establishment Number 10350-MN-005

NOTICE

To reduce the risk associated with property damage due to water leakage or flooding:

Read and follow all Instructions before installation and use of this system.

To reduce the risk of water leakage or flooding, and to ensure optimal filter performance:

Change the disposable filter cartridge every six months or sooner if you observe a noticeable reduction in water flow rate.

Failure to replace the disposable filter cartridge at recommended intervals may lead to reduced filter performance and cracks in the filter housing, causing water leakage or flooding.

Interior Fittings

Adjustable Shelf

The Adjustable Shelf can be adjusted to the proper height required by various food items.

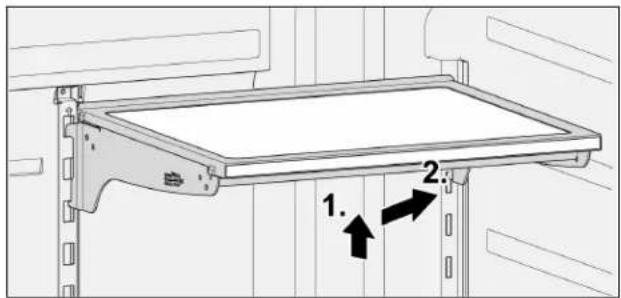

Adjusting

Tilt the shelf upward, raise it and pull it out towards you.

1. 2.

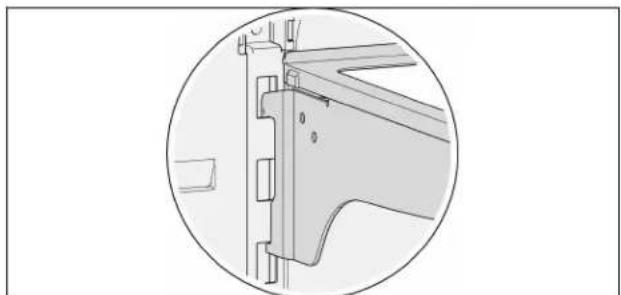

During installation, put the upper end of the fixed leg into the desired slot. Lower the shelf. The lower end of the fixed leg engages into a lower slot.

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

Retractable Shelf

Folding

Put fore-end of the retractable glass shelf up until it coincides with rear-end.

Technical diagram of a mechanical lifting or mounting bracket assembly with no visible text or symbols

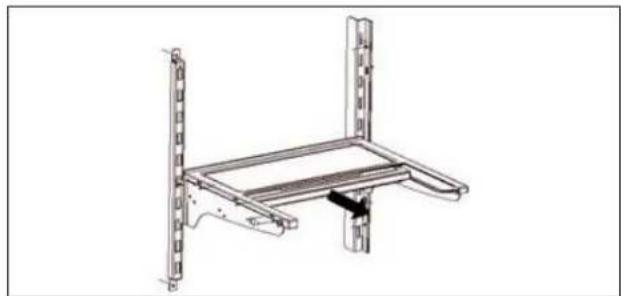

Unfolding

Pull out the retractable glass shelf directly until it is at the fore-end level of fixed glass shelf, then the buckle of retractable glass shelf will drop into the slot of fixed shelf and will not withdraw due to factor of gravity.

Technical line drawing of a mechanical support structure (no text or symbols)

Door bin

1. 2.

Lower freezer drawer

Technical diagram showing a refrigerator interior and its internal structure with labeled components and directional arrows.

1. First open the left and right door of refrigerator.
2. Open the freezer compartment door.
3. Rotate 90 degrees in the direction 1 and then remove the lower freezer drawer in the direction 2.

Chiller Drawer

The Chiller Drawer has a maximum load of 22 lb (10 kg).

Pulling out and installing the Chiller Drawer

1. Pull out the Chiller Drawer.
2. Find the hooks at the left and right sides at the drawer bottom (shown in the figure).
3. Hold the hook at two sides with a nose pliers and push it up and out of the groove of sliding rail and take out the hook at the other side with the same method.
4. Take out the drawer.

Hook Sliding rail Chiller Drawer

1. Install the drawer by putting the hook into the slots.

Switching off and disconnecting the appliance

Switching off the appliance

Unplug the appliance or switch off the fuse.

Disconnecting the appliance

If the appliance is not used for an extended period of time:

1. It is imperative that you disconnect the water supply to the appliance for a few hours before switching off the appliance.
2. Remove all food from the appliance.
3. Unplug the appliance.
4. Empty and clean the ice maker and the ice storage box.
5. Clean the appliance interior (see "Cleaning the appliance").

Defrosting

Freezer compartment

The fully automatic Nofrost system ensures that the freezer compartment remains free of ice. Defrosting is not required.

Refrigerator compartment

Defrosting takes place automatically.

The condensation runs through the drainage hole into an evaporation pan at the rear of the appliance.

Cleaning

WARNING

Risk of electric shock!

Unplug the appliance or turn off the circuit breaker or fuse before cleaning the appliance.

CAUTION

To avoid personal injury or damage to property, observe the following:

Never use a steam cleaner to clean the appliance.

Do not use abrasive or acidic cleaning agents or solvents.

Wipe lights and the control and display panel with a damp cloth only. Do not let water used for cleaning drip into the lights or onto the control and display panel.

Do not let cleaning water run into the drainage hole in the evaporation area.

Never clean shelves and containers in a dishwasher. The parts may warp.

CAUTION

For cleaning the Black Stainless Steel we advise using a soft and dry towel. If the dirt on the surface is not easy to clean/to remove only with a soft dry towel, we advise to use warm water diluted with a neutral cleansing agent.

Never use stainless steel cleaner.

Use only a non-abrasive, mild cleansing soap and water solution for cleaning the Black Stainless Steel.

en-us

Cleaning the appliance

The Crisper Drawers and Chiller Drawer can be removed for cleaning.

1. Unplug the appliance or turn off the circuit breaker.
2. Remove all food from the appliance and store in a cool location.
3. Clean the appliance with a soft cloth, using lukewarm water and a small amount of pH-balanced dishwashing liquid.
4. Rub dry when done.
5. Wipe the door seal with clear water only and then thoroughly wipe dry.
6. After cleaning, reconnect to switch on the appliance.

LED light

The appliance features a maintenance-free LED light.

CAUTION

Risk of eye injury from Class 1M laser light (IEC 60825)!

Do not look directly into the light with optical instruments.

These lights must be repaired by an authorized technician only.

Energy saving tips

■Install the appliance in a dry, well ventilated room, but not in direct sunlight and not near a heat source (radiator, stove, etc.). Use an insulating plate, if required.
■Allow warm food and drinks to cool down before placing in the appliance.
■When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen products cools the food in the appliance.
■Open and close the appliance doors and drawers as quickly as possible.

Operating noises

Normal noises

Humming - refrigerating unit is running. The fan in the circulating air system is running.

Bubbling, whirring or gurgling noises - refrigerant is flowing through the tubing or water is flowing into the ice maker.

Clicking - motor is switching on or off. The solenoid valve at the water connection is opening or closing.

Rumbling - ready ice cubes from the ice maker are falling into the ice storage box.

Solving simple noise problems

The appliance is not level

Align the appliance using a level. Use the height-adjustable feet.

The appliance is touching adjacent units or appliances

Move the appliance away from adjacent units or appliances.

Loose or sticking drawers, baskets or storage areas

Check the removable parts and, if required, reinsert them.

Receptacles are touching each other

Move bottles or receptacles slightly away from each other.

Before Calling for Service

Before you call Customer Service:

Please check whether you can troubleshoot yourself based on the following information.

Customer Service may charge you for an unnecessary service call. Please see Warranty Statement for coverage and exceptions.

Appliance

Problem	Possible cause Corrective action
No display on the display panel, interior light is not working, and the appliance is not working.	The power cord is not plugged in. Plug in the power cord.
	The fuse has blown or circuit breaker has been tripped.	Replace fuse or reset the circuit breaker.Check if electricity is present at outlet.
	Power outage. Wait until power has been restored. If necessary, contact an electrician or the utility company.
The interior light is not working.	The light switch to the freezer or refrigerator compartment is sticking.	Check whether the light switch can be moved.
	The LED bulb is defective. See "LED light".
Food is too cold.	Temperature has been set too low.	Adjust to a higher temperature.
Food is too warm. Door	will not close properly.	Align the appliance with a level. See "Aligning the appliance".
		Check the position of the drawers and correct, if necessary.
		Check the door seals and foldaway door bar; if necessary, clean or correct position.
	Temperature has been set too high. Select a lower temperature.
	Ventilation opening is blocked. Remove any food blocking the ventilation opening.
	Doors were opened frequently or were open for an extended period of time.	Wait until the temperature in the appliance drops.
	A large amount of fresh food has been placed in refrigerator.	Fresh food must first reach the correct storage temperature.
Appliance has an unpleasant odor.	Food with a strong odor was placed in the refrigerator.	Wrap up the food or place it in an airtight container.
	The interior compartment is dirty. Clean the interior compartment.
Water droplets are forming on the exterior of the appliance.	Door will not close properly.	Align the appliance with a level. See "Aligning the appliance".
		Check the position of the drawers and correct, if necessary.
		Check the door seals and foldaway door bar; if necessary, clean or correct position.
	Humidity is too high. This may be normal in certain regions.

en-us

Problem		Corrective actionPossible cause
Water droplets are forming inside the appliance.	Humidity is too high or doors have been opened frequently.	Do not open doors as frequently or do not keep them open too long.
	The door seals are not tight. Check the door	seals and foldaway door bar; if necessary, clean or correct position.
Drawers can only be closed with great difficulty.	The drawer has not been inserted correctly.	Insert the drawer correctly.
	The drawer rails are dirty. Clean the drawer rails.
The ice maker is not making ice cubes.	The ice maker is switched off. Switch on the water.	ice maker.
	The appliance is not being supplied with water.	Have a qualified technician check the water connection.
	The water connection line has kinks in it. Shut off the water supply. Straighten out the kinks. Have damaged water connection lines replaced with original manufacturer parts.
	Water pressure is too low. Have the water	pressure checked.
	The ice storage box is not inserted correctly.	Insert the ice storage box correctly.
	The water connection is installed incorrectly.	If the water connection is not installed correctly, this can cause low water pressure and can damage the appliance.

Customer Service

Before you call Customer Service, see the chapter entitled "Before Calling for Service".

After checking according to the chapter entitled "Before Calling for Service", additional help can be requested by calling the Bosch Customer Service center, 1-800-944-2904 (toll-free), from anywhere in the USA. In Canada contact your Bosch Customer Service or call 1-800-944-2904.

Note down the following information about your unit so that you have it ready and can be better assisted if you require help or Customer Service.

Dealer name

Address

Telephone number

Purchase date

Model number (E number)

Serial number (FD number)

Type

Line drawing of a refrigerator with two doors and a side panel (no text or symbols)

Line drawing of a double refrigerator with front door and side panel (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts A, B, C, D

Installation de la plinthe

Technical diagram of a mechanical assembly with a bracket and mounting base, showing a black arrow indicating direction (no text or symbols present)

Technical line drawing of a refrigerator with side and front views, showing internal components (no text or symbols)

REMARQUE

measurements in inches (mm)

Line drawing of a door handle opening a cabinet (no text or symbols)

Freezer Temp - °F +

- -88 °C - F Freezer Temp +

A → B = 2 B A

2. C

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

Clayette rabattable

Rabattre

Technical diagram of a mechanical lifting or mounting bracket with vertical supports and an arrow indicating direction (no text or symbols)

Remonter

Technical line drawing of a mechanical support structure (no text or symbols)

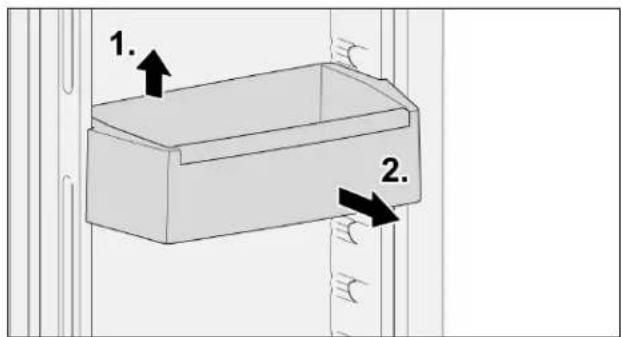

Casier de porte

1. 2.

Technical diagram showing a refrigerator interior with labeled components and directional arrows indicating rotation or assembly.

Two identical line drawings of a refrigerator with doors and side panels (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts A, B, C, D

Technical diagram of a mechanical assembly with a lever and rod, no visible text or symbols

Front view line drawing of a double refrigerator with door, front panel, and side panel (no text or symbols)

A B

NOTA

measurements in inches (mm)

Conozca su aparato

Technical line drawing of a cabinet or storage unit with handle and door (no text or symbols)

Freezer Temp - °F +

Freezer Temp - - - + + +

A B = 2. B A

2. C

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Estante retráctil

Plegado

Technical diagram of a mechanical assembly with vertical supports and a horizontal panel (no text or symbols)

Desplegado

Technical line drawing of a mechanical lifting or mounting bracket assembly (no text or symbols)

Technical diagram showing a refrigerator interior and its internal structure with labeled components and directional arrows.

1901 Main Street, Suite 600,

Irvine CA 92614, USA

www.bosch-home.com

8001086945 (9802)

en-us, fr-ca, es-mx
