USER MANUAL BOP250202 GAGGENAU

Hand holding smartphone with floating icons of kitchen appliances on a dark screen (no text or symbols)

DE Verbinden Sie Ihren Backofen mit der Zukunft. 2
EN Connect your oven to the future. 8
IT Collegiate il vostro forno al futuro. 14
ES Conecte su horno con el futuro. 20
FR Connectez votre four à l'avenir. 26

Home connect

Home Connect

Home Connect

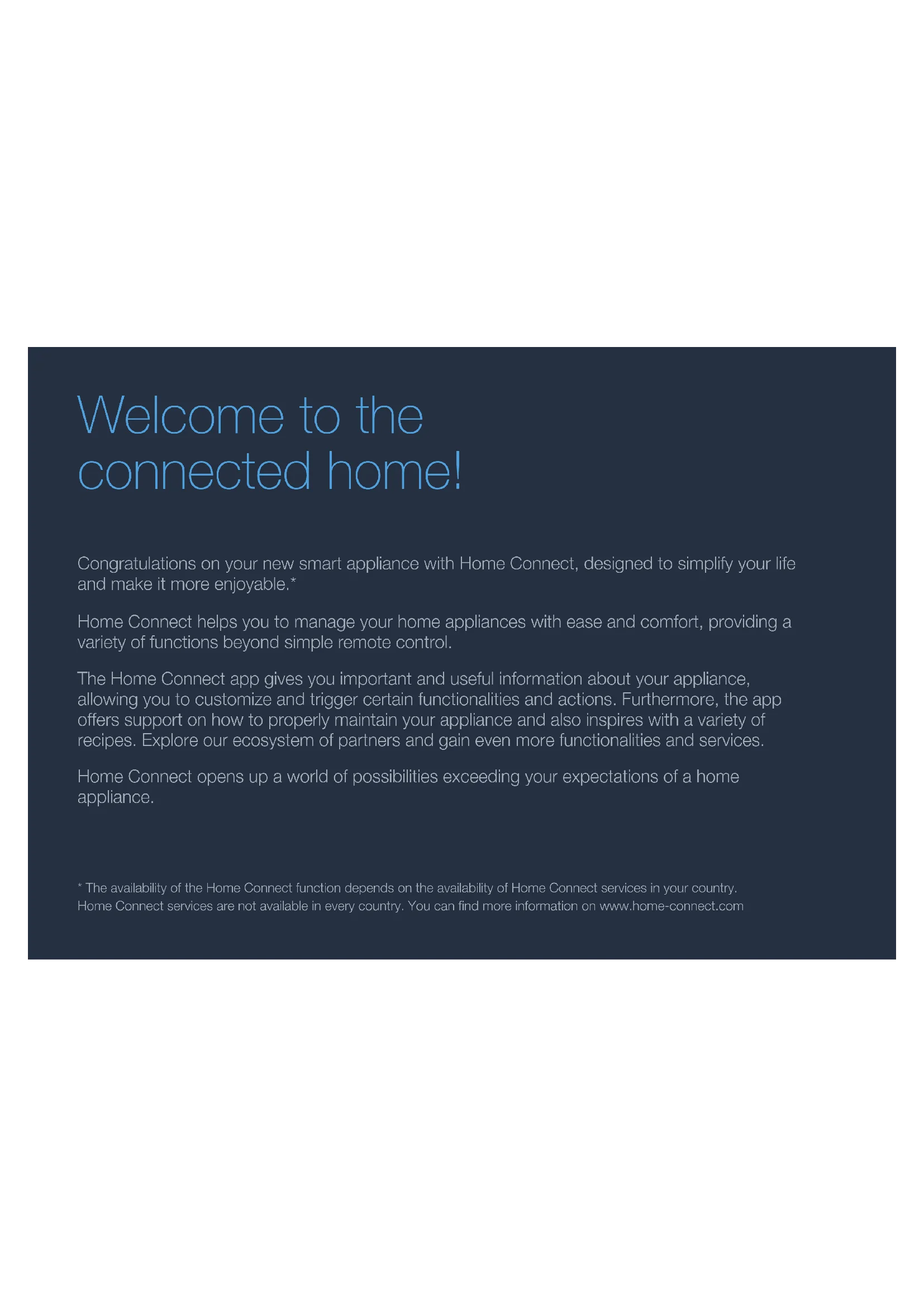

Welcome to the connected home!

Congratulations on your new smart appliance with Home Connect, designed to simplify your life and make it more enjoyable.*

Home Connect helps you to manage your home appliances with ease and comfort, providing a variety of functions beyond simple remote control.

The Home Connect app gives you important and useful information about your appliance, allowing you to customize and trigger certain functionalities and actions. Furthermore, the app offers support on how to properly maintain your appliance and also inspires with a variety of recipes. Explore our ecosystem of partners and gain even more functionalities and services.

Home Connect opens up a world of possibilities exceeding your expectations of a home appliance.

* The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on www.home-connect.com

Explore: With the Home Connect app you can...

Manage your appliance

In the app's appliance section you have an overview of your connected appliances, offering a variety of functions beyond simple remote control. Monitor the appliance's progress, change or pause programs, change settings, trigger actions, and receive notifications.

Be inspired

The recipe section provides a variety of inspiring recipes, tips and videos, that will make cooking and baking even more enjoyable.

Get support

The service section gives helpful information on how to maintain and operate your appliance properly.

Discover even more benefits

We are constantly expanding our ecosystems of partners. Please refer to www.home-connect.com for an overview of all partners.

Let's get started:

What you need

1 | Your appliance must be installed properly and turned on.
2 | A smartphone or tablet equipped with the latest version of iOS or Android operating system.
3 | This installation guide.

Either:

4 | A LAN connection between your fully automatic coffee machine and router or hub.

Or:

4 | Your home appliance within the Wi-Fi signal of your home network and the name of your Wi-Fi network (SSID) and its password (key).

Important information:

Data security: Home Connect values customer data, ensuring the transfer of data is encrypted. Home Connect utilizes a variety of security measures, which are periodically reviewed. For further information visit www.home-connect.com.

Appliance safety: To ensure safe operation of your appliance with Home Connect functionality, please consult the safety information in the appliance instruction manual.

Step 1: Download the Home Connect app and create a user account

1 | Open the App Store (Apple devices) or Google Play Store (Android devices) on your smartphone or tablet.
2 | Search for the "Home Connect" app in the store's search and install it.

The Home Connect app:

3 | Open the app and register to create a Home Connect account.

4 | Write down your Home Connect account credentials (user account and password), you will need them later.

√ The app will guide you through the steps of adding your appliance to Home Connect. It will refer to this guide only when needed.

Step 2: Connect your oven to your home network

1 | Your oven must be installed properly and turned on.
2 | Open your Home Connect app to add an appliance.
3 | Please follow the directions in the app and refer to this guide only when prompted to by the app.

Information:

We are constantly working to improve the Home Connect app, which may lead to differences in the setup steps. Please rely on the instructions in the latest version of the Home Connect app to guide you through the setup process.

In case of a LAN connection, step 2.1 and 2.2 are not relevant.

Step 2.1: Connect your oven to your home network with WPS

Please enter step 2.1 only when prompted to by the app. The following steps describe operations at the appliance itself.

1 | In the basic settings, select Home Connect and touch the symbol \_.

Home Connect

2 | Using the rotary selector, select Wi-Fi and confirm by pressing √

315 Wi-Fi Connection type 2

√ A message about the WPS function will appear.

3 | Touch √ to continue.

Check whether your router has WPS function

4 | Using the rotary selector, select Automatic (WPS) and start the connection process using √
5 | Activate the WPS function on your home network router within the next 2 minutes.

√ After a few seconds, Network connection successful appears on your oven's display.
√ The app will get notified once your oven has been successfully connected to your Wi-Fi network.

6 | Follow the instructions in the app.

Information:

If the connection could not be established within 2 minutes, make sure your oven is within the range of your Wi-Fi network.

For some appliances the WPS mode is also called "automatic mode".

Step 2.2: Connect your oven to your home network step by step

Please enter step 2.2 only when prompted to by the app. The following steps describe operations at the appliance itself.

1 | In the basic settings, select Home Connect and touch the symbol \_.

Home Connect

2 | Using the rotary selector, select Wi-Fi and confirm by pressing √

315 Wi-Fi Connection type 2

√ A message about the WPS function will appear.

3 | Touch √ to continue.

4 | Using the rotary selector, select Manual and start the connection process using √

√ The appliance will open a temporary Wi-Fi network "HomeConnect" with the password "HomeConnect" for 2 minutes.

The app provides your home Wi-Fi network name (SSID) and its password via this temporary Wi-Fi network to the oven enabling the oven to connect to your home Wi-Fi network.

5 | Follow the instructions in the app.

√ The message Network connection successful appears on your oven's display.

Information:

For some appliances the step-by-step mode is also called "SAP mode" or "manual mode". If the step-by-step mode does not work please check:

• Your appliance is in the range of the Wi-Fi network.
• Your smartphone/tablet is connected to your home Wi-Fi network.
• Your smartphone/tablet and appliance are connected to the same home Wi-Fi network.

Step 3: Connect your oven to the Home Connect app

Please enter step 3 only when prompted to by the app. The following steps describe operations at the appliance itself.

1 | Using the rotary selector, select Connect to app and touch the symbol.

Connect to app

2 | Start the connection process using √
3 | Follow the instructions in the app.

√ If Connection to app successful is shown on the display, the connection process is complete.

4 | By touching √ the Home Connect setup is completed.

Connection to app successful 4

Information:

If the connection could not be established make sure your smartphone/tablet is within range of your Wi-Fi network.

Home Connect

Home Connect

Home Connect

Home Connect

Home Connect

Home Connect

Home Connect opens up a world of possibilities, exceeding your expectations of a home appliance.

To learn more about smart home appliances with Home Connect and our partner ecosystem, visit www.home-connect.com

Installation instructions in other languages can be found under "Home Connect" in the instruction manual supplied with your home appliance.

Three colored circles representing documents, a wine glass, and a person (no text or symbols)

If you have any questions or would like to contact the Home Connect service hotline, please visit us at www.home-connect.com

Home Connect is a service provided by Home Connect GmbH. Home Connect is a service of OOO "BSH Bytowije Pribory"

Apple App Store and iOS are trademarks of Apple Inc. Google Play Store and Android are trademarks of Google Inc. Wi-Fi is a trademark of the Wi-Fi Alliance.

de en lt es fr (9803) 9001350940
