USER MANUAL Ovalis 122190231 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCiDE

White cylindrical wall-mounted shower unit with a small protrusion on the left side (no text or symbols visible)

Item number: 12219/02/31

EAN code: 5411212126795

OVALIS

Simple illustration of a glowing incandescent light bulb with screw base (no text or symbols)

RECOMMENDED LUCIDE LIGHT SOURCE

49022/04/60

Dimmable: Yes

Included: No

General

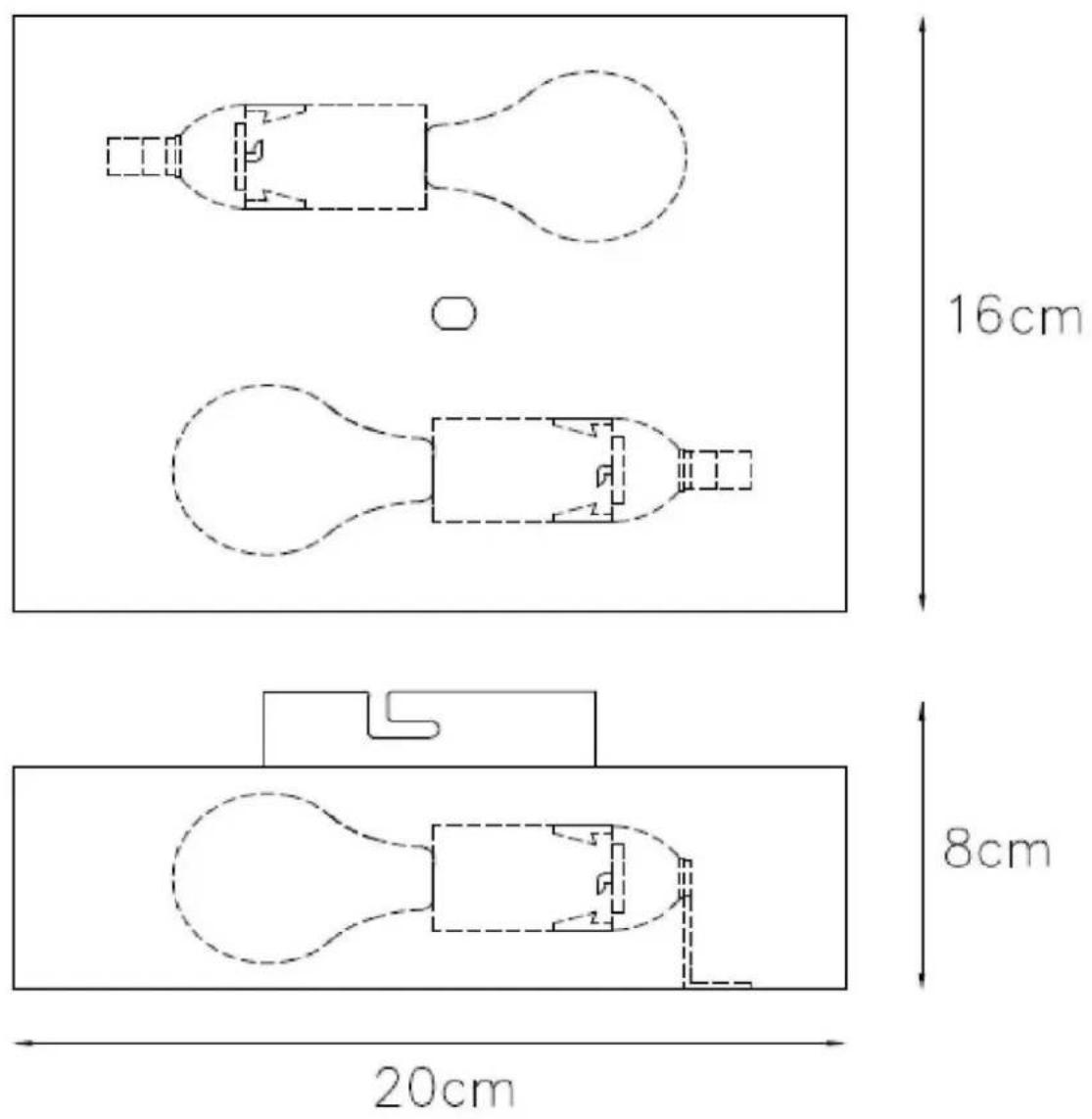

Dimensions LxW xH: 16cm x 8cm x 20cm

Main material: Metal

Ceiling rose material: Metal

Color: White and Matt Gold / Brass

Style: Modern

Shape: Oval

Weight: 0,80 kg

Warranty: 2 Years

Specifications

Dimmable: Yes

Light direction: Uplight & Downlight

Adjustable in height: Not In Height Adjustable

Directional: Not Directional

Cable: No Cable On Product

Sensor: Without Sensor

Control: Light Switch Control

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 1

Number of light sources: 2

Lamp socket: E14

Wattage: 2 x 9W

Power requirements: 220-240V\~50Hz

OVALIS

Item number: 12219/02/31

EAN code: 5411212126795

OVALIS

Item number: 12219/02/31

EAN code: 5411212126795

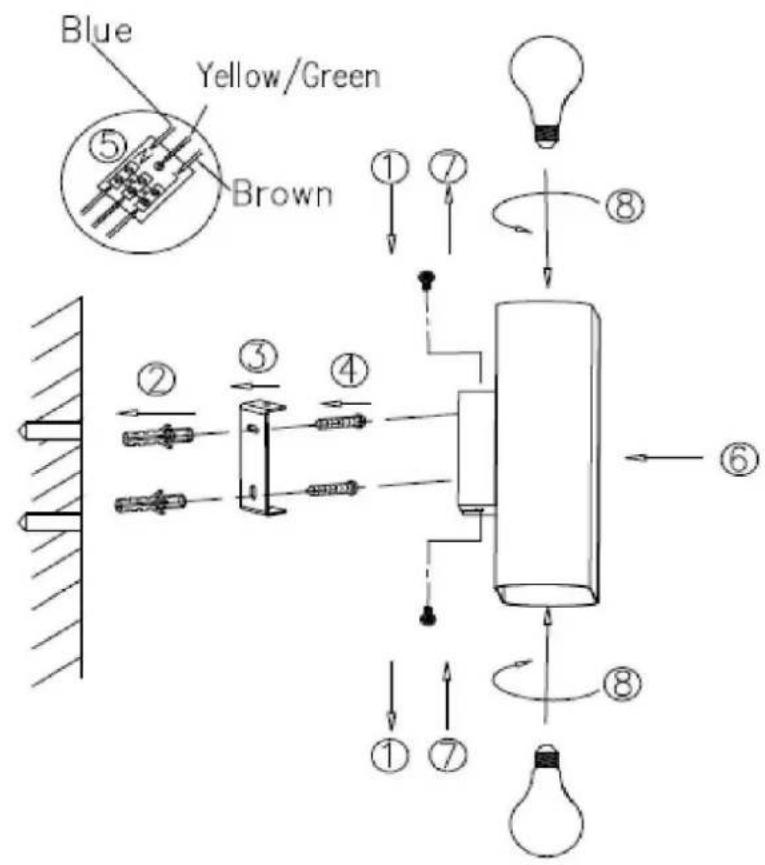

Blue Yellow/Green ⑤ Brown ① ⑦ ⑧ ② ③ ④ ⑥ ① ⑦ ⑧

Diagram showing electrical connections with labeled components including a motor, screwdriver, and indicator lights

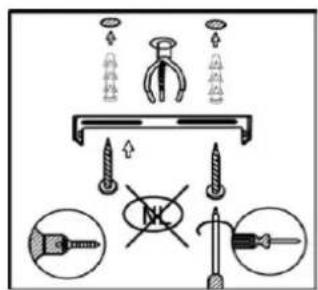

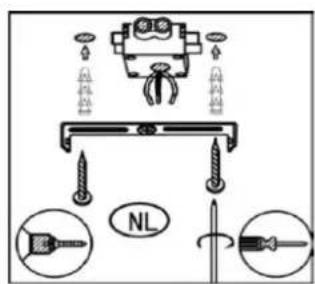

Diagram illustrating screwdriver installation and disassembly steps with labeled components and tool illustrations

Cropped image showing a series of icons and labels, including house, water level, IP20 symbol, and light bulb with 0.5m scale indicator.

IP20 0.5m

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

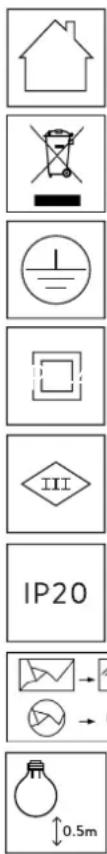

Explanation of the symbols which can appear on the fixture

Vertical sequence of icons and labels, including house, circuit, water level, square, diamond, IP20, email, and light bulb with 0.5m scale indicator.

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.
