USER MANUAL FCL271 Infiniton

*'6LKD\XQDOX]HQHOFRPSDUWLPHQWR

= and )>)> the<*'+! for 2' *'"2'(9(((& they ' suitable

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. It’s risk of fire warning symbol. There are flammable materials in refr igerant pipes and compressor.

ease be far away fire source duri ng using, service and disposal.

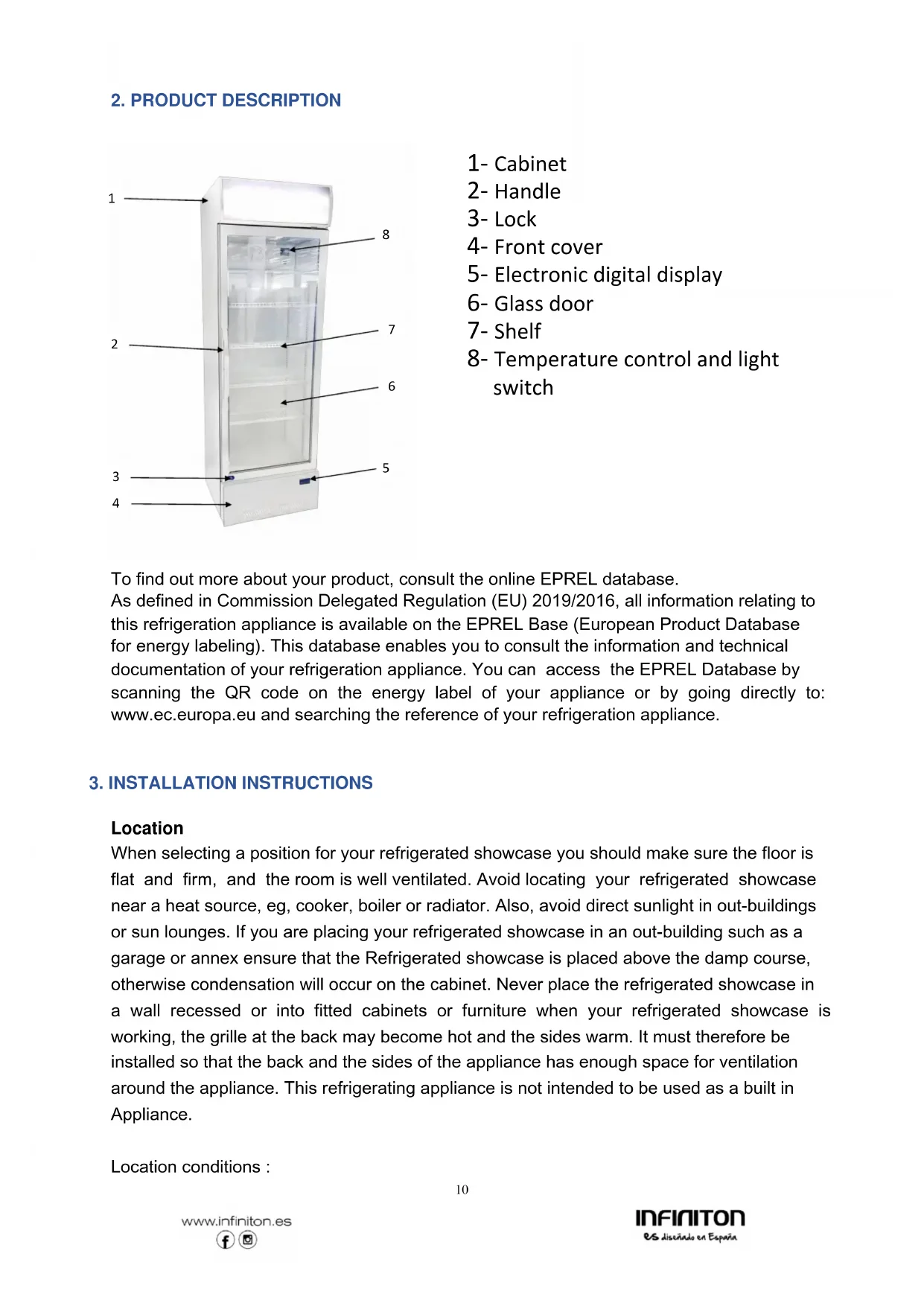

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to: www.ec.europa.eu and searching the reference of your refrigeration appliance.

3. INSTALLATION INSTRUCTIONS

Location When selecting a position for your refrigerated showcase you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your refrigerated showcase near a heat source, eg, cooker, boiler or radiator. Also, avoid direct sunlight in out-buildings or sun lounges. If you are placing your refrigerated showcase in an out-building such as a garage or annex ensure that the Refrigerated showcase is placed above the damp course, otherwise condensation will occur on the cabinet. Never place the refrigerated showcase in a wall recessed or into fitted cabinets or furniture when your refrigerated showcase is working, the grille at the back may become hot and the sides warm. It must therefore be installed so that the back and the sides of the appliance has enough space for ventilation around the appliance. This refrigerating appliance is not intended to be used as a built in Appliance. Location conditions :

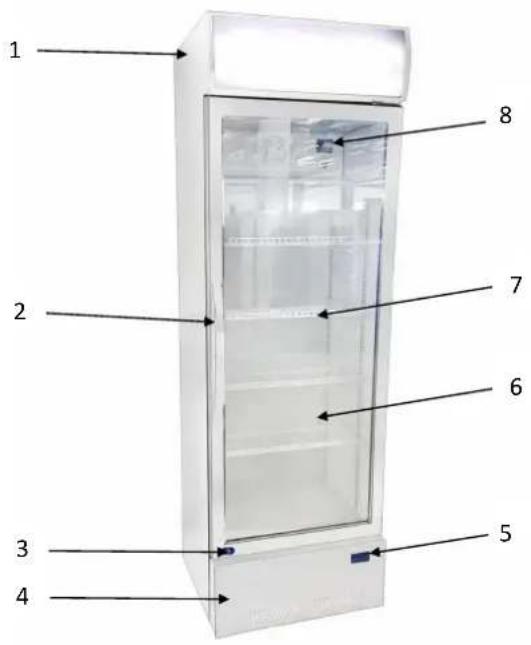

8- Temperature control and light

8• SN This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 C to 32 C

• N This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 C to 32 C

• T This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 C to 38 C

• ST This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 C to 43 C his appliance is designed to operate in climates where the maximum temperature and humidity are equal to+25 C and 60% respectively. Cleaning before use Wipe the inside of the refrigerated showcase with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in warm soapy water and dry completely before replacing in the refrigerated showcase. Before plugging in Check that you have a socket which is compatible with the plug supplied with the refrigerated showcase. DO NOT SWITCH ON UNTIL FOUR HOURS AFTER MOVING THE REFRIGERATED SHOWCASE. The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle. Before filling your refrigerated showcase Before storing beverages in your refrigerated showcase, turn the refrigerated showcase on and wait for 4 hours, to make sure it is working properly and to allow the refrigerated showcase to fail to the correct temperature. Handle installation The handle consists of two parts:

Your appliance has one control for regulating the temperature.The temperature control is located at the top inside the appliance

GHT The first time you put your appliance into operation,set the thermostat to the middle position “4” and let it run empty for 4 hours before storing beverages for it to cool sufficiently. The range of the temperature control is from “1” position the hottest position to “7” position the coldest temperature.Adjust the temperature control to the setting that best suits your needs.The middle position “4” should be appropriate for home or office refrigerator use. Setting 1 to 3:compartment temperature 6 - 12 ℃,recommended temperature for keeping beverage.The appliance assures that this temperature is maintained as long as it is in operation. Setting 4 to 5:compartment temperature 0 - 6 ℃,recommended temperature for keeping beverage.The appliance assures that this temperature is maintained as long as it is in operation. Setting 6 to 7:compartment temperature -3 - 0 ℃,recommended temperature for keeping beverage.The appliance assures that this temperature is maintained as long as it is in operation. Temperature too high or too low will affect the taste and the conservation of the beverage.

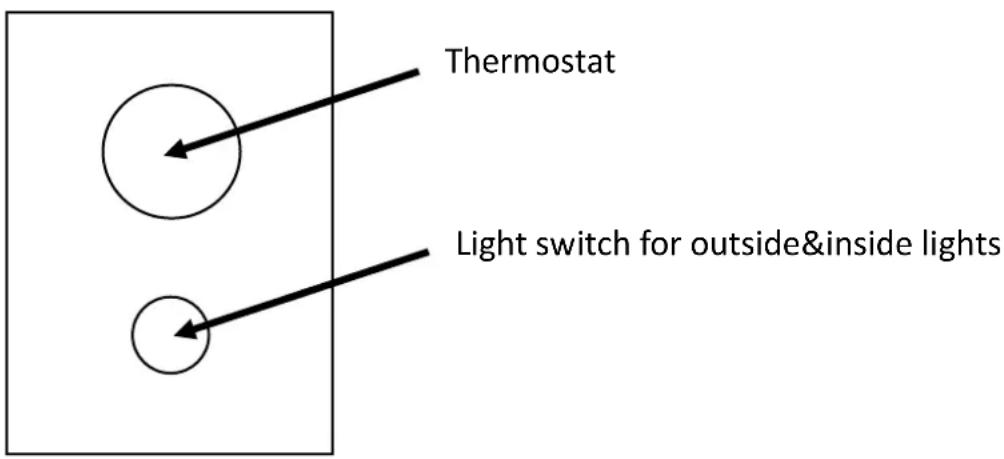

Thermostat Light switch for outside&inside lights13

• Turn to “0" position stops the cooling cycle but does not shut off the power to the refrigerator.

• If the unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.

• If you choose to change the thermostat setting, adjust thermostat control by one numerical increment at a time. Allow several hours for temperature to stabilize between adjustments. Do not leave the door open for too long so that the indoor temperature does not rise too much. Food preservation For optimal conservation of foodstuffs, it is recommended to adjust the temperatures of the compartments as below : Caution ! Refrigerating appliance without 4 stars compartment are not suitable for freezing foodstuffs

5. CARE AND MAINTENANCE

Defrost The defrost of your appliance is manual. Defrost when frost is accumulated on the evaporator is about 2mm:

• Set the thermostat to "0" for defrosting.

• Switch off the appliance and disconnect the mains plug from the mains socket.

• Remove all contents from the freezer compartment.

• Leave the freezer door open to allow melting of the ice.

• Remove large pieces of ice if necessary, with dishcloth or something that will not damage the walls.

• Do not use hot water or other electric heaters to melt the accumulated ice.

• After defrosting, remove the accumulated ice / water and try the freezer compartment with a soft cloth.

• Restart the unit according to the start instructions. Never use a knife or other sharp instrument to scrape ice inside. Cleaning inside the appliance Storage nditions Compartment

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. After defrosting you should clean the refrigerated showcase internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the refrigerated showcase. Condensation will form on the back wall of the Refrigerated showcase; however, it will normally run down the back wall and into the drain hole. Cleaning outside the appliance Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Use standard non-abrasive detergent diluted in warm water to clean the refrigerated showcase exterior. The grille of the condenser at the back of the refrigerated showcase and the adjacent components can be vacuumed using a soft brush attachment. Do not use harsh cleaners, scouring pads or solvents to clean any part of the refrigerated showcase. Moving the unit

• Transportation When you transport the beverage cooler, the angle between the beverage cooler and the ground should be no less than 45° and you should never place the beverage cooler upside-down. Do not hold the handle when installing and moving the beverage cooler.

• Location Do not place your refrigerator near a heat source, for example. Stove, boiler or radiator. Also, avoid direct sunlight.

• Do not turn on the refrigerator for 4 hours After any movement, it must not be connected for 4 hours. This delay allows the coolant to be adjusted.

• Installation Let your device breathe. Heat is released from the walls so it is important to leave a circulation of air around your device. Recommendation combination The following combination of drawers, baskets, and shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit Turn off your appliance

• If the unit is not likely to operate for a long period of time:

• Remove all beverages from your appliance from the refrigerator.

• Unplug the appliance.15

• Clean it thoroughly.

• Keep the door open to prevent odors from rising.

6. TROUBLESHOOTING GUIDE

Sometimes you may come cross minor problems that is most cases do not require a service call and can be easily eliminated. The problem may have resulted from improper handling and/or installation of the appliance. Please refer to the below trouble-shooting guide to assist you in identifying the problem still persist after completing these checkpoints, contact the closest authorize service agent in your area for assistance. Problem Possible cause Suggested solution Not cold

1. Is something wrong with the

power? Check the power socket.

3. Is the power cord plugged well?

Plug the power cord well.

4. Is the thermostat adjusted to 0?

Adjust the thermostat. Not cooling well

1. Is there too much products?

Take excrescent products out

2. Is the thermostat adjusted to

low? Adjust thermostat to higher scale.

3. Is the showcase under direct

sunshine or near heat source? Keep showcase away from heat source and sunshine.

4. Is the door opened too

often? Reduce door open frequency Drinks get frosted Is thermostat adjusted to too high scale? Adjust thermostat to lower scale. Too noisy

2. Does showcase touch the wall?

Keep away from the wall.

3. Some parts are loose or broken

off? Fix the parts If problems still cannot be solved, please ask help from service center or dealer. Note: the following phenomena are normal: ★ There is a faint sound of water flow in the refrigerated cabinet ★ The body is warm ★ The compressor and condenser are very hot.16

This appliance is marked according to the European directive 2012/19/CE on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product, or on the documents accompanying the product, the Crossed-Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or, if you are buying an equivalent product, to the retailer of the new product. The user is responsible for taking the appliance to the appropriate collection center at the end of its useful life. Selective and appropriate collection for the recycling of no longer used appliances and their disposal and destruction in an environmentally friendly manner, helps to prevent potential negative effects on the environment and health, and encourages the recycling of materials used to make the product. For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice. Warranties for FRIGELUX brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee. FRIO ENTREPRISE cannot be held liable for errors or technical or editorial omissions in this document. Non-binding document. :zrPROCEDURE IN CASE OF FAILURE OF AN INFINITON PRODUCT Dear customers, to request technical assistance or repair of your Infiniton product, you have our website, operating 24 hours a day and 7 days a week: Alternatively, if they wish, they can request technical assistance via email: To streamline all procedures, the following information should always be indicated:
