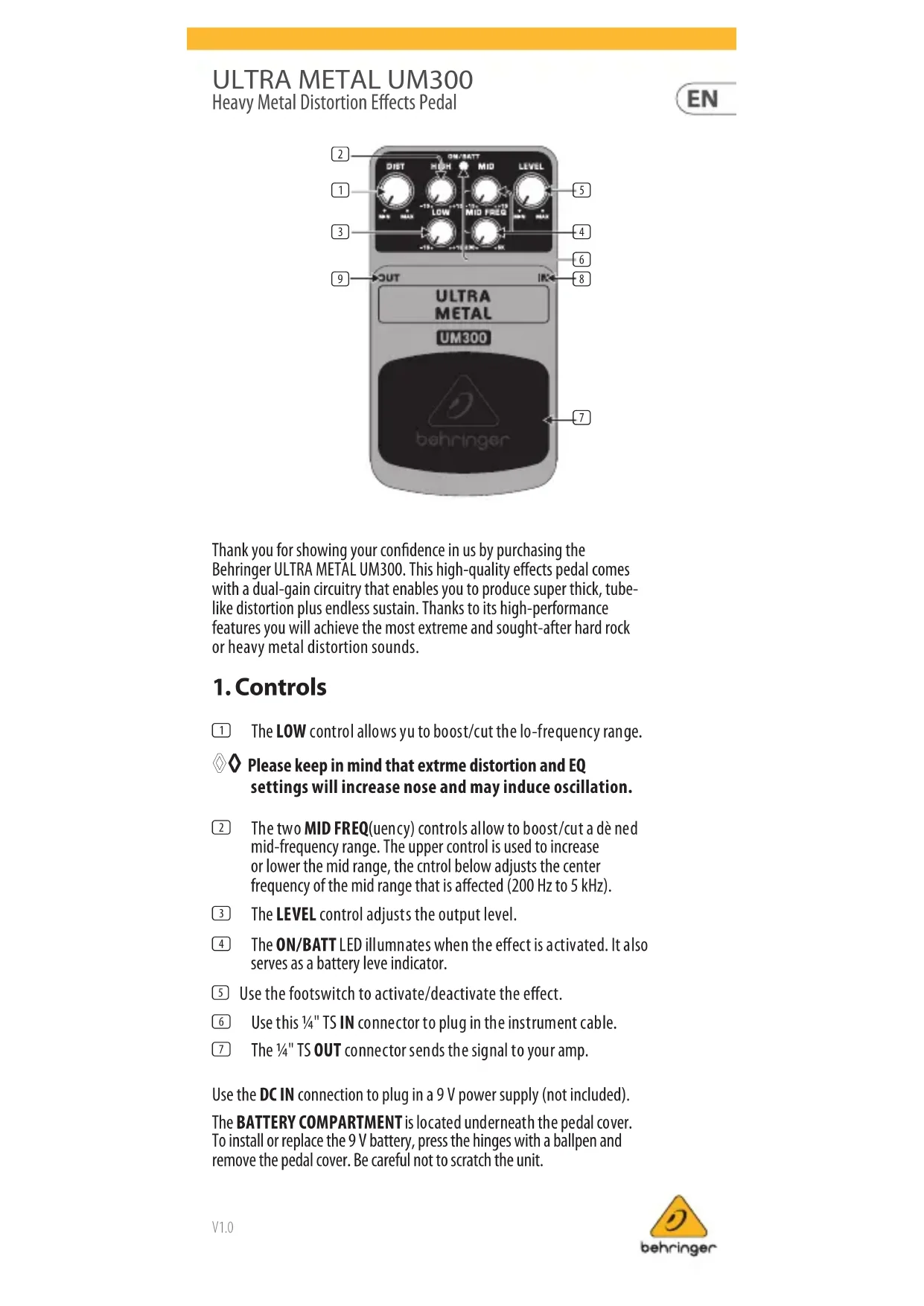

USER MANUAL Ultra Metal UM300 BEHRINGER

Thank you for showing your confidence in us by purchasing the Behringer ULTRA METAL UM300. This high-quality effects pedal comes with a dual-gain circuitry that enables you to produce super thick, tube-like distortion plus endless sustain. Thanks to its high-performance features you will achieve the most extreme and sought-after hard rock or heavy metal distortion sounds.

1. Controls

The LOW control allows you to boost/cut the lo-frequency range.
Please keep in mind that extreme distortion and EQ settings will increase nose and may induce oscillation.
The two MID FREQ(uency) controls allow to boost/cut a de ned mid-frequency range. The upper control is used to increase or lower the mid range, the control below adjusts the center frequency of the mid range that is affected (200 Hz to 5 kHz).
The LEVEL control adjusts the output level.
The ON/BATT LED illuminates when the effect is activated. It also serves as a battery leve indicator.
Use the footswitch to activate/deactivate the effect.
6 Use this 14 TS IN connector to plug in the instrument cable.
The 14 TS OUT connector sends the signal to your amp.

Use the DC IN connection to plug in a 9 V power supply (not included).

The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.

2 ULTRA METAL UM300

The UM300 has no on/off switch. As soon as you insert the jack into the in connector, the UM300 begins running. When not using the UM300, remove the jack from the in connector. This extends the life of the battery.

The SERIAL NUMBER is located at the bottom.

2. Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged

3. Limited Warranty

For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at musictribe.com/warranty.

4. Specifications

In

Connector 14 TS

Impedance 500k

Out

Connector 14 TS

Impedance 1 kΩ

Power Supply

9 V, 100 mA regulated

Behringer PSU-SB

USA/Canada 120V ,60Hz

China/Korea 220V ,50Hz

U.K./Australia 240V ,50Hz

Europe 230V ,50Hz

Japan 100V ，50-60Hz

Power connector 2 mm DC jack, negative center

Battery 9 V type 6LR61

Power consumption 30mA

Physical/Weight

Dimensions approx. 54 × 70 × 123 ~mm (H x W x D) (2.1 x 2.8 x 4.8")

Weight

approx. 0.33kg (0.7 lbs)

Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.
