Product type Built-in fridge-freezer
Brand Candy
Model CFBD 2650 A SN
Dimensions (H x W x D) 185 x 54 x 54 cm (estimated)
Net weight 55 kg (estimated)
Power supply 220-240 V ~ 50 Hz
Fridge net capacity 265 L (from model)
Freezer net capacity Not specified, estimated 80 L
Energy class A+ (estimated)
Fridge defrost Automatic
Freezer defrost Manual (defrost when frost > 3 mm)
Freezing capacity Up to 4 kg/24h (estimated)
Temperature adjustment knob Fridge: positions 1-6 (1 = less cold)
Door opening reversal Yes, reversible
Column installation Yes, with required ventilation grille
Maintenance Clean with a soft cloth and soapy water
Provided accessories Reversal gasket, screws, loading guide
Repairability Parts available via customer service

Frequently Asked Questions - CFBD 2650 A SN CANDY

How to reverse the door opening direction?
Remove the hinges and doors starting from the top, then reposition the hinges on the opposite side. Reassemble starting from the bottom. Attach the provided gasket on the new side. Refer to the manual for detailed steps.
How often should I defrost the freezer?
Defrost the freezer when the frost layer reaches 3 mm thickness to ensure optimal performance.
Why is there water at the bottom of the fridge?
A thin layer of frost or water droplets at the bottom are normal. Make sure the water outlet is clean and that food does not touch the walls.
How to adjust the fridge temperature?
Turn the adjustment knob to a position between 1 (less cold) and 6 (colder). In case of high ambient temperature, choose a warmer position (1-2).
Can I install the appliance under a worktop?
Yes, the appliance is designed to be built-in. Make sure to leave a ventilation chimney at the back and a ventilation grille at the front to dissipate compressor heat.
What to do if the appliance makes noise?
Check that it is level and not touching surrounding furniture. A slight compressor noise is normal. If the noise is loud, contact customer service.
How to clean the inside of the fridge?
Use a soft cloth dampened with soapy water. Rinse and dry. Avoid abrasive products. Clean the door gasket regularly.
Where to find the rating plate of the appliance?
The rating plate is located inside the appliance, usually on the side wall or at the top of the fridge compartment. It contains the necessary information for customer service.
How long does it take to reach temperature after first start?
Allow approximately 4 to 6 hours for the fridge to reach its operating temperature. Avoid opening the door frequently during this time.
Can I freeze fresh food in large quantities?
Yes, but respect the maximum freezing capacity indicated on the rating plate (usually 4 kg per 24h). Spread the food for uniform freezing.

User questions about CFBD 2650 A SN CANDY

2 questions about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

Why is there water in the freezer of the CANDY CFBD 2650 A SN?
Frequently Asked Questions - 8 d
Response Notice-Facile

The presence of water in the freezer of the CANDY CFBD 2650 A SN is generally normal. According to the manual, a thin layer of frost or droplets of water may naturally form at the bottom of the freezer compartment during operation.

Here are the main points to check:

  • Clean the water outlet - Ensure that the water outlet of the appliance remains clean and unobstructed. A blockage in the drainage can prevent water from draining properly.
  • Position food correctly - Check that food does not touch the bottom of the compartment or the side walls, as this can hinder air circulation and water drainage.
  • Manual defrosting of the freezer - The freezer of the CANDY CFBD 2650 A SN needs to be defrosted manually. When the layer of frost exceeds 3mm in thickness, defrosting is necessary. During defrosting, water will naturally accumulate.
  • In high ambient temperatures - If you live in a very hot environment, the appliance may run continuously and accumulate more frost. In this case, set the refrigerator thermostat to positions 1-2 (warmer).

If water continues to accumulate abnormally after checking the drainage and food positioning, contact CANDY customer service.

Respond (be the first)
Why is my CANDY CFBD 2650 A SN refrigerator not cooling anymore?
Frequently Asked Questions - 8 d
Response Notice-Facile

If your CANDY CFBD 2650 A SN refrigerator is not cooling anymore, here are the checks to prioritize:

1. Check the thermostat setting

Make sure the adjustment knob is not accidentally set to position 0 (off). The appliance should be set to a position between 1 and 6, where 1 corresponds to the least cold temperature and 6 to the coldest. For normal use, set it between 3 and 4.

2. Check the air circulation

The appliance requires proper air circulation to function:

  • Check that the front ventilation grille is not blocked by dust or objects
  • Check that the rear chimney (if built-in) is clear and not touching the wall
  • Ensure that food does not block the internal air circulation

3. Allow time after powering on

If you just plugged it in, know that it takes between 4 to 6 hours for the appliance to reach its optimal operating temperature.

4. Check the water drainage

The automatic defrosting of the refrigerator produces water. Check that the water outlet is clean and not blocked; otherwise, stagnant water can affect cooling.

If after these checks the appliance still does not cool, contact a certified CANDY technician.

Respond (be the first)

Download the instructions for your Refrigerator in PDF format for free! Find your manual CFBD 2650 A SN - CANDY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CFBD 2650 A SN by CANDY.

USER MANUAL CFBD 2650 A SN CANDY

BUILT-IN DOUBLE DOOR

CONTROL PANEL

CANDY CFBD 2650 A SN - CONTROL PANEL - 1

BUILT-IN DOUBLE DOOR

CONTROL

PANEL

CANDY CFBD 2650 A SN - PANEL - 1

The thermostat box to control the appliance is located inside the fridge compartment on the top right. To check whether the appliance is functioning, make sure that the thermostat knob is not set on "0".

DEFROSTING AND FREEZING

The rating plate states the maximum quantity of foods that can be frozen, (see figure 2). Freezing is guaranteed with any knob setting.

Figure 2CANDY CFBD 2650 A SN - DEFROSTING AND FREEZING - 1

Defrosting of the fridge compartment occurs automatically in this product.

We recommend you defrost the freezer area when the layer of frost is more than 3 mm thick.

A small amount of frost or drops of water on the back of the fridge compartment when the fridge is working is normal.

Make sure the water outlet is always clean and make sure foods do not touch the back or sides of the freezer compartment.

N.B. Here you will find your appliance rating plate: it includes all the data to be transmitted to the Customer Service should a fault arise. Important: if your ambient temperature is high, the appliance may operate continuously, thus building up excessive frost on the inner wall of the fridge. In this case, turn the fridge knob to a warmer setting (1-2).

REVERSING THE OPENING OF THE DOORS

Remove the upper hinge and its spacers from the upper cross-beam.

CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 1

Remove the right lower hinge and refit it on the opposite side.

CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 2

Remove the upper door.

CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 3

Reassemble the hinges and doors working from bottom to top 1-2-3.

CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 4

Remove the hinge and its spacers.

CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 5

Remove the bottom door.

CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 6

PRODUCT DIMENSIONS AND BUILT-IN COMPARTMENTCANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 7

INSTALLATION OF THE APPLIANCE IN THE COLUMN Secure the seal (supplied) to the appliance, on the opposite side from the hinges.CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 8

1 Insert the appliance in the column, placing it on the opposite side of the hinges.CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 9

2 Make sure the top connecting plate of the cabinet fits perfectly.CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 10

3 Secure the appliance upper part to the cabinet, using the supplied screws.CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 11

4 Secure the appliance lower part using the supplied screws.CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 12

5 Click the ventilation grill.CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 13

6CANDY CFBD 2650 A SN - REVERSING THE OPENING OF THE DOORS - 14

COUPLING OF THE PANELS OF THE BUILT-IN COLUMN OF THE APPLIANCE DOORS

The appliance is equipped with coupling devices for the appliance doors with the column panels (loader slide).

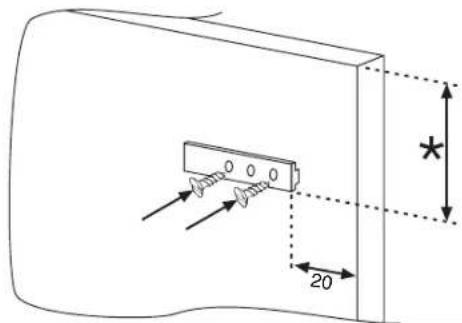

Secure the slide in the inner part of the panel of the built-in column at the desired height and at approx. 20 mm from the outer wire of the door.

CANDY CFBD 2650 A SN - COUPLING OF THE PANELS OF THE BUILT-IN COLUMN OF THE APPLIANCE DOORS - 1

Open the doors of the built-in column and the fridge. Position the built-in loader in the slide, then fit it into the fridge door.

CANDY CFBD 2650 A SN - COUPLING OF THE PANELS OF THE BUILT-IN COLUMN OF THE APPLIANCE DOORS - 2

Mark the fixing points for the screws and drill with a bit of a diameter of 2.5 mm.

CANDY CFBD 2650 A SN - COUPLING OF THE PANELS OF THE BUILT-IN COLUMN OF THE APPLIANCE DOORS - 3

Connect the appliance door to the cabinet panel keeping the loader slots as guidelines.

CANDY CFBD 2650 A SN - COUPLING OF THE PANELS OF THE BUILT-IN COLUMN OF THE APPLIANCE DOORS - 4

PRECAUTIONS FOR THE CORRECT OPERATION

Once the product has been embedded, place the rear part of the column in contact with the wall so as to prevent access to the compressor compartment.

For the product to operate correctly it is essential to allow adequate air circulation so as to cool down the condenser located in the rear part of the appliance.

For this reason, the column must be equipped with a rear chimney, whose upper opening must not be blocked and with a front slot which will be covered with a ventilation grill.

Dimensions of the column lock-pickings.

CANDY CFBD 2650 A SN - PRECAUTIONS FOR THE CORRECT OPERATION - 1

Dimensions of the gap to be left between the column and the ceiling.

CANDY CFBD 2650 A SN - PRECAUTIONS FOR THE CORRECT OPERATION - 2

DOUBLE DOOR BUILT-IN

CONTROL PANEL

CANDY CFBD 2650 A SN - CONTROL PANEL - 1

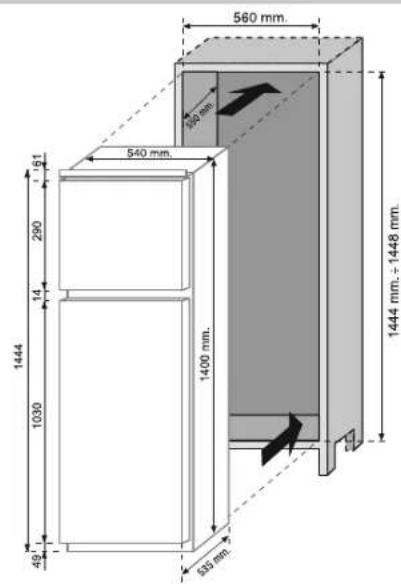

PRODUCT DIMENSIONS AND BUILT-IN COMPARTMENT

CANDY CFBD 2650 A SN - PRODUCT DIMENSIONS AND BUILT-IN COMPARTMENT - 1

CANDY CFBD 2650 A SN - PRODUCT DIMENSIONS AND BUILT-IN COMPARTMENT - 2

INSTALLATION OF THE APPLIANCE IN A COLUMN

PRECAUTIONS FOR CORRECT OPERATION

INSTALLING THE APPLIANCE IN THE CABINET

CONNECTING THE CABINET WALLS TO THE APPLIANCE DOORS

PRODUCT DIMENSIONS AND BUILT-IN SPACE

CANDY CFBD 2650 A SN - PRODUCT DIMENSIONS AND BUILT-IN SPACE - 1

CANDY CFBD 2650 A SN - PRODUCT DIMENSIONS AND BUILT-IN SPACE - 2

MOUNTING THE APPLIANCE IN THE FRAME

INSTALLING THE APPLIANCE IN THE CABINET
