Product type	Induction hob
Brand	Hoover
Model	HHOB 500
Power supply	220-240 V~ (single-phase) or 380-415 V 3N~ (three-phase)
Number of cooking zones	4 (including a flexible zone and dual zone)
Control type	Electronic touch with display
Main functions	Induction, boost, timer, pause, child lock, power adjustment
Flexible zone	Yes, can be used as a single large zone or two separate zones
Dual zone	Yes, compatible pan diameter from 160 to 290 mm
Boost mode	Yes, temporary maximum power level
Timer	From 1 to 99 minutes
Child safety	Locking controls (displays "Lo")
Pause	Yes, all keys disabled except on/off
Automatic shut-off	Yes, depending on power level (2h/4h/8h)
Residual heat indicator	Display "H"
Pan detection	Yes, audible signal if incompatible or no pan
Pan compatibility	Ferromagnetic base (stainless steel, cast iron, enameled), diameter ≥ 140 mm
Cooking surface	Ceramic glass
Cleaning	Hot water, sponge, scraper for stubborn residues, white vinegar, special ceramic glass products
Safety	Automatic shut-off in case of overheating, object detection, overvoltage protection
Installation	Built-in, minimum cutout 760 mm above, air inlets/outlets, 50 mm distance from edges
Cutout dimensions	Approximately 56 x 49 cm (verify plan)
Worktop thickness	Minimum 30 mm
Net weight	Approximately 12 kg (not provided, estimate)
General information	Manual available in several languages, approved after-sales service, recycling according to WEEE

Frequently Asked Questions - HHOB 500 HOOVER

What types of pans can I use on the Hoover HHOB 500 induction hob?

Use pans with a ferromagnetic base: stainless steel, cast iron, enameled, iron. Check with a magnet: if it sticks to the base, the pan is compatible. Minimum diameter is 140 mm.

How to activate the child lock?

Press the lock key (padlock): the display shows "Lo" and the controls are locked, except the on/off key. To unlock, press the same key again for 2 seconds.

What to do if the hob displays an error code?

List of common codes: F0/F1/F2 (fan), F3-F8 (sensor), E1/E2 (voltage), E3/E4 (pan temperature), E5/E6 (cooling). If the problem persists, contact after-sales service.

How to clean the ceramic glass surface?

For light soiling, use a sponge with hot water. For stubborn stains, a special ceramic glass cleaner. Melted sugar or plastic must be removed while hot with a suitable scraper. Unplug the appliance before cleaning.

What is the 'flexible zone' function and how to use it?

The flexible zone allows you to use two inductors independently (two pans) or as a single large zone (a large skillet). Press the flexible zone key to activate the large zone mode.

How to set the timer?

Select the cooking zone, set the power, then press the TIMER key. Use the + or - keys to set from 1 to 99 minutes. The function is confirmed after 5 seconds of flashing.

What does the 'U' symbol on the display mean?

The "U" symbol indicates that the pan is not suitable for induction. Replace it with a compatible container. If the pan is suitable, the display shows the power level.

How to activate boost mode?

Select the desired zone, press the + key until 9 is displayed, then press + again to display "b". Boost mode automatically deactivates after 5 minutes or by pressing -.

What to do in case of liquid spill on the hob?

Turn off the hob and unplug it if possible. Soak up the liquid with a soft cloth. Do not clean with steam cleaners. Check that the surface is intact before reuse.

How to properly install the hob?

Make a cutout to the dimensions (approximately 56x49 cm), allow 50 mm from edges, worktop thickness must be ≥30 mm. Ensure ventilation (air inlet/outlet). Installation must be carried out by a professional.

USER MANUAL HHOB 500 HOOVER

Thank you for purchasing the HOONER induction hob. Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference.

By placing the CE CE marking on this product, we declare, on our own responsibility, compliance to all the European safety, health and environmental requirements stated in the legislation for this product. As applicable, the parts of this appliance are compliant to:

REGULATION (EC) No 1935/2004 on materials and articles intended to come into contact with food.

Safety Reminding and Maintenance:

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• Children under 8 Year of age must be kept away from the appliance unless they are continuously supervised.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the

- appliance in a safe way and understand the hazards involved. Children must not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• Do not use a steam cleaner for cleaning operations
• Metallic objects such as knives, forks, spoons and sauce pan lids must not be placed on the hob surface as they can get hot. Any spillage should be removed from the lid before opening.
• The hob surface must be allowed to cool down before closing the lid.
• After use, switch off the hob element by its control. Do not rely on the pan detector.
• This appliance is not intended to be operated by means of an external timer or separate remote - control system.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

WARNING: Use oly hob guards designed by manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• Always use the appropriate cookware.
• Always place the pan in the center of the unit that you are cooking on.

- Do not place anything on control panel.

- Do not use the surface as a cutting board.

- The means for disconnection must be incorporated in the fi ed wiring in accordance with the wiring rules.- The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the applicance.

- The hob surface must be allowed to cool down before closing the lid.- CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously

Dear Customer:

Thank you for purchasing the CANDY induction hob. We hope it will give many yea service.

Please read this instruction manual carefully before using the hob and keep it in a for future reference.

Product Introduction

The induction hob caters for all kind of cooking, with magnetic cooking zones, and its micro-computerised controls and multi-functions, making ideal choice todays family.

Manufactured with specially imported materials, the CANDY induction hob is extremely friendly, durable and safe.

Working Principle

The induction hob comprises a coil, a hotplate made of ferromagnetic material and a system. Electrical current generates a powerful magnetic field through the coil. This provides a large number of vortices which in turn generate heat which is then transmitted through cookingzone to the cooking vessel.

Diagram of a conveyor belt system with steam rising from a cart, showing motion arrows and no text or symbols

iron pot
magnetic circuit ceramic glass plate
induction coil Induced currents

Safety

Installation

This hob was specially designed for domestic use.

In its constant search to improve its products CANDY reserves the right to modify any technical, programme or aesthetic aspects of the appliance at any time.

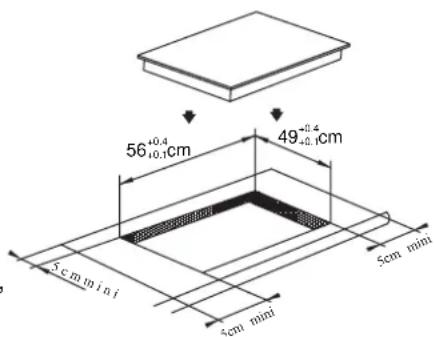

Cut a hole in the worktop of the dimension shown in the diagram below. A minimum of 50 mm space should be left around the hole. The worktop should be at least 30 mm that and made of heat-resistant material.

As shown in Figure (1)

● Protection from over-heating

A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off.

- Detection of small or non-magnetic items

When a pan with a diameter of less than 80 mm, or some other small item (e.g. knife, fork, key) or a non-magnetic pan (e.g. aluminium) has been left on the hob, a buzzer sounds for approximately one minute, after which the hob goes automatically on to standby.

- Residual heat warning

When the hob has been operating for some time, there will be some residual heat. The letter 2'H"It appears to warn you to keep away from ten “It is essential that the induction hob is w ventilated and that the air intake and exit not blocked.

Auto shutdown

Another safety feature of the induction hob is a shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

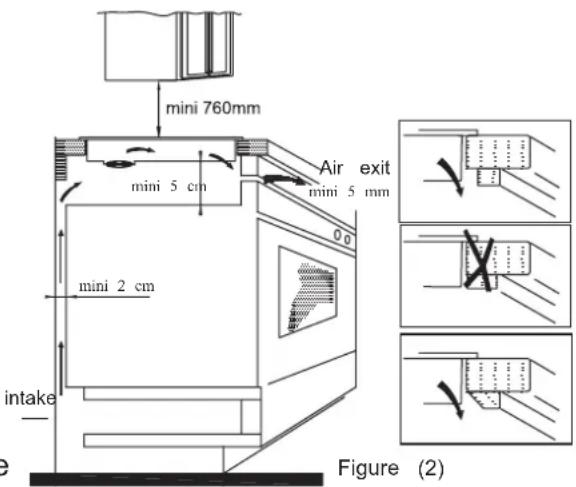

Make sure the hob is correctly installed as auto shown in Figure 2.

Power level	The heating zone shut down automatically after
1~3	8 hours
4~6	4 hours
7~9	2 hours

Figure (2)

When the pan is removed from the cooking air in zone, it stops heating immediately and switches itself off after the buzzer has sounded for one minute.

Warning: Anyone who has been fitted with NB: For safety, the gap between the hob a heart pacemaker should consult a doctor before any cupboard above it should be at least 7 using the induction hotplate. mm.

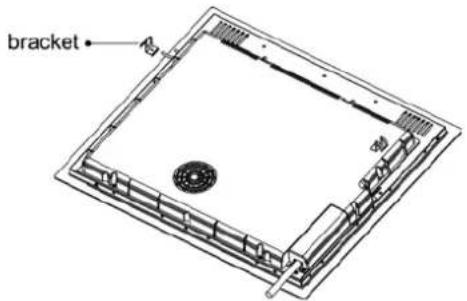

1. Fix the hob to the worktop using the iffothe appliance is being connected directly brackets on the base of the hob. The positimains supply, an omnipolar circuit break of the brackets can be adjusted according to be installed with a minimum gap of the thickness of the top. between the contacts.

bracket A

The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.

The cable must not be bent or compressed. The cable must be checked regularly and only replaced by a properly qualified person.

Warnings:

(1) The induction hob must be installed by a properly qualified person. We have our own qualified installers. Never try to install the appliance yourself. Cerar

(2) The induction hob must not be installed above refrigerators, freezers, dishwashers or tumble dryers.

(3) The induction hob should be installed so that optimum radiation of heat is possible.

(4) The wall and the area above the hob should be able to withstand heat.

(5) To avoid any damage, the sandwich layer and adhesive should be heat-resistant.

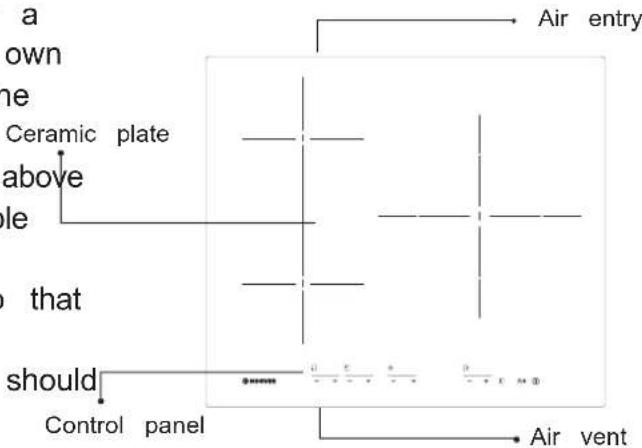

Diagram of induction hob:

a own ne Ceramic plate above le that should Control panel Air entry Air vent

Schematic diagram of the control panel

4. Connection to power supply

The socket should be connected in compliance with the relevant standard, to a single-pole circuit breaker. The method of connection is shown in Figure 3.

1 5 1 4 2 6 3

Voltage	Wire connection
380-415V 3N~	1 2 L1 L2 Black Brown	3 4 N Blue	5 Yellow/Green
220-240V~	1 2 L Black & Brown	3 4 N Blue	5 Yellow/Green

Figure (3)

1. Heating zone selection controls 2. Power / Timer regulating key

2. Keylock/Pause control 4. ON/OFF control

3. Timer control

4. Flexible Area control( Some models are without it)

If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.

Instructions for Use

Preparation before using:

When the power is switched on, the buzzes sound once and all the indicators will come for one second and then go out. The hob in standby mode.

Place the pan in the centre of the cooking zone.

decreases the time by one minute. When the set time exceeds 99 minutes, it will automatically return to0" minutes. If the" and "+" keys are is now pressed simultaneously, the indicator will display

"0".

Timer confirmation

Operating instructions

When the ON/OFF key is pressed, all the indicators show"-". Select the power level by pressing the"+" or "-" key for the relevant hotplate. To begin with the indicator "Shows

Adjust up or down by pressing "the" key. If you press the and "-" keys simultaneously, the power setting returns 0 "tand the cooking zone switches off.

See the table on Page for the power speci selected zone. "to each cooking zone. Timer cancellatio

NB: When the ON/OFF key is pressed, the induction hob returns to standby mode if other operation is carried out within onemin

1. Select the power level of the cooking zon and then press "Timer" key. The timer can now be set.
   by. When the timing indicator has been flashin for 5 seconds, the settimewillbe s automatically confirmed.
2. After selecting a set time, confirm by press the "Timer" key.
3. Once the "Timer" is confirmed, a dot appears on the bottom right of the power level of the selected zone.

Timer cancellation

"After setting the time again, hold down the timer" key for 5 seconds. This will cancel the timer and the indicator will reveal. to

○... - +

Timing function

Press the timing key and the indicator will flashing. Then set the time for between 199 minutes, by pressing "th" and "-" keys.

Pressing the"+"key once increases the time by one minute; pressing "-th" key once

Safety mode

To ensure the safety of children, the induction hob is fitted with an interlock device.

To lock: hold down "Interlock"; the hob then goes in "Interlock" mode, the timer shows "Lo" and the rest of the keys is enabled except the "ON/OFF" key.

Ustart Unlocking

and down the Interlock" key for 2 seconds and the hob will return to normal working.

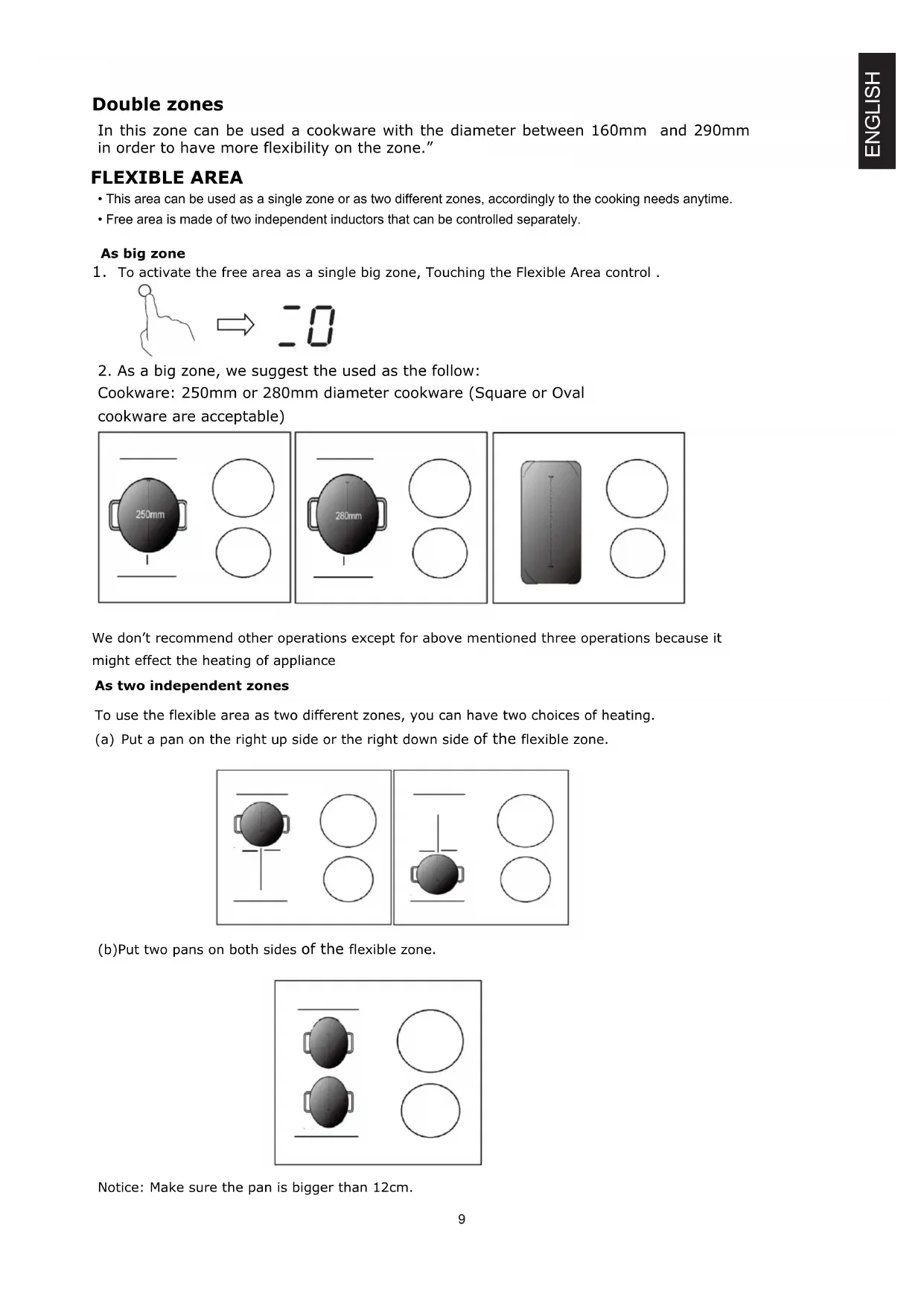

Double zones

In this zone can be used a cookware with the diameter between 160mm and 290mm in order to have more flexibility on the zone."

FLEXIBLE AREA

• This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime.
• Free area is made of two independent inductors that can be controlled separately.

As big zone

1. To activate the free area as a single big zone, Touching the Flexible Area control.

Hand-drawn sketch showing a finger pointing at a number 0 and then to represent -0

1. As a big zone, we suggest the used as the follow:

Cookware: 250mm or 280mm diameter cookware (Square or Oval cookware are acceptable)

250mm 280mm

We don't recommend other operations except for above mentioned three operations because it might effect the heating of appliance

As two independent zones

To use the flexible area as two different zones, you can have two choices of heating.

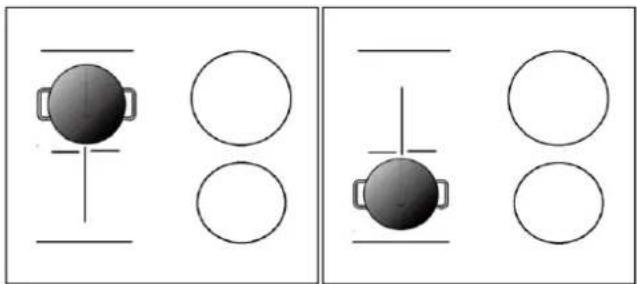

(a) Put a pan on the right up side or the right down side of the flexible zone.

Two side-by-side diagrams showing geometric shapes: one with a central circle and two circles, the other with a central circle and two circles (no text or symbols)

(b) Put two pans on both sides of the flexible zone.

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Notice: Make sure the pan is bigger than 12cm.

Boost mode

Touching the heating zone selection control, then touching “+” · Make sure the display shows “9”. Touching the “+” button again, the zone indicator show “b” and the power reach Max

+ → b O

Cancel the Boost mode

Touching the “-” button to cancel the Boost function, then the cooking zone will revert to its original setting.

Touching “-” and “+” control together. the cooking zone switch off and the boost function cancel automatically

• The cooking zone returns to its original setting after 5 minutes

Note: It is recommended that the cooker hood suction is switched on few minutes prior to cooking and switched off few minutes after terminating cooking.

Pause Mode

• You can pause the heating instead of shutting the hob off.
• When entering the Pause mode, all the controls except the ON/OFF control are disabled.

To enter pause mode
Touch the lock/pause control.	All the indicator will show " 11"
To unlock the controls
Touch the lock/pause control.

When the hob is in the pause mode, all the controls are disable except the ON/OFF ①, you can always turn the induction hob off with the ON/OFF ① control in an emergency.

Power Management Function

• it is possible to set a maximum power absorption level for the induction hob, choosing up to different power ranges.
• induction hobs are able to limit themselves automatically in order to work at lower power level, to avoid the risk of overloading.

To enter Power Management Function

Turn on the hob, then Press at the same time the "+" (timer) and key lock.

The timer indicator will show "P5" which means power level 5. The default mode is on 7.0Kw/ 7.1Kw.

Two stylized human figures with circular symbols on their heads, no text or labels present

To switch to another level

press +/- from the timer There are 5 power levels, from "P1" to "p5". The timer indicator will show one of them.

"P1": the maximum power is 2.5Kw.
"P2": the maximum power is 3.5Kw.
"P3": the maximum power is 4.5Kw.
"P4": the maximum power is 5.5Kw.
"P5": the maximum power is 7.0Kw/ 7.1Kw.

or -

Confirmation and Exit Power Management Function

Press at the same time + (timer) and key lock for Then the hob will be turned off. confirmation.

Diagram showing two hand gestures with icons: one marked with a plus sign and the other with a minus sign.

Selection of cooking vessels

Iron oil frying pan

Stainless steel pot Iron

pan

Iron kettle

Enamel stainless steel kettle

Enamel cooking utensil

Iron plate

You may have a number of different cooking vessels

1 This induction hob can identify a variety of cooking vessels, which you can take one of the following methods:

Place the vessel on the cooking zone. If the corresponding cooking zone disp a power level, then the vessel is suitable, then the vessel is not suitable for use with the induction hob.

2 Hold a magnet to the vessel. If the magnet is attracted to the vessel, it is for use with the induction hob.

NB: The base of the vessel must contain magnetic material.

It must have a flat bottom with a diameter of more than 14 cm.

3 Use pans whose diameter is as large as the graphic of the zone selected.

Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140 mm could be undetected by the hob.

Cleanness and Maintenance

The surface of the induction hob may be easily cleaned in the following way:

Type of contamination	Method of cleaning	Cleaning materials
Light Immersion	in hot water and wipe dry Cleaning sponge
Rings and lime scale	Apply white vinegar to the area, wipe a soft cloth or use a commercially available product	Special adhesive for ceramic glass
Sweetmeat, melted aluminium or plastics	Use a special scraper for ceramic glass to remove residue (a silicon product best)	Special adhesive for ceramic glass

NB: Disconnect the power supply before cleaning.

Failure Display and Inspection

If any abnormality occurs, the induction hob will automatically go into protective mode and one of the following codes:

Fault Possible cause Solutions
F0/F1/F2	Fan failure	Contact the supplier
F3-F8	Temperature sensor failure	Contact the supplier
E1/E2	Abnormal voltage in power supply	Check if power supply is normal.Power on after power sup returns to normal.
E3/E4	Abnormal temperature	Check the pan
E5/E6	Poor heat radiation in cooking zone	Restart when cooking zone cools down

The above table shows how to assess and check common faults. Do not dismantle the appliance yourself, otherwise you may damage the induction hob.

Customer Care Service

If a fault should occur, before calling After Sales Service, please do the following:

-Check that the appliance is correctly plugged in

-Read the failure and display table above

If you are still unable to resolve the problem, switch off the appliance, do not try to and call

After Sales Service.

Special Declaration

The contents of this manual have been carefully checked. However, the company cannot be held responsible for any misprints or omissions. Also, any technical modifications may be included in a revised version of the manual without notice. The appearance and colour of the appliance in this manual may differ from the actual one.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labelled in compliance with European directive 2012/19C for Waste Electrical and Electronic Equipment (WEEE).

By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Diagram of a machine with heat dissipation and cooling system, showing motion arrows (no text or symbols)

ustensile compatible

circuit magnétique

Protection anti-surchauffe

Simple hand-drawn sketch showing a finger pointing at a dot next to the number 0, indicating a transformation or calculation.

250mm 280mm

Two identical diagrams showing a central sphere with two handles and two empty circles, each with horizontal lines and centerlines (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Diagram showing two stylized human-like figures with symbols: a minus sign and a plus sign, likely illustrating a conceptual or physical concept.

Two stylized human figures with circular symbols on their heads, no text or labels present

Diagram showing two finger tips with plus and minus signs, likely illustrating correct eye function or calibration.

Hand-drawn sketch showing a hand pointing at a circle with an arrow pointing to the number 0

250mm 280mm

Two identical diagrams showing a central circle with two handles and three empty circles, each with horizontal lines and a vertical line (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Diagram showing two labeled points A and B connected by a line, possibly indicating positions or transitions in a diagram.

Simple line drawing of two abstract shapes resembling stylized peaks or callouts, with no text or symbols present.

Hand-drawn sketch of a hand pointing at a number 0 with an arrow indicating transformation

250mm 280mm

Two identical diagrams showing a central circle with two handles, each paired with an empty circle and horizontal lines (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Diagram showing two stylized figures with circular symbols labeled ⊕ and ⊖, possibly representing a conceptual or symbolic representation.

Hand-drawn diagram showing two labeled figures with circular symbols: one marked with a plus sign and the other with a circled number.

○... ⊖ ⊕

Funzione TIMER

250mm 280mm

Two side-by-side diagrams showing geometric shapes: one with a sphere and two circles, the other with a sphere and two circles (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present

250mm 280mm

Two side-by-side diagrams showing geometric shapes: a circle with cross and vertical line, and a circle with horizontal lines and circular ends (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Hand-drawn diagrams showing two stick figures with positive and negative signs, one labeled 'o', possibly illustrating a physics or math concept.

Simple line drawing of two abstract shapes resembling stylized peaks or callouts, with no text or symbols present.

La placa se apaga.

Hand-drawn sketch showing a pointing hand next to the number 0, indicating a transformation or calculation.

250mm 280mm

Two identical diagrams showing a central sphere with handles and two empty circles, each with horizontal lines and a vertical line (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Two stylized human figures with circular symbols on their heads, no text or labels present

Two simple line drawings of a tree with circular symbols, no text or labels present

Diagram showing three circles with minus and plus signs, connected by arrows pointing to each circle

TIMER-Funktion

250mm 280mm

Two side-by-side diagrams showing geometric shapes: a circle with handles and a vertical line, and a circle with handles and a horizontal line (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Simple line drawing of two abstract shapes resembling stylized peaks or callouts, with no text or symbols present.

Hand-drawn sketch showing a finger pointing at a circle and a right-pointing arrow to the number 0

250mm 260mm

Two identical diagrams showing circular shapes with crosshairs and horizontal lines, no text or symbols present.

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Hand-drawn sketch showing a finger pointing at the number 0 with an arrow indicating progression

250mm 280mm

Two side-by-side diagrams showing geometric shapes: one with a sphere and two circles, the other with a sphere and two circles (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Simple line drawing of two abstract shapes resembling stylized peaks or calligraphic lines, with no text or symbols present.

Hand-drawn sketch showing a finger pointing at a circle and a right-pointing arrow to reach the number 0.

250mm 280mm

Two side-by-side diagrams showing circular shapes with horizontal and vertical lines, no text or symbols present.

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Simple line drawing of two abstract shapes resembling stylized peaks or callouts, with no text or symbols present.

Hand-drawn sketch showing a pointing hand next to the number 0, likely indicating a calculation or transformation step.

250mm 280mm

Two identical diagrams showing a central circle with handles and two empty circles, each with horizontal lines and a vertical line above it (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present

○... ⊖ ⊕

TIMER functie

Hand-drawn sketch showing a hand pointing at a circle with an arrow pointing to the number 0

250mm 280mm

Two identical diagrams showing circular shapes with crosshairs and horizontal lines, no text or symbols present.

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Two hand gestures with circular indicators: one with minus sign, the other with plus sign (no text or symbols)

Simple line drawing of two identical abstract shapes resembling stylized peaks or callouts, with no text or symbols.

Hand-drawn sketch showing a pointing hand next to the number 0, likely indicating a calculation or transformation step.

250mm 280mm

Two side-by-side diagrams showing circular shapes with horizontal and vertical lines, no text or symbols present.

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Two abstract line drawings resembling stylized figures or symbols, with no readable text or labels.

Nosilec arile:

Opozorila:

○... ⊖ ⊕ + ↑

Programska ura (TIMER)

Hand-drawn sketch showing a pointing hand next to the number 0, likely indicating a calculation or transformation step.

250mm 280mm

Two identical diagrams showing a sphere with crosshairs and circles, each with horizontal lines and a central vertical line (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Diagram showing two labeled structures with circular symbols, possibly representing a biological or geological feature.
