USER MANUAL NEIGE297NFWH SINGER

Mode Super congélation 16

Compartment congélateur 33

EXPÉDITION ET REPOSITIONNEMENT 39

Mode Super congélation

05 minutes -> 1. barre;

10 minutes -> 2. barre;

15 minutes 3. barre;

20 minutes -> 4. barre;

25 minutes 5. barre;

30 minutes -> 6. barres clignotent;

Image 1 Image 2 Image 3

Compartment congélateur

General warnings. 45

Safety warnings 48

Installing and operating your fridge 49

Before Using your Fridge-Freezer 50

Information on No-Frost technology 50

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS 51

THE VARIOUS FUNCTION AND POSSIBILITIES 53

Display and control panel 53

Use of control panel. 54

Operating your fridge 55

Super Freeze Mode 55

Super Cool Mode. 56

Economy Mode. 57

Holiday Mode 58

Drink Cool Mode 58

Function of Child Lock 59

Light Cancellation Mode 60

Screen Saver Mode 60

Cooler Temperature Settings 60

Freezer Temperature Settings 61

Warnings about Temperature Adjustments 61

Accessoires 62

Ice box 62

Freezer box 62

Fresh dial 63

Roller storage box. 63

CLEANING AND MAINTENANCE 65

Defrosting 65

Replacing The Light LED 66

EN 44

ARRANGING FOOD IN THE APPLIANCE 67

Refrigerator compartment. 67

Freezer compartment 68

SHIPMENT AND REPOSITIONING 73

Repositioning the door. 73

BEFORE CALLING YOUR AFTER SALES SERVICE...74

TIPS FOR SAVING ENERGY 77

TECHNICAL SPECIFICATION 78

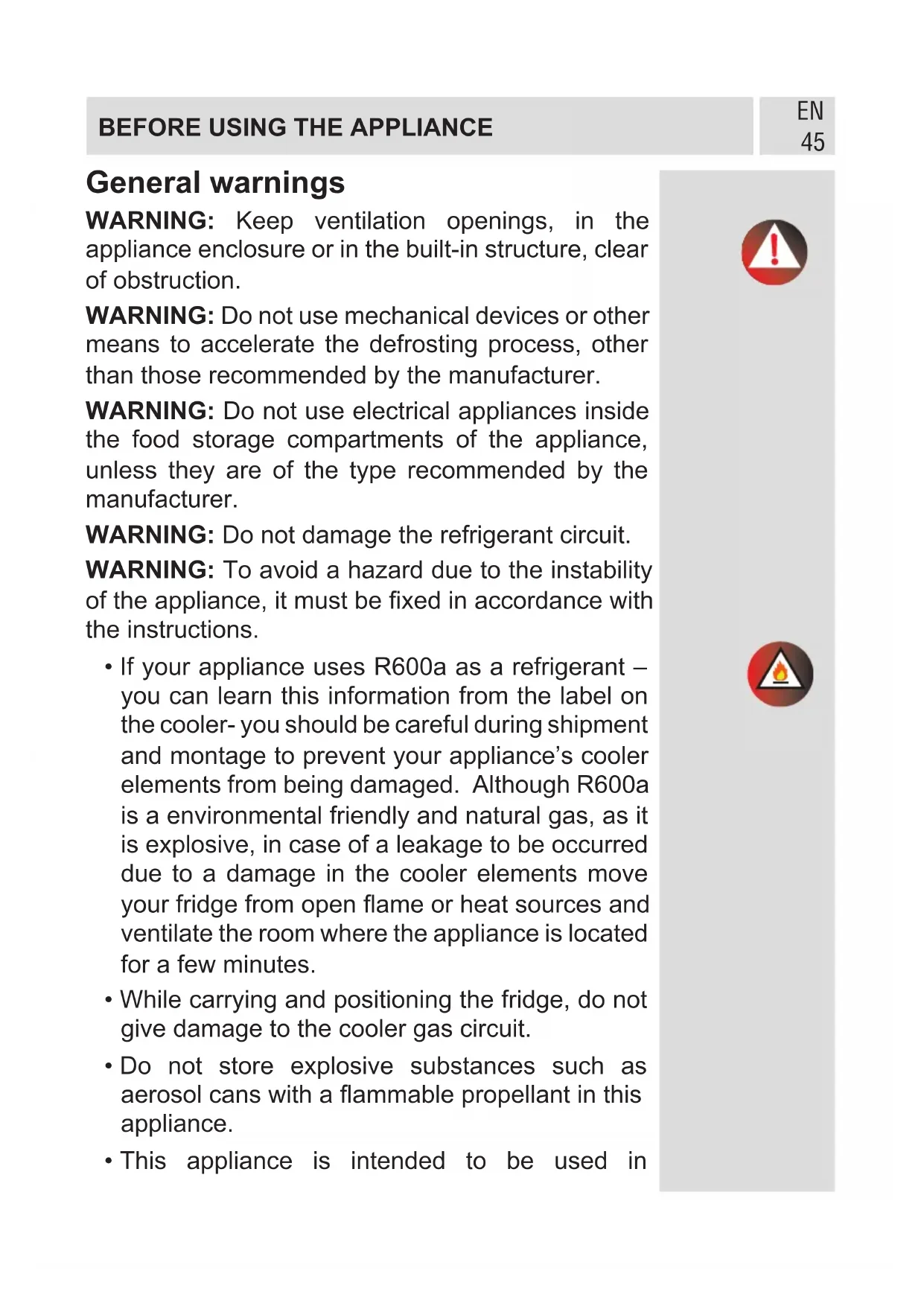

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and montage to prevent your appliance's cooler elements from being damaged. Although R600a is a environmental friendly and natural gas, as it is explosive, in case of a leakage to be occurred due to a damage in the cooler elements move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not give damage to the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in

household and similar applications such as;

• staff kitchen areas in shops, offices and other working environments
• farm houses and by clients in hotels, motels and other residential type environments
• bed and breakfast type environments;

• catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.
• If the supply cord is demaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridge.

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible of the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used at houses and it can only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

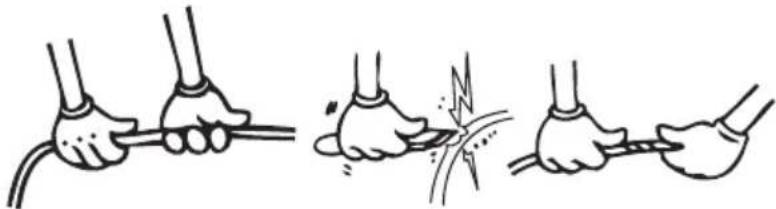

Safety warnings

• Do not use multiple receptacles or extension leads.
• Do not plug in damaged, worn or old plugs.
• Do not pull, bend or damage the cable.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat icecream and ice cubes immediately after you have taken them out of the freezer department!
• Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
  Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your fridge is 220 - 240V at 50Hz .
• We do not take the responsibility for damage that may occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50~cm away from stoves, Gas ovens and heater cores, and should be at least 5cm away from electrical ovens.
• Your fridge should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should be at least 2cm between them to prevent humidity on the outer surface.
• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15cm is available on the upper side.
• The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.
• Before using your fridge, wipe all inside surfaces and drawers with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Put all the parts back into the fridge after cleaning.
• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.
• Refrigerator should be placed against a wall with a free distance not exceeding 75~mm .

Before Using your Fridge-Freezer

• When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours before plugging it in. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

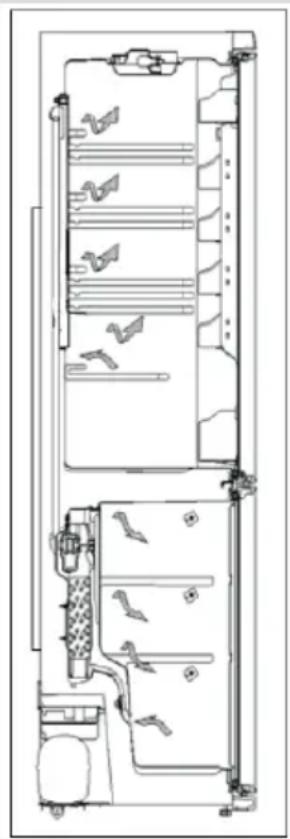

Information on No-Frost technology

No-frost refrigerators differ from other static refrigerators in their operating principle.

In normal fridges, the humidity entering the fridge due to door openings and the humidity inherent in the food causes freezing in the freezer department. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the fridge, place the food that needs to be kept frozen in a separately cooled container, and remove the ice gathered in the freezer department.

The situation is completely different in no-frost fridges. Dry and cold air is blown into the fridge and freezer compartments homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing.

Therefore your no-frost fridge allows you ease of use, in addition to its huge capacity and stylish appearance.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

EN 52

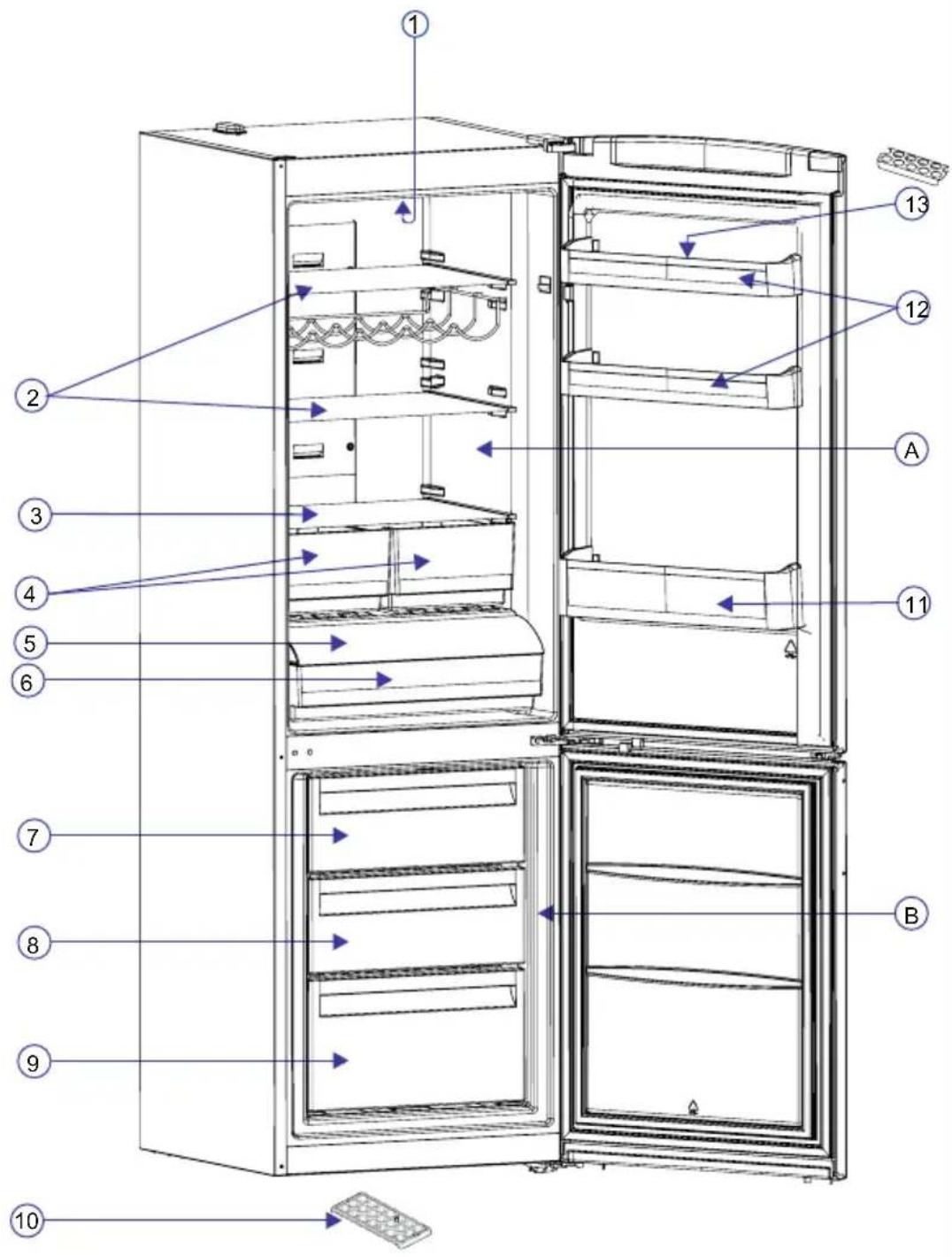

THE PARTS OF THE APPLIANCE AND THE

COMPARTMENTS

A) Refrigerator compartment
B) Freezer compartment

1) Refrigerator light
2) Fridge glass shelves
3) Crisper cover
4) Crispers
5) Roller storage box cover
6) Roller storage box
7) Freezer upper basket
8) Freezer middle basket
9) Freezer bottom basket
10) Ice tray
11) Bottle shelf
12) Door shelves
13) Egg holder

THE VARIOUS FUNCTION AND POSSIBILITIES

EN 53

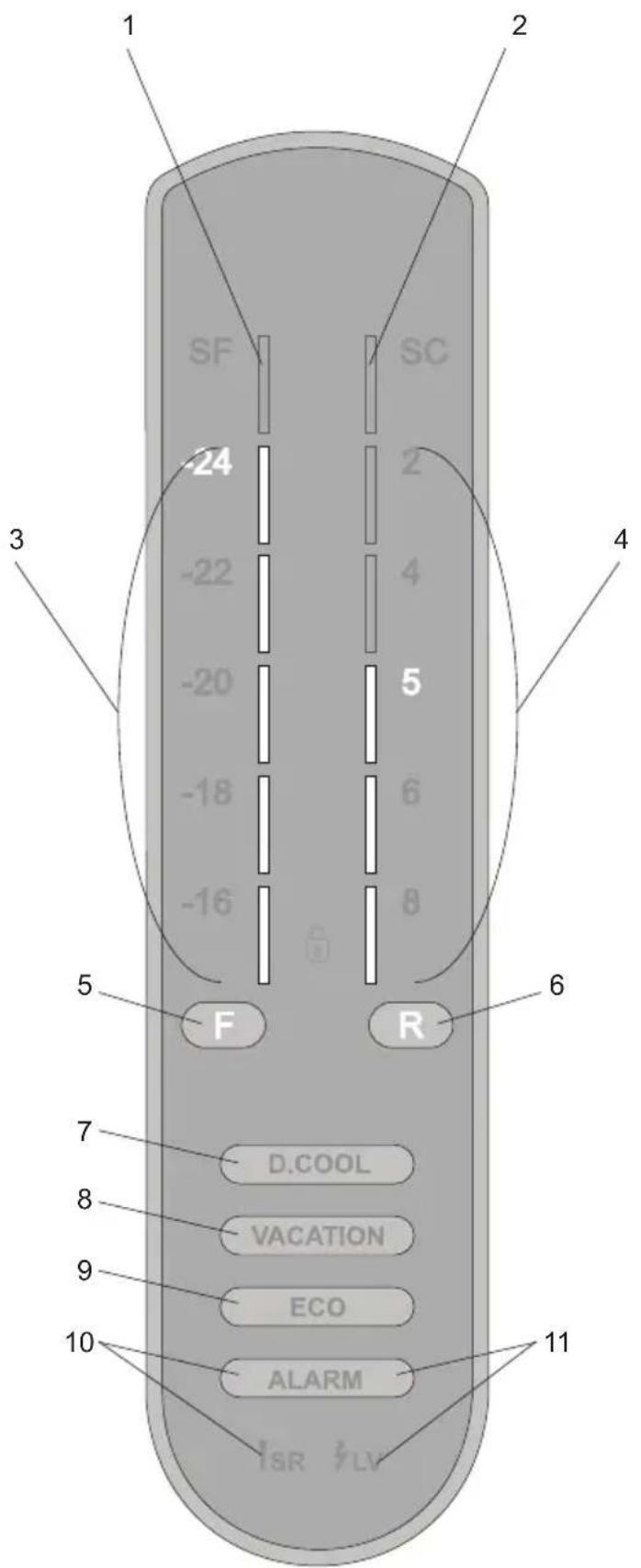

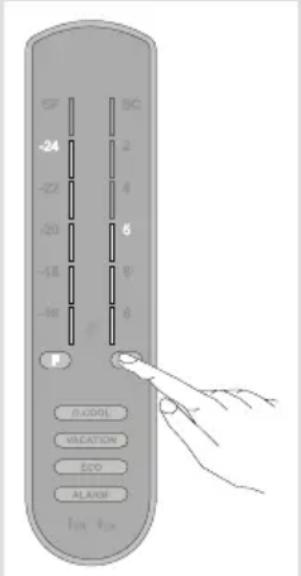

Display and control panel

THE VARIOUS FUNCTION AND POSSIBILITIES

Use of control panel

1. Indicator and bar of Super Freeze mode
2. Indicator and bar of Super Cool mode
3. Adjustment indicators and bars of freezer. The active setting value will be illuminated. All bars from minimum up to the relative setting value will be illuminated.
4. Adjustment indicators and bars of cooler. The active setting value will be illuminated. All bars from minimum up to the relative setting value will be illuminated.
5. It enables the setting value of freezer to be modified and Super Freeze mode to be activated if desired.

Freezer may be set to -16, -18, -20, -22, -24 °C.

1. It enables the setting value of cooler to be modified and Super Cool mode to be activated if desired.
   Cooler may be set to +2, +4, +5, +6, +8^ .
2. It activates Drink Cool mode. The expression will be illuminated when it is active.
3. It activates holiday mode. The expression will be illuminated when it is active.
4. It activates economical mode. The expression will be illuminated when it is active.
5. Alarm and SR will light red and audible alarm will be released when any problem occurs in the fridge. Audible alarm will be deactivated when pressed on alarm button. Red warning lights will continue to light up until the problem is corrected/eliminated.
6. In case the mains voltage is low, Alarm and LV will light red and audible alarm is released. Audible alarm will be deactivated when pressed on alarm button. Red warning lights will go off when mains voltage raises the appropriate level.

Operating your fridge

Super Freeze Mode

When would it be used?

• For freezing a large amount of food (too large to be fitted in the Super freezer).
• To freeze fast food.
• To freeze food quickly.
• To store seasonal food for a long time.

How would it be used?

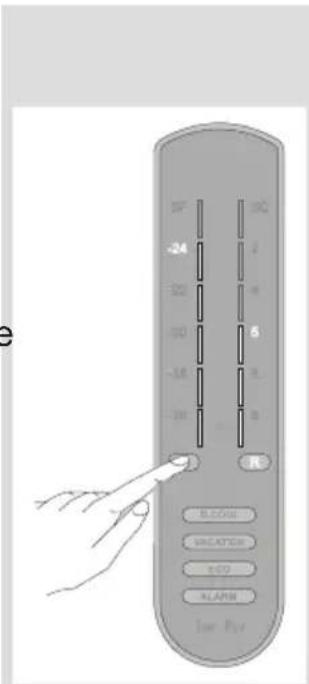

• Press button F until letters "SF" and relative bar graphic light up.
• If pressed on no button in 1 second, SF and bar graphics will flash 3 times and a beep sound will be released.
• SF and relative bar graphics will be displayed during this mode.

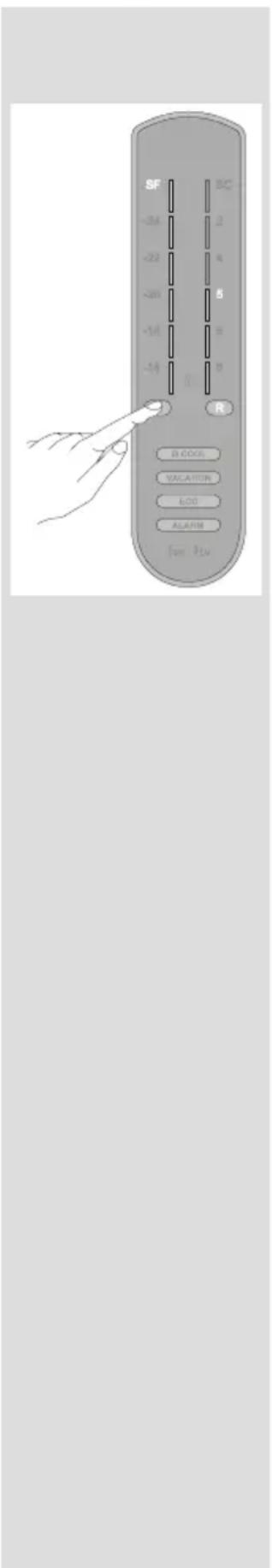

During this mode:

Maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
- For optimum appliance performance to reach maximum freezing capacity, set active SF mode 3 hours before placing fresh food in the freezer.
- 3 hours after being activated, your refrigerator starts giving signals. This signal tells that the quickfreezer compartment is ready for the foods to be placed in it. Your refrigerator will give intermittent beep sounds for 1 minute in every 5 minutes; provided that the doors are not opened, this signal giving will last 1 hour. When this sound is heard, foods to be frozen must be placed away from the already frozen ones. Whenthe door of the freezer or cooler is opened, this signal stops. When your foods are cooled enough, your refrigerator will automatically go out of the quick freezing mode.
- After a period of maximum 24 hours after the function is activated, the freezing process will be completed.

THE VARIOUS FUNCTION AND POSSIBILITIES

• Freezer may be adjusted, Super Freeze will be cancelled and the selected setting values will proceed.
• Temperature of super cool and cooler may be adjusted. In this case, super freeze mode continues.
• Economical and Holiday modes can be selected. Super Freeze Mode will be cancelled and the selected mode is enabled.
• When "Super Freeze" is active, SF can be re-selected and cancelled by pressing on button F.

Note: "Super Freeze" mode will be automatically cancelled after 24 hours or freezer sensor temperature is lower than -32^ .

Super Cool Mode

When would it be used?

• To cool fast food before eating.
• To cool and store and lots of food.
• To cool drinks quickly.

How would it be used?

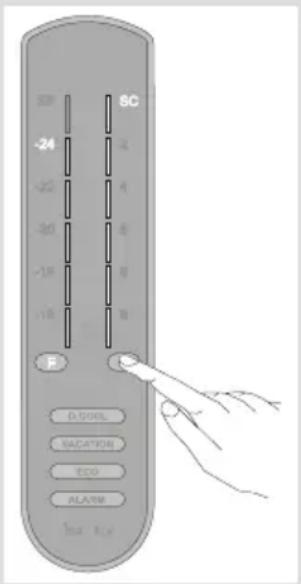

• Press button R until letters "SC" and relative bar graphic light up.
• If pressed on no button in 1 second, SC and bar graphics will flash 3 times and a beep sound will be released.
• SC and relative bar graphics will be displayed during this mode.
• When you use supercool mode, existing fresh food in refrigerator compartment can reach to much more cooling for a brief period. After this mode, the fresh food will turn back to normal temperature.
• And if needed you can use this mode again.

During this mode:

• Cooling may be adjusted, Super Cool will be cancelled and the selected setting values will proceed.
• Temperature of super freeze and freezer may be adjusted. In this case, super cool mode continues.
  Economical and Holiday modes can be selected. Super

THE VARIOUS FUNCTION AND POSSIBILITIES

Cool Mode will be cancelled and the selected mode is enabled.

• When "Super Cool" is active, SC can be re-selected and cancelled by pressing on button R.

Note: "Super Cool" mode will be automatically cancelled after 12 hours or cooler sensor temperature is lower than 0^ .

Economy Mode

Freezer and Cooler operate in the economical conditions that are determined in the control unit.

When would it be used?

When you want your fridge to operate economically.

How would it be used?

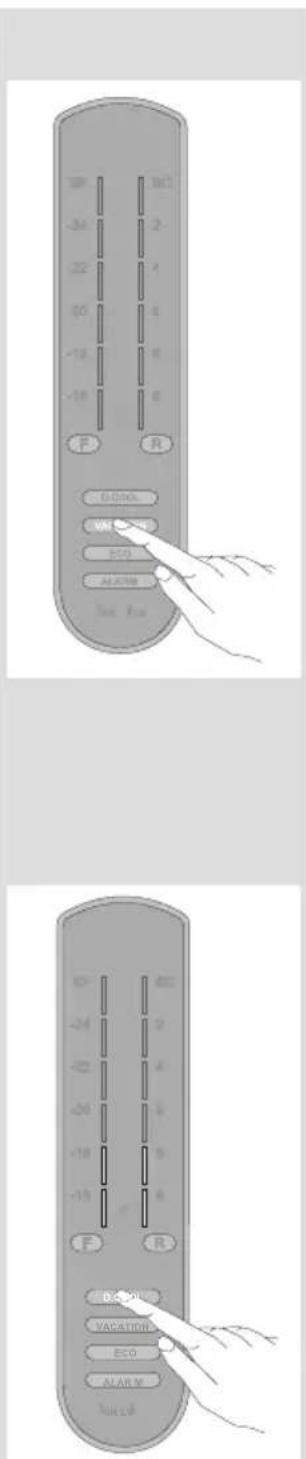

• Touch button ECO.
• ECO will start flashing
• If pressed on no button in 1 second, the symbol will flash 3 times and a beep sound will be released.
• When this mode is active, ECO symbol stays on.
• -18 and relative graphic bar will be displayed on Freezer
• +4 and relative graphic bar will be displayed on cooler

During this mode:

• Freezer may be adjusted, Economical Mode will be cancelled and the selected setting values will proceed.
• Cooler may be adjusted, Economical Mode will be cancelled and the selected setting values will proceed.
• Super Cool and Super Freeze modes can be selected, Economical mode is automatically cancelled and the selected mode is activated.
• Holiday mode can be selected. Economical mode is automatically cancelled and the selected mode is activated.
• To cancel, you will just need to press on button ECO.

Holiday Mode

When would it be used?

If you are going to a long vacation, and want to empty the cooler, you can use this mode.

How would it be used?

• Touch button VACATION.
  VACATION will start flashing.
• If pressed on no button in 1 second, the symbol will flash 3 times and a beep sound will be released.
• When this mode is active, VACATION symbol stays on.
• Indicators and bar graphics of freezer and cooler will be off
• No adjustment can be carried out without cancelling Holiday Mode.
• To cancel, you will just need to press on button VACATION.
• Your fridge will continue to operate in the previous setting values.

Drink Cool Mode

When would it be used?

This mode is used to cool the drinks within adjustable time.

How to use?

Press DCOOL button.
- Press DCOOL button to adjust the time

05 minutes -> 1. bars:

10 minutes -> 2. bars;

15 minutes -> 3. bars;

20 minutes -> 4. bars:

25 minutes - > 5. bars:

30 minutes -> 6. bars are lighting;

• When you select the time the numbers will blink 3 times on screen and sound beep beep.
• If no button is pressed within 2 seconds the time will be set.
• The countdown starts from the adjusted time every 5

THE VARIOUS FUNCTION AND POSSIBILITIES

minutes,1 bar will disappear.

• At the end of adjusted time, display will give visual and voice alarm.
• To cancel this mode press D.COOL set button.

Note: You must adjust the time according the temperature of bottles before you put in.

• For example, at beginning you can adjust to "5 min". After this period if this cooling is not sufficient, you will can again 5 or 10 or etc minute.
• When you use this mode, you must check temperature of bottles regularly. And the temperature of bottles will reach to sufficient level, you must remove these bottles from your appliance.
• If you forget the bottles in quick drink, can explode.

Function of Child Lock

When would it be used?

To prevent children from playing with the buttons and changing the settings you have made, child lock is available in the appliance.

Activating Child Lock

Press on Freezer (F) and Cooler (R) buttons simultaneously for 5 seconds.

Deactivating Child Lock

Press on Freezer (F) and Cooler (R) buttons simultaneously for 5 seconds.

Note: Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged.

Light Cancelling Mode

When would it be used?

• If you want to cancel lights of cooler, you can select this mode.
• Press on Freezer (F) and Cooler (R) buttons simultaneously, and open and close the cooler door 3 times. The mode will be selected in this way. From now on, the lights will not come on when freezer and cooler doors are opened.
• If you want to cancel this mode, repeat the same process or the mode will automatically cancel itself after 24 hours.

Screen Saver Mode

• This mode can be selected for energy saving.
• Press D.COOL button for 3 seconds continuously.
• After 3 seconds, the mode will be set and sound as beep beep.
• During screen saver mode, the lighting of display will be off.
• When we open door or press any button, the lighting of display will be on for 5 seconds, then it will be off again.
• Press D.COOL button for 3 seconds for cancelling this mode.

Cooler Temperature Settings

• Initial temperature value for the Cooler Indicator is +4^ .
• Press cooler (R) button once.
• When you first push this button, +2^ appears on the setting indicator of the cooler.
• Whenever you press on this button, one bar comes on cooler bar graphic indicator and lower temperature will be set. (+8^, +6^, 5^, +4^, +2^)
• When you push the cooler button until +2^ (maximum cold) appears on the cooler setting indicator, and when you keep pushing, letters SC (Super Cool) will flash.
• If you continue to press, it will restart from +8^ C .
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economical Mode is activated will remain the same when the mode is

over or cancelled. The appliance continues to operate with this temperature value.

Freezer Temperature Settings

• Initial temperature value for Freezer Setting Indicator is -18^ .
• Press freezer (F) button once.
• When you first push this button, -20^ C appears on the setting indicator of the freezer.
• Whenever you press on this button, one bar comes on Freezer Bar Graphic Indicator and lower temperature will be set. (-16^, -18^, -20^, -22^, -24^)
• When you push the freezer button until -24^ (maximum cold) appears on the Freezer Setting Indicator, and when you keep pushing, letters SF (Super Freeze) will flash.
  If you continue to press, it will restart from -16^
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economical Mode is activated will remain the same when the mode is over or cancelled. Your appliance will continue operating in this temperature value selected.

Warnings about Temperature Adjustments

• Your temperature adjustments will not be deleted when an energy breakdown occurs.
• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug

THE VARIOUS FUNCTION AND POSSIBILITIES

off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class A	Ambient Temperature °C
T Between	16 and 43 (°C)
ST Between	16 and 38 (°C)
N Between	16 and 32 (°C)
SN Between	10 and 32 (°C)

Note: If the temperature of the environment is higher than 38^ , the freezer partition temperature cannot be adjusted to -22^ and -24^ . It can only be adjusted to the values of -16^ , -18^ , -20^ .

Accessoires

Ice box

• To remove ice box; pull the upper freezer box out as far as possible and then pull the ice box out.
• Fill 3/4 full of water and place the ice box in freezer.

Note: While placing the ice box in the freezer, place in a horizontal position. Otherwise the water in the ice box can be spill.

Freezer box

The freezer box allows foods are maintained more regularly.

Removing The freezer box;

• Pull the box out as far as possible
• Pull the front of box up and out.

! Make the inverse of the same operation for the resetting the sliding compartment.

Note: Always Keep the handle of box while removing the box.

THE VARIOUS FUNCTION AND POSSIBILITIES

Fresh dial

In case of the risper is totally full, the fresh dial is located in front of risper, should be opened. By means of this the air in the risper and humidity rate will be controlled and endurance life will be increased.

If you see any condensation on glass shelf, you must open this klape which is on behind of shelf.

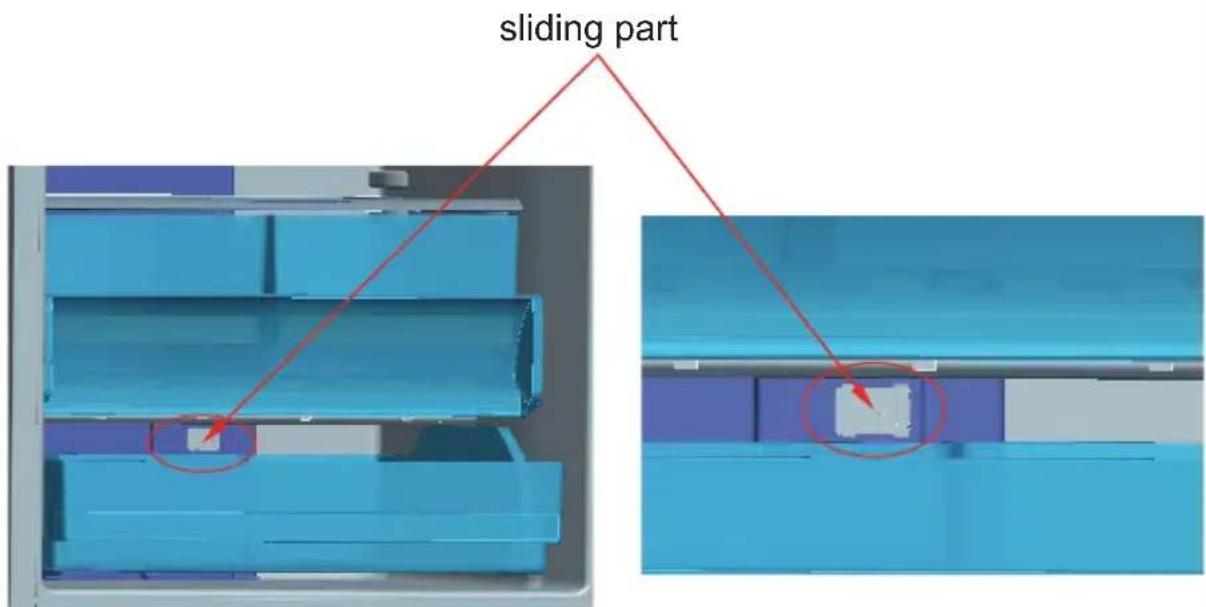

Roller storage box

You can adjust and use this compartment as 3 different functional compartments.

Note: Your fridge is delivered to you with flexible zone sliding part in open position. Declared energy consumption and volume are according to the chiller option of the product.

1. To use for 0^ Department: If you want to use this compartment as 0^ box, you must move the sliding part (cover, which is indicated in picture) from closed position to open position and at the same time adjust refrigerator setting as 2^ .
2. To use for Crisper Department: If you want to use this compartment as crisper, you must move the sliding part (cover, which is indicated in picture) from open position to closed position and at the same time adjust refrigerator setting as 2^ .
3. To use for Chiller Department: If you want to use this compartment as chiller, you must move the sliding part (cover, which is indicated in picture) from closed position to open position and at the same time adjust refrigerator setting as 4^ or 5^ . Thus, temperature of this department has been adjusted as 1 - 2^ colder than refrigerator compartment's.

THE VARIOUS FUNCTION AND POSSIBILITIES

• While this compartment is used as 0^ compartment, keeping food in the chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water. (Water freezes at 0^ , but foods containing salt or sugar freeze at temperature lower than that). Normally people use the chiller compartment for raw fish, lightly pickled, rice, etc...
• Pull the chiller shelf out toward you the cover will open automatically.

Do not put foods you want to freeze or ice trays in order to make ice.

Picture-1 Picture-2 Picture-3

Removing The chiller shelf;

• Open the cover fully. (Picture-1)
• Pull the chiller shelf out toward you. (Picture-2)
• Pull the wheels of chiller shelf up from rail to remove. (Picture-3)

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

CLEANING AND MAINTENANCE

Make sure to unplug the fridge before starting to clean it.
- Do not wash your fridge by pouring water.
- You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

• Remove the parts individually and clean with soapy water. Do not wash in washing machine.

• Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

• You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.

Make sure that your fridge is unplugged while cleaning.

Defrosting

Your refrigerator automatically defrosts. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporization container behind your refrigerator and evaporates by itself in there.

CLEANING AND MAINTENANCE

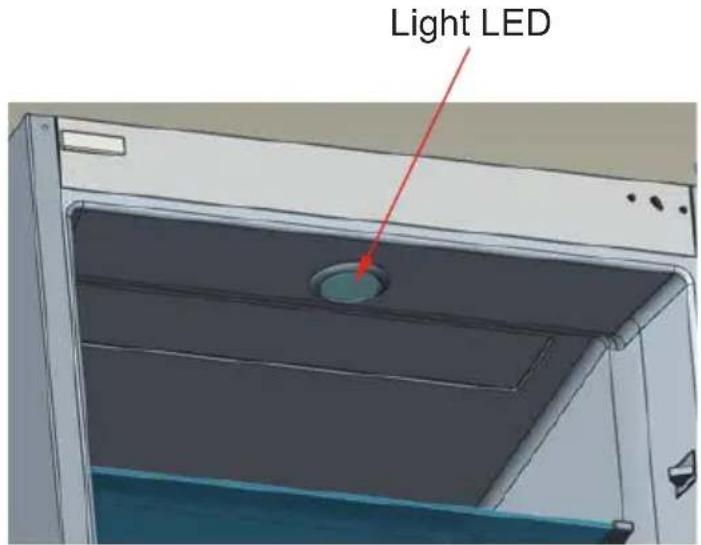

Replacing The Light LED

You should contact the nearest Authorized Service.

ARRANGING FOOD IN THE APPLIANCE

Refrigerator compartment

• To prevent humidification and odour formation, the food should be placed in the refrigerator in enclosed containers or with their top being covered.
• Hot food and drinks should also be cooled in the room temperature before being placed in the refrigerator.
• Please do not prop the packaged food and containers against the lamp and cover of the fridge compartment.
• Fruits and vegetables: Can be placed in the crisper directly without wrapping them.
• Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.

Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.

Food Storing time		Where to place in the fridge department
Vegetables and fruits 1 week		In the Crisper (without being wrapped)
Meat and fish 2 to 3 days		Covered with plastic folio and bags or in a meat box (on the glass shelf)
Fresh cheese 3 to 4 days	In the special door shelf
Butter and Margarine 1 week	In the special door shelf
Bottled product, Milk and Yoghurt	Until the expiry date recommended by the producer	In the special door shelf
Eggs 1 month In the egg shelf
Cooked food All shelves

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

Freezer compartment

• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.
• To freeze fresh food, ensure that as much of the surface as possible of food to be frozen is in contact with the cooling surface.
• Do not put fresh food with frozen on side by side as it can thaw the frozen food.
• While freezing fresh foods (i.e. meat, fish and mincemeat), divide them in parts you will use in one time.
• Once the unit has been defrosted replace the foods into freezer and remember to consume them in as short period of time.
• Never place warm food in the freezer compartment. As it will disturb the frozen foods.
• For storing the frozen foods;the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.
• When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It's quite normal! After reaching equilibrium condition, the door will be opened easily.

Important note:

• Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be refrozen.

ARRANGING FOOD IN THE APPLIANCE

• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed.
• The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.
• The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.

Some recommendations have been specified on pages 70, 71 and 72 for the placement and storage of your food in the deep freeze compartment.

Fish and Meat Preparation	Storage Duration (months)	Thawing period at room temperature -hours-
Beef Steak	Packed for freezing in convenient portions	6-10 1-2
Lamb Meat	Packed for freezing in convenient portions	6-8 1-2
Calf Roast	Packed for freezing in convenient portions	6-10 1-2
Calf Cubes In small pieces	6-10 1-2
Sheep Cubes In pieces 4-3	2-3
Minced meat	In convenient portions, packaged without being spiced	1-3 2-3
Offal (piece) In pieces 1-3	1-2
Sausage/Salami	Must be packed even if it is film-coated	Until thawed
Chicken and turkey	Packed for freezing in convenient portions	7-8 10-12
Goose / Duck	Packed for freezing in convenient portions	4-8 10
Deer - Rabbit - Boar	Portions of 2.5 kg and with no bones	9-12 10-12
Freshwater fish (Trout, Carp, Northern Pike, Cat, Fish)	It should be washed and dried after it is well cleaned inside and scaled, the tail and head parts should be cut off where necessary.	2	Until it is well thawed
Lean fish (Sea Bass, Turbot, Sole)		4-8	Until it is well thawed
Fatty fish (Bonito, Mackerel, Blue Fish, Anchovy)		2-4	Until it is well thawed
Crustaceans	Cleansed and put into bags	4-6	Until it is well thawed
Caviar	In its package, inside an aluminum or plastic cup	2-3	Until it is well thawed
Snail	In salty water, inside an aluminum or plastic cup	3	Until it is well thawed
Vegetables and Fruits	Preparation	Storage Duration (months)	Thawing period at room temperature -hours-
Cauliflower	Remove the leaves, divide the core into parts and keep it waiting in water containing a little amount of lemon	10 - 12	It may be used in frozen form
Green Beans, French Beans	Wash them and cut into small pieces.	10 - 13	It may be used in frozen form
Peas Shell and wash	them 12		It may be used in frozen form
Mushrooms and Asparagus	Wash them and cut into small pieces	6 - 9	It may be used in frozen form
Cabbage In a cleaned fashion 6 - 8 2
Eggplant	Cut it into pieces of 2cm after washing it	10 - 12	Separate plates from each other
Corn	Clean it and pack it with its cob or in grains	12	It may be used in frozen form
Carrot Clean them and cut into slices 12			It may be used in frozen form
Pepper	Remove the stem, divide it into two and separate the seeds	8 - 10	It may be used in frozen form
Spinach Washed 6 - 9 2
Apple and Pear Slice	it by peeling its rind 8 - 10 (In freezer) 5
Apricot and Peach	Divide it into half and remove the seeds	4 - 6 (In freezer) 4
Strawberry and Raspberry	Wash and clean them 8 - 12 2
Cooked fruits	Inside a cup with addition of 10% of sugar	12	4
Plums, Cherries, Sour Cherries	Wash them and remove the stems	8 - 12	5 - 7

EN 72

ARRANGING FOOD IN THE APPLIANCE

Dairy Products and Pastries		Preparation	Storage Duration (months)	Storage Conditions
Packaged (Homogenised) Milk		In its own package 2 - 3	Homogenised	Milk only
Cheese (except white cheese)		In the form of slices 6 - 8		They may be left in their original packages for short time storage. They should also be wrapped in plastic folio for long term storage.
Butter, Margarine In its own package 6
EGG(*)	Egg White 10 - 12			30 gr of it Equals to one egg yolk.	In a closed cup
	Egg mixture (White-Yolk)	It is mixed very well, a pinch of salt or sugar is added to prevent it from getting too thick	10	50 gr of it Equals to one egg yolk.
	Egg Yolk	It is mixed very well, a pinch of salt or sugar is added to prevent it from getting too thick	8 - 10	20 gr of it Equals to one egg yolk.

(*) It should not be frozen with its shells. The white and yolk of the egg should be frozen separately or as having been well mixed.

	Storage Duration (months)	Thawing period at room temperature (hours)	Thawing duration in the oven (minutes)
Bread 4 - 6 2 - 3 4-5	(220-225 °C)
Biscuits 3 - 6 1 - 1,5	5-8 (190-200 °C)
Pie 1 - 3 2 - 3 5-10	(200-225 °C)
Tart 1 - 1,5 3 - 4 5-8	(190-200 °C)
Filo Pastry	2 - 3 1 - 1,5	5 5-8 (190-200 °C)
Pizza	2 - 3 2 - 4	15-20 (200 °C)

SHIPMENT AND REPOSITIONING

• The original packages and foamed polystyrene (PS) can be concealed if required.
• In transportation the appliance should be tied with a wide stripe or a strong rope. The rules written on the corrugated box must be applied while transporting.
• Before transporting or changing old installation position, all the moving objects (i.e., shelves, crisper...) should be taken out or fixed with bands in order to prevent them from shaking.

Carry your fridge in the upright position.

Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the nearest Authorised Service Centre to have the opening direction changed.

CheckWarnings;

Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators.

ERROR TYPE ERROR TYPE WHY WHAT TO DO
SR	"Failure Warning"	There is/are some part(s) Out of order or there is a failure in cooling process	Call Service for assistance as soon as possible.
LV	"Low voltage Warning"	When the power supply gets lower than 170 V the appliance gets to steady position.	This not a failure. This prevents any damages on the compressor. This warning will off after the voltage gets required level.

If your fridge is not operating;

• Is there a power failure?
• Is the plug connected to the socket correctly?
• Is the fuse of the socket to which the plug is connected or the main fuse blown?
• Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating.

If your fridge is not cooling enough;

Is the temperature adjustment right?
- Is the door of your fridge opened frequently and left open for a long while?
- Is the door of fridge closed properly?
- Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?
- Is your fridge filled excessively?
- Is there adequate distance between your fridge and the rear and side walls?
- Is the ambient temperature within the range of values specified in the operating manual?

If the food in your refrigerator compartment is over cooled

Is the temperature adjustment right?

BEFORE CALLING YOUR AFTER SALES SERVICE

• Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food.

If your fridge is operating too loudly;

To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?
• Is there anything behind your fridge?
• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.
• Are the items placed on your fridge vibrating?

Normal Noises;

Cracking (Ice cracking) Noise:

• During automatic defrosting.
• When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blowing Noise (Normal fan noise): This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air.

If humidity builds up inside the fridge;

• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster

BEFORE CALLING YOUR AFTER SALES SERVICE

when you open the doors more frequently, especially if the humidity of the room is high.

• Building up of water drops on the rear wall after automatic defrosting is normal. (in Static Models)

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door gaskets broken or torn?
• Is your fridge on a level surface?

If the edges of fridge cabinet that the door joint contact are warm;

Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal.

IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.
• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.
• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

TIPS FOR SAVING ENERGY

1- Install the appliance in a coll, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2- Allow ward food and drinks to cool down outside the appliance.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
4- When placing, drinks and slips they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slips helps to save smell and taste.
5- When placing food and drinks, open the appliance door as briefly as possible.
6- Keep close the covers of any different temrepature compartment in the appliance (crisper, chiller ...etc).
7- Door gasket must be clean and pliable. Replace gaskets if worn.

PRODUCT FICHE
Brand SINGER
Model NEIGE-297-NF-WH
Product category 7
Energy class A++
Energy consumption 0,671 kW / 24h	245 kW / year
Total gross volume 334 l
Total net volume 297 l
Refrigerator gross volume 233 l
Refrigerator net volume 225 l
Freezer gross volume 101 l
Freezer net volume 72 l
Star rating	***
Temperature rise time 780 Min.
Refrigeration system No-Frost
Freezing capacity 10 kg / 24h
Climate class T/N (16°C-43°C)
Noise emission 44 dB (A)
Dimensions (W x D x H) 595 x 633 x 1868
Power 195 W
Voltage and Frequency	220-240V / 50Hz.
Refrigerant Gas	R600a
Refrigerant Gas Amount	55 gr

Conformity Information

• This appliance is designed for use at an ambient temperature within the 16^ - 43^ range.
• The appliance is designed in compliance with the IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

CE

SINGER FRANCE SAS

27/31 Rue d'Arras

92022 NANTERRE Cedex
