Vacuum Type	Upright Bagless
Power	1,150 W
Current	9.5 A
Weight	7.3 kg
Dustbin Capacity	2.6 L (3XL size)
Cord Length	7.6 m (25 feet)
Hose Reach	3.6 m (12 feet)
Filtration Type	HEPA + washable foam filters
Brush Roll Technology	Zero-M (self-cleaning, anti-tangle)
Anti-allergen	Anti-Allergen Complete Seal Technology
Compatible Surfaces	Carpet, rugs, hard floors
Steering	Swivel Steering
Power Source	Corded
Color	Metallic Gray
Included Accessories	Upholstery tool, crevice tool, dusting brush

Frequently Asked Questions - Navigator ZU62 SHARK

How does the Zero-M technology of the Shark Navigator ZU62 work?

The Zero-M technology integrates an anti-hair wrap comb into the brush roll that automatically cuts and vacuums hair, fur, and threads as you clean. This means you almost never have to manually remove hair clogs from the brush.

Is the ZU62 suitable for people with allergies?

Yes. The vacuum is equipped with a HEPA filter and Anti-Allergen Complete Seal technology, which traps 99.9% of dust and allergens inside the device. No dust escapes during operation or emptying if you take the usual precautions.

On what types of floors can the ZU62 be used?

The Shark Navigator ZU62 is designed to work on carpets, rugs, and hard floors (wood, tile, vinyl). Simply switch to hard floor mode using the selector on the vacuum to avoid scratching delicate surfaces.

How do you empty the dust bin?

Press the bin release button, remove it, and empty it directly into the trash. The bin has a capacity of 2.6 L (3XL size), allowing for extended cleaning sessions before needing to be emptied.

How do you maintain and clean the filters?

The ZU62 is equipped with washable foam and HEPA filters. Rinse them with cold water until the water runs clear, then let them dry completely (at least 24 hours) before reinstalling. Monthly maintenance is recommended to maintain suction performance.

Why has the suction decreased?

Reduced suction is generally caused by:

• A full bin that needs emptying
• Clogged filters that need rinsing
• A blockage in the hose or brush roll

Check these three points in this order to restore original performance.

Is the power cord long enough for a large home?

The cord is 7.6 m (25 feet) long, and the stretch hose offers an additional reach of about 3.6 m, making a total reach of about 11 m from the outlet. This generally covers one or two rooms without needing to change outlets.

What accessories are included with the ZU62?

The box contains:

• An upholstery tool
• A crevice tool
• A dusting brush

These accessories attach to the hose and allow for cleaning sofas, corners, shelves, and high places.

Is the vacuum difficult to maneuver?

No. The swivel steering makes it easy to navigate around furniture and into corners. The weight of 7.3 kg is reasonable for an upright vacuum of this size, although it is noticeable when used on stairs.

Can the brush roll be deactivated?

Yes, it is possible to deactivate the brush roll to clean delicate hard floors without the risk of debris scattering. Refer to the corresponding section of the user guide provided in the box to locate the selector.

Do you need to buy replacement bags?

No, the Shark Navigator ZU62 is a bagless vacuum. The rigid dust bin empties and rinses directly. Only the filters (washable and reusable) require regular maintenance, without frequent replacement costs.

How to resolve a blocked brush roll issue?

Turn off and unplug the vacuum, then turn it over to access the brush. The Zero-M technology reduces blockages but if the brush no longer turns, check that no hard objects (coin, clip) are stuck. Also, manually clean the anti-hair wrap comb if necessary.

USER MANUAL Navigator ZU62 SHARK

Black-and-white photo of a Shark Navigator vacuum cleaner with visible branding and control panel (no text or symbols on the device itself)

ZERO·M

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY • PLEASE READ CAREFULLY BEFORE USE

If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT force into outlet or try to modify to fit.

▲ WARNING

To reduce the risk of fire, electric shock, injury, or property damage:

GENERAL WARNINGS

1. Your vacuum cleaner may consist of a motorized nozzle, wand, hose, and/or vacuum pod. This device contains electrical connections, electrical wiring, and moving parts that potentially present risk to the user.
2. Use only identical replacement parts.
3. Carefully observe and follow the instructions provided below to avoid improper use of the appliance. DO NOT use the vacuum for any purpose other than those described in this manual.
4. Before use, carefully inspect all parts for any damage. DO NOT use if any parts are damaged.
5. The use of an extension cord is NOT recommended.
6. This vacuum cleaner contains no serviceable parts.

USE WARNINGS

7.DONOT allow the appliance to be used by children. Close supervision is necessary when used near children. This is not a toy.
8. Always turn off the vacuum cleaner before connecting or disconnecting any motorized nozzles or other accessories.
9. DONOT handle plug or vacuum cleaner with wet hands.
10. DO NOT use without filters in place.

1. Only use Shark® branded filters and accessories. Failure to do so will also void the warranty.
2. DO NOT damage the power cord:

a) DO NOT pull or carry vacuum cleaner by the cord or use the cord as a handle.
b) DO NOT unplug by pulling on cord. Grasp the plug, not the cord.
c) DO NOT run the vacuum cleaner over the power cord, close a door on the cord, pull the cord around sharp corners, or leave the cord near heated surfaces.

1. DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.

2. DONOT use if nozzle or accessory airflow is restricted. If the air paths on the motorized floor nozzle become blocked, turn the vacuum cleaner off and unplug from electrical outlet. Remove all obstructions before you plug in and turn on the unit again.

3. Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.

4. DO NOT use if vacuum cleaner is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.

5. Use extra care when cleaning on stairs.

6. DONOT leave the vacuum cleaner unattended while plugged in.
7. When powered on, keep the vacuum cleaner moving over the carpet surface at all times to avoid damaging the carpet fibers.

20.DONOT place vacuum cleaner on unstable surfaces such as chairs or tables.
21. Your Shark® vacuum may not be designed to stand up on its own. When taking a break from cleaning, you may need to lean it against furniture or a wall, or lay it flat on the floor. Using the vacuum for an application where the unit lacks stability may result in personal injury.
22. DONOT use to pick up:

a) Liquids
b) Largeobjects
c) Hard or sharp objects (glass, nails, screws, or coins)
d) Large quantities of dust (drywall dust, fireplace ash, or embers). DO NOT use as an attachment to power tools for dust collection.
e) Smoking or burning objects (hot coals, cigarette butts, or matches)
f) Flammable or combustible materials (lighter fluid, gasoline, or kerosene)
g) Toxic materials (chlorine bleach, ammonia, or drain cleaner)

1. DO NOT use in the following areas:

a) Poorly lit areas
b) Wet or damp surfaces
c) Outdoor areas
d) Spaces that are enclosed and may contain explosive or toxic fumes or vapors (lighter fluid, gasoline, kerosene, paint, paint thinners, mothproofing substances, or flammable dust)

1. Turn off all controls before plugging in or unplugging the vacuum.

2. Unplug from electrical outlet when not in use and before any maintenance or cleaning.

3. Hand wash with water only. Washing with cleaning chemicals could damage the unit.
4. During cleaning or routine maintenance, DO NOT cut anything other than hair, fibers, or string wrapped around the brushroll.
5. Allow all filters to air-dry completely before replacing in the vacuum to prevent liquid from being drawn into electric parts.
6. Make sure the dust cup and all filters are in place after routine maintenance.
7. If provided, secure the power cord around the two cord hooks during storage.

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

SAVE THESE INSTRUCTIONS

ASSEMBLY ASSEMBLY

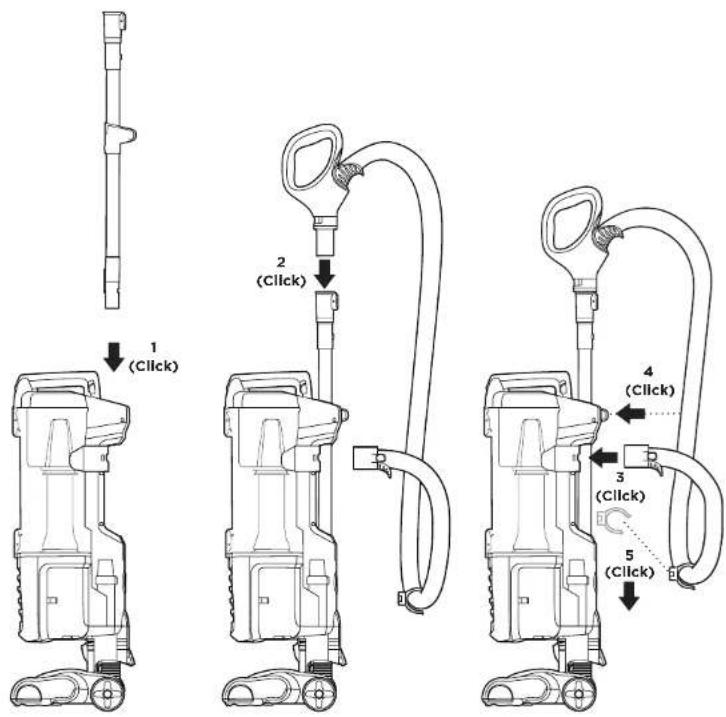

1 (Click) 2 (Click) 3 (Click) 4 (Click) 5 (Click)

1. Insert wand into pod.
2. Insert handle into wand.
3. Attach hose to back of vacuum pod.
4. Attach hose to clip on wand.
5. Insert C-shaped clip onto base of vacuum pod and remove tape.
6. Store accessories on tool storage posts.

For proper operation, ensure all parts are firmly clicked into place.

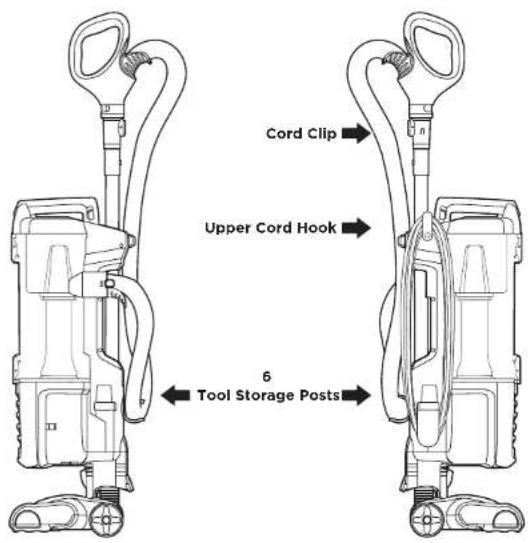

Cord Clip Upper Cord Hook 6 Tool Storage Posts

POWER CORD

Diagram of a mechanical component with curved arrow indicating rotation, labeled 'UPPER CORD HOOK COR' at bottom (no other text or symbols)

For cord access, rotate upper hook down and remove cord.

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Use cord clip located on the side of wand to hold cord in place while vacuuming.

WHOLE-HOME CLEANING

SETTINGS

Technical line drawing of a mechanical component with no visible text or symbols

Select surface setting:
OPowerOff
IHardFloor
For bare floors and small area rugs.
II Carpet For carpets.

START

Your Suction Control slider located on the top of the handle allows you to adjust your suction depending on your floor type.
MIN: to reduce suction and increase maneuverability on carpets.
MAX: to increase suction on bare floors.

BRUSHROLL INDICATOR LIGHT

INDICATOR LIGHT

WHAT DOES THE BRUSHROLL INDICATOR LIGHT MEAN?
Solid Green: The brushroll is spinning and working as it should.
Solid Red: There is a jam in the brushroll area. Turn your vacuum off, unplug from the wall and remove any blockages in the nozzle.
Flashing Red: The motorized floor nozzle is overheating. Turn your vacuum off and wait a minimum of 45 minutes for it to cool down.

NOTE: For deep carpet cleaning per ASTM F608 (embedded dirt in carpets), set to MAX suction and use setting II, Carpet.

WHOLE-HOME CLEANING

CLEANING MODES

Illustration of a hand holding a mechanical device with directional arrows indicating motion (no text or symbols)

To engage brushroll, place foot on floor nozzle and tilt handle back.

Diagram showing a water pump system with a valve and tubing, including a directional arrow indicating flow or movement.

Press the Handle Release button to detach the handle from the wand.

ABOVE-FLOOR-WANDAB

Press the Wand Release button to detach the wand from the pod.

NOTE: All accessories are compatible with both the wand and the handle.

IMPORTANT: Unplug the power cord before performing any maintenance.

Diagram of a vehicle seatbelt device with directional arrows indicating movement or force (no text or symbols present)

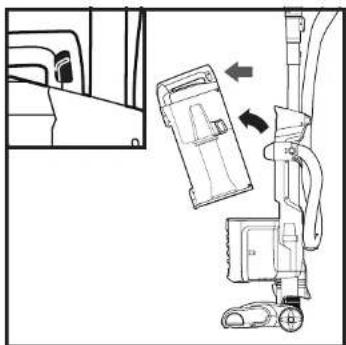

To remove Dust Cup, press button on top of dust cup handle. Tilt dust cup forward, then lift to remove.

Diagram of a mechanical device with internal components and particle flow, no text or symbols present

Press lower release button to open bottom of dust cup.

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

To remove collected debris from Lint Screen, press top release button and lift handle to open. Gently brush lint screen to clean.

Technical line drawing of a mechanical device with a handle and internal components, showing no text or symbols.

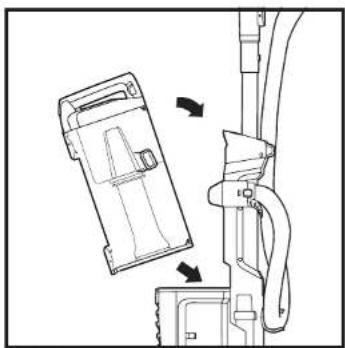

To reinstall, place bottom of dust cup into pod and then tilt back until it clicks into place.

CLEANING AND REPLACING THE FILTERS

CLEANING FILTERS

Regularly clean and replace your filters to keep your vacuum's suction power optimal.

To clean filters, rinse with cold water only to prevent damage from cleaning chemicals. Allow all filters to air-dry for at least 24 hours before reinstalling them to prevent liquid from being drawn into electric parts.

IMPORTANT: DO NOT use soap when cleaning the filters.

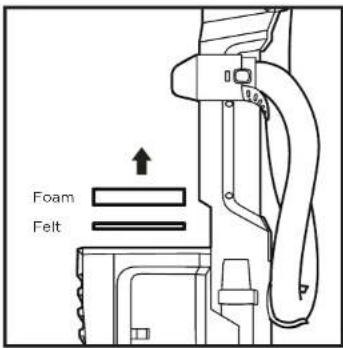

Foam Felt

CLEAN PRE-MOTOR FILTERS EVERY 3 MONTHS

Remove Dust Cup, then lift out Filters.

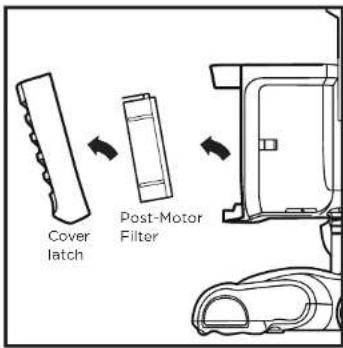

Cover latch Post-Motor Filter

CLEAN HEPA FILTER EVERY YEAR

Press down top of Filter Door. Tilt Filter Door and lift out. Press tab at top of HEPA Filter and pull away from the base of the vacuum. To reinstall, insert HEPA filter into unit and replace the filter door.

REPLACING FILTERS

Follow the previous instructions for removing filters. The Pre-Motor Filter should be replaced every 2.5 years. The HEPA Filter should be replaced every 3 years.

Replacement Pre-Motor Foam & Felt Filter Kit

Replacement HEPA Filter

NOTE: To order replacement parts and filters, visit sharkaccessories.com.

MAINTENANCE

Zero-M Technology

ZERO·M

Shark's Zero-M™ self-cleaning brushroll delivers non-stop hair removal. If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught in the brushroll.

NOTE: Do not be alarmed if there is visible hair wrap on the brushroll at any given time, as it should eventually make its way to the dust cup.

CLEANING THE BRUSHROLL

Cross-sectional diagram of a mechanical component with internal channels and mounting holes (no text or labels)

Technical diagram of a mechanical component with arrows indicating direction (no text or symbols)

Using a coin, turn locks counterclockwise, then lift the door to access Brushroll.

DEBRIS WRAPPED AROUND BRUSHROLL DEBRIS BEHIND BRUSHROLL

Technical line drawing of a mechanical component with no visible text or symbols

Clean off any debris on the bristles.

NOTE: If any hair is wrapped around the brushroll, extending cleaning time will allow Zero-M technology to remove it for you. If some fibers remain wrapped around brushroll after continued use, carefully cut debris with scissors and remove from brushroll.

Technical diagram of a mechanical component with internal channels and a directional arrow (no text or symbols)

If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught behind the brushroll.

Clear away any dust, dirt, or blockages in Debris Intake.

To close the cover, push down until it clicks into place, then close the locks with a coin.

CHECKING FOR BLOCKAGES

Line drawing of a mechanical device with a hose and clamped parts (no text or symbols)

Detach hose from vacuum pod, and check hose and opening on back of pod for blockages.

Pure mechanical shaft diagram without any text, numbers, or symbols

Detach wand from floor nozzle and handle, and check both ends for blockages.

Line drawing of a mechanical device with handle and lever (no text or symbols)

Detach wand from power unit, lay unit down, and check opening for blockages.

Line drawing of a mechanical tool or device with multiple ports and a handle (no text or symbols)

Detach handle from wand and hose from the vacuum pod, and check openings for blockages.

Technical line drawing of a mechanical device with a tool tip, no text or symbols present

Detach dust cup from vacuum pod. Empty dust cup, remove debris from lint screen, and check for blockages.

AVAILABLE ACCESSORIES TROUBLESHOOTING

A Duster Crevice Tool

Two cleaning tools in one. The crevice tool gives you extended cleaning reach for small spaces, while the soft dusting brush cleans a multitude of surfaces.

B Wide Upholstery Tool

Wide cleaning path helps remove pet hair, dust, and large debris from mattresses, couches, curtains, lampshades, and other delicate upholstered surfaces.

© Hair Removal Multi-Tool

A single convertible tool for cleaning tough pet messes two ways: first, a rubber bristle brush for cleaning stubborn hair from carpeted areas. Then remove the bristles to reveal an upholstery tool perfect for cleaning couches and bedding.

D Pet Power Brush

Designed to remove pet hair and ground-in dirt from carpeted stairs and upholstery.

E Under-Appliance Wand

Clean under and behind hard-to-move appliances and furniture with this adjustable 36" tool. Flip the extension piece over to clean the underside of appliances.

A

B

C

D

E

NOTE: Not all accessories come with all units. Please see the enclosed Quick Start Guide for your unit's configuration. To order additional accessories, visit sharkaccessories.com.

Vacuum is not picking up debris. No suction or light suction.

• Check filters to see if they need cleaning. Follow instructions for rinsing and air-drying the filters before reinserting in the vacuum.
  • Dust cup may be full; empty dust cup.
• Check hose, hose connections, nozzle, wand, pod, and accessories for blockages. Clear any blockages found.

(Refer to Checking for Blockages section for more information.)

- If any string, carpet fibers, or hair is wrapped around the brushroll, extend cleaning time to allow Zero-M™ technology to remove it. - If some hair or fibers remain wrapped around brushroll after continued use, remove the floor nozzle cover and carefully cut debris with scissors and remove from brushroll. See Cleaning the Brushroll section for more information.

Vacuum lifts area rugs.

• Make sure Power/Surface switch is set to Hard Floor (setting I).
- Suction is powerful. Take care when vacuuming area rugs or rugs with delicately sewn edges.

Brushroll does not spin in carpet cleaning mode.

• If the Brushroll Indicator Light turns red, immediately turn off and unplug the vacuum. Remove pod from floor nozzle and clear any blockages. Reconnect nozzle, plug in vacuum, and turn on power.
• With the power on, recline the handle, which will automatically turn on the brushroll.
• Ensure that the Power/Surface switch is set to Carpet (setting II) for brushroll to spin.

Vacuum turns off on its own or indicator light flashes red.

This vacuum is equipped with a motor-protective thermostat. If your vacuum overheats, the thermostat will automatically turn the suction motor off. Perform the following steps to restart the thermostat:

1. Turn vacuum off and unplug it.
2. Empty dust cup and clean filters (see Emptying the Dust Cup and Cleaning the Filters).
3. Check for blockages in hose, accessories, and inlet openings.
4. Allow unit to cool for a minimum of 45 minutes.
5. Plug in vacuum and turn it on.
6. Restart the unit with the Power/Surface switch.

For all other issues, please call Customer Service 1-800-798-7398.

Shark NINJA

FIVE (5) YEAR LIMITED WARRANTY

The Five (5) Year Limited Warranty applies to purchases made from authorized retailers of SharkNinja Operating LLC. Warranty coverage applies to the original owner and to the original product only and is not transferable.

SharkNinja warrants that the unit shall be free from defects in material and workmanship for a period of five (5) years from the date of purchase when it is used under normal household conditions and maintained according to the requirements outlined in the Owner's Guide, subject to the following conditions and exclusions:

What is covered by this warranty?

1. The original unit and/or non-wearable components deemed defective, in SharkNinja's sole discretion, will be repaired or replaced up to five (5) years from the original purchase date.
2. In the event a replacement unit is issued, the warranty coverage ends six (6) months following the receipt date of the replacement unit or the remainder of the existing warranty, whichever is later. SharkNinja reserves the right to replace the unit with one of equal or greater value.

What is not covered by this warranty?

1. Normal wear and tear of wearable parts (such as foam filters, HEPA filters, pads, etc.), which require regular maintenance and/or replacement to ensure the proper functioning of your unit, are not covered by this warranty. Replacement parts are available for purchase at sharkaccessories.com.
2. Any unit that has been tampered with or used for commercial purposes.
3. Damage caused by misuse (e.g., vacuuming up water or other liquids), abuse, negligent handling, failure to perform required maintenance (e.g., not cleaning the filters), or damage due to mishandling in transit.
4. Consequential and incidental damages.
5. Defects caused by repair persons not authorized by SharkNinja. These defects include damages caused in the process of shipping, altering, or repairing the SharkNinja product (or any of its parts) when the repair is performed by a repair person not authorized by SharkNinja.
6. Products purchased, used, or operated outside North America.

How to get service

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, visit sharkclean.com/support for product care and maintenance self-help. Our Customer Service Specialists are also available at 1-800-798-7398 to assist with product support and warranty service options, including the possibility of upgrading to our VIP warranty service options for select product categories.

SharkNinja will cover the cost for the customer to send in the unit to us for repair or replacement. A fee of \$24.95 (subject to change) will be charged when SharkNinja ships the repaired or replacement unit.

How to initiate a warranty claim

You must call 1-800-798-7398 to initiate a warranty claim. You will need the receipt as proof of purchase. A Customer Service Specialist will provide you with return and packing instruction information.

How state law applies

This warranty gives you specific legal rights, and you also may have other rights that vary from state to state. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

REGISTER YOUR PURCHASE

registryyourshark.com

an QR code using mobile device

RECORD THIS INFORMATION

Model Number:

Serial Number:

Date of Purchase:

(Keep receipt)

Store of Purchase:

TECHNICAL SPECIFICATIONS

Voltage: 120V, 60Hz

Watts: 1,150W

Amps: 9.5A

Benefits of registering your product and creating an account:

• Get easier, faster product support and access to warranty information
• Access troubleshooting and product care instructions
• Be among the first to know about exclusive product promotions

TIP: You can find the model and serial numbers on the QR code label which is located on the bottom of the back of the vacuum pod.

IMPORTANTES CONSIGNES DE SÉCURITÉ

POUR UN USAGE DOMESTIQUE SEULEMENT • VEUILLEZ LIRE ATTENTIVEMENT LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL

1 (Cllc) 2 (Cllc) 3 (Cllc) 4 (Cllc) 5 (Cllc)

Technical line drawing of a mechanical component with no visible text or symbols

BOUTON DE MISE EN
MARCHE/SURFACE

Diagram of a mechanical device with an arrow indicating direction (no text or symbols present)

VOYANT INDICATEUR

QU'INDIQUENT LES VOYANTS INDICATEURS DE LA BROSSE ROTATIVE?

Line drawing of a hand holding a handheld device with a scroll wheel (no text or symbols)

VERTICAL

Diagram showing a water pump system with an outlet and a valve, including directional arrows indicating flow or movement.

Diagram showing mechanical device assembly with labeled parts and directional arrows indicating motion or force

AU-DESSUS DU SOL - TUBEA

Diagram of a vehicle seatbelt device with directional arrows indicating movement or force (no text or symbols present)

Diagram of a mechanical device with internal components and particle flow, no text or symbols present

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a handle and internal components, showing no text or symbols.

REEMPLACEMENT DES FILTRES

Technical diagram of a mechanical component with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a hose and clamped components (no text or symbols)

Pure mechanical shaft diagram without any text, numbers, or symbols

Line drawing of a mechanical device with handle and lever (no text or symbols)

Line drawing of a mechanical tool or device with no visible text or symbols

Technical line drawing of a mechanical device with a tool tip, no text or symbols present

1 (Clic) 2 (Clic) 3 (Clic) 4 (Clic) 5

LUZ INDICADORA

Diagram of a vertical mechanical device with directional arrows indicating movement (no text or symbols)

Diagram showing a vehicle interior with a device and directional arrows indicating movement or force (no text or symbols present)

Diagram of a mechanical device with internal components and particle flow, no text or symbols present

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Cross-sectional diagram of a mechanical component with internal structure and directional arrows (no text or labels)

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal channels and a directional arrow (no text or symbols)

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

Pure mechanical shaft diagram without any text, numbers, or symbols

Line drawing of a mechanical device with handle and lever (no text or symbols)

Line drawing of a mechanical tool or device with multiple ports and a handle (no text or symbols)

Technical line drawing of a mechanical device with a tool tip, no text or symbols present

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This Owner's Guide is designed to help you get a complete understanding of your new Change to Shark Navigator® Zero-M™ Pet Pro Upright Vacuum.

SharkNinja Operating LLC

US: Needham, MA 02494

CAN: Ville St-Laurent, QC H4S 1A7

1-800-798-7398

sharkclean.com

Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice.

For SharkNinja U.S. Patent information, visit www.sharkninja.com/USPatents

VEUILLEZ LIRE ATTENTIVEMENT LE PRÉSENT MODE D'EMPLOI ET LE CONSERVER À TITRE INFORMATIF.

SharkNinja Operating LLC

SharkNinja Operating LLC

© 2018 SharkNinja Operating LLC. SHARK and SHARK NAVIGATOR are registered trademarks of SharkNinja Operating LLC. NAVIGATOR and ZERO-M are trademarks of SharkNinja Operating LLC.
