READ AND SAVE THESE INSTRUCTIONS

1. Use this unit only in the manner intended by the

manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power

off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be

done by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not

damage electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Do not use this unit with any additional solid-state

speed control device.

8. To reduce the risk of fire, use only steel ductwork.

9. This unit must be grounded.

When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expenses. TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood ON when cooking at high heat or when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filters. d) Use proper pan size. Always use cookware appropriate for the size of the surface element. TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

1. SMOTHER FLAMES with a close-fitting lid, cookie

3. DO NOT USE WATER, including wet dishcloths or

towels – This could cause a violent steam explosion.

4. Use an extinguisher ONLY if:

A. You own a Class ABC extinguisher and you know how to operate it. B. The fire is small and contained in the area where it started. C. The fire department has been called. D. You can fight the fire with your back to an exit.

• Based on “Kitchen Fire Safety Tips” published by NFPA. CAUTION

1. For indoor use only.

2. For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

3. To avoid motor bearing damage and noisy and/or

unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

4. Your hood motor has a thermal overload which will

automatically shut off the motor if it becomes overheated. The motor will restart when it will be cooled down. If the motor continues to shut off and restart, have the hood serviced.

5. For best capture of cooking impurities, the bottom of

the hood should be at a minimum of 24’’ and at a maximum of 30” above the cooking surface.

6. Two installers are recommended because of the large

size and weight of this hood.

7. To reduce the risk of fire and to properly exhaust air,

be sure to duct air outside – Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.

8. This product is equipped with a thermostat which may

start blower automatically. To reduce the risk of injury and to prevent power from being switched on accidentally, switch power off at service panel and lock or tag service panel.

9. Because of the high exhausting capacity of this hood,

you should make sure enough air is entering the house to replace exhausted air. Use an appropriate make-up air device or open a window close to or in the kitchen.

10. To reduce the risk of fire and electric shock, the

Broan Elite E64E Series hood must be installed with one Broan exterior blower model 331H, 332H, 335 or 336; or one Broan in-line blower models HLB3, HLB6, HLB9, HLB11. Other blowers cannot be substituted. (Exterior or in-line blowers are sold separately.)

11. Please read specification label on product for further

information and requirements.

WITH WARMING SHELVES. OPTIONAL)

(INCLUDES ONE 8” TO 10”

(INCLUDES TWO 4½” X 18½” TO

10’’ ROUND TRANSITIONS)

ODEL HLB9 (800 CFM)OR HLB11 (1100 CFM) IN-LINE BLOWER

(INCLUDES TWO 8” X 12” TO

1.2 DUCTED INSTALLATION

The Broan Elite E64000 Series range hood includes many configurations: hood with single or double internal blowers (included with the hood), or hood using external blowers. For hood using external blowers, the Broan Elite E64000 Series must be installed with in-line blower models HLB3, HLB6, HLB9 or HLB11, or exterior blower model 331H, 332H, 335 or 336 only. Other blowers cannot be substituted. (Blowers sold separately). Plan where and how the ductwork will be installed. If installing in-line blower, refer to instructions packed with in-line blower and follow steps 1, 2, 3, 4, 10 and up of this manual. Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. If using 7”, 8” or 10” round ducts, use a transition (internal blower(s) only). Use 2” duct tape to seal duct joints. The minimum hood distance above cooktop must not be less than 24’’. A maximum of 30” above cooktop is highly recommended for best capture of cooking impurities. Distances over 30” are at the installer and users discretion. Hood 3¼” x 10” duct or 7” or 8” round duct Roof cap Wall cap HH0085A 24” minimum above cooking surface 3¼” x 10” to 7” or 3¼” x 10” to 8” transition (if using round duct)

MODEL HLB3, HLB6, HLB9 OR HLB11

IN-LINE BLOWER TYPICAL DUCTWORK

1.1 NON-DUCTED INSTALLATION

For a non-ducted installation, a non-duct kit ANKE60 Series (sold separately) must be installed. For maximum effectiveness, we recommend installing this kit with a single (internal) blower hood. The kit fits hoods from 30-inch width up to 48-inch width. See installation instructions included with the non-duct kit ANKE60 Series.- 6 -

2. PREPARE THE INSTALLATION

Make sure that the following items are included: - Range hood - Accessories:

• Baffle filters handles (located inside the hood)

• 3¼” x 10” adapter/damper (located inside internal single blower hood)

• 4½” x 18½” adapter (screwed inside internal double blower hood)

• In-line and exterior blower rough-in plate model 332KR (mounted inside all external blower hoods)

• Bag of parts including: (1) wire clamp, (9) no. 8 x 1/2”, (2) wire connectors, (8) no. 8-32 x 1/4” screws, (4) no. 8 x 3/8” screws Parts sold separately: - In-line blower assembly HLB3, HLB6, HLB9 or HLB11 (all include transition) - Exterior blower assembly 331H, 332H, 335 or 336 - Shielded halogen lights (120 V, 50 W, GU-10) (2 required for 30” and 36” hood width, 3 required for 42” and 48” hood width) - RMP Series Backsplash (optional) - ANKE60 Series Recirculation kit, mandatory for non-ducted installation (models with built-in blower(s) only) - Transitions, duct, elbows, dampers, wall or roof cap Refer to pages 3 and 4 for a complete list of venting options and model numbers. NOTES: 1. For cabinets with recessed bottom, attach three wood filler strips cut to length (not included), on each side, as shown below. See illustration and table below for wood filler strips location.

2. For hoods with external or in-line blowers, do not install the transverse wood filler strip.

⁄8” CAUTION When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.- 7 -

2. PREPARE THE INSTALLATION (CONT’D)

Cut-out the openings for duct (A) and power cable (B), in cabinet or wall, according to the direction of discharge chosen. See figures below. NOTE: For all internal blower hoods, the cut-out opening for house wiring can be made in cabinet bottom OR wall, no matter the discharge chosen (vertical or horizontal).

Backsplash must be installed before the hood shell because the hood shell covers the backsplash top mounting screws. In order to be able to install the backsplash, make sure you have at least 18’’ clearance between bottom of hood and range control panel or cooktop. (See instructions packed with backsplash.)- 8 -

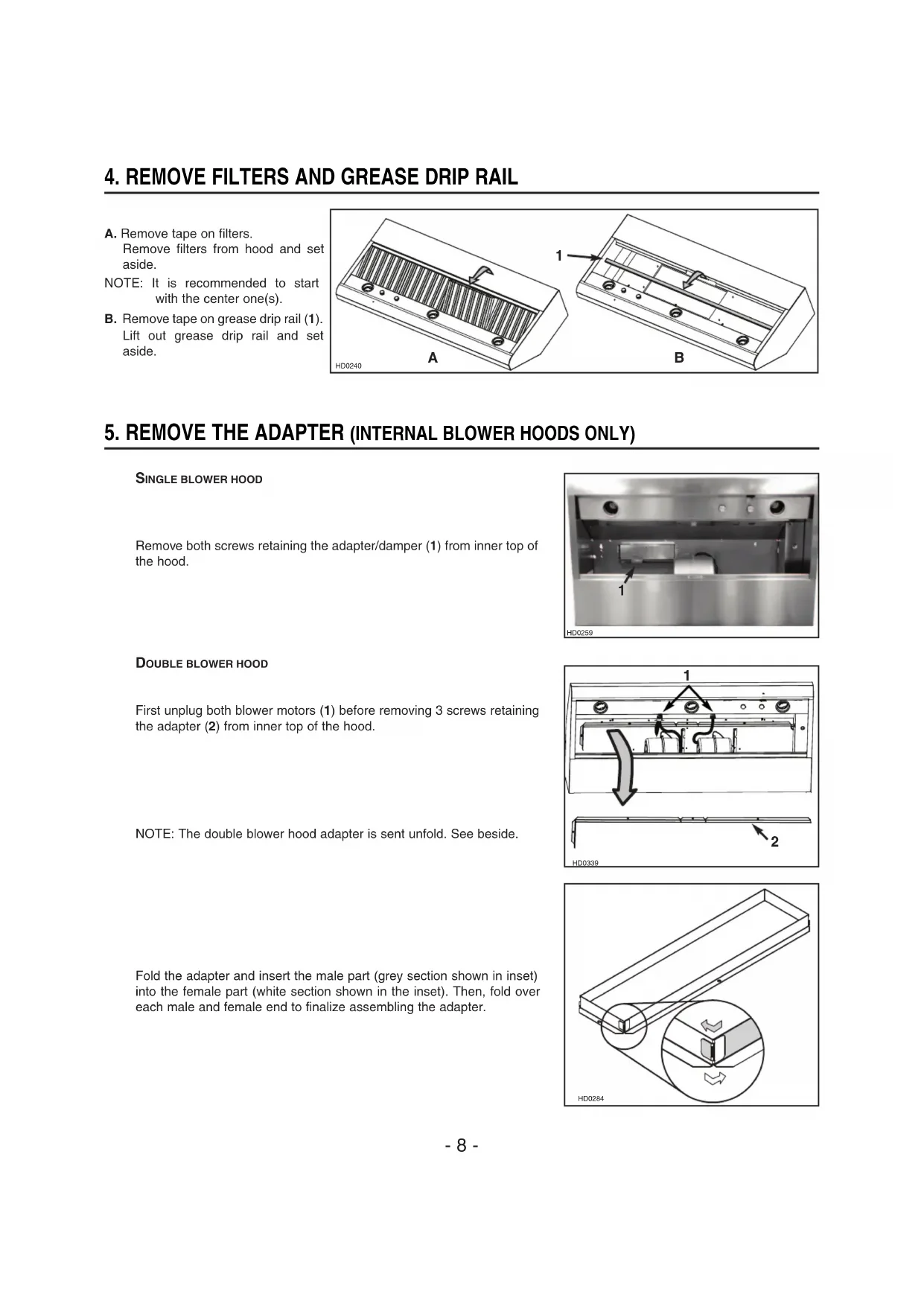

4. REMOVE FILTERS AND GREASE DRIP RAIL

A. Remove tape on filters. Remove filters from hood and set aside. NOTE: It is recommended to start with the center one(s). B. Remove tape on grease drip rail (1). Lift out grease drip rail and set aside. HD0240

Remove both screws retaining the adapter/damper (1) from inner top of the hood. First unplug both blower motors (1) before removing 3 screws retaining the adapter (2) from inner top of the hood. Fold the adapter and insert the male part (grey section shown in inset) into the female part (white section shown in the inset). Then, fold over each male and female end to finalize assembling the adapter.

Remove the knockout for the chosen opening(s) (horizontal at the back of the hood or vertical on top).See illustrations below. VERTICAL DISCHARGE HORIZONTAL DISCHARGE NOTE: For ducted installation only.

Punch out the appropriate electrical knockout hole on top (A) or back (B) of the hood. Install the wire clamp (included in parts bag). NOTE: For a non-ducted installation, punch out the back electrical knock-out (B). HR0024

All internal blower hoods are factory shipped with the blowers mounted for a vertical discharge configuration. For a horizontal discharge configuration, disassemble the blower(s) from the inner top of the hood and mount it (them) to the back panel of the hood. The procedure below applies for one or two motors.HE0085Unplug the blower.HD0282RIGHT SIDEMOUNTING SCREWLOCATIONUsing a 5/16” socket, remove allblower mounting screws from theinner top of the hood. Keep thescrews for further use.HD0269LEFT SIDE MOUNTINGSCREW LOCATION- 10 -

7. HORIZONTAL DISCHARGE INSTALLATION (INTERNAL BLOWER(S) ONLY)

HD0271 Flip the blower and engage its flange in the back wall retaining bracket. Using a 5/16” socket and the screws previously removed, secure the blower to the hood. HD0272

8. INSTALL THE ADAPTER AND THE TRANSITION (IF NEED BE)

(INTERNAL BLOWER HOOD ONLY) Using standard 3/8’’ screws provided, secure the adapter to the top (or back) of the hood (2 screws for a 3¼” x 10” adapter/damper and 4 screws for a 4½” x 18½” adapter). Seal the adapter to the hood using duct tape. For round ducting, install an appropriate sized transition and seal the joints with duct tape. HJ0013

9. INSTALL ANKE60 RECIRCULATION KIT (NON DUCTED INSTALLATION ONLY)

Refer to the installation sheet included with the recirculation kit for details. Slide the blower to disengage its flange from the retaining bracket. HD0270 LEFT SIDE MOUNTING SCREW LOCATION RIGHT SIDE MOUNTING SCREW LOCATION HE0085 Plug the blower in.

INTERNAL BLOWER: Run power cable to installation location. Place the hood in its location. Mark the position of the screws (smaller part of the key holes [A]) with a pen. Remove the hood and install the (4) 1/2” double thread screws at marked positions, leaving a 1/8” gap. Remove wiring cover. Insert the cable in the hood through the wire clamp and tighten the wire clamp to secure the cable. Place the hood under the cabinet and slide it into position. Make sure the adapter (or the transition) enters the ducting. Secure the hood by tightening the screws completely. Install the last 1/2” double thread screws in the remaining holes [B]. EXTERIOR OR IN-LINE BLOWER: Run power cable to installation location. Place the hood in its location. Mark the position of the screws (smaller part of the key holes [A]) with a pen. Remove the hood and install the (4) 1/2” double thread screws at marked positions, leaving a 1/8” gap. Remove wiring cover on top of the hood, punch-out the electrical knock-out and install the wire clamp. Insert the cable in the hood through the wire clamp and tighten the wire clamp to secure the cable. Connect wiring (see instructions included with exterior or in-line blower). Place the hood under the cabinet and slide it in position. Secure the hood by tightening the screws completely. Install the last 1/2” double thread screws in the remaining holes [B]. INTERNAL BLOWER HOODEXTERIOR OR IN-LINE BLOWER HOOD

11. CONNECT WIRING (ALL BLOWERS)

WARNING Risk of electrical shock. Electrical wiring must be done by qualified personnel in accordance with allapplicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power to be switched on accidentally.

Remove wiring cover from rough-in plate or electrical compartment and setaside.INTERNAL BLOWERS: Connect cable into wiring box using wire connectors.Connect BLACK to BLACK, WHITE to WHITE andGREEN or bare wire under GREEN ground screw.Reinstall wiring cover.IN-LINE OR EXTERIOR BLOWERS: See instructions included with blower. CAUTION The ORANGE wire (A) is for make-up air device connection only.If there is no make-up air device, never remove the cap on theORANGE wire end. HE0088

WARNING Do not plug the two cords together.

Plug the 3-prong plug cord from rough-in plate to the 3-prong male connector inside the hood (A) and the 2-prong male connector cord fromrough-in plate to the 2-prong plug inside the hood (B).

This hood must use 120 V, 50 W, MR16 with GU10 base or PAR16 with GU10 base, shielded halogen lamps (not included). WARNING In order to prevent the risk of personal injury, do not install a lamp identified for use only in enclosed fixtures.

WARNING In order to prevent the risk of personal injury, the halogen lamps must be cooled down before removing them.

1. Install lamps by placing the bulb leads into their grooves in the socket.2. Gently push upwards and turn clockwise until secure.To remove lamps, gently push upwards and turn counterclockwise to disengage bulb leads from their grooves.NOTE: If need be, use a rubber dishwashing glove to add grip when removing the bulb.

Reinstall grease drip rail. The illustration beside shows how to reinsert thegrease drip rail into the range hood.NOTE: Assemble the metal handles to the filters, using no. 8-32 x 1/4” screwsprovided, before reinstalling them in the hood.It is recommended to install side filters first and finish with center one(s).1. Insert one end of the filter into the upper channel of the hood.2. Raise the other end toward the inside of hood and insert in the grease drip rail of the hood. HD0241HD0242

CAUTION Remove protective plastic film covering filters before installing them.- 13 -

Baffle Filters The baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates greater grease—like frying foods or wok cooking. Remove baffle filters by pushing them towards the back of hood and rotating filters downward. Baffle filters are dishwasher safe. Allow filters to dry completely before reinstalling them in the hood. Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent or as a result of local water conditions—but this will not affect filter performance. This discoloration is not covered by the warranty.Grease Drip Rail The grease drip rail should be cleaned frequently. Lift it out from the hood and use a warm detergent solution. As for the baffle filters, wash more often if your cooking style generates greater grease—like frying foods or wok cooking. Allow grease drip rail to dry completely before reinstalling it in the hood.Blower Cleaning (Internal)Remove the filters in order to access the blower. Vacuum blower to clean. Do not immerse in water.Hood CleaningStainless steel cleaning: Avoid: When choosing a detergent

• Any cleaners that contain bleach will attack stainless steel.

• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.

• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range. Do:
• Regularly wash with clean cloth or rag soaked with warmwater and mild soap or liquid dish detergent.• Always clean in the direction of original polish lines.• Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.• You may also use a specialized household stainless steelcleaner. Don’t:• Use any steel or stainless steel wool or any other scrapersto remove stubborn dirt.• Use any harsh or abrasive cleansers.• Allow dirt to accumulate.• Let plaster dust or any other construction residues reachthe hood. During construction/renovation, cover the hood tomake sure no dust sticks to stainless steel surface.

HEAT SENTRY™ This hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a device that will turn on or speed up the blower if it senses excessive heat above the cooking surface.1) If blower is OFF - it turns blower ON to HIGH speed.2) If blower is ON at a lower speed setting – it turns the blower up to HIGH speed.When the temperature level drops to normal, the blower will return to its original setting. WARNING The HEAT SENTRY™ can start the blower even if the hood is turned OFF. In this case, it is impossible to turn the blower OFF with blower switch. If you must stop the blower, do it from the main electrical panel.

Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and brighter.- 14 -

COOKTOP LIGHTING (HALOGEN) A rotary 3-position knob (1) controls the halogen lights (OFF - low intensity - high intensity). BLOWER The blower is operated using two controls. Use the on/off rocker switch (3) to start and stop the blower. When turned on, the blower indicator (2) turns on and the blower operates at the previous setting of the speed control (4). Turn the speed control knob counterclockwise to increase blower speed – clockwise to decrease speed.

WARRANTY ONE YEAR LIMITED WARRANTY FOR BROAN ELITE PRODUCTS Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Broan Elite products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions. The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states or provinces do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to another. This warranty supersedes all prior warranties. To qualify for warranty service, you must (a) notify Broan-NuTone at one of the addresses or telephone number stated below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. In USA - Broan-NuTone LLC; 926 W. State Street, Hartford, Wisconsin 53027 www.broan.com 800-558-1711 In Canada - Broan-NuTone Canada; 1140 Tristar Drive, Mississauga, ON L5T 1H9 www.broan.ca 877-896-1119- 15 -

BRN BLU RED BLK WHT SPEEDCONTROL HSTHERMOSTAT BLU BLK BLK BLU BLK YEL WHT WHT WHT WHT WHT BLK BLK YEL YEL BLK ORA NEON LAMP ORA LAMP SWITCHL 1-3

THERMOSTAT BLU BLK BLK BLU BLK YEL WHT WHT WHT WHT BLK YEL YEL BLK ORA NEON LAMP ORA

BLK BLK WHT BLK GRN WHTWHT WHT GRN BLK GRN GREEN ORA ORANGE- 16 -

SV08353 PARTS BAG ([2] WIRE CONNECTORS, [9] SCREWS NO. 8 X 1/2”, [1] WIRE CLAMP, [8] M ECHANICAL SCREWS NO. 8-32 X 1/4”, [4] SCREWS NO. 8 X 3/8”)
