USER MANUAL Compact C1 Turbo PowerLine MIELE

en-US Operating Instructions Turbobrush

ja ターボブラシ取扱説明書

STB 201 / STB 205

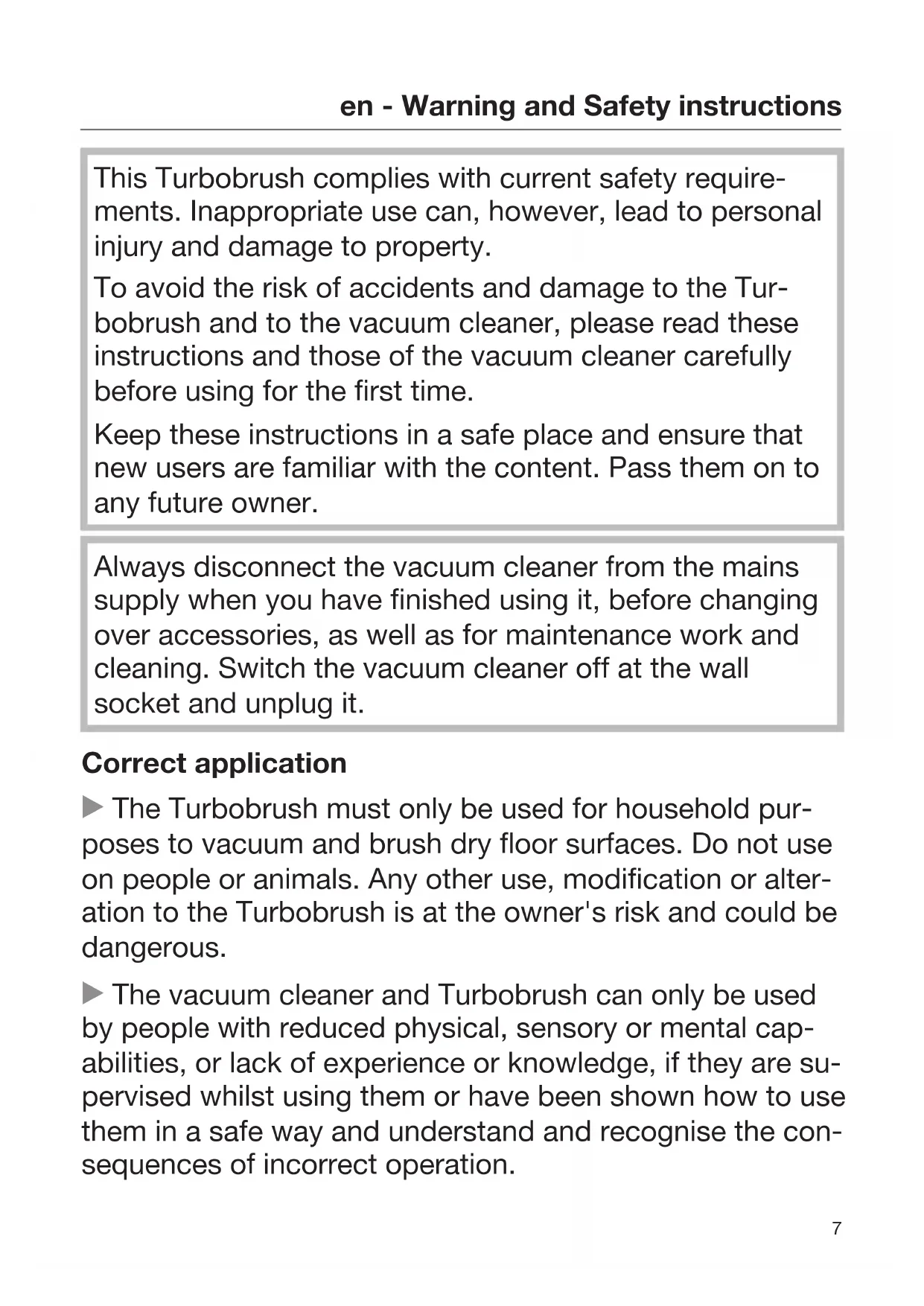

This Turbobrush complies with current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.

To avoid the risk of accidents and damage to the Tur- bobrush and to the vacuum cleaner, please read these instructions and those of the vacuum cleaner carefully before using for the first time.

Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future owner.

Always disconnect the vacuum cleaner from the mains supply when you have finished using it, before changing over accessories, as well as for maintenance work and cleaning. Switch the vacuum cleaner off at the wall socket and unplug it.

Correct application

The Turbobrush must only be used for household purposes to vacuum and brush dry floor surfaces. Do not use on people or animals. Any other use, modification or alteration to the Turbobrush is at the owner's risk and could be dangerous.

The vacuum cleaner and Turbobrush can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using them or have been shown how to use them in a safe way and understand and recognise the consequences of incorrect operation.

Safety with children

Danger of suffocation. Packaging, e.g. plastic wrappings, must be kept out of the reach of babies and children. Whilst playing, children could become entangled in packaging or pull it over their head and suffocate.
Children under 8 years of age must be kept away from the vacuum cleaner and Turbobrush unless they are constantly supervised.
Children 8 years and older may only use the vacuum cleaner and Turbobrush unsupervised if they have been shown how to use them safely and recognise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the vacuum cleaner and Turbobrush unsupervised.
▶ Please supervise children in the vicinity of the vacuum cleaner and Turbobrush and do not let them play with them.

Technical safety

Before using the Turbobrush, check for any visible signs of damage. Do not use a damaged Turbobrush.

Do not immerse the Turbobrush in water. Clean all parts with a dry or slightly damp cloth only.

Correct use

▶ Switch the vacuum cleaner off immediately during pauses to avoid danger.
▶ Never touch the roller brush while it is rotating.

Do not use the Turbobrush at head level. Long hair, ties, scarves, etc. could become entangled in the roller brush.
Keep the Turbobrush away from curtains, clothing, etc. as these could be vacuumed in and become entangled in the roller brush.
Do not vacuum up any inflammable or combustible liquids or gases and do not vacuum in areas where such substances are stored.
Do not vacuum any surfaces where there is a danger of items being sucked up or becoming entangled in the roller brush.
Do not use the vacuum cleaner to vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or shampooed rugs or carpets are completely dry before attempting to vacuum.
Do not vacuum up anything which has been burning or is still glowing e.g. cigarettes, ashes or coal, whether glowing or apparently extinguished.

Miele cannot be held liable for damage caused by incorrect use or operation or by non-compliance with these Warning and Safety instructions.

Illustrations

The illustrations referred to in the text are shown on the fold-out pages at the end of these operating instructions.

Turbobrush features

The Turbobrush is operated by the suction power of the vacuum cleaner. It has a rotating roller brush which is very effective at picking up thread, hairs and fluff. Four rollers maintain the brush 1.5 mm away from the floor.

Recommended use

⚠️ The Turbobrush should not be used for vacuuming deep-pile rugs and carpets or valuable hand-knotted rugs and carpets, e.g. Persian and oriental rugs etc. There is a danger of the threads being pulled out.

Do not use the Turbobrush to clean highly textured or uneven floors. The brush might come into contact with the floor and cause damage.

The Turbobrush is particularly suitable for vacuuming thread and hair from cut pile carpeting.

The standard floorhead or one of the Miele floorbrushes should be used for cleaning hard floors.

It is also important to observe the flooring manufacturer's cleaning and care instructions.

Fitting the Turbobrush

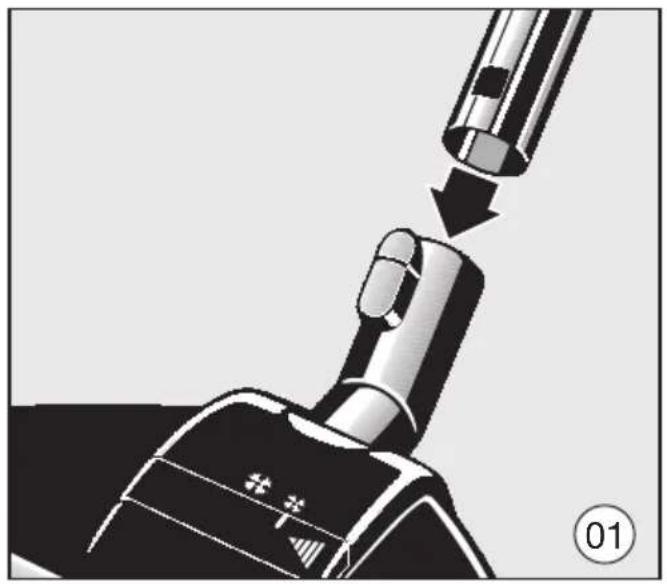

Model STB 205 (dia. 01)

This Turbobrush is intended for use with Miele vacuum cleaners.

■ Instead of the usual floor attachment, fit the Turbobrush to the suction tube by twisting it to the left and right. Ensure that the locking device engages.

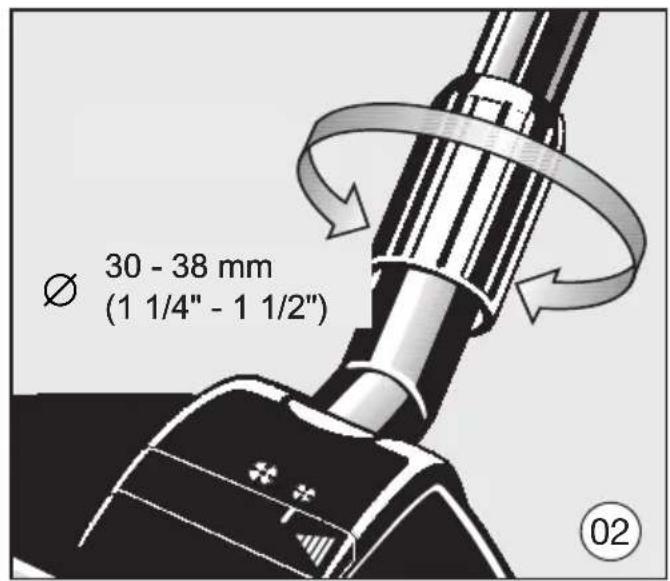

Model STB 201 Vario (dia. 02)

This Turbobrush has an adjustable connector. It can be used on any suction tube with a diameter of between 30 and 38 mm. The Turbobrush should, however, only be used with the vacuum cleaner set to its highest power setting.

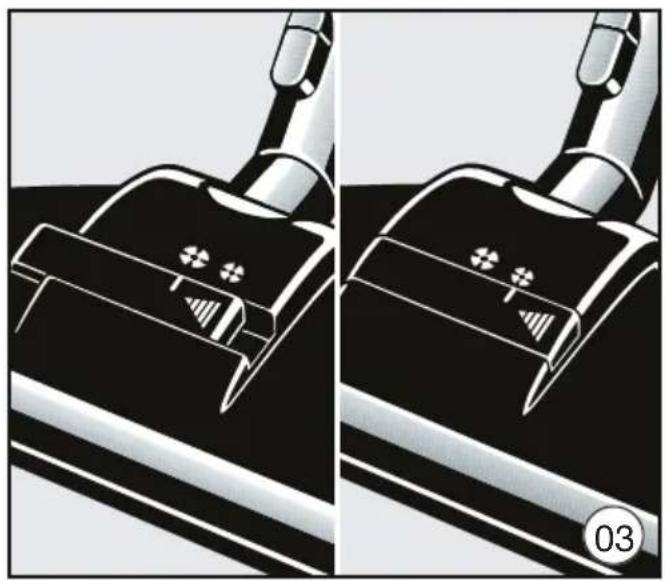

Open the air inlet valve (dia. 03)

The brush is operated by the suction power of the vacuum cleaner. With deeper, dense pile carpets the roller brush may rotate more slowly. This is caused by the carpet pile creating a seal around the mouth of the Turbobrush and hindering the flow of air. This will affect how well the carpet is brushed.

■ To increase the airflow, open the air inlet valve (left hand illustration).

In all other situations the air inlet valve should be closed, to benefit from the full suction power.

■ Close the air inlet valve (right hand illustration).

Maintenance

⚠️ Always disconnect the vacuum cleaner from the electrical supply for cleaning and maintenance work on the Turbobrush. Switch off at the wall socket and remove the plug.

Removing threads and hairs (dia. 04 - 06)

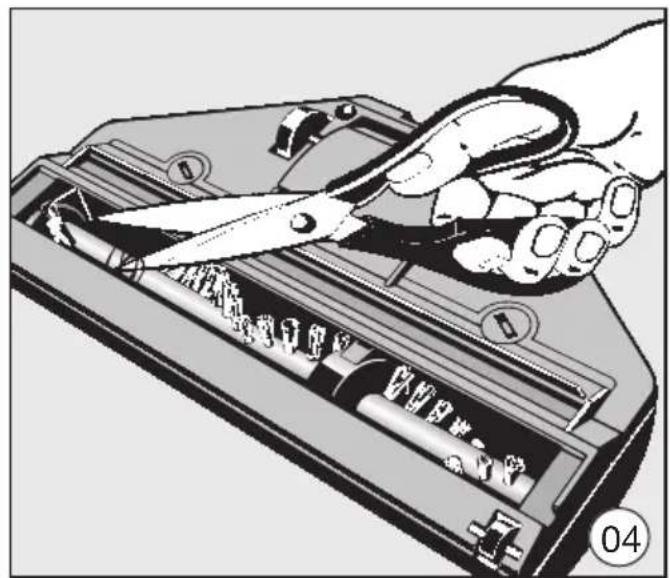

■ Cut any threads or hairs that have become entangled on the roller brush with a pair of scissors (dia. 04).

Then run the vacuum cleaner to vacuum up the bits.

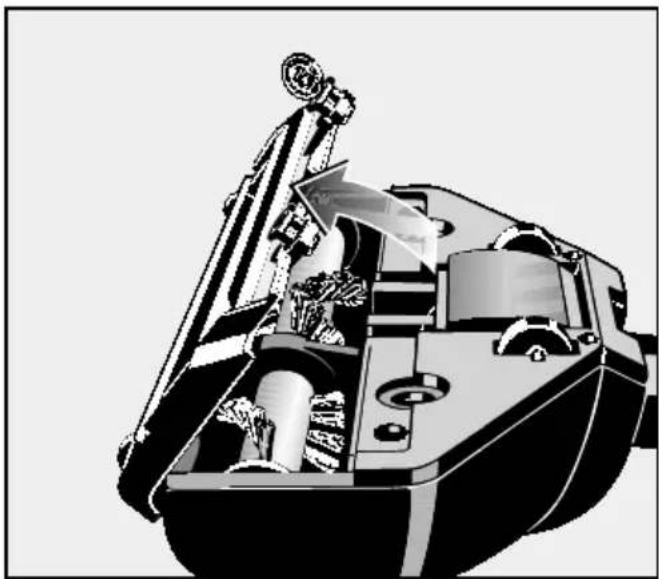

For more obstinate tangles or blockages inside the Turbobrush, the cover can be opened. Any large particles can then be easily removed.

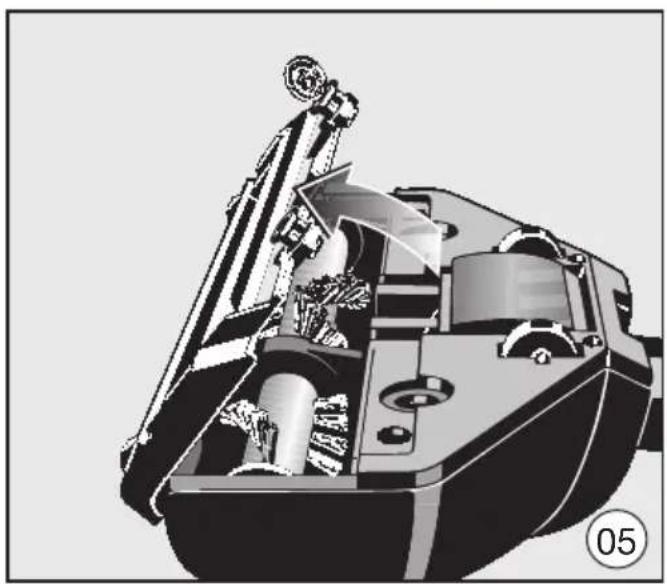

■ Using a coin undo the roller cover on both sides and then remove the cover (dia. 05).
■ Remove any dirt in the brush compartment interior and from the roller brush.

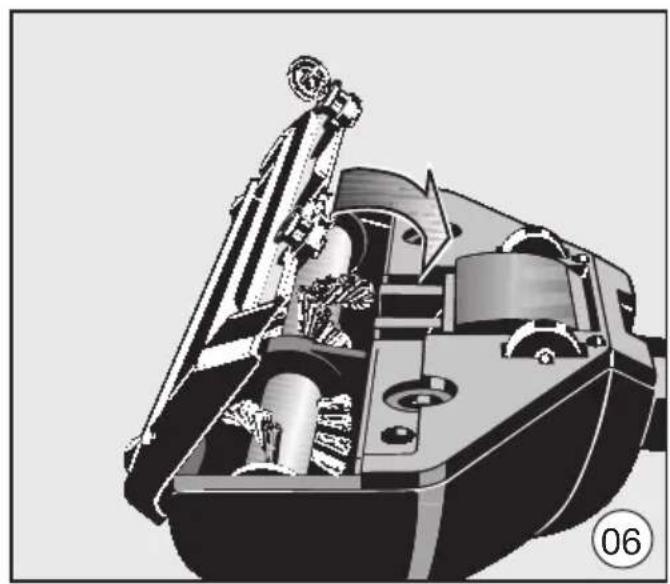

■ Replace the cover and secure it (dia. 06).

en-US - IMPORTANT SAFETY INSTRUCTIONS

This turborbrush complies with current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.

To avoid the risk of accidents and damage to the Turbo-brush and to the vacuum cleaner, please read these instructions and those of the vacuum cleaner carefully before using for the first time. They contain important information on safety, operation and maintenance.

Keep these operating instructions in a safe place and pass them on to any future user.

Always disconnect the vacuum cleaner from the power supply when you have finished using it, before changing over accessories, as well as for maintenance work and cleaning. Turn the vacuum cleaner off and unplug it.

READ THESE INSTRUCTIONS COMPLETELY BEFORE USING THIS ACCESSORY FOR THE FIRST TIME. KEEP THESE OPERATING INSTRUCTIONS FOR FUTURE REFERENCE.

Correct use

The Turbobrush must only be used for household purposes to vacuum and brush dry floor surfaces. Do not use on people or animals. Any other use, modification or alteration to the brush is at the owner's risk and could be dangerous.

en-US - IMPORTANT SAFETY INSTRUCTIONS

▶ Persons which lack physical, sensory or mental abilities or experience with the vacuum cleaner and Turbobrush should not use it without supervision or instruction by a responsible person.

Safety with children

Children must be kept away from the vacuum cleaner and Turbobrush unless they are constantly supervised.
Do not allow the vacuum cleaner to be used as a toy. Close attention is necessary when used near children.

Technical safety

Before using the Turbobrush, check for any visible signs of damage. Do not use a damaged appliance or damaged accessories.
Do not immerse the Turbobrush in water. Clean all parts with a dry or slightly damp cloth only.

Proper use

▶ Switch the vacuum cleaner off immediately during pauses to avoid danger.
▶ Never touch the roller brush while it is rotating.
Do not use the Turbobrush at head level.
Keep the Turbobrush away from curtains, clothing, etc. as these could be vacuumed in and become entangled in the roller brush.

en-US - IMPORTANT SAFETY INSTRUCTIONS

Do not vacuum up any inflammable or combustible liquids or gases and do not vacuum in areas where such substances are stored.
Do not vacuum any surfaces where there is a danger of items being sucked up or becoming entangled in the roller brush.
Do not use the vacuum cleaner to vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or shampooed rugs or carpets are completely dry before attempting to vacuum.
Do not vacuum up anything which has been burning or is still glowing, e.g., cigarettes, ashes or hot ash, whether glowing or apparently extinguished.

SAVE THESE INSTRUCTIONS

References to illustrations

The illustrations referred to in the text are shown on the fold-out pages at the end of these Operating Instructions.

Turbobrush features

The Turbobrush is operated by the suction power of the vacuum cleaner. It has a rotating roller brush which is very effective at picking up thread, hairs and fluff. Four rollers maintain the brush 1/16" (1.5 mm) away from the floor.

Recommended use

⚠️ The robrush should not be used for vacuuming deep-pile rugs and carpets or valuable hand-knotted rugs and carpets, e.g. Persian and oriental rugs, etc. There is a danger of the threads being pulled out.

Do not use the if bobrush to clean highly variable or uneven floors. The brush might come into contact with the floor and cause damage.

The Turbobrush is particularly suitable for vacuuming thread and hair from short pile carpeting.

The standard floorhead or one of the Miele floorbrushes should be used for cleaning hard floors.

It is also important to observe the flooring manufacturer's cleaning and care instructions.

Fitting the Turbobrush

Model STB 205 (Fig. 01)

This Turbobrush is intended for use with Miele vacuum cleaners.

■ Instead of the usual floor attachment, fit the Turbobrush to the suction wands, turning it clockwise or counter-clockwise until it clicks into position.

Model STB 201 Vario (Fig. 02)

This Turbobrush has an adjustable adapter, enabling it it be used with non-Miele vacuum cleaners. The adapter fits suction wands with a diameter of between 1 1/4" and 1 1/2" (30 and 38 mm). Only use the Turbobrush with high performance vacuum cleaners.

Opening the air inlet valve (Fig. 03)

The brush is operated by the suction power of the vacuum cleaner. With deeper, dense pile carpets the roller brush may rotate more slowly. This is caused by the carpet pile creating a seal around the mouth of the Turbo-brush and hindering the flow of air. This will affect how well the carpet is brushed.

■ increase the airflow, open the air inlet valve (left hand illustration).

In all other situations the air inlet valve should be closed, to benefit from the full suction power.

■ Close the air inlet valve (right hand illustration).

Maintenance

⚠️ Always disconnect the vacuum cleaner from the electrical supply for cleaning and maintenance work on the Turbobrush. Switch off at the wall socket and remove the plug.

Removing threads and hairs (Fig. 04 - 06)

■ With a pair of scissors (Fig. 04), cut any threads or hairs that have become entangled on the roller brush.

Then run the vacuum cleaner to vacuum up the bits.

For more tangles or blockages inside the Turbobrush, the cover can be opened. Any large particles can then be easily removed.

■ Undck the roller cover on both sides with a coin and remove the roller cover (Fig. 05).
■ Remove any dirt from the interior and from the roller brush.
■ Replace and engage the roller cover (Fig. 06).
