USER MANUAL Compagno 8 x 26 BRAUN

Black BRAUN 10 x 4.3 W.P. binoculars on a grassy field, no text or symbols visible on the equipment itself.

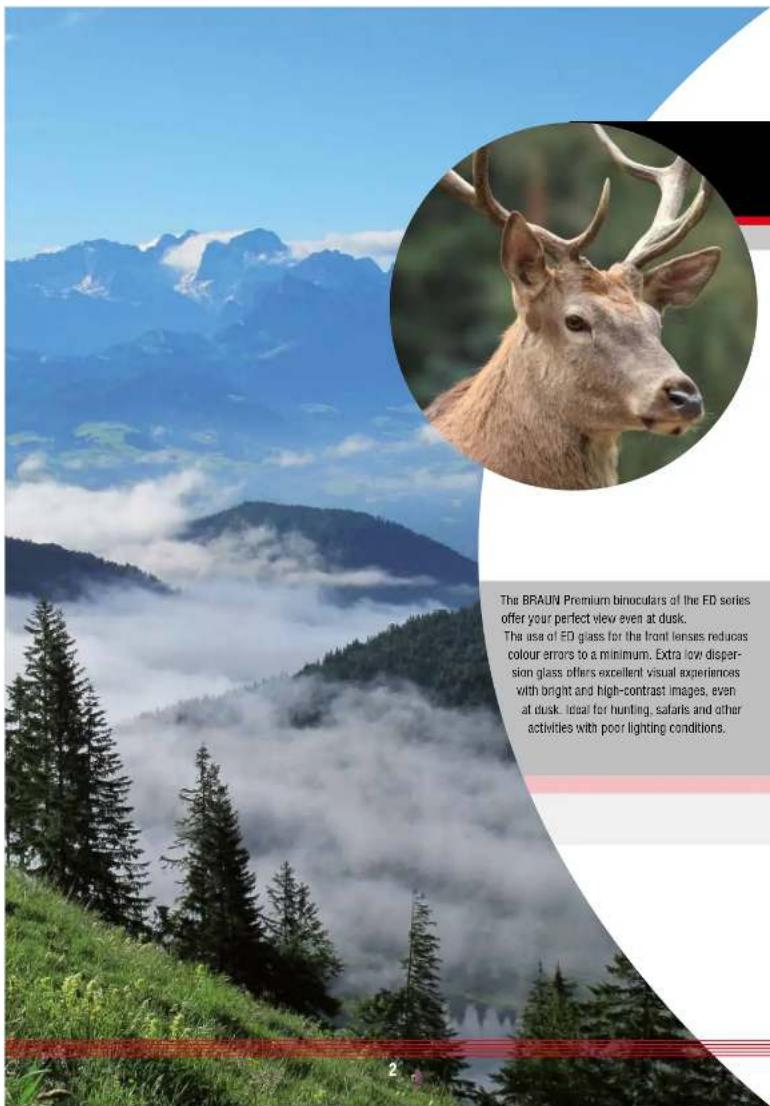

The BRAUN Premium binoculars of the ED series offer your perfect view even at dusk. The use of ED glass for the front lenses reduces colour errors to a minimum. Extra low dispersion glass offers excellent visual experiences with bright and high-contrast images, even at dusk. Ideal for hunting, safaris and other activities with poor lighting conditions.

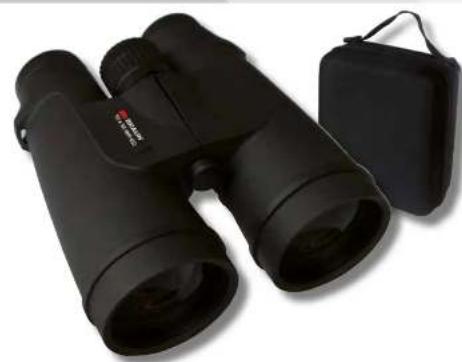

Superior front glasses of top-ranking quality: the ED series

Black binoculars with a small attached case (no visible text or symbols)

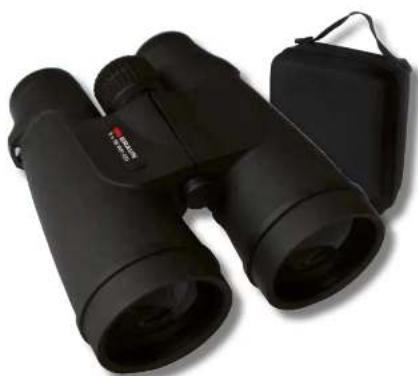

BRAUN Premium 10x56 WP-ED

Magnification: 10x ULTRALIT® glass lens Lens diameter: 56 mm Exit pupil: 5.6 mm Eye relief: 18.2 mm Field of view: 6.0°, 105 m / 1000 m Close focus distance: 3 m Dimensions: 165 x 148 x 66 mm Weight: 1096 g

item no. 20159

Minimal colour errors · High light value

Black binoculars with a strap, shown against a white background (no text or symbols visible)

BRAUN Premium 8x56 WP-ED

Magnification: 8x ULTRALITE® glass lens Lens diameter: 56 mm Exit pupil: 7.0 mm Eye relief: 23 mm Field of view: 6.1°, 107 m / 1000 m Close focus distance: 3 m Dimensions: 165 x 148 x 66 mm Weight: 1086 g

item no. 20158

Bright and rich in contrast

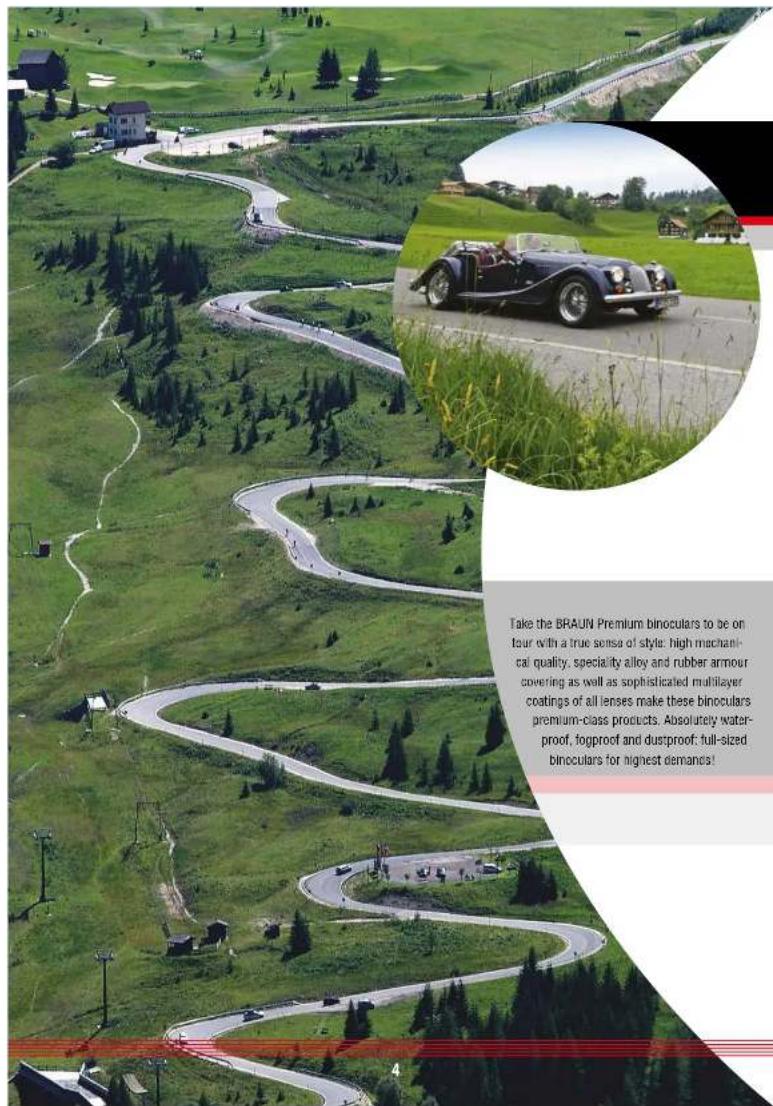

Take the BRAUN Premium binoculars to be on tour with a true sense of style: high mechanical quality, specialty alloy and rubber armour covering as well as sophisticated multilayer coatings of all lenses make these binoculars premium-class products. Absolutely waterproof, fogproof and dustproof; full-sized binoculars for highest demands!

High-grade binoculars for highest demands

Black Braun 8 x 42 water SES binoculars with a black cover (no visible text or symbols on the binos itself)

High magnification factor

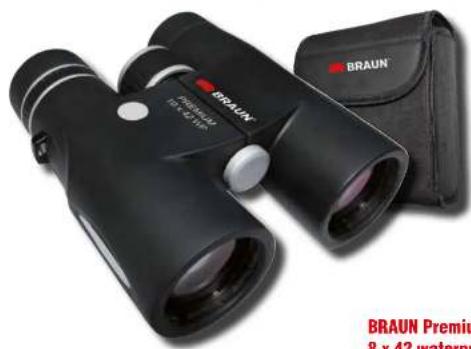

BRAUN Premium 10 x 42 waterproof

Magnification: 10x ULTRALIT® glass lens Lens diameter: 42 mm Exit pupil: 4.2 mm Eye relief: 15 mm Field of view: 6.8°, 114 m / 1000 m Close focus distance: 1.2 m Dimensions: 140 x 110 x 51 mm Weight: 780 g

item no. 20157

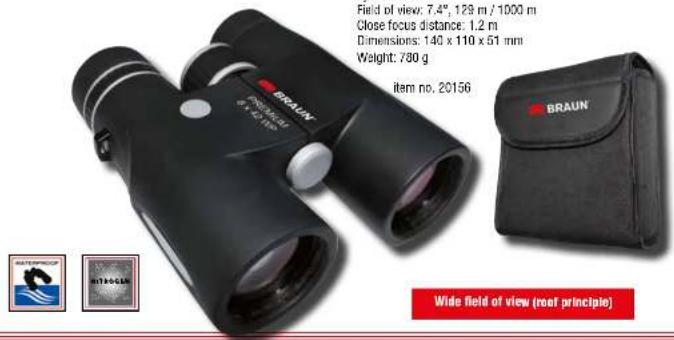

BRAUN Premium 8 x 42 waterproof

Magnification: 10x ULTRALIT® glass lens Lens diameter: 42 mm Exit pupil: 5.25 mm Eye relief: 18 mm Field of view: 7.4°, 129 m / 1000 mm Close focus distance: 1.2 m Dimensions: 140 x 110 x 51 mm Weight: 780 g

Field of view: 7.4", 129 m / 1000 m Close focus distance: 1.2 m Dimensions: 140 x 110 x 51 mm Weight: 780 g Item no. 20156 BRAUN WIDE FIELD OF VIEW (ROOT PRINCIPLE)

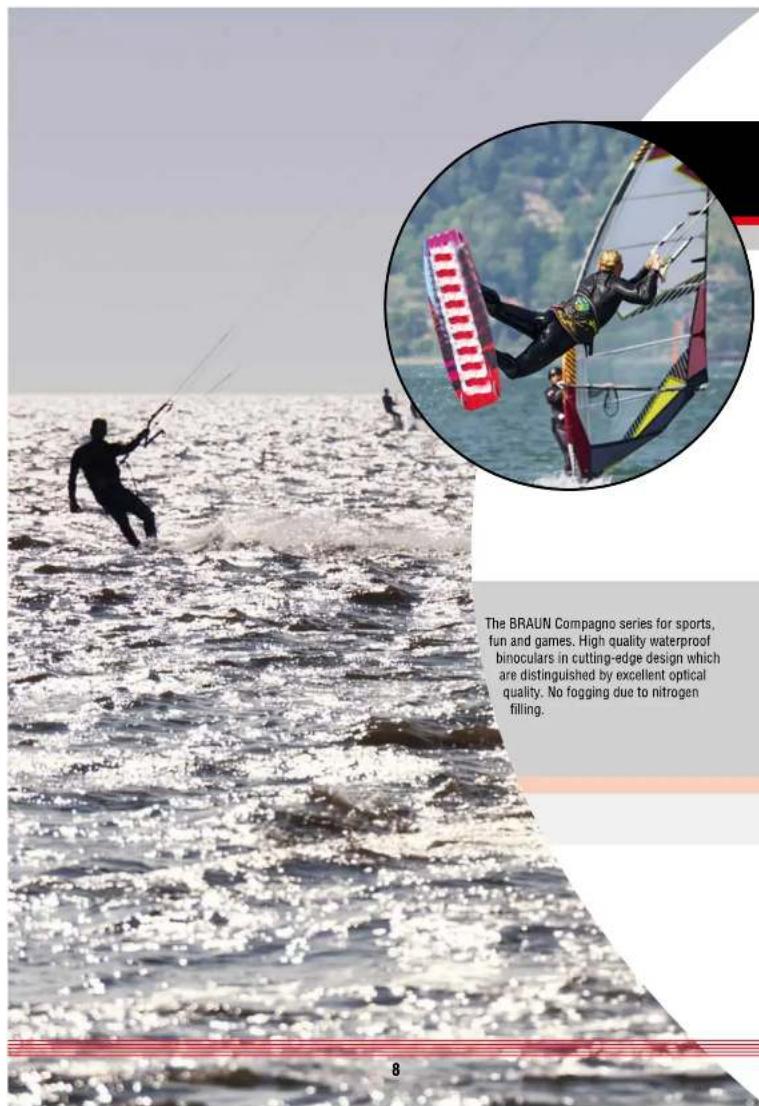

The BRAUN Compagno series for sports, fun and games. High quality waterproof binoculars in cutting-edge design which are distinguished by excellent optical quality. No fogging due to nitrogen filling.

The Compagno series: practical, compact and most modern in design

Product photo of binoculars and a black backpack with two circular labels (no visible text or symbols on main objects)

BRAUN COMPAGNO 8 x 26 WP

Magnification: 8x

ULTRALIT® glass lens

Lens diameter: 26 mm

Field of view: 6.8°, 118.6 m / 1000 m

Exit pupil: 3.25 mm

Eye relief: 16.0 mm

Waterproof: 0,5 m / 15 min.

Dimensions: 117 x 115 x 40 mm

Weight: 325 g

item no. 20000

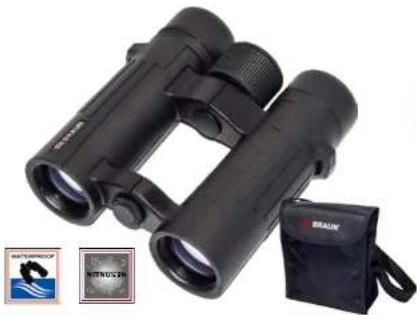

BRAUN COMPAGNO 10 x 26 WP

Magnification: 10x

ULTRALIT® glass lens

Lens diameter: 26 mm

Field of view: 5,6°, 98 m / 1000 m

Exit pupil: 2,6 mm

Eye relief: 14,1 mm

Waterproof: 0.5 m / 15 min

Dimensions: 117 x 115 x 40 mm

Weight: 325 g

item no. 20001

Black binoculars and a packaged bag (no visible text or symbols)

Black binoculars with a warning label and two small inset images showing 'BATH SPROOF' and 'NITROUGH' (no text on binoculars or background)

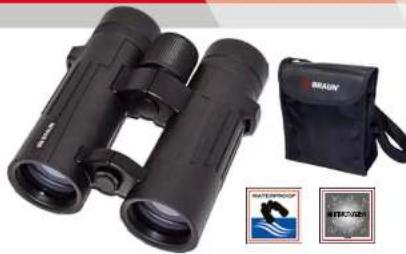

BRAUN COMPAGNO 8 x 34 WP

Magnification: 8x

ULTRALIT® glass lens

Lens diameter: 34 mm

Field of view: 7,0°, 124 m / 1000 m

Exit pupil: 4,2 mm

Eve relief: 17.4 mm

Waterproof: 0,5 m / 15 min.

Dimensions: 130 x 126 x 45 mm

Weight: 450 g

item no. 20002

The BRAUN Compagno series for sports, fun and games. High quality waterproof binoculars in cutting-edge design which are distinguished by excellent optical quality. No fogging due to nitrogen filling.

The Compagno series: practical, compact and most modern in design

Product photo of black binoculars with a small inset image showing 'BRAUN' and 'WATERMOUNT' logos (no readable text on binoculars or background)

BRAUN COMPAGNO 10 x 34 WP

Magnification: 10x

ULTRALIT® glass lens

Lens diameter: 34 mm

Field of view: 6.0°, 106 m / 1000 m

Exit pupil: 3,3 mm

Eye relief: 16 mm

Waterproof: 0,5 m / 15 min.

Dimensions: 130 x 126 x 45 mm

Weight: 450 g

item no. 20003

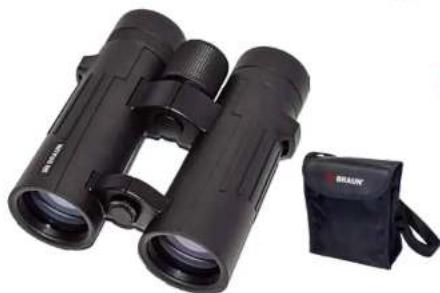

BRAUN COMPAGNO 8 x 42 WP

Magnification: 8x

ULTRALIT® glass lens

Lens diameter: 42 mm

Field of view: 7,1°, 124 m / 1000 m

Exit pupil: 5.2 mm

Eye relief: 17.3 mm

Waterproof: 0.5 m / 15 min.

Dimensions: 146 x 135 x 55 mm

Weight: 550 g

item no. 20004

Black binoculars and a small bag labeled 'BAUN' (no visible text or symbols on the binoculars or bag)

Black binoculars and a small black device labeled 'BRALIV' (no visible text or symbols on the binoculars or device)

BRAUN COMPAGNO 10 x 42 WP

Magnification: 10x

ULTRALIT® glass lens

Lens diameter: 42 mm

Field of view: 6,1", 106 m / 1000 m

Exit pupil: 4,2 mm

Eye relief: 16,1 mm

Waterproof: 0,5 m / 15 min.

Dimensions: 146 x 135 x 55 mm

Weight: 550 g

item no. 20005

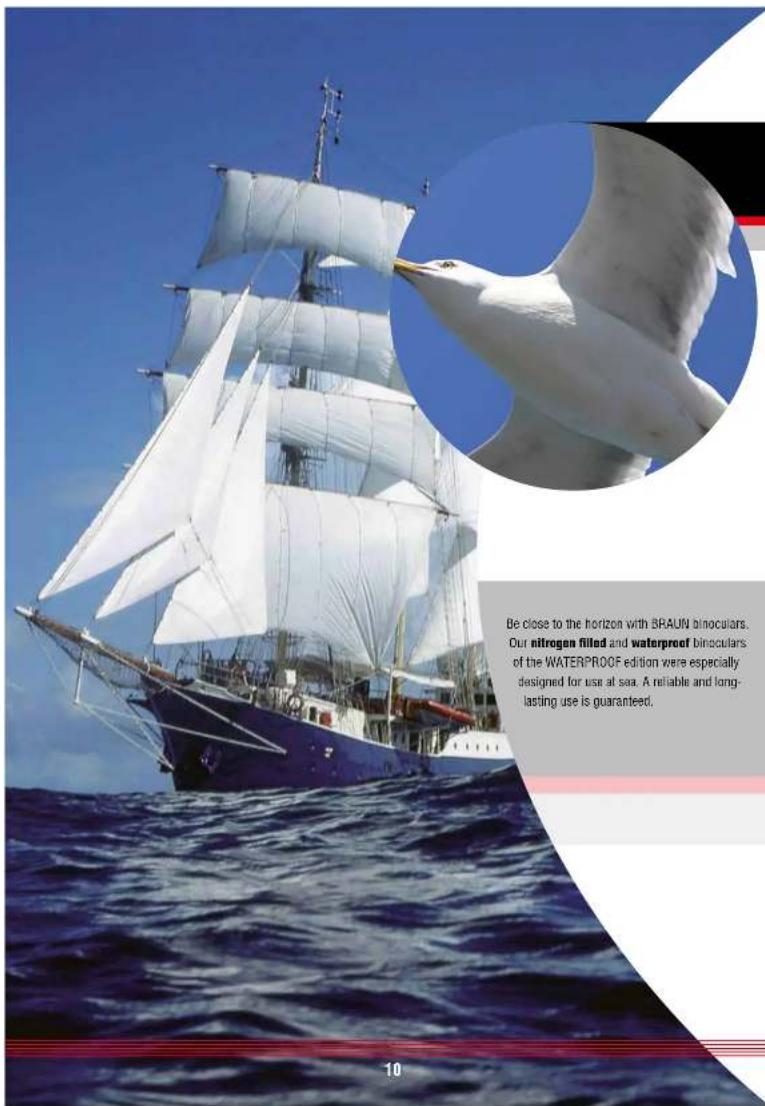

Be close to the horizon with BRAUW binoculars. Our nitrogen filled and waterproof binoculars of the WATERPROOF edition were especially designed for use at sea. A reliable and long- lasting use is guaranteed.

Waterproof

Well proven optics

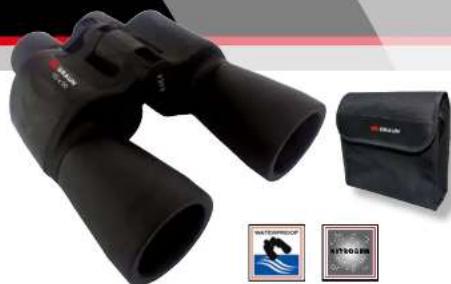

Product photo of black binoculars and a bag with two branded seals (no visible text or symbols on main objects)

BRAUN Premium

10 x 50 waterproof

Magnification: 10x

ULTRALIT® glass lens

Lens diameter: 50 mm

Field of view: 6.5°, 114 m / 1000 m

Exit pupil: 5.0 mm

Eye relief: 16.16 mm

Waterproof: 0.5 m / 15 min

Dimensions: 181 x 175 x 75 mm

Weight: 940 g

item no. 20161

BRAUN Premium

7 x 50 waterproof

Magnification: 7x

ULTRALIT® glass lens

Lens diameter: 50 mm

Field of view: 6.6°, 116 m / 1000 m

Exit pupil: 7.0 mm

Eye relief: 24.7 mm

Waterproof: 0.5 m / 15 min

Dimensions: 181 x 175 x 75 mm

Weight: 940 g

item no. 20160

Black binoculars with a small inset image showing a branded bag and a 'Waterfume' logo (no text on main subject)

Black binoculars with a red star logo (no visible text or symbols)

BRAUN binocular

8x42 waterproof

Magnification: 8x

ULTRALIT® glass lens

Lens diameter: 42 mm

Field of view: 6.8". 119 m / 1000 m

Exit pupil: 5.2 mm

Eye relief: 17.8 mm

Waterproof: 1.5 m / 3 min

Dimensions: 146 x 53 x 126 mm

Weight: 670 g

item no. 20150

Nitrogen filled for fogproof protection

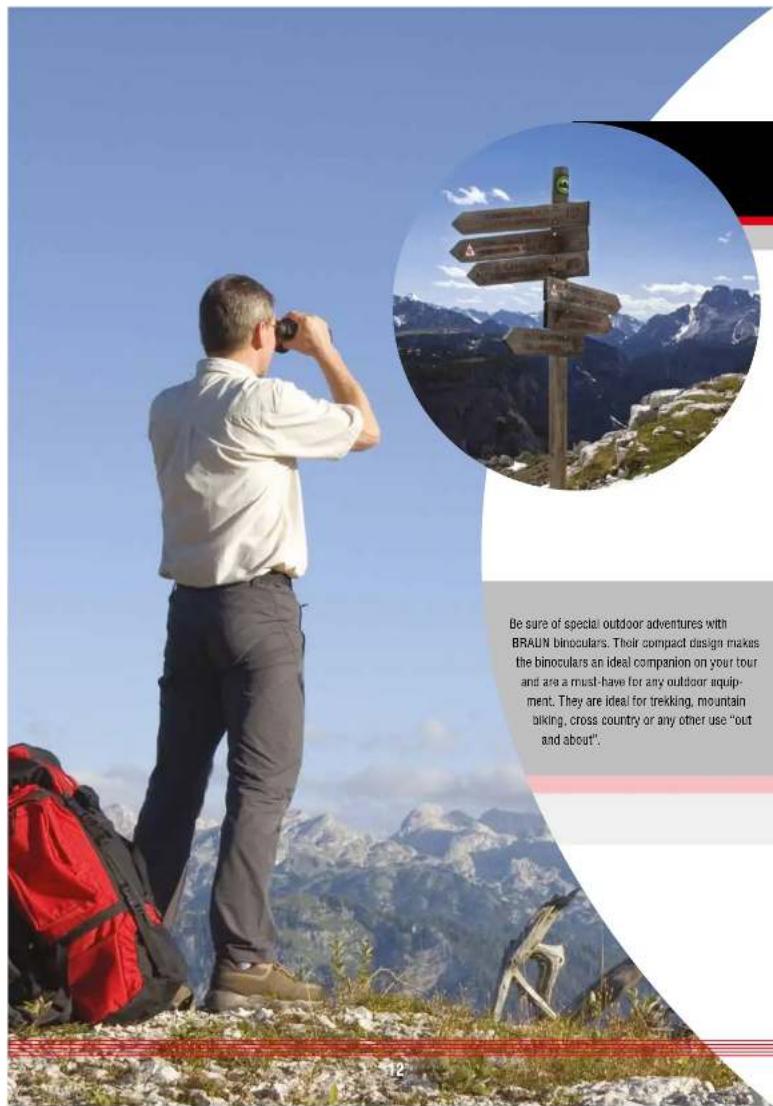

Be sure of special outdoor adventures with BRAUN binoculars. Their compact design makes the binoculars an ideal companion on your tour and are a must-have for any outdoor equipment. They are ideal for trekking, mountain biking, cross country or any other use "out and about". 12

Enhance your outdoor experience

Black binoculars and a Brainer bag with two side-view diagrams (no text or symbols on the main objects)

BRAUN Trekking 8x32 waterproof

Magnification: 8x

ULTRALIT® glass lens

Lens diameter: 52 mm Exit pupil: 40 mm

Eye relief: 16 mm

Field of view: 7.5°, 131 m / 1000 m

Close locus distance. 1.5 m Dimanions: 110 x 107 x 49

Weight: 500 g

item no. 20154

Black binoculars with visible lens and screen (no text or symbols)

Black binoculars with visible lens and screen (no text or symbols)

BRAUN Trekking 10x32 waterproof

Magnification: 10x

ULTRALIT® glass lens

Lens diameter: 32

Exit pupil: 3.2 mm

Eye radius: 15 mm Field of view: 5.5°, 96 m / 1000 m

Close focus distance: 1.5 m

Dimensions: 100 x 107 x 48 mm

Weight: 500 ¢

item no. 20155

BRAUN Trekking 10x25 waterproof

Magnification: 10x

ULTRALIT® glass lens

Lens diameter: 25 mm

Exit pupil: 2.5 mm

Eye reffer. 15.5 mm

Field of view: 5.5, 50 m², 1000 m² Focus focus distance: 1.5 m

blosc focus distance: 1.5 mm Dimensions: 100 x 105 x 49 mm

Weight: 290 g

item no. 20153

Compact design

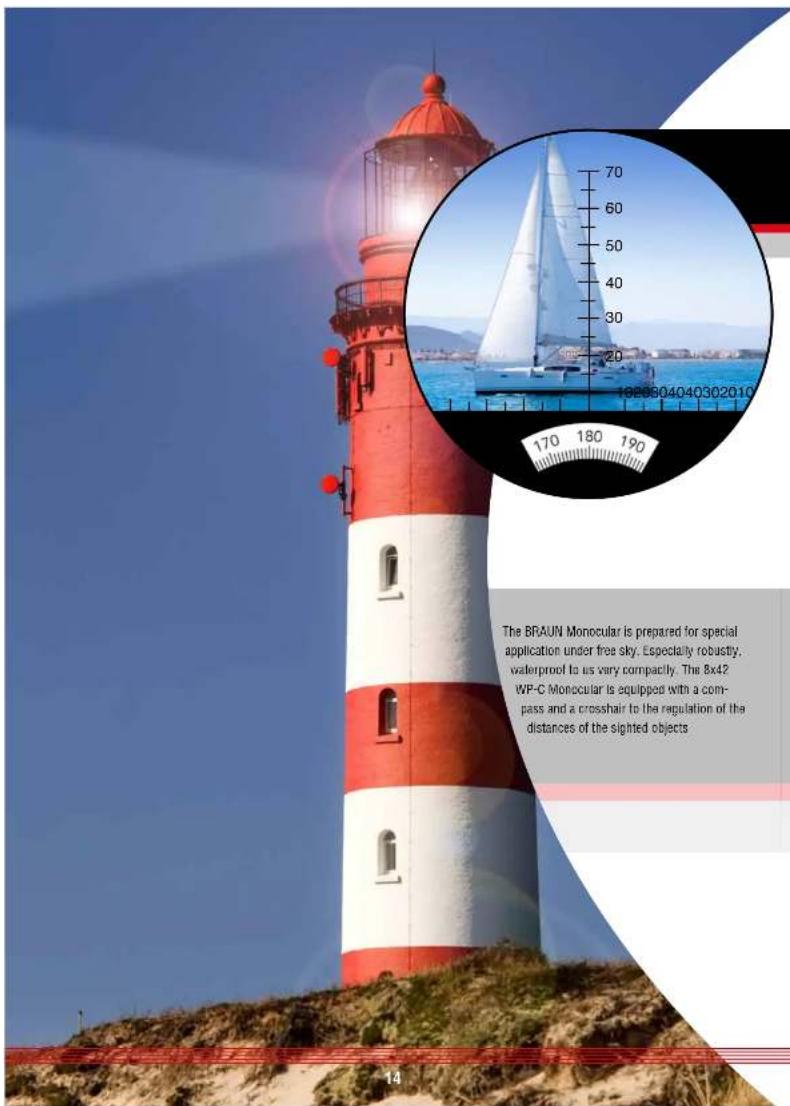

The BRAUN Monocular is prepared for special application under free sky. Especially robustly, waterproof to us very compactly. The 8x42 WP-C Monocular is equipped with a compass and a crosshair to the regulation of the distances of the sighted objects

Distance measurement Compass

Black monocular 0x42 W.P.C. device with open lid, no visible text or symbols on body

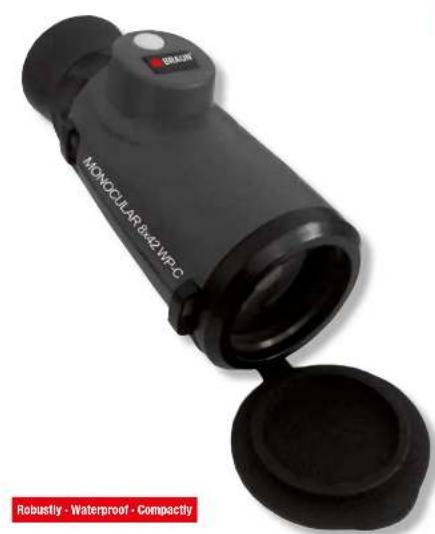

BRAUN Monocular 8 x 42 WP-C

Maginification: 8 x ULTRALIT® glass lens Lens diameter: 42 mm Field of view: 7.0°, 112 m / 1000 m Exit pupil: 5.25 mm Eye relief: 18.0 mm Waterproof: 0.5 m / 20 min. Dimensions: 61 x 65 x 143 mm Wight: 340 g

item no. 20140

Black wristband device labeled 'BRAUN' with red logo (no additional text or symbols visible)

Perspective: South (180°)

Compass: With a compass the direction is read in degree. The north has an Aziumt from 360° the east from 90° the south from 180° und the west from 270°

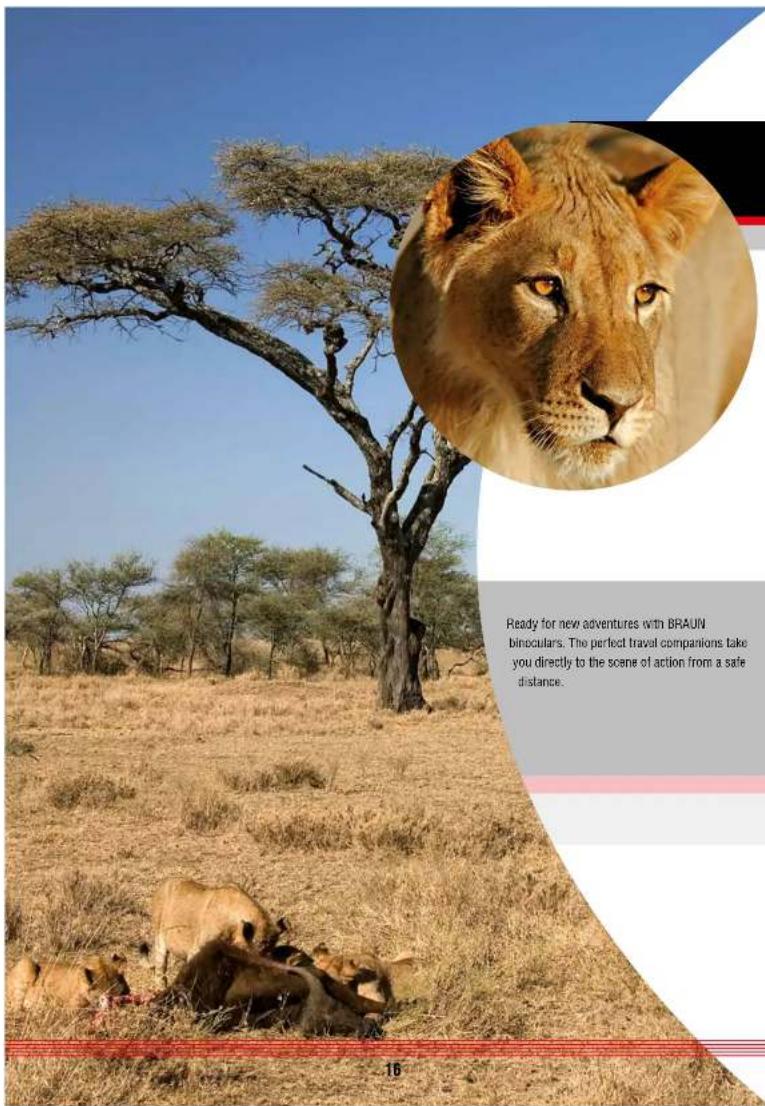

Ready for new adventures with BRAUN binoculars. The perfect travel companions take you directly to the scene of action from a safe distance.

Variable magnification High light value

BRAUN binocular 10-30x60 zoom

Magnification: 10–30x

ULTRALIT® glass lens Lens diameter: 60 mm

Lens diameter: 60 mm Field of view: 2. 0–3.6°, 62–34 m / 1000 m

Exit pupil: 5.8–2.0 mm

Eye relief: 4.5–11.7 mm

Dimensions: 245 x 165 x 78 mm

Weight: 1100 g

Item no. 20117

BRALUN -34 m / 1000 m 78 mm Zoom for versatility

Black BRUM binoculars with red label indicating 'Zoom for versatility' (no other text or symbols)

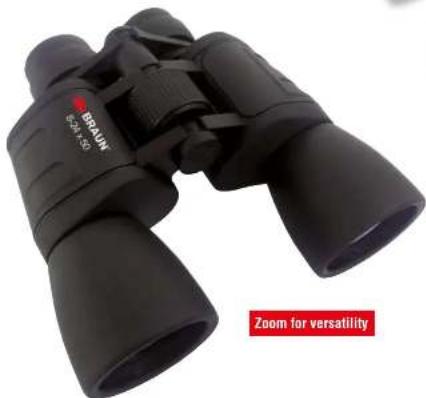

BRAUN Binocular 8-24 x 50 Zoom

Magnification: 8-24 x

ULTRALIT® glass lens

Lens diameter: 50 mm

Field of view: 4.5° - 2.3°, 78 - 40 m / 1000 m

Exit pupil: 2.1 - 6.2 mm

Eye relief: 12.5 - 16.5 mm

Dimensions: 190 x 190 x 65 mm

Wight: 650 g

item no. 20168

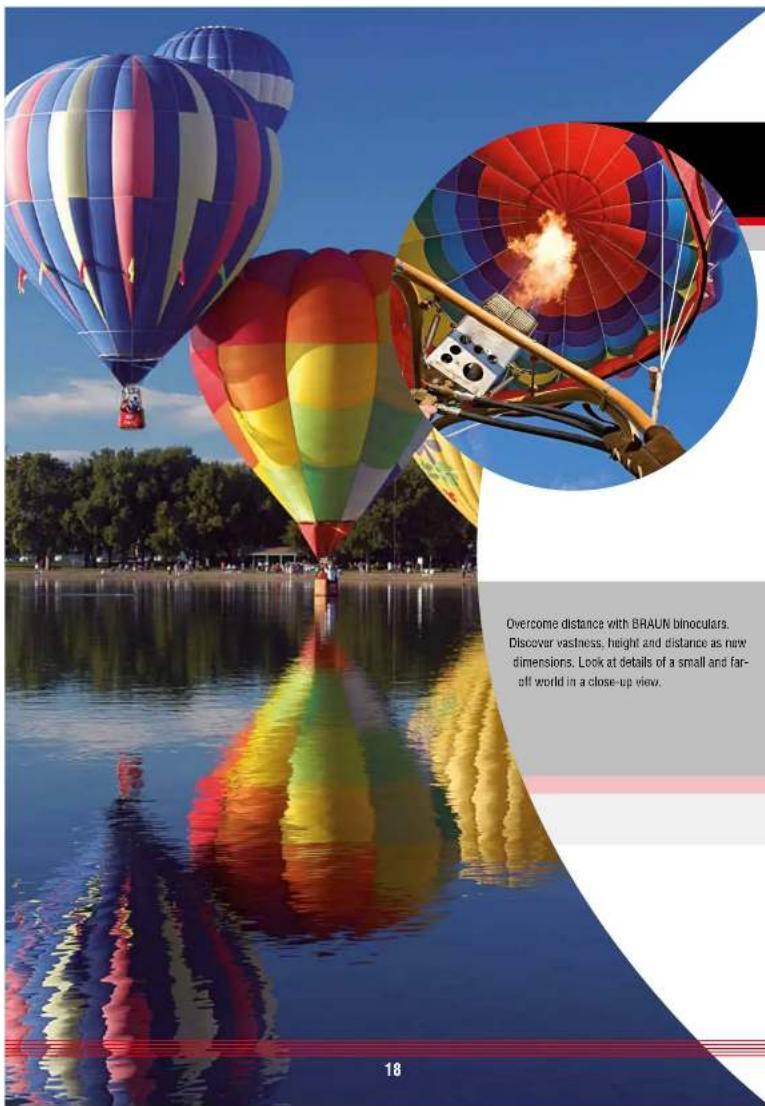

Overcome distance with BRAUN binoculars. Discover vastness, height and distance as new dimensions. Look at details of a small and far- off world in a close-up view.

Universal use

High light value

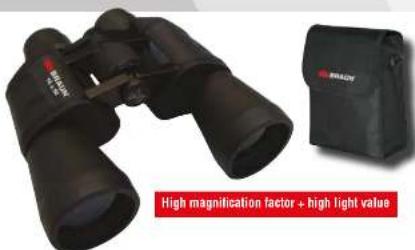

High magnification factor + high light value

BRAUN binocular

16 x 50

Magnification: 16x

ULTRALIT® glass lens

Lens diameter: 50 mm

Field of view: 4.2°, 73 m / 1000 m

Exit pupil: 2.8 mm

Eye relief: 6.6 mm

Dimensions: 157 x 164 x 60 mm

Weight: 790 g

item no. 20124

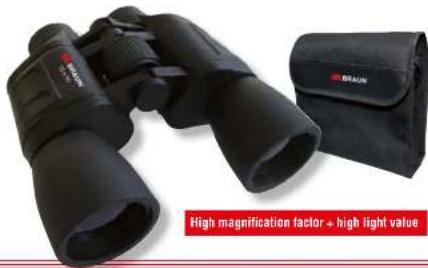

BRAUN binocular 12 x 50

Magnification: 12x

ULTRALIT® glass lens

Lens diameter: 50 mm

Field of view: 5.2°, 92 m / 1000 m

Exit pupil: 3.6 mm

Eye relief: 12.0 mm

Dimensions: 157 x 184 x 60 mm

Weight: 790 g

item no. 20125

BEALIX High magnification factor + high light val

High magnification factor + high light value

BRAUN binocular

10 x 50

Magnification: 10x

ULTRALIT® glass lens

Lens diameter: 50 mm

Field of view: 5.7°, 99 m / 1000 m

Exit pupil: 5.0 mm

Eye relief: 11.8 mm

Dimensions: 175 x 180 x 60 mm

Weight: 820 g

item no. 20166

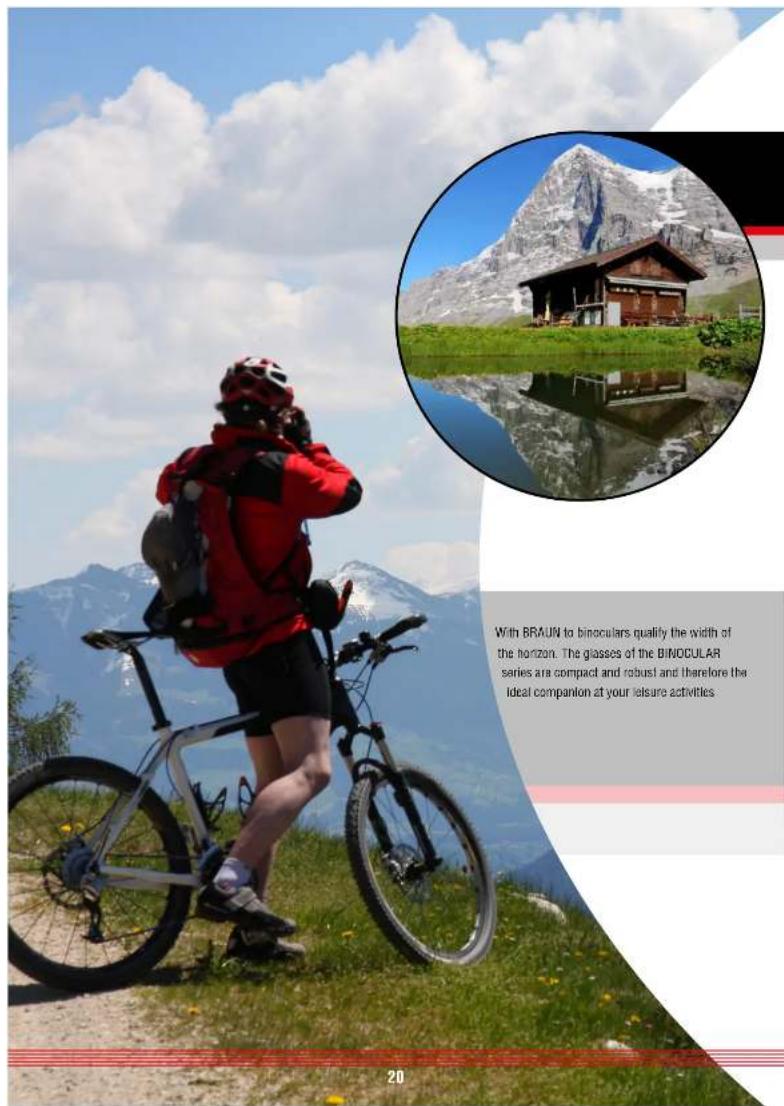

With BRAUN to binoculars qualify the width of the horizon. The glasses of the BINOCULAR series are compact and robust and therefore the ideal companion at your leisure activities.

Robustly in use application

Light-strongly in the attractive design

Circular cropped photo of a wooden cabin by a reflective lake with snow-capped mountains in the background (no text or symbols visible)

With BRAUN to binoculars qualify the width of the horizon. The glasses of the BINOCULAR series are compact and robust and therefore the ideal companion at your leisure activities.

BRAUN 1.59 BRAUN High enlargement factor + Light-strongly

BRAUN Binocular

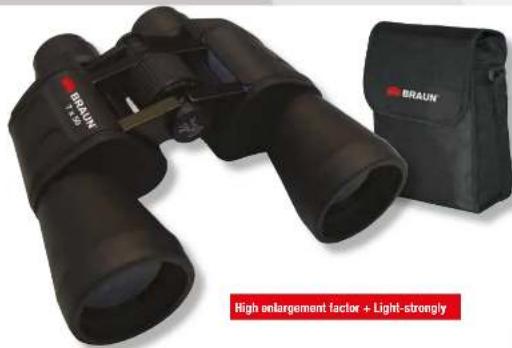

7×50

Magnification: 7 x

ULTRALIT® glass lens

Lens diameter: 50 mm

Field of view: 7.5°, 130 m / 1000 m

Exit pupil: 6.5 mm

Eye relief: 15 mm

Dimensions: 190 x 190 x 65 mm

Weight: 850 g

Item no. 20123

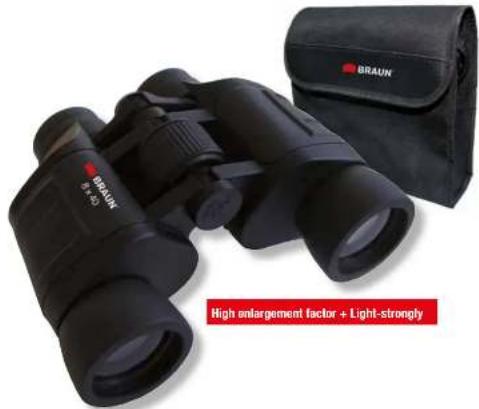

BRAUN Binocular

8×40

Magnification: 8 x

ULTRALIT® glass lens

Lens diameter: 40 mm

Field of view: 6.6°, 115 m / 1000 m

Exit pupil: 5.0 mm

Eye relief: 11.0 mm

Dimensions, 140 x 175 x 60 mm

weight: 700 g

item no. 20165

BRAUN 9-40 High enlargement factor + Light-strongly

BRAUN binoculars take you to the heart of sports and competition. Be it horse riding or motor sports, be it indoor or outdoor; our lightweight. ultra-compact binoculars will make your visit to an event an unforgettable experience.

Ultra-compact series Low weight

Product photo of a BHAUN 10.24 binoculars and a dark bag with 'BRAUN' branding, labeled as 'High magnification factor' (no other text or symbols visible)

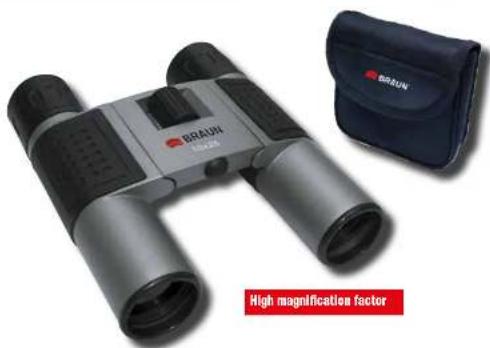

BRAUN binocular 10x25 titanium-black

Magnification: 10x ULTRALIT® glass lens Lens diameter: 25 mm Field of view: 5.8°, 101 m / 1000 m Exit pupil: 2.5 mm Eye relief: 10.3 mm Dimensions: 118 x 66 x 48 mm Weight: 190 g

item no. 20121

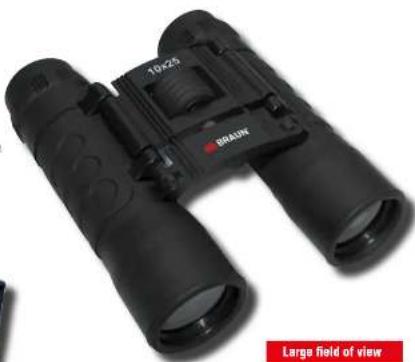

BRAUN binocular 10x25 black

Magnification: 10x ULTRALIT® glass lens Lens diameter: 25 mm Field of view: 5.8°, 101 m / 1000 m Exit pupil: 2.5 mm Eye relief: 10.3 mm Dimensions: 112 x 65 x 44 mm Weight: 180 g item no. 20122

Black binoculars with '10x25' label and 'BRAUN' logo, shown against white background (no readable text beyond labels)

Large field of view

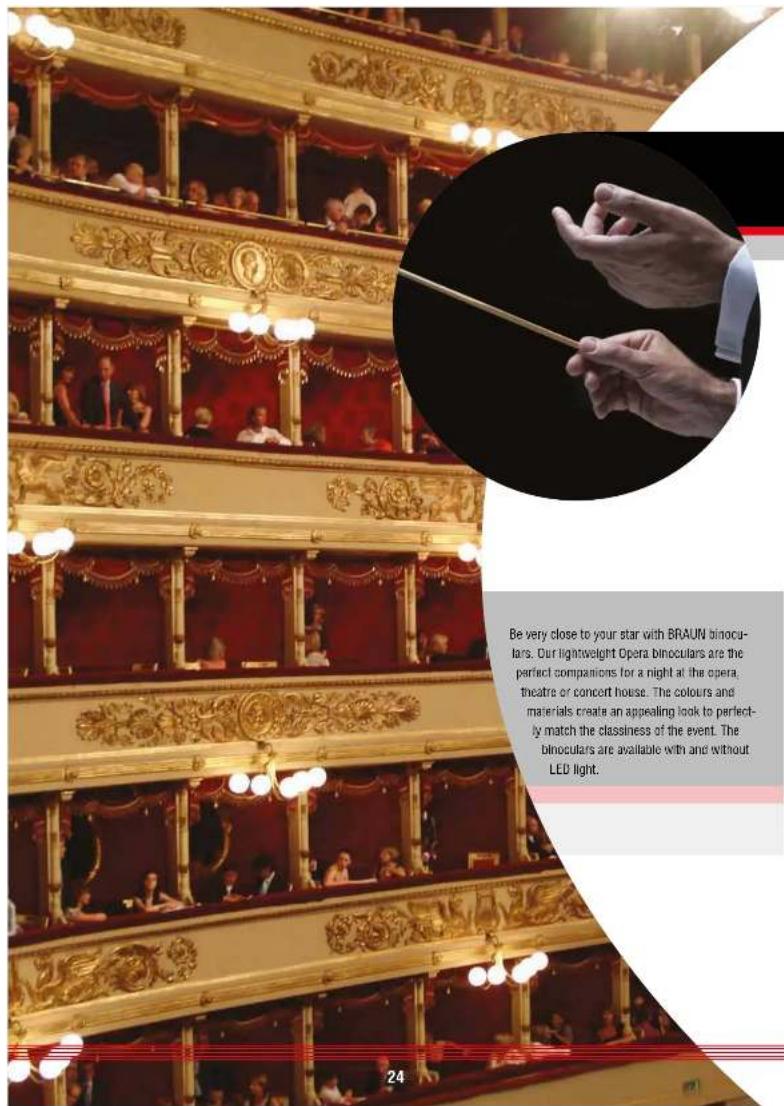

Be very close to your star with BRAUN binoculars. Our lightweight Opera binoculars are the perfect companions for a night at the opera, theatre or concert house. The colours and materials create an appealing look to perfectly match the classiness of the event. The binoculars are available with and without LED light.

Elegant companions for any festival

Close-up of a golden-framed binoculars with black lenses (no text or symbols visible)

BRAUN Opera 3x25 gold-black

Magnification: 3x

ULTRALIT® glass lens

Lens diameter: 25 mm

Exit pupil: 8.3 mm

Eye relief: 12.3 mm

Field of view: 6.0°, 105 m / 1000 m

Close focus distance: 3 m

Dimensions: 110 x 50 x 32 mm

Weight: 140 g

item no. 20112

High magnification factor

BRAUN Opera 3x25 gold-pearl

Magnification: 3x

ULTRALIT® glass lens

Lens diameter: 25 mm

Exit pupil: 8.3 mm

Eye relief: 12.3 mm

Field of view: 6.0°, 105 m / 1000 m

Close focus distance: 3 m

Dimensions: 110 x 50 x 32 mm

Weight: 140 g

Item no. 20113

Close-up of a pair of ornate metallic binoculars with gold trim, no visible text or symbols.

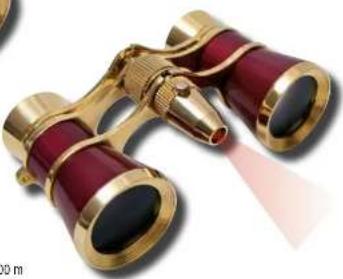

BRAUN Opera 3x25 gold-burgundy with LED light

Magnification: 3x

ULTRALIT® glass lens

Lens diameter: 25 mm

Exit pupil: 6.3 mm

Eye relief: 12.3 mm

Field of view: 6.0", 105 m / 1000 m

Close focus distance: 3 m

Dimensions: 110 x 50 x 32 mm

Weight: 140 g

item no. 20114

Golden binoculars with red lenses and gold frame (no text or symbols visible)

Large field of view + LED

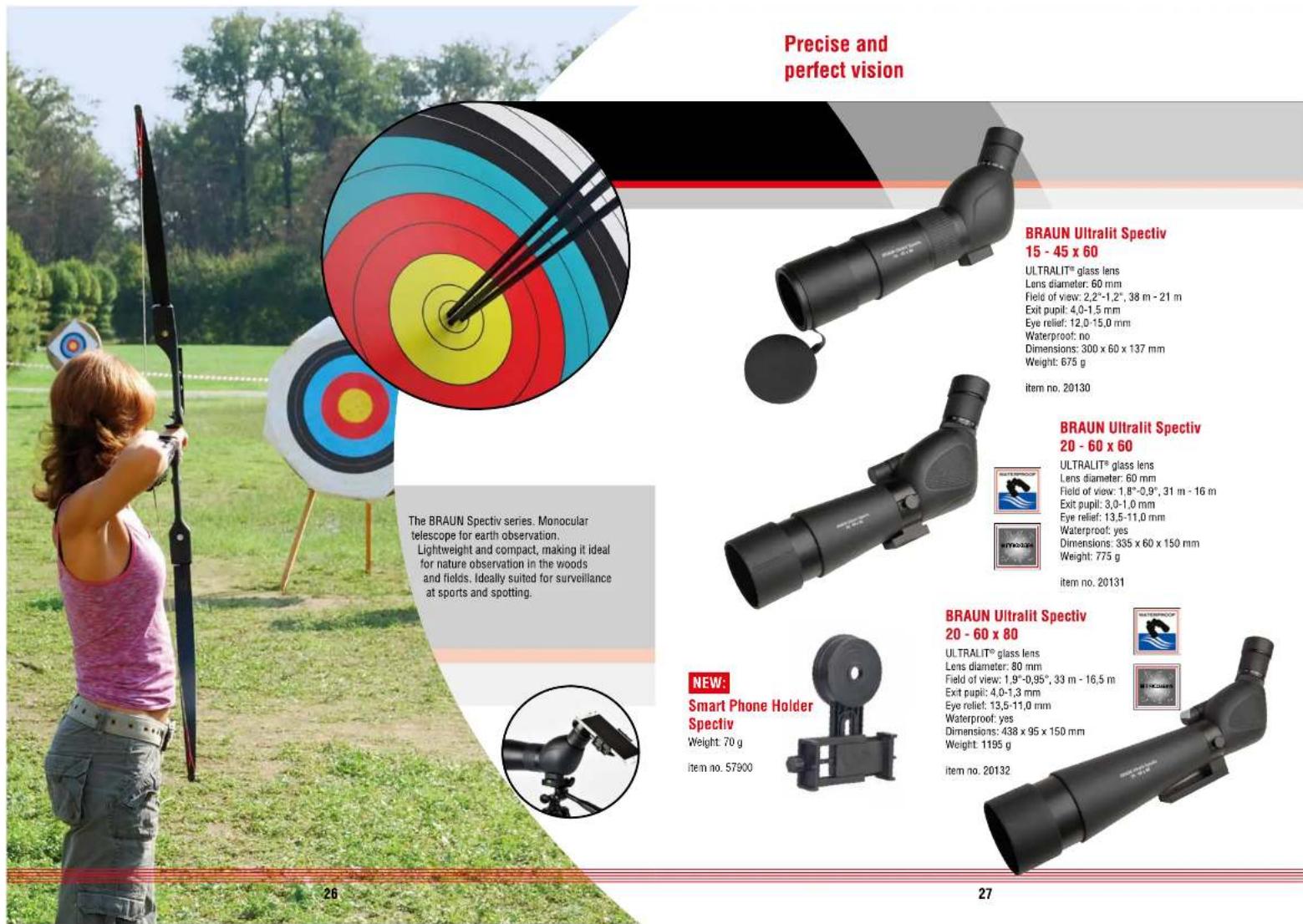

Precise and perfect vision BRAUN Ultralit Spectiv 15 - 45 x 60 ULTRALIT® glass lens Lens diameter: 60 mm Field of view: 2,2"-1,2", 38 m - 21 m Exit pupil: 4,0-1,5 mm Eye relief: 12,0-15,0 mm Waterproof: no Dimensions: 300 x 60 x 137 mm Weight: 675 g item no. 20130 BRAUN Ultralit Spectiv 20 - 60 x 60 ULTRALIT® glass lens Lens diameter: 60 mm Field of view: 1,8"-0,9", 31 m - 16 m Exit pupil: 3,0-1,0 mm Eye relief: 13,5-11,0 mm Waterproof: yes Dimensions: 335 x 60 x 150 mm Weight: 775 g item no. 20131 NEW: Smart Phone Holder Spectiv Weight: 70 g item no. 57900 BRAUN Ultralit Spectiv 20 - 60 x 80 ULTRALIT® glass lens Lens diameter: 80 mm Field of view: 1,9"-0,95", 33 m - 16,5 m Exit pupil: 4,0-1,3 mm Eye relief: 13,5-11,0 mm Waterproof: yes Dimensions: 438 x 95 x 150 mm Weight: 1195 g item no. 20132

Close-up of a black optical instrument with attached lens and probe, shown against a white background (no text or symbols visible)

Black optical instrument with mounted lens and eyepiece (no visible text or symbols)

NEW:

Smart Phone Holder

Spectiv

Weight: 70 g

item no. 57900

BRAUN Ultralit Spectiv

20 - 60 x 80

ULTRALIT® glass lens

Lens diameter: 80 mm

Field of view: 1,9°-0,95°, 33 m - 16,5 m

Exit pupil: 4,0-1,3 mm

Eye relief: 13,5-11,0 mm

Waterproof: yes

Dimensions: 438 x 95 x 150 mm

Weight: 1195 g

item no. 20132

roof: yes ions: 438 x 95 x 150 mm 1195 g . 20132

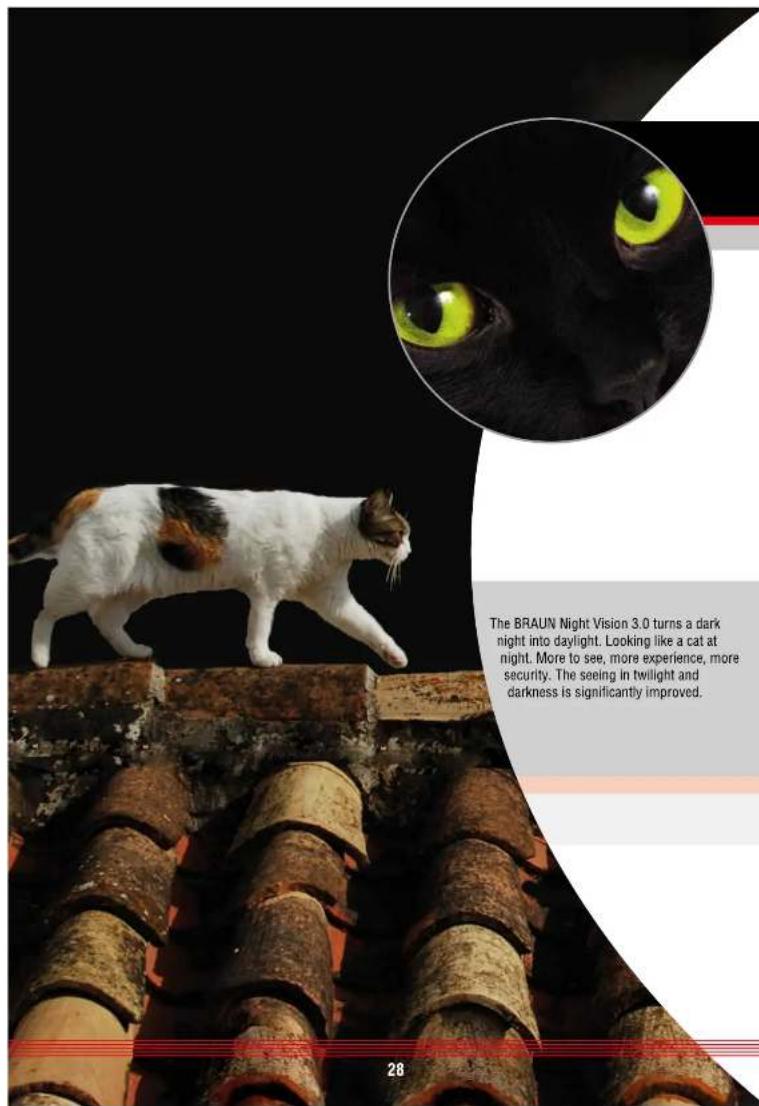

The BRAUN Night Vision 3.0 turns a dark night into daylight. Looking like a cat at night. More to see, more experience, more security. The seeing in twilight and darkness is significantly improved.

See at night.

Nothing is a secret anymore

Blue Noise Analyzer device with black lens and attached sensor port (no visible text or symbols)

BRAUN

Night Vision 3.0

Magnification: 3 x

Lens diameter: 14,5 mm

Field of vision: 14°

Field of view at Night: max. 100 m

Infrared: integrated

Exit pupil: 20 mm

Dimensions: 134 x 92 x 47 mm

Weight: 250 g

item no. 20171

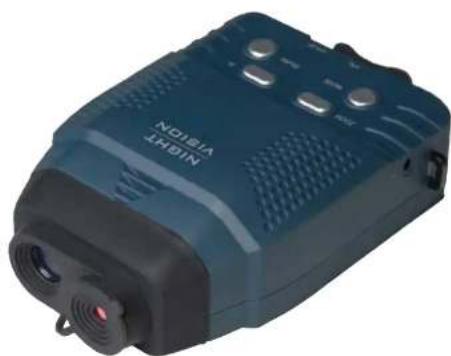

Blue and black night vision device with visible lens and control buttons (no text or symbols on body)

Close-up of a blue industrial device with circular frame and mounting holes (no visible text or symbols)

BRAUN binoculars excel in robustness, modern design and high-quality optics.

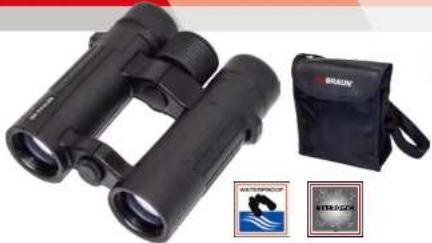

BRAUN PREMIUM 10x56 WP-ED

Folder page	3	3	5	5	11
Leisure + travel	●	●	●	●	●
Events	●	●	●	●	●
Outdoor	●	●	●	●	●
Bird + game watching, hunting	●	●	●	●	●
Astronomy	●	●	●	●	●
Magnification	10x	8x	10x	8x	10x
Lens system	ULTRALIT®	ULTRALIT®	ULTRALIT®	ULTRALIT®	ULTRALIT®
Lens diameter	56 mm	56 mm	42 mm	42 mm	50 mm
Light value	31.4	49	17.6	27.6	25
Twilight number	23.7	21.2	20.5	18.3	22.4
Prism	Roof BAK-4	Roof BAK-4	Roof BAK-4	Roof BAK-4	Porro, BAK-4
Lens coating	Comp. multibayer coating	Comp. multibayer coating	Comp. multibayer coating	Comp. multibayer coating	●
Focusing	Central	Central	Central	Central	Central
Exit pupil	5.6 mm	7.0 mm	4.2 mm	5.25 mm	5.0 mm
Eye relief	18.2 mm	23 mm	15 mm	18 mm	16.16 mm
Field of view	6.0", 105 m / 1000 m	6.1", 107 m / 1000 m	6.5", 114 m / 1000 m	7.4", 129 m / 1000 m	8.5", 114 m / 1000 m
Close focus distance	3 m	3 m	1.2 m	1.2 m	7 m
Diopter adjustment	-4/+4	-4/+4	-4/+4	-4/+4	-4/+4
Interpupillary distance	56-74 mm	56-74 mm	56-74 mm	56-74 mm	56-72 mm
Waterproof (max. depth/time)	1 m/5 min.	1 m/5 min.	1.5 m/3 min.	1.5 m/3 min.	0.5 m/15 min.
Nitrogen filled	●	●	●	●	●
Eyecup system	Rubber twist-up2	Rubber twist-up2	Rubber twist-up2	Rubber twist-up2	Rubber pop-up1
Thread for tripod	●	●	●	●	●
Dimensions	165 x 148 x 66 mm	165 x 148 x 66 mm	140 x 110 x 51 mm	140 x 110 x 51 mm	181 x 175 x 75 mm
Weight	1096 g	1086 g	780 g	780 g	940 g
Item no. / EAN	20159 / 40 00567 20159 5	20158 / 40 00567 20158 8	20157 / 40 00567 20157 1	20158 / 40 00567 20156 4	20161 / 40 00567 20161 8

BRAUN PREMIUM 8x56 WP-ED

BRAUN PREMIUM 10x42 waterproof

BRAUN PREMIUM 8x42 waterproof

BRAUN PREMIUM 10 x 50 WP
Accessories: Ever-ready case, carrying strap, cleaning cloth, operating instructions.
Legend: ● = yes, ○ = no, 1 = fold down eyecups, 2 = twist-type snap-on eyecups

BRAUN binoculars excel in robustness, modern design and high-quality optics.

BRAUN PREMIUM 7 x 50 WP

Folder page	11
Leisure + travel	●
Events	●
Outdoor	●
Bird + game watching, hunting	●
Astronomy	●
Magnification	7x
Lens system	UL
Lens diameter	50
Light value	49
Twilight number	18
Prism	Po
Lens coating	●
Focusing	Ce
Exit pupil	7.1
Eye relief	27
Field of view	6.6
Close focus distance	7 r
Diopter adjustment	-2
Interpupillary distance	50
Waterproof (max. depth/time)	0.
Nitrogen filled	●
Eyecup system	Ru
Thread for tripod	●
Dimensions	18
Weight	94
Item no. / EAN	20

BRAUN Compagno 8 x 26 WP

7	7
●	●
●	●
●	●
●	●
●	●
8x	10x
ULTRALIT *	ULTRALIT *
26 mm	26 mm
10,6	6,8
14,4	16,1
Porro, BAK-4	Porro, BAK-4
-	-
Central	Central
3,25 mm	2,6 mm
16,0 mm	14,1 mm
6,8", 118,6 m / 1000 m	5,6", 98 m / 1
4 m	4 m
-4 / +4	-4 / +4
56 - 74 mm	56 - 74 mm
0,5 m / 15 min.	0,5 m / 15 m
●	●
RubberTwist-up ^2	Rubber Twist
●	●
117 x 115 x 40 mm	117 x 115 x 4
325 g	325 g
20000 / 40 00567 20000 6	20001 / 40 00

BRAUN Compagno 10 x 26 WP

7	7
●	●
●	●
●	●
●	●
●	●
10x	8x
ULTRALIT *	ULTRALIT *
26 mm	34 mm
6,8	17,6
16,1	16,5
Porro, BAK-4	Porro, BAK-4
-	-
Central	Central
2,6 mm	4,2 mm
14,1 mm	17,4 mm
5,6", 98 m / 1000 m	7,0", 124 m / 1000 m
4 m	4 m
-4 / +4	-4 / +4
56 - 74 mm	56 - 74 mm
0,5 m / 15 min.	0,5 m / 15 min.
●	●
Rubber Twist-up ^2	Rubber Twist-up ^2
●	●
117 x 115 x 40 mm	130 x 126 x 45 mm
325 g	450 g
20001 / 40 00567 20001 7	20002 / 40 00567 20002

BRAUN Compagno 8 x 34 WP

7	9
●	●
●	●
●	●
●	●
●	●
8x	10x
ULTRALIT *	ULTRALIT *
34 mm	34 mm
17,6	10,9
16,5	18,4
Porro, BAK-4	Porro, BAK-4
-	-
Central	Central
4,2 mm	3,3 mm
17,4 mm	16,0 mm
7,0°, 124 m / 1000 m	6,0°, 106 m / 1000 m
4 m	4 m
-4 / +4	-4 / +4
56 - 74 mm	56 - 74 mm
0,5 m / 15 min.	0,5 m / 15 min.
●	●
Rubber Twist-up ^2	Rubber Twist-up ^2
●	●
130 x 126 x 45 mm	130 x 126 x 45 mm
450 g	450 g
20002 / 40 00567 20002 4	20003 / 40 00567 20003 1

Accessories: Ever-ready case, carrying strap, cleaning cloth, operating instructions. Legend: ● = yes, ○ = no, 1 = fold down eyecups, 2 = twist-type snap-on eyecups

BRAUN binoculars excel in robustness, modern design and high-quality optics.

BRAUN Compagno 8 x 42 WP

BRAUN Compagno 10 x 42 WP

BRAUN TREKKING 10 x 32 WP

BRAUN TREKKING 8 x 32 WP

BRAUN TREKKING 10 x 25 WP

Folder page

Leisure + travel

Events

Outdoor

Bird + game watching, hunting

Astronomy

Magnification

Lens system

Lens diameter

Light value

Twilight number

Prism

Lens coating

Focusing

Exit pupil

Eye relief

Field of view

Close focus distance

Diopter adjustment

Interpupillary distance

Waterproof (max. depth/time)

Nitrogen filled

Eyecup system

Thread for tripod

Dimensions

Weight

Item no. / EAN

9

•

•

•

•

•

8x

ULTRALIT*

42 mm

27,0

18,3

Porro, BAK-4

-

Central

5.2 mm

17.3 mm

7.1°, 124 m / 1000 m

4m

-4 / +4

56 - 74 mm

0,5 m / 15 min.

•

Rubber Twist-up ^2

•

146×135×55mm

550 g

20004/40 00567 200048

9

•

•

•

•

•

10x

ULTRALIT®

42 mm

17

20,5

Porro, BAK-4

Central

4,2 mm

16,1 mn

6,1°, 106 m / 1000 m

4

-4/ +4

56 - 74 mm

0,5 m / 15 min.

•

RubberTwist-up ^2

•

146 × 135 × 55 mm

550 g

20005/40 00567 20005 5

13

•

•

•

•

•

10x

ULTRALIT®

32 mm

10

17.9

Dachkant BAK-4

BRAUN binoculars excel in robustness, modern design and high-quality optics.

BRAUN Binocular 8 x 42 WP

BRAUN Monocular 8 x 42 WP-C

Black binoculars with no visible text or symbols on the device itself

BRAUN Binocular 10-30 x 60 Zoom

BRAUN Binocular 8-24 x 50 Zoom

Black binoculars with no visible text or symbols on the device itself

BRAUN Binocular 16 x 50

Folder page

Leisure + travel

Events

Outdoor

Bird + game watching, hunting

Astronomy

Magnification

Lens system

Lens diameter

Light value

Twilight number

Prism

Lens coating

Focusing

Exit pupil

Eye relief

Field of view

Close focus distance

Diopter adjustment

Interpupillary distance

Waterproof (max. depth/time)

Nitrogen filled

Eyecup system

Thread for tripod

Dimensions

Weight

Item no. / EAN

Accessories: Ever-ready case, carrying strap, cleaning cloth, operating instructions.

Legend: ● = yes, ○ = no, 1 = fold down eyecups, 2 = twist-type snap-on eyecups

15

•

•

•

•

D

ULTRALIT

42 mm

27.

18.3

Roof BAK-4

•

Central

5.25 mm

18 mm

7.0", 112 m / 1000 m

13 m

-47+4

56 -74 mm

0.5 m / 20 min.

•

Rubber pop-up ^2

。

61×65×143mm

340 g

20140/40 00567 201403

17

•

•

•

•

10-30x

ULTRALIT®

60 mm

33.6-4

24.5-42.4

Porro BK 7

•

Central

5.8-2mm

4.5-11.7 mm

2.0-3.6", 62-34 m / 1000 m

15 m

-4 / +4

56-74mm

。

。

Rubber pop-up ^1

•

245×165×78mm

1100 g

20117/40 00567 201175

17

•

•

•

•

•

ULTRALIT®

50 mm

38

20.0 - 34.6

Porro, BK 7

•

Central

2.1-6.2 mm

12.5-16.5 mm

4.5°-2.3°, 78-40 m / 1000 m

10 m

-21+2

56 -72 mm

。

。

Rubber pop-up ^1

•

190×190×65mm

850g

20168/40 00567 201687

19

•

•

•

•

•

Ultralit®

50 mm

7.8

28.3

Porro BK 7

•

Central

2.8 mm

6.6 mm

4.2°, 73 m / 1000 m

10

-4/4

56-74mm

。

。

Rubber pop-up ^1

•

157×184×60mm

790 g

20124/40 00567 201243

BRAUN binoculars excel in robustness, modern design and high-quality optics.

Black binoculars with visible lens and screen (no text or symbols)

BRAUN Binocular 12 x 50

Black binoculars with red logo (no visible text or symbols)

BRAUN Binocular 7 x 50

Black binoculars with red markings, no visible text or symbols on the device itself

BRAUN Binocular 10 x 50

BRAUN Binocular 8 x 40

BRAUN Binocular 10 x 25 titan-schwarz

Folder page	19	21	19	21	23
Leisure + travel	●	●	●	●	●
Events	●	●	●	●	●
Outdoor	●	●	●	●	●
Bird + game watching, hunting	●	●	●	●	○
Astronomy	●	●	●	●	○
Magnification	12x	7x	10x	8x	10x
Lens system	ULTRALIT®	ULTRALIT®	ULTRALIT®	ULTRALIT®	ULTRALIT®
Lens diameter	50 mm	50 mm	50 mm	40 mm	25 mm
Light value	13	42.3	25	25	6.25
Twilight number	24.5	18.7	22.4	17.9	15.8
Prism	Porro BK 7	Porro BK 7	Porro BK 7	Porro BK 7	Roof BK 7
Lens coating	●	●	●	●	●
Focusing	Central	Central	Central	Central	Central
Exit pupil	3.6 mm	6.5 mm	5.0 mm	5.0 mm	2.5 mm
Eye relief	12.0 mm	15 mm	11.8 mm	11 mm	10.3 mm
Field of view	5.2", 92 m / 1000 m	7.5", 130 m / 1000 m	5.7", 99 m / 1000 m	6.6", 115 m / 1000 m	5.8", 101 m / 1000 m
Close focus distance	10 m	10 m	10 m	10 m	2.5 m
Diopter adjustment	-4/+4	-4/+4	-4/+4	-4/+4	-4/+4
Interpupillary distance	56-74 mm	56 -74 mm	56 -74 mm	56 -74 mm	56-74 mm
Waterproof (max. depth/time)	○	○	○	○	○
Nitrogen filled	○	○	○	○	○
Eyecup system	Rubber pop-up1	-	-	-	Rubber pop-up1
Thread for tripod	●	●	●	●	○
Dimensions	157 x 184 x 60 mm	190 x 190 x 65 mm	175 x 180 x 60 mm	140 x 175 x 60 mm	118 x 66 x 48 mm
Weight	790 g	850 g	820 g	700 g	190 g
Item no. / EAN	20125 / 40 00567 20125 0	20123 / 40 00567 20123 6	20166 / 40 00567 20123 6	20165 / 40 00567 20123 6	20121 / 40 00567 20121 2

BRAUN binoculars excel in robustness, modern design and high-quality optics.

BRAUN Binocular 10 x 25 schwarz

BRAUN Opera 3x25 gold-black

BRAUN Opera 3x25 gold-pearl

BRAUN Opera LED 3x25 gold-burgundy

BRAUN Ultralit Spectiv 15 - 45 x 60

Folder page	23	25	25	25	27
Leisure + travel	●	-	-	-	●
Events	●	●	●	●	●
Outdoor	●	-	-	-	●
Bird + game watching, hunting	○	-	-	-	●
Astronomy	○	-	-	-	●
Magnification	10x	3x	3x	3x	15 - 45 x
Lens system	ULTRALIT ^	ULTRALIT ^	ULTRALIT ^	ULTRALIT ^	ULTRALIT ^
Lens diameter	25 mm	25 mm	25 mm	25 mm	60 mm
Light value	6.25	68.9	68.9	68.9	16 - 2,2
Twilight number	15.8	8.7	8.7	8.7	30 - 52
Prism	Roof BK 7	Galilean BK 7	Galilean BK 7	Galilean BK 7	BK 7
Lens coating	●	●	●	●	Frontlinse
Focusing	Central	Central	Central	Central	Central
Exit pupil	2.5 mm	8.3 mm	8.3 mm	8.3 mm	4,0 - 1,5 mm
Eye relief	10.3 mm	-	-	-	12,0 - 15,0 mm
Field of view	5.8°, 101 m / 1000 m	6.0°, 105 m / 1000 m	6.0°, 105 m / 1000 m	6.0°, 105 m / 1000 m	2,2°-1,2°, 38 m - 21 m
Close focus distance	2.5 m	3 m	3 m	3 m	-
Diopter adjustment	-4 / +4	-	-	-	-
Interpupillary distance	56-74 mm	-	-	-	-
Waterproof (max. depth/time)	○	-	-	-	○
Nitrogen filled	○	○	○	○	○
Eyecup system	Rubber pop-up ^1	-	-	-	Rubber Twist-up ^2
Thread for tripod	○	-	-	-	●
Dimensions	112 x 65 x 44 mm	110 x 50 x 32 mm	110 x 50 x 32 mm	110 x 50 x 32 mm	300 x 60 x 137 mm
Weight	180 g	140 g	140 g	140 g	675 g
Item no. / EAN	20122 / 40 00567 20122 9	20112 / 40 00567 20112 0	20113 / 40 00567 20113 7	20114 / 40 00567 20114 4	20130 / 40 00567 20130 4

Accessories: Ever-ready case, carrying strap, cleaning cloth, operating instructions. Tripod included with Spectivs. Legend: ● = yes, o = no, 1 = fold down eyecups, 2 = twist-type snap-on eyecups.

BRAUN binoculars excel in robustness, modern design and high-quality optics.

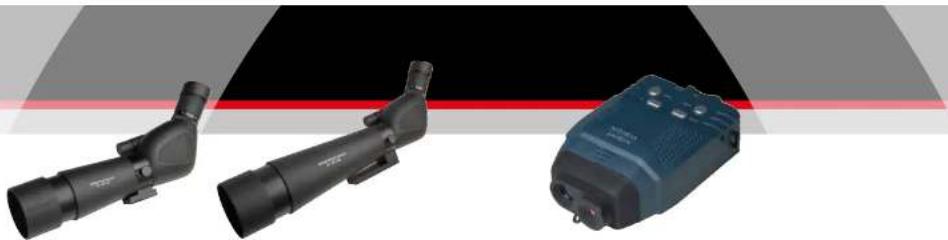

Three electronic devices: a mounted optical gun, a black-and-white range selector, and a blue handheld device (no visible text or symbols)

	BRAUN Ultralit Spectiv20 - 60 x 60	BRAUN Ultralit Spectiv20 - 60 x 80	BRAUNNight Vision 3.0
Folder page	27	27	29
Leisure + travel	●	●	●
Events	●	●	●
Outdoor	●	●	●
Bird + game watching, hunting	●	●	●
Astronomy	●	●	○
Magnification	20- 60 x	20- 60 x	3 x
Lens system	ULTRALIT *	ULTRALIT *	-
Lens diameter	60 mm	80 mm	14,5 mm
Light value	9 -1	16 - 1,7	-
Twilight number	34,6 - 60	40,0 - 69,3	-
Prism	BAK-4	BAK-4	-
Lens coating	Compl. multilayer coating	Compl. multilayer coating	-
Focusing	Central	Central	-
Exit pupil	3,0 - 1,0 mm	4,0 - 1,3 mm	20 mm
Eye relief	13,5 - 11,0 mm	13,5 - 11,0 mm	-
Field of view	1,8°-0,9°, 31 m - 16 m	1,9°-0,95°, 33 m - 16,5 m	14°
Close focus distance	-	-	1 m - Field of view by night max. 100 m
Diopter adjustment	-	-	-
Interpupillary distance	-	-	-
Waterproof (max. depth/time)	●	●	○
Nitrogen filled	●	●	○
Eyecup system	Rubber Twist-up ^2	Rubber Twist-up ^2	○
Thread for tripod	●	●	○
Dimensions	335 x 60 x 150 mm	438 x 95 x 150 mm	134 x 92 x 47 mm
Weight	775 g	1195 g	250 g
Item no. / EAN	20131 / 40 00567 20131 1	20132 / 40 00567 20132 8	20171 / 40 00567 20171 7

Accessories: Ever-ready case, carrying strap, cleaning cloth, operating instructions. Tripod included with Spectivs. Legend: ● = yes, o = no, 1 = fold down eyecups, 2 = twist-type snap-on eyecups.

Abstract color block composition with black, gray, and red horizontal bands (no text or symbols)

BRAUN

GERMANY

seit 1906

Merkurstraße 8

D-72184 Eutingen

Phone [phone]
