USER MANUAL AU120KW AMANA

Using the Freezer Control 4

Custom Features 5

Care and Cleaning. 6

User Maintenance 7

Defrosting 7

Freezing Guidelines. 8

Troubleshooting 11

Amana Warranty 12

Deepfreeze® Upright Freezers

Free-O-FrostTM and Manual Defrost

Keep instructions for future reference:

Be sure manual stays with freezer

Thank you for buying an Amana Freezer!

Please take the time to complete the registration card and return promptly. If registration card is missing, call Amana Consumer Affairs Department. When contacting Amana, provide product information from serial plate found on the inside left wall of the freezer:

Model Number
Manufacturing (P) Number
Serial Number (S/N)
Purchase Date
Dealer Name
Dealer Address
Dealer Phone

Keep this manual and your sales receipt together in a safe place for future reference or if warranty service is required.

For answers to questions or to locate an authorized servicer, call 1-800-NAT-LSVC (1-800-628-5782) inside USA or 319-622-5511 outside USA. Warranty service must be performed by an authorized servicer. Amana Appliances also recommends contacting an authorized servicer if service is required after warranty expires.

Asure™ Extended

Service plan

A mania Appliances offers long-term service protection for this new freezer. Asure™ Extended Service Plan, covering functional parts, labor, and travel charges, is specially designed to supplement a strong warranty. Call 1-800-528-2682 for information.

Parts and Accessories Purchase replacement parts and

additional accessories by phone.
To order accessories for your Amana product, call 1-800-843-0304 inside USA or 319-622-5511 outside USA or visit our website at www.amana.com

For more information on this and other Amana products' visit our Web site www.amana.com

or call Consumer Affairs Department at 1-800-843-0304

Save Time and Money

If something seems doubtful, please check "Troubleshooting" section, which is designed to help you solve problems before calling service. If you have a question, call us at [phone] or write us at:

Consumer Affairs Department
Amana Appliances
2800 - 220th Trail
Amana, Iowa 52204

Remember to include model number of your appliance and your phone number.

What You Need to Know about Safety Instructions

Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating freezer.

Always contact your dealer, distributor, service agent, or manufacturer about problems or conditions you do not understand.

Recognize Safety Symbols, Words, Labels

DANGER

DANGER—Immediate hazards which WILL result in severe personal injury or death.

WARNING

WARNING—Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION

CAUTION—Hazards or unsafe practices which COULD result in minor personal injury or product or property damage.

IMPORTANT SAFETY INFORMATION

WARNING

To avoid risk of electrical shock, personal injury or death this unit must be properly grounded.

Electrical Grounding Instructions—this freezer is equipped with a three-prong (grounding) plug for protection against possible shock hazards. If a two-prong wall receptacle is encountered, contact a qualified electrician and have the two-prong wall receptacle replaced with a properly grounded three-prong wall receptacle in accordance with the National Electric Code.

Freezers are designed to operate on a separate 103 to 126 VAC, 15 Amp., 60Hz

Do not under any circumstances cut or remove the round grounding prong from the plug. Freezer must be grounded at all times. Do not remove warning tag from power cord.

• Do not use a two-prong adapter.
• Do not use an extension cord.

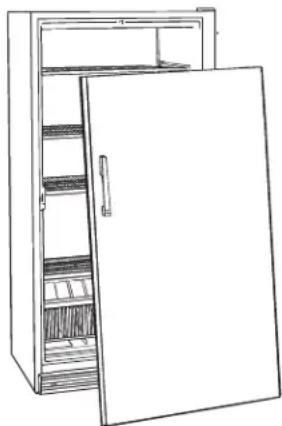

Proper Disposal of Your Freezer

Important: Child entrapment and suffocation are not problems of the past. Junked or abandoned freezers are still dangerous—even if they sit for "just a few days." If you are getting rid of your old freezer, please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator or freezer:

Take off the door.
- Leave the shelves in place so that children may not easily climb inside.

WARNING

To avoid risk of electrical shock, personal injury, or death, make sure your freezer has been properly grounded and always disconnect it from main power supply before servicing.

General Appliance

Safety

1. Proper Installation—Be sure your appliance is properly installed and grounded by a qualified technician.
2. Do Not Leave Children Alone—Children should not be alone or unattended in the area where the appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
3. Wear Proper Apparel—Loose fitting or hanging garments should never be worn while using appliance.
4. User Servicing—Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.

SAVE THESE INSTRUCTIONS

Using the Freezer Control

If These Features are Different from yours

These examples are intended to show the variety of features that are available in the product line. If your freezer does not have all the options that are shown, it is not a mistake. The information provided applies to several of the models in the product line.

Temperature Control

Freezer temperature control uses a range of settings from 0 to 7. When set at zero, the freezer is off—it does not cool or maintain a cool temperature. Setting 1 is the warmest temperature setting and setting 7 is the coldest.

When plugging in the freezer for the first time:

1. Set freezer temperature setting to 4.

2. Wait 3 hours.
   3.Add food.

3. After 24 hours, adjust control as desired.

Temperature Monitor Alam

Temperature monitor alarm

is located next to the temperature control knob. Alarm is controlled by a three position switch.

• stops alarm from sounding when the freezer is warm. This setting can be used when defrosting or when first plugging in the freezer.
• sounds the alarm regardless of temperature to verify alarm is functioning and audible. Alarm system should be tested at least once a month.
• 1 turns the temperature monitor on for normal freezer use. Remember to turn switch to 1 after defrosting.

To adjust freezer temperature:

1. Set household thermometer snugly between frozen packages.

2. The thermometer can also be placed in a glass of vegetable oil placed in freezer (vegetable oil will not freeze).

3. Thermometer should be designed for use with freezer.

4. Thermometer should read temperatures ranging from -5^ to 50^ F.

5. Wait 5 to 8 hours.

6. Check temperature.

7. Temperature should read between 0^ to 2^ F.

8. If temperature is not in range, adjust control only one number at a time.
9. Recheck temperature every 5 to 8 hours until it is in desired range.

Temperatue control knob

right interior wall of the freezer. The knob can be set from a setting of 1 (warmest) to 7 (coldest) and can be turned by hand. This range allows you to set the freezer at a specific temperature setting, conserving energy and lowering costs.

To conserve energy:

• Do not set controls colder than necessary to maintain a temperature range of 0^ to 2^ F.
• Operate in normal room temperatures away from heat sources and direct sunlight.
• Keep freezer full.
• Keep door gaskets clean and pliable. Replace gaskets if worn.

Custom Features

Temperature Monitor Alarm

The alarm monitors the temperature and signals an audible alarm if freezer rises 10^ above normal temperature for the selected setting. The Alarm may also sound if:

• Temperature control is turned more than one setting at a time.
• A large amount of unfrozen food is placed within the freezer at once.

WARNING

To prevent child entrapment keep key out of reach of children and away from freezer.

Free-O-Frost™ Frost Control System The Amana Free-O-Frost system automatically destroys the

freezer so you don't have to. This allows the freezer to run more efficiently and quietly, minimizes odors, and takes the hassle out of keeping a freezer clean.

Door Lock The freezer door lock prevents accidental jarring of the door, which may lead to defrosting and loss of temperature. To use the door lock:

1. Insert key into lock approximately ^1/4 .
2. Turn key clockwise to lock freezer and counterclockwise to unlock.

The key won't stay in…

To help protect children and prevent child entrapment, all of Amana's freezer locks have a 'pop out key' function. This means that when the key is inserted into the lock, it must be pushed in and pressure must be maintained as the lock is turned. Once locked or unlocked, the lock will push the key out, preventing the key from being kept in the lock. The key should be kept in a safe place away from children.

Reversible Specialty Rack While this rack can be used to keep smaller or

While this rack can be used to keep smaller or thinner items organized within the freezer, it is most useful at protecting delicate or decorated items such as cakes or pastries. The rack prevents heavier items from being set on them or falling on them.

Interior Light The Interior light works to light the freezer in poor or dimly lit conditions. The light bulb is a 15-watt appliance bulb. The light is designed and tested to provide illumination while minimizing heat generated if the lid is accidentally left ajar. To replace the interior light, see the User Maintenance section.

If These Features are Different from yours

These examples are intended to show the variety of features that are available in the product line. If your freezer does not have all the options that are shown, it is not a mistake. The information provided applies to all of the models in the product line.

Can I get another rack? If you want more accessories for y

freezer, they are as convenient as a phone call away. Contact your local Amana dealer, or call:

[phone] inside USA or

[phone] outside USA or

visit our website at www.amana.com

Care and Cleaning

WARNING

To avoid electrical shock, personal injury, or death, disconnect power to freezer before cleaning.

CAUTION

To avoid personal injury or property damage, read and follow all cleaning product manufacturer's directions.

Cleaning solutions

In general, most cleaning can be done with warm, soapy water as needed. To keep your freezer looking like new and operating efficiently, follow these cleaning guidelines:

DO NOT USE Breach of ammonia

• Harsh or abrasive cleaners
• Concentrated detergents or solvents
  Metal scouring pads
• A dishwasher for shelves or accessories

DO USE warn, soapy water to remove most dirt

• Four tablespoons of baking soda in one quart of warm water to make a gentle cleaning solution
• Warm water to rinse all surfaces
• A soft clean cloth to dry all surfaces

Sealing Door Gaskets

Door gaskets get dirty over time, affecting the freezer's seal and performance. To keep the freezer running well and minimize air seep clean the gasket at least every three months.

1. Clean gaskets with a mild, warm soapy water.
2. Dry thoroughly with a clean cloth.
3. Apply a light film of petroleum jelly to gasket to keep pliable.

It's still stuck...

Sticker residue can get the best of any cleaning product. To remove the adhesive residue from your freezer:

1. Dab a little toothpaste over the adhesive.
2. Rub the toothpaste over the adhesive until it loosens.
3. Rinse the surface with warm, clean water.
4. Dry with soft cloth.

Odor,Removal

Even with the tightest wrapped meats and fish, odors happen. To remove odors, follow the instructions provided below:

1. Remove all food to another freezer, if possible, or place in a well insulated cooler.
2. Disconnect power to the freezer.
3. Wash all interior surfaces including door, floor and walls.
4. Clean corners, crevices and grooves thoroughly.
5. Wash all accessories and shelves by hand.
6. Dry thoroughly with soft clean cloth.
7. Reconnect power to freezer.
8. Return food to the freezer. Verify all food is wrapped tightly or in sealed containers to prevent further odor problems.
9. After 24 hours, check freezer to verify odor was eliminated.

If odor is still present:

1. Remove all food to another freezer.
2. Disconnect power to the freezer.
3. Pack freezer with crumpled sheets of black and white newspaper.
4. Place plain charcoal briquettes in freezer on the newspaper.
5. Close the freezer door and let stand 24 to 48 hours.
6. Remove charcoal briquettes and newspapers. Clean according to directions provided above.

7. Reconnect power to freezer.

1. Replace food in freezer in sealed, airtight containers to minimize odor contamination.
2. Placing a cotton swab with vanilla or an open box of baking soda in the freezer may help prevent odors from returning.

User Maintenance

Defrosting

Manual defrost freezers need to be defrosted when frost has accumulated to approximately 1/4 thick. The upper section of the freezer will generally have more frost accumulation than the lower. Frost should not be scraped or pulled out of the freezer as damage may result. Amana Free-O-Frost™ freezers do not require defrosting.

Manual Defrost Freezers

1. Transfer food to another freezer or a well insulated cooler.

2. Disconnect power to freezer.

1. Remove the toe grille by pulling it forward.
2. Reach within the underneath of the freezer and pull out the defrost drain tube. Place the tube in a shallow pain or in a nearby floor drain.

3. Remove defrost drain plug from the bottom front of the freezer liner so the defrost water will flow into the drain tube.

4. Empty pan as often as necessary during the defrost.

5. Some models do not have a drain plug and water collecting from the defrost will have to be removed manually.

6. To speed defrosting, pans of hot water may be placed on shelves in the freezer.

7. Do not bend, scrape or try to move shelves. Shelves are part of the sealed cooling system and can be damaged.

8. Once defrosted, clean the freezer according to guidelines in Care and Cleaning. 8.Clean defrost drain using a bottle brush. Flush the drain with clear water before replacing the drain tube and drain plug.

9. Drain plug must be properly installed and tightly sealed for efficient operation of the freezer.

10. Restore power to the freezer.

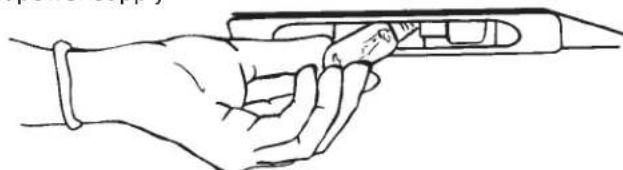

Changing the Light Bulb

freezer and is covered by a protective light cover.

1. Disconnect electrical supply.

1. Pinching both sides together, pull protective light cover from the freezer wall.
2. While wearing protective gloves, grasp appliance bulb gently.
3. Turn light bulb counterclockwise to remove.
4. Replace light bulb with 15-watt appliance bulb (available through Amana or your local hardware store). Do not over-tighten bulb. Over-tightening may make bulb difficult to remove later.
5. Replace protective cover.
6. Reconnect power supply.

WARNING

To avoid electrical shock, severe personal injury or death, disconnect power to freezer before defrosting.

CAUTION

To avoid property damage, do not use sharp or pointed instruments to scrape frost from shelves or interior surfaces.

Vacation Tips

For long vacations or periods of unuse,

Amana recommends the following:

1. Empty freezer.
2. Unplug freezer.
3. Clean freezer including door gaskets (see Care and Cleaning section).
4. Prop doors open so that air can circulate inside and prevent odors.

WARNING

To avoid risk of burns or electrical shock:

• disconnect electrical supply to freezer before changing light bulb.
• before replacing light bulb make sure bulb is cool.
• Do not operate freezer without bulb in place.

CAUTION

Wear gloves to protect hands from accidental bulb breakage.

Freezing Guidelines

Freezing Basics

Amana provides this information as a guide to aid in food preservation. For specific questions regarding food handling, cooking, or storage contact USDA Meat & Poultry Hotline at [phone].

Freezer hurn

Freezer burn occurs when air reaches the surface of the food. The cold, dry air in the freezer causes the foodstuff to dry out in spots and lose quality. While freezer burn may not taste good, it does not make the food unsafe. Freezer-burned portions can be cut away either before or after cooking the food.

Color changes

Color changes can occur in frozen foods. This can cause ground beef to go from a bright, cherry red to a darker, duller brown due to lack of oxygen. Freezing normally doesn't cause color changes in poultry, but it will cause changes to the color near the bones resulting in 'bone darkening'. These changes are only visual changes and do not indicate poor quality or unsafe food.

East Freezing Facts

You can freeze almost any food, the main exceptions being eggs still in the shell and cans of foods.

• Frozen food kept at 0^ F will always be safe. Only the quality of food suffers over time.
• It is safe to freeze meat or poultry directly in supermarket wrapping. This wrapping allows in air, causing freezer burn, so the meat should be used within one to two months.
• Freeze foods as quickly as possible. This prevents large ice crystals from forming which decreases food quality.
• Never stack packages to be frozen. Lay packages out in a single layer and then stack them after they are frozen.
• If food is thawed within a refrigerator, it is safe to refreeze it without cooking.
• During a power outage, a full freezer will normally keep 2 days, a half full freezer about 1 day. Food should be stacked tightly to provide a nest of cold air—resisting thawing.
• As a general guideline, food 2-inches thick should freeze completely in about 2 hours.

Using an Appliance Thermometer An appliance thermometer is the most accurate method to

verify that the freezer is working normally and maintaining correct temperatures. The freezer should maintain a temperature of 0^ to 2^ F.

To verify freezer temperature:

1. Use a thermometer with an easy to read degree display. Thermometer should have a long stem for more accurate temperature reading.
2. Place the thermometer in the freezer between packages of foodstuffs. The thermometer can also be placed in a glass of vegetable oil placed in freezer (vegetable oil will not freeze).
3. Close the freezer lid.
4. Allow the thermometer to sit for 5 to 8 hours inside the closed freezer.
5. Check thermometer. Temperature should read between 0^ and 2^ F.
6. If temperature is not within the correct range, adjust the temperature by using the temperature control knob. Directions are in the Using the Freezer Controls section.

Freezing Guidelines (cont'd)

Defrosting Foods There are basic methods to defeat root

There are basic methods to defrost food safely. Food should never be defrosted at room temperature. This allows deadly bacteria to grow while the food is thawing. To defrost safely use:

• Refrigerator: this allows the food to thaw in an environment that controls bacterial growth. Food that is thawed in a refrigerator can be safely refrozen without having to be cooked. Most foods require a day or two to defrost, approximately one day for each 5 lbs. of weight.
• Cold water: place food in a leakproof bag and immerse it in cold water (If bag leaks, food will become contaminated by bacteria). Check water frequently to verify it stays cold. Change water every thirty minutes. After thawing, refrigerate the food until it is ready to use.
• Microwave: cook food immediately after using a microwave to defrost food. Microwave defrosting warms food and can partially cook it, allowing bacteria to grow as it defrosts. Food cannot be refrozen until it is cooked.

Packaging

Proper packaging prevents freezer burn, maintains quality of frozen foods and minimizes odor contamination in the freezer.

For short term storage, it is safe to freeze meat or poultry directly in supermarket wrapping. This meat should be used within 1 to 2 months.

For long term storage, follow these wrapping guidelines:

• Overwrap store wrapped packages with airtight heavy duty foil, plastic wrap or freezer paper.
• Freeze unopened vacuum wrapped packages as they are.
• Make sure lids are sealed tightly when using airtight freezer containers.
• Break down foods into smaller portions for faster freezing.
• Freezer bags can be used. Remove as much air as possible from them before placing in the freezer.
• If a package has accidentally been torn or damaged while in the freezer, the food is still safe to eat. Just unwrap it or repackage it.
• It is not necessary to rinse meat or poultry before freezing.

NOTE: Freezer storage is for quality only. Frozen foods remain safe indefinitely.

Foodstuff	Months
Bacon and Sausage	1 to 2
Casseroles	1 to 2
Egg whites or egg substitutes	12
Gravy, meat or poultry	2 to 3
Ham, Hotdogs and Lunchmeats	1 to 2
Meat, uncooked roasts	9
Meat, uncooked steaks or chops	4 to 6
Meat, uncooked ground	3 to 4
Meat, cooked	2 to 3
Poultry, uncooked whole	12
Poultry, uncooked parts	9
Poultry, uncooked giblets	3 to 4
Poultry, cooked	3 to 4
Soups and Stews	2 to 3
Wild game, uncooked	8 to 12

Cooking Frozen

Foods

Foods can be cooked or reheated directly from the frozen state. The cooking time will multiply to almost one and a half times it would normally take. Remember when cooking poultry or meat to remove paper wrapping, giblet sacks, and any strings that might burn during cooking. Some meats, such as pre-stuffed whole birds, must be cooked from the frozen state to ensure food safety. Remember to read the USDA label on the meat.

Freezing Guidelines (cont'd)

It's happened to all of us, one day the freezer lid gets left open or the power goes out. Either way, you have a freezer full of food and you don't know what to do with it. The chart below is provided by the USDA and should be used as a guideline only. When in doubt about food safety, it is always better to throw questionable food out.

Food or Food Type

Still contains ice crystals and feels as cold as if refrigerated

Thawed. Held above 40°F for over 2 hours

MEAT, POULTRY and SEAFOOD

Beef, veal, lamb, pork and ground meats Refreeze Discard
Poultry and ground poultry Refreeze Discard
Variety meats (liver, kidney, heart, chitterlings)	Refreeze Discard
Fish, shellfish, breaded seafood products	Refreeze, however, there will be some texture and flavor loss	Discard

DAIRY

Milk Refreeze, may lose some texture Discard
Eggs (out of shell) and egg products Refreeze	Discard
Ice cream, frozen yogurt Discard Discard
Cheese (soft and semi-soft) Refreeze, may lose some texture Discard
Hard cheeses Refreeze Refreeze
Shredded cheeses Refreeze Discard
Casseroles containing milk, cream, eggs, soft cheeses	Refreeze Discard
Chesecake Refreeze Discard

FRUITS and VEGETABLES

Juices—fruit	Refreeze	Refreeze. Discard if mold, yeasty smell or sliminess develops
Juices—vegetables	Refreeze	Discard after held above 40°F for 6 hours
Home, commercially packaged or blanched	Refreeze. Will change in texture and flavor	Discard after held above 40°F for 6 hours or if mold, yeasty smell or sliminess develops

BREADS and PASTRIES

Breads, rolls, muffins, cakes (without custard fillings)	Refreeze Refreeze
Cakes, pies, pastries with custard or cheese filling	Refreeze Discard
Pie crusts, commercial and homemade bread dough	Refreeze, some quality loss may occur.	Refreeze. Quality loss is considerable.

OTHER

Casseroles-pasta or rice based	Refreeze Discard
Flour, cornmeal, nuts	Refreeze Refreeze
Breakfast items-waffles, pancakes, bagels	Refreeze Refreeze
Frozen meal, entrée, specialty items (pizza, sausage and biscuit, meat pie, and convenience foods)	Refreeze Discard

Troubleshooting

You may save time and money by checking items below before calling for service. List includes common concerns that are not the result of defective workmanship or materials. If your question is not explained below, contact Amana Consumer Affairs Department at 800-843-0304.

Topic Possible Cause Solution

OPERATION

Appliance not working	Power outage	Make sure appliance is plugged in. Verify that circuit breaker is not tripped. Replace fuse but do not change fuse capacity.
Freezer not cooling	Temperature control	Verify that temperature control is set between 1 to 7. Change control setting to 4 or above.
	Poor gasket seal	Clean gasket as described in Care and Cleaning. Apply light coating of petroleum jelly to gasket.
	Failed gasket Have gasket replaced
	Food added recently	Wait 5 to 8 hours for temperature to stabilize after the addition of large quantities of unfrozen food.
Freezer runs frequently	Normal Needs to run to maintain an even temperature.
	Door open Close door.
	Temperature set too cold	Adjust temperature control to maintain freezer temperature between 0° to 2° F.
	Poor gasket seal.	Clean gasket as described in Care and Cleaning. Apply light coating of petroleum jelly to gasket.
	Poor clearance	Confirm that freezer has proper clearance on each side and vents are unobstructed as specified in Installation Instructions.
Light fails to illuminate	Bad bulb Replace bulb as described inUser Maintenance section.
	Switch not opening Clean switchplunger to ensure proper operation.
	Bad switch Have authorized servicer replace switch.

NOISE

Clicks	Normal	Temperature control clicks when starting or stopping compressor.
Gurgles and pops (like boiling water)	Normal Refrigerant flow through	evaporator coil.
Hum or pulsing sound	Normal Compressor operation.

APPEARANCE

Water droplets on outside of freezer	Poor gasket seal	Clean gasket as described in Care and Cleaning. Apply light coating of petroleum jelly to gasket.
Water pooling in floor by freezer	Poor drain plug	Verify that drain plug is properly in place and sealed. Replace drain plug is seal is poor.
	Defrost drain pan	On Free-O-Frost modelsTM, confirm that the defrost drain pan is properly positioned.

Amana Warranty

FULL ONE Year Warranty Amana Appliances will repair or replace, including related labor and travel, any part (f.o.b. Amana Iowa) which proves defective as to workmanship or materials.

Full Ten Year Warranty
Amana Appliances will replace, free of charge, any sealed system component (compressor, condenser, evaporator, drier and interconnecting tubing) which is defective due to workmanship or materials.

EooD Loss

If there is a food loss due to a failed component covered by this warranty, Amana will provide reimbursement as indicated by the chart provided. Total cumulative reimbursement shall not exceed amount indicated at right:

Model Size(in cubic feet)	MaximumReimbursement
5 to 9.9 ft3	200
10 to 15 ft3	300
16 to 22 ft3	$400

What is not covered by these warranties

• Replacement of household fuses, resetting of circuit breakers, or correction to household wiring or plumbing.
• Normal product maintenance and cleaning, including light bulbs.
• Products with original serial numbers removed, altered, or not readily determined.
• Products purchased for commercial, industrial, rental, or leased use.
• Products located outside of the United States or Canada.
• Premium service charges, if the servicer is requested to perform service in addition to normal service or outside normal service hours or area.
  Adjustments after the first year.

• Repairs resulting from the following:

• Improper installation, exhaust system, or maintenance.
  Any modification, alteration, or adjustment not authorized by Amana.

• Accident, misuse, abuse, fire, flood, or acts of nature.
• Connections to improper electrical current, voltage supply, or gas supply.
• Use of improper pans, containers, or accessories that cause damage to the product.

To Receive Warranty Service
Service must be performed by an authorized Amana service representative. To schedule service, contact the Amana dealer where you purchased your appliance or contact Amana Appliances Factory Service.

Amana Appliances Factory Service

1-800-628-5782 inside USA

For more information, Amana Appliances Consumer Services

Amana Appliances

2800 220th Trail

Amana, Iowa 52204

1-800-843-0304 inside USA

[phone] worldwide

When contacting Amana Appliances please include the following information: Your name, address, and telephone number.

• Model number and serial number of your appliance (found on upper left hand inside wall of freezer)
  The name and address of your dealer and the date of purchase.
• A clear description of the problem.
  Proof of purchase (sales receipt).

IN NO EVENT SHALL AMANA BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

This warranty gives you specific legal rights, and you may have others which vary from state to state. For example, some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion may not apply to you.

Amana Appliances Online · http://www.amanacom

EN NINGUN CASO AMANA APPLIANCES SERA RESPONSABLE POR DANOS EMERGENTES NI INCIDENTALES.

Consumer Affairs Department

Amana Appliances

2800-220thTrail

Amana, Iowa 52204

États-Unis

You may save time and money by checking items below before calling for service. List includes common concerns that are not the result of defective workmanship or materials. If your question is not explained below, contact Amana Consumer Affairs Department at 800-843-0304.
