USER MANUAL WML 50821 S BEKO

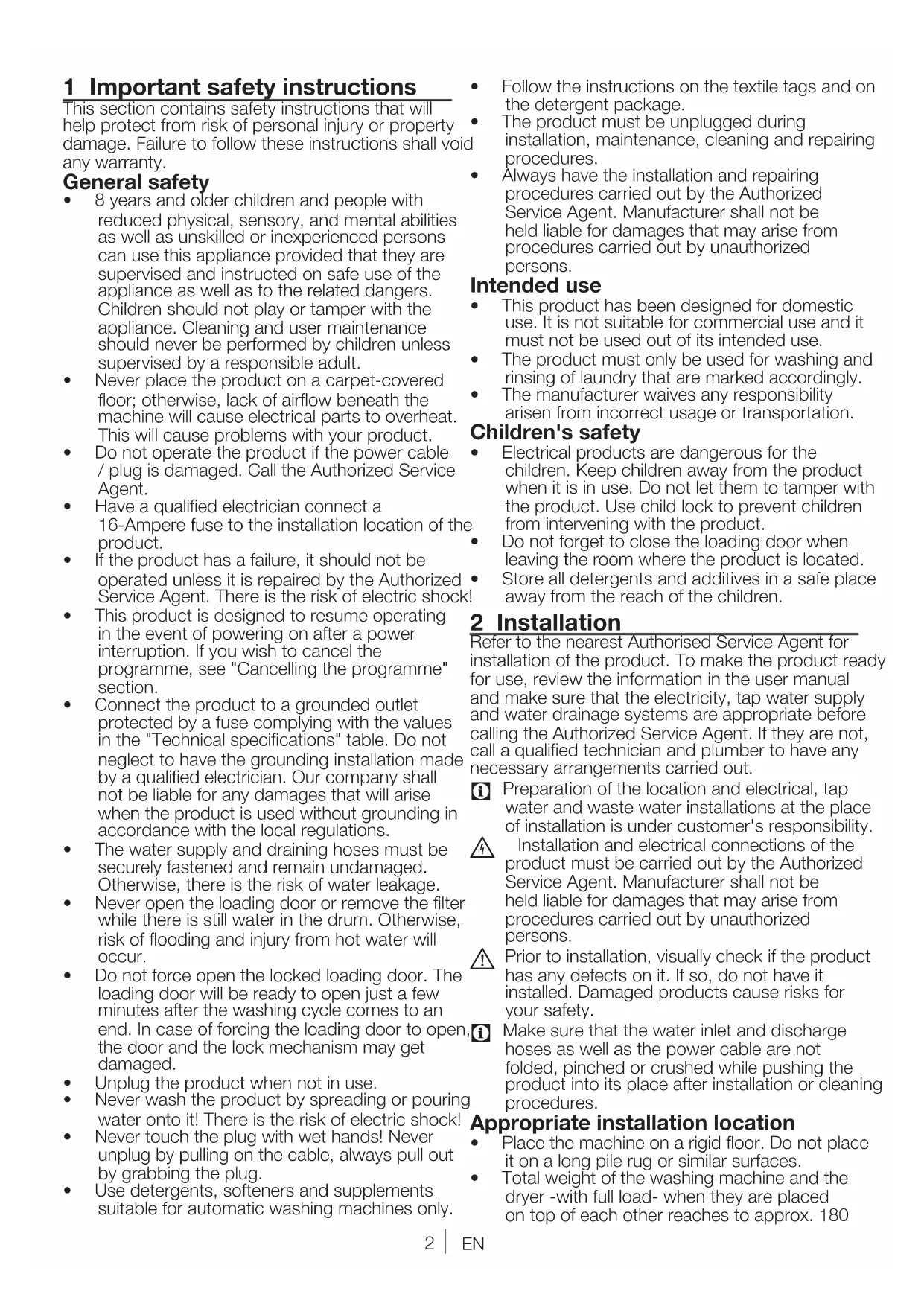

1 Important safety instructions This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. General safety

• 8yearsandolderchildrenandpeoplewith reduced physical, sensory, and mental abilities as well as unskilled or inexperienced persons can use this appliance provided that they are supervised and instructed on safe use of the appliance as well as to the related dangers. Children should not play or tamper with the appliance. Cleaning and user maintenance should never be performed by children unless supervised by a responsible adult.

• Neverplacetheproductonacarpet-covered floor; otherwise, lack of airflow beneath the machine will cause electrical parts to overheat. This will cause problems with your product.

• Iftheproducthasafailure,itshouldnotbe operated unless it is repaired by the Authorized Service Agent. There is the risk of electric shock!

• Thisproductisdesignedtoresumeoperating in the event of powering on after a power interruption.Ifyouwishtocancelthe programme, see "Cancelling the programme" section.

• Connecttheproducttoagroundedoutlet protected by a fuse complying with the values inthe"Technicalspecifications"table.Donot neglect to have the grounding installation made byaqualifiedelectrician.Ourcompanyshall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Thewatersupplyanddraininghosesmustbe securely fastened and remain undamaged. Otherwise,thereistheriskofwaterleakage.

• Neveropentheloadingdoororremovethefilter whilethereisstillwaterinthedrum.Otherwise, risk of flooding and injury from hot water will occur.

• Donotforceopenthelockedloadingdoor.The loading door will be ready to open just a few minutes after the washing cycle comes to an end.Incaseofforcingtheloadingdoortoopen, the door and the lock mechanism may get damaged.

• Unplugtheproductwhennotinuse.

• Neverwashtheproductbyspreadingorpouring water onto it! There is the risk of electric shock!

• Nevertouchtheplugwithwethands!Never unplug by pulling on the cable, always pull out by grabbing the plug.

• Usedetergents,softenersandsupplements suitable for automatic washing machines only.

• Followtheinstructionsonthetextiletagsandon the detergent package.

• Theproductmustbeunpluggedduring installation, maintenance, cleaning and repairing procedures.

• Alwayshavetheinstallationandrepairing procedures carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons. Intended use

• Thisproducthasbeendesignedfordomestic use.Itisnotsuitableforcommercialuseandit must not be used out of its intended use.

• Theproductmustonlybeusedforwashingand rinsing of laundry that are marked accordingly.

• Themanufacturerwaivesanyresponsibility arisen from incorrect usage or transportation. Children's safety

• Electricalproductsaredangerousforthe children. Keep children away from the product whenitisinuse.Donotletthemtotamperwith theproduct.Usechildlocktopreventchildren from intervening with the product.

• Donotforgettoclosetheloadingdoorwhen leaving the room where the product is located.

• Storealldetergentsandadditivesinasafeplace away from the reach of the children. 2 Installation Refer to the nearest Authorised Service Agent for installation of the product. To make the product ready for use, review the information in the user manual and make sure that the electricity, tap water supply and water drainage systems are appropriate before callingtheAuthorizedServiceAgent.Iftheyarenot, callaqualifiedtechnicianandplumbertohaveany necessary arrangements carried out.

Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility.

Installationandelectricalconnectionsofthe product must be carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

Prior to installation, visually check if the product hasanydefectsonit.Ifso,donothaveit installed.Damagedproductscauserisksfor your safety.

Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures. Appropriate installation location

• Placethemachineonarigidfloor.Donotplace it on a long pile rug or similar surfaces.

• Totalweightofthewashingmachineandthe dryer-withfullload-whentheyareplaced ontopofeachotherreachestoapprox.1803

kilograms. Place the product on a solid and flat floor that has sufficient load carrying capacity!

• Placetheproductatleast1cmawayfromthe edges of other furniture. Removing packaging reinforcement Tilt the machine backwards to remove the packaging reinforcement. Remove the packaging reinforcement by pulling the ribbon. Removing the transportation locks

Donotremovethetransportationlocksbefore taking out the packaging reinforcement.

Remove the transportation safety bolts before operating the washing machine, otherwise, the product will be damaged.

1. Loosen all the bolts with a spanner until they

2. Remove transportation safety bolts by turning

Manual bag into the holes on the rear panel. (P)

Keep the transportation safety bolts in a safe place to reuse when the washing machine needs to be moved again in the future.

Never move the product without the transportation safety bolts properly fixed in place! Connecting water supply

Thewatersupplypressurerequiredtorunthe productisbetween1to10bars(0.1–10MPa). Itisnecessarytohave10–80litersofwater flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher.

Ifyouaregoingtousethedoublewater-inlet productasasingle(cold)water-inletunit,you must install the supplied stopper to the hot water valve before operating the product. (Applies for the products supplied with a blind stopper group.)

Ifyouwanttousebothwaterinletsofthe product, connect the hot water hose after removing the stopper and gasket group from the hot water valve. (Applies for the products supplied with a blind stopper group.)

Models with a single water inlet should not be connectedtothehotwatertap.Insuchacase the laundry will get damaged or the product will switch to protection mode and will not operate.

1. Connect the special hoses supplied with the

product to the water inlets on the product. Red hose(left)(max.90ºC)isforhotwaterinlet,blue hose(right)(max.25ºC)isforcoldwaterinlet.

Ensure that the cold and hot water connections are made correctly when installing the product. Otherwise,yourlaundrywillcomeouthotatthe end of the washing process and wear out.

2. Tighten all hose nuts by hand. Never use a

wrench when tightening the nuts.

3. Openthetapscompletelyaftermakingthe

hose connection to check for water leaks at the connectionpoints.Ifanyleaksoccur,turnoff the tap and remove the nut. Retighten the nut carefully after checking the seal. To prevent water leakages and damages caused by them, keep the taps closed when the machine is not in use. Connecting to the drain

• Theendofthedrainhosemustbedirectly connected to the wastewater drain or to the washbasin.

Your house will be flooded if the hose comes out of its housing during water discharge. Moreover, there is risk of scalding due to high washing temperatures! To prevent such situations and to ensure smooth water intake and discharge of the machine, fix the end of the discharge hose tightly so that it cannot come out.

• Thehoseshouldbeattachedtoaheightofat least40cm,and100cmatmost.

• Incasethehoseiselevatedafterlayingitonthe floorlevelorclosetotheground(lessthan40cm above the ground), water discharge becomes more difficult and the laundry may come out excessively wet. Therefore, follow the heights described in the figure.4

• Theendofthehoseshouldnotbebent,it should not be stepped on and the hose must not be pinched between the drain and the machine.

• Ifthelengthofthehoseistooshort,useitby adding an original extension hose. Length of the hose may not be longer than 3.2 m. To avoid water leak failures, the connection between the extension hose and the drain hose of the product must be fitted well with an appropriate clamp as not to come off and leak. Adjusting the feet

Inordertoensurethattheproductoperates moresilentandvibration-free,itmuststandlevel and balanced on its feet. Balance the machine byadjustingthefeet.Otherwise,theproduct may move from its place and cause crushing and vibration problems.

1. Loosen the lock nuts on the feet by hand.

2. Adjust the feet until the product stands level and

3. Tighten all lock nuts again by hand.

Donotuseanytoolstoloosenthelocknuts. Otherwise,theywillgetdamaged. Electrical connection Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical specifications"table.Ourcompanyshallnotbeliable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Connectionmustcomplywithnational regulations.

• Powercableplugmustbewithineasyreach after installation.

• Thevoltageandallowedfuseorbreaker protection are specified in the “Technical specifications”section.Ifthecurrentvalueof the fuse or breaker in the house is less than 16 Amps,haveaqualifiedelectricianinstalla16 Amp fuse.

Damagedpowercablesmustbereplacedby the Authorized Service Agents. First use Before starting to use the product, make sure that all preparations are made in accordance with the instructionsinsections"Importantsafetyinstructions" and"Installation". To prepare the product for washing laundry, perform firstoperationinDrumCleaningprogramme.If yourmachineisnotfeaturedwithDrumCleaning programme,useCottons-90programmeandselect Additional Water or Extra Rinse auxiliary functions as well. Before starting the programme, put max. 100gofpowderanti-limescaleintothemainwash detergentcompartment(compartmentnr.II).Ifthe anti-limescaleisintabletform,putonlyonetabletinto compartmentnr.II.Drytheinsideofthebellowwitha clean piece of cloth after the programme has come to an end.

Some water might have remained in the product duetothequalitycontrolprocessesinthe production.Itisnotharmfulfortheproduct. Disposing of packaging material Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children. Packaging materials of the product are manufactured fromrecyclablematerials.Disposeofthemproperly and sort in accordance with recycled waste instructions.Donotdisposeofthemwithnormal domestic waste. Transportation of the product Unplugtheproductbeforetransportingit.Remove waterdrainandwatersupplyconnections.Drain the remaining water in the product completely; see, "Drainingremainingwaterandcleaningthepump filter".Installtransportationsafetyboltsinthereverse5

order of removal procedure; see, "Removing the transportation locks". Never move the product without the transportation safety bolts properly fixed in place! Disposing of the old product Disposeoftheoldproductinanenvironmentallyfriendly manner.Refer to your local dealer or solid waste collection centre in your area to learn how to dispose of your product.For children's safety, cut the power cable and break the locking mechanism of the loading door so that it will be nonfunctional before disposing of the product.them separately.• Toughstainsmustbetreatedproperlybeforewashing.Ifunsure,checkwithadrycleaner.• Useonlydyes/colourchangersandlimescaleremovers suitable for machine wash. Always follow the instructions on the package.• Washtrousersanddelicatelaundryturnedinside out.

• KeeplaundryitemsmadeofAngorawoolinthefreezer for a few hours before washing. This will reduce pilling.• Laundrythataresubjectedtomaterialssuchasflour, lime dust, milk powder, etc. intensely must be shaken off before placing into the machine. Such dusts and powders on the laundry may build up on the inner parts of the machine in time and can cause damage. Correct load capacity The maximum load capacity depends on the type of laundry, the degree of soiling and the washing programme desired.The machine automatically adjusts the amount of water according to the weight of the loaded laundry. Follow the information in the “Programme and consumption table”. When overloaded, machine's washing performance will drop. Moreover, noise and vibration problems may occur. Loading the laundry
• Opentheloadingdoor.• Placelaundryitemslooselyintothemachine.• Pushtheloadingdoortocloseuntilyouhearalocking sound. Ensure that no items are caught in the door. The loading door is locked while a programme is running. The door can only be opened a while after the programme comes to an end. Incaseofmisplacingthelaundry,noiseandvibration problems may occur in the machine. Using detergent and softener Detergent DrawerThe detergent drawer is composed of three compartments:-(1)forprewash-(2)formainwash–(3)forsoftener–(*)inaddition,thereissiphonpieceinthesoftenercompartment.

The detergent dispenser may be in two different types according to the model of your machine as seen above.Detergent, softener and other cleaning agents• Adddetergentandsoftenerbeforestartingthewashing programme. 3 Preparation Things to be done for energy saving Following information will help you use the product in anecologicalandenergy-efficientmanner.• Operatetheproductinthehighestcapacityallowed by the programme you have selected, but do not overload; see, "Programme and consumption table".• Alwaysfollowtheinstructionsonthedetergentpackaging.• Washslightlysoiledlaundryatlowtemperatures.• Usefasterprogrammesforsmallquantitiesoflightly soiled laundry.• Donotuseprewashandhightemperaturesforlaundry that is not heavily soiled or stained.• Ifyouplantodryyourlaundryinadryer,selectthe highest spin speed recommended during washing process. • Donotusedetergentinexcessoftheamountrecommended on the detergent package. Sorting the laundry

• Sortlaundryaccordingtotypeoffabric,colour,and degree of soiling and allowable water temperature.• Alwaysobeytheinstructionsgivenonthegarment tags. Preparing laundry for washing
• Laundryitemswithmetalattachmentssuchas,underwired bras, belt buckles or metal buttons will damage the machine. Remove the metal pieces or wash the clothes by putting them in a laundry bag or pillow case.• Takeoutallsubstancesinthepocketssuchascoins, pens and paper clips, and turn pockets inside out and brush. Such objects may damage the product or cause noise problem.• Putsmallsizeclothessuchasinfant'ssocksand nylon stockings in a laundry bag or pillow case.• Placecurtainsinwithoutcompressingthem.Remove curtain attachment items.• Fastenzippers,sewloosebuttonsandmendrips and tears.• Wash“machinewashable”or“handwashable”labeled products only with an appropriate programme.• Donotwashcoloursandwhitestogether.New,dark coloured cottons release a lot of dye. Wash6

• Neveropenthedetergentdrawerwhilethe washing programme is running!

• Whenusingaprogrammewithoutprewash, do not put any detergent into the prewash compartment(compartmentnr.I).

• Inaprogrammewithprewash,donotput liquiddetergentintotheprewashcompartment (compartmentnr.I).

• Donotselectaprogrammewithprewashifyou are using a detergent bag or dispensing ball. Place the detergent bag or the dispensing ball directly among the laundry in the machine.

• Ifyouareusingliquiddetergent,donotforget toplacetheliquiddetergentcupintothemain washcompartment(compartmentnr.II). Choosing the detergent type The type of detergent to be used depends on the type and colour of the fabric.

Useonlydetergentsmanufacturedspecifically for washing machines.

Donotusesoappowder. Adjusting detergent amount The amount of washing detergent to be used depends on the amount of laundry, the degree of soiling and water hardness. Read the manufacturer's instructions on the detergent package carefully and follow the dosage values.

• Donotuseamountsexceedingthedosage quantitiesrecommendedonthedetergent package to avoid problems of excessive foam, poor rinsing, financial savings and finally, environmental protection.

• Uselesserdetergentforsmallamountsorlightly soiled clothes.

• Useconcentrateddetergentsinthe recommended dosage. Using softeners Pour the softener into the softener compartment of the detergent drawer.

• Usethedosagesrecommendedonthe package.

• Donotexceedthe(>max<)levelmarkinginthe softener compartment.

• Ifthesoftenerhaslostitsfluidity,diluteitwith water before putting it in the detergent drawer. Using liquid detergents If the product contains a liquid detergent cup:

• Makesurethatyouhaveplacedtheliquid detergent cup in compartment nr. “2”.

• Usethedetergentmanufacturer'smeasuring cup and follow the instructions on the package.

• Usethedosagesrecommendedonthe package.

• Iftheliquiddetergenthaslostitsfluidity,diluteit with water before putting in the detergent cup. If the product does not contain a liquid detergent cup:

• Donotuseliquiddetergentfortheprewashina programme with prewash.

• Usethedetergentmanufacturer'smeasuring cup and follow the instructions on the package.

• Liquiddetergentstainsyourclotheswhenused withDelayedStartfunction.Ifyouaregoingto usetheDelayedStartfunction,donotuseliquid detergent. Using gel and tablet detergent When using tablet, gel, etc. detergents, read the manufacturer's instructions on the detergent packagecarefullyandfollowthedosagevalues.If there is not any instruction on the package, apply the following.

• Ifthegeldetergentthicknessisfluidaland yourmachinedoesnotcontainaspecialliquid detergent cup, put the gel detergent into the main wash detergent compartment during first waterintake.Ifyourmachinecontainsaliquid detergent cup, fill the detergent into this cup before starting the programme.

• Ifthegeldetergentthicknessisnotfluidalorin theshapeofcapsuleliquidtablet,putitdirectly into the drum before washing.

• Puttabletdetergentsintothemainwash compartment(compartmentnr.II)ordirectlyinto the drum before washing.

Tablet detergents may leave residues in the detergentcompartment.Ifyouencountersuch a case, place the tablet detergent between the laundry, close to the lower part of the drum in future washings.

• Addliquidstarch,powderstarchorthedyestuff into the softener compartment as instructed on the package.

• Donotusesoftenerandstarchtogetherina washing cycle.

• Wipetheinsideofthemachinewithadampand clean cloth after using starch. Using bleaches

• Selectaprogrammewithprewashandadd the bleaching agent at the beginning of the prewash.Donotputdetergentintheprewash compartment. As an alternative application, select a programme with extra rinse and add the bleaching agent while the machine is taking water from the detergent compartment during first rinsing step.7

• Usejustalittleamount(approx.50ml)of bleaching agent and rinse the clothes very wellasitcausesskinirritation.Donotpourthe bleaching agent onto the clothes and do not use it for coloured clothes.

• Whenusingoxygenbasedbleaches,follow the instructions on the package and select a programme that washes at a lower temperature.

• Oxygenbasedbleachescanbeusedtogether with detergents; however, if its thickness is not the same with the detergent, put the detergent first into the compartment nr. “2” in the detergent drawer and wait until the detergent flows while the machine is taking in water. Add the bleaching agent from the same compartment while the machine is still taking in water. Using limescale remover

• Whenrequired,uselimescaleremovers manufactured specifically for washing machines only.

• Alwaysfollowinstructionsonthepackage. Tips for efficient washing Clothes Light colours and whites Colors Dark colors Delicates/ Woolens/Silks (Recommended temperature range based on soiling level: 40-90C) (Recommended temperature range based onsoilinglevel:cold-40C) (Recommended temperature range based on soiling level:cold-40C) (Recommended temperature range based on soiling level:cold-30C) Soiling Level Heavily Soiled (difficult stains such as grass, coffee, fruits and blood.) Itmaybenecessary topre-treatthe stains of perform prewash. Powder andliquiddetergents recommended for whites can be used at dosages recommended for heavily soiled clothes. Itisrecommendedto use powder detergents to clean clay and soil stains and the stains that are sensitive to bleaches. Powder and liquiddetergents recommended for colours can be used at dosages recommended for heavily soiled clothes. Itisrecommendedtouse powder detergents to clean clay and soil stains and the stains that are sensitive to bleaches. Usedetergentswithout bleach. Liquiddetergents suitable for colours and dark colours can be used at dosages recommended for heavily soiled clothes. Preferliquid detergents produced for delicate clothes. Woollen and silk clothes must be washed with special woollen detergents. Normally Soiled (For example, stains caused by body on collars and cuffs) Powder and liquiddetergents recommended for whites can be used at dosages recommended for normally soiled clothes. Powder and liquiddetergents recommended for colours can be used at dosages recommended for normally soiled clothes.Usedetergents without bleach. Liquiddetergents suitable for colours and dark colours can be used at dosages recommended for normally soiled clothes. Preferliquid detergents produced for delicate clothes. Woollen and silk clothes must be washed with special woollen detergents. Lightly Soiled (No visible stains exist.) Powder and liquiddetergents recommended for whites can be used at dosages recommended for lightly soiled clothes. Powder and liquiddetergents recommended for colours can be used at dosages recommended for lightly soiled clothes. Usedetergentswithout bleach. Liquiddetergents suitable for colours and dark colours can be used at dosages recommended for lightly soiled clothes. Preferliquid detergents produced for delicate clothes. Woollen and silk clothes must be washed with special woollen detergents.8

4 Operating the product Control panel 1-ProgrammeSelectionknob(Uppermostposition On/Off) 2-ProgrammeFollow-upindicator 3-TemperatureAdjustmentbutton 4-SpinSpeedadjustmentbutton 5-AuxiliaryFunctionbuttons 6-DelayedStartbutton(insomemodels) 7-Start/Pausebutton Preparing the machine Make sure that the hoses are connected tightly. Plug in your machine. Turn the tap on completely. Place the laundry in the machine. Add detergent and fabric softener. Programme selection

1. Select the programme suitable for the type,

quantityandsoilingdegreeofthelaundry in accordance with the "Programme and consumption table" and the temperature table below. 90˚C Heavilysoiledwhitecottonsandlinens. (coffee table covers, tableclothes, towels, bed sheets, etc.) 60˚C Normally soiled, coloured, fade proof cottons or synthetic clothes (shirt, nightgown, pajamas, etc.) and lightly soiled white linens (underwear, etc.) 40˚C- 30˚C-Cold Blended laundry including delicate textile (veil curtains, etc.), synthetics and woolens.

2. Select the desired programme with the

Programmes are limited with the highest spin speed appropriate for that particular type of fabric.

When selecting a programme, always consider the type of fabric, colour, degree of soiling and permissible water temperature.

For further programme details, see "Programme and consumption table". Main programmes Dependingonthetypeoffabric,usethefollowing main programmes.

• Cottons Usethisprogrammeforyourcottonlaundry(such as bed sheets, duvet and pillowcase sets, towels, bathrobes, underwear, etc.). Your laundry will be washed with vigorous washing action for a longer washing cycle.

• Synthetics Usethisprogrammetowashyoursyntheticclothes (shirts,blouses,synthetic/cottonblends,etc.).It washes with a gentle action and has a shorter washing cycle compared to the Cottons programme. Forcurtainsandtulle,usetheSynthetic40˚C programmewithprewashandanti-creasingfunctions selected. As their meshed texture causes excessive foaming, wash the veils/tulle by putting little amount ofdetergentintothemainwashcompartment.Do not put detergent in the prewash compartment.

• Woollens Usethisprogrammetowashyourwoolenclothes. Select the appropriate temperature complying with thetagsofyourclothes.Useappropriatedetergents for woolens.

Additional programmes For special cases, additional programmes are available in the machine.

Additional programmes may differ according to the model of the machine.

• Cotton Economic You may wash your normally soiled durable cotton and linen laundry in this programme with the highest energy and water saving compared to all other wash programmes suitable for cottons. Actual water temperature may differ from the declared cycle temperature. Programme duration may automatically be shortened during later stages of the programme if you wash less amount (e.g. ½ capacity or less) of laundry.Inthiscaseenergyandwaterconsumption will be further decreased giving you the opportunity for a more economical wash. This feature is available for certain models having remaining time display.

• BabyProtect Usethisprogrammeforbabyclothesandclothes wornbyallergicpeople.Increasedhygieneis provided by a longer heating period and an additional rinse cycle.

• Hand wash Usethisprogrammetowashyourwoolen/delicate clothesthatbear“notmachine-washable”tagsand forwhichhandwashisrecommended.Itwashes laundry with a very gentle washing action to not to damage clothes.

• Daily express Usethisprogrammetoquicklywashyourlightly soiled cotton clothes.

• Darkwash Usethisprogrammetowashyourdarkcoloured laundry, or the coloured laundry that you do not want them get faded. Washing is performed with less mechanical movements at low temperature. Itisrecommendedtouseliquiddetergentorwool shampoo for dark coloured laundry.

• Mixed 40 (Mix 40) Usethisprogrammetowashyourcottonand synthetic clothes together without sorting them. Special programmes For specific applications, select any of the following programmes.

• Rinse Usethisprogrammewhenyouwanttorinseor starch separately.

• Spin + Drain Usethisprogrammetoapplyanadditionalspincycle for your laundry or to drain the water in the machine. Before selecting this programme, select the desired spin speed and press Start / Pause button. First, the machine will drain the water inside of it. Then, it will spin the laundry with the set spin speed and drain the water coming out of them. Ifyouwishtodrainonlythewaterwithoutspinning your laundry, select the Pump+Spin programme and then select the No Spin function with the help of Spin Speed Adjustment button. Press Start / Pause button.

Usealowerspinspeedfordelicatelaundries. Temperature selection Whenever a new programme is selected, the recommended temperature for the selected programme appears on the temperature indicator. To decrease the temperature, press the Temperature Adjustment button. Temperature will decrease gradually.

Iftheprogrammehasnotreachedtheheating step, you can change the temperature without switching the machine to Pause mode. Spin speed selection Whenever a new programme is selected, the recommended spin speed of the selected programme is displayed on the spin speed indicator. To decrease the spin speed, press the Spin Speed Adjustment button. Spin speed decreases gradually. Then, depending on the model of the product, "RinseHold"and"NoSpin"optionsappearonthe display. See "Auxiliary function selection" section for explanations of these options.

Iftheprogrammehasnotreachedthespinning step, you can change the speed without switching the machine to Pause mode.10

Programme and consumption table

Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage.

Youcanseethewashingtimeoftheprogrammeyouhaveselectedonthedisplayofthemachine.Itis normal that small differences may occur between the time shown on the display and the real washing time.

The auxiliary functions in the table may vary according to the model of your machine.

Auxiliary function selection Usethefollowingauxiliaryfunctionsaccordingtoyour daily needs. Select the desired auxiliary functions before starting the programme. Furthermore, you may also select or cancel auxiliary functions that are suitable to the running programme without pressing the Start / Pause button when the machine is operating. For this, the machine must be in a step before the auxiliary function you are going to select or cancel. Iftheauxiliaryfunctioncannotbeselectedor canceled, light of the relevant auxiliary function will blink 3 times to warn the user.

Some functions cannot be selected together. For example, Prewash and Quick Wash.

Ifasecondauxiliaryfunctionconflictingwiththe first one is selected before starting the machine, the function selected first will be canceled and the second auxiliary function selection will remain active. For example, if you want to select Quick Wash after you have selected the Prewash, Prewash will be canceled and Quick Wash will remain active.

An auxiliary function that is not compatible with the programme cannot be selected. (See "Programme and consumption table")

Auxiliary Function buttons may vary according to the model of the machine.

• Prewash A Prewash is only worthwhile for heavily soiled laundry. Not using the Prewash will save energy, water, detergent and time.

Prewash without detergent is recommended for tulle and curtains.

• Quick Wash This function can be used in Cottons and Synthetics programmes.Itdecreasesthewashingtimesand also the number of rinsing steps for lightly soiled laundry.

When you select this function, load your machine with half of the maximum laundry specified in the programme table.

• Rinse Plus This function enables the machine to make another rinsing in addition to the one already made after the main wash. Thus, the risk for sensitive skins (babies, allergic skins, etc.) to be effected by the minimal detergent remnants on the laundry can be reduced.

• Anti-Creasing This function creases the clothes lesser when they arebeingwashed.Drummovementisreducedand spinningspeedislimitedtopreventcreasing.In addition, washing is done with a higher water level. Usethisfunctionfordelicatelaundrythatcreases easily.

• Rinse Hold Ifyouarenotgoingtounloadyourclothes immediately after the programme completes, you may use rinse hold function to keep your laundry in the final rinsing water in order to prevent them from getting wrinkled when there is no water in the machine. Press Start / Pause button after this process if you want to drain the water without spinning your laundry. Programme will resume and complete after draining the water. Ifyouwanttospinthelaundryheldinwater,adjust the Spin Speed and press Start / Pause button. The programme resumes. Water is drained, laundry is spun and the programme is completed.

• Soaking The Soaking auxiliary function ensures better removal of stains ingrained into the clothes by holding them in the detergent water prior to startup of the programme.

• Pet hair removal This function removes the pet hairs that remain on your clothes more effectively. When this function is selected, Prewash and Extra Rinse steps are added to the normal programme. Thus, pet hairs are removed more effectively by performingthewashingwithmorewater(30%).

Never wash your pets in your washing machine. Delayed Start(Insomemodelsonly) WiththeDelayedStartfunctionthestartupofthe programme may be delayed up to 3, 6 or 9 hours.

Donotuseliquiddetergentswhenyouset DelayedStart!Thereistheriskofstainingofthe clothes. Opentheloadingdoor,placethelaundryandput detergent, etc. Select the washing programme, temperature,spinspeedand,ifrequired,theauxiliary functions. Set the desired time by pressing the DelayedStartbutton.Whenthebuttonispressed once, 3 hours delayed start is selected. When the same button is pressed again, 6 hours delay is selected, and when it is pressed for the third time, 9hoursdelayedstartisselected.Ifyoupressthe DelayedStartbuttononceagain,DelayedStart function will be canceled. Press Start / Pause button. Previous delayed start time light turns off and next delayed start time light turns on after every 3 hours. At the end of the countdown, all delayed start lights will turn off and the selected programme will start.

Additional laundry may be loaded during the delayed start period. Changing the Delayed Start period PressDelayedStartbutton.Everytimethebuttonis pressed,theperiodwillchangein3-hourincrements and the light of the selected delayed start time will turn on. Canceling the Delayed Start function Ifyouwanttocancelthedelayedstartcountdown and start the programme immediately: SettheDelayedStartperiodtozero(alldelayedstart period lights will turn off) or turn the Programme Selectionknobtoanyprogramme.Thus,Delayed Start function will be canceled. The End/Cancel light flashes continuously. Then, select the programme you want to run again. Press Start / Pause button to start the programme.12

Ifnoprogrammeisstartedornokeyispressed within 1 minute during programme selection process, the machine will switch to Pause mode and the illumination level of the temperature, speed and loading door indicator lights will decrease.Otherindicatorlightsandindicators willturnoff.OncetheProgrammeSelection knob is rotated or any button is pressed, indicator lights and indicators will turn on again. Child Lock Usechildlockfunctiontopreventchildrenfrom tampering with the machine. Thus you can avoid any changes in a running programme.

IftheProgrammeSelectionknobisrotated when the child lock is active, the lights on the

auxiliary function buttons will blink 3 times. The child lock does not allow any change in the programmes and the selected temperature, speed and auxiliary functions.

Even if another programme is selected with the Programme Selection knob while the Child Lock is active, previously selected programme will continue running.

When the Child Lock is active and the machine is running, you can switch the machine to Pause mode without deactivating the Child Lock by turningtheProgrammeSelectionknobtoOn /Offposition.WhenyouturntheProgramme Selection knob afterwards, the programme will resume. To activate the Child Lock: Press and hold 1

Auxiliary Function buttons for 3 seconds. The lights on the 1

Auxiliary Function buttons will flash while you keep the buttons pressed for 3 seconds. To deactivate the Child Lock: Press and hold 1

auxiliary function buttons for 3 seconds while any programme is running. The lights on the 1

Auxiliary Function buttons will flash while you keep the buttons pressed for 3 seconds.

When the power is restored after a power failure or after your machine is unplugged and plugged in again, the Child Lock will not be deactivated when the machine resumes operating. Progress of programme Progress of a running programme can be followed fromtheProgrammeFollow-upindicator.Atthe beginning of every programme step, the relevant indicator light will turn on and light of the completed step will turn off. You can change the auxiliary functions, speed and temperature settings without stopping the programme flow while the programme is running. To do this, the change you are going to make must beinastepaftertherunningprogrammestep.Ifthe change is not compatible, relevant lights will flash for 3 times.

Ifthemachinedoesnotpasstothespinning step,RinseHoldfunctionmightbeactiveorthe automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the machine. Loading door lock There is a locking system on the loading door of the machine that prevents opening of the door in cases when the water level is unsuitable. Loading door light will start flashing when the machine is switched to Pause mode. Machine checksthelevelofthewaterinside.Ifthelevelis suitable,LoadingDoorlightilluminatessteadilywithin 1-2minutesandtheloadingdoorcanbeopened. Ifthelevelisunsuitable,LoadingDoorlightturnsoff andtheloadingdoorcannotbeopened.Ifyouare obligedtoopentheLoadingDoorwhiletheLoading Doorlightisoff,youhavetocancelthecurrent programme; see "Canceling the programme". Changing the selections after programme has started Switching the machine to pause mode Press the Start / Pause button to switch the machine to pause mode while a programme is running. The light of the step which the machine is in starts flashingintheProgrammeFollow-upindicatorto show that the machine has been switched to the pause mode. Also, when the loading door is ready to be opened, LoadingDoorlightwillalsoilluminatecontinuouslyin addition to the programme step light. Changing the speed and temperature settings for auxiliary functions Dependingonthesteptheprogrammehasreached, you may cancel or activate the auxiliary functions; see, "Auxiliary function selection". You may also change the speed and temperature settings; see, "Spin speed selection" and "Temperature selection".

Ifnochangeisallowed,therelevantlightwill flash for 3 times. Adding or taking out laundry Press the Start / Pause button to switch the machine topausemode.Theprogrammefollow-uplight of the relevant step during which the machine was switched into the pause mode will flash. WaituntiltheLoadingDoorcanbeopened.Open theLoadingDoorandaddortakeoutthelaundry. ClosetheLoadingDoor.Makechangesinauxiliary functions, temperature and speed settings if necessary. Press Start / Pause button to start the machine. Canceling the programme To cancel the programme, turn the Programme Selection knob to select another programme. Previous programme will be canceled. End / Cancel light will flash continuously to notify that the programme has been canceled.13

Your machine will end the programme when you turn the Programme Selection knob; however, it does not drain the water inside. When you select and start a new programme, the newly selected programme will start depending on the step the previous programme was canceled in. For example, it may take in additional water or continue to wash with the water inside.

Dependingonthestepwherethe programme was canceled in, you may have to put detergent and softener again for the programme you have selected anew. 5 Maintenance and cleaning Servicelifeoftheproductextendsandfrequently faced problems decrease if cleaned at regular intervals. Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every4-5washingcycles)asshownbelow in order to prevent accumulation of powder detergent in time. Press the dotted point on the siphon in the softener compartment and pull towards you until the compartment is removed from the machine.

Ifmorethannormalamountofwaterand softener mixture starts to gather in the softener compartment, the siphon must be cleaned. Wash the detergent drawer and the siphon with plenty of lukewarm water in a washbasin. Wear protective gloves or use an appropriate brush to avoid touching of the residues in the drawer with yourskinwhencleaning.Insertthedrawerback into its place after cleaning and make sure that it is seated well. Cleaning the water intake filters There is a filter at the end of each water intake valve at the rear of the machine and also at the end of each water intake hose where they are connected to the tap. These filters prevent foreign substances and dirt in the water to enter the washing machine. Filters should be cleaned as they do get dirty. Close the taps. Remove the nuts of the water intake hoses to access the filters on the water intake valves. Clean them with an appropriate brush.Ifthefiltersaretoodirty,takethemout by means of pliers and clean them. Take out the filters on the flat ends of the water intake hoses together with the gaskets and clean thoroughly under running water. Replace the gaskets and filters carefully in their places and tighten the hose nuts by hand. Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid items such as buttons, coins and fabric fibers clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend. Ifthemachinefailstodrainwater,thepumpfilter is clogged. Filter must be cleaned whenever it is clogged or in every 3 months. Water must be drained off first to clean the pump filter. Inaddition,priortotransportingthemachine (eg., when moving to another house) and in case of freezing of the water, water may have to be drained completely.

Foreign substances left in the pump filter may damage your machine or may cause noise problem. Inordertocleanthedirtyfilteranddischargethe water: Unplugthemachinetocutoffthesupplypower.

Temperature of the water inside the machine mayriseupto90ºC.Toavoidburningrisk, filter must be cleaned after the water in the machine cools down. Openthefiltercap. Ifthefiltercapiscomposedoftwopieces, press the tab on the filter cap downwards and pull the piece out towards yourself. Ifthefiltercapisonepiece,pullthecapfrom both sides at the top to open.14

You can remove the filter cover by slightly pushing downwards with a thin plastic tipped tool,throughthegapabovethefiltercover.Do not use metal tipped tools to remove the cover. Some of our products have emergency draining hose and some does not have. Follow the steps below to discharge the water. Dischargingthewaterwhentheproducthasan emergency draining hose: Pull the emergency draining hose out from its seat Placealargecontainerattheendofthehose.Drain the water into the container by pulling out the plug at the end of the hose. When the container is full, block the inlet of the hose by replacing the plug. After the container is emptied, repeat the above procedure to drain the water in the machine completely. When draining of water is finished, close the end by the plug again and fix the hose in its place. Turn the pump filter to take it out. Dischargingthewaterwhentheproductdoesnot have an emergency draining hose: Place a large container in front of the filter to catch water from the filter. Loosen pump filter (anticlockwise) until water starts to flow. Fill the flowing water into the container you have placed in front of the filter. Always keep a piece of cloth handy to absorb any spilled water. When the water inside the machine is finished, take out the filter completely by turning it. Clean any residues inside the filter as well as fibers, if any, around the pump impeller region. Installthefilter.

Ifyourproducthasawaterjetfeature,besure to fit the filter into its housing in the pump. Never force the filter while installing it into its housing. Seat the filter into its place completely. Otherwise,watermayleakfromthefiltercap. Ifthefiltercapiscomposedoftwopieces,closethe filtercapbypressingonthetab.Ifitisonepiece,seat the tabs in the lower part into their places first, and then press the upper part to close.15

6 Technical specifications

Figures in this manual are schematic and may not match the product exactly.

Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditionsinaccordancewiththerelevantstandards.Dependingonoperationalandenvironmental conditions of the product, these values may vary. Models (EN) Maximum dry laundry capacity (kg) Height(cm) Width (cm) Depth(cm) Net weight (±4 kg.) Electricalinput(V/Hz) Total current (A) Total power (W) Spin speed (rpm max.) Stand-bymodepower(W) Off-modepower(W) Dark wash(Darkcare)Dark wash(Darkcare)Synthetics Cottons Pre-wash Main wash Rinse Wash SpinDrain(Pump)Anti-creasingDuvet(Bedding)Child-proof lockHand Wash BabyProtect Cotton Eco WoollensDelicate Pet hairremovalDailyLingerieexpres 14 Super short expressDaily expressRinse hold Start/PauseNo spin Quick wash Finished ColdSelf CleanTemperatureMixed 40(Mix40)Super 40 Extra rinse(Rinse Plus)Freshen Shirts Jeans Sport Time delay IntensiveFasion care mini 30Eco CleanAnti-allergicOn/OffDoor Ready Thisappliance’spackagingmaterialisrecyclable.Helprecycleitandprotecttheenvironment by dropping it off in the municipal receptacles provided for this purpose. Your appliance alsocontainsagreatamountofrecyclablematerial.Itismarkedwiththislabeltoindicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, incompliancewithEuropeanDirective2002/96/EConWasteElectricalandElectronic Equipment.Contactyourtownhalloryourretailerfortheusedappliancecollectionpoints closest to your home. We thank you doing your part to protect the environment.

7 Troubleshooting Programme cannot be started or selected.

• Washingmachinehasswitchedtoselfprotectionmodeduetoasupplyproblem(linevoltage,water pressure,etc.).>>>Tocanceltheprogramme,turntheProgrammeSelectionknobtoselectanother programme. Previous programme will be cancelled. (See "Canceling the programme") Water in the machine.

• Somewatermighthaveremainedintheproductduetothequalitycontrolprocessesinthe production.>>>This is not a failure; water is not harmful to the machine. Machine vibrates or makes noise.

• Machinemightbestandingunbalanced.>>>Adjust the feet to level the machine.

• Ahardsubstancemighthaveenteredintothepumpfilter.>>>Clean the pump filter.

• Transportationsafetyboltsarenotremoved.>>>Remove the transportation safety bolts.

• Laundryquantityinthemachinemightbetoolittle.>>>Add more laundry to the machine.

• Machinemightbeoverloadedwithlaundry.>>>Take out some of the laundry from the machine or distribute the load by hand to balance it homogenously in the machine.

• Machinemightbeleaningonarigiditem.>>>Make sure that the machine is not leaning on anything. Machine stopped shortly after the programme started.

• Machinemighthavestoppedtemporarilyduetolowvoltage.>>>It will resume running when the voltage restores to the normal level. Programmetimedoesnotcountdown.(Onmodelswithdisplay)

• Timermaystopduringwaterintake.>>>Timer indicator will not countdown until the machine takes in adequate amount of water. The machine will wait until there is sufficient amount of water to avoid poor washing results due to lack of water. Timer indicator will resume countdown after this.

• Timermaystopduringheatingstep.>>>Timer indicator will not countdown until the machine reaches the selected temperature.

• Timermaystopduringspinningstep.>>>Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum.

Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment. Laundry should be rearrangedandre-spun. Foam is overflowing from the detergent drawer.

• Toomuchdetergentisused.>>>Mix 1 tablespoonful softener and ½ l water and pour into the main wash compartment of the detergent drawer.

Put detergent into the machine suitable for the programmes and maximum loads indicated in the “Programme and consumption table”. When you use additional chemicals (stain removers, bleachs and etc), reduce the amount of detergent. Laundry remains wet at the end of the programme

Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment. Laundry should be rearrangedandre-spun.

Ifyoucannoteliminatetheproblemalthoughyoufollowtheinstructionsinthissection,consultyour dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself. 2820522528_EN/080312.152117

PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 1061/201 Supplier name or trademark Beko Beko Model name WML 51021 WML 50821 Rated capacity (kg) 5 5 Energy efficiency class (1) A+ A+ Annual Energy Consumption (kWh) (2)

Energy consumption of the standard 60°C cotton programme at full load (kWh)

Energy consumption of the standard 60°C cotton programme at partial load (kWh)

Energy consumption of the standard 40°C cotton programme at partial load (kWh)

Power consumption in ‘off-mode’ (W) 0.250 0.250 Power consumption in ‘left-on mode’ (W) 1.35 1.35 Annual Water Consumption (l) (3)

Spin-drying efficiency class (4) C D Maximum spin speed (rpm) 1000 800 Remaining moisture Content (%) 62 68 Standard cotton programme (5) Cotton Eco 60°C and 40°C Programme time of the standard 60°C cotton programme at full load (min)

Programme time of the standard 60°C cotton programme at partial load (min)

Programme time of the standard 40°C cotton programme at partial load (min)

Duration of the left-on mode (min) N/A N/A Airborne acoustical noise emissions washing/spinning (dB) 59/72 57/72 Built-in No No (1) Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency) (2) Energy Consumption based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used. (3) Water consumption based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used. (4) Scale from A (Highest Efficiency) to G (Lowest Efficiency) (5) “Standard 60°C cotton programme” and the “standard 40°C cotton programme” are the standard washing programmes to which the information in the label and the fiche relates and these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.18

PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 1061/201 Supplier name or trademark Beko Beko Model name WML 51021 S WML 50821 S Rated capacity (kg) 5 5 Energy efficiency class (1) A+ A+ Annual Energy Consumption (kWh) (2)

Energy consumption of the standard 60°C cotton programme at full load (kWh)

Energy consumption of the standard 60°C cotton programme at partial load (kWh)

Energy consumption of the standard 40°C cotton programme at partial load (kWh)

Power consumption in ‘off-mode’ (W) 0.250 0.250 Power consumption in ‘left-on mode’ (W) 1.35 1.35 Annual Water Consumption (l) (3)

Spin-drying efficiency class (4) C D Maximum spin speed (rpm) 1000 800 Remaining moisture Content (%) 62 68 Standard cotton programme (5) Cotton Eco 60°C and 40°C Programme time of the standard 60°C cotton programme at full load (min)

Programme time of the standard 60°C cotton programme at partial load (min)

Programme time of the standard 40°C cotton programme at partial load (min)

Duration of the left-on mode (min) N/A N/A Airborne acoustical noise emissions washing/spinning (dB) 59/72 57/72 Built-in No No (1) Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency) (2) Energy Consumption based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used. (3) Water consumption based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used. (4) Scale from A (Highest Efficiency) to G (Lowest Efficiency) (5) “Standard 60°C cotton programme” and the “standard 40°C cotton programme” are the standard washing programmes to which the information in the label and the fiche relates and these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.20
