776SEK Inox - Tumble drier THOMAS - Free user manual and instructions

Product Type	Spin dryer (rotary drum dryer)
Brand	THOMAS
Model	776SEK Inox
Use	Domestic, spinning laundry after washing
Max dry laundry capacity	About 5-6 kg (according to specification sheet)
Spin speed	1400 rpm or 2800 rpm depending on model
Residual humidity	About 65% (1400 rpm) or 40% (2800 rpm)
Spin duration	3 to 5 min for normal laundry; 15 to 30 sec for non-iron laundry
Power supply	220-240 V ~ 50 Hz (check specification sheet)
Nominal power	About 250-400 W (estimate)
Dimensions (approx.)	Height: 60 cm, Diameter: 40 cm
Weight (approx.)	About 12 kg
Drum material	Stainless steel
Safety device	Lid locking during operation
Safety distance	50 cm from wall or any object
Cleaning	Wipe the drum after use; exterior with damp cloth and mild detergent
Maintenance	No special maintenance required
Repairability	For authorized technicians only; do not open the motor yourself
Included accessories	User manual, possible packing cylinder (remove before use)
Warranty	Standard manufacturer warranty (consult distributor)

Frequently Asked Questions - 776SEK Inox THOMAS

How to install the Thomas 776SEK Inox spin dryer?

Place the appliance on a flat and level floor, at least 50 cm from any wall or object. Plug it into a grounded 220-240 V outlet. First remove the packing cylinder from the drum.

What is the maximum dry laundry capacity?

The maximum capacity is indicated on the specification sheet. Generally, it is about 5 to 6 kg of dry laundry. Do not fill the drum beyond 3 cm from the edge.

How to use the spin dryer?

Open the lid, place a container under the drainage nozzle, fill the drum piece by piece distributing evenly, cover with a towel, close the lid, then turn the control knob to the right to the 'on' position. Stop by turning the knob back to the left.

Why does the spin dryer not spin?

Check the power supply, the condition of the fuse, cable, and plug. If everything is in order, contact a technician. Never disassemble the motor yourself.

What to do if water does not drain?

Unplug the appliance. Check if the drainage nozzle is blocked by a piece of laundry. Insert a hand into the drum to push the obstruction and remove it through the nozzle.

How to clean and maintain the spin dryer?

Always unplug before cleaning. Wipe the drum after each use. Clean the exterior with a damp cloth and mild detergent. Never use abrasive cleaners, gasoline, or solvent.

Can you spin laundry containing flammable substances?

No, absolutely not. Never spin laundry that has been cleaned, soaked, or sprayed with wax, paint, gasoline, or flammable liquid. Wash by hand first and air dry.

Why does the spin dryer dance or vibrate strongly?

This is due to excessive imbalance caused by improper loading. Stop immediately, open the lid after stopping, reposition the laundry evenly and compress it again.

How to transport the spin dryer?

Grasp the appliance by the two carrying handles. Never lift it while it is running. Make sure it is in an upright position and the drum is stopped.

Where to find after-sales service?

Consult your distributor to find the address of the nearest authorized technician. Have the data from the specification sheet located on the back of the appliance at hand.

USER MANUAL 776SEK Inox THOMAS

Line drawing of a cylindrical container with lid and side ports (no text or symbols)

Inhalt Seite

Illustrations 4
Description of Parts 5
Points of Safety 8
Electrical Information 10
Operating Instructions 10
Maintenance and Care 11
If unexpected difficulties arise 11

Sommaire Page

Line drawing of hands washing clothes inside a portable stove (no text or symbols)

D ca.β1cm

Line drawing of a portable water dispenser with a small container and liquid, labeled E (no text or symbols on the device itself)

F

Geräteabbildung/Description of Parts/Illustration/Toestelafbeelding/ Ilustración/Illustrazione dell'apparecchio

1 = Deckel

Lid

Couvercle

deksel

Tapa

coperchio

2 = Schalthebel

Operating lever

Poignée de commande

hefboomschakelbaar

Palanca de mando

leva di accensione

3 = Kabelaufhängung

Cable storage fixture

Porte-câble

kabelgleuf

Portacable

appendicavo

4 = Tragegrif

Carrying handle

Poignée-porteuse

draaggreep

Asidera

Labeled diagram of a cylindrical device with numbered parts for identification

Bedienung

Please read through the information contained in this instructions booklet carefully. It gives important advice on the safety, assembly, use and maintenance of the Spin Dryer. Retain the instructions booklet in a safe place for future reference and, if applicable, pass it on to the subsequent owner of the appliance. The manufacturer will not be liable if the instructions specified below are not observed. Do not put the Spin Dryer to improper use, i.e. do not use the appliance other than for the purposes it is meant for. It is intended for household use and for spinning items of laundry only.

• This appliance can be used by children from 8 years of age, as well as by persons with impaired physical, sensory or mental capacities, or lack of experience and/or knowledge, as long as they are supervised or have been instructed on using the appliance safely, and are aware of the dangers involved. Do not allow children play with the appliance. Cleaning and user maintenance should not be performed by children without supervision.
• Before connecting the appliance, check that the details given on the rating plate correspond to the requirements of your electrical installation.
• Do not operate the appliance if:
• the mains cable is damaged;
• the appliance shows clear signs of damage.
• Check the appliance for any damages which may have occurred during transport.
• Dispose of the packing in accordance with local regulations.

• Remove the transport locking pads from inside the drum.

• The spin dryer is intended for use by adults only.

• Ensure that children do not play around with the appliance.
• Modifications to the appliance can endanger your safety and health. Therefore, repairs to the appliance should be carried out by an authorised engineer only.
• Never operate the appliance in rooms where inflammable materials are stored or where gases have formed.
• Never unplug the appliance by pulling on the cable, but only by removing the plug directly from the socket.
• Ensure that the mains cable is not exposed to either heat or chemical substances, nor that it is pulled across sharp edges or surfaces.
• If the mains cable becomes damaged, have it replaced immediately by an authorised repair-shop.
• Do not touch or use the appliance with wet hands or when barefoot and standing on a wet floor.
• Do not expose the appliance to atmospheric effects, such as sun, rain, etc.
• NEVER add water to the drum, e.g. for „rinsing“

The basic safety regulations must be strictly observed. In case of doubt, have a qualified engineer inspect the electrical installation of your house. Electrical security is only ensured when the appliance has been duly earthed, as described under the safety regulations for electrical connections.

If the mains socket does not comply with the plug, the socket should be replaced by a suitable one.

• Never spin items of laundry which have been cleaned, washed, impregnated or sprayed with wax, paint, petrol or inflammable liquids. The vapours can constitute a fire hazard or cause an explosion. Always wash materials containing these substances by hand first and let them dry outside in the fresh air.
• Do not use the appliance as a footboard or load heavy items onto it.
• Do not reach into the drum while it is spinning.
• Do not store the spin dryer directly next to a hot stove or heater.
• In general, we recommend avoiding the use of multiple plug sockets, extension cables and adapters.

• Pull out the plug

• if the appliance malfunctions during operation;

• before cleaning and maintenance;

• after use.

• Operate the spin dryer only in an upright position on an even floor and maintain a distance of about 50 cm from the wall or other objects (Fig. B, Page 5).

• During operation, do not lift, carry, hold, move or tip over the appliance.
• Never handle the operating lever and lid with force.
• Lift or carry the appliance by the carrying handles only.
• Before disposal of the spin dryer, cut off the mains cable. Ensure that the appliance is disposed of carefully and orderly.

ELECTRICAL INFORMATION

WARNING:

THIS APPLIANCE MUST BE EARTHED

The mains lead of this appliance is fitted with a BS1363A 13 amp fused plug. To change a fuse in this type of plug use an A.S.T.A. approved fuse to BS1362 type.

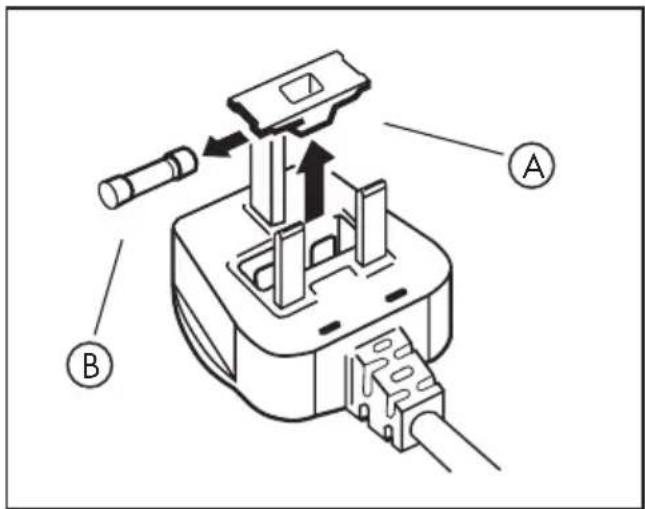

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and directional arrows.

1. Remove the fuse cover (A) and fuse (B)
2. Fit replacement 13A fuse into fuse cover
3. Refit both into plug

IMPORTANT:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacements are identified by the colour insert or the colour embossed in words on the base of the plug.

- Replacement fuse covers are available from your local Electricity Board Shop.

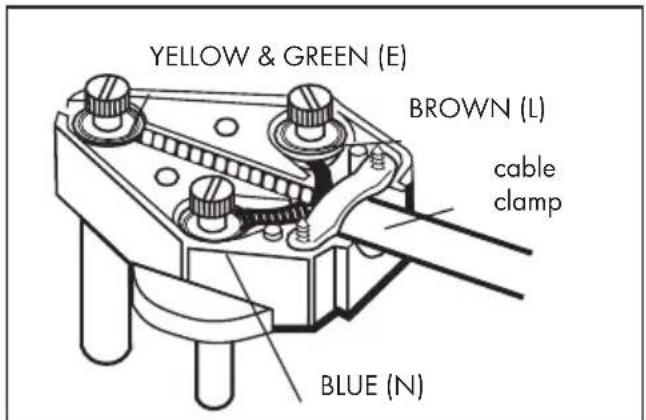

HOW TO CONNECT AN ALTERNATIVE PLUG

If the fitted plug is not suitable for your socket outlet, then it should be cut off and disposed of in order to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere. A suitable alternative plug of a least 13 Amp rating e.g. 15 Amp round pin to BS546 should then be fitted to the cable.

The wires in this mains lead are coloured in accordance with the following code: -

BLUE - "NEUTRAL" ("N")

BROWN - "LIVE" ("L")

GREEN AND YELLOW - "EARTH" ("E")

1. The GREEN AND YELLOW wire must be connected to the terminal in the plug which is marked with the letter
   "E" or by the Earth symbol or coloured green or green and yellow.
2. The BLUE wire must be connected to the terminal which is marked with the letter "N" or coloured black.
3. The BROWN wire must be connected to the terminal which is marked with the letter "L" or coloured red.

YELLOW & GREEN (E) BROWN (L) cable clamp BLUE (N)

Operating Instructions

Congratulations on your new purchase

We recommend that you read these instructions carefully in order to quickly become familiar with your new appliance.

A good appliance, which is used properly, will serve you for many years.

Unpacking the appliance

Dispose of packing materials in accordance with local regulations.

Check the spin dryer for any transport damages, which must be reported to the forwarding agent or goods office responsible within 24 hours. In case of damage, kindly send all relevant paperwork to the Customer Service for further treatment.

Preparation for Use

1. Put the operating lever in the "OFF" (0) position.

1. Open the lid.
2. Remove the transport safeguard from inside the spin drum.
3. We recommend that the spin drum be washed out with a standard detergent before using for the first time.
4. Place the spin dryer on a level floor at a distance of about 50 cm away from the wall or other objects. Never balance out irregularities in the floor surface by laying wood, paper or similar materials under the appliance.

Loading the machine

1. Place a sufficiently large container for excess water under the outlet spout.
2. Plug the appliance in to a mains socket (please observe the Points of Safety).

1. Place each article of laundry singly in the spin drum. Distribute the washing evenly in the drum and press down firmly, so as to avoid leaving empty spaces (and thus avoiding excessive vibration of the machine during operation).
2. The max. dry weight capacity and the electrical ratings are to be found on the rating plate or to be obtained in consulting your dealer.

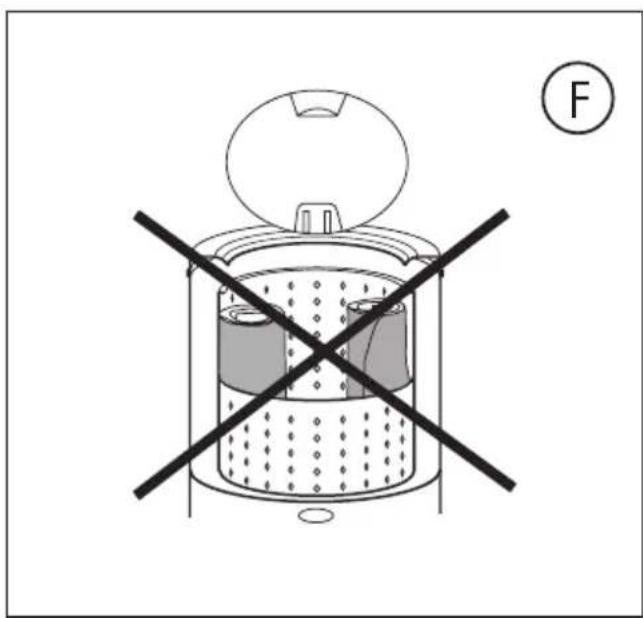

3. Do not place rolled-up items of clothing (e.g. jeans) in the spin dryer.

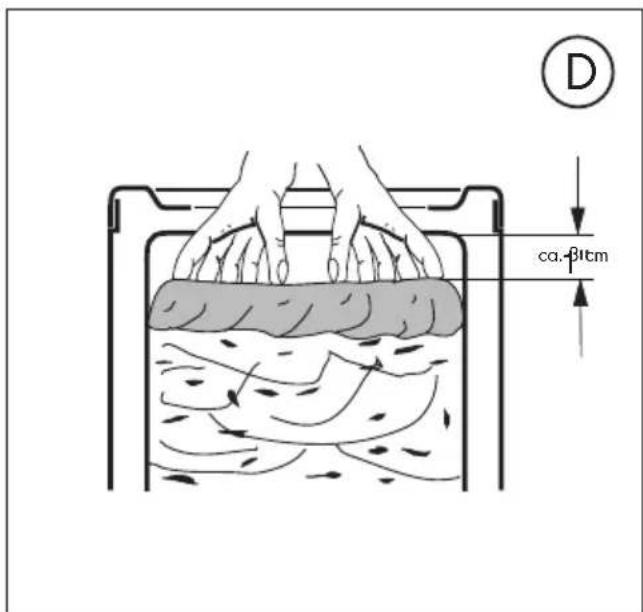

4. Press the loaded washing down, so that there is a gap of at least 3 cm between the washing and the top edge of the drum. Lastly, cover the washing with a cloth, the ends of which should be tucked well down inside the drum, so as to avoid items of washing being catapulted out during operation.
5. Close the lid.

Switch on the appliance

Turn the operating lever to the right as far as it will go to the "ON" (I) position.

The spin dryer is now in operation and water flows out of the outlet spout.

Spin Drying Times

For normal washing: 3-5 minutes.

The residual moisture amounts to:

• approx: 65% in machines with a spin speed of 1400 rpm;
• approx: 40% in machines with a spin speed of 2800 rpm;

For washing which requires no ironing: 15-30 seconds max.

Switch of the appliance

When water ceases to flow out of the outlet spout, or when the spin process is to be terminated, turn the operating lever back to the left to the "OFF" (0) position.

When the drum has come to a standstill, open the lid. A special safety device prevents the lid being opened before the drum has stopped spinning.

Never force the lid open

Remove the laundry from the drum.

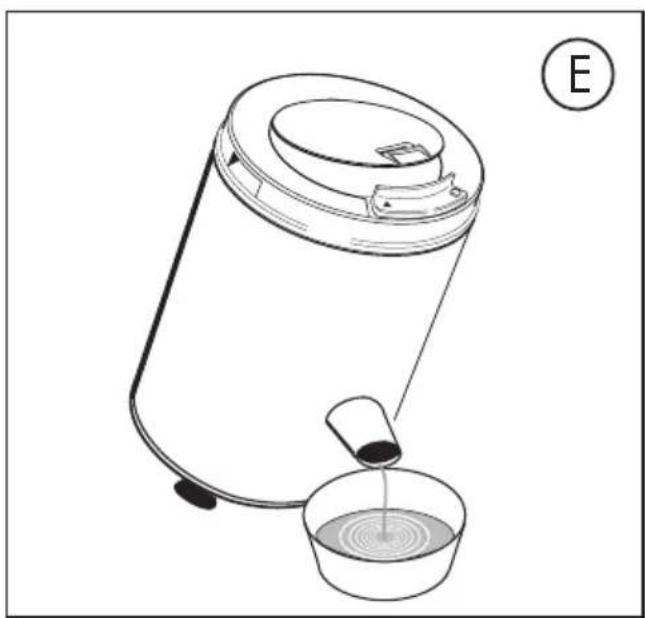

Gently tilt the spin forward, so that any remaining water can flow out of the outlet spout.

Pull out the plug.

Maintenance and Care

• Always pull out the plug before cleaning the appliance!
• After use, wipe the spindrum dry with a cloth.
- If dirty washing has been spun, it is necessary to rinse the drum out with clear water in order to avoid soiling the next load of washing.

• Clean the exterior of the spin dryer with a damp cloth and wipe it dry.
• Use standard detergents only to clean the appliance.
• Do not use abrasive cleaning agents.
• Never use petrol or other solvent liquids.
• The spin dryer requires no other maintenance.

If unexpected difficulties arise

- Before contacting your dealer, check whether the fault is due to one of the following minor causes.

The motor does not function:

• Has the fuse blow?
• Is there damage to the mains cable, plug or socket? Pull out the plug before checking!
• Never open the motor yourself!

Water does not flow out:

• Pull out the plug! Check whether the outlet spout is blocked by a piece of washing.
• Press the spin drum from the inside against the outer casing with your hand and remove the piece of washing.

The spin dryer does not pick up spin speed:

• Please note that the spin dryer normally overcomes a certain amount of unbalance itself when picking up spin speed. The motor and spin drum are suspended flexibly for that reason.
  • However, if the unbalance is too great (brought about by incorrect loading of the spin dryer), the machine cannot pick up spin speed.

The spin dryer "jumps":

1. Switch off the spin dryer immediately!
2. When the drum has come to a standstill, repack the washing evenly.
3. Reload the spin dryer in accordance with the instructions given on the previous page.

Customer Service

Ask your dealer for the adress or telephone number of your nearest Customer Service.

Specify model number and type when contacting your dealer – you will find these details on the rating plate located at the back of your Spin Dryer.

To maintain the safety of your appliance, you should have repairs, especially on live parts, carried out by a trained electrician only. In the event of a fault, you should therefore approach your dealer or the Customer Service directly.
