WPL01 - Wireless pointer Gembird - Free user manual and instructions

Product type	Wireless presenter with laser
Brand	Gembird
Model	WPL01
Dimensions (L x W x H)	Approx. 14 x 2 x 2 cm
Weight	Approx. 60 g (with batteries)
Power supply	2 AAA batteries (not included)
Wireless range	Up to 30 m
Operating frequency	2.4 GHz
Laser type	Red laser class 2
Main functions	Laser pointer, slideshow control (previous/next page), virtual mouse
Connectivity	Miniature USB receiver (integrated into the pointer compartment)
Compatible operating systems	Windows, macOS, Linux
Safety precautions	Do not point the laser at eyes. Keep out of reach of children.
Maintenance and cleaning	Wipe with a dry, soft cloth. Do not use solvents.
Spare parts and repairability	Batteries replaceable by user. For any other repairs, contact Gembird support.
General information	2-year warranty. Manufacturer: Gembird Europe B.V., Netherlands.

Frequently Asked Questions - WPL01 Gembird

How to turn on the WPL01 pointer?

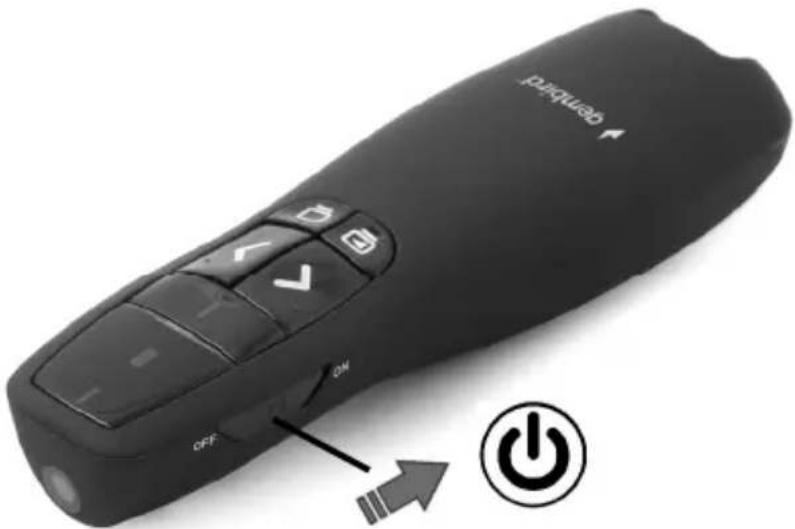

Insert two AAA batteries into the battery compartment, then slide the switch on the side of the pointer to the ON position. An indicator light shows that the device is powered on.

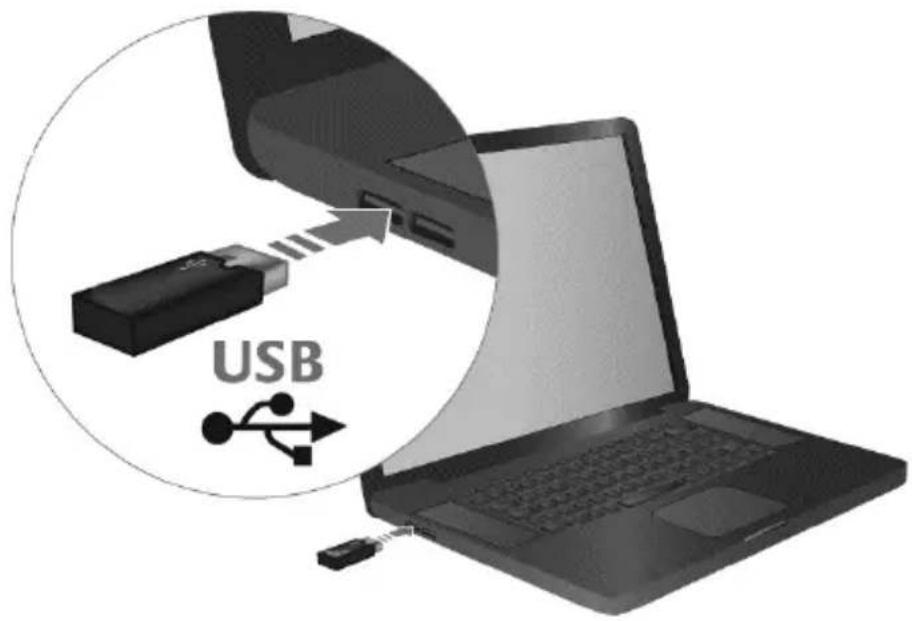

How to connect the USB receiver?

Take out the USB receiver from its compartment at the back of the pointer and plug it into a free USB port on your computer. No driver is needed: the pointer is recognized automatically.

What is the maximum range of the pointer?

The wireless range in 2.4 GHz can reach 30 meters under normal use (without major obstacles).

How to use the laser?

Press the button marked with a laser symbol (usually red) on top of the pointer to activate the laser beam. Release to turn it off. Caution: never point the laser at eyes.

Can the pointer be used with presentation software other than PowerPoint?

Yes, the WPL01 pointer sends standard previous and next page commands (PgUp/PgDn keys) compatible with most presentation software such as PowerPoint, Keynote, LibreOffice Impress and PDF viewers.

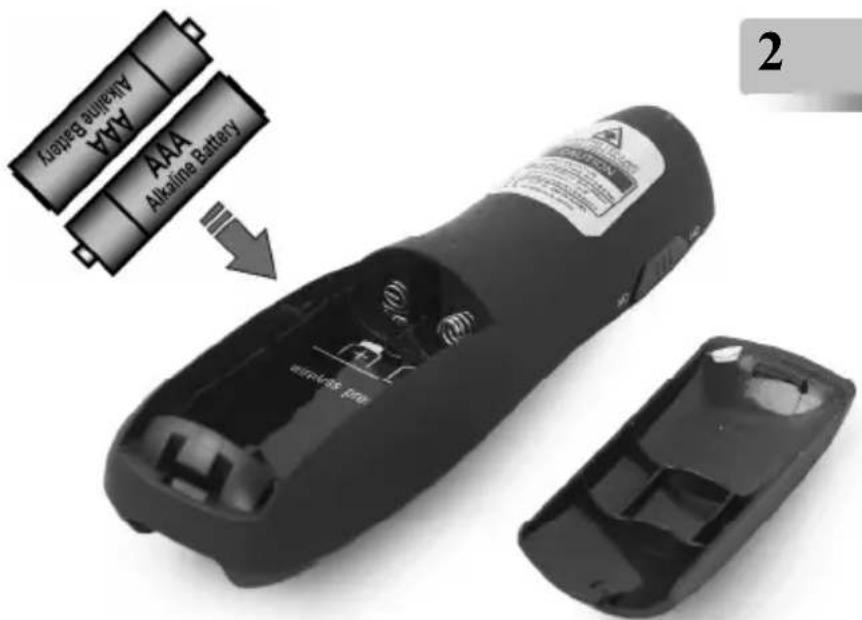

How to replace the batteries?

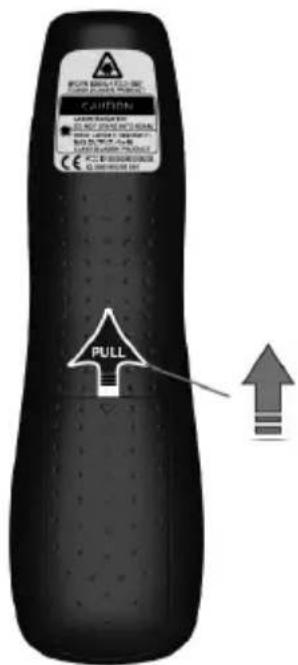

Open the battery compartment at the back of the pointer by sliding the cover. Replace the two used batteries with new AAA batteries, respecting the indicated polarity.

Is the USB receiver compatible with USB 3.0 ports?

Yes, the receiver is compatible with USB 2.0 and USB 3.0 ports. It can be plugged into any standard USB port on the computer.

What to do if the pointer does not work?

Check that the batteries are correctly inserted and not discharged. Ensure the USB receiver is properly connected and the pointer is turned on. Try restarting the computer or plugging the receiver into a different USB port.

Is the laser dangerous for eyes?

The pointer uses a class 2 laser (low power). It is not dangerous in normal use, but never look directly into the beam or point it at anyone's eyes or animals. Keep out of reach of children.

How to clean the pointer?

Use a soft, dry cloth to clean the surface. Do not use chemicals, solvents or abrasive liquids. Avoid getting the device wet.

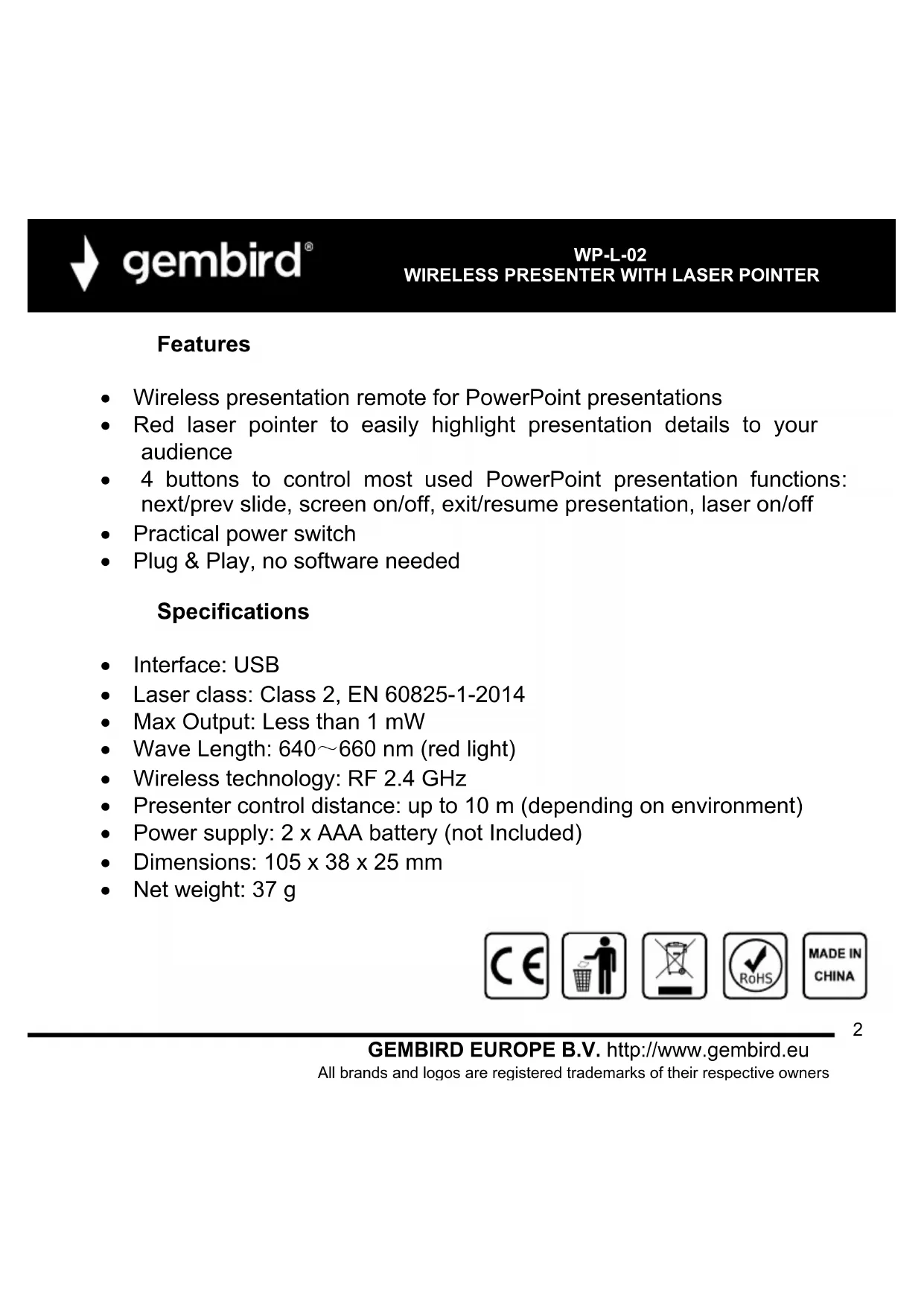

USER MANUAL WPL01 Gembird

• Wireless presentation remote for PowerPoint presentations
• Red laser pointer to easily highlight presentation details to your audience

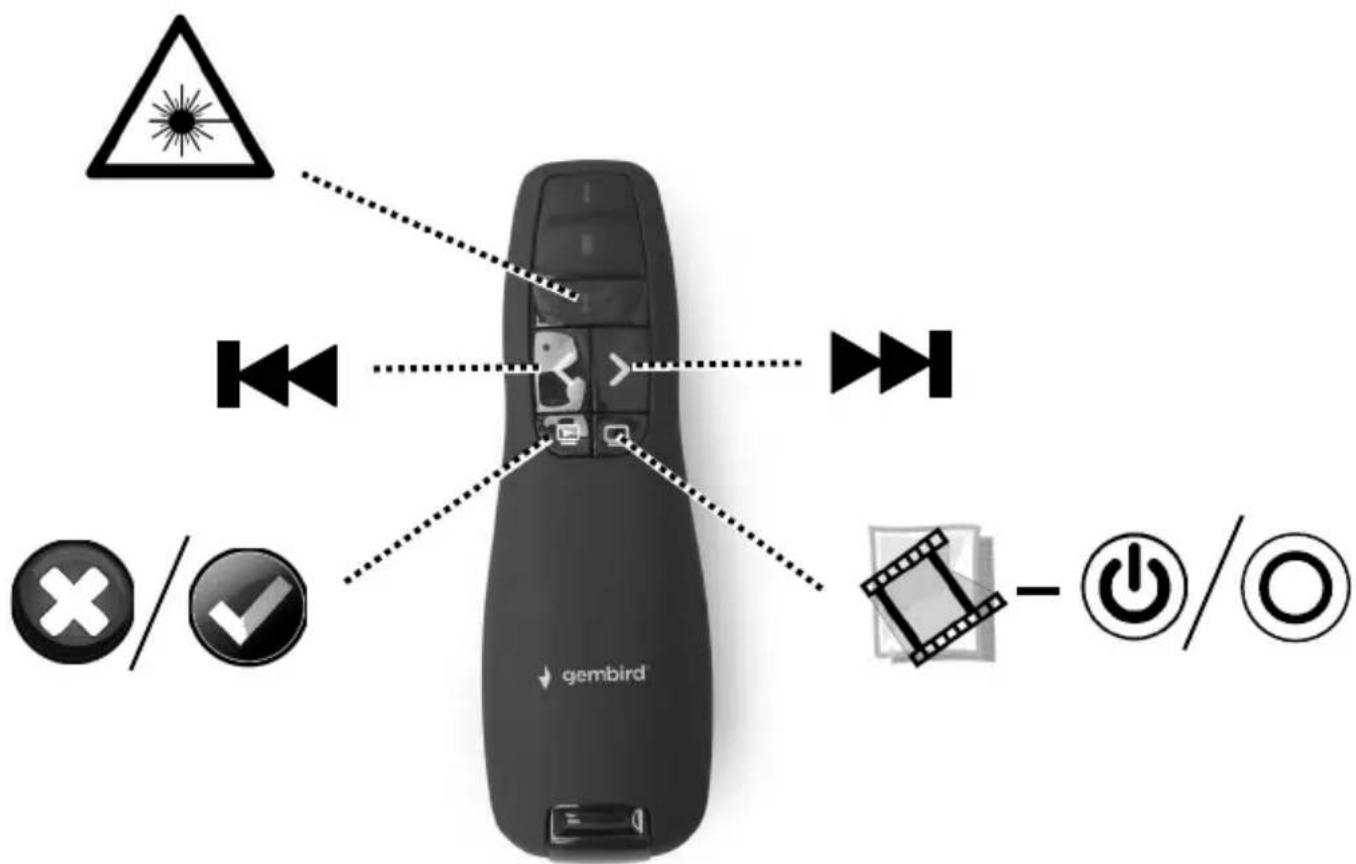

• 4 buttons to control most used PowerPoint presentation functions: next/prev slide, screen on/off, exit/resume presentation, laser on/off
• Practical power switch
  Plug & Play, no software needed

Specifications

• Interface: USB
• Laser class: Class 2, EN 60825-1-2014
• Max Output: Less than 1 ~mW
  Wave Length: 640 660~nm (red light)
• Wireless technology: RF 2.4 GHz
• Presenter control distance: up to 10m (depending on environment)
• Power supply: 2 × AAA battery (not Included)
• Dimensions: 105 × 38 × 25 mm
  Net weight: 37 g

gembird

WP-L-02

WIRELESS PRESENTER WITH LASER POINTER

1

3

gembird

WP-L-02

WIRELESS PRESENTER WITH LASER POINTER

4

5

gembird

WP-L-02

WIRELESS PRESENTER WITH LASER POINTER

6

gembird

WP-L-02

WIRELESS PRESENTER WITH LASER POINTER

(ENG) Declaration of conformity This product is tested and complies with the essential requirements of the laws of member states concerning RED (2014/53/EU). The CE declaration can be found under www.gembird.eu	(NL/BE) Verklaring van overeenstemming Dit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot RED (2014/53/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op once website: www.gembird.eu
(FR/BE) Déclaration de conformité Le produit est contrôle et rempli les exigences des directives nationales et de la directive RED (2014/53/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu	(DE) Konformitätserklärgung Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie RED (2014/53/EU) überein. Die Konformitätserklärgung kann auf unserer Webseite www.gembird.eu heruntergeladen werden.
Deklaracja zgodność Ten produkt[zostal przytestowy i jest zgodny zzasadniczymi wymaganiAMI przyepsów ustawowych państwoczłonkowskiech dotycznych RED (2014/53/EU). Deklaracja CE znejduje są pod adresem www.gembird.eu

gembird

WP-L-02

WIRELESS PRESENTER WITH LASER POINTER

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
