Product Type	Sink (kitchen sink)
Brand	Smeg
Model	LZ861CT
Installation	By qualified personnel in accordance with current standards
Daily cleaning	Non-abrasive soft sponge and ordinary dish detergent, rinse and dry with a microfiber cloth
Light stain cleaning	Solution of bleach and warm water (3/4 and 1/4), let sit for 8 hours, rinse thoroughly and dry
Dark stain cleaning	Circular motions with a soft sponge and detergent, rinse with warm water and dry
Limescale cleaning	Anti-limescale descaling anti-corrosion product diluted in warm water, let sit, rinse and dry
Weekly anti-limescale treatment	Fill with warm water, add 2 tablespoons of liquid or powder laundry detergent, let sit 5-6 hours, rinse and dry
Usage precautions	Do not use abrasive sponges, do not cut directly on the surface, do not place hot objects, do not pour boiling liquids without cold water at the bottom
Warranty maintenance	Failure to follow cleaning instructions may void the standard warranty
Manual languages	French, German, English, Spanish, Italian, Polish, Portuguese, Russian, Ukrainian
Number of pages	42
Included accessories	Silicone is not included

Frequently Asked Questions - LZ861CT SMEG

How to properly install the Smeg LZ861CT sink?

Installation must be carried out by qualified personnel in accordance with current standards. Before mounting, wash the sink with ordinary detergent and a soft sponge to remove production residues. Silicone is not included.

What cleaning product to use daily?

Use a non-abrasive soft sponge and ordinary dish soap. Rinse thoroughly and dry with a microfiber cloth.

How to remove stubborn stains on a light-colored sink?

Prepare a solution of bleach and warm water (3/4 and 1/4). Let it act for about 8 hours (e.g., overnight), then rinse thoroughly and dry carefully. If necessary, repeat 1-2 times.

How to remove stains on a dark-colored sink?

Use a non-abrasive soft sponge and ordinary detergent, making small circular motions. Rinse with warm water and dry thoroughly. Repeat if necessary.

What product to use against limescale stains?

Use an anti-limescale descaling and anti-corrosion product diluted in warm water. Apply evenly, let it act for a few minutes while making circular motions with a soft sponge, then rinse and dry.

Is it recommended to use abrasive sponges or steel wool?

No, it is forbidden to use steel wool or abrasive sponges as they can damage the sink surface.

Can you cut food directly on the sink?

No, it is not recommended to cut or chop directly on the surface as it could cause irreparable scratches. Use a cutting board.

What to do if a hot pan is placed on the sink?

Avoid placing hot pots or pans directly on the sink, as discoloration or damage may occur. If it happens, no repair is possible.

How to prevent limescale buildup?

Dry the surface daily to prevent water deposits. Perform a weekly descaling treatment: fill the bowl with warm water, add two tablespoons of liquid detergent or a laundry detergent tablet, let it act for 5-6 hours, then rinse and dry.

Is the warranty affected by non-compliance with maintenance instructions?

Yes, failure to follow the cleaning and maintenance instructions mentioned in the manual may void the manufacturer's standard warranty.

USER MANUAL LZ861CT SMEG

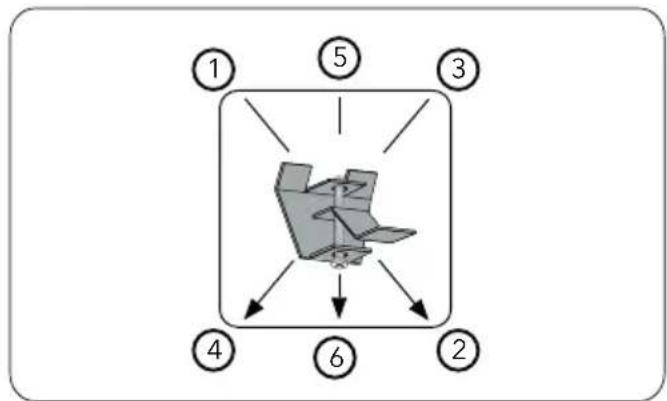

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

2. MANUTENZIONE STRAORDINARIA

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising, crossed by a black X (no text or symbols)

Before fitting the sink, it is advisable to wash it using standard dish detergent and a soft sponge to remove any manufacturing residues.

Rinse the sink thoroughly and dry it using a microfibre cloth.

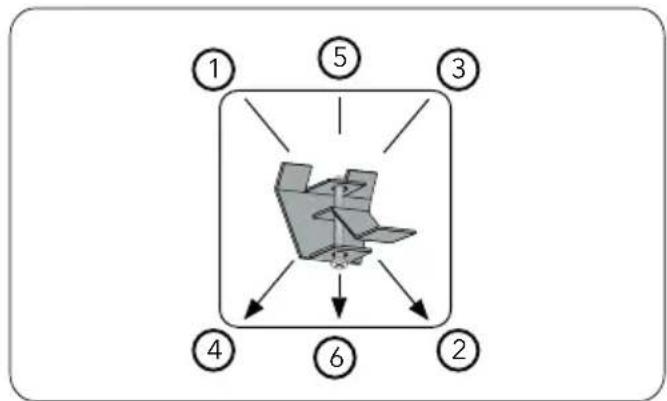

STANDARD INSTALLATION

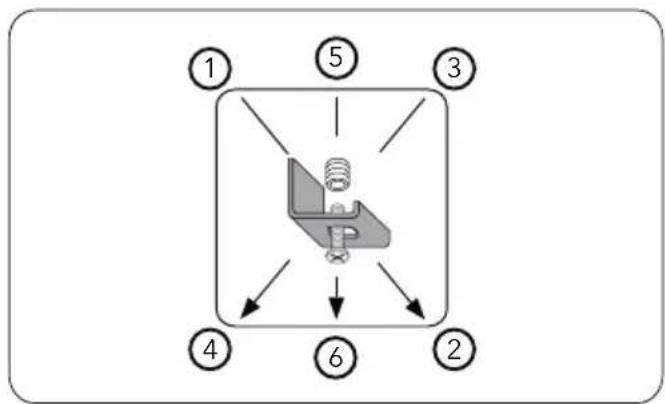

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


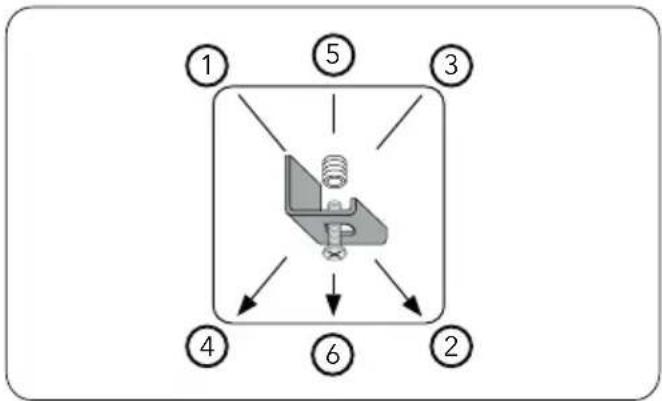

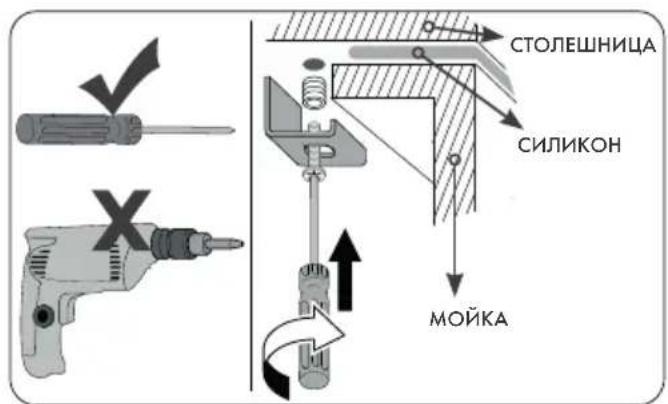

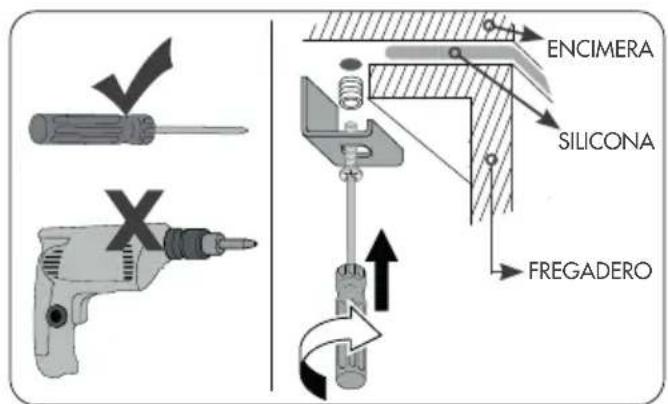

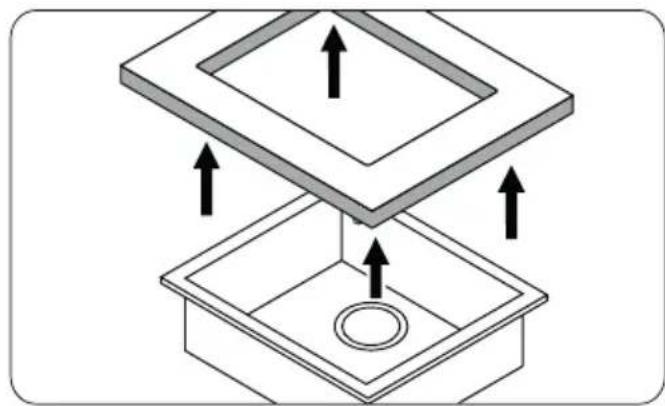

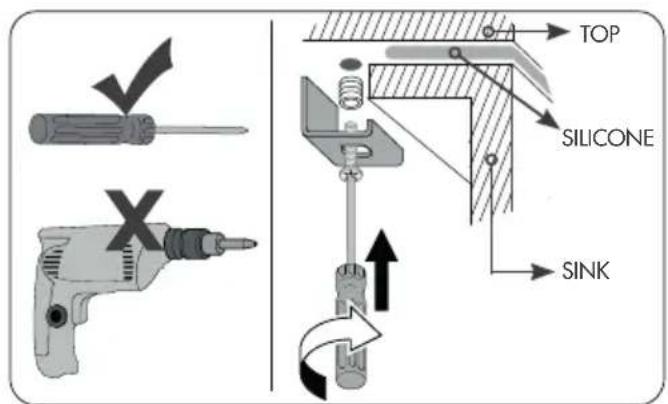

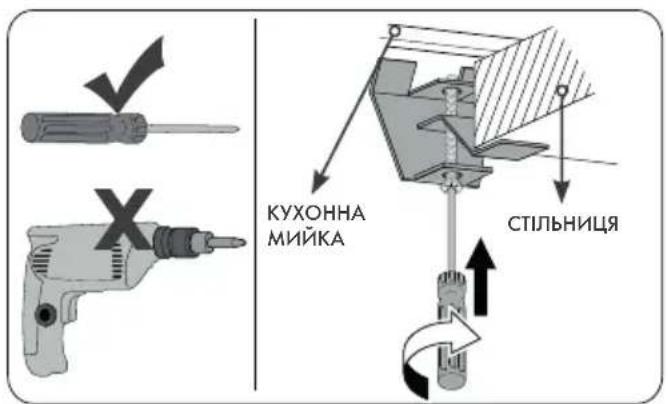

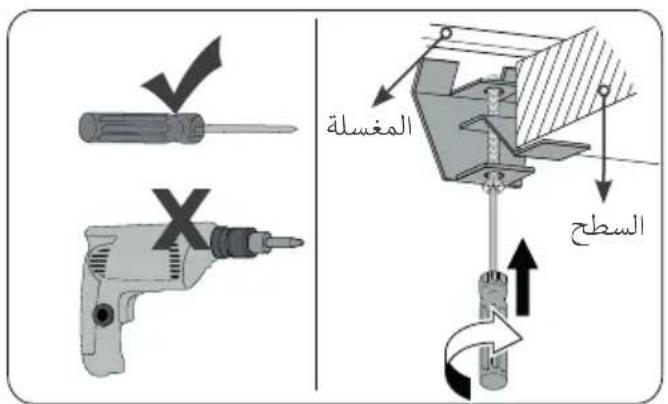

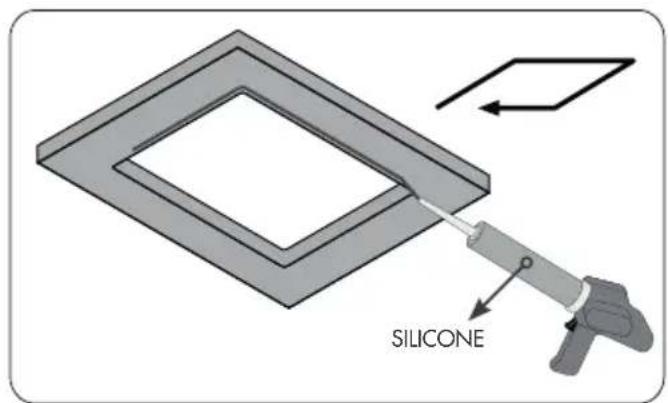

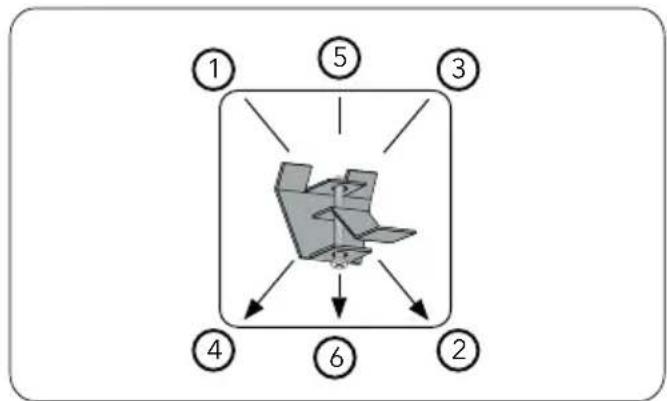

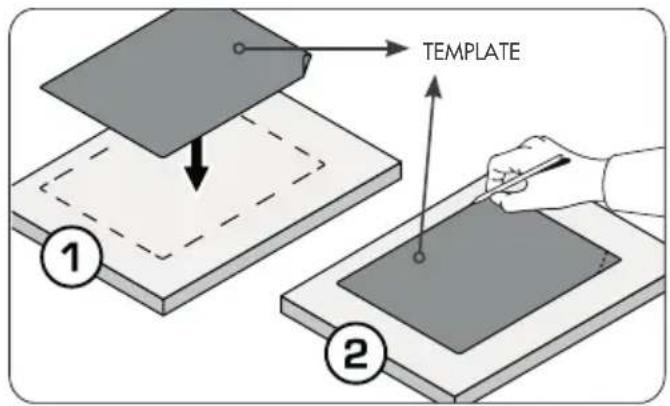

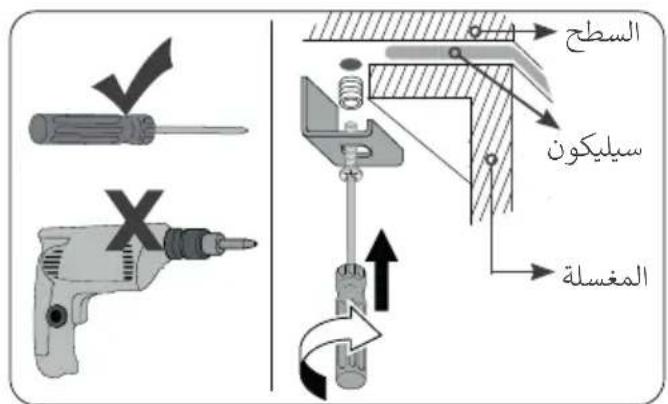

UNDERMOUNT INSTALLATION

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

The packaging materials (plastic bags, expanded polystyrene, etc.) must not be left within reach of children as they are a potential hazard.

Installation and support should be undertaken by qualified individuals, in accordance with the applicable legal requirements.

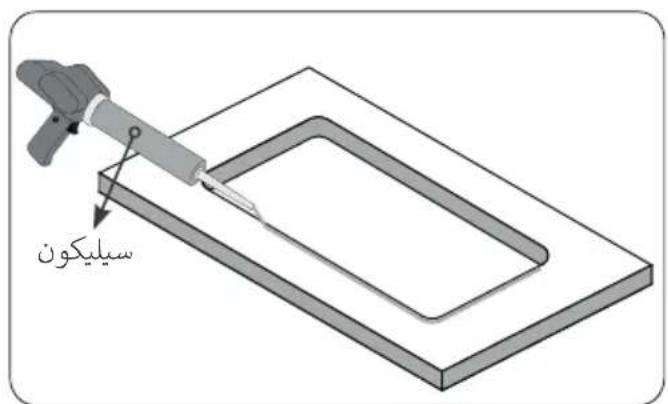

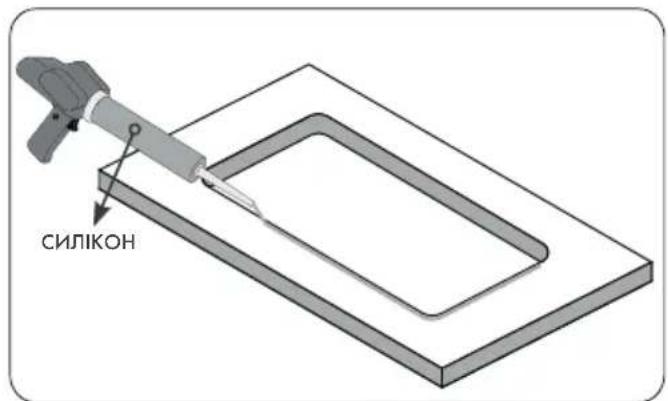

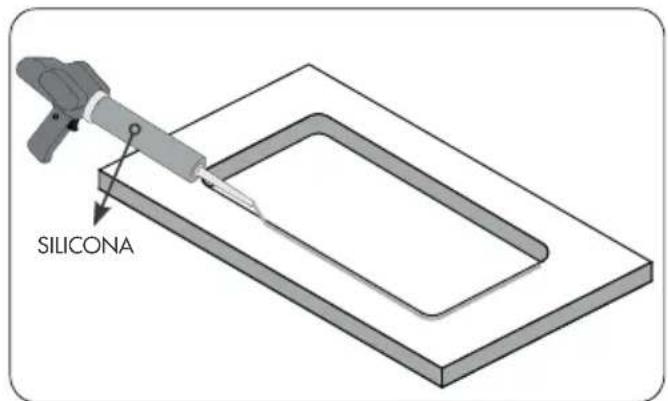

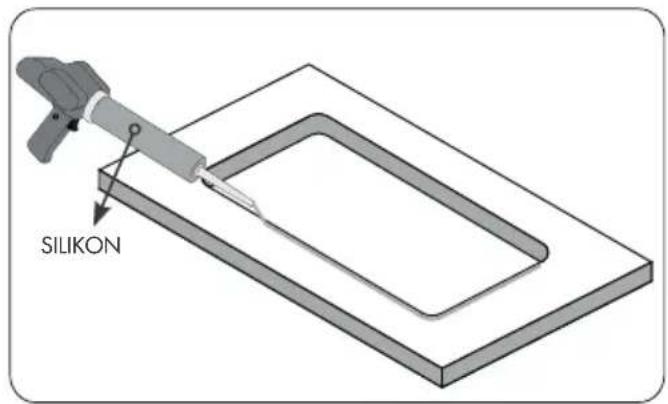

The silicone is not included with the product. The sink shown in this guide is for illustrative purposes only.

1. ROUTINE MAINTENANCE

Cleaning your Smeg product is quick and simple. Even though the non-porous surface prevents liquids penetrating into the material, it is preferable to remove them immediately using a soft, non-abrasive sponge and standard dish detergent. You should then rinse the surface and dry it carefully using a microfibre cloth.

Simple line drawing of a hand covering a cloth with motion lines (no text or symbols)

2. NON-ROUTINE MAINTENANCE

Cleaning stubborn stains is not difficult: all you need to do is choose the right product and use it correctly.

For stubborn stains on LIGHT-COLOURED products, you can use a solution of bleach and warm water ( 34 to 14 ), leaving it to act for eight hours (we recommend that this cleaning be performed during the night). Afterwards, rinse thoroughly and dry the entire surface carefully using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

For stubborn stains on DARK-COLOURED products, you can remove them directly with a soft, non-abrasive sponge and standard dish detergent, using small circular movements. When finished, rinse using warm water and carefully dry the entire surface using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

To remove limescale stains, we recommend the use of a non-corrosive descaling product diluted with warm water. Distribute the solution uniformly over the entire surface of the product. Clean with a soft, non-abrasive sponge using small circular movements and leave the product to act for several minutes (follow the instructions and conditions for use on the product label). When finished, rinse using warm water and dry carefully using a microfibre cloth.

Failure to follow the cleaning and maintenance instructions stated in this manual may invalidate the standard warranty provided by the manufacturer.

To ensure that there is no change to the characteristics of the product, we recommend that users observe the following precautions:

- dry the surface of the product every day to avoid prolonged exposure to water that could lead to the build-up of limescale or stubborn stains

- do not use detergents that contain alkaline substances and aggressive liquids (such as ammonia, caustic soda or drain cleaners)

- do not remove traces of dirt using steel scourers or abrasive sponges that could damage the surface

- do not cut or chop directly on the surface of the product because this could cause irreparable scratches (always use chopping boards)

- avoid accidental knocks that could cause irreparable micro-damage

- do not place hot cookware, pans or coffee makers directly on the sink surface: stains from discolouration and/or damage could form in areas where hot items are placed

- avoid pouring boiling liquids directly into the sink without first turning on the cold tap and filling the sink with at least 1 cm of water, as this could damage the product

• to prevent the build-up of limescale, it is recommended that a descaling treatment be completed at least once a week. This is recommended in particular for dark-coloured sinks. Fill the tub with warm water and add two spoonfuls of liquid or powder dishwasher detergent or a dishwasher tab. Leave the solution for 5/6 hours. Rinse thoroughly and dry carefully.

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out kitchen panes (no text or symbols)

Do not put pans or coffee makers that have just been taken off the heat (which sometimes reach 500°C) directly into sink.

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


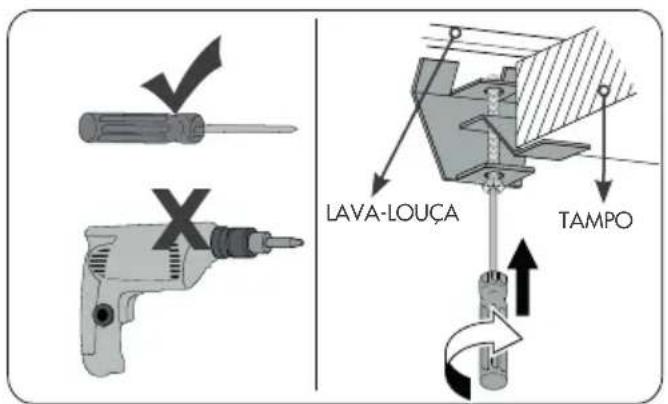

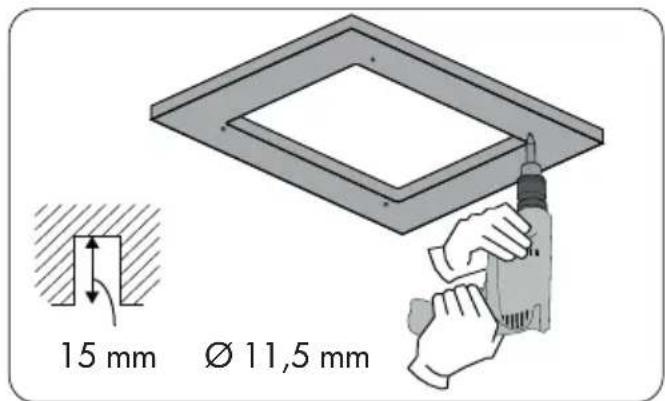

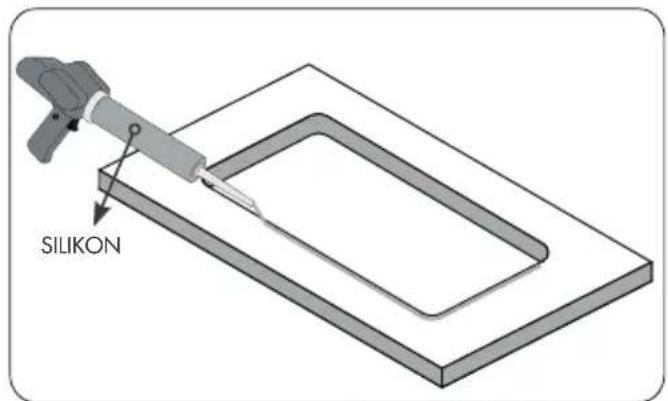

INSTALLATION SOUS LE PLAN SUPÉRIEUR

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out kitchen panes (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


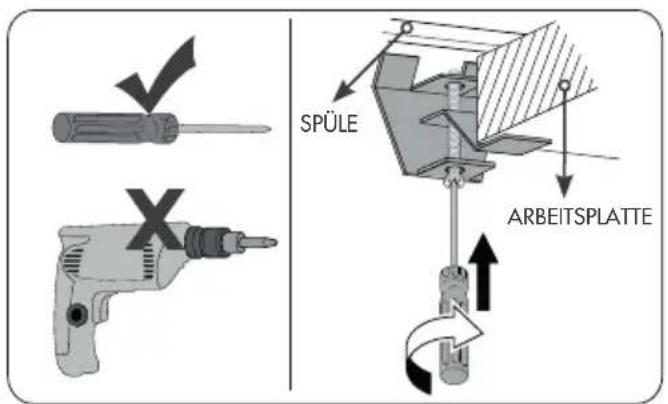

UNTERBAU-INSTALLATION

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising, crossed by a black X (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising from a stove, crossed out by a diagonal line (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a kitchen counter with a crossed-out black cross symbol (no text or labels)

Simple line drawing of a crossed-out kitchen counter with steam rising (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Hand wiping a surface with a cloth (no text or symbols)

2. НЕПЛАНОВЫЙ УХОД

Simple line drawing of a stove with a crossed-out black symbol (no text or numbers)

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

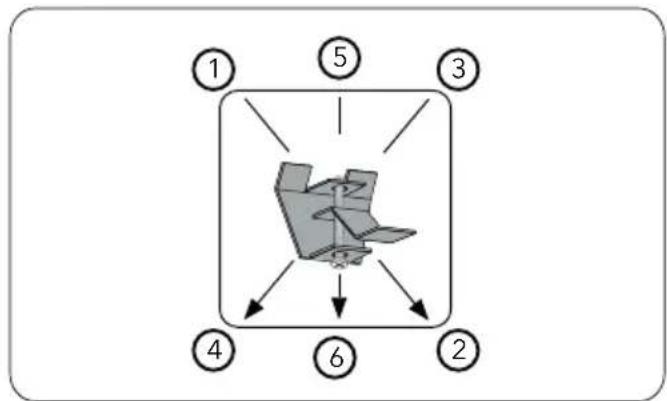

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


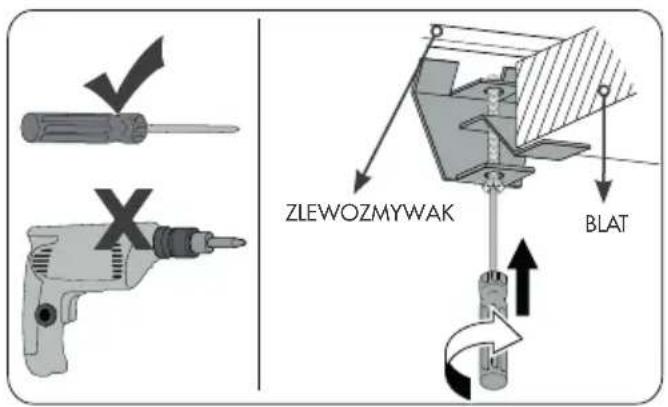

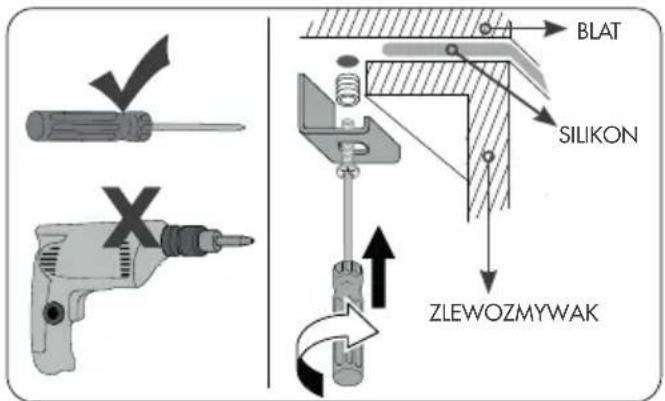

MONTAŻ POD BLATEM

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Illustration of a hand cleaning a surface with a cloth (no text or symbols)

2. KONSERWACJA DORAŻNA

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out kitchen panes (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a kitchen with a crossed-out black symbol (no text or numbers)

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Two hand icons with different textures, one covering a cloth and the other covering a surface (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out black lines (no text or symbols)
