Product type	Kitchen sink
Brand	SMEG
Model	VZ57N
Installation	Standard, by qualified personnel
Daily maintenance	Soft sponge and dishwashing detergent, rinse and dry
Cleaning stubborn stains (light color)	Bleach/warm water solution (3/4-1/4), let act 8 hours, rinse thoroughly
Cleaning stubborn stains (dark color)	Circular motions with soft sponge and detergent, rinse with warm water
Cleaning limescale stains	Descaling agent diluted in warm water, circular motions, rinse
Prohibited products	Alkaline detergents, aggressive liquids (ammonia, caustic soda), steel wool, abrasive sponges
Usage precautions	Do not cut directly on the surface, do not place hot objects, do not pour boiling liquids without cold water
Weekly anti-scale treatment	Fill with warm water + 2 tablespoons of liquid detergent or a tablet, leave 5-6 hours, rinse
Drying	Wipe daily with a microfiber cloth
Warranty	Conventional warranty voidable if maintenance instructions not followed
Safety	Keep packaging (bags, polystyrene) away from children
Accessories included	None (silicone not supplied)

Frequently Asked Questions - VZ57N SMEG

How to clean a SMEG VZ57N sink daily?

Use a soft non-abrasive sponge and ordinary dishwashing detergent. Rinse with warm water and dry thoroughly with a microfiber cloth.

What to do about stubborn stains on a light-colored sink?

Prepare a solution of bleach and warm water in proportions 3/4 and 1/4. Let it act for about 8 hours (preferably overnight), then rinse thoroughly and dry. Repeat 1-2 times if necessary.

What to do about stubborn stains on a dark-colored sink?

With a soft non-abrasive sponge and dishwashing detergent, make small circular motions. Rinse with warm water and dry thoroughly. Repeat 1-2 times if necessary.

How to remove limescale stains on the sink?

Use a descaling product diluted in warm water. Apply evenly, then with a soft sponge make small circular motions. Let it act for a few minutes, rinse and dry.

What cleaning products are not recommended for the SMEG VZ57N sink?

Avoid detergents containing alkaline substances or aggressive liquids like ammonia, caustic soda or drain cleaners. Never use steel wool or abrasive sponges.

Can I cut food directly on the sink surface?

No, this could cause irreparable scratches. Always use a cutting board.

Can I pour boiling water directly into the sink?

No, first pour cold water and make sure there is at least 1 cm of water at the bottom to avoid damaging the product.

How to do weekly anti-scale treatment?

Fill the basin with warm water and add two tablespoons of liquid detergent (or powder) for laundry, or a tablet. Let it act for 5 to 6 hours, then rinse thoroughly and dry.

Is the installation of the SMEG VZ57N sink complex?

Installation must be carried out by qualified personnel according to current standards. Silicone is not supplied. Ensure packaging is kept away from children.

Is the warranty affected by poor maintenance?

Yes, failure to follow cleaning and maintenance instructions may render the manufacturer's conventional warranty null and void.

USER MANUAL VZ57N SMEG

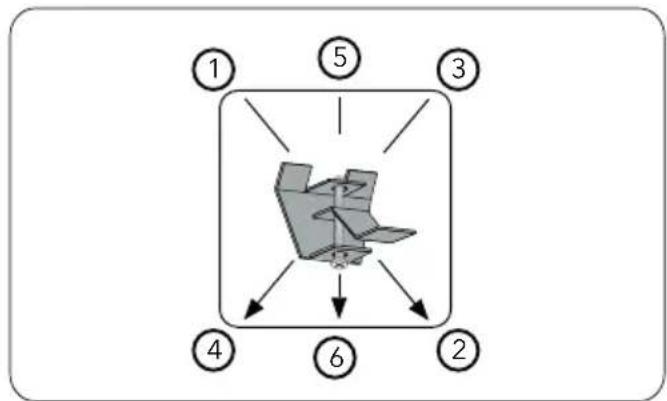

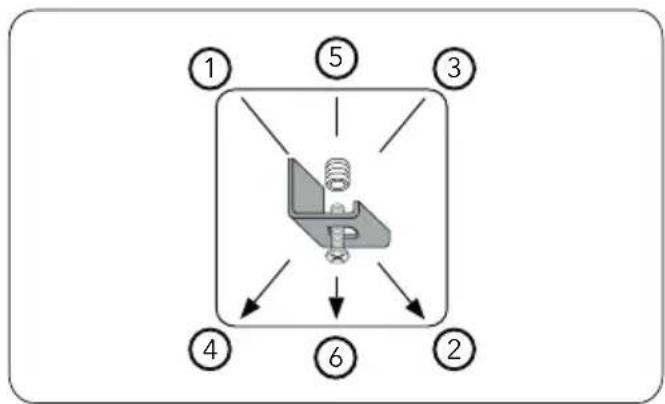

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols)

2. MANUTENZIONE STRAORDINARIA

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out diagonals (no text or symbols)

Before fitting the sink, it is advisable to wash it using standard dish detergent and a soft sponge to remove any manufacturing residues.

Rinse the sink thoroughly and dry it using a microfibre cloth.

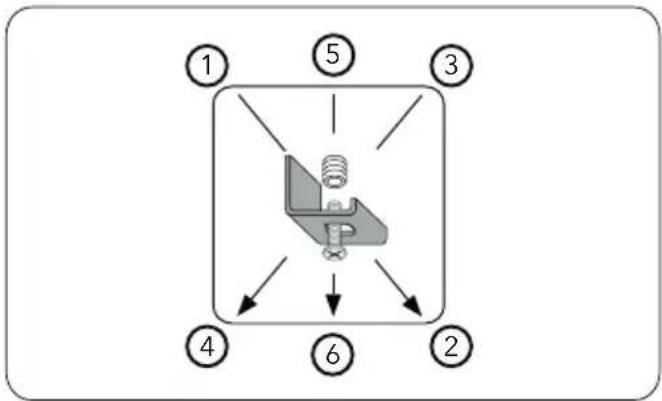

STANDARD INSTALLATION

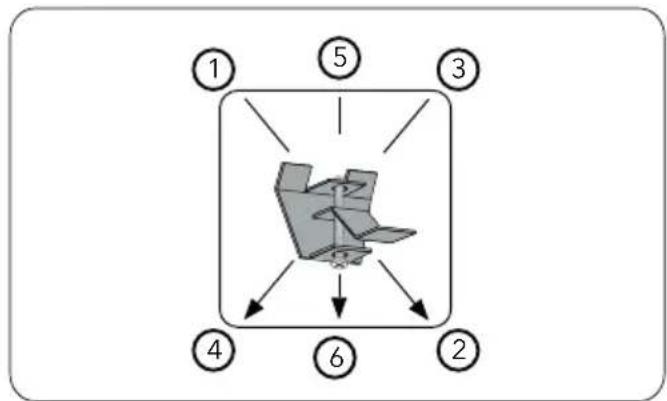

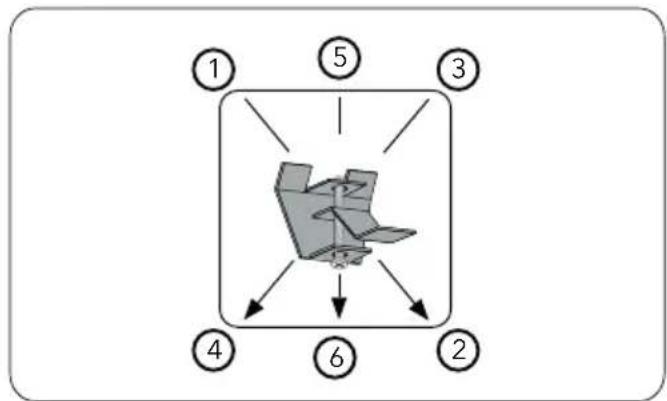

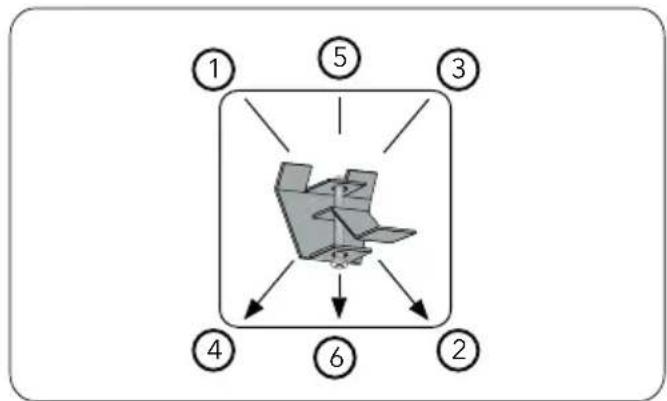

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


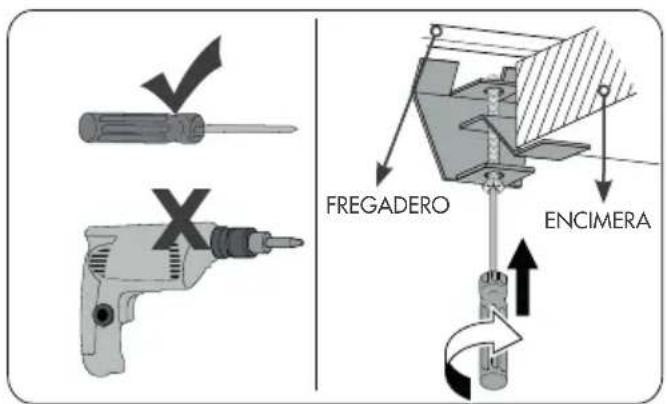

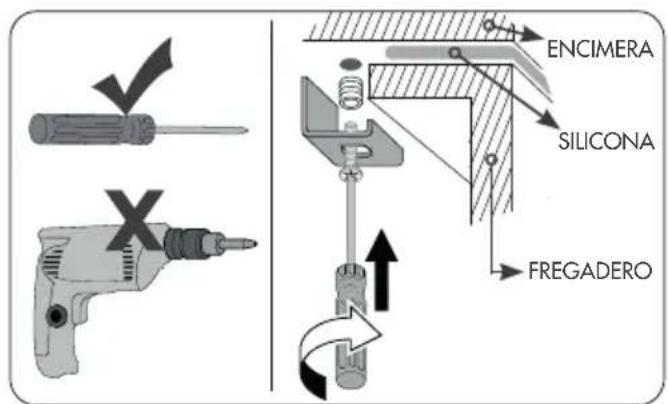

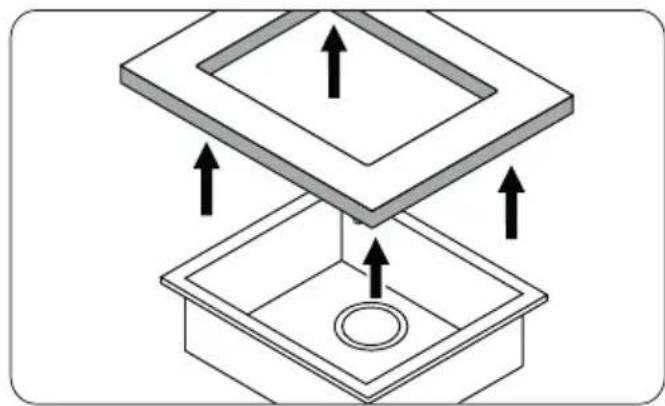

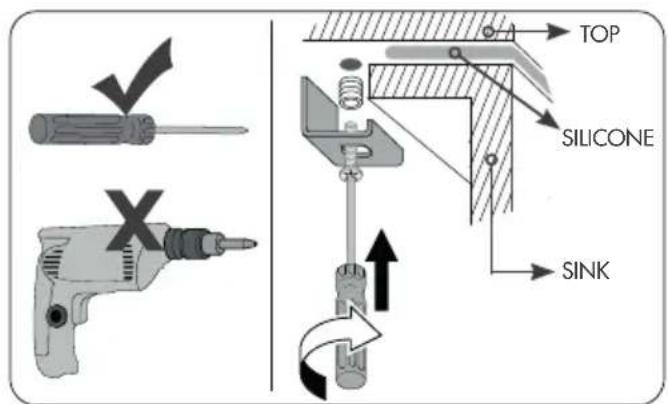

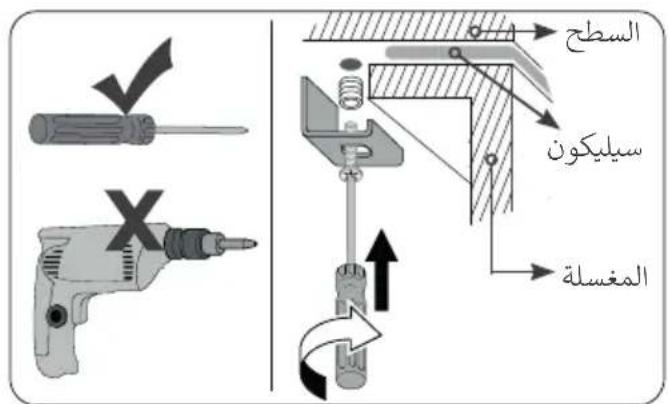

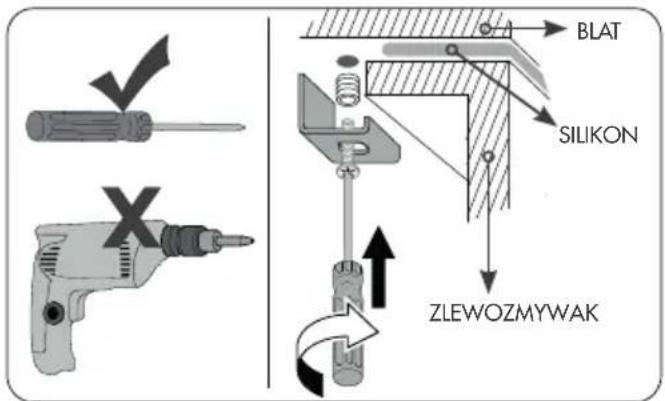

UNDERMOUNT INSTALLATION

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

The packaging materials (plastic bags, expanded polystyrene, etc.) must not be left within reach of children as they are a potential hazard.

Installation and support should be undertaken by qualified individuals, in accordance with the applicable legal requirements.

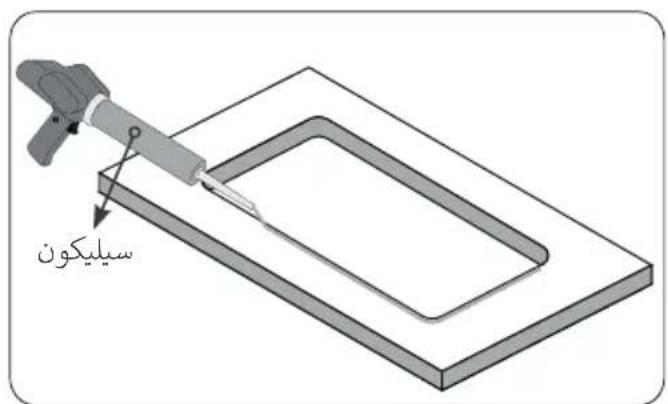

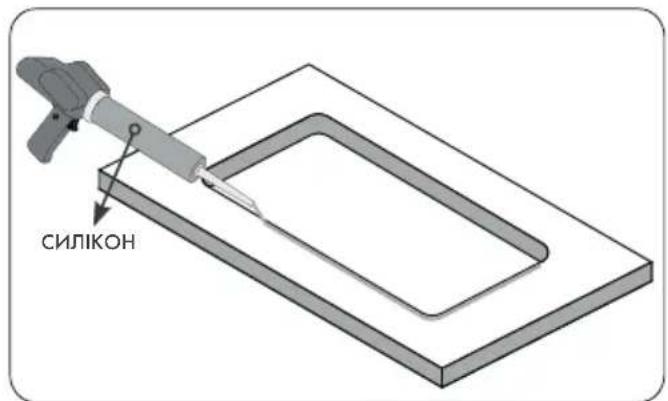

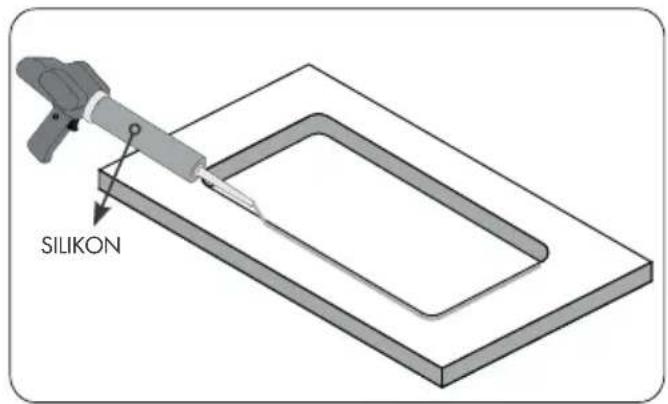

The silicone is not included with the product. The sink shown in this guide is for illustrative purposes only.

1. ROUTINE MAINTENANCE

Cleaning your Smeg product is quick and simple. Even though the non-porous surface prevents liquids penetrating into the material, it is preferable to remove them immediately using a soft, non-abrasive sponge and standard dish detergent. You should then rinse the surface and dry it carefully using a microfibre cloth.

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols)

2. NON-ROUTINE MAINTENANCE

Cleaning stubborn stains is not difficult: all you need to do is choose the right product and use it correctly.

For stubborn stains on LIGHT-COLOURED products, you can use a solution of bleach and warm water ( 34 to 14 ), leaving it to act for eight hours (we recommend that this cleaning be performed during the night). Afterwards, rinse thoroughly and dry the entire surface carefully using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

For stubborn stains on DARK-COLOURED products, you can remove them directly with a soft, non-abrasive sponge and standard dish detergent, using small circular movements. When finished, rinse using warm water and carefully dry the entire surface using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

To remove limescale stains, we recommend the use of a non-corrosive descaling product diluted with warm water. Distribute the solution uniformly over the entire surface of the product. Clean with a soft, non-abrasive sponge using small circular movements and leave the product to act for several minutes (follow the instructions and conditions for use on the product label). When finished, rinse using warm water and dry carefully using a microfibre cloth.

Failure to follow the cleaning and maintenance instructions stated in this manual may invalidate the standard warranty provided by the manufacturer.

To ensure that there is no change to the characteristics of the product, we recommend that users observe the following precautions:

- dry the surface of the product every day to avoid prolonged exposure to water that could lead to the build-up of limescale or stubborn stains

- do not use detergents that contain alkaline substances and aggressive liquids (such as ammonia, caustic soda or drain cleaners)

- do not remove traces of dirt using steel scourers or abrasive sponges that could damage the surface

- do not cut or chop directly on the surface of the product because this could cause irreparable scratches (always use chopping boards)

- avoid accidental knocks that could cause irreparable micro-damage

- do not place hot cookware, pans or coffee makers directly on the sink surface: stains from discolouration and/or damage could form in areas where hot items are placed

- avoid pouring boiling liquids directly into the sink without first turning on the cold tap and filling the sink with at least 1 cm of water, as this could damage the product

• to prevent the build-up of limescale, it is recommended that a descaling treatment be completed at least once a week. This is recommended in particular for dark-coloured sinks. Fill the tub with warm water and add two spoonfuls of liquid or powder dishwasher detergent or a dishwasher tab. Leave the solution for 5/6 hours. Rinse thoroughly and dry carefully.

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising, crossed by a black X (no text or symbols)

Do not put pans or coffee makers that have just been taken off the heat (which sometimes reach 500°C) directly into sink.

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

INSTALLATION SOUS LE PLAN SUPÉRIEUR

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand wiping a surface with a cloth (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising from a stove, crossed out by a diagonal line (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


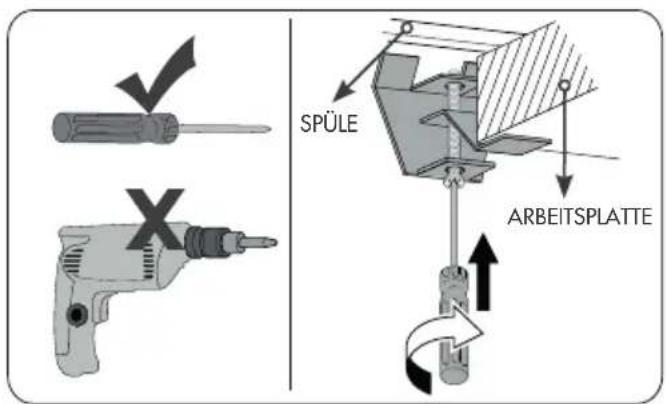

UNTERBAU-INSTALLATION

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising, crossed by a black X (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand wiping a surface with a cloth (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with a crossed-out X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a kitchen with a crossed-out black cross symbol (no text or labels)

Simple line drawing of a kitchen with a crossed-out black cross symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Hand wiping a surface with a cloth (no text or symbols)

2. НЕПЛАНОВЫЙ УХОД

Simple line drawing of a stove with a crossed-out black symbol (no text or numbers)

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


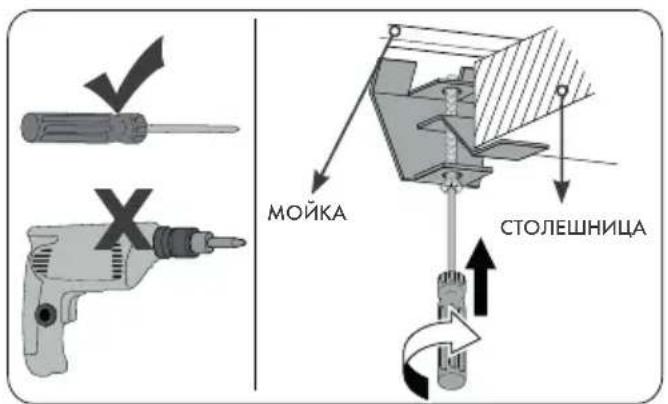

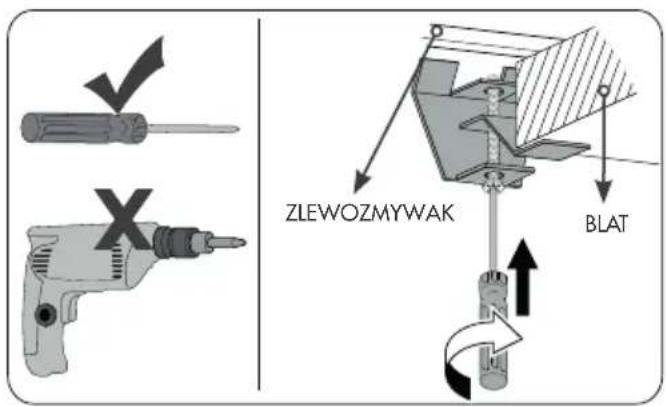

MONTAŻ POD BLATEM

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

2. KONSERWACJA DORAŻNA

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising, crossed by a diagonal line (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a kitchen with a crossed-out black symbol (no text or numbers)

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Two hand icons with different textures, one covering a cloth and the other covering a surface (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out black lines (no text or symbols)
