Grey Dial OB16MD80 - Wristwatch Olivia Burton - Free user manual and instructions

Product Type	Quartz analog watch
Brand	Olivia Burton
Model	Grey Dial OB16MD80
Movement	Japanese Quartz
Water Resistance	10 meters (1 ATM) – splash resistant
Power	Standard battery (average lifespan: 12 months)
Main Functions	Time display, date (and day on some models)
Dial	Grey
Strap	Leather (adjustable with sliding buckle)
Glass	Mineral (estimated)
Case	Metal (plated)
Warranty	2 years limited (movement, hands, dial)
Design	London
Manufacturing	China
Care	Avoid contact with water, perfumes, creams; clean with soft cloth
Time Setting	Pull crown to position 2, turn clockwise
Date Setting	Pull crown to position 1, turn counterclockwise (avoid between 9pm and 12:30am)
Strap Adjustment	Use a flat tool to lift the buckle bar
Customer Service	[e-mail]

Frequently Asked Questions - Grey Dial OB16MD80 Olivia Burton

How do I set the time on my Olivia Burton watch?

Pull the crown to the 2nd position (two clicks). Turn it clockwise to set the time. Push the crown back to the normal position to restart the watch. For models with day, check the 24-hour format.

How do I set the date?

Pull the crown to the 1st position (one click). Turn it counterclockwise until the correct date is displayed. Push the crown to restart. Avoid setting the date between 9pm and 12:30am.

What should I do if my watch gets wet?

This watch is water resistant to 10 meters (1 ATM), resistant to splashes and sweat. It is not suitable for swimming or showering. If moisture appears, dry it with a soft cloth. If condensation appears, leave it for a few days; if it persists, contact customer service.

How do I change the battery in my watch?

The battery is a standard battery with an average lifespan of 12 months. Do not attempt to open the case yourself, as this will void the warranty. Have the battery replaced by an authorized jeweler. The watch comes with a battery saver in the crown: remove it and push the crown to activate the battery.

What does the Olivia Burton warranty cover?

The limited 2-year warranty covers manufacturing defects of the movement, hands, and dial. It requires a stamped proof of purchase. Not covered: batteries, case, glass, straps, tarnishing, damage due to misuse, water (unless waterproof as stated), theft, or loss.

How do I adjust the leather strap?

Use a flat-head screwdriver in the slot of the buckle. Lift the bar in the opposite direction of the pin. Slide the adjustable loop to the desired position, then close the buckle. Be careful not to bend the pin.

How do I care for the leather strap?

Avoid exposure to water, oils, perfumes, and makeup which can stain the leather. Leather may darken naturally over time. Store the watch away from strong light and humidity. For cleaning, refer to the support website.

What should I do if my watch is magnetized?

Quartz watches can be affected by magnetic fields (phones, speakers, etc.). If it runs fast or slow, test with a compass: if the needle moves, it is magnetized. Return it to the Olivia Burton repair center for demagnetization.

What accessories are not covered by the warranty?

Straps/bracelets (leather or metal), batteries, case, glass, plating, and tarnishing are not covered. Damage due to normal wear, misuse, or accident is excluded. The warranty is void if the watch is opened by an unauthorized third party.

How do I contact Olivia Burton customer service?

Send an email to [e-mail] with the style number and a description of the issue. You will receive a repair authorization number and a form. Attach proof of purchase. For more information, visit www.oliviaburton.com/support.

USER MANUAL Grey Dial OB16MD80 Olivia Burton

Best friends Lesa Bennett and Jemma Fennings set up Olivia Burton when they couldn't find a watch that fulfilled their need for style. Named after Lesa's great aunt whose spirited approach to life was a huge inspiration for the design duo, Olivia Burton combines vintage style and catwalk trends to create a collection of striking and covetable timepieces.

Contents

Instruction and Warranty

English

Français 20

Italiano 35

Deutsch 50

Espanol 66

Portugues 81

日本語 96

简体中文 111

繁體中文 126

韓国兒 141

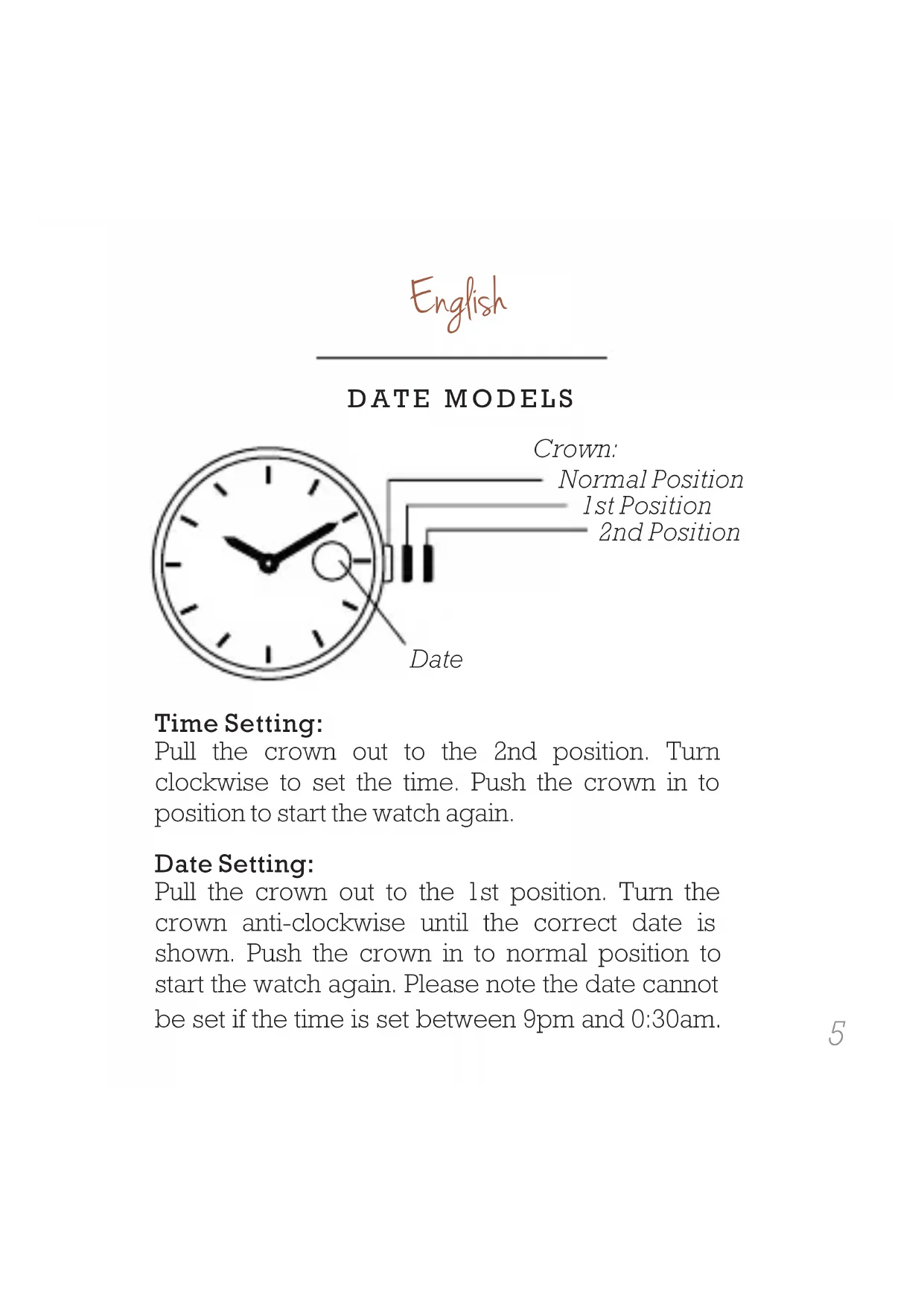

Pull the crown out to the 2nd position. Turn clockwise to set the time. Push the crown in to position to start the watch again.

Date Setting:

Pull the crown out to the 1st position. Turn the crown anti-clockwise until the correct date is shown. Push the crown in to normal position to start the watch again. Please note the date cannot be set if the time is set between 9pm and 0:30am.

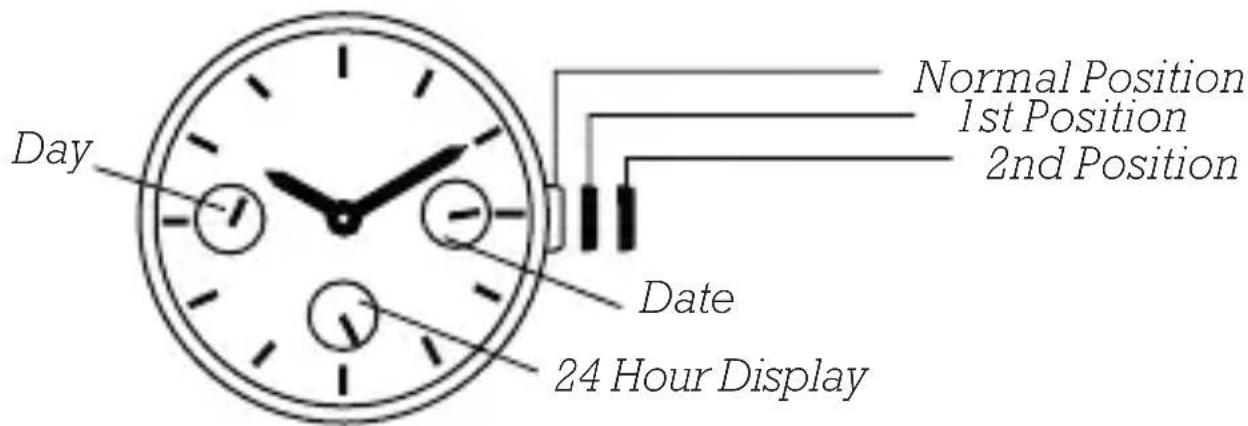

CHRONO DETAIL MODELS

Time Setting:

Pull the crown out to the 2nd position. Turn clockwise to set the time - the 24 hour hand will change at the same time. Ensure that the 24 hour is correct am or pm. Push the crown in to position to start the watch again.

Day Setting:

Pull the crown out to the 2nd position and turn the crown clockwise. Keep turning and every 24 hours the day hand will move on to the next day. Continue until the correct day is shown. Set the time and return to the normal position.

Date Setting:

Pull the crown out to the 1st position. Turn the crown anticlockwise until the correct day is shown. Push the crown in to normal position to start the watch again. Please note the date can't be set if the time is set between 9pm and 0:30am.

MESH ADJUSTMENT

Position a flathead screwdriver or other adjustment tool in the slot on the clasp.

Lift the bar in the direction facing away from the straight pin. Ensure that the tool handle points towards the watch case.

Pressing the adjustment tool against the straight pin may bend and destroy it. Please take care when doing this.

Slide the adjustable buckle to the desired position and finally press the clasp closed.

WARRANTY

Your Olivia Burton watch is covered by a limited two (2) year warranty from the date of original purchase from an authorised and approved Olivia Burton stockist.

Your Olivia Burton warranty covers manufacturing defects and is only valid if stamped and dated by the stockist and supplied with a proof of purchase. Under the two (2) year warranty the only components that are covered are the watch movement, hands and dial. Components that are covered under this repair warranty will be repaired free of charge if the watch proves to be defective in material or workmanship under normal use.

In the unlikely event that the component cannot be repaired, the watch will be replaced free of repair charges. We cannot guarantee that you will receive the same model watch, but a watch of equal value will be provided.

For repair work that is not covered under this warranty, the Olivia Burton repair centre may perform the required services for a charge. This charge will be dependent on the watch style and the type of work requested. Please note that these charges are subject to change.

Please email [e-mail] for further information.

THE WARRANTY DOES NOT COVER

Batteries, case, glass, straps, bracelets, tarnishing or plating.
Damage caused by misuse, accident, lack of care, negligence or normal wear and tear.
Water damage unless marked water-resistant on the case back.
Theft or loss of the complete watch or components.

If your watch has been misused or damaged by negligence or accident by persons other than authorised Olivia Burton sales or service agents, the warranty is void.

For maximum protection, please keep your watch in its presentation box when not in use. Please remove your watch before participating in physical activity to avoid damage.

This warranty is exclusive and in lieu of any other warranties, obligations or liabilities. Olivia Burton is not liable for incidental, consequential or special damages.

You may also have legal additional rights under applicable law which are not affected by the terms of this warranty. These rights may vary from state to state and country to country.

POSTING INSTRUCTIONS

Should you require work to be conducted under warranty on your watch please contact us for a repairs authorisation number.

Please email [e-mail] with the style number and nature of the issue. You will be given a returns authorisation number and form to send back along with your watch.

You must include a copy of the proof of purchase from an authorised Olivia Burton stockist and / or stamped warranty booklet.

Do not send original packaging as this will not be returned. We strongly recommend you insure your parcel to prevent any damage or loss in transit. Regrettably we cannot accept liability for any loss or damage to parcels prior to them reaching us.

You will be charged a small handling charge to cover return postage and insurance for loss or damage whilst in transit.

PLATING

Olivia Burton use the best plating methods available but it is the nature of plating that it can be corroded and wear off in time especially if it comes into contact with perfumes or body creams.

We recommend removing your watch when applying perfume and body cream and take care to ensure that contact is avoided. Plating can fade depending on wear and the amount of care taken.

If you would like your watch to be reconditioned many independent jewellers will offer this service. Plating is not covered under your warranty.

BATTERIES

Our watch batteries are standard batteries. The average life for a watch battery is 12 months. Changing a battery without the correct tools can damage the metal and delicate parts in the watch.

We recommend using a reputable jeweller for this service. Please do not attempt to open the case back yourself as this can invalidate the warranty. Our watches are supplied with a battery saver on the crown. This needs to be removed from the crown and the crown pushed in to activate the battery.

LEATHER STRAPS

The variations in colour and texture in your strap is the characteristic of a beautiful tanned leather. Over time the leather may darken and change in colour which is partly due to the oils from your skin and exposure to sunlight. We recommend that you keep your leather strap away from intense sunlight, heat and humidity to prolong its beauty. Exposure to water, oil and makeup will stain your leather strap. Please be aware that due to the nature of the leather colours may transfer. If you would like to purchase a replacement strap for your model please refer to our website.

Please note that straps (or metal bracelets and clasps) are not covered by the warranty.

Please refer to the support page of our website for instructions on how to clean and care for your leather strap.

WATER-RELATED USE

	Light spray, perspiration, light rain, etc.	Bathing, etc.	Swimming & diving
Water-resistant 10m (1 bar) 1ATM	YES NO NO

CONDENSATION

If your watch experiences a sudden change in temperature or pressure, a slight condensation may appear under the glass of your watch. This generally disappears after a few days if it is left alone. Please do not attempt to dry it out. If the condensation persists, please contact our customer relations team for further advice.

DE MAGNETISATION

Analogue quartz watches can be adversely affected by magnetism and may stop, gain or lose time if exposed to magnetic objects for long periods of time. Objects including mobile phones, television and computer speakers, magnetic necklaces, handbag clasps, hair dryers, magnetic parts of refrigerators and anti-rheumatic bracelets are all magnetic. As a matter of principle, avoid exposing your watch to magnetic fields for any length of time.

An affected watch remains magnetically charged even after being removed from the magnetic source and so we recommend returning your watch to the Olivia Burton repair centre to be demagnetised. To test if a watch has become magnetised, place it next to a compass. If the hands of the compass start to turn, it is magnetised and will need to be returned for demagnetisation.

If you have any questions or queries, please contact us:

[e-mail]

Or visit our website:

www.oliviaburton.com/support

We will be more than happy to answer any questions regarding your watch.

Designed in London. Manufactured in China. Japanese Quartz Movement.

Francais

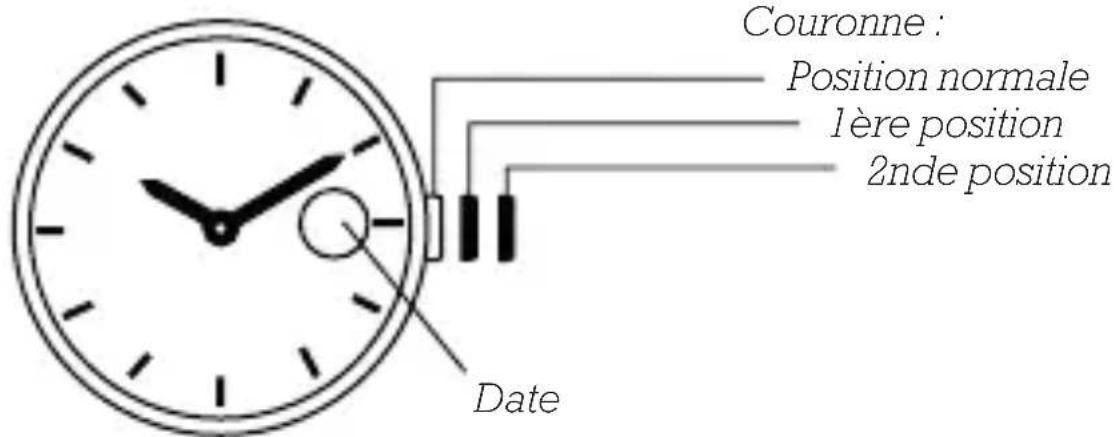

MODELES DATE

LA GARANTIE NE COUVRE PAS

Disposal of Old Electrical and Electronic Equipment

Goods are marked with this symbol to show that they were produced after the 13th August 2005, and should be disposed of separately from normal household waste so they can be recycled. This helps avoid potential damage for the environment and human health, whilst preserving natural resources.

Olivia Burton is pleased to be a member of the Waste Electrical and Electronic Equipment (WEEE) compliance scheme. As part of the UK WEEE Regulations, all companies have a responsibility to their customers to offer like-for-like recycling on a free of charge basis. We are pleased to be able to offer all our customers a take-back service when you buy a new electrical or electronic product from us with the following conditions:

Returns must be made within 28 days of purchase
Proof of purchase is required
- Returns can be accepted regardless of place of purchase if the customer buys a like-for-like product from Olivia Burton
If the product is returned through the post the customer assumes responsibility for the security and cost of shipping

AVIS
