Meireles MF 7700 X - Oven

MF 7700 X - Oven Meireles - Free user manual and instructions

Find the device manual for free MF 7700 X Meireles in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

View the manual : Français FR English EN Español ES Português PT
Pick your language and provide your email: we'll send you a specifically translated version.
Product typeBuilt-in oven
BrandMeireles
ModelMF 7700 X

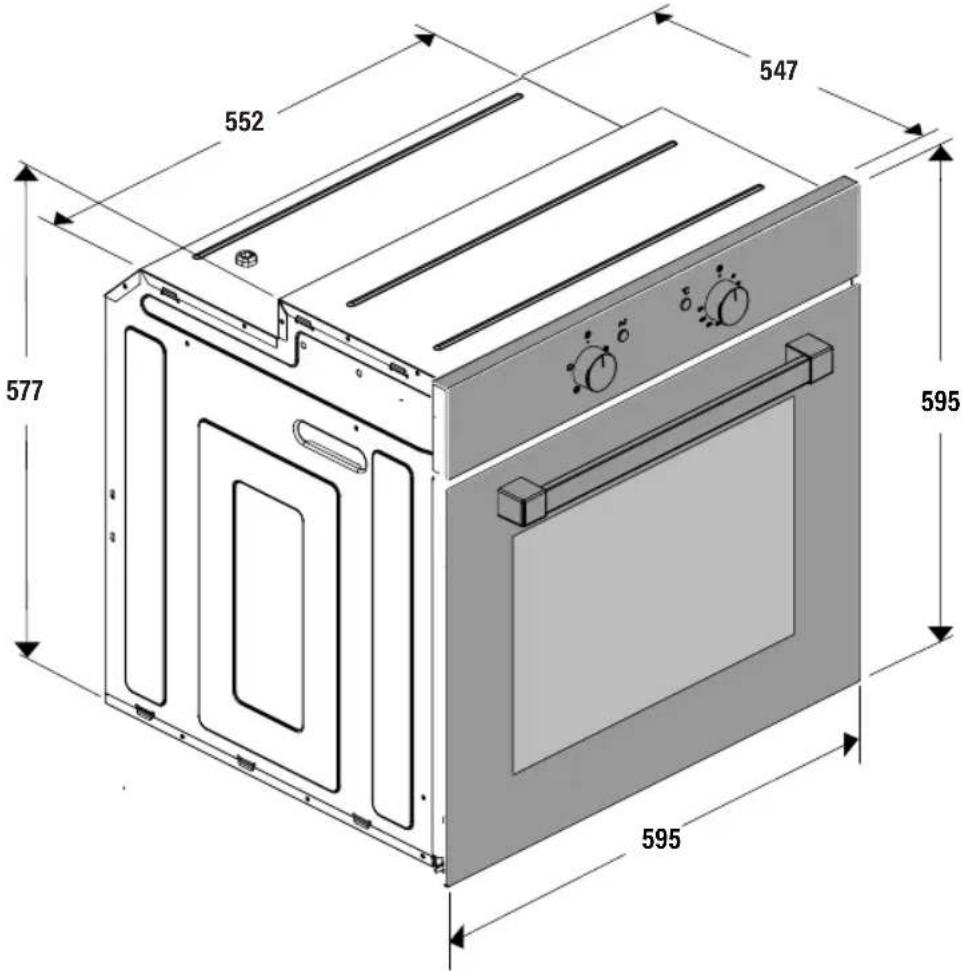

Dimensions (H x W x D)595 x 595 x 550 mm (estimate)
Power supply voltage230 V ~ 50 Hz

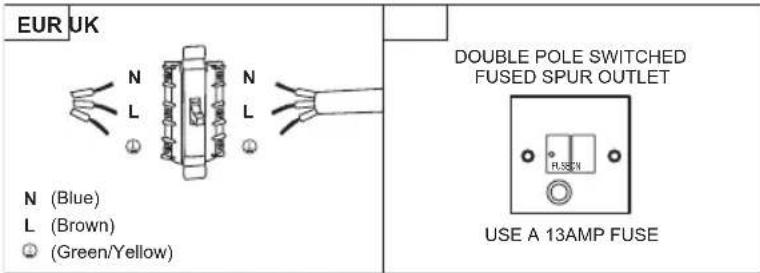

Recommended fuse13 A
Maximum powerNot specified
Cooking modesConvection, top element, bottom element, circulaire + fan, bottom + fan, convection + fan, grill, maxi-grill, grill + fan, defrost
CleaningAqualytic system (steam) and manual cleaning
Interior lightingHalogen bulb G9, replaceable
Control typeRotary knobs + electronic programmer (depending on version)
TimerYes, with audible alarm and programmable automatic shut-off
Removable doorYes, for easy cleaning
Removable inner glassYes
SafetyChild lock not mentioned; automatic shut-off via timer; overheat protection
Included accessoriesGrills, baking tray, side guides
Country of originNot specified

Frequently Asked Questions - MF 7700 X Meireles

The oven does not heat, what to do?
Check that the oven is on and a cooking mode is selected. Make sure the circuit breaker has not tripped and the fuse (13 A) is in good condition. If the problem persists, contact customer service.
How to set the oven clock?
After connecting the oven, the display flashes '12.00'. Press the Ⓕ key four times, then use the ⊕ and ⊖ keys to set the time. Confirm by not pressing any key for 5 seconds.
Why does the oven light not turn on?
The bulb may be defective. Turn off and unplug the oven, then replace the halogen bulb G9 (do not touch with bare hands). If the problem persists, contact customer service.
How to clean the oven with the Aqualytic system?
Remove accessories, pour 200 ml of soapy water into the bottom of the oven. Activate the Aqualytic [A] function at 200°C for 15 minutes, then let cool for 20 minutes. Wipe with a soft cloth.
The grill does not heat enough, what to do?
Check that the temperature knob is set to a high value (max. 250°C). Make sure you have selected the grill or maxi-grill mode. If the problem persists, contact customer service.

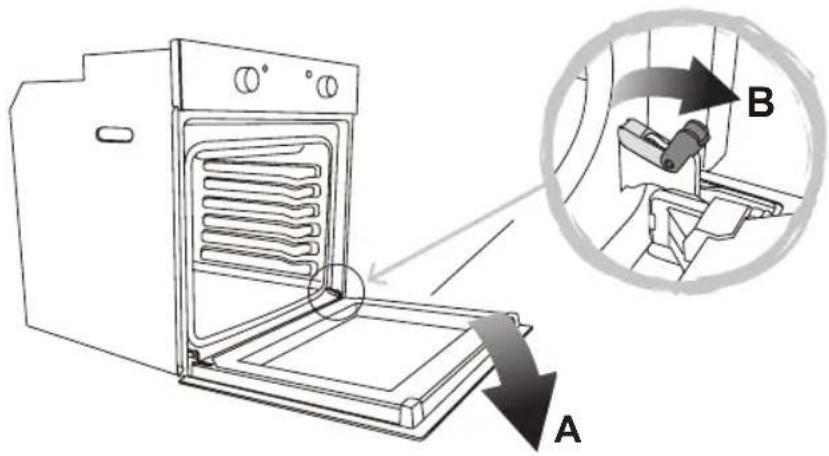

How to remove the oven door for cleaning?
Open the door fully, lift the two hinge levers to position 'B', then close the door halfway. Lift it while pulling outward. Caution: the door is heavy.
What to do in case of a power cut during programmed cooking?
Programs are cancelled. After power returns, the ⚙ indicator flashes. You must reprogram the clock and cooking functions.
How to use the automatic cooking function (delayed start and end)?
Press the Ⓕ key twice to set the duration, then three times to set the end time. Then select the temperature and mode. The oven will start and stop automatically.
Why does condensation form inside the oven?
Condensation may appear during prolonged use. After cooling, wipe with a dry cloth. Make sure the door is properly closed.

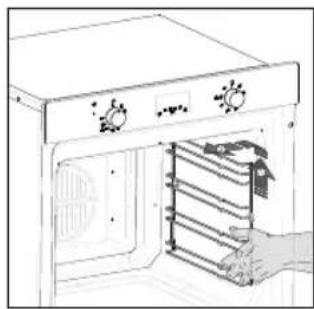

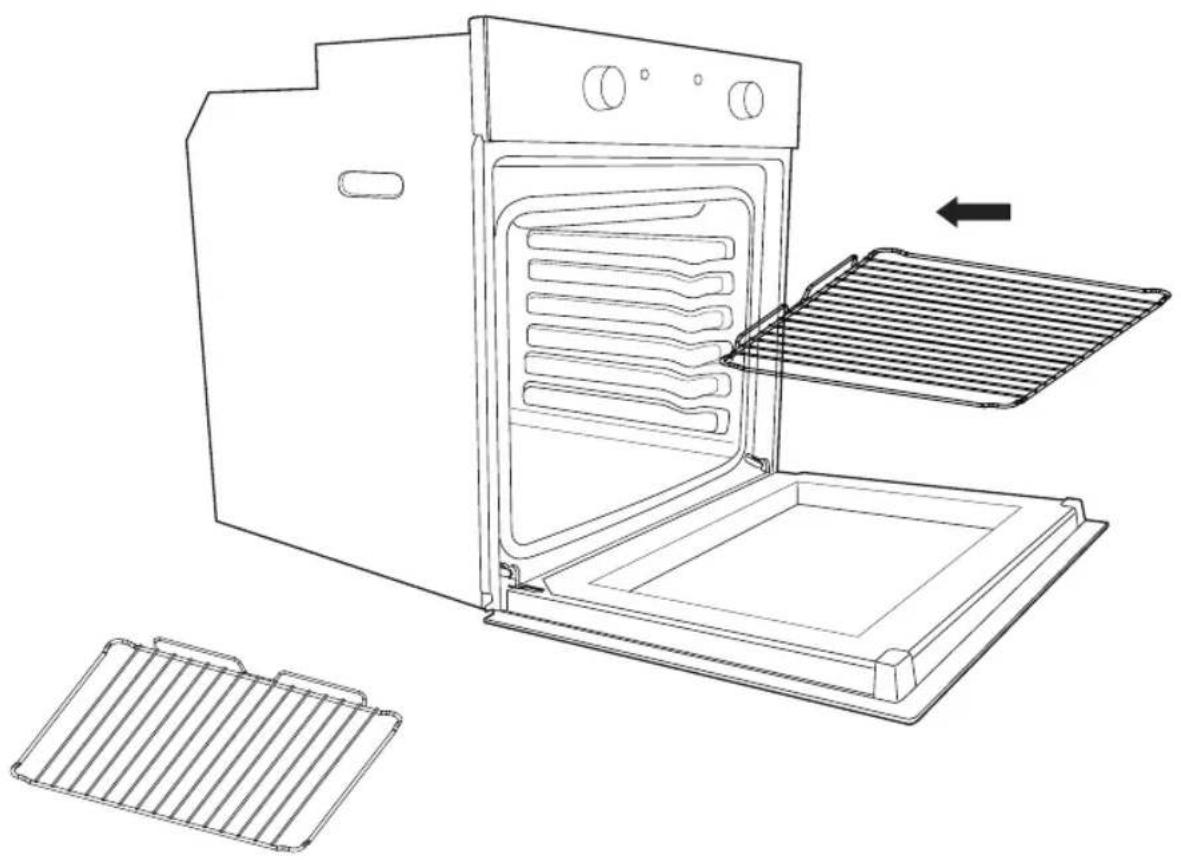

What accessories are supplied with the oven?
The oven is supplied with metal grills, a baking tray, and side guides. The grills and tray fit into the guides.

User questions about MF 7700 X Meireles

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Oven in PDF format for free! Find your manual MF 7700 X - Meireles and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MF 7700 X by Meireles.

USER MANUAL MF 7700 X Meireles
