USER MANUAL Personal Cup Adapter Vitamix

Designed for use with the following Vitamix C and G series machines only.

5200 | 5300 | 6300 | 6500 | 7500 | 780 | Aspire Series |

Creations Series | Professional Series | Total Nutrition Center | TurboBlend Series

Owner's Manual

Read and save these instructions

Two transparent kitchen utensils, one with a conical lid and the other a clear glass filled with liquid (no text or symbols visible)

Vita-Mix Corporation

8615 Usher Road

Cleveland, OH 44138-2103 U.S.A.

1.800.848.2649/1.440.235.4840

vitamix.com

CONTENTS

Contents 2

Symbols 2

Important Safeguards 2

Parts and Features....4

Tips and Techniques....5

Blending....6

To Go....7

Care and Cleaning ....7

Warranty....7

Service....8

SYMBOLS

	Warning and Caution
	NEVER touch moving parts. Keep hands and utensils out of the container
	Read and understand owner's manual

IMPORTANT SAFEGUARDS

WARNING: To avoid the risk of serious injury when using your Vitamix blender, basic safety precautions should be followed, including the following.

READ ALL INSTRUCTIONS, SAFEGUARDS, AND WARNINGS BEFORE OPERATING BLENDER.

1. Read all instructions.
2. Do not use blender or accessories for other than intended use.
3. Not intended for use by or near children or persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge. Close supervision is necessary when any appliance is used by or near children or incapacitated persons. Children should be supervised to ensure that they do not play with the blender.

4. Avoid contacting moving parts.

5. Do not operate any blender with a damaged cord or plug or after the blender malfunctions, or is dropped or damaged in any manner. Call Vitamix Customer Service at 1.800.848.2649 or 1.440.235.4840 or email [e-mail] at once for examination, repair, replacement, or adjustment. If purchased outside the U.S.A. or Canada, contact your local Vitamix dealer.

6. Alteration or modification of any part of the blender, including the use of any part or parts that are not genuine authorized Vitamix parts, may cause fire, electric shock, or injury and may void your warranty.
7. The use of attachments or accessories not expressly authorized or sold by Vitamix for use with this blender, including canning jars, may cause fire, electric shock, or injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter.
10. Do not place on or near a hot gas or electric burner or in a heated oven.
11. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A rubber scraper or spatula may be used, but only when the Vitamix blender is not running.
12. Blades are sharp. Clean around the blade assembly in the container with extreme care to avoid injury. To reduce the risk of injury, never place a blade assembly on the motor base unless assembled to the Vitamix container.
13. Care should be taken when handling the sharp cutting blades, emptying the container and during cleaning.
14. Do not leave foreign objects, such as spoons, forks, knives, in the container as this will damage the blades and other components when starting the machine and may cause injury.
15. Never attempt to operate with damaged blades.

SAVE THESE INSTRUCTIONS

WARNING

To Avoid Injury.

Read and understand instruction manual before use.

IMPORTANT INSTRUCTIONS FOR SAFE USE

This blender is intended for HOUSEHOLD USE ONLY and is not intended to be used for commercial purposes.

Do not leave your Vitamix blender unattended when operating.

Any repair, servicing, or the replacement of parts must be performed by Vitamix or an authorized service representative.

NOTICE: THE FAILURE TO FOLLOW ANY OF THE IMPORTANT SAFEGUARDS AND THE IMPORTANT INSTRUCTIONS FOR SAFE USE IS A MISUSE OF YOUR VITAMIX BLENDER THAT WILL VOID YOUR WARRANTY AND CREATE RISK OF SERIOUS INJURY.

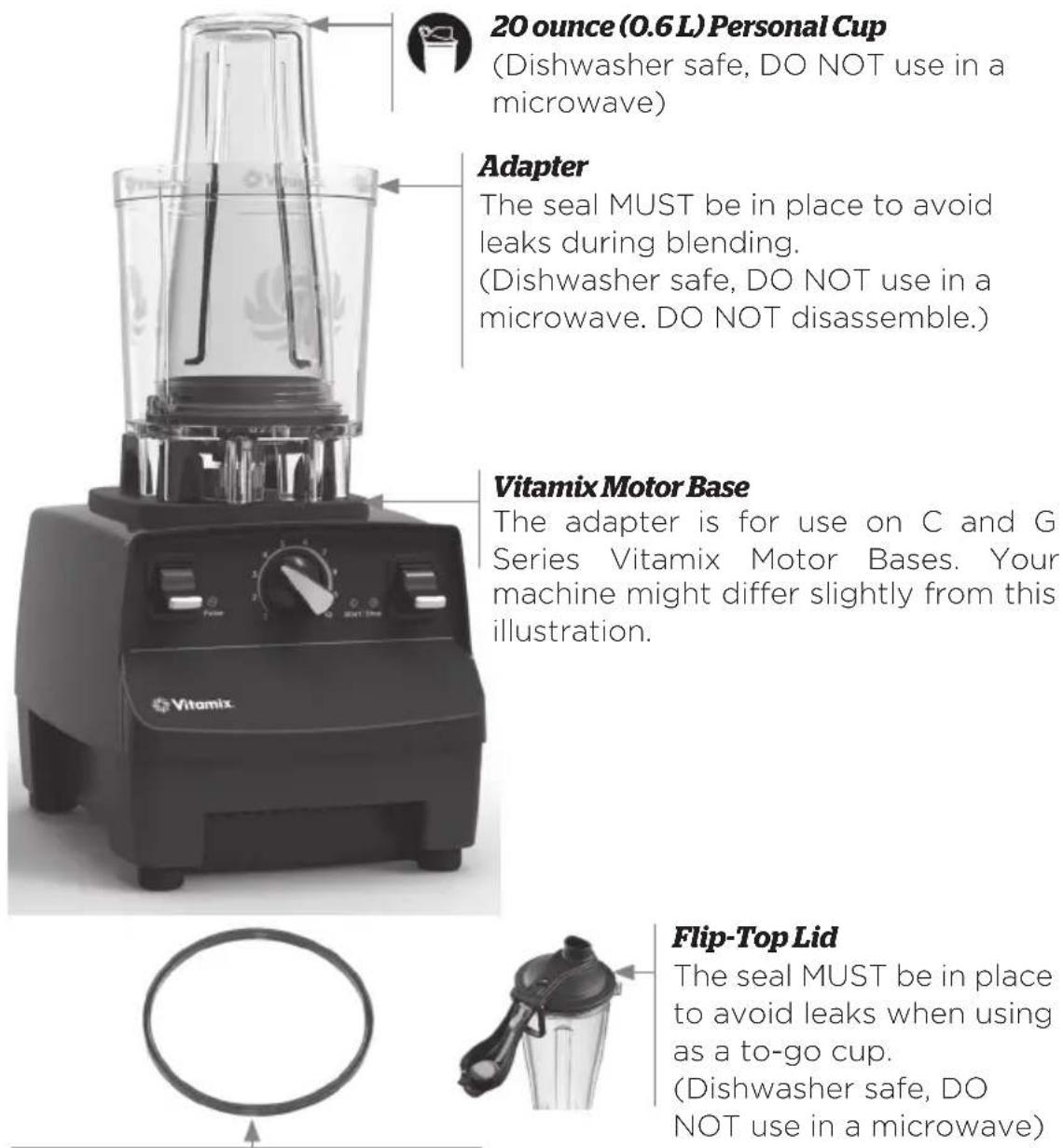

PARTS AND FEATURES

IMPORTANT!

DO NOT attempt to blend in the adapter without using the personal cup. The adapter is not intended to be used a blending container without the personal cup. There are cut outs in the adapter that will not allow liquid to be retained in the adapter if a cup is not used. If you have misplaced or need a replacement cup, contact Vitamix Customer Service to order a replacement.

DO NOT blend hot liquids in the adapter by itself or attempt to blend hot liquids in the 20 oz (0.6 L) personal cup.

20 ounce (0.6 L) Personal Cup (Dishwasher safe, DO NOT use in a microwave) Adapter The seal MUST be in place to avoid leaks during blending. (Dishwasher safe, DO NOT use in a microwave. DO NOT disassemble.) Vitamix Motor Base The adapter is for use on C and G Series Vitamix Motor Bases. Your machine might differ slightly from this illustration. Flip-Top Lid The seal MUST be in place to avoid leaks when using as a to-go cup. (Dishwasher safe, DO NOT use in a microwave)

Seals

Two seals are supplied with your purchase.

Refer to page 5 for more information about seals.

(Dishwasher safe. DO NOT use in a microwave)

TIPS AND TECHNIQUES

Seals

There are two seals supplied with your Personal Cup & Adapter. The seals are interchangeable and their uses are:

• During the blend - place a seal on the thread on the adapter.
• To travel - place a seal on the flip-top lid before attaching to the 20 ounce (0.6 L) personal cup.

The seals are used to avoid leaks and spills. If you experience leaking:

• Make sure the seal is in place on the adapter before attaching it to the personal cup.
- Thread the adapter onto the personal cup until it stops. Try to thread a little further to make sure it is tight.

Ingredients

• Cut ingredients into 1-inch pieces. DO NOT overfill.
• Cubed ice blends better than crushed ice.

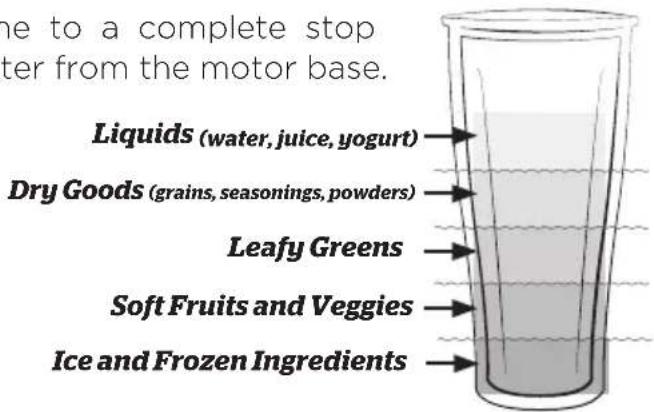

- Add ingredients to the Personal Cup in the order they appear in the recipe, or follow the general guideline on page 6 when creating your own.

Operation

• When starting your machine, hold at a low speed (1 or 2) for a few seconds until you see the blades “grab” or begin to process the ingredients.
• Once ingredients begin circulating, increase to the speed recommended in the Vitamix recipe. Operating at a lower speed than suggested can cause the motor to overheat. Blend for the full processing time suggested in the recipe.

CAUTION

Moving Parts May Become Hot with Extended Use. DO NOT touch.

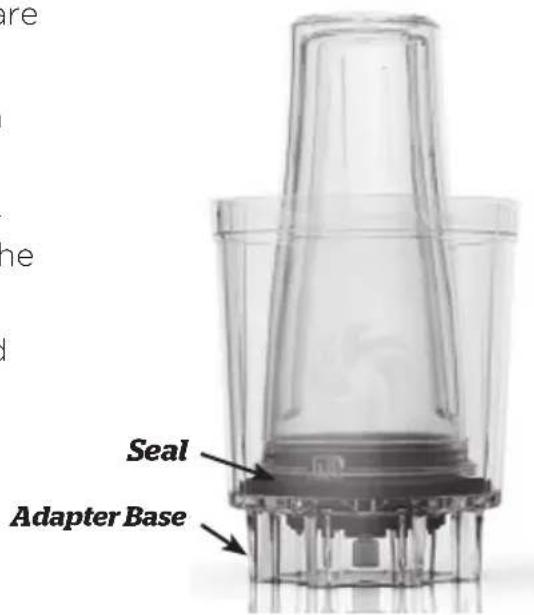

During the Blend

Seal Adapter Base

To Go Flip-top Lid Seal

WARNING

Parts will become hot with extended use.

DO NOT touch the drive socket in the motor base or the drive spline in the adapter.

To avoid damage or personal injury, DO NOT use the 20 ounce (0.6 L) personal cup (including the blade base or flip-top lid) in the microwave.

DO NOT blend hot liquids in the 20 ounce (0.6 L) personal cup.

DO NOT attempt to blend in the adapter without use of the personal cup.

This icon corresponds to suggested recipes for the 20 ounce (0.6 L) personal cup in Vitamix cookbooks.

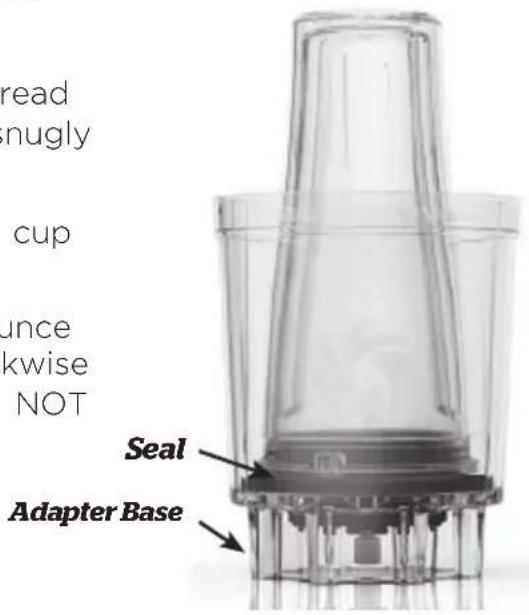

1. To begin, put a seal on the bottom thread of the adapter. The seal should fit snugly and evenly around the thread.
2. Load the 20 ounce (0.6 L) personal cup according to the recipe.
3. Thread the adapter onto the 20 ounce (0.6 L) personal cup in a clockwise direction just until tight. DO NOT overtighten or leaking can occur.
4. Invert the 20 ounce (0.6 L) personal cup so the blade assembly is on the bottom. Place the adapter on the motor base.
5. Follow the recipe to finish the blend.
6. Wait until the blades come to a complete stop before removing the adapter from the motor base.
7. Invert the adapter. Unthread the adapter from the personal cup in a counter-clockwise direction.

read nugly cup unce kwise NOT Seal Adapter Base

to a complete stop ter from the motor base. Liquids (water, juice, yogurt) Dry Goods (grains, seasonings, powders) Leafy Greens Soft Fruits and Veggies Ice and Frozen Ingredients

To Go

1. Put a seal on the flip-top lid. The seal should fit snugly and evenly around the bottom thread of the flip-top lid.

2. Thread the flip-top lid onto the 20 ounce (0.6 L) personal cup in a clockwise direction until just tight. DO NOT overtighten or leaking can occur.

3. To open the flip-top lid, hold the personal cup with one hand, press the two tabs on lid with the other hand and lift up to release.

Flip-top Lid Seal

CARE AND CLEANING

Personal Cup, Lids, Adapter and Seals

The parts are top rack dishwasher safe. The parts may become damaged if they are not washed on the top rack.

Remove the adapter from the personal cup after blending. Clean the threads on the adapter and seals thoroughly to avoid ingredient build up. Ingredient build up might cause problems when trying to remove the blade base from the personal cup if it has been attached and allowed to sit for a long period of time.

WARRANTY

3-YEAR FULL WARRANTY ON SEPARATELY SOLD CONTAINER COMPONENTS

1. WHAT IS COVERED.

Vita-Mix Corporation (“Vitamix”) warrants that the blade base and seal (collectively and individually referred to as “Container Component”) that is purchased separately from a blender motor-base will be free from defects in material or workmanship and will withstand wear and tear from ordinary household use for 3 years from the date of purchase. Vitamix will, within 30 days of receipt of the returned product, repair the failed Container Component free of charge. If, in Vitamix’s sole discretion, the failed Container Component cannot be repaired, Vitamix will elect to either (A) replace the Container Component free of charge or (B) refund the full purchase price to the owner, unless Vitamix receives prior written notice of the owner’s preference.

2. WHAT IS NOT COVERED.

This Warranty applies only to owners for ordinary household use. This Warranty does not cover cosmetic changes that do not affect performance, such as discoloration or the effects of the use of abrasives or cleaners or food build up. This Warranty is only valid if the Container Component is used in accordance with the instructions, warnings and safeguards contained in the owner's manual.

Vitamix will not be responsible for the cost of any unauthorized warranty repairs.

REPAIR, REPLACEMENT OR REFUND OF THE PURCHASE PRICE ARE THE EXCLUSIVE REMEDIES OF PURCHASER AND THE SOLE LIABILITY OF VITAMIX UNDER THIS WARRANTY. NO EMPLOYEE OR REPRESENTATIVE OF VITAMIX IS AUTHORIZED TO MAKE ANY ADDITIONAL WARRANTY OR ANY MODIFICATION TO THIS WARRANTY WHICH MAY BE BINDING UPON VITAMIX. ACCORDINGLY, PURCHASER SHOULD NOT RELY UPON ANY ADDITIONAL STATEMENTS MADE BY ANY EMPLOYEE OR REPRESENTATIVE OF VITAMIX. IN NO EVENT, WHETHER BASED ON CONTRACT, INDEMNITY, WARRANTY, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE, SHALL VITAMIX BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF PROFIT OR REVENUE.

Some states do not allow limits on warranties. In such states, the above limitations may not apply to you. Outside the U.S.A. and Canada, other warranties may apply.

3. WHAT VOIDS THIS WARRANTY.

Abuse, misuse, negligent use, alteration of the Container Component or motor base, exposure to abnormal or extreme conditions, or failure to follow the operating instructions, will void this Warranty.

The Warranty is also void if repairs to the machine, Container, or Container.

INTERNATIONAL INSTRUCTIONS

If container component was purchased within the U.S.A. or Canada, but is currently outside the U.S.A. or Canada, all shipping and resulting taxes and duties are at the owner's expense.

Call +1.440.235.4840 or email [e-mail] for more details.

SERVICE

Vitamix Service

Before returning this product for any reason, including repair, first contact Vitamix Customer Service at 1.800.848.2649 or 1.440.235.4840, email [e-mail], or contact your local dealer or distributor.

Vitamix Personal Cup & Adapter

When applicable:

To see the complete line of Vitamix products, visit vitamix.com

Vitamix.

Vita-Mix Corporation

8615 Usher Road

Cleveland, OH 44138-2103 U.S.A.

1.800.848.2649/1.440.235.4840

vitamix.com

©2016 Vita-Mix Corporation. No part of this publication may be reproduced or transmitted in any form or by any means, or stored in a database or retrieval system, without the written permission of Vita-Mix Corporation.
