RC1010BC - Rice cooker BLACK & DECKER - Free user manual and instructions

USER MANUAL RC1010BC BLACK & DECKER

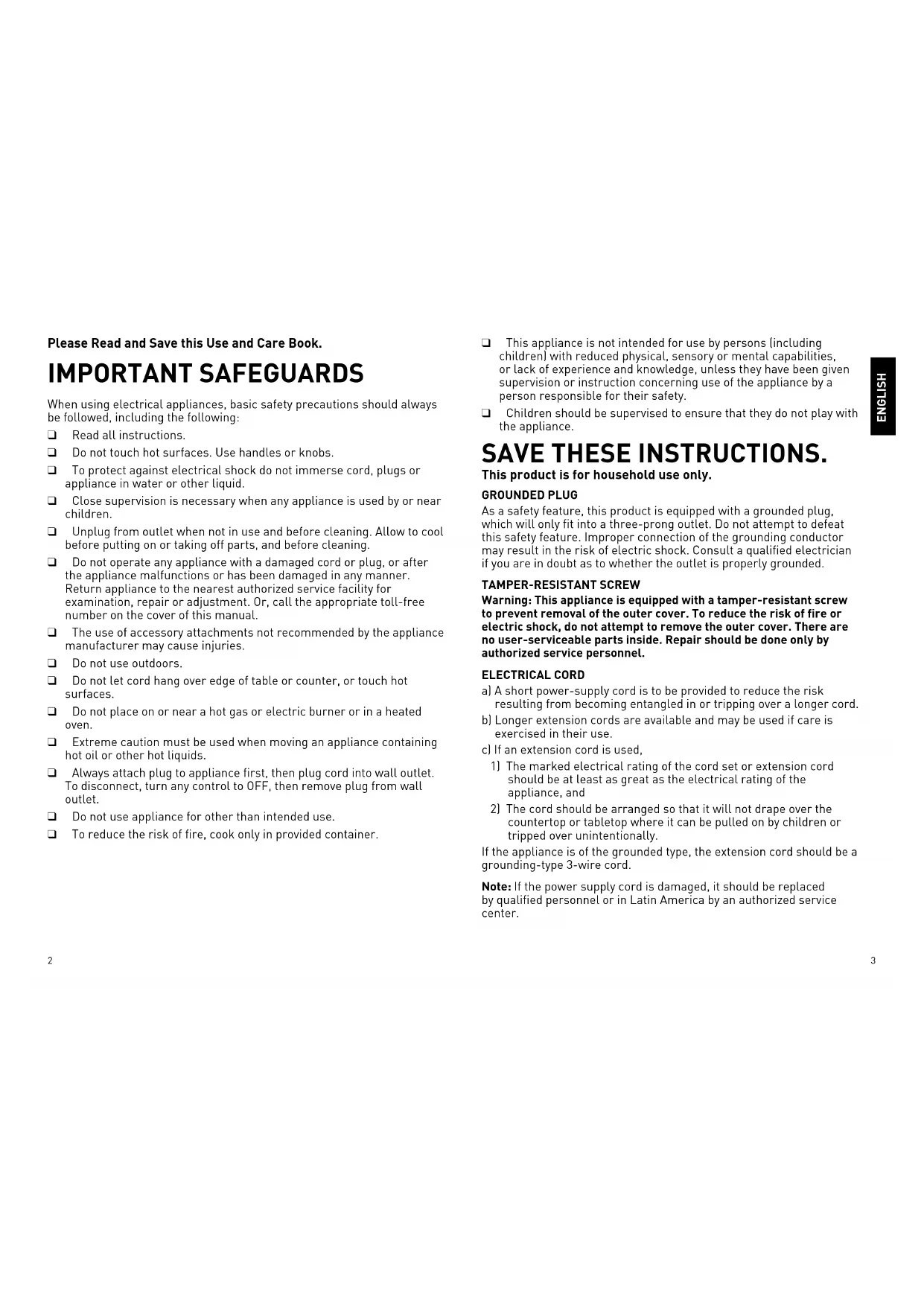

Please Read and Save this Use and Care Book. IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: ❑ Read all instructions. ❑ Do not touch hot surfaces. Use handles or knobs. ❑ To protect against electrical shock do not immerse cord, plugs or appliance in water or other liquid. ❑ Close supervision is necessary when any appliance is used by or near children. ❑ Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning. ❑ Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. Or, call the appropriate toll-free number on the cover of this manual. ❑ The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. ❑ Do not use outdoors. ❑ Do not let cord hang over edge of table or counter, or touch hot surfaces. ❑ Do not place on or near a hot gas or electric burner or in a heated oven. ❑ Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. ❑ Always attach plug to appliance first, then plug cord into wall outlet. To disconnect, turn any control to OFF, then remove plug from wall outlet. ❑ Do not use appliance for other than intended use. ❑ To reduce the risk of fire, cook only in provided container. ENGLISH ❑ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. ❑ Children should be supervised to ensure that they do not play with the appliance. SAVE THESE INSTRUCTIONS. This product is for household use only. GROUNDED PLUG As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded. TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw

to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel. ELECTRICAL CORD a) A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. b) Longer extension cords are available and may be used if care is exercised in their use. c) If an extension cord is used,

1) The marked electrical rating of the cord set or extension cord

should be at least as great as the electrical rating of the appliance, and

2) The cord should be arranged so that it will not drape over the

countertop or tabletop where it can be pulled on by children or tripped over unintentionally. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.4

Product may vary slightly from what is illustrated.

ENGLISH How to Use This product is for household use only. GETTING STARTED

• Remove all packing material and, if applicable, any stickers from the product; remove and save literature.

• Please go to www.prodprotect.com/applica to register your warranty.

• Wash all removable parts and/or accessories as instructed in CARE AND CLEANING.

• Select a dry, level location where unit is to be used, leaving enough space between back of unit and wall to allow heat to flow without damage to cabinets and walls. Important: This product is not a fryer. Do not cook with more than 1 – 2 tbsp. of oil or other fat at a time.

USING THE INTELLI-PROBE™ DIGITAL CONTROLS

1. Insert control probe firmly into the probe socket.

Important: Be sure the control is securely inserted.

2. Uncoil cord and plug into standard electrical outlet. Two dashes will appear on

the digital display. Note: Always attach the control probe to the pan before plugging into an outlet.

3. Press the I/0 (ON/OFF) button.

4. Select the desired setting based on what you would like to prepare.

• To steam or cook rice, fill the cooking pan with desired amount of rice and liquid. Tap the MODE button until the light under the desired function is illuminated. OR

• To prepare other foods, tap the TEMP button until the light under the desired temperature is illuminated:

5. The red light under the selected temperature will flash until the appliance has

reached the set temperature. It will then become constant and you are ready to begin cooking. MAKING RICE Important: As the rice expands and cooks, steam will come out of the vent in the lid. Do not place the multicooker directly under your cabinets. Caution: To reduce the risk of electric shock, cook only in cooking pan provided.

1. Measure desired amount of rice with the rice measure provided.

Note: The rice measure provided is based on 5½ oz. Your multicooker can cook a maximum of 15 measures of dry rice.

2. Place rice in the cooking pan. Add water or other liquid, such as stock, broth

or fruit juice. Use the water level markings inside the cooking pan as a guide for adding the right amount of water. Use the "BROWN RICE" markings when cooking brown rice and "WHITE RICE" for all other varieties. Important: Be careful not to add too much water as it may cause the unit to boil over.6

Note: Taste/hardness will vary depending on the quality/type of rice, the amount of water used and length of time the rice is cooked. For softer, fluffier rice, add a little more water. For firmer, crunchier rice, add a little less water. You may need to experiment to suit your taste.

3. Add butter, oil and/or seasonings as desired.

4. Place the lid on the cooking pan with the opening of the vent on the lid facing away

from you, and not toward your cabinets. Note: Always keep the lid on the multicooker while cooking rice.

5. Plug into a standard electrical outlet. Two dashes will appear on the digital display.

6. Press the I/0 (ON/OFF) button.

Caution: Do not put your hand over the steam vent as you may get burned with the hot steam.

7. Select WHITE or BROWN rice.

8. Once rice is cooked, the multicooker automatically switches to WARM and the red

light above WARM turns on. The WARM function will operate until the appliance is turned off.

9. Let rice rest for about 15 minutes on WARM before serving. Fluff rice with a fork

before removing from the appliance. Note: The unit will stay in the WARM cycle until it is unplugged or turned 0 (OFF). Important: Do not immediately press the I/0 (ON/OFF) button again after it has begun the WARM cycle.

10. Remove the lid and fluff the rice before serving.

Caution: When removing the lid, tilt away from your body to avoid getting burned with the hot steam.

11. Press the I/0 (ON/OFF) button and unplug the multicooker when finished cooking.

• Do not keep small amounts of rice on WARM for extended periods of time.

• During cooking, a thin crust may develop on the rice at the bottom of the bowl.

• Fluff the rice before serving.

• Use the plastic serving scoop (rubber spatula or a wooden spoon) to stir and remove rice. Do not use metal utensils that can scratch the interior surface.

USING THE STEAMING BASKET

1. Make sure the probe is fitted correctly inside the probe socket.

2. Fill the cooking pan with at least 2 cups of water, broth or juice using a standard

3. Place vegetables or other food in the steaming basket and position the basket

on top of the cooking pan. Season food with salt, pepper and desired seasonings.

4. Place the lid on the cooking pan.

Note: Always keep the lid closed while cooking.

5. Plug unit into a standard electrical outlet. Two dashes will appear on the digital

7. Press the MODE button; the red light will be illuminated below the word STEAM.

8. Set timer to desired cooking time. Steaming times vary according to vegetable

9. Timer will begin to count down once liquid in cooking pan comes to a boil.

10. Begin checking for doneness after initial 5 minutes. You may need to experiment to

11. When cooking is complete, press the I/0 (ON/OFF) button and unplug the unit.

PREPARING SOUPS & STEWS

Note: Use only boneless meats and poultry that are cut into cubes no larger than 1½ inches. It is not necessary to brown the meats before cooking. As the soup or stew begins to cook, steam will come out of the vent in the lid. Important: Do not place the multicooker directly under your cabinets. Note: When cooking rice or pasta in the stew, allow for additional liquid in the recipe. Caution: To reduce the risk of electric shock, cook only in cooking pan provided. Note: Do not fill cooking pan with oil above the MAX fill line inside the pan. Oil should only be used up to the MAX fill line.

1. Make sure the probe is fitted correctly inside the probe socket.

2. Plug unit into a standard electrical outlet. Two dashes will appear on the digital

4. Press the TEMP button; the red light below the lowest temperature will flash until

the set temperature is reached.

5. You can change the temperature at any time. Temperature settings go up only; if a

lower temperature is desired, continue to tap the TEMP button until the blue light is flashing or illuminated below the desired temperature setting.

6. If desired, you can brown meats or sauté vegetables in the appliance. Once

the appliance is turned on, select the desired temperature. (For browning and sautéing, select 350ºF.) Do not crowd meats to prevent steaming.

7. Combine meats, vegetables and liquids in the cooking pan. Stir with a wooden or

plastic spoon until ingredients are well blended. Note: Since most frozen vegetables cook very quickly, it is best to add them at the end of the cooking time. Stir them into the soup or stew and allow the mixture to cook an additional 5 to 10 minutes. Caution: Do not fill cooking pan higher than the maximum cooking line on the pan.

8. Place the lid on cooking pan.

Note: Always keep lid on multicooker while cooking.

9. As the soup or stew cooks, steam may come out through the steam vent on the lid.

Caution: Do not put your hand over the steam vent as you may get burned with the hot steam.

10. Set timer for desired cooking time.

11. If desired, stir several times during the cooking process.

Caution: When removing the lid, tilt away from your body as you may get burned with the hot steam.

12. Place lid back on the cooking pan when stirring is done.

13. If desired, check seasoning level during cooking and add additional seasoning to

14. When cooking is complete, press the I/0 (ON/OFF) button and unplug the unit.

Caution: Always unplug the unit when cooking is complete. Important Tips:

• Always use the timer and monitor cooking carefully.

• Use only boneless meats and poultry that are cut into cubes no larger than 1½ inches. It is not necessary to brown the meats before cooking.

• When cooking rice or pasta in the soup, allow for additional liquid in the recipe.

• Since most frozen vegetables cook very quickly, it is best to add them at the end of the cooking time. Stir them into the soup or stew and allow the mixture to cook an additional 5 to 10 minutes.8

Care and Cleaning This appliance contains no user-serviceable parts. Refer service to qualified service personnel. CLEANING

1. Unplug the cord and let multicooker cool completely.

2. Make sure the digital control probe is removed.

3. To wash the cooking pan, fill with warm, soapy water; scrub as needed, rinse,

then dry thoroughly. The lid and the accessories can be washed in the dishwasher, top- rack only. Important: Do not immerse the cooking pan in water. For hard stains, use a sponge or nylon scouring pad with liquid detergent. Important: Do not use any abrasive cleaners or metal pads as they can damage the nonstick coating.

4. Rinse and dry all parts thoroughly.

5. Wipe the cooking pan exterior with a damp cloth and dry thoroughly.

STORAGE Store the multicooker in a dry place and wind electric cord into a coil securing it with a twist tie. ENGLISH Made and Printed in People’s Republic of China NEED HELP? For service, repair or any questions regarding your appliance, call the appropriate 800 number on c over of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual. Three-Year Limited Warranty (Applies only in the United States and Canada) What does it cover?

• Any defect in material or workmanship provided; however, Applica’s liability will not exceed the purchase price of product. For how long?

• Three years from the date of original purchase with proof of such purchase. What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished. How do you get service?

• Save your receipt as proof of date of sale.

• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.

• If you need parts or accessories, please call 1-800-738-0245. What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

• Products that have been modified in any way

• Products used or serviced outside the country of purchase

• Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.) How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province. is a trademark of The Black & Decker Corporation, Towson, Maryland, USA10

© 2011 Applica Consumer Products, Inc.
