USER MANUAL S232CX SMEG

Dear User, we are sincerely grateful to you for purchasing one of our products. We are sure that the appliance modern, functional and easy to use, built with the finest materials and components will satisfy all your needs. We would ask that you read the instructions within this booklet very carefully so as to enable you to obtain quality results from the outsets. The appliance must be installed only by a qualified electrician in compliance with the instructions provided. The manufacturer declines all responsability for improper installation.

The manufacturer is not responsible for any transcription errors or misprints contained in this handbook and, furthermore, reserves the right to make any modification on the products, which might be deemed necessary or usefull, this being in the user’s interest, without altering their basic operating or safety features.This cook top was designed to be used exclusively as a cooking appliance: any other use (such as heating rooms) is to be considered improper and dangerous.

TYPE: PFVZ 02 MOD.: S232CX - S232TCXWARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: unattended cooking on a hob with fat or oil can be

dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: danger of fire: do not store items on the cooking

WARNING: if the surface is cracked, switch of the appliance to

avoid the possibility of electric shock. The instructions regarding the stove, hobs and ovens must indicate that you should not use an appliance for steam cleaning. The instructions for hobs shall state that the appliance is not intended to be operated by means of an external timer or separate remote-control system.15

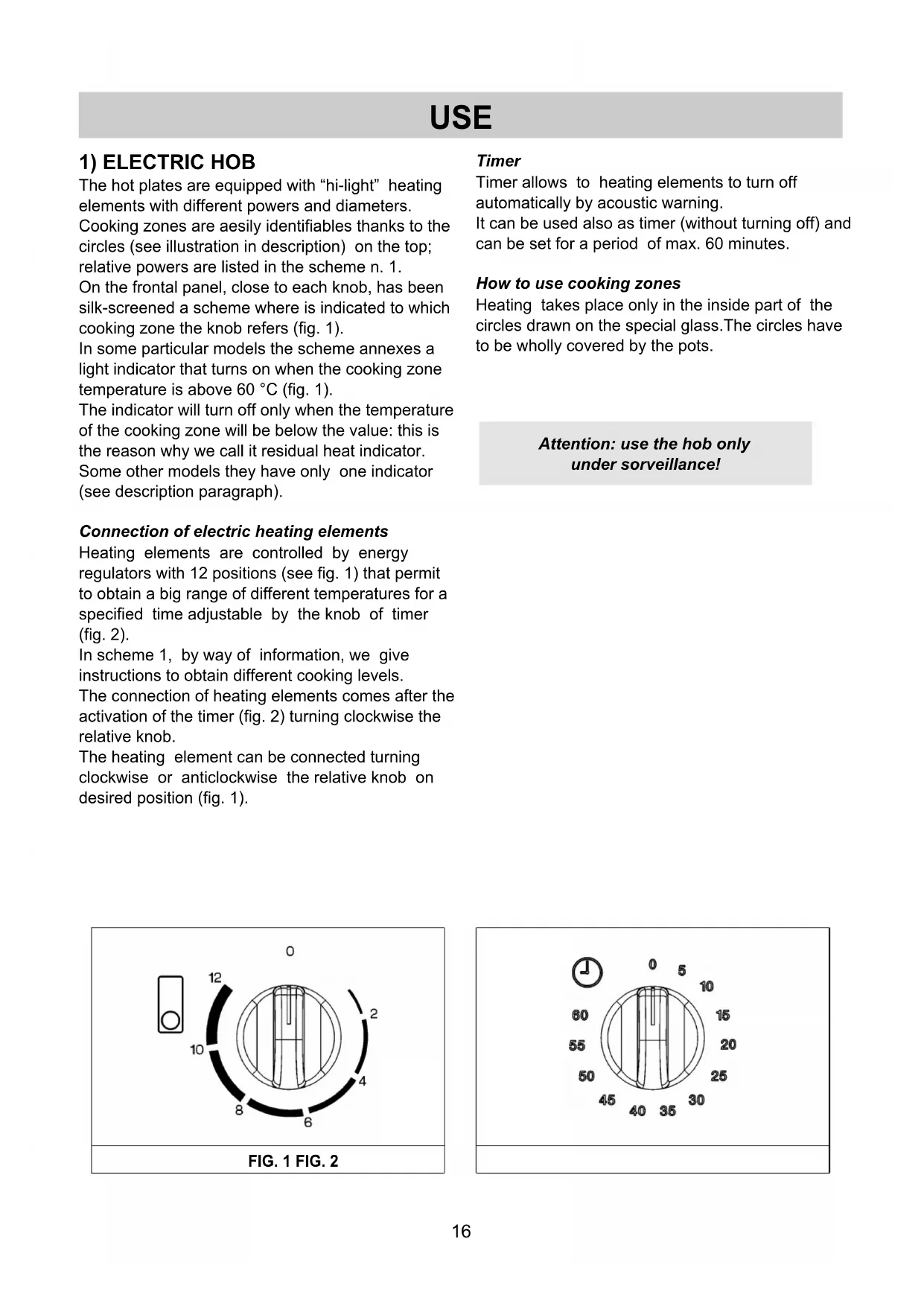

The hot plates are equipped with “hi-light” heating elements with different powers and diameters. Cooking zones are aesily identifiables thanks to the circles (see illustration in description) on the top; relative powers are listed in the scheme n. 1. On the frontal panel, close to each knob, has been silk-screened a scheme where is indicated to which cooking zone the knob refers (fig. 1). In some particular models the scheme annexes a light indicator that turns on when the cooking zone temperature is above 60 °C (fig. 1). The indicator will turn off only when the temperature of the cooking zone will be below the value: this is the reason why we call it residual heat indicator. Some other models they have only one indicator (see description paragraph). Connection of electric heating elements Heating elements are controlled by energy regulators with 12 positions (see fig. 1) that permit to obtain a big range of different temperatures for a specified time adjustable by the knob of timer (fig. 2). In scheme 1, by way of information, we give instructions to obtain different cooking levels. The connection of heating elements comes after the activation of the timer (fig. 2) turning clockwise the relative knob. The heating element can be connected turning clockwise or anticlockwise the relative knob on desired position (fig. 1). Timer Timer allows to heating elements to turn off automatically by acoustic warning. It can be used also as timer (without turning off) and can be set for a period of max. 60 minutes. How to use cooking zones Heating takes place only in the inside part of the circles drawn on the special glass.The circles have to be wholly covered by the pots. Attention: use the hob only under sorveillance! FIG. 1 FIG. 217 USE SCHEME 1 1 145 “hi-light” 1200 1 2 180 “hi-light” 1800 1 - 4

Zone Diameter Heating Power Energy n° in mm element W regulators

To heat foods, thaw deep-frozen foods, to cook fruits and pulses. To melt butter, chocolate and else. To fry with oil and to heat big quantities of water. To cook roast of meat, fish; to cook steaks and eggs. To cook meat, fish, pulses with sauce. To heat small quantities of liquid and to keep dishes warm. Power and dimensions of the cooking zones Position for regulation of the knobs Possible cookings CAUTION: In case of hotplate glass breakage: ●shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply; ●do not touch the appliance surface; ●do not use the appliance.18 USE FIG. 3 WARNINGS: for a correct use, please look at fig. 3 and remind: - switch on the electricity only after having placed the pot on the cooking zone. - Use pots and pans with flat solid bottoms. - Use pots with the same diameter of the cooking zones. - Dry the bottom of the pot before put in on the cooking zones. - Do not scrape the pot against the glass so to not damage it. - During the use of the cooking zones, please, keep the children away from the hot plates. Make sure that the handles of the pots are placed in the right way towards the interior. Be aware that overheated fats and oils may become inflamed. - Cooking zones after using remain warm; don’t leave objects, don’t lean your hands so to avoid burns, till the indicator light is off. - If the glass cracks, please, disconnect the appliance. - Don’t use plastic pots or alluminium sheets. - Don’t use hob as a supplementary surface. - The appliance must not be operated with an external timer or a separate remote-control system. - Do not attempt to change the technical characteristics of the product because it can be dangerous. - If you should not to use this appliance any more (or replace an old model), before disposing of it, make it inoperative in conformity with current law on the protection of health and the prevention of environmental pollution by making its dangerous parts harmless, especially for children who might play on an abandoned appliance. WARNINGS AND ADVICE FOR THE USER: - do not touch the appliance with wet or damp hands or feet. - Do not use the appliance barefoot. - The manufacturer will not be liable for any damage resulting from improper, incorrect or unreasonable use. - During, and immediately after operation, some parts of the cook top are very hot: avoid touching them. - After using the cook top, make sure that the knob is in the closed position.19 CLEANING Before any cleaning operation, disconnect the appliance from the electric circuit.

If you want to preserve the surface clean and bright, we recommend you to use a silicone conditioner. The use of this conditioners, prior to jam-making, helps to protect the surface of the hob. It is very important to clean the surface soon after every use, when the glass is still tepid. Do not use metallic sponges, powder abrasives or corrosive sprays. Depending on the dirty level we recommend: - slights stains: it is enought the use of a moist clean rag. - Burnt or soiling may be removed with a special razor scraper (fig. 4); be aware that the razor can cause wounds. - Marks of liquid, overflowed from the pot, can be removed using vinegar or lemon. - Pay attention to not let fall sugar or element with sugar. In this case turn the switch off and clean the surface with hot water and the razor blade scraper. - After a period of time may appear metal reflex and scratches (fig. 5) due to the wrong cleaning and the wrong use of the pots. The scratches are difficultly removable, but they do not compromise the good working of the hob. - Don’t use steam jets for the equipment cleaning. FIG. 4 FIG. 520 INSTALLATION

COMPLY WITH THE DIMENSIONS

Installation, transformations and maintenances below listed, may only be carried out by a competent technician. The appliance must be correctly installed in conformity with current law and the manufacturer's instructions. Incorrect installation may cause damage to persons, animals or property for which the Manufacturer shall not be considered responsible. During the life of the system, the automatic safety or regulating devices on the appliance may only be modified by the manufacturer or by his duly authorized dealer.

Check that the appliance is in a good condition after having removed the outer packaging and internal wrappings from around the various loose parts. In case of doubt, do not use the appliance and contact qualified personnel. Never leave the packaging materials (cardboard, bags, polystyrene foam, nails, etc.) within children’s reach since they could become potential sources of danger. The measurements of the opening made in the top of the modular cabinet and into which the hot plate will be installed are indicated in either fig. 6. Always comply with the measurements given for the hole into which the appliance will be recessed (see fig. 6 and 7).21 INSTALLATION

A special sealing strip underneath the hob for damage. Make sure it is correctly positioned with no gaps; it avoids any water infiltration. To fix in the right way the strip, please, respect the following instructions: - fix the hooks in the relative accomodations of the body (see fig. 8). - Overturn the hob, take the seal strips off from their support, having care that the transparent protection remains attached to the seal. Correctly place the seal "E" (fig. 8) under the hob edge, so that the external side of the seal fits together with the external perimentrical edge of the hob. The ends of the strip must fit together without overlapping. - Stick the seal to the hotplate uniformly, pressing it with fingers. - Take the protective paper strip of the seal off, place the hotplate in the opening made in the table top, and lock it with the special screws "F" (fig. 9). - Since the casing of the hob may overheat due to a prolonged use, it is necessary to insert a separation plane wood, blocked by screws, which must be installed under the cooktop at a minimum distance of 70 mm from the top, as shown in fig.6. WARNINGS: be aware that the glue that join the laminated plastic to the furniture, has to resist to temperature not below 150 °C, to avoid the unstuck of the panelling. The rear wall, adjacent and surrounding surfaces must therefore be able to withstand an temperature of 90 °C. FIG. 8 FIG. 922 INSTALLATION FIG. 10 FIG. 11

5) ELECTRICAL CONNECTION

The electrical connection has to be done in accordance with all electrical and installation requirements of the regulation. Before proceeding with the connection, please, verify that: - the voltage matches the value shown on the specification plate and the section of the wires of the electrical system can support the load, which is also indicated on the specification plate. - the power of the electrical system and the power of the outlets is adequate to the maximum power of the appliance (see the identification label in the lower part of the body). - The outelets and all the electrical system has an efficient connection to the "earth" according with the Regulation. We disclaim all responsabilities for not observing such points. - If the appliance is not equipped with an input cable, connect to the clump with an adequate section cable (see scheme paragraph 7) keeping the "earth" conductor longer than "live" ones, following the scheme of fig. 10. When the connection to the input system has been done through a outlet: - apply to the input cable "C", if unprovided, a normalized plug adequate to the load indicated in the identification label. Connect the cables according to the scheme of fig. 10, making sure to respect the undermentioned respondences: Letter L (Live) = cable brown colour; Letter N (Neutral) = cable blue colour; Symbol (Earth) = cable green - yellow colour. - The input cable has to be located so that never reach the temperature of 90 °C. - Please do not use in the connection any reduction, adaptation that may provoke a false contact with following dangerous overheatings. - The outlet must be accessible after the built-in. When the connection has been done directly to the input system: - interpose between the appliance and the system an onnipolar switch, adequate to the load of the appliance, with a minimum nose between the contacts of 3 mm. - Keep in mind that the "earth" cable does not have to be interrupted by the switch. - The electrical connection can also be protected by a differential switch with high sensitivity. We recommend to fix the earth coloured cable to an appropriate earth installation. Before performing any service on the electrical part of the appliance, it must absolutely be disconnected from the electrical network. WARNINGS: all our products are projected and built according with the European Norms EN 60 335-1 and EN 60 335-2-6 and relative amendments. The appliance has been produced according with the European Directives: - CEE 2004/108/CE concerning the compatibility electromagnetic. - CEE 2006/95 concerning the electrical security. IMPORTANT! The appliance must be installed following the manufacturer's instructions. The manufacturer will not be liable for injury to persons or animals or property damage caused by an incorrect installation. If the installation requires modifications to the home's electrical system or if the socket is incompatible with the appliance's plug, have changes or replacements performed by professionally-qualified person. In particular, this person must also make sure that the section of the wires of the socket is suitable for the power absorbed by the appliance.23 MAINTENANCE Before doing any action, disconnect the appliance from the input power.

6) COMPONENTS SUBSTITUTION

To replace the components lodged in the internal part, is necessary to take the appliance up from the furniture, overturn it, loosen the screws and take away the bottom. After these actions is possible to work on the plates, commutators, clamps and input cable. In case of substitution of the input cable, the installer must keep the "earth" conductor longer than "live" ones, and must respect the cautions in paragraph "ELECTRICAL CONNECTION". To reassemble the appliance repeat the inverse process.

To facilitate the job of the installer we present a scheme with the characteristics of the components. Denominations W “Hi-light” electric heating element Ø 145 mm 1200 “Hi-light” electric heating element Ø 180 mm

PERFORMED BY AUTHORISED PERSONS.This appliance, before leaving the factory, has been carefully tested and regulated by expert and specialized personnel in order to guarantee the best performances. Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention. For this reason, always contact your Dealer or your nearest After Sales Centre whenever repairs or adjustments are required, specifying the type of fault and the model of appliance in your possession. Please also note that genuine spare parts are only available from our After Sales Service Centres and authorized retail outlets. The above data are printed on the data label put on the inferior part of the appliance and on the packing label. The above informations give to the technical assistant the possibility to get fit spare parts and a heaven- sent intervention. We suggest to fill the table below. MARK: ................................................ MODEL: ............................................. SERIES: ............................................. This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.
