USER MANUAL RF23M8070SR SAMSUNG

Refrigerator User manual Free Standing Appliance Untitled-3 1 2020-04-07 PM 3:29:32English2 Contents Contents Safety information 4 What you need to know about the safety instructions 4 Important safety symbols and precautions: 5 State of California Proposition 65 Warning 5 Important safety precautions 5 Severe warning signs for transportation and site 7 Critical installation warnings 8 Installation cautions 10 Critical usage warnings 10 Usage cautions 13 Cleaning cautions 14 Critical disposal warnings 15 Installation 16 Refrigerator at a glance 16 Step-by-step installation 18 Operations 35 Main panel 35 SmartThings (applicable models only) 43 Dispenser panel 46 Special features 48 Maintenance 54 Handling and care 54 Cleaning 64 Replacement 65 Troubleshooting 68 General 68 Do you hear abnormal sounds from the refrigerator? 72 SmartThings 74 Untitled-3 2 2020-04-07 PM 3:29:32English 3 Contents

LIMITED WARRANTY (U.S.A.) 75

SAMSUNG REFRIGERATOR 75 Warranty Information (CANADA) 78 If your refrigerator needs service 78 Limited Warranty for Original Purchaser 78 Obligation to the Original Owner 79 Exclusions of the Warranty 79 Untitled-3 3 2020-04-07 PM 3:29:32English4 Safety information Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efciently. What you need to know about the safety instructions

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual.

• If you have any question, contact us at 1-800-SAMSUNG or nd help and information online at www.samsung.com.

• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked ames and move anything ammable away from the product and ventilate the room immediately. - Failing to do so may result in re or explosion.

• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded. Safety information Untitled-3 4 2020-04-07 PM 3:29:32English 5 Safety information Important safety symbols and precautions: Please follow all safety instructions in this manual. This manual uses the following safety symbols. WARNING Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death. CAUTION Hazards or unsafe practices that may result in severe personal injury and/or property damage. NOTE Useful information that helps users understand or benet from the refrigerator. These warning signs are here to prevent injury to you and others. Please follow them carefully. After reading this section, keep it in a safe place for future reference. State of California Proposition 65 Warning WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov. Important safety precautions Warning; Risk of re / ammable materials WARNING

• R-600a is used as a refrigerant. This product contains ammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.

• In order to avoid the creation of a ammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft³ in size for every 8 g of R-600a refrigerant inside the appliance. Untitled-3 5 2020-04-07 PM 3:29:32Safety information English6 Safety information

• The installation location should not be exposed to direct sunlight and not placed near any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc.

• If you use two products side by side, for safety reason, be sure to use certied products in explosive gas atmospheres.

• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• New hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. WARNING

• Fill with potable water only.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of The appliance, unless they are of the type recommended by the manufacturer.

• Connect to potable water supply only. WARNING

• Risk of child entrapment. Before you throw away your old refrigerator or freezer: - Take off the doors. - Leave the shelves in place so that children may not easily climb inside. Untitled-3 6 2020-04-07 PM 3:29:32English 7 Safety information This appliance is intended to be used in household and similar applications such

• staff kitchen areas in shops, ofces and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• catering and similar non-retail applications. Severe warning signs for transportation and site WARNING

• When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. - Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked ames or potential sources of ignition and air the room in which the appliance is standing for several minutes. - This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also ammable. Untitled-3 7 2020-04-07 PM 3:29:33Safety information English8 Safety information Critical installation warnings WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water. - Deteriorated insulation on electrical parts may cause an electric shock or re.

• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.

• Do not plug several appliances and the refrigerator into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator’s rating plate. - This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a re hazard.

• If the wall socket is loose, do not insert the power plug. - There is a risk of electric shock or re.

• Do not use a power cord that has cracks or abrasion damage along its length or at either end.

• Do not bend the power cord excessively or place heavy objects on it.

• Do not pull or excessively bend the power cord.

• Do not twist or tie the power cord.

• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• When moving the refrigerator, be careful not to roll over or damage the power cord. - This may result in an electric shock or re.

• Never unplug your refrigerator by pulling on the power cord. Always grip the plug rmly and pull straight out from the outlet. - Damage to the cord may cause a short-circuit, re, and/or electric shock.

• Do not install this appliance near a heater or ammable material.

• Do not install this appliance in a location where gas may leak. - This may result in an electric shock or re.

• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.

• Connect the power plug in the proper position with the cord hanging down. - If you connect the power plug upside down, the wire can get cut off and cause a re or electric shock.

• Make sure that the power plug is not crushed or damaged by the back of the refrigerator. Untitled-3 8 2020-04-07 PM 3:29:33English 9 Safety information

• Keep the packing materials out of reach of children. - There is a risk of death from suffocation if a child puts the packing materials on his or her head.

• The appliance must be positioned so that the plug is accessible after installation. - Failing to do so may result in an electric shock or re due to electric leakage.

• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or to water (rain drops). - Deteriorated insulation on electrical parts may cause an electric shock or re.

• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact a Samsung Electronics service center. - Otherwise there is a risk of re.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in an electric shock, re, problems with the product, or injury.

• You need to remove all the protective plastic lm before you initially plug the product in.

• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips. - There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.

• The refrigerator must be safely grounded. - Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground. - You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator. - Current leakage may result in an electric shock, re, explosion, or problems with the product.

• Plug the power plug into the wall socket rmly. Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or re.

• Only a qualied technician or service company should be allowed to change the fuse in the refrigerator. - Failing to do so may result in an electric shock or personal injury. Untitled-3 9 2020-04-07 PM 3:29:33Safety information English10 Safety information Installation cautions CAUTION

• Allow sufcient space around the refrigerator and install it on a at surface. - Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.

• After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food.

• It is strongly recommended you have a qualied technician or service company install the refrigerator. - Failing to do so may result in an electric shock, re, explosion, problems with the product, or injury.

• Overloading one door may make the refrigerator fall, causing physical injury. Critical usage warnings WARNING

• Do not insert the power plug into a wall socket with wet hands. - This may result in an electric shock.

• Do not store articles on the top of the appliance. - When you open or close the door, the articles may fall and cause personal injury and/or material damage.

• Do not insert hands, feet, or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator. - This may result in an electric shock or injury. - Any sharp edges may cause a personal injury.

• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands. - This may cause frostbite.

• Do not put a container lled with water on the refrigerator. - If spilled, there is a risk of re or electric shock.

• Do not keep volatile or ammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator. - This refrigerator is for storing food only. - This may result in re or explosion.

• Children should be supervised to ensure that they do not play with the appliance. - Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area. Untitled-3 10 2020-04-07 PM 3:29:33English 11 Safety information

• Do not let children hang on the door or door bins. A serious injury may occur.

• Do not let children go inside the refrigerator. They could become trapped.

• Do not insert your hands into the area under the appliance. - Any sharp edges may cause personal injury.

• Do not store pharmaceutical products, scientic materials, or temperature sensitive products in the refrigerator. - Products that require strict temperature controls must not be stored in the refrigerator.

• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.

• If you smell smoke, pull out the power plug immediately, and then contact a Samsung Electronics service center.

• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Samsung Electronics service center. - Otherwise there is a risk of re.

• Do not let children step on a drawer. - The drawer may break and cause them to slip.

• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter the refrigerator.

• Do not allow babies or children to go into a drawer. - It can cause death from suffocation by entrapment or personal injury.

• Do not overll the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage.

• Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in an electric shock, re, or problems with the product.

• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker bucket. - It may cause a personal injury or material damage.

• Do not use or place any substances sensitive to temperature such as ammable sprays, ammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.

• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or re.

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or puried water). - Do not ll the tank with tea, juice, or a sports drink. They can damage the refrigerator. Untitled-3 11 2020-04-07 PM 3:29:33Safety information English12 Safety information

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, re, problems with the product, or injury. Do not put a container lled with water on the appliance. - If spilled, there is a risk of re or electric shock.

• Never stare directly at the UV LED lamp for long periods of time. - This may result in eye strain due to the ultraviolet rays.

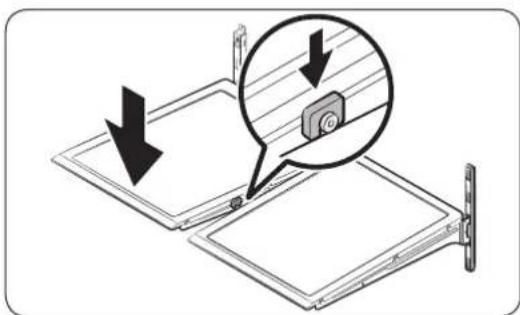

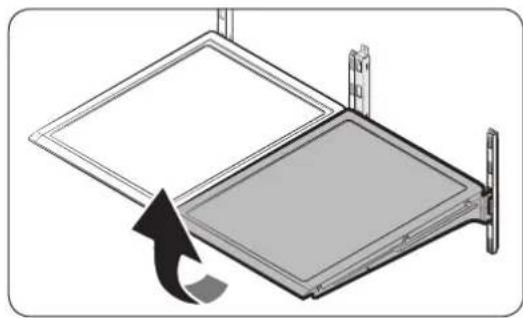

• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not work. - The glass shelf could fall and cause personal injury.

• Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• If a gas leak is detected, avoid any naked ames or potential sources of ignition, and air the room in which the appliance is standing for several minutes. - Do not touch the appliance or power cord. - Do not use a ventilating fan. - A spark may result in an explosion or re.

• Use only the LED Lamps provided by the manufacturer or its service agents.

• Bottles should be stored tightly together so that they do not fall over or out.

• This product is intended only for the storage of food in a domestic environment.

• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker bucket. - This can cause a personal injury or material damage.

• Do not attempt to repair, disassemble, or modify the refrigerator yourself. - Unauthorized modications can cause safety problems. To reverse an unauthorized modication, we will charge the full cost of parts and labor.

• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.

• If your refrigerator needs to be repaired or reinstalled, contact your nearest Samsung service center. - Failing to do so may result in an electric shock, re, problems with the product, or injury.

• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service center.

• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact a Samsung service center. - Failing to do so may result in an electric or re hazards.

• Pull the power plug out of the socket before changing the interior lamps of the refrigerator. - Otherwise, there is a risk of electric shock. Untitled-3 12 2020-04-07 PM 3:29:33English 13 Safety information

• If you experience difculty changing a non-LED light, contact a Samsung service center.

• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself. - Contact a Samsung service center.

• Plug the power plug into the wall socket rmly.

• Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or re. Usage cautions CAUTION

• Do not re-freeze frozen foods that have thawed completely.

• Use only the ice maker provided with the refrigerator.

• To get the best performance from the product: - Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment. - Wrap food up properly or place it in airtight containers before putting it into the refrigerator. - Please observe maximum storage times and expiration dates of frozen goods.

• Do not put glass containers or bottles or carbonated beverages into the freezer. - The container may freeze and break, and this may result in injury.

• Service Warranty and Modication. - Any changes or modications performed by a 3rd party on this nished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modications.

• Do not block the air vents inside the refrigerator. - If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If a cooling period lasts too long, the water lter may break and cause water leakage.

• If the refrigerator is disconnected from the power supply, you should wait for at least ve minutes before plugging it back in.

• If large amounts of water enter the refrigerator, pull out the power plug and contact a Samsung service center.

• Do not strike or apply excessive force to any glass surface. - Broken glass may result in a personal injury and/or property damage. Untitled-3 13 2020-04-07 PM 3:29:33Safety information English14 Safety information

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or puried water). - Do not ll the tank with tea, juice, or a sports drink. They can damage the refrigerator.

• If the refrigerator is ooded, shut off the power to the refrigerator and contact your nearest Samsung service center. - There is a risk of electric shock or re.

• Do not keep vegetable oil in your refrigerator’s door bins. The oil can solidify, making it foul-tasting and difcult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry. - Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc. Cleaning cautions CAUTION

• Do not spray water directly on the inside or outside of the refrigerator. - There is a risk of re or electric shock.

• Do not use a hair dryer to dry the inside of the refrigerator.

• Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or re.

• Do not spray cleaning products directly on the display. - Printed letters on the display may come off.

• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest Samsung service center. - Failing to do so may result in an electric shock or re.

• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug. - Otherwise, there is a risk of re or electric shock.

• Do not clean the appliance by spraying water directly onto it.

• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator. - They may damage the surface of the appliance and may cause a re.

• Never put ngers or any objects into the dispenser outlet. - This can cause a personal injury or material damage.

• Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failing to do so may result in an electric shock or re.

• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator. Untitled-3 14 2020-04-07 PM 3:29:33English 15 Safety information

• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, ammable uids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets. - These can scratch or damage the material.

• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping. Critical disposal warnings WARNING

• Children trapped inside a refrigerator can hurt themselves or suffocate to death.

• Please dispose of the packaging material from this product in an environmentally friendly manner.

• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.

• This product contains R-600a, a ammable gas, which is used as the refrigerant. Contact your local authorities regarding safe disposal of this product.

• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance. - If trapped inside, the child could be injured or suffocate to death.

• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a bag over his or her head, the child could suffocate. Untitled-3 15 2020-04-07 PM 3:29:33English16 Installation Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it. WARNING

• Use the refrigerator only for its intended purpose as described in this manual.

• Any servicing must be performed by a qualied technician.

• Dispose of the product packaging material in compliance with the local regulations.

• To prevent electric shock, unplug the power plug before servicing or replacing parts. Refrigerator at a glance The actual refrigerator and provided component parts of your refrigerator may differ from the illustrations in this manual, depending on the model and the country.

• applicable models only NOTE

• For energy efciency, keep all shelves, drawers, and baskets in their original positions.

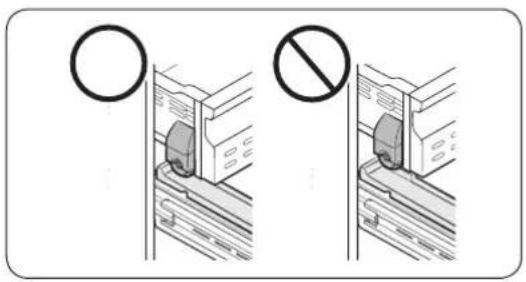

• When closing the door, make sure the vertical hinged section is in the correct position to avoid scratching the other door.

• If the vertical hinged section is reversed, put it back into the correct position, and then close the door.

• Moisture may form at times on the vertical hinged section.

• If you close a door forcefully, the other door may open.

• When a door opens, the interlock switch automatically disables the auger motor of the ice maker for safety reasons.

• If the internal or external LED lamp is out of order, contact a local Samsung service center. Door bins Your refrigerator ships with door bins of different types and sizes. If the door bins for your refrigerator were packaged separately, use the gure below to help you position the bins properly. Untitled-3 17 2020-04-07 PM 3:29:34Installation English18 Installation Step-by-step installation STEP 1 Select a site Select a site that:

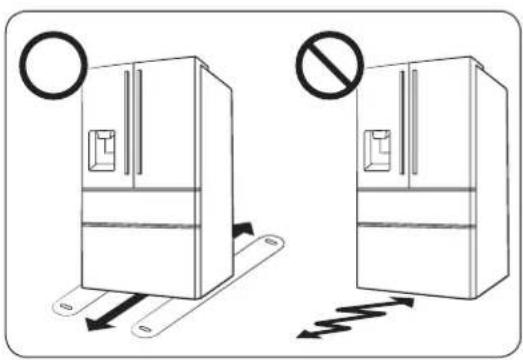

• Has a solid, level surface without carpeting or ooring that may obstruct ventilation

• Is away from direct sunlight

• Has adequate room for opening and closing the door

• Is away from any heat sources

• Provides room for maintenance and servicing

• Has a temperature range between 50 °F (10 °C) and 109 °F (43 °C) CAUTION

• If your refrigerator is equipped with an ice maker, secure extra space at the rear of the refrigerator for the water line connection.

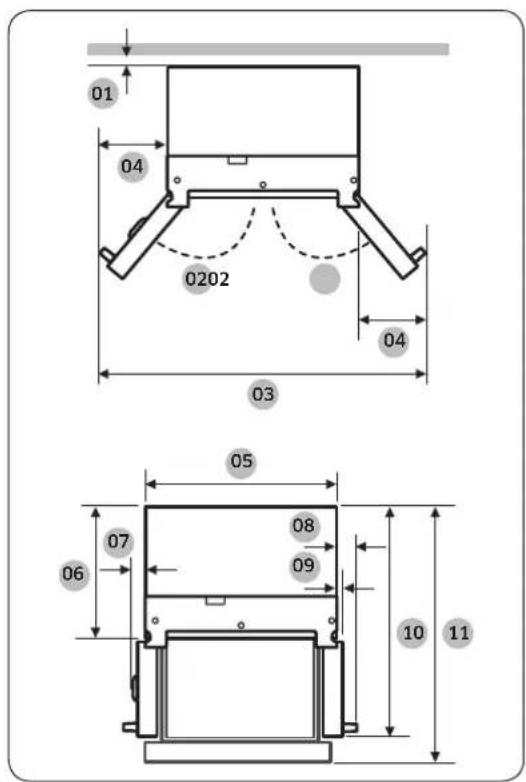

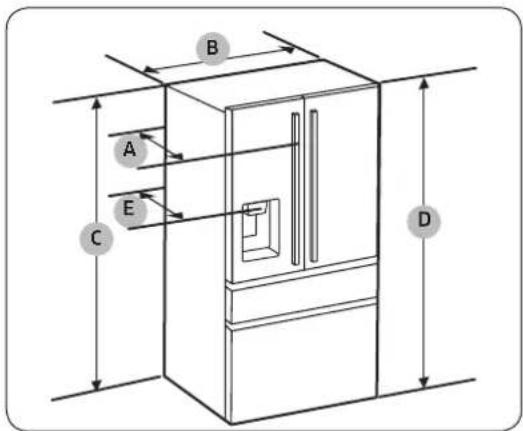

• When you install the refrigerator next to a xed wall, you must secure a minimum clearance of 3

/4" (95 mm) from the wall to allow the door to swing open. NOTE To facilitate moving your refrigerator to its nal location, be sure to measure the width and height of doorways, thresholds, ceilings, stairways, and anything else that needs to be taken into consideration to ensure you can move your refrigerator safely. The following diagram illustrates the exact height and depth (factory specications) of your refrigerator. Clearance See the pictures and table below for space requirements for installation.

/4" (781 mm) Width “B”

/4" (908 mm) Height “C”

45" (1143 mm) 45" (1143 mm) NOTE The measurements in the table above may differ slightly from the actual measurements, depending on the measuring and rounding method. Untitled-3 19 2020-04-07 PM 3:29:34Installation English20 Installation STEP 2 WiFi connection You can control the refrigerator remotely using the Smart Home Adapter that is sold separately. To purchase the Smart Home Adapter, visit www.samsung.com and follow the product information about the adapter. NOTE You may not be able to purchase the Smart Home Adapter separately in some countries. Please check with your dealer for availability. CAUTION

• The Samsung Smart Home Adapter comes in two types: one that is dedicated to Samsung smart TVs, and the other one that is dedicated to Samsung home appliances.

• You must purchase the Samsung Smart Home Adapter (HD39N1230GW) dedicated to home appliances. Any other adapters may cause system failure.

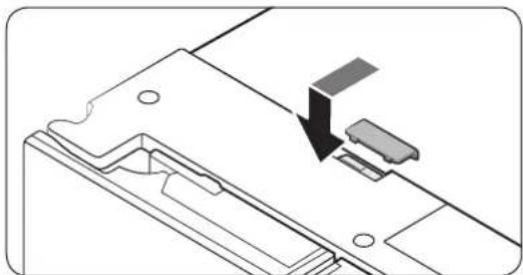

1. Press the front area of the adapter

2. Open up the adapter cover.

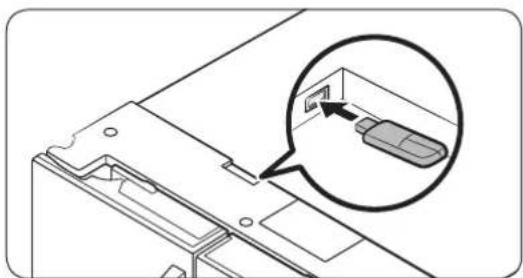

3. Insert the Smart Home Adapter into the

dongle port in the correct orientation.

4. Insert the front area of the adapter

cover rst, and then t the cover into position. Untitled-3 20 2020-04-07 PM 3:29:35English 21 Installation STEP 3 Flooring If the refrigerator cannot pass through the entrance due to its size, see STEP 4 Door removal for entrance. NOTE To prevent oor damage, make sure the front levelling legs are in the upright position.

• The surface you install the refrigerator must support a fully loaded refrigerator.

• To protect the oor, put a large piece of cardboard along the path to the refrigerator's nal installation location.

• Once the refrigerator is in its nal position, do not move it unless necessary to protect the oor. If you have to move the refrigerator, place thick paper or cloth such as old carpets along the path of movement. Untitled-3 21 2020-04-07 PM 3:29:35Installation English22 Installation STEP 4 Door removal for entrance If the refrigerator cannot pass through the entrance to your home or kitchen due to its size, follow these instructions to remove and then re-install the refrigerator's doors. If you do not need to remove the doors, go to page 29 to continue the installation procedure. WARNING Unplug the power cord of the refrigerator before removing the doors. Tools required (not provided) Phillips screwdriver Flat-heat screwdriver Socket wrench

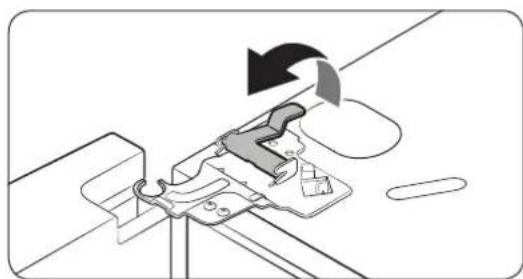

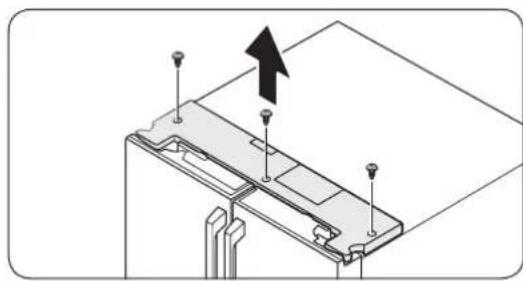

1. With the door opened, remove the

screws from the top cover.

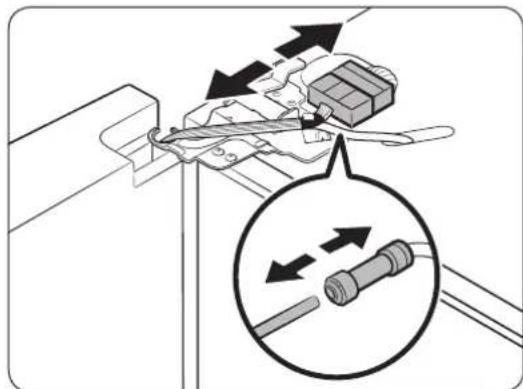

2. Disconnect the wires and the water

tube from the left-side door. Do the following sequentially:

• Decouple the connector.

• While holding down one end of the water line coupler, disconnect the water tube. CAUTION Keep the water tube clips out of children’s reach.

• Repeat this step on the other side. Untitled-3 23 2020-04-07 PM 3:29:37Installation English24 Installation

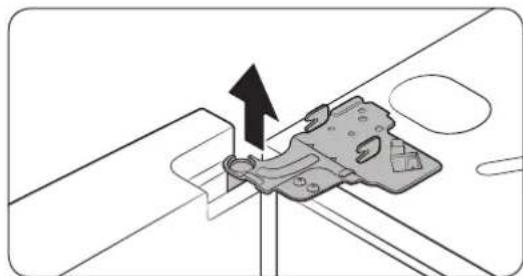

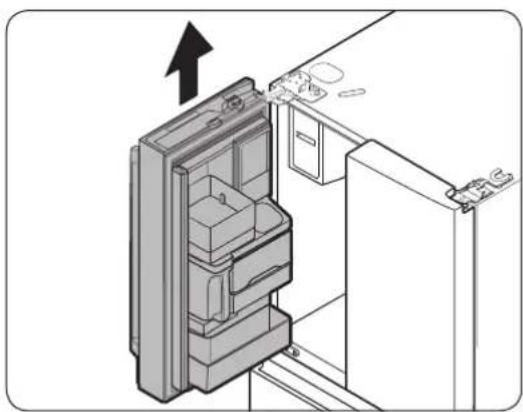

4. Lift straight up to remove the door.

• Repeat this step on the other side. CAUTION Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, any of the doors may fall and cause physical injury.

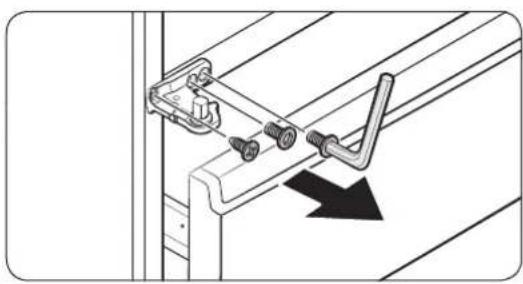

5. Remove the middle hinge.

• Remove the screw from the hinge using a Phillips screwdriver.

• Remove 2 hex-head bolts from the hinge using an Allen wrench (

• Repeat this step on the other side. To reattach the fridge door After you have moved the refrigerator to its nal location, reattach the doors by following the removal instructions in reverse order.

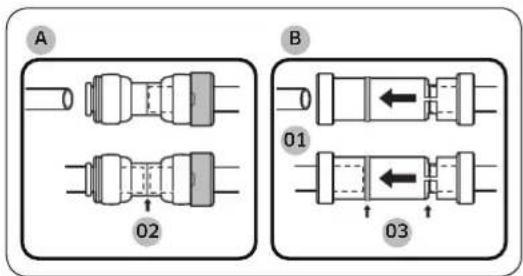

01 Dispenser 02 Center of transparent coupler 03 Guidelines CAUTION To prevent water leaks from the dispenser, the water line must be fully connected. Make sure both tubes of the water line are inserted fully to the center of transparent coupler (A) or the guidelines (B). Untitled-3 24 2020-04-07 PM 3:29:37English 25 Installation Detach the FlexZone™ drawer

1. Lift up to remove the FlexZone™ basket.

2. Remove the wire cover with harness

using a at-head screwdriver.

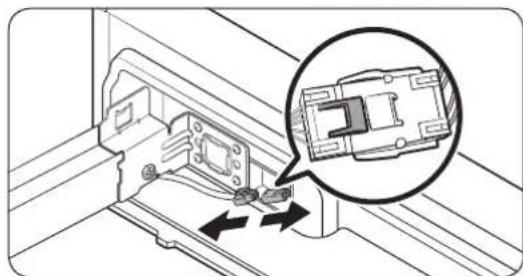

3. Press the locking tab to disconnect the

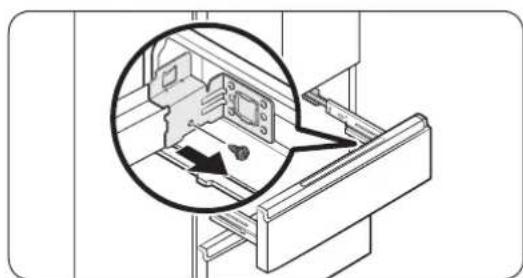

4. Remove the hex-head bolt from each

side using a socket wrench (

/8", 10 mm) or a screwdriver. Untitled-3 25 2020-04-07 PM 3:29:38Installation English26 Installation

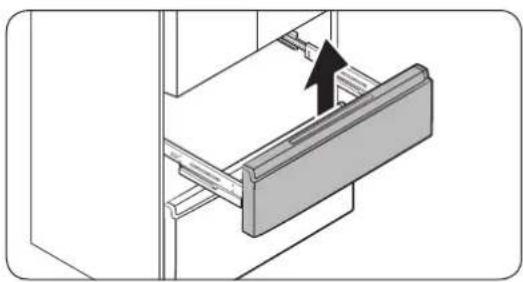

5. Lift up to remove the drawer front of

the FlexZone™ from the rail assembly. CAUTION

• Use caution when removing the rail assembly, which may fall off causing damage to the oor.

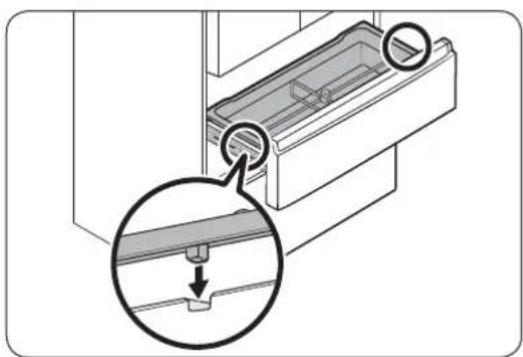

• Make sure to put the FlexZone™ drawer in place after removing or mounting the FlexZone™ basket. The FlexZone™ drawer may not open or close if the freezer drawer is not in place.

• Do not store too much food in the FlexZone™ drawer. This prevents the FlexZone™ drawer from closing properly, resulting in frost buildup. To reattach the FlexZone™ drawer After you have moved the refrigerator to its nal location, reattach the FlexZone™ drawer by following the removal instructions in reverse order. CAUTION If the FlexZone™ or the indicator does not operate properly, make sure the connectors are connected properly. Untitled-3 26 2020-04-07 PM 3:29:38English 27 Installation Detach the freezer drawer

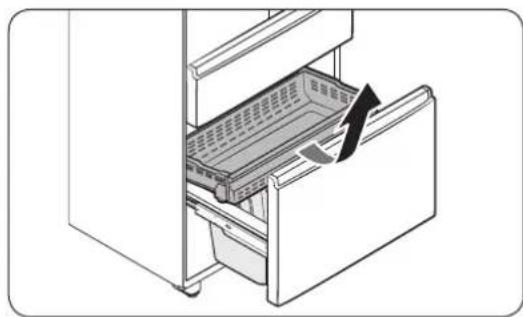

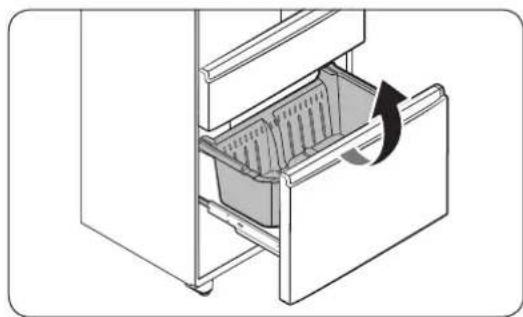

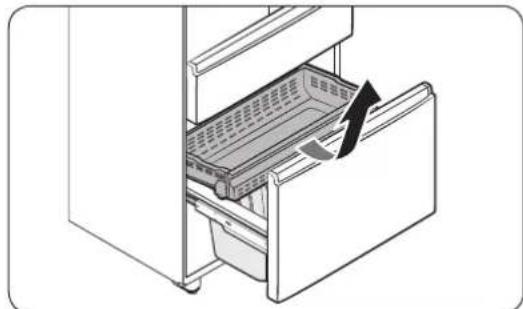

1. Push the upper basket to the end, and

then pull up to remove.

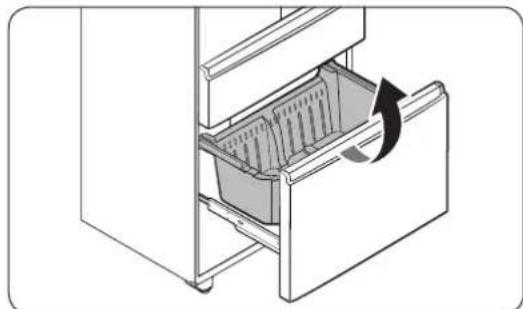

2. Pull up to remove the lower basket

from the rail assembly.

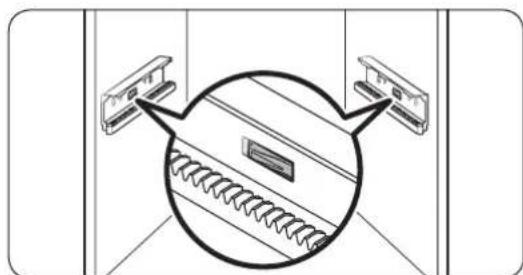

3. Press down the hooks to unlock the rail

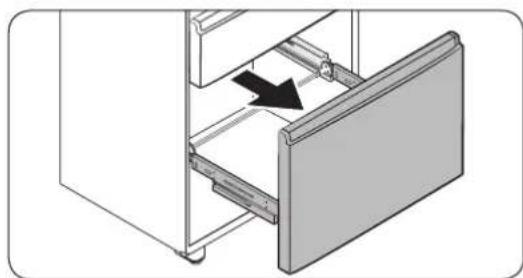

4. While holding the upper area of the

drawer front of the freezer, slide out all the way to remove the freezer drawer from the rail assembly. Untitled-3 27 2020-04-07 PM 3:29:39Installation English28 Installation CAUTION

• Make sure you mount the freezer baskets in the right position. Otherwise, the drawer will not open or close properly, which causes frost to build up.

• Do not store too much food in the freezer baskets. This prevents the freezer drawer from closing properly, resulting in frost buildup.

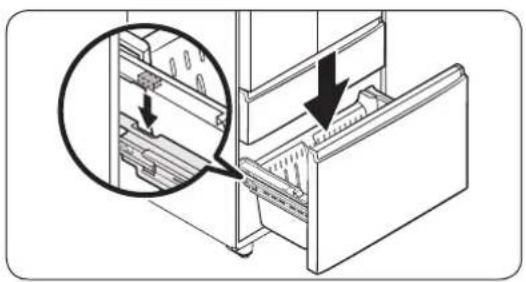

• While the lower basket is fully open, put the upper basket into the freezer drawer. Make sure the wheels of the upper basket are on the end of the rails of the lower basket.

• Put the wheels of the upper basket on the end of the rails of the lower basket. Then, slide the upper basket all the way to the front.

• Be careful not to scratch or dent the rail assembly. To reattach the freezer drawer After you have moved the refrigerator to its nal location, reattach the freezer drawer by following the removal instructions in reverse order. Untitled-3 28 2020-04-07 PM 3:29:40English 29 Installation STEP 5 Levelling the refrigerator CAUTION

• The refrigerator must be levelled on a at, solid oor. Failing to do so can cause damage to the refrigerator or physical injury.

• Levelling must be performed with the refrigerator empty. Make sure no food items are inside the refrigerator.

• Also, open the freezer drawer and remove the lower basket.

• For safety reasons, adjust the refrigerator so that the front is a little higher than the rear. Level the refrigerator using the special screws (levellers) on the front legs. Use a at-head screwdriver to turn the levellers.

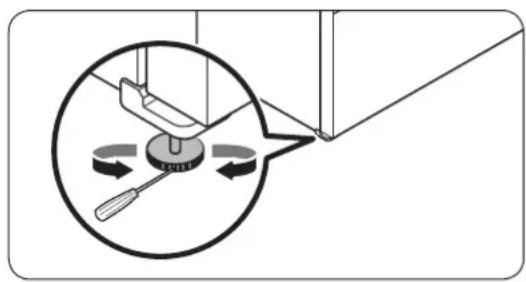

• To adjust the height on one side: Insert a at-head screwdriver into a notch in the leveller on that side. (left or right) Turn the leveller clockwise to raise the refrigerator. Turn it counterclockwise to lower. Repeat on the other side. Untitled-3 29 2020-04-07 PM 3:29:40Installation English30 Installation STEP 6 Adjust the door height and the door gap Snap rings The height of a door can be adjusted using the provided snap rings, which come in 4 different sizes (1 mm, 1.5 mm, 2 mm, and 2.5 mm). To adjust the height of a door

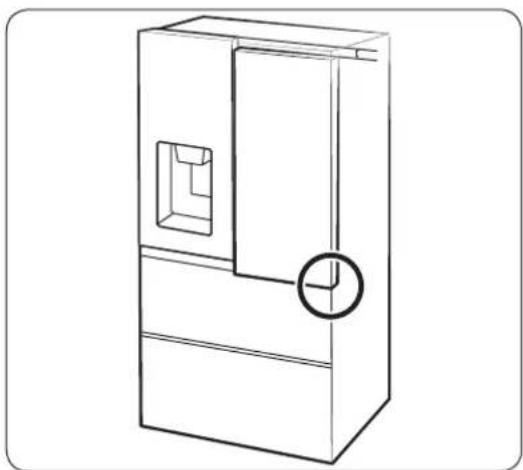

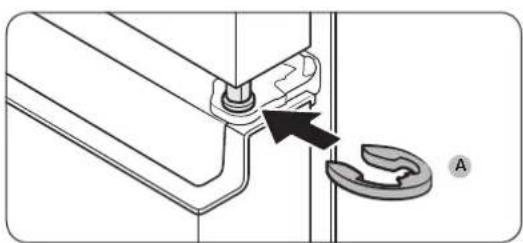

1. Check the height difference between

the doors, and then raise and hold the door with the lower height.

between the door and the hinge as shown. CAUTION

• Insert only one snap ring. If you insert two or more snap rings, the rings may slip out or make a rubbing noise.

• Keep the snap rings out of children’s reach and keep them for future use.

• Do not raise the door too much. The door can contact and damage the top cover. Untitled-3 30 2020-04-07 PM 3:29:41English 31 Installation STEP 7 Connect the water dispenser line A water dispenser with a lter is one of the helpful features on your new refrigerator. To help promote better health, the water lter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You may need to purchase a water purifying system to do that. The water line also connects to the ice maker. For the ice maker to operate properly, water pressure of 20 and 120 psi (138 and 827 kPa) is required. If the refrigerator is installed in an area with low water pressure (below 20 psi / 138 kPa), you can install a booster pump to compensate for the low pressure. After you have connected the water line, make sure the water storage tank inside the refrigerator is properly lled. To do this, press the water dispenser lever until water runs from the water outlet. NOTE

• Water line installation kits are available at extra cost from your retailer. We recommend using a water line installation kit that contains copper tubing and a

• Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set.

1. Shut off the main water source.

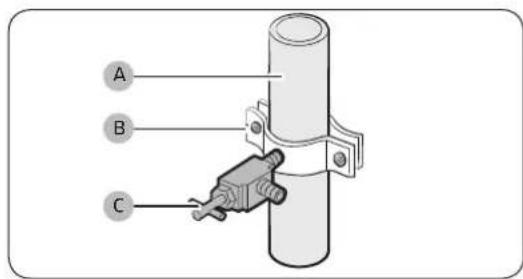

2. Insert the pipe clamp (B) and the

shutoff valve (C) into the cold water line (A).

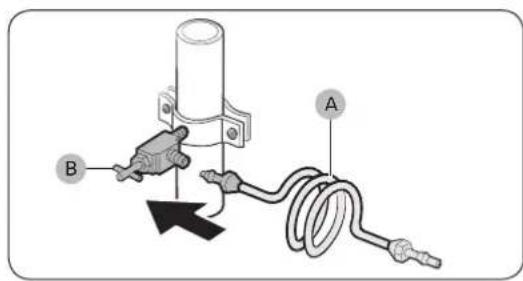

3. Connect the water line installation kit

(A) to the shutoff valve (B). Untitled-3 31 2020-04-07 PM 3:29:41Installation English32 Installation Connect the water supply line to the refrigerator There are several items you must purchase to complete this connection. You may nd these items sold as a kit at your local hardware store. Copper Tubing

/4" plastic tubing Molded end (Bulb)

A. Refrigerator B. Household water supply line C. Water Line: must be kept straight. 01 Compression Nut (

/4") (Assembled) 02 Ferrule (Not supplied) 03 Copper tubing (Not supplied) 04 Plastic Tubing (Assembled) 05 Compression Fitting (Assembled) 06 Molded end (Bulb) 07 Compression nut (B) (

/4") (Not supplied) 08 Plastic Tubing (A) (Not supplied) NOTE If you have to relocate the refrigerator after connecting the water line (C), make sure the joined section of the water line must is straight.

1. Connect the household water line to the assembled compression tting.

- If you are using copper tubing, slip the compression nut (B) (not supplied) and ferrule (not supplied) on the copper tubing (not supplied) as shown. - If you are using plastic tubing (A), insert the molded end (Bulb) of the plastic tubing (A) into the compression tting. Untitled-3 32 2020-04-07 PM 3:29:42English 33 Installation CAUTION

• If you use plastic tubing (A), do not use it without the molded end (Bulb).

• Leaving the water line disconnected may cause the water valve to produce a buzzing sound over time. If this is the case, make sure that the ice making function is turned “OFF” and do not attempt to use the water dispenser.

2. Tighten the compression nut (B) onto the compression tting. Do not over-tighten the

compression nut (B).

3. Turn the water on and check for any leakage. If you nd water drops or leakage in

the connection areas, turn off the main water supply. Check the connections and, if necessary, tighten.

4. Flush 1 gallon of water through the lter before drinking or using the water from

the refrigerator. (Flush approximately 6 minutes.) To ush, press a large glass or cup against the water dispenser lever. Fill the glass, empty it, and then repeat.

5. After you turn on the refrigerator, let the ice maker make ice for 1 to 2 days. Over that

period of time, throw out the rst 1 or 2 buckets of ice the ice maker makes to ensure all impurities have been removed from the water line. NOTE Only connect the water line to a potable water source.

• If you have to repair or disassemble the water line, cut off

/4“ of the plastic tubing to make sure you get a snug, leak-free connection.

• You can test the water line quickly using a paper cup. Under normal conditions, the water dispenser can ll a 5

/4 oz. (170 cc) cup in about 10 seconds. Untitled-3 33 2020-04-07 PM 3:29:42Installation English34 Installation STEP 8 Initial settings By completing the following steps, the refrigerator should be fully functioning.

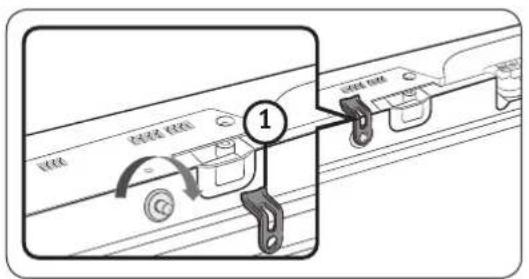

CAUTION Before installing the refrigerator, make sure to remove the Cover Interlock (1) from the top of the fridge door. Otherwise, injuries may be caused by the ice crushing blade.

1. Plug the power cord into the wall socket to turn the refrigerator on.

2. Open the door, and check if the interior light lights up.

3. Set the temperature to the coldest setting, and wait for about an hour. Then, the

freezer will be slightly chilled, and the motor should be running smoothly.

4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready

for use. STEP 9 Final check When installation is complete, conrm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.

• The refrigerator is installed on a at, level surface with a reasonable clearance from walls and cabinets.

• The refrigerator is level and is sitting rmly on the oor.

• The door opens and closes freely, and the interior light turns on automatically when you open the door. Untitled-3 34 2020-04-07 PM 3:29:42English 35 Operations Main panel

• applicable models only NOTE

• When you change the temperature on the panel, the panel displays the actual temperature inside the refrigerator until the temperature matches the temperature you set. Then, the panel displays the new set temperature. Note that it will take time for the refrigerator to reach the new temperature. This is normal. During this time, you do not need to set the temperature again.

• To ensure optimal performance, we recommend setting the temperature to 0 °F (-18 °C) for the freezer, and 37 °F (3 °C) for the fridge.

• The temperature in the refrigerator may rise if you open the door frequently or put a large amount of food into the refrigerator. If this happens, the temperature display blinks until the refrigerator returns to the specied temperature settings.

• If a communication error occurs between the temperature display and the main controller, this blinking continues for an extended time. Contact a local Samsung service center for technical assistance.

• The display of the main panel turns on only if the door is opened and turns off if the door is closed.

• If you set Control Lock on the main panel, the main panel locks automatically 1 minute after inactivity. Operations Untitled-3 35 2020-04-07 PM 3:29:43Operations English36 Operations 01 Fridge / Power Cool (3 sec) Fridge You can use the Fridge button to set the fridge temperature or to activate/deactivate Power Cool. Press Fridge repeatedly to select a desired temperature between 34 °F (1 °C) and 44 °F (7 °C). The temperature indicator displays the currently set or selected temperature. Power Cool Power Cool speeds up the cooling process at maximum power to lower the fridge temperature. The cooling process continues to run for several hours, and then the fridge returns to the previous temperature setting. Use Power Cool to rapidly cool food that spoils quickly or to rapidly cool the refrigerator after the door has been left open for some time.

• To activate Power Cool, press and hold Fridge for 3 seconds. The corresponding indicator ( ) lights up and the refrigerator speeds up the cooling process.

• To deactivate Power Cool, press and hold Fridge again for 3 seconds. The fridge returns to the previous temperature setting. NOTE Using Power Cool increases power consumption. Make sure you turn it off if you no longer need it and let the refrigerator return to its previous temperature. Untitled-3 36 2020-04-07 PM 3:29:43English 37 Operations 02 Freezer / Power Freeze (3 sec) Freezer You can use the Freezer button to set the freezer temperature or to activate and de-activate Power Freeze. To set the freezer temperature manually, press Freezer repeatedly. The currently set or selected temperature appears on the temperature display. Available temperatures are between 5 °F (-15 °C) and -8 °F (-23 °C). Power Freeze Power Freeze speeds up the freezing process at maximum power to lower the freezer temperature. The freezing process continues to run for several hours, and then the freezer returns to the previous temperature setting with normal power.

• To activate Power Freeze, press and hold Freezer for 3 seconds. The corresponding indicator ( ) lights up and the refrigerator speeds up the freezing process.

• To de-activate Power Freeze, press and hold Freezer for 3 seconds again. The freezer returns to its previous temperature setting.

• To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting the food in the freezer. NOTE Using Power Freeze increases power consumption. Make sure you turn it off if you no longer need it and let the refrigerator return to its previous temperature. Untitled-3 37 2020-04-07 PM 3:29:43Operations English38 Operations 03 FlexZone™ The FlexZone™ is a full-width drawer featuring temperature control. It has a temperature sensor that adjusts the amount of cold air allowed into the zone.

• Press FlexZone™ repeatedly to select a desired mode. By default, Deli is selected.

• The refrigerator adjusts the temperature in the FlexZone™ according to the selected mode. Mode Description Examples Wine Select Wine to keep food fresh for a long time. The temperature of the FlexZone™ will be kept around 42 °F (5 °C). Wine, cocktails, cake, cheese Deli Select Deli to keep food fresh for a longer time. The temperature of the FlexZone™ will be kept around 37 °F (3 °C). Pineapples, lemons, biscuits, potatoes Beverage Select Beverage to keep drinks cold and refreshing. The temperature of the FlexZone™ will be kept around 33 °F (1 °C). Bottled water, juice, soft drinks, beer Meat Select Meat to keep meat or sh fresh for a longer time. The temperature of the FlexZone™ will be kept around 29 °F (-1 °C). Steaks, cold cuts, bacon, chili dogs CAUTION

• Do not use the FlexZone™ to store most kinds of fruit or leafy vegetables. These food items may suffer cold-temperature damage.

• Do not store glass bottles in the FlexZone™ in Beverage or Meat mode. They may break and cause physical injury. Untitled-3 38 2020-04-07 PM 3:29:43English 39 Operations 04 Ice Maker (3 sec) Ice Maker Press and hold Ice Maker for more than 3 seconds to turn the ice maker on or off. The ice maker has 2 indicators (ON/OFF) to indicate the operating status.

• When the ice maker operates, the ON indicator turns on.

• When the ice maker is turned off, the OFF indicator turns on. In this case, ice making is disabled even if you press the Cubed or Crushed Ice buttons on the dispenser panel. To enable ice making, you must turn the ice maker on. NOTE If the ice maker is turned off, it will turn on if you press and hold the ice lever for more than 5 seconds. 05 Auto Water Fill (3 sec) Auto Water Fill Press and hold Auto Water Fill for 3 seconds to turn the function on. Open the left door of the fridge, and then insert the water tank. Close the door and the water tank starts to be lled with water up to the a preset level some time later. To turn the function off, press and hold Auto Water Fill again for 3 seconds. NOTE

• By default, Auto Water Fill is disabled. Enable this function after you have installed the water line.

• If you open the door or push the dispenser lever, this function is stopped temporarily.

• While the water tank is lled with water, the mood light on the dispenser panel stays lit.

• The Auto Water Fill indicators blink if there is a leak. This may occur because the water tank overows, or the water-line or water-level sensor fails. If this is the case, follow these steps. a. Open the rubber cap and drain water. b. When draining is complete, the indicators stop blinking and turn solid. c. Close the rubber cap.

• If the indicators continue to blink, this might be a system failure. Contact a local service center. Untitled-3 39 2020-04-07 PM 3:29:43Operations English40 Operations 06 Filter Reset (3 sec) Filter Reset After about 6 months (and typically, about 300 gallons (1200 L) of water), the Filter indicator blinks red for several seconds when you open or close the door, reminding you that the lter needs to be replaced. When this happens, replace the lter, and then press and hold Filter Reset for 3 seconds. The lter lifecycle will be reset and the Filter indicator turns off. NOTE

• Some regions have relatively large amounts of lime in their water. This can reduce the lifecycle of the lter. In these areas, you will have to replace the water lter more often than specied above.

• If water is not dispensing properly, the water lter is most likely clogged. Replace the water lter. 07 Energy Saver Energy Saver Use Energy Saver mode to reduce power consumption. Press Energy Saver to turn on or off Energy Saver mode and the corresponding indicator. By default, Energy Saver mode is enabled. NOTE If condensation or water drops form on or around the doors, turn Energy Saver mode off. 08 Door Alarm / °F °C (3 sec) Door Alarm If the door is left open for more than 2 minutes, an alarm will sound and the Alarm Indicator will blink. You can toggle the alarm on and off by pressing Door Alarm. The alarm is enabled by factory default. °F °C You can also use the Door Alarm button to switch the temperature scale between Celsius and Fahrenheit. To switch the temperature scale, press and hold Door Alarm for 3 seconds to change the current temperature scale. Untitled-3 40 2020-04-07 PM 3:29:43English 41 Operations 09 Control Lock (3 sec) Control Lock (Main panel) To prevent accidental setting changes, press and hold Control Lock for 3 seconds. The main panel will be disabled and the Lock indicator ( ) will turn on. When Control Lock is on, the indicator blinks if any button (except for the Control Lock button) on the main panel is pressed. If you press and hold the button again for more than 3 seconds, Control Lock will be deactivated. However, Control Lock will be reactivated if no button is pressed within 1 minute. NOTE Control Lock on the main panel does not affect the dispenser. The dispenser operates independently and so does the dispenser lever. To lock the dispenser and the dispenser lever, use the Lock function on the dispenser. Device authentication When connecting the refrigerator to SmartThings App or Samsung smart devices such as Samsung Smart TVs, follow the app’s or device’s onscreen instructions and press and hold Control Lock for 5 seconds. The temperature panel displays “on” for 5 seconds before proceeding with the authentication procedure. Note that the Control Lock function will be not affected by this authentication. 10 Cooling Off Cooling Off mode (also called Shop mode), is designed for use by retailers when they are displaying refrigerators on a retail oor. In Cooling Off mode, the refrigerator’s fan motor and lights operate normally, but the compressors do not run so that neither the refrigerator nor the freezer get cold. To enter Cooling Off mode, press and hold Ice Maker, Auto Water Fill, and Door Alarm for 5 seconds. The refrigerator chime sounds, and the refrigerator shows O on the fridge display and FF on the freezer display. Untitled-3 41 2020-04-07 PM 3:29:44Operations English42 Operations 11 Sabbath Mode The Sabbath mode stays active for 85 hours once it is activated. After that, it will be deactivated automatically.

• To activate, press and hold Freezer and Door Alarm simultaneously for 5 seconds to enter Sabbath mode. Then the refrigerator operates in Sabbath mode where the buttons, the display, and the room lamps are all under control.

• To deactivate, press and hold the buttons again for 5 seconds to exit Sabbath mode. NOTE Even after the refrigerator powers off and restarts, the Sabbath mode remains active. To exit, you must deactivate it rst. 12 Network connection (applicable models only) You can use the optional Smart Home Adapter (sold separately) to control and monitor your refrigerator through the SmartThings app. For more information about SmartThings, see the SmartThings (applicable models only) section. Untitled-3 42 2020-04-07 PM 3:29:44English 43 Operations SmartThings (applicable models only) Installation Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for “SmartThings”. Download and install the SmartThings app provided by Samsung Electronics to your smart device. NOTE

• The SmartThings app is designed for Android 6.0 (Marshmallow) or later, iOS 10.0 or later, iPhone 6 or later, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).

• For improved performance, the SmartThings app is subject to change without notice or discontinued support according to the manufacturer’s policy.

• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or non-standard Wi-Fi authentication protocols are not supported.

• Wireless networks may be affected by the surrounding wireless communication environment.

• If your Internet service provider has registered the MAC address of your PC or modem for identication, your Samsung Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.

• The rewall settings of your network system may prevent your Samsung Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Samsung service center or retailer.

• To congure the wireless access point (AP) settings, see the user manual of the AP (router).

• Samsung Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and Soft-AP protocols. (IEEE 802.11 n is recommended.)

• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart Refrigerators. Untitled-3 43 2020-04-07 PM 3:29:44Operations English44 Operations Samsung account You are required to register your Samsung account to use the app. If you don’t have a Samsung account, follow the app’s onscreen instructions to create a free Samsung account. Getting started Turn on the device you want to connect, open the SmartThings app on your phone, and then follow the instructions below. If a pop-up appears saying that a new device has been found, tap ADD NOW. If a pop-up doesn't appear, tap the + button, and then select the device you want to connect from the list of available devices. If your device isn't in the list of available devices, tap Supported Devices, select the device type (Refrigerator), and then select the specic device model. Follow the instructions in the app to set up your device. Once setup is complete, your refrigerator will appear as a "card" on your Devices screen. Refrigerator app Integrated control You can monitor and control your refrigerator at home and on the go.

• Tap the refrigerator icon on the SmartThings Dashboard or tap the Devices icon at the bottom of the Dashboard, and then tap the refrigerator "card" to open the Refrigerator page.

• Check the operation status or notications related to your refrigerator, and then change options or settings if necessary. NOTE Some options or settings of the refrigerator may not be available for remote control. Untitled-3 44 2020-04-07 PM 3:29:44English 45 Operations Category Item Description Monitoring Fridge temperature Displays the current temperature setting of the fridge. Freezer temperature Displays the current temperature setting of the freezer. FlexZone™ settings Displays the settings of the FlexZone™. Diagnosis Detects abnormal operations of the refrigerator. Energy monitoring Checks the accumulated power consumption of the refrigerator for the last 180 days. Functions Ice making You can turn the ice making function on or off, and check the current settings of the function. You can also check the status and progress of ice making. Power Cool You can turn Power Cool on or off, and check the current settings. Power Freeze You can turn Power Freeze on or off, and check the current settings. Alarms Abnormally high temperature This alarm is triggered when the fridge, the freezer, or the FlexZone™ has abnormally high temperatures. Door opening This alarm is triggered if the fridge door, the freezer drawer, or the FlexZone™ drawer is open for a specic time. Auto Water Fill overowing If the Auto Water Fill function senses an overow, it triggers this alarm to let you know the status of the overow. Water lter replacement This alarm reminds you that the water lter must be replaced. Untitled-3 45 2020-04-07 PM 3:29:44Operations English46 Operations Dispenser panel

01 Water / Lock 02 Cubed Ice 03 Crushed Ice / Lighting 04 Dispenser mood light 01 Water / Lock (3 sec) Water To dispense chilled water, press Water. The corresponding indicator turns on. Lock (Dispenser panel / Dispenser lever) To prevent use of the dispenser panel buttons and the dispenser lever, press and hold Water for more than 3 seconds. If you press and hold the button again for more than 3 seconds, the dispenser lock will be deactivated. NOTE The Lock on the dispenser panel does not affect the controls on the main panel. To lock the main panel, use the Control Lock function on the main panel. 02 Cubed Ice Cubed Ice Press Cubed Ice to dispense cubed ice. The corresponding indicator turns on. Untitled-3 46 2020-04-07 PM 3:29:44English 47 Operations 03 Crushed Ice / Lighting (3 sec) Crushed Ice Press Crushed Ice to dispense crushed ice. The corresponding indicator turns on. Lighting By default, the dispenser lamp turns on only when the dispenser is used. To keep the dispenser lamp turning on, press and hold Crushed Ice for 3 seconds. To turn the lamp off, press and hold Crushed Ice for 3 seconds again. 04 Dispenser mood light The Dispenser mood light lights up in the following conditions:

• When you push the dispenser lever with the dispenser lock disabled - Push the dispenser lever and the dispenser mood light turns on. Release the lever and the light turns off after a some time.

• While the water tank is being lled with water with the Auto Water Fill function turned

- The dispenser mood light stays lit. Untitled-3 47 2020-04-07 PM 3:29:44Operations English48 Operations Special features Water tank (Auto Water Fill) The Auto Water Fill function lets you enjoy cold brewed tea in your refrigerator.

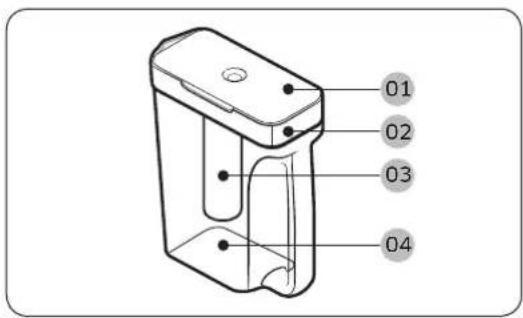

01 Lid 02 Sealed mouth 03 Infuser 04 Body To ll the water tank

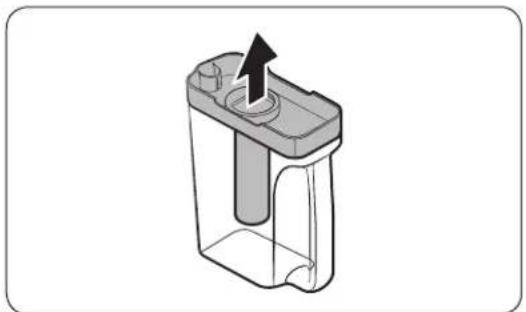

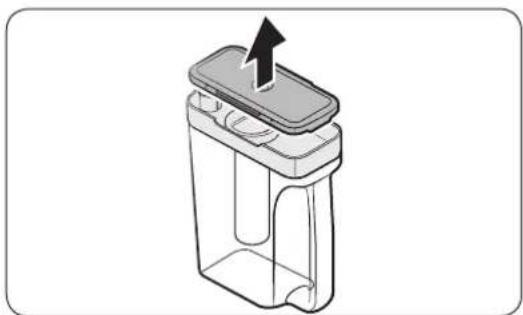

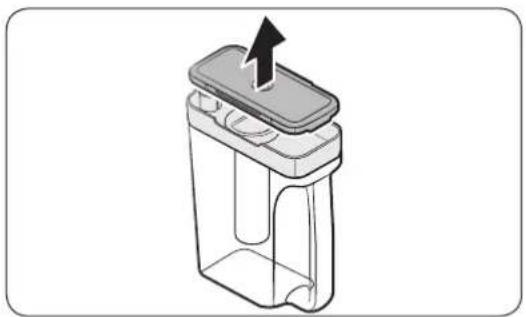

1. Grasp a handle groove of the sealed

mouth, and then pull up to open the lid.

2. Put tea leaves or fruits to your taste

into the infuser. NOTE If you want to keep the infused water in its initial concentration, turn the Auto Water Fill function off.

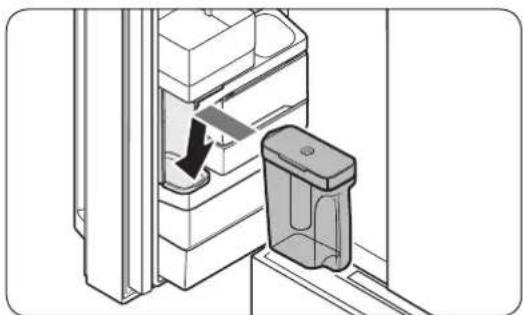

3. Enable the Auto Water Fill function on

the main panel. Open the left door of the fridge door, and then mount the water tank onto the holder. Push it straight in as shown in the illustration on the left.

4. Close the door. The infuser will start to

ll with chilled water some time later. CAUTION Make sure the infuser ts in the water tank holder. Untitled-3 48 2020-04-07 PM 3:29:45English 49 Operations

5. To drink tea, open the door and detach

the water tank. Pull it straight out. CAUTION

• We recommend consuming fruit infused water within 24 hours. After that, the infused water can spoil over time.

• You must clean the water tank after you have consumed up the infused water or when a long time has passed without using the water tank.

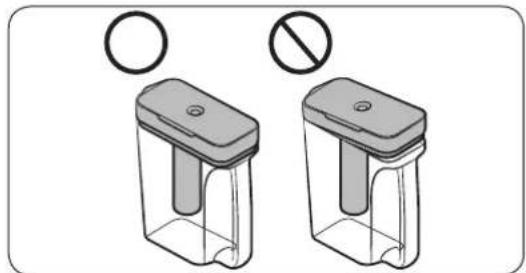

• To prevent the water tank from tipping over or leaking, make sure the water tank ts in the water tank holder.

• To prevent the water tank from spilling over or leaking, make sure the sealed mouth is properly inserted. Untitled-3 49 2020-04-07 PM 3:29:45Operations English50 Operations NOTE

• If the front side (specically marked area) of the water tank has too much moisture, the water tank may not fully ll. Remove the moisture, and then try again.

• Auto Water Fill will stop supplying water for the water tank if the water tank does not ll after a certain amount of time. If this happens, check if the water line is properly connected. Remove and reinsert the water tank, and then try again. NOTE

• Wipe around the infuser holder if the infuser overows or leaks.

• Water drops off if the rubber cap is opened.

• The Auto Water Fill indicator blinks if there is a leak. In case of a leak, open the rubber cap so that the leaked water drains. The indicator will then turn off. However, if the indicator continues to blink, there might be a system failure. Contact your local Samsung service center.

• The Auto Water Fill indicators blink if there is a leak. See page 39 for more information. Water/Ice dispenser Using the dispenser, you can dispense water with or without ice. The water dispenser offers 3 options: chilled water, cubed ice, and crushed ice. To dispense chilled water, press Water on the dispenser panel. Put a water glass under the dispenser, and then push the dispenser lever. Untitled-3 50 2020-04-07 PM 3:29:46English 51 Operations To dispense water with ice

1. With the Ice Maker enabled, press

Cubed Ice or Crushed Ice to select the ice type.

2. Put a water glass under the dispenser,

and then push the dispenser lever with the glass. Ice will be dispensed from the dispenser.

3. Press Water to select water.

4. Push the dispenser lever with the

glass. Water will be dispensed from the dispenser. NOTE

• The dispenser will stop dispensing if you keep pushing the dispenser lever for about 1 minute. To dispense more water, release and push the lever again.

• Make sure the glass is in line with the dispenser to prevent the dispensed water from spilling out.

• If you do not use the water dispenser for 2-3 days, the dispensed water may have an abnormal smell or taste. This is not a system failure. Discard the rst 1-2 glasses of water. Ice maker The refrigerator has a built-in ice maker that automatically dispenses ice so that you can enjoy ltered water with cubed or crushed ice. Ice making After you have installed your refrigerator and plugged it in, follow these instructions to ensure proper ice making and to keep the ice bucket full of ice:

1. Let the refrigerator operate for at least 24 hours to ensure optimal performance.

2. Dispense the rst 4 to 6 ice cubes into a glass.

3. Wait another 8 hours and dispense another 4 to 6 ice cubes.

4. Then, wait another 16 hours and dispense the rst glass-full of ice.

• If you consume all the ice at once, you must wait 8 hours before dispensing the rst 4 to 6 cubes. This ensures that the ice bucket is lled with ice properly.

• Ice cubes generated rapidly may look white, which is normal. Untitled-3 51 2020-04-07 PM 3:29:46Operations English52 Operations Diagnosis If ice does not dispense, rst check the ice maker.

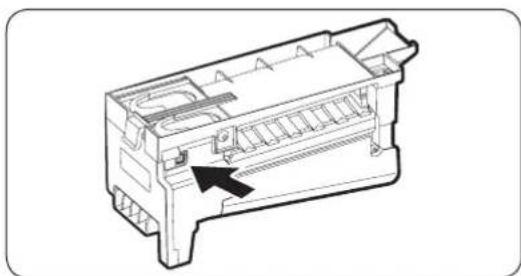

1. Press Test on the side of the ice maker.

You will hear a chime (ding-dong) when you press the button.

2. You will hear another chime if the ice

maker is operating properly. CAUTION

• If the ice making chime rings repeatedly, contact your waterline installer or a local Samsung service center.

• Do not press Test repeatedly after the ice tray is lled with ice or water. Water may overow or ice may jam.

• Do not put food in the ice bucket. The frozen food may damage the ice maker, especially when you open or close the door.

• When the refrigerator recovers power after a power failure, the ice bucket may contain a mix of melted and jammed ice cubes, which can prevent the ice maker from working properly. To prevent this, make sure to empty the ice bucket so the ice bucket can rell with fresh, loose ice cubes.

• Do not put ngers or any objects into the dispenser outlet or the ice maker. This can cause physical injury or property damage.

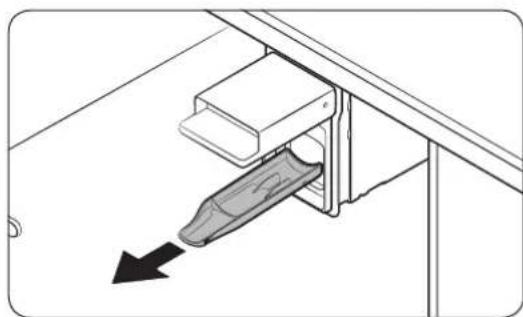

• When reinserting the ice maker tray, make sure that the tray is properly centered at the entrance. Otherwise, the tray can get stuck. If You Turn the Ice Maker Off If you press and hold Ice Maker for more than 3 seconds to turn the ice maker off, make sure to remove all ice cubes from the ice bucket. Remaining ice cubes may clump together, making it difcult to remove them. To remove the ice bucket, see the Ice bucket section on page 54. NOTE

• Removal of the ice bucket does not affect the thermal and mechanical performance of the refrigerator. Water clouding Water supplied to the refrigerator ows through a core alkaline lter. During this ltering process, the water pressure of the water increases and the water becomes saturated with oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when dispensed. This is normal and the water will look clear after a few seconds. Untitled-3 52 2020-04-07 PM 3:29:46English 53 Operations FlexZone™ divider You can change the divider position. To do this, unlock the divider by turning the divider dial counter clockwise. Then, move the width and height bars as appropriate. When done, turn the dial clockwise to lock the divider. NOTE If the divider lock does not function, wipe the bars to remove moisture on them. Untitled-3 53 2020-04-07 PM 3:29:46English54 Maintenance Handling and care Ice bucket If you do not dispense ice for an extended period, ice may form clumps inside the bucket. If this happens, remove and empty the ice bucket.

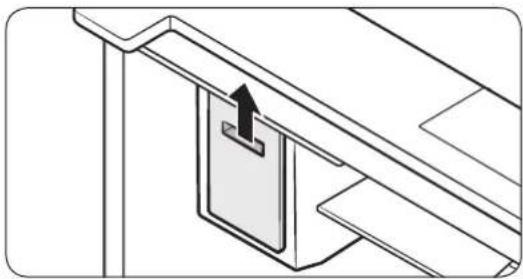

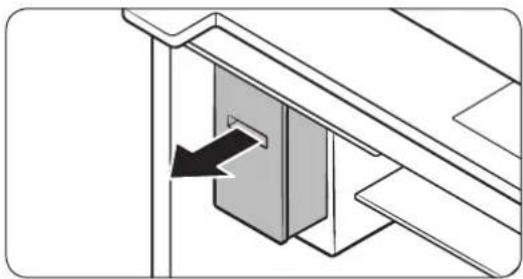

1. While grabbing the handle of the ice

bucket, slightly lift up the bucket, and then remove it to the front.

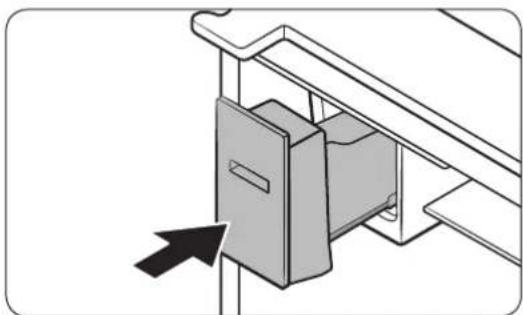

2. Remove the remaining ice cubes and

put the ice bucket back into place. Maintenance Untitled-3 54 2020-04-07 PM 3:29:47English 55 Maintenance If the ice bucket is not rmly inserted, turn the ice screw 90 degrees, and then try again. CAUTION

• Do not apply excessive force to the bucket cover. The cover may break.

• Do not forcefully close the door. Water may spill over the ice maker.

• To prevent injury, make sure to clean up any ice or water that has spilled on the oor.

• To prevent accidents or injury, do not let children play with the water dispenser or the ice maker.

• Do not put your hand or an object into the ice chute. This may cause physical injury or product damage.

• Use only the provided ice bucket. Third-party ice buckets may cause a system failure.

• Use only potable water that is connected to the water supply line. NOTE

• The water pressure required for ice making is between 20 and 120 psi (138 and 827 kPa).

• If the Ice Off indicator blinks, remove and reinsert the ice bucket. Make sure it is reinserted properly.

• Noise from the ice maker as it produces ice during the ice making process is normal.

• While the door is open, neither the ice maker nor the water dispenser operates. Untitled-3 55 2020-04-07 PM 3:29:47Maintenance English56 Maintenance Auto Water Fill

1. Grasp a handle groove of the sealed

mouth, and then pull up to remove.

2. Grasp both sides of the sealed mouth,

and then lift to remove.

3. While slightly twisting the infuser, pull

it out of the sealed mouth.

4. Clean the infuser with neutral agents

and running water. Rinse and dry well.

5. Reassemble the Auto Water Fill in the

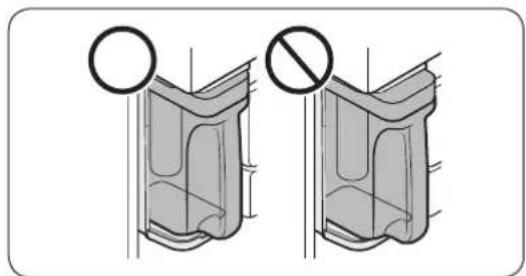

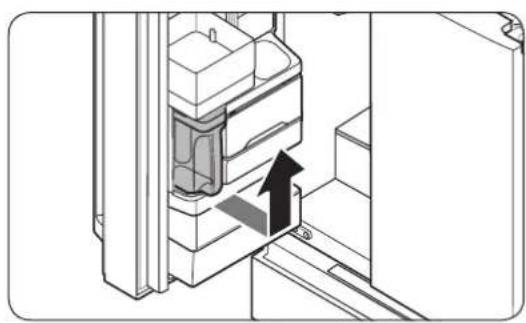

reverse order of disassembly. CAUTION Water pitcher and lid are not dishwasher safe and can deform under high temperatures. Please hand wash as needed. Untitled-3 56 2020-04-07 PM 3:29:48English 57 Maintenance Fridge shelves The appearance of the shelves differs by model.

• To remove a shelf, fully open the corresponding door. Hold the front of the shelf, and then gently lift up and slide out. NOTE Do not lift up the shelf fully when removing or reinserting the shelf. The rear wall of the fridge room can be dented.

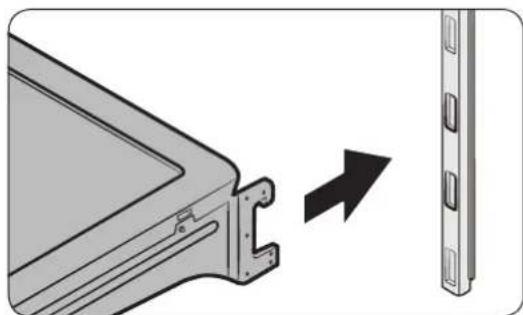

• To reinsert, hold the shelf at an angle so the front is higher than the back, and then insert the top hook into the top shelf notch. Then, lower the shelf and insert the bottom shelf hook into the bottom shelf notch. CAUTION

• The tempered glass shelves are heavy. Use caution when removing them.

• The shelf must be inserted correctly. Do not insert upside down.

• Glass containers may scratch the surface of glass shelves. Untitled-3 57 2020-04-07 PM 3:29:48Maintenance English58 Maintenance Foldable shelf To remove, slide up the front of the shelf so that it folds. Then gently lift up and pull out. To reinsert, place the shelf on the angled frame in the main unit, and then, press down to unfold. CAUTION After sliding the foldable shelf in and folding it, the front of the shelf can be removed for your convenience. If you use the shelf without removing the front of the shelf, be aware that it can separate from the rear portion, be careful of its possible separation. Recommended foldable shelf location The foldable shelf folds up from the center, giving you more room for storage.

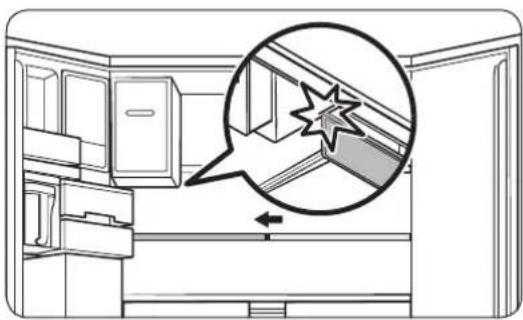

• Insert the shelf in the right side of the fridge. Left side insertion does not allow the shelf to fold completely.

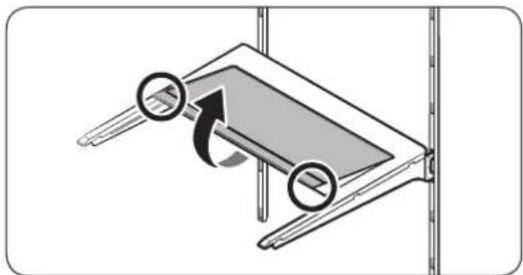

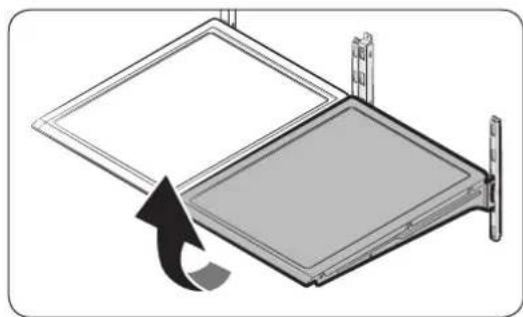

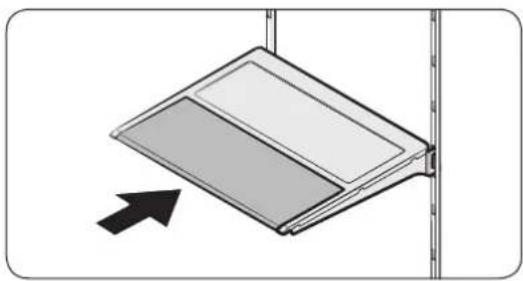

• To fold, push the front area of the shelf inward so that it folds up from the middle. CAUTION Do not lift up quickly or twist the foldable shelf to take out food under it. It may fall off. Untitled-3 58 2020-04-07 PM 3:29:49English 59 Maintenance Vegetable shelf

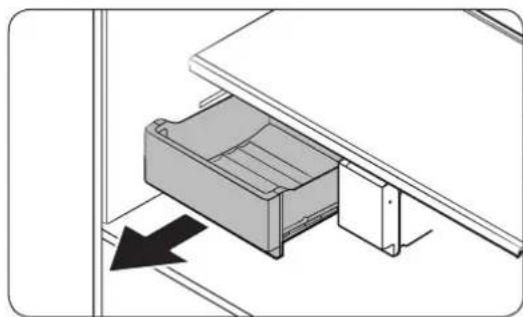

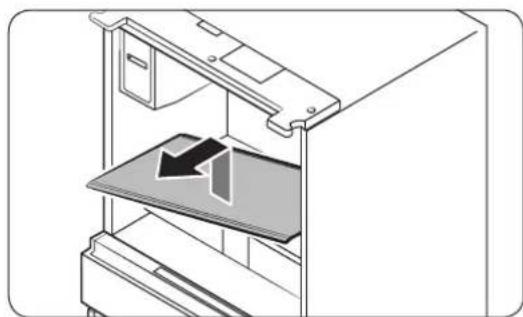

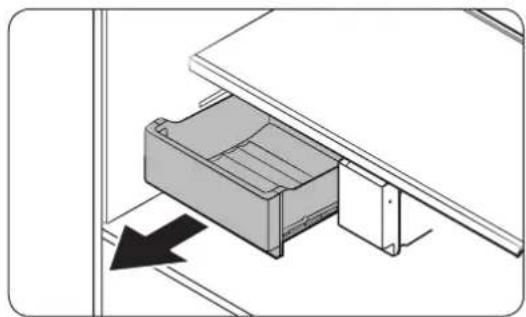

1. Slide out the left-side vegetable drawer.

2. Fully open the door, and then remove

3. While supporting the vegetable shelf

with one hand, slide it out with the other hand. NOTE To use the space that is opened up after removing the foldable shelf, take out the vegetable shelf. To reinsert, follow the steps above in the reverse order. Untitled-3 59 2020-04-07 PM 3:29:49Maintenance English60 Maintenance Door bins

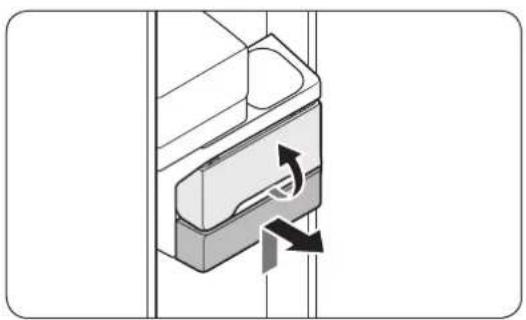

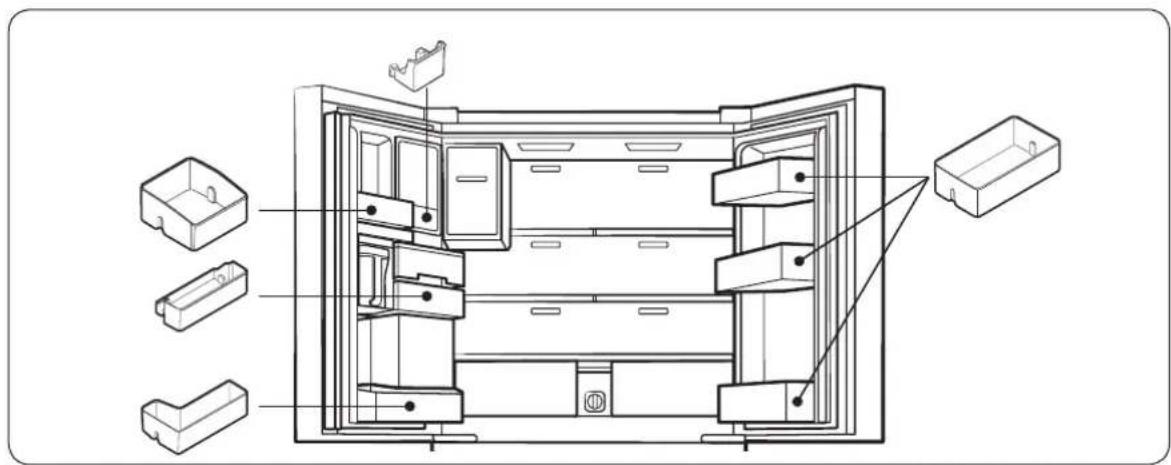

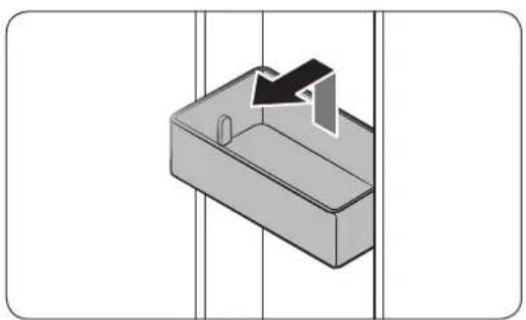

• To remove the top door bin, hold the front sides of the bin, and then gently lift up to remove.

• To reinsert, insert the door bin slightly above its nal location making sure that the back of the bin is against the door. Hold the rear of the door bin with both hands, and then press down so that it ts snugly. CAUTION

• Do not remove a bin that is lled with food. Empty the bin beforehand.

• Use caution when opening the door if the bottom bin contains larger bottles, which may fall over.

• Do not allow children to play with the bins. Sharp corners of the bin may cause injury. Untitled-3 60 2020-04-07 PM 3:29:50English 61 Maintenance Fridge drawers Vegetable / fruit drawers Gently lift up the front of the drawer and slide out.

• We recommend that you remove the door bins before removing the drawer. This is to prevent damage to the door bins.

• To reinsert, insert the drawer into the frame rails and then slide inward. FlexZone™ basket

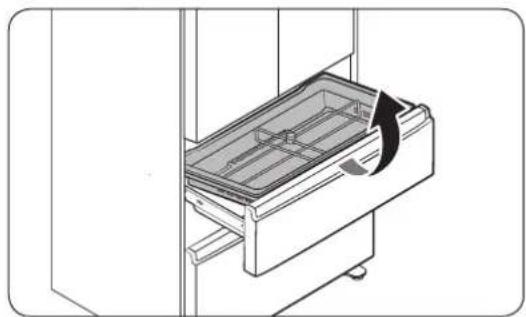

• To remove, fully open the FlexZone™ drawer. Lift up the FlexZone™ basket, and then pull out with both hands.

• To reinsert, fully open the FlexZone™ drawer. While tilting up the front of the basket, insert the rear of the basket into the rail assembly. Lower the front until the basket settles down.

• If the divider lock does not function, wipe the bars to remove moisture on them. To remove the divider and the metal cooling plate (applicable models only) from the FlexZone™ basket

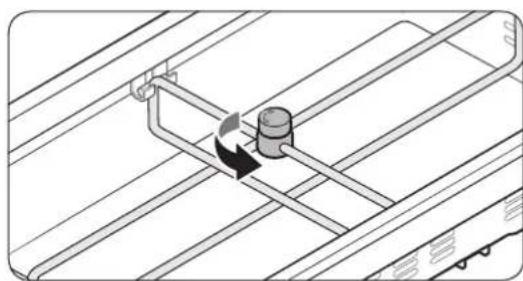

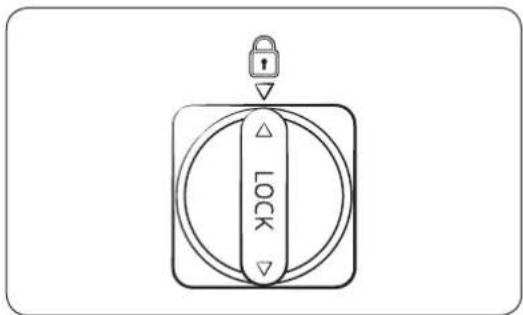

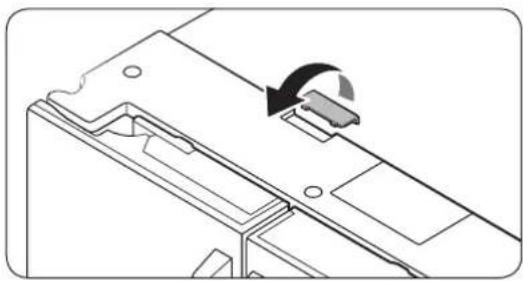

1. Unlock the divider by turning the

divider dial counter clockwise.

2. Slide the divider to the end as shown.

Untitled-3 61 2020-04-07 PM 3:29:50Maintenance English62 Maintenance

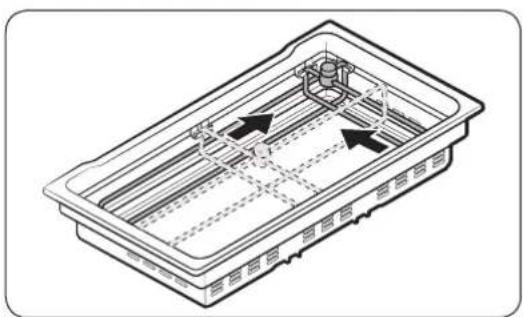

3. As the divider has the width and length

bars, push the lower part of each bar inward to unlock. See the gures for details.

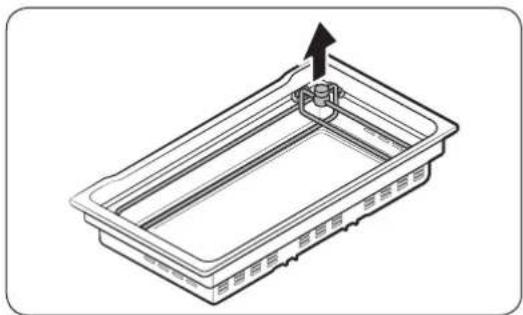

4. Hold the divider and pull up to remove.

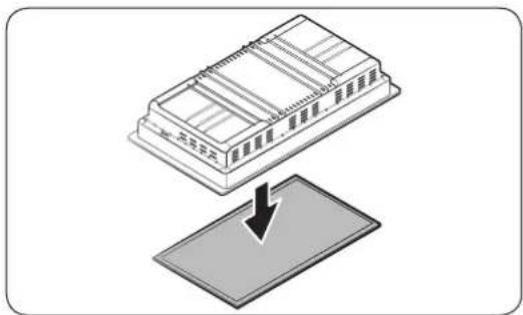

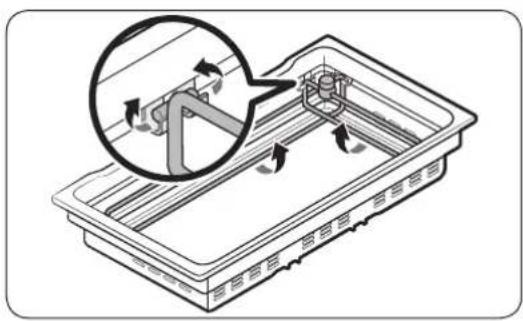

5. Turn over the basket to remove the

metal cooling plate. CAUTION The basket and the metal cooling plate are heavy. Use caution when handling them. Careless handling may cause personal injury or property damage. To reinsert the metal cooling plate Reinsertion in the reverse order of removal. Reinsert the divider into the FlexZone™ basket rmly until you hear a clicking sound. Untitled-3 62 2020-04-07 PM 3:29:51English 63 Maintenance Freezer baskets Upper basket

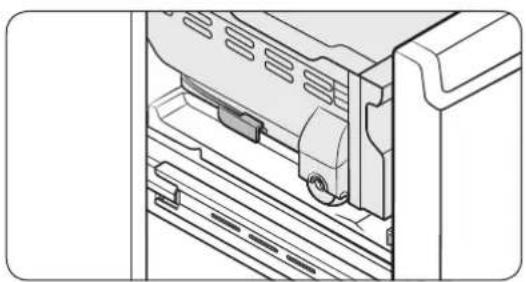

• To remove, fully slide open the freezer drawer. Push the upper basket to the end, and then pull up to remove.

• To reinsert, align the front wheels of the upper basket with the end of the lower basket. Slide the upper basket to the front. Lower basket

• To remove, rst remove the upper basket. Then, tilt up the front of the lower basket to pull out.

• To reinsert, put the basket into the rail assembly with the rear side rst. CAUTION

• Do not twist the basket when removing or reinserting the basket. The basket can be scratched.

• To prevent physical injury, property damage, or suffocation, keep children away from freezer baskets that have been removed.

• Do not remove the divider.

• Put the wheels of the upper basket on the end of the rails of the lower basket. Then, slide the upper basket all the way to the front. Otherwise, the drawer does not open or close properly, which causes frost to build up. Untitled-3 63 2020-04-07 PM 3:29:51Maintenance English64 Maintenance Cleaning Interior and exterior WARNING

• Do not use benzene, thinner, home/car detergent, or Clorox™ to clean the refrigerator. They may damage the surface of the refrigerator and cause a re.

• Do not spray water onto the refrigerator. This may cause electric shock. Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.

2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior

3. When done, use a dry cloth or paper towel to dry well.

4. Plug in the power cord.

Ice / Water dispenser CAUTION When crushed ice is selected, some residual ice chips may collect in the ice chute. To prevent this, remove the residual ice from the chute using a soft, clean cloth. Rubber seals If the rubber seals of a door become dirty, the door may not close properly and reducing refrigerator performance and efciency. Use a mild detergent and damp cloth to clean the rubber seals. Then, dry well with a cloth. Rear panel To keep cords and exposed parts of the rear panel free of dirt, vacuum the panel once or twice a year. CAUTION Do not remove the rear panel cover. Electric shock may occur. Untitled-3 64 2020-04-07 PM 3:29:51English 65 Maintenance Replacement Water lter WARNING

• Do not use third-party water lters. Use only Samsung-provided or -approved lters.

• Unapproved lters may leak and damage the refrigerator, causing electric shock. Samsung is not responsible for any damage that may occur from use of third-party water lters. The Filter Reset indicator ( ) turns red to let you know it is time to replace the water lter. Before replacing the lter, make sure the water supply line is shut off.

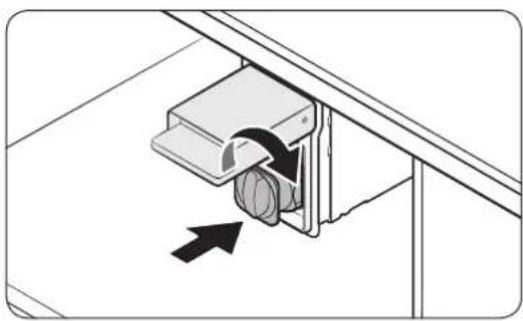

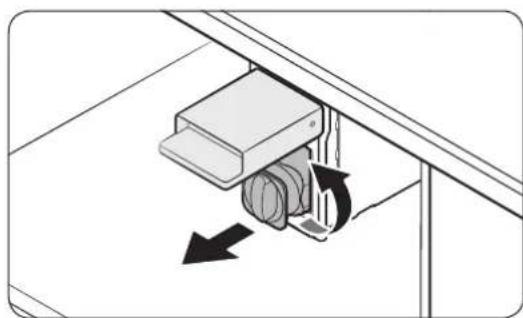

1. While opening the lter cover, turn

the knob of the lter cartridge counter clockwise by 90 degrees (

2. Pull out to remove the cartridge.

- If the water lter is severely contaminated, the cartridge may not be easily removable. In that case, use force to pull it out. - To prevent water leaks from the opening, pull the cartridge straight out while removing it. NOTE To prevent overow, empty and dry the water lter tray. Untitled-3 65 2020-04-07 PM 3:29:52Maintenance English66 Maintenance

3. Insert a new lter cartridge. Use only

Samsung-provided or approved lters.

5. Press and hold Filter Reset on the main

panel for 3 seconds to reset the life cycle detector. The Filter Reset indicator ( ) turns off.

6. When you are done replacing the lter,

open the water valve and run water through the dispenser for about 7 minutes. This is to remove impurities and air from the water line. NOTE

• A newly installed lter may cause the water dispenser to spurt water briey. This is because air has entered the waterline.

• The replacement process may cause the water dispenser to drip for a short period of time. If it drips, simply wipe up any water on the oor with a dry towel. Reverse osmosis water ltration system The water pressure of the water supply system to a reverse osmosis water ltration system must be between 35 psi and 120 psi (241 kPa and 827 kPa). The water pressure of the reverse osmosis water ltration system to the refrigerator’s cold water line must be at least 40 psi (276 kPa). If the water pressure is below these specications:

• Check if the sediment lter in the reverse osmosis system is blocked. Replace the lter if necessary.

• Rell the water tank in the reverse osmosis system with water.

• If your refrigerator has a water lter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water lter. For more information or servicing, contact a licensed plumbing professional. Untitled-3 66 2020-04-07 PM 3:29:52English 67 Maintenance Ordering a new lter To purchase a new water lter, contact a local Samsung service center or visit the web site (www.samsungparts.com). LED Lamps To replace the lamps of the refrigerator, contact a local Samsung service center. WARNING

• The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock. Untitled-3 67 2020-04-07 PM 3:29:52English68 Troubleshooting Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users. General Temperature Symptom Possible causes Solution Fridge/freezer does not operate. Fridge/freezer temperature is warm.

• Power cord is not plugged in properly.

• Properly plug in the power cord.

• Temperature control is not set correctly.

• Set the temperature lower.

• Refrigerator is located near a heat source or direct sunlight.

• Keep the refrigerator away from direct sunlight or a heat source.

• Not enough clearance between refrigerator and nearby walls or cabinets.

• Make sure there is a gap of at least 2.5 inches (5 cm) between the refrigerator back and sides and any nearby walls or cabinets.

• Energy Saver mode is activated.

• Deactivate Energy Saver mode.

• The refrigerator is overloaded. Food is blocking the refrigerator vents.

• Do not overload the refrigerator. Do not allow food to block vents. Fridge/freezer is over-cooling.

• Temperature control is not set correctly.

• Set the temperature higher. Troubleshooting Untitled-3 68 2020-04-07 PM 3:29:52English 69 Troubleshooting Symptom Possible causes Solution Interior wall is hot.

• Refrigerator has heat-proof piping in the interior wall.

• To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure. Odors Symptom Possible causes Solution Refrigerator has odors.

• Clean the refrigerator and remove any spoiled food.

• Food with strong odors.

• Make sure strong smelling food is wrapped airtight. Frost Symptom Possible causes Solution Frost around the vents.

• Food is blocking the vents.

• Make sure no food blocks the refrigerator vents. Frost on interior walls.

• Door is not closed properly.

• Make sure food does not block the door. Clean the door gasket. Fruits or vegetables are frozen.

• Fruits or vegetables are stored in the FlexZone™.

• Do not store most kinds of fruit or vegetables in the FlexZone™. Untitled-3 69 2020-04-07 PM 3:29:53Troubleshooting English70 Troubleshooting Condensation Symptom Possible causes Solution Condensation forms on the interior walls.

• If door is left open, moisture enters the refrigerator.

• Remove the moisture and do not leave a door open for extended periods of time.

• Food with high moisture content.

• Make sure food is wrapped airtight. Water/ice (dispenser models only) Symptom Possible causes Solution Water ow is weaker than normal.

• Water pressure is too low.

• Make sure the water pressure is between 20 and 120 psi (138 and 827 kPa). Ice maker makes a buzzing sound.

• The ice maker function is activated, but the water supply to the refrigerator has not been connected.

• Press Ice Maker off . Ice maker does not make ice.

• Ice maker has just been installed.

• You must wait for 12 hours for the refrigerator to make ice.

• Freezer temperature is too high.

• Set the freezer temperature below 0 °F (-18 °C) or -4 °F (-20 °C) in warm ambient air.

• Dispenser panel Lock is activated.

• Deactivate dispenser panel Lock.

• Ice maker is off. • Turn on the ice maker. Untitled-3 70 2020-04-07 PM 3:29:53English 71 Troubleshooting Symptom Possible causes Solution Ice does not dispense.

• Ice may jam if the ice dispenser is not used for a long time (approx. 3 weeks).

• If you won't be using the refrigerator for a long time, empty the ice bucket and turn off the ice maker.

• Ice bucket is not properly inserted.

• Make sure the ice bucket is properly inserted.

• Water line is not connected properly or water supply is not on.

• Check if the water line is installed correctly. Check if the water line stop cock is closed. Water does not dispense.

• Water line is not connected properly or water supply is not on.

• Check if the water line is installed correctly. Check if the water line stop cock is closed.

• Dispenser panel Lock is activated.

• Deactivate dispenser panel Lock.

• A third-party water lter was installed.

• Use only Samsung-provided or approved lters.

• Unapproved lters may leak and damage the refrigerator.

• Water lter indicator turns on or blinks.

• Replace the water lter. After replacing, reset the lter indicator sensor. Untitled-3 71 2020-04-07 PM 3:29:53Troubleshooting English72 Troubleshooting Do you hear abnormal sounds from the refrigerator? Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user. These sounds are normal.

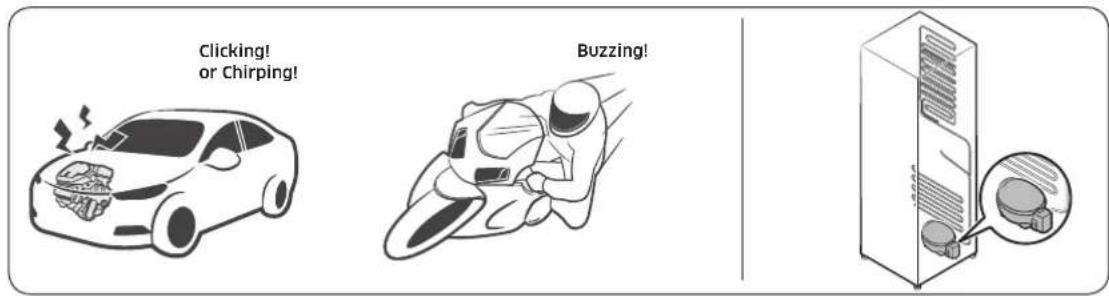

• When starting or ending an operation, the refrigerator may make sounds similar to a car engine ignition. As the operation stabilizes, the sounds will decrease. Clicking! or Chirping!Buzzing!

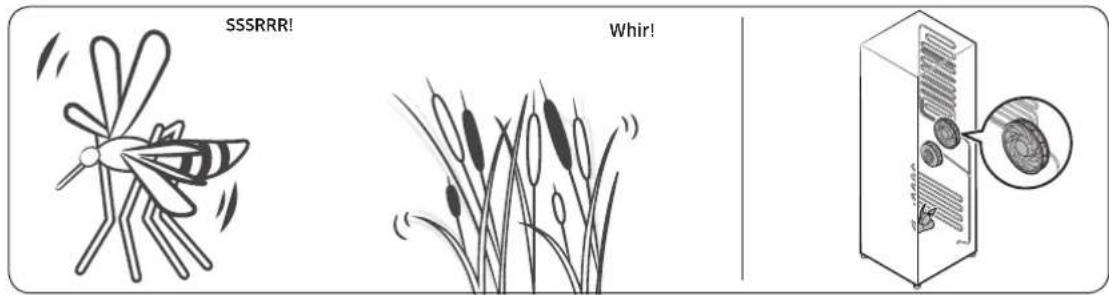

• While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, the fan sound will stop. SSSRRR!Whir!

• During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds. HiSS! Untitled-3 72 2020-04-07 PM 3:29:53English 73 Troubleshooting

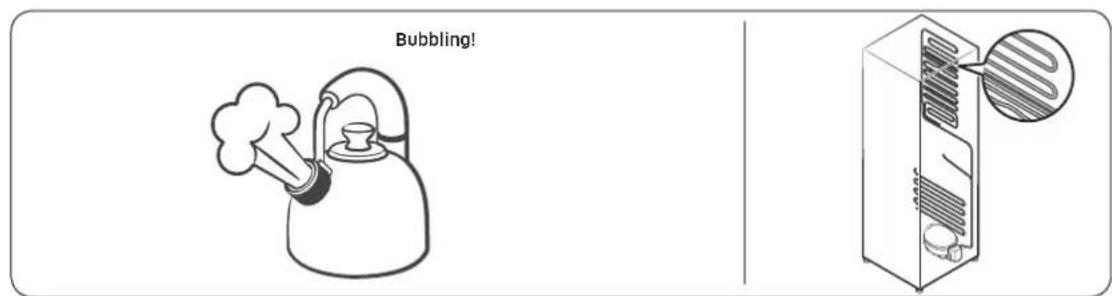

• As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds. Bubbling!

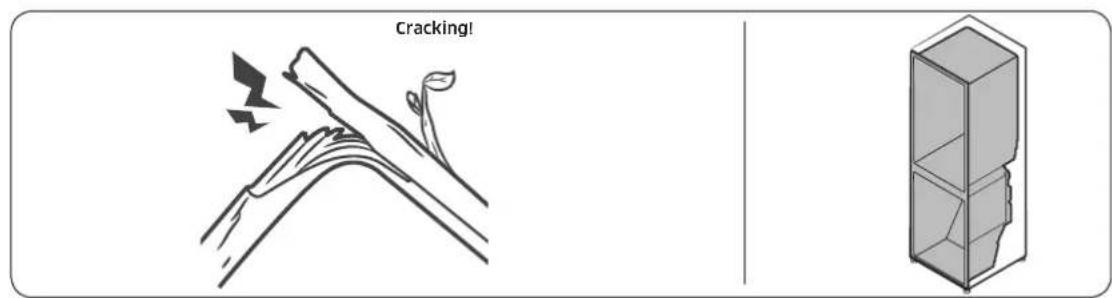

• As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working. Cracking!

• For ice maker models: When the water valve opens to ll the ice maker, buzzing sounds may occur.

• Due to pressure equalizing when you open and close the refrigerator door, whooshing sounds may occur. Untitled-3 73 2020-04-07 PM 3:29:54Troubleshooting English74 Troubleshooting SmartThings Symptom Action Could not nd “SmartThings” in the app market.

• The SmartThings app is designed for Android 6.0 (Marshmallow) or later, iOS 10.0 or later, iPhone 6 or later, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series). The SmartThings app fails to operate.

• The SmartThings app is available for applicable models only.

• The old Samsung Smart Refrigerator app cannot connect with Samsung Smart Home models. The SmartThings app is installed but is not connected to my refrigerator.

• You must log into your Samsung account to use the app.

• Make sure that your router is operating normally.

• If you have not connected your refrigerator to the SmartThings App after the app was installed, you must make the connection using the device registration function of the app. Could not log into the app.

• You must log into your Samsung account to use the app.

• If you don’t have a Samsung account, follow the app’s onscreen instructions to create one. An error message appears when I try to register my refrigerator.

• Easy Connection may fail due to the distance from your access point (AP) or electrical interference from the surrounding environment. Wait a moment and try again. The SmartThings app is successfully connected to my refrigerator but does not run.

• Exit and restart the SmartThings app or disconnect and reconnect the router.

• Unplug the power cord of the refrigerator, and then plug it in again after 1 minute. Untitled-3 74 2020-04-07 PM 3:29:54English 75 LIMITED WARRANTY (U.S.A.) SAMSUNG REFRIGERATOR LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF PURCHASE This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period of: One (1) year parts and labor Five (5) years parts and labor on Sealed Refrigeration System Only (Compressor, Evaporator, Condenser, Drier, and Connecting Tubing) Ten (10) years part and Five (5) years labor on Digital Inverter Compressor Only This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center to receive warranty service. SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer’s geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service. To receive in-home service, product must be unobstructed and accessible to the service agent. During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product’s warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG. Untitled-3 75 2020-04-07 PM 3:29:54LIMITED WARRANTY (U.S.A.) English76 This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modication or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product’s nishes; damage caused by abuse, misuse, pest infestations, accident, re, oods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, uctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The cost of repair or replacement under these excluded circumstances shall be the customer’s responsibility. Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues.

EXCLUSION OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state. Untitled-3 76 2020-04-07 PM 3:29:54English 77

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state. SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, rm, or corporation with respect to this product shall be binding on SAMSUNG. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgeeld Park, NJ 07660 1-800-SAMSUNG (726-7864) www.samsung.com/us/support Untitled-3 77 2020-04-07 PM 3:29:54English78 Warranty Information (CANADA) If your refrigerator needs service Do not hesitate to call any Samsung Authorized Service Center nearby giving them your name, address and telephone number if your product is not functioning properly. Limited Warranty for Original Purchaser This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred to as SECA) against manufacturing defects in material or workmanship for the following periods: Labor : 1 year (in-home) Parts : 1 year Inverter Compressor : 10 years (Part only) SECA further warrants that if this product fails to operate properly within the specied warranty period and the failure is due to improper workmanship or defective material, SECA will repair or replace the product at its option. In-home service is not available in all areas. Contact us to nd out if in-home service is currently available in your area by using the contact information at the back of this warranty. All warranty repairs or part replacements must be performed by a SECA Authorized Service Center. (To nd the nearest SECA Service Center, call 1-800-SAMSUNG (7267864) or visit our web site at www.samsung.com/ca) Untitled-3 78 2020-04-07 PM 3:29:54English 79 Obligation to the Original Owner The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to a SECA Authorized Service Center at the time service is requested before warranty services are rendered. On all carry-in models, transportation to and from the Authorized Service Center is the responsibility of the customer. Exclusions of the Warranty This warranty does not cover damage due to accident, re, ood, and/or other Acts of God, misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs during shipping. Customer adjustments which are explained in this owners manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

/4" (781 mm) Ancho “B”
