USER MANUAL Xeox SL6566BK01 Speed-Link

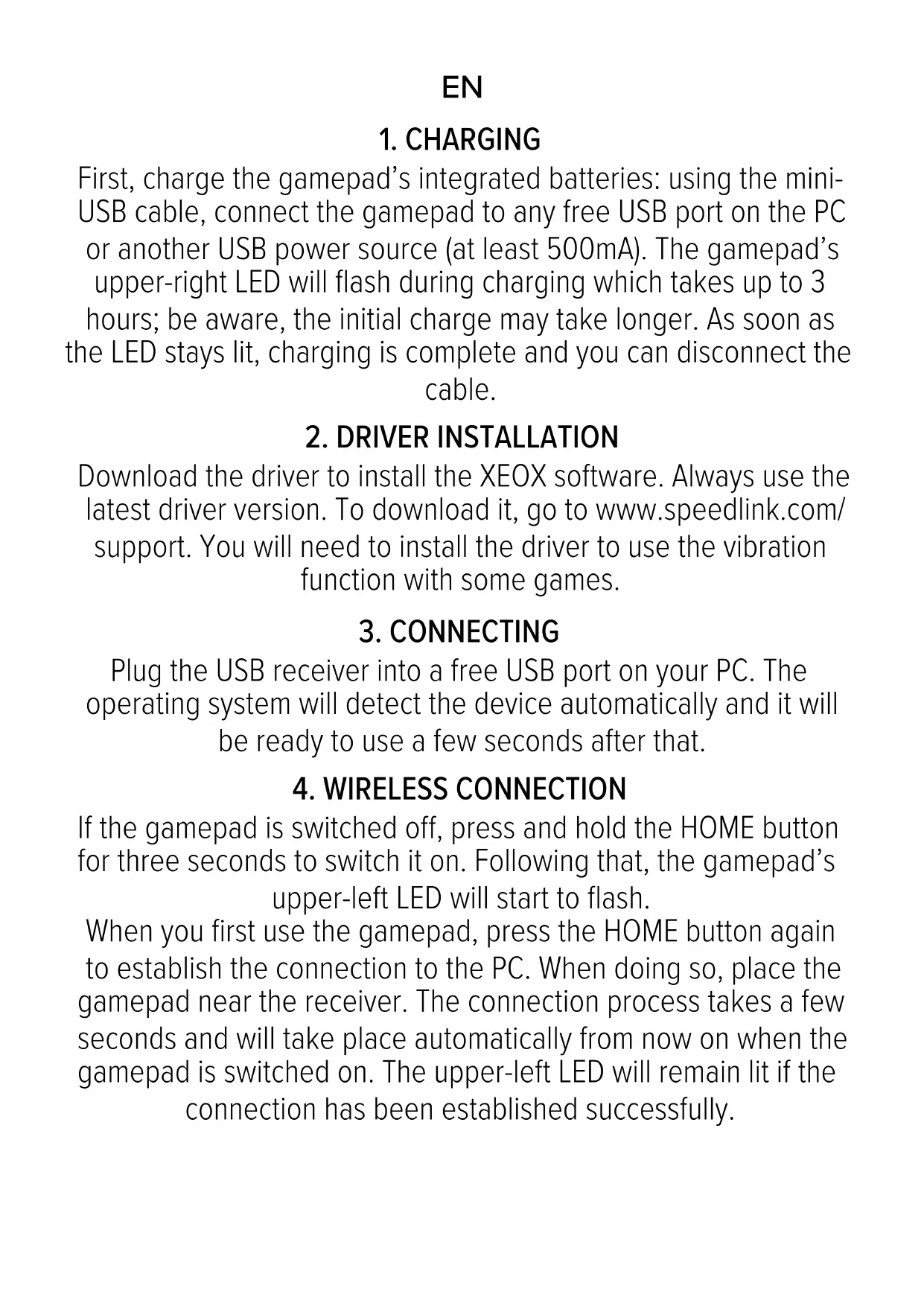

First, charge the gamepad’s integrated batteries: using the mini- USB cable, connect the gamepad to any free USB port on the PC or another USB power source (at least 500mA). The gamepad’s upper-right LED will flash during charging which takes up to 3 hours; be aware, the initial charge may take longer. As soon as the LED stays lit, charging is complete and you can disconnect the cable.

2. DRIVER INSTALLATION

Download the driver to install the XEOX software. Always use the latest driver version. To download it, go to www.speedlink.com/ support. You will need to install the driver to use the vibration function with some games.

Plug the USB receiver into a free USB port on your PC. The operating system will detect the device automatically and it will be ready to use a few seconds after that.

4. WIRELESS CONNECTION

If the gamepad is switched o, press and hold the HOME button for three seconds to switch it on. Following that, the gamepad’s upper-left LED will start to flash. When you first use the gamepad, press the HOME button again to establish the connection to the PC. When doing so, place the gamepad near the receiver. The connection process takes a few seconds and will take place automatically from now on when the gamepad is switched on. The upper-left LED will remain lit if the connection has been established successfully.5. XINPUT AND DIRECTINPUT You can switch between the gamepad’s two operating modes using the switch on the back: ‘X’ for XInput (for the majority of the latest games) and ‘D’ for DirectInput (for all older and some newer games). Set the gamepad to the desired mode before starting a game. Switching during gameplay may stop the game identifying the controller correctly; if this happens, restart the game. Please consult the manual that accompanied the game, ask the publisher or try both modes to establish which mode works the best.

In DirectInput mode, press the HOME button briefly to switch between the two digital D-pad modes. If the lower-left LED is lit, coolie-hat mode is active. If this LED is not lit, the D-pad controls the axes of the left analog stick; in addition, the right analog stick takes over the function of buttons 1 to 4.

7. RAPID-FIRE FUNCTION

The rapid-fire function allows a button to fire multiple times in rapid succession when pressed. To do this, keep the Rapid button held depressed and press the button you want to assign this function to. The lower-right LED will flash in rapid-fire mode. If you press this button again while pressing and holding the Rapid button, the button will switch from rapid-fire to auto-fire mode. In doing so, the lower-right LED will flash and the button will fire automatically in rapid succession when pressed once. To reset the button back to single-fire mode, press and hold the Rapid button and press the relevant button again.

Test the gamepad’s functions by opening the Windows* Control Panel and going to the Game Controllers option (Windows* 7, 8, 10/Vista*).In DirectInput mode, you will also find the options there for the vibration function; for XInput games, configure the vibration functions in the game’s options settings. Please note, vibration functions only work if supported by the game and the relevant option is enabled in the game’s options settings.

After seven minutes of inactivity (or after 30 seconds if a wireless connection has not been established), the gamepad will switch to standby mode to save power; to reactivate the gamepad, press theHOME button. If the gamepad’s upper-right LED starts flashing during use, charge the gamepad. You can use and charge the gamepad at the same time. If you do not intend to use the gamepad, you can switch it o by pressing and holding theHOME button for three seconds.DE

Das Gamepad wechselt nach sieben Minuten Inaktivität in den Stand-by-Modus (nach 30 Sekunden ohne hergestellte Funkverbindung), um Energie zu sparen. Drücken Sie dann die „HOME“-Taste, um es zu reaktivieren. Beginnt die obere rechte LED am Gamepad im Betrieb zu blinken, sollte es erneut aufgeladen werden. Auch gleichzeitiges Aufladen und Spielen ist möglich. Bei Nichtgebrauch können Sie das Gamepad abschalten, indem Sie die „HOME“-Taste drei Sekunden lang gedrückt halten. FOR ADDITIONAL USER GUIDE LANGUAGES, PLEASE VISIT www.speedlink.comEN INTENDED USE This product is intended to be used as an input device for connecting to a computer and is for indoor home/oce use only. It contains no user-serviceable parts. Do not disassemble it and stop using it immediately if damaged. Jöllenbeck GmbH accepts no liability whatsoever for any damage to this product or injuries caused due to careless or improper use or for purposes for which it is not intended. HEALTH RISKS Extended use of input devices may cause health problems such as discomfort or pain; as such, take regular breaks and consult a doctor if problems persist. DISPOSAL This symbol means that you must not dispose of this product together with household waste. Always store and dispose of old equipment or batteries correctly as they can harm the environment or cause injury because they may contain hazardous substances; failure to do so may result in fines. In the EU, you can dispose of your old equipment or batteries free of charge at an ocial recycling point: you are required to do so by law, it ensures your device or battery is recycled and you do your bit to help protect the environment. For information please contact your local authority, civic amenity site or retailer. Major EU retailers (electronics retailers with a sales area of ≥ 400m²) take back small appliances (all dimensions < 25cm) free of charge; others do so only if you purchase products of a similar value. If possible, remove any batteries. ENBATTERY SAFETY This product contains a lithium-ion battery. Only use a suitable charger. Do not damage, open or dismantle the product/battery. Do not use in wet/corrosive conditions. Do not throw into fire or expose to high temperatures (> 60°C/140°F). CONFORMITY NOTICE Operation of the device (the devices) may be aected by strong static, electrical or high-frequency fields (radio installations, mobile telephones, microwaves, electrostatic discharges). If this occurs, try increasing the distance from the devices causing the interference.

DECLARATION OF CONFORMITY

Jöllenbeck GmbH hereby confirms that this product complies with Directive 2014/53/EU. The full EU Declaration of Conformity text can be requested from www.speedlink.com. TECHNICAL SUPPORT www.speedlink.com/support Please keep this information for later reference.

RISQUES POUR LA SANTÉ

L’utilisation extrêmement prolongée de périphériques de saisie peut entraîner des troubles physiologiques, tels que des gênesou des douleurs. Veillez à faire des pauses régulièrement et consultez un médecin en cas de problèmes récurrents. ÉLIMINATION Ce symbole signifie que le produit ne doit pas être placé avec les ordures ménagères. Le stockage et l’élimination incorrects d’appareils usagés ou de piles/ accumulateurs peuvent être nocifs à l’environnement et/ou à la santé humaine en raison des substances toxiques possiblement contenues à l’intérieur et ils sont passibles de sanctions prévues par la loi. Le dépôt dans une borne de collecte ocielle est gratuit et prescrit par la loi. Cela garantit une élimination ou un recyclage corrects et contribue à protéger l’environnement. Vous pouvez vous informer à ce sujet auprès des administrations, des déchetteries ou des magasins spécialisés. Les magasins d’une certaine taille (surface de vente d’appareils électriques ≥ 400 m²) reprennent gratuitement les petits appareils (toutes les dimensions < 25 cm) et les autres uniquement en cas d’achat de produits équivalents. Retirer dans la mesure du possible les piles/accumulateurs.

REMARQUES RELATIVES AUX PILES

Ce produit contient un accumulateur lithium-ion. Utiliser exclusivement des chargeurs adaptés. Ne pas abîmer le produit/l’accu, ne pas l’ouvrir et ne pas le démonter. Ne pas utiliser dans un environnement humide/ corrosif. Ne pas jeter au feu ni exposer à des températures élevées (> 60 °C/140 °F).

INDICATION DE CONFORMITÉ

INFORMACE O KONFORMITĚ

Having technical problems with this product? Get in touch with our Support team – the quickest way is via our website: www.speedlink.com
