VZUM79CT - Sink SMEG - Free user manual and instructions
Find the device manual for free VZUM79CT SMEG in PDF.
| Brand | SMEG |
| Model | VZUM79CT |
| Product type | Sink / Kitchen sink |
| Material | Stainless steel |
| Number of basins | 1 |
| Installation type | Built-in |
| Finish | Brushed |
| Surface | Non-porous |
| Daily cleaning | Soft non-abrasive sponge and mild dish detergent, rinse and dry |
| Stubborn stain cleaning (light surfaces) | Bleach solution (3/4) + warm water (1/4), let act 8h, rinse thoroughly |
| Stubborn stain cleaning (dark surfaces) | Circular motions with non-abrasive sponge and detergent, rinse with warm water |
| Descaling | Descaling product diluted in warm water, let act a few minutes, rinse |
| Weekly anti-scale treatment | Fill with warm water + laundry detergent (liquid or powder) or tablet, let sit 5 to 6h, rinse |
| Forbidden products | Steel wool, abrasive sponges, alkaline detergents (ammonia, caustic soda, drain cleaners) |
| Thermal precautions | Do not place hot utensils directly (temperature up to 500°C); before pouring boiling liquids, run cold water and ensure at least 1 cm of water at the bottom |
| Shock precautions | Avoid accidental impacts that may cause irreparable micro-damage |
| Recommended use | Use a cutting board to cut or chop; do not cut directly on the surface |
| Warranty | Failure to follow cleaning and maintenance instructions may void the conventional warranty |
| Manual available | French, German, English, Spanish, Italian, Polish, Portuguese, Russian, Ukrainian and other languages on request |
| Download | Free in PDF format at notice-facile.com |
Frequently Asked Questions - VZUM79CT SMEG
User questions about VZUM79CT SMEG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sink in PDF format for free! Find your manual VZUM79CT - SMEG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VZUM79CT by SMEG.
USER MANUAL VZUM79CT SMEG
2. NON-ROUTINE MAINTENANCE
Before fitting the sink, it is advisable to wash it using standard dish detergent and a soft sponge to remove any manufacturing residues.
Rinse the sink thoroughly and dry it using a microfibre cloth.

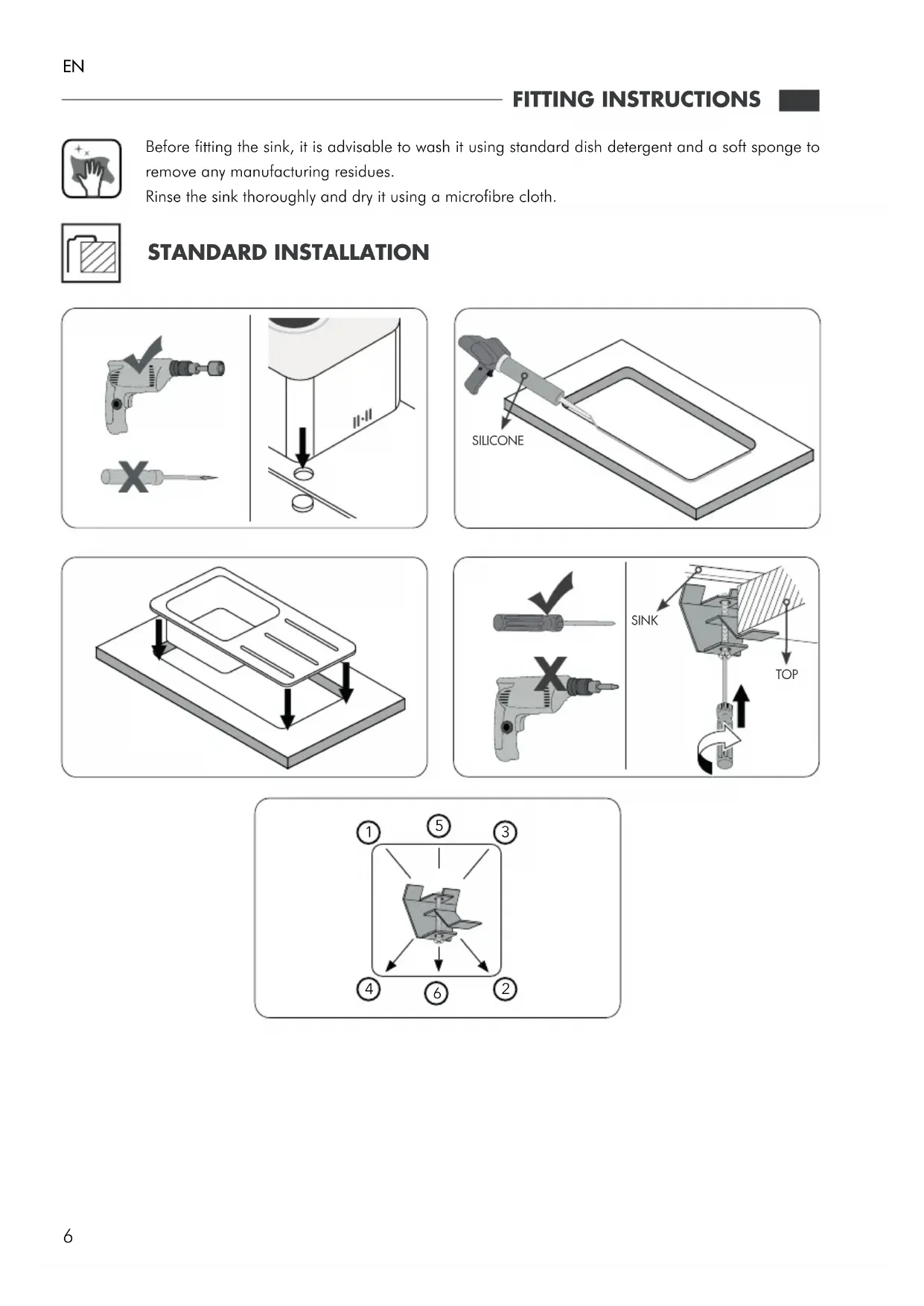

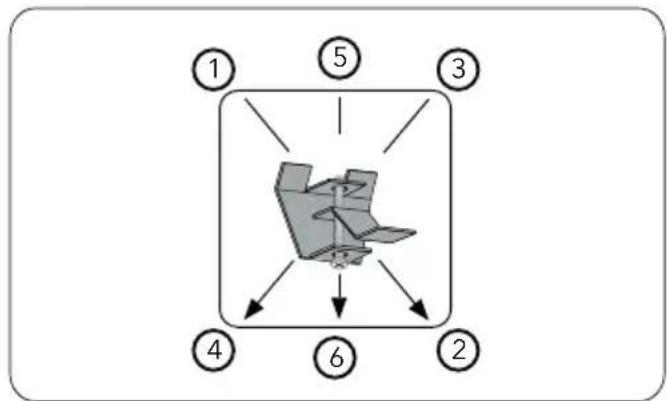

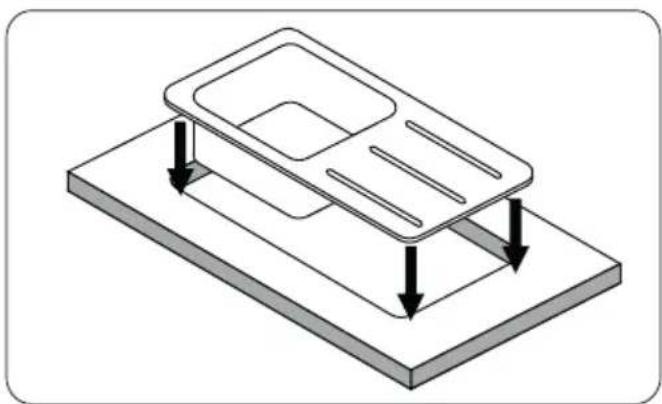

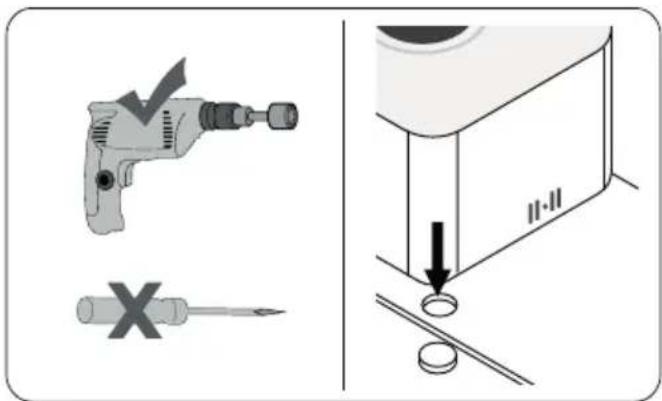

STANDARD INSTALLATION


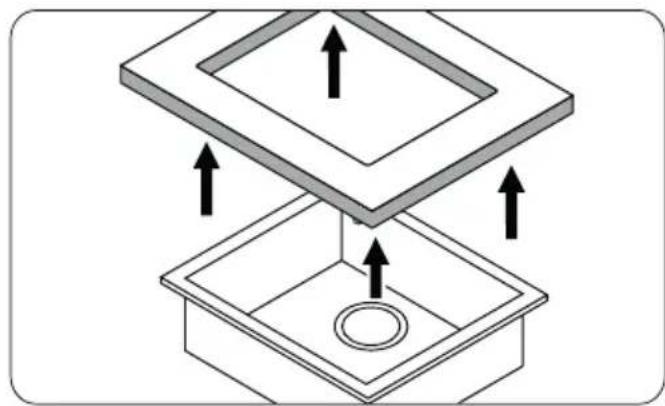

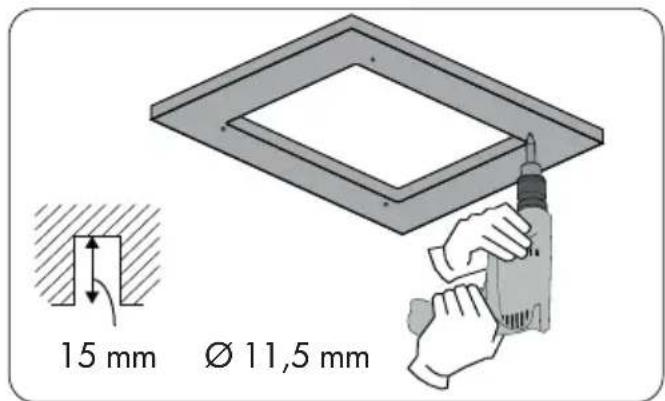

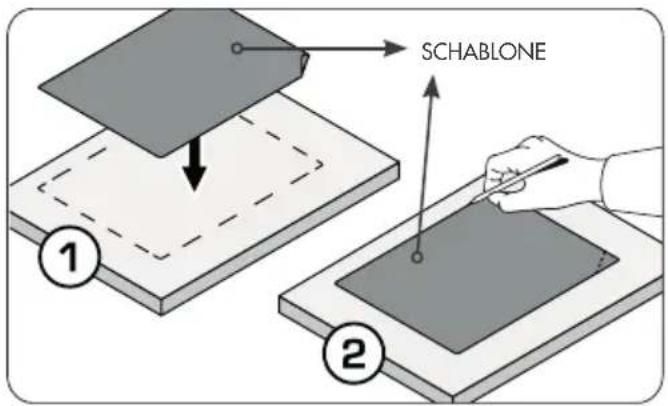

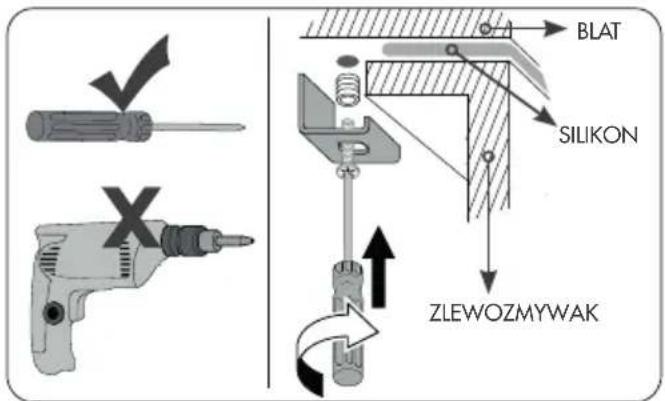

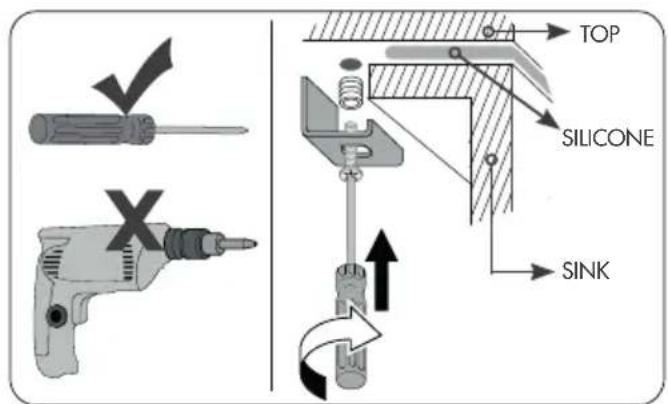

UNDERMOUNT INSTALLATION
The packaging materials (plastic bags, expanded polystyrene, etc.) must not be left within reach of children as they are a potential hazard.
Installation and support should be undertaken by qualified individuals, in accordance with the applicable legal requirements.

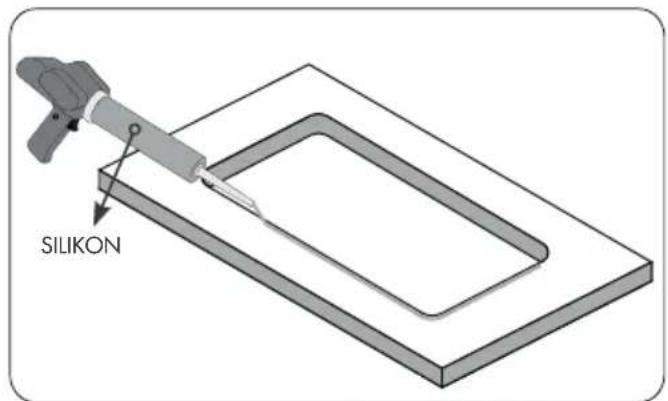

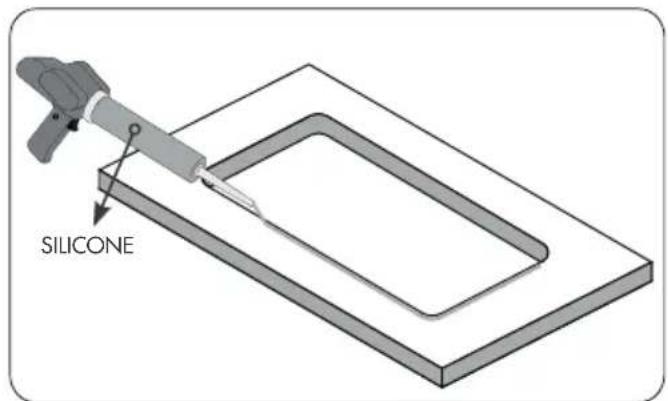

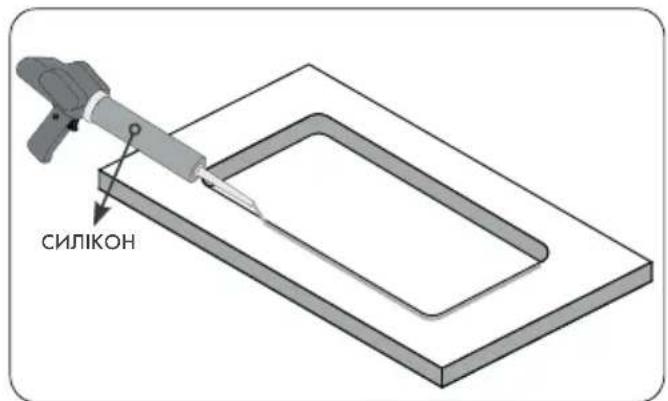

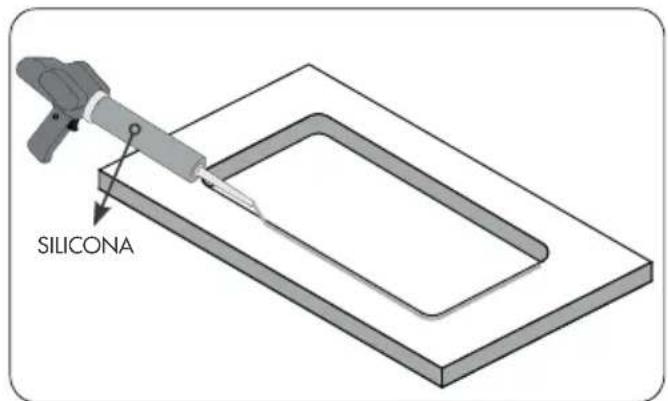

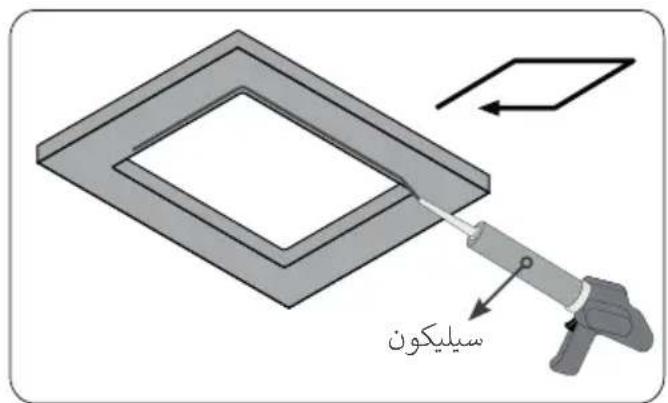

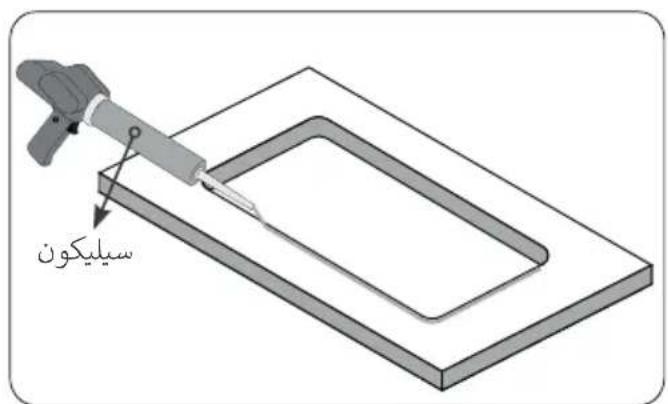

The silicone is not included with the product. The sink shown in this guide is for illustrative purposes only.
1. ROUTINE MAINTENANCE
Cleaning your Smeg product is quick and simple. Even though the non-porous surface prevents liquids penetrating into the material, it is preferable to remove them immediately using a soft, non-abrasive sponge and standard dish detergent. You should then rinse the surface and dry it carefully using a microfibre cloth.
2. NON-ROUTINE MAINTENANCE
Cleaning stubborn stains is not difficult: all you need to do is choose the right product and use it correctly.
For stubborn stains on LIGHT-COLOURED products, you can use a solution of bleach and warm water (3/4 to 1/4), leaving it to act for eight hours (we recommend that this cleaning be performed during the night). Afterwards, rinse thoroughly and dry the entire surface carefully using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.
For stubborn stains on DARK-COLOURED products, you can remove them directly with a soft, non-abrasive sponge and standard dish detergent, using small circular movements. When finished, rinse using warm water and carefully dry the entire surface using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.
To remove limescale stains, we recommend the use of a non-corrosive descaling product diluted with warm water. Distribute the solution uniformly over the entire surface of the product. Clean with a soft, non-abrasive sponge using small circular movements and leave the product to act for several minutes (follow the instructions and conditions for use on the product label). When finished, rinse using warm water and dry carefully using a microfibre cloth.
Failure to follow the cleaning and maintenance instructions stated in this manual may invalidate the standard warranty provided by the manufacturer.
To ensure that there is no change to the characteristics of the product, we recommend that users observe the following precautions:
- dry the surface of the product every day to avoid prolonged exposure to water that could lead to the build-up of limescale or stubborn stains
- do not use detergents that contain alkaline substances and aggressive liquids (such as ammonia, caustic soda or drain cleaners)
- do not remove traces of dirt using steel scourers or abrasive sponges that could damage the surface
- do not cut or chop directly on the surface of the product because this could cause irreparable scratches (always use chopping boards)
- avoid accidental knocks that could cause irreparable micro-damage
- do not place hot cookware, pans or coffee makers directly on the sink surface: stains from discolouration and/or damage could form in areas where hot items are placed
- avoid pouring boiling liquids directly into the sink without first turning on the cold tap and filling the sink with at least 1 cm of water, as this could damage the product
• to prevent the build-up of limescale, it is recommended that a descaling treatment be completed at least once a week. This is recommended in particular for dark-coloured sinks. Fill the tub with warm water and add two spoonfuls of liquid or powder dishwasher detergent or a dishwasher tab. Leave the solution for 5/6 hours. Rinse thoroughly and dry carefully.
Do not put pans or coffee makers that have just been taken off the heat (which sometimes reach 500°C) directly into sink.


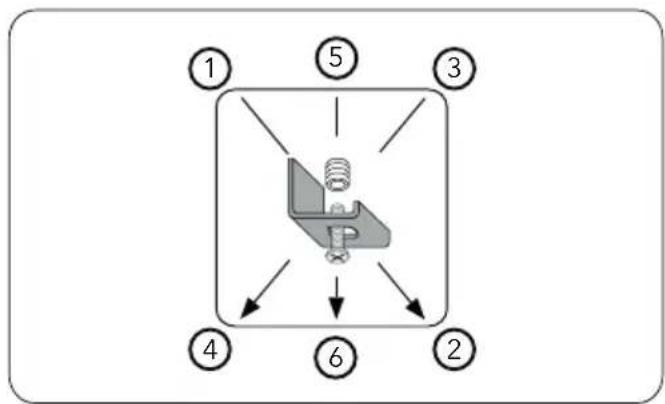

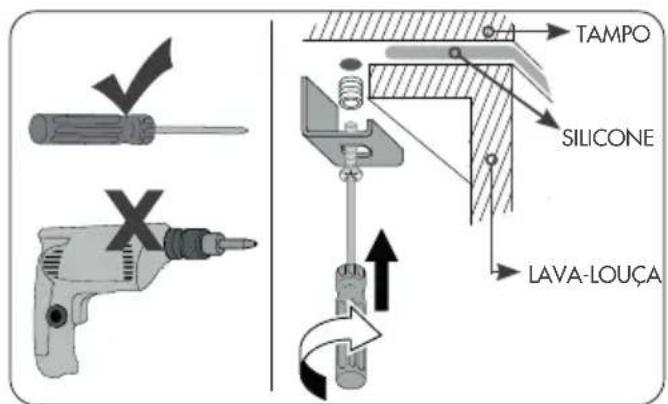

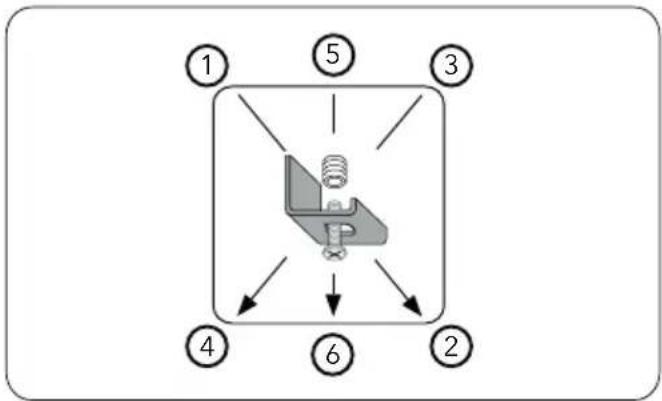

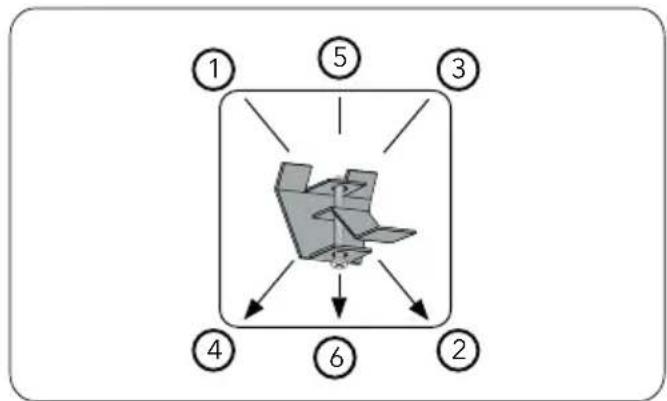

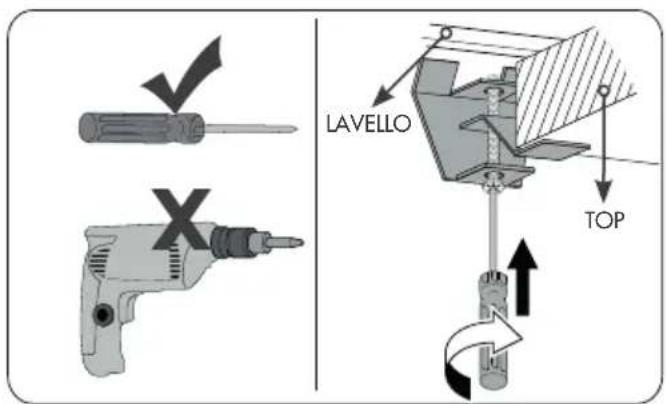

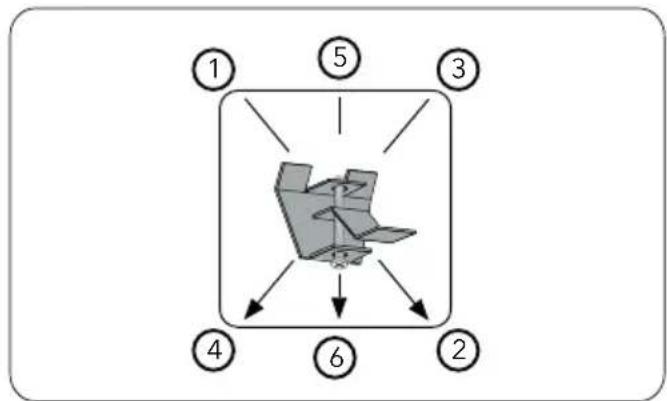

INSTALLATION UNDER THE TOP


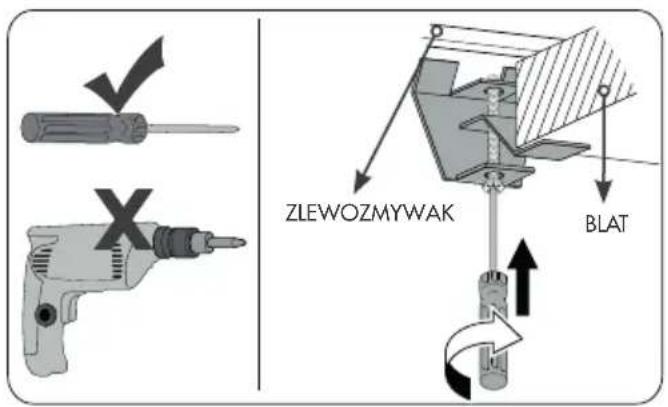

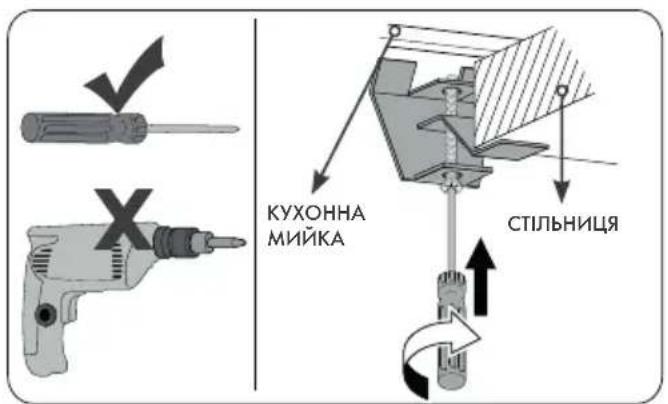

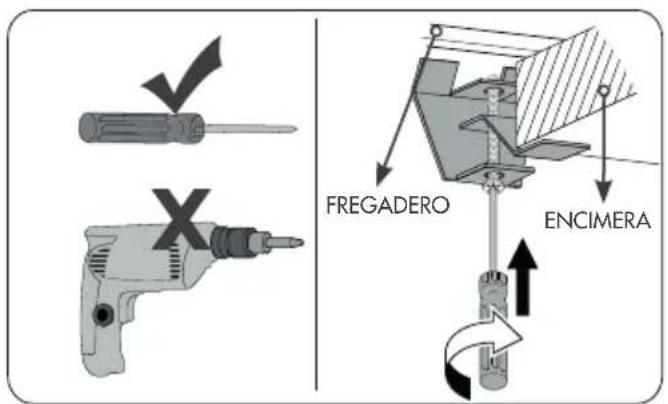

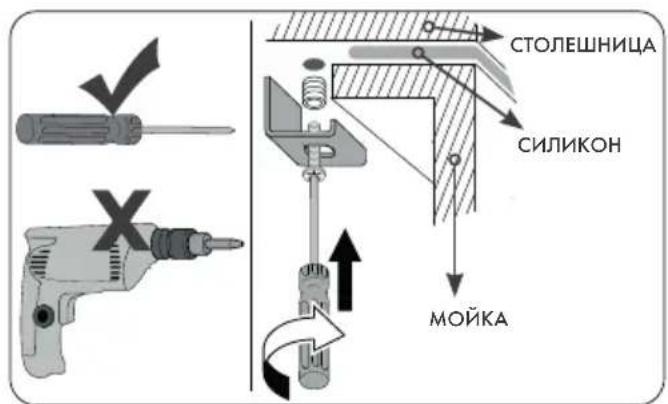

UNDER-COUNTER INSTALLATION
2. NON-PLANNED MAINTENANCE
UNDER-COUNTER INSTALLATION
2. ROUTINE MAINTENANCE

