Brand	Lucide
Model	Curf 036130131
Product type	Lamp
Use	Indoor only
Protection rating	IP20
Protection class	II
Supply voltage	220-240 V
Frequency	50/60 Hz
Warranty	2 years
Installation	By a qualified electrician
Maintenance and cleaning	Clean with a dry cloth
Minimum distance from flammable objects	Follow the distance indicated on the lamp
Contact protection	IP20 (finger protection)
Recommended bulb type	Follow the type and maximum wattage indicated on the product
Ambient temperature	Do not expose to excessive heat
Use in bathroom	No (IP20 not suitable)
Body material	Not specified

Frequently Asked Questions - Curf 036130131 Lucide

How to install the Curf 036130131 lamp?

Installation must be carried out by a competent person in accordance with electrical regulations. Always isolate the power supply before starting. Observe minimum distances from flammable objects.

What type of bulb to use?

Always use the correct bulb, respecting the type and maximum wattage indicated on the product. An unsuitable bulb may cause overheating.

Can I use this lamp outdoors?

No, this lamp is designed for indoor use only (IP20). It must not be exposed to moisture or rain.

What to do if the lamp does not light up?

Check the power supply, the bulb, and its installation. If the cable is damaged, have it replaced by a qualified professional.

How to clean the lamp?

Clean with a dry cloth. Do not use water or chemicals. Ensure the lamp is turned off and cooled down.

What is the warranty on this product?

Lucide NV offers a 2-year warranty against material and workmanship defects from the date of purchase, subject to correct installation and maintenance.

Are glass parts covered by the warranty?

Broken glass parts are only replaced within 14 days of purchase. Keep your receipt.

Can I install the lamp in a bathroom?

No, because the IP20 protection rating does not protect against moisture. For a bathroom, choose a lamp with a suitable IP rating.

What does the crossed-out wheelie bin symbol mean?

It indicates that the appliance must not be disposed of with household waste. Take it to a municipal collection point for recycling.

How do I know if my lamp is class I or II?

Check the symbols on the appliance: class I requires earthing (green-yellow wire), class II is double insulated and does not require an earth.

USER MANUAL Curf 036130131 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCiDE

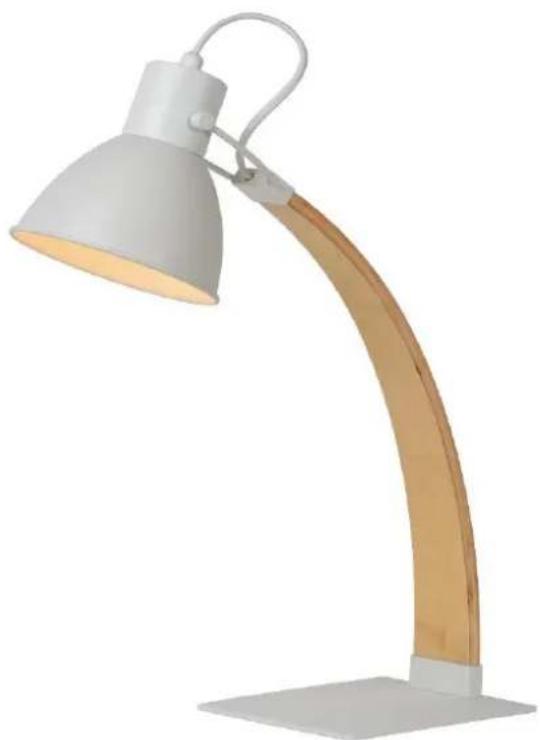

Modern desk lamp with curved arm and white shade (no text or symbols visible)

Item number: 03613/01/31

EAN code: 5411212030740

CURF

Simple illustration of a glowing incandescent light bulb with E2 and B1 screw (no text or symbols)

RECOMMENDED LUCIDE LIGHT SOURCE

49021/04/60

Dimmable: Yes

Included: No

General

Dimensions LxW xH: 20cm x 40cm x 54cm

Main material: Plywood veneer

Color: White and Natural

Style: Scandinavian

Shape: Other

Weight: 2,00 kg

Warranty: 2 Years

Specifications

Dimmable: No

Light direction: Downlight

Adjustable in height: Not In Height Adjustable

Directional: Tiltable (Vertical)

Cable: Yes, Cable With Plug On Product

Cable length: 150 cm

Sensor: Without Sensor

Control: On/Off Switch - In The Cord

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 1

Number of light sources: 1

Lamp socket: E27

Wattage: 1 x 60W

Power requirements: 220-240 V\~50 Hz

CURF

Item number: 03613/01/31

EAN code: 5411212030740

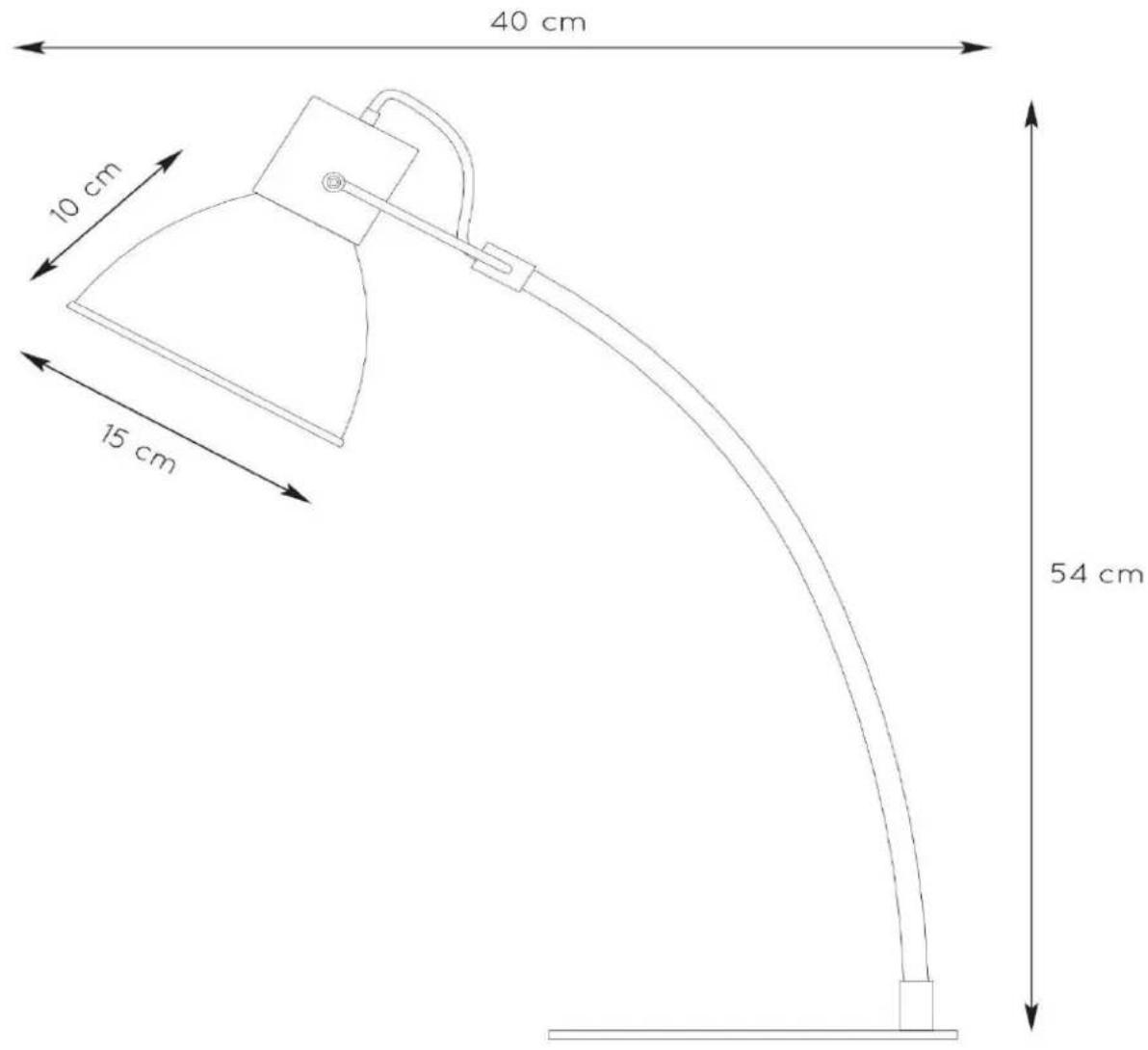

40 cm 10 cm 15 cm 54 cm

CURF

Item number: 03613/01/31

EAN code: 5411212030740

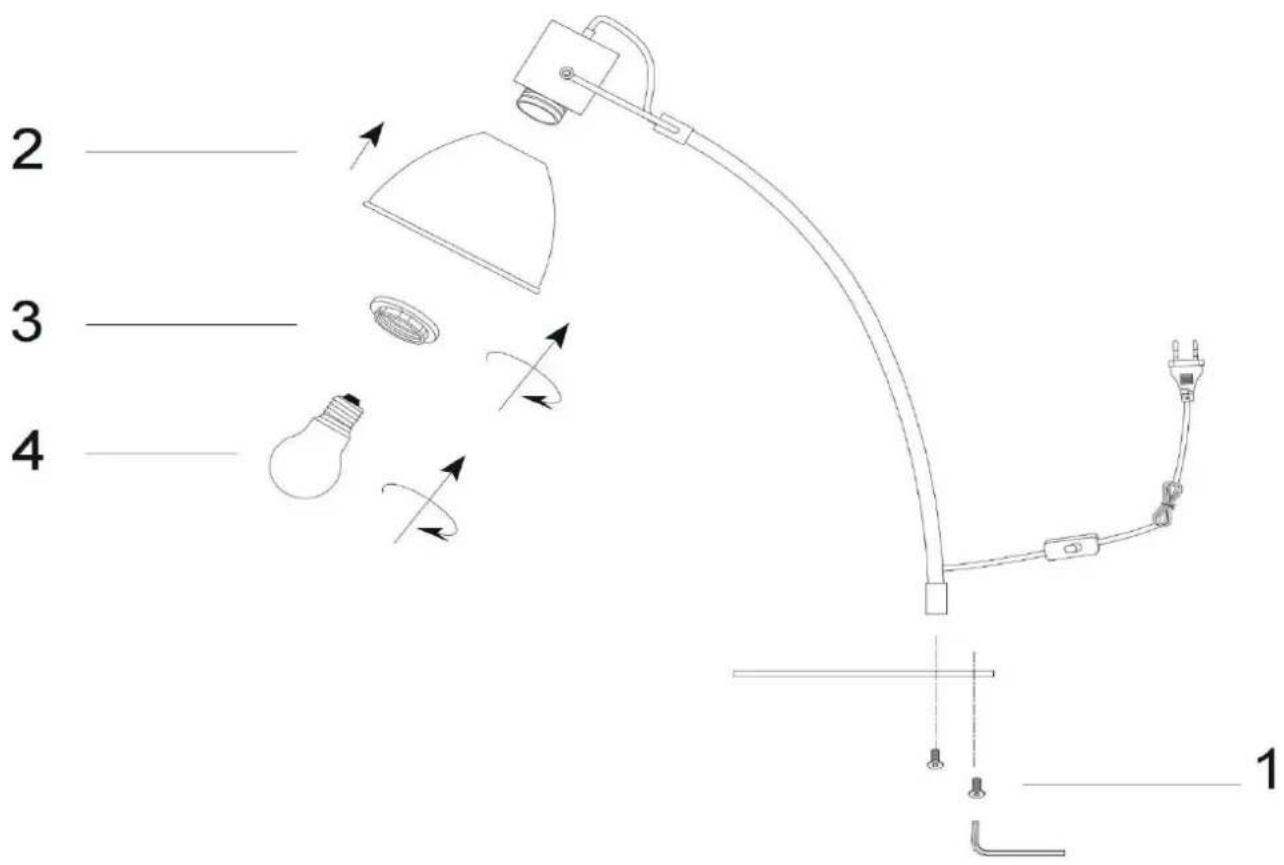

2 3 4 1

Cropped image showing a series of icons and labels, including house, water level, IP20 symbol, and light bulb with 0.5m scale indicator.

IP20 0.5m

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

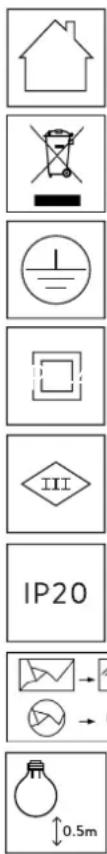

Explanation of the symbols which can appear on the fixture

Vertical sequence of icons and labels, including house, circuit, water level, square, diamond, IP20, email, and light bulb with 0.5m scale indicator.

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Sicherheitshinweise

Vertical sequence of icons and labels, including house, circuit, water level, square, IP20 symbol, and light bulb with 0.5m scale indicator.

Vertical sequence of icons and labels, including house, circuit symbol, water level, square, IP20 label, and light bulb with 0.5m scale indicator.

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of

2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.

2. Normal wear and tear, discoloring as a result from normal use.

3. Damage caused by external causes like fire, water, wrong use/installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
