Shadi 036170130 - Lamp Lucide - Free user manual and instructions

Product type	Lamp
Brand	Lucide
Model	Shadi 036170130
Category	Indoor lamp
Usage	Indoor only (IP20)
Bulb type	E27 (estimate)
Maximum power	60 W
Supply voltage	220-240 V ~50 Hz
Electrical class	II (double insulation)
Material	Metal and glass
Dimensions (diameter x height)	30 cm x 20 cm (estimate)
Weight	1 kg (estimate)
Minimum distance to flammable objects	0.5 m
Protection rating	IP20
Warranty	2 years
Care and cleaning	Clean with a dry cloth, do not use abrasive cleaners
Repairability	Broken glass parts must be replaced within 14 days after purchase

Frequently Asked Questions - Shadi 036170130 Lucide

What type of bulb should I use with this lamp?

This lamp requires a type E27 bulb with a maximum power of 60 W. It is recommended to use an LED bulb for better energy efficiency.

How to install the lamp correctly?

Before any installation, cut off the power supply. Connect the wires according to colors: the phase wire (usually brown), the neutral (blue) and the ground (green/yellow) if applicable. Then fix the base to the ceiling following the instructions in the manual.

Can this lamp be used in a bathroom?

No, this lamp has a protection rating IP20, which means it is only suitable for dry interiors. Do not install it in a bathroom, kitchen, or any other humid area.

How to clean the lamp?

To clean the lamp, use a soft dry cloth. Always unplug the device before cleaning. Never use abrasive products or solvents.

What to do if the bulb does not turn on?

First check that the bulb is properly screwed in and in good condition. If it still does not turn on, test the bulb on another lamp. If the problem persists, check the electrical connections and the circuit fuse.

Does the warranty cover bulbs?

No, the 2-year warranty provided by Lucide only covers the luminaire itself (body, wiring, etc.). Bulbs and glass parts are excluded, except for broken glass within the first 14 days after purchase.

Is this lamp compatible with a dimmer?

The lamp is not specifically designed to be used with a dimmer. If you wish to use it with a dimmer, make sure to use a dimmable bulb and a suitable dimmer. If in doubt, avoid this use.

How to replace broken glass?

Contact Lucide's after-sales service or the retailer. The broken glass parts can be replaced free of charge within 14 days from the date of purchase, upon presentation of the receipt.

What is the minimum or maximum suspension height?

The manual does not specify an adjustable suspension height for this model. For a standard installation, the lamp must be fixed to the ceiling at a height of approximately 20 cm (height of the lamp itself). Make sure to maintain a safety distance of at least 0.5 m from flammable objects.

Can I use this lamp outdoors?

No, this lamp is designed for indoor use only (IP20). Do not expose it to weather, humidity, or excessive dust.

USER MANUAL Shadi 036170130 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCIDE

Item number: 03617/01/30

EAN code: 5411212030849

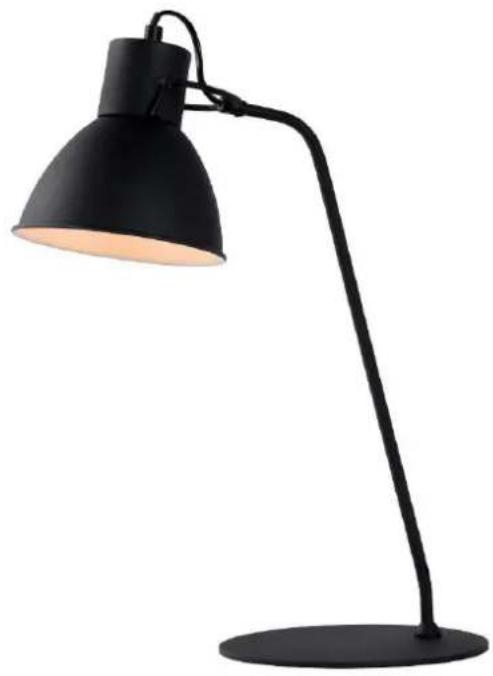

SHADI

RECOMMENDED LUCIDE LIGHT SOURCE

49022/04/67

Dimmable: Yes

Included: No

General

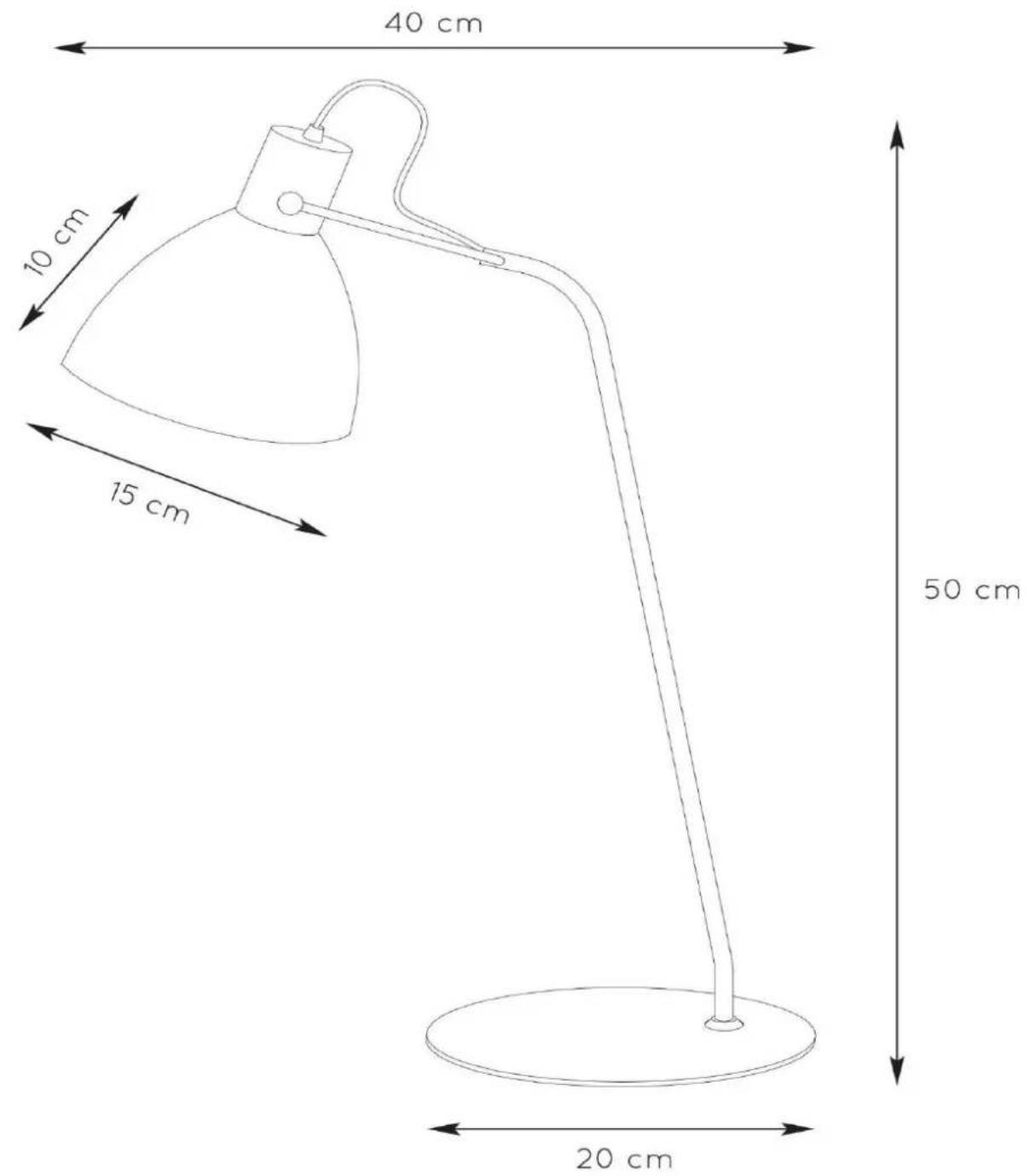

Dimensions LxW xH: 20cm × 40cm × 50cm

Main material: Metal

Color: Black

Style: Vintage

Shape: Other

Weight: 1,70 kg

Warranty: 2 Years

Specifications

Dimmable: No

Light direction: Downlight

Adjustable in height: Not In Height Adjustable

Directional: Rotatable & Tiltable (360 Degrees)

Cable: Yes, Cable With Plug On Product

Cable length: 150cm

Sensor: Without Sensor

Control: On/Off Switch - In The Cord

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 2

Number of light sources: 1

Lamp socket: E14

Wattage: 1 × 40W

Power requirements: 220-240 V~50 Hz

LUCIDE

SHADI

Item number: 03617/01/30

EAN code: 5411212030849

LUCIDE

SHADI

Item number: 03617/01/30

EAN code: 5411212030849

Veiligheidsinstructures

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

Explanation of the symbols which can appear on the fixture

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.
2. Normal wear and tear, discoloring as a result from normal use.
3. Damage caused by external causes like fire, water, wrong use/ installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
