Curf 037130131 - Lamp Lucide - Free user manual and instructions

Brand	Lucide
Model	Curf 037130131
Product type	Lamp
Usage	Indoor
Electrical class	II (double insulation)
Protection rating (IP)	IP20
Supply voltage	230 V ~ 50 Hz
Maximum bulb power	40 W (according to product indication)
Compatible bulb type	E27 (screw base)
Main material	Metal and glass
Dimensions (approx.)	20 x 20 x 30 cm
Weight (approx.)	0.5 kg
Warranty	2 years (glass parts: 14 days)
Maintenance and cleaning	Unplug, clean with a dry, non-abrasive cloth
Safety	Install by a qualified electrician, respect safety distances
Spare parts	Replaceable bulb (standard)
Repairability	Call a certified professional

Frequently Asked Questions - Curf 037130131 Lucide

How to install the Curf 037130131 lamp?

Before installation, isolate the electrical supply. Follow the instructions in the manual and call a qualified electrician if necessary. Ensure the support is sturdy and that safety distances from flammable materials are respected.

What type of bulb to use?

Use a bulb with E27 base and a maximum wattage indicated on the lamp (usually 40 W). Strictly comply with the type and wattage to avoid any risk.

Can I use this lamp in a bathroom?

No, this lamp is rated IP20 and is designed only for dry indoor use. It cannot be installed in a humid room or bathroom (unless otherwise indicated on the product).

What to do if the protective glass is broken?

The protective glass must be replaced immediately by a certified professional to avoid any risk of injury or short circuit. Glass parts are only warranted for 14 days.

How to clean the lamp?

Always unplug the lamp before cleaning. Use a dry, non-abrasive cloth. Never use water or liquid products that could damage the device.

What to do if the power cord is damaged?

The damaged cord must be replaced exclusively by the manufacturer, its after-sales service, or a qualified electrician to avoid any danger.

Is the lamp compatible with a dimmer?

The manual does not mention compatibility with a dimmer. It is recommended to use a standard bulb and check the instructions on the bulb packaging.

What is the minimum distance to respect from flammable objects?

Respect the distance indicated on the lamp (usually 0.5 m minimum). This avoids any fire risk due to heat from the bulb.

How to recycle this lamp at the end of its life?

Do not dispose of the lamp with household waste. Take it to a municipal collection point or a specialized store so it can be recycled in accordance with WEEE regulations.

Where to find the serial number or reference?

The serial number and reference (037130131) are usually found on a label on the lamp body or on the original packaging.

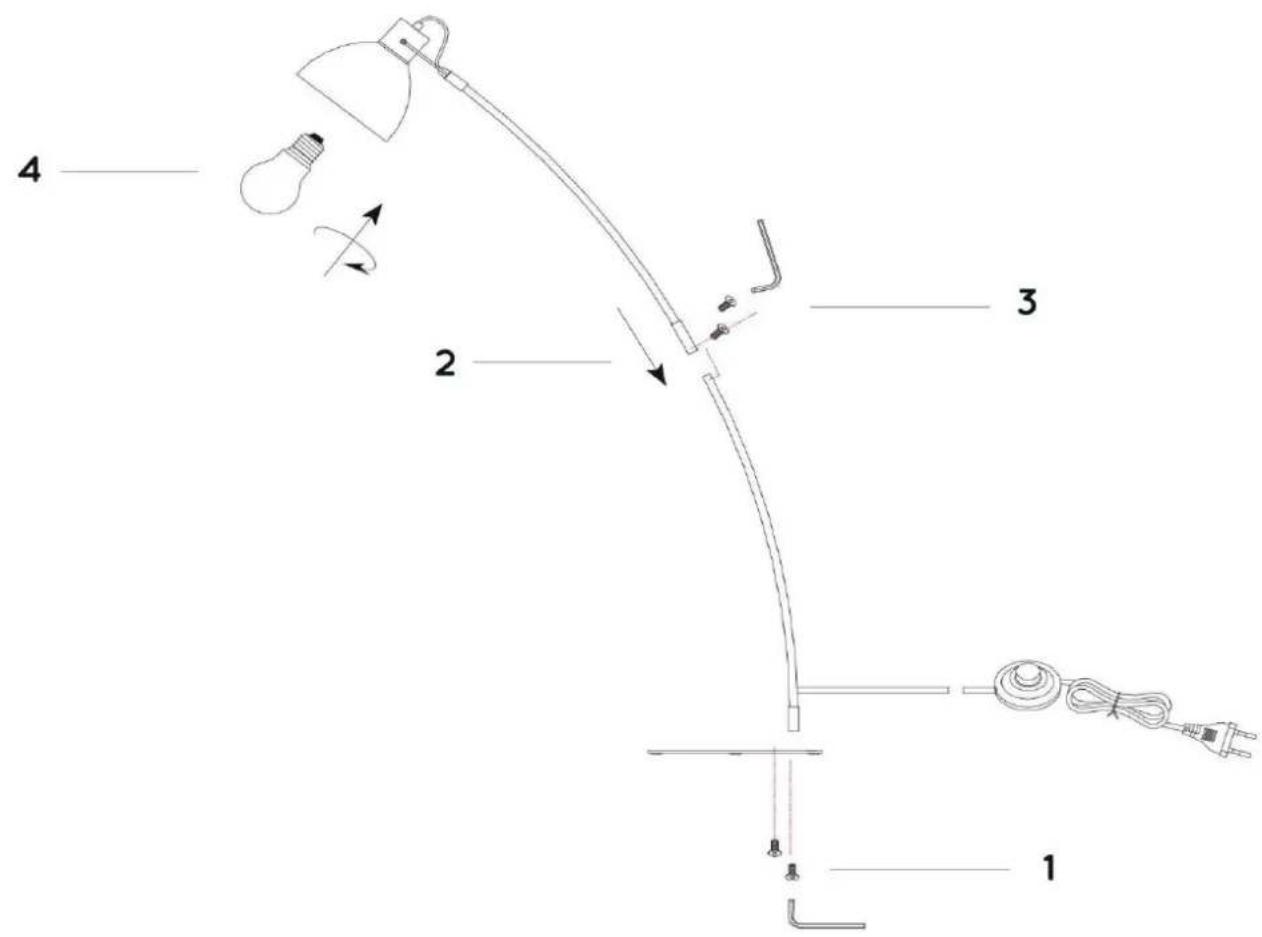

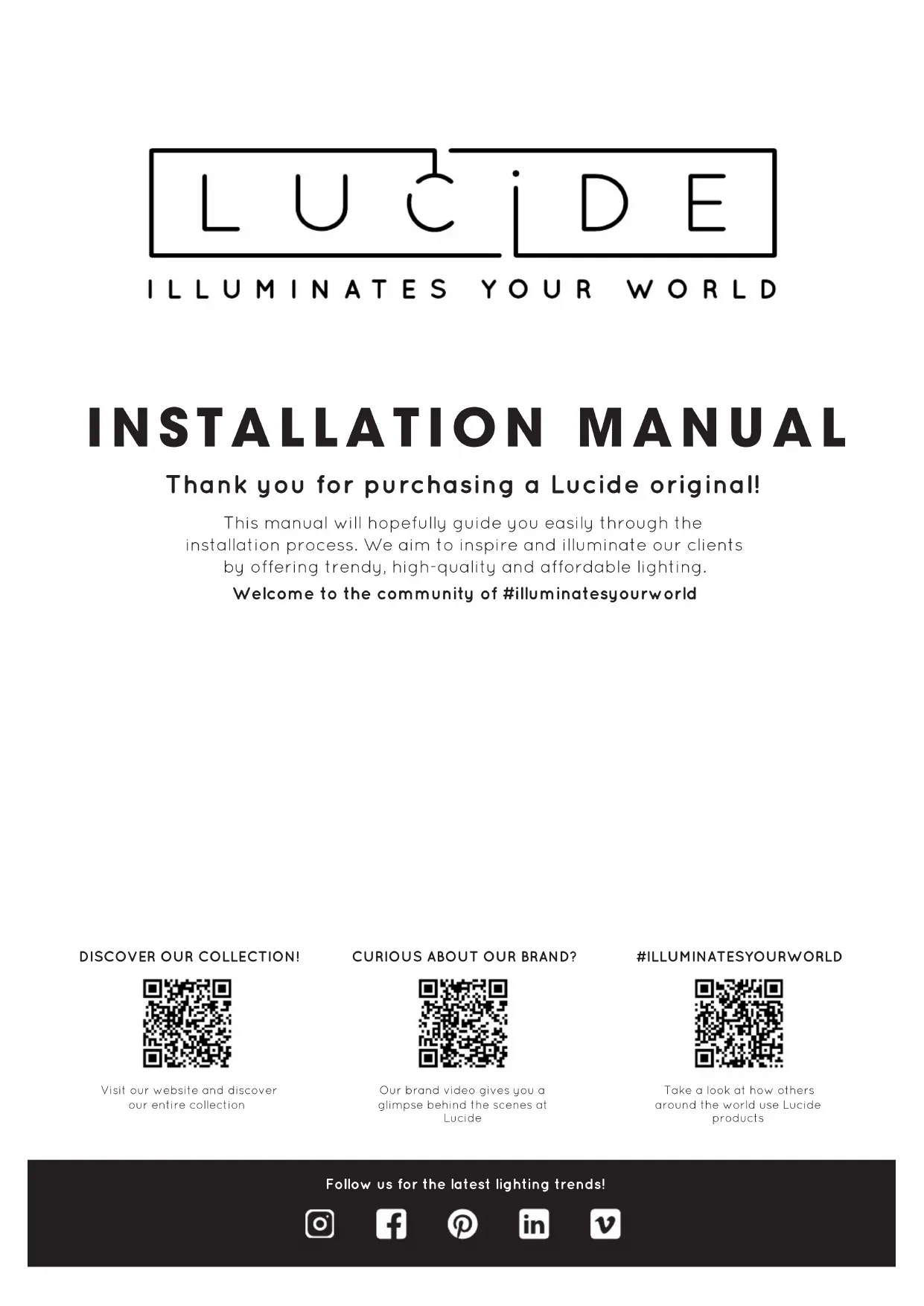

USER MANUAL Curf 037130131 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCIDE

Item number: 03713/01/31

EAN code: 5411212030795

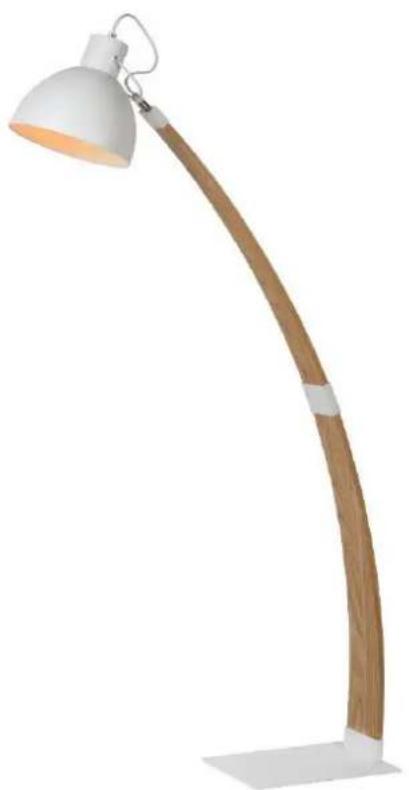

CURF

RECOMMENDED LUCIDE LIGHT SOURCE

49020/05/60

Dimmable: Yes

Included: No

General

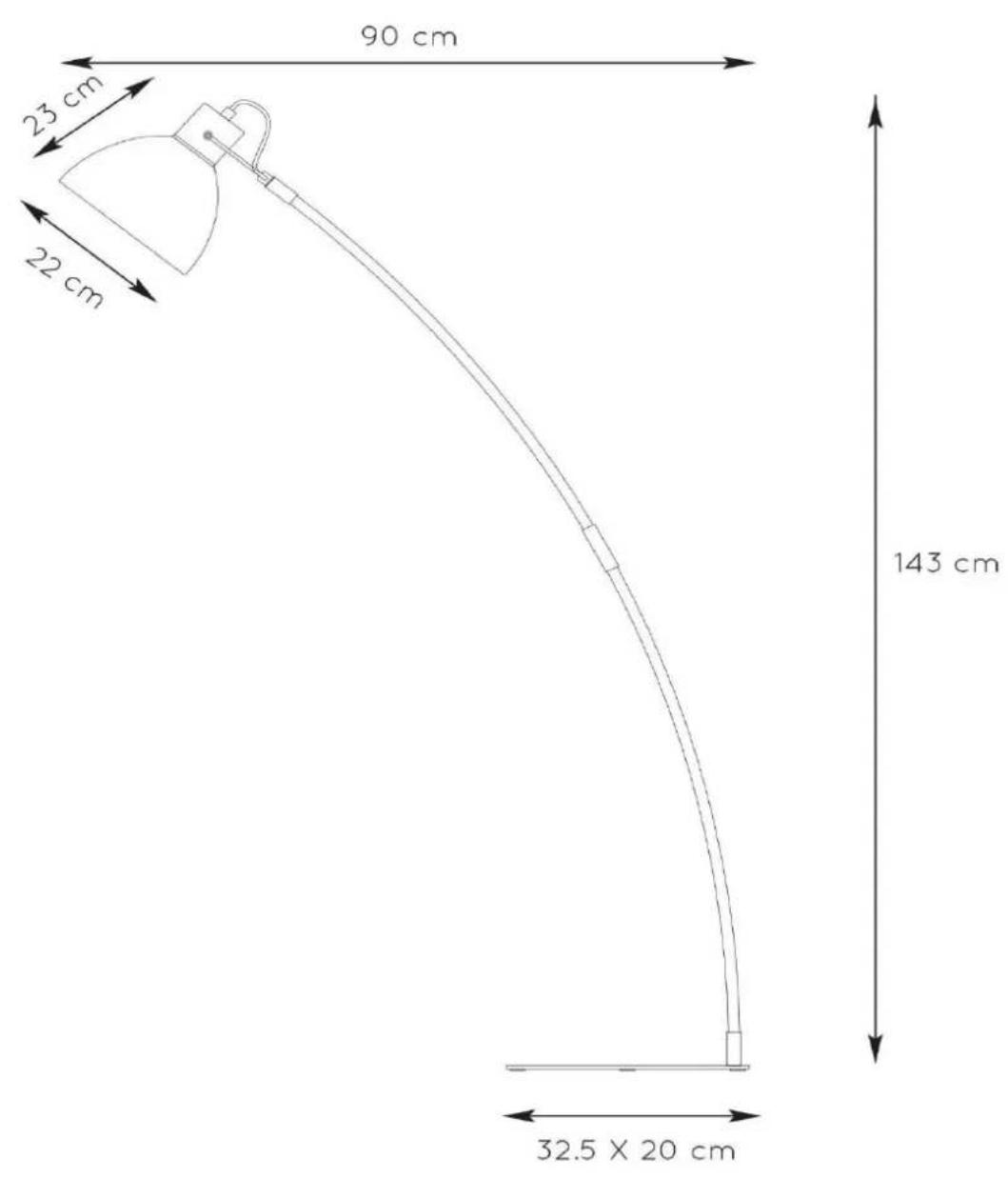

Dimensions LxW xH: 32.5cm × 90cm × 143cm

Main material: Plywood veneer

Color: White and Natural

Style: Scandinavian

Shape: Other

Weight: 4,69kg

Warranty: 2 Years

Specifications

Dimmable: No

Light direction: Downlight

Adjustable in height: Not In Height Adjustable

Directional: Rotatable & Tiltable (360 Degrees)

Cable: Yes, Cable With Plug On Product

Cable length: 200cm

Sensor: Without Sensor

Control: On/Off Switch - In The Cord

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class:1

Number of light sources: 1

Lamp socket: E27

Wattage: 1 × 60W

Power requirements: 220 - 240V 50Hz

CURF

Item number: 03713/01/31

EAN code: 5411212030795

CURF

Item number: 03713/01/31

EAN code: 5411212030795

Veiligheidsinstructures

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

Explanation of the symbols which can appear on the fixture

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.
2. Normal wear and tear, discoloring as a result from normal use.
3. Damage caused by external causes like fire, water, wrong use/ installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
