Brand	Lucide
Model	Waylon 056270130
Product type	Indoor lamp
Electrical category	Category I, II or III depending on model (check the label)
Protection rating	IP20 (protection against finger contact)
Power supply	Mains 220-240 V
Compatible bulb type	Standard, respect the maximum power indicated on the product
Use	Indoor only (unless higher IP rating)
Installation	Must be carried out by a competent person
Material	Not specified (glass and metal probably)
Warranty	2 years from the date of purchase
Maintenance	Clean with a dry cloth, do not use liquid products
Safety	Turn off power before installation or maintenance; respect minimum distances from flammable objects
Spare parts	Standard bulbs; power cord replaceable only by the manufacturer or a qualified electrician
Glass replacement	Protective glass must be replaced immediately if broken
Bathroom compatibility	No, unless the IP rating allows it (check the label)
Recycling	Do not dispose of with household waste; take to a municipal collection point

Frequently Asked Questions - Waylon 056270130 Lucide

Which bulb to use with the Lucide Waylon 056270130 lamp?

Use a standard bulb respecting the maximum power indicated on the product. Ensure the bulb is compatible with the base and voltage (220-240 V).

How to install the Waylon lamp?

Installation must be carried out by a competent person. Turn off the power supply before starting. Follow the instructions in the manual and respect safety distances.

Can I install this lamp in a bathroom?

The IP20 protection rating indicates it is designed for dry indoor use. Do not install it in a bathroom unless the IP rating on the product allows it (e.g., IP44).

How to clean the lamp?

Use a dry, soft cloth. Never use water, liquid products, or abrasive cleaners.

What to do if the protective glass is broken?

Replace it immediately with new glass. Do not use the lamp until the glass is replaced.

Does the lamp have a warranty?

Yes, Lucide offers a 2-year warranty against defects in materials and workmanship, from the date of purchase. Broken glass parts are only covered within 14 days of purchase.

What to do if the power cord is damaged?

The cable must be replaced exclusively by the manufacturer, its repair agent, or a qualified electrician to avoid any danger.

What is the minimum distance to respect between the bulb and flammable objects?

Respect the minimum distance indicated on the lamp (usually mentioned on a sticker). In the absence of indication, keep a safety distance of at least 30 cm.

Can I use this lamp outdoors?

No, unless the IP rating allows it (IP20 is indoor only). For outdoor use, choose a lamp with a suitable IP rating.

How to recycle the lamp at end of life?

Do not throw it away with household waste. Deposit it at a municipal collection point for electrical and electronic waste.

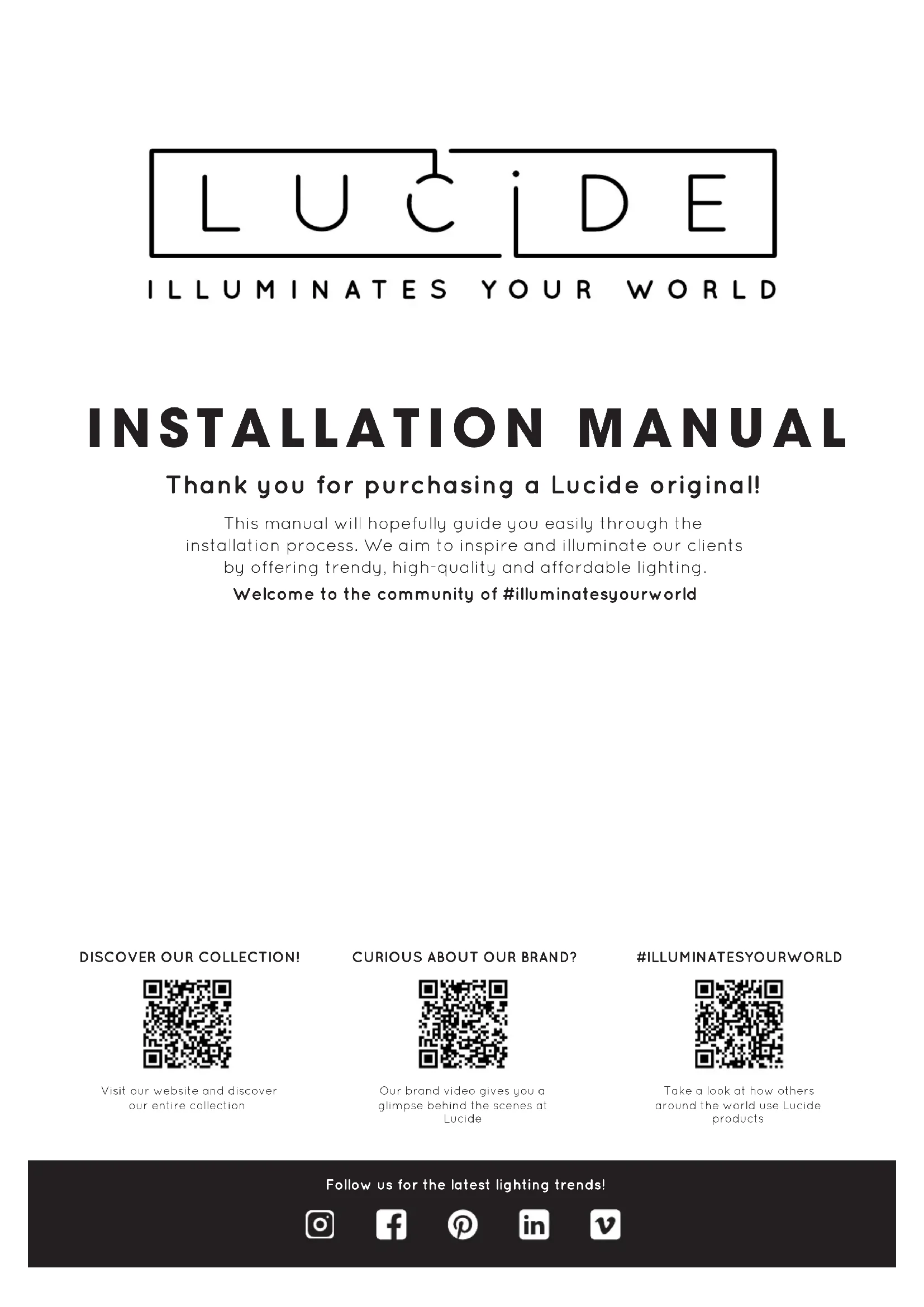

USER MANUAL Waylon 056270130 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCIDE

Item number: 05627/01/30

EAN code: 5411212051097

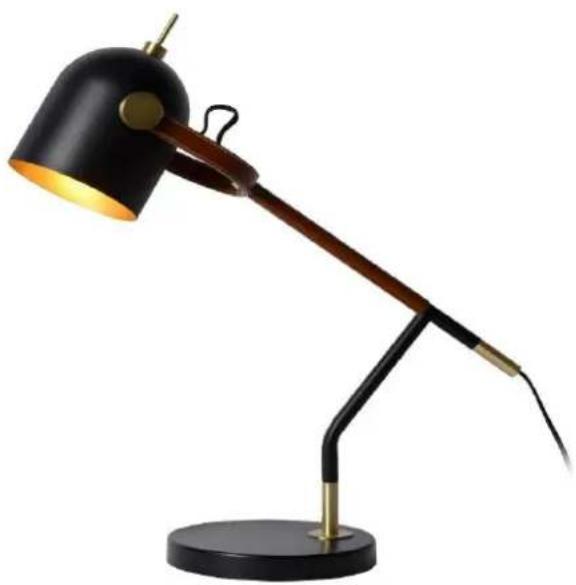

WAYLON

RECOMMENDED LUCIDE LIGHT SOURCE

49080/07/60

Dimmable: No

Included: No

General

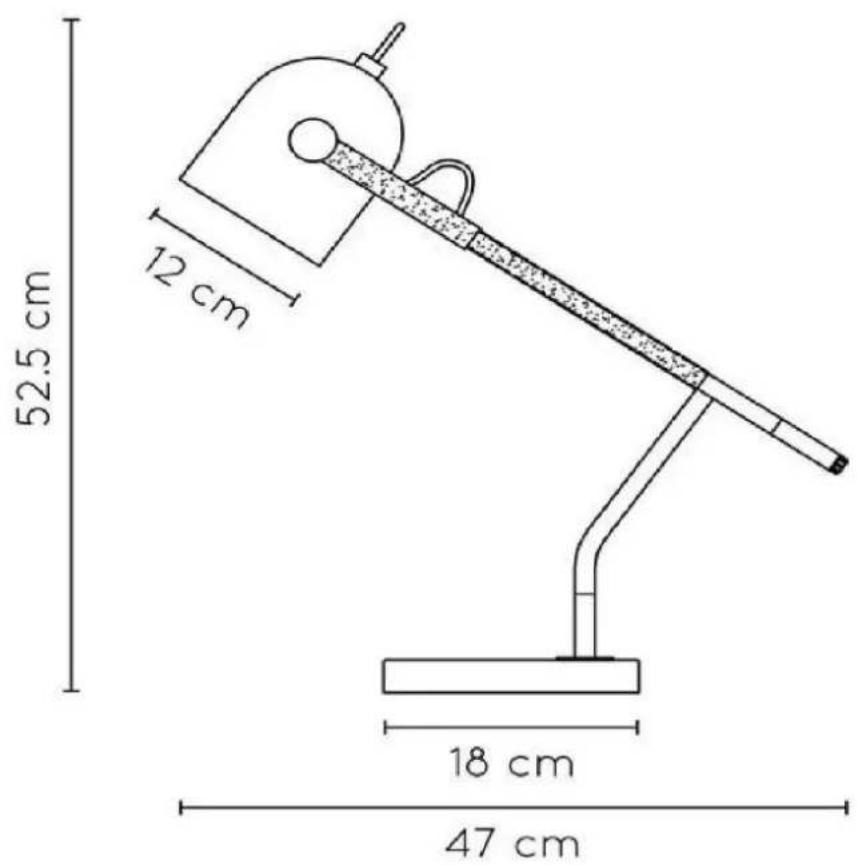

Dimensions LxW xH: 18cm x 47cm x 52.5cm

Main material: Metal

Color: Black and Brown

Style: Vintage

Shape: Half-Round

Weight: 0.47kg

Warranty: 2 Years

Specifications

Dimmable: No

Light direction: Downlight

Adjustable in height: Not In Height Adjustable

Directional: Tiltable (Vertical)

Cable: Yes, Cable With Plug On Product

Cable length: 190 cm

Sensor: Without Sensor

Control: On/Off Switch - In The Cord

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 2

Number of light sources: 1

Lamp socket: E27

Wattage: 1 × 25W

Power requirements: 220 - 240V 50Hz

WAYLON

Item number: 05627/01/30

EAN code: 5411212051097

WAYLON

Item number: 05627/01/30

EAN code: 5411212051097

Veiligheidsinstructures

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

Explanation of the symbols which can appear on the fixture

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.
2. Normal wear and tear, discoloring as a result from normal use.
3. Damage caused by external causes like fire, water, wrong use/ installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
