Brand	Lucide
Model	Nordic 065028131
Product type	Floor lamp
Style	Scandinavian
Main material	Metal and glass
Height	150 cm
Lampshade diameter	30 cm
Weight	2 kg
Power supply	230 V, 50 Hz
Bulb type	E27
Max bulb wattage	40 W
Protection class	II (double insulation)
Ingress protection	IP20
Usage	Dry indoor
Features	Ambient lighting, switch on cable
Maintenance and cleaning	Wipe with a soft dry cloth, do not use abrasive products
Safety	Unplug before maintenance, maintain minimum distance from flammable materials
Spare parts	Lampshade, socket, power cord
Repairability	Bulb replacement by user, other interventions by a qualified electrician
Warranty	2 years against material and workmanship defects
Certification	CE

Frequently Asked Questions - Nordic 065028131 Lucide

How to install the Nordic 065028131 lamp?

Before any installation, turn off the power supply. Connect the wires according to the diagram: phase (L), neutral (N) and earth (if present). For a class II lamp, the earth wire is not necessary. Fix the base to the floor and screw on the lampshade.

What type of bulb should I use?

Use a bulb with E27 base with a maximum power of 40 W. You can choose an LED, halogen or incandescent bulb, respecting the maximum power.

Can I use this lamp in a bathroom?

No, this lamp has an ingress protection rating of IP20 and is designed for dry indoor use only. It is not suitable for damp rooms like bathrooms.

How to clean the lamp?

Unplug the lamp before cleaning. Use a soft dry cloth to dust the lampshade and base. Do not use chemical or abrasive products.

What to do if the bulb does not light up?

First check that the bulb is screwed in correctly and working. Make sure the switch is in the on position. If the problem persists, test the electrical outlet. If there is an internal defect, contact an electrician.

Is the lamp dimmable?

It depends on the bulb used. If you install a dimmer-compatible bulb, you can use an external dimmer. The lamp itself does not have an integrated dimmer.

What is the height of the lamp?

The total height of the Nordic 065028131 lamp is approximately 150 cm. This may vary slightly due to manufacturing tolerances.

Is the lamp supplied with a bulb?

No, the bulb is not included. You need to purchase an E27 bulb with a maximum power of 40 W separately.

How to claim under warranty?

To make a claim under the 2-year warranty, present the original purchase receipt and the defective device to your retailer. The warranty covers material and workmanship defects, but not glass parts broken after 14 days of purchase.

Can I replace the lampshade?

Yes, the lampshade is a spare part. You can order a replacement lampshade from the manufacturer or an authorized dealer. Make sure it is compatible with the Nordic 065028131 model.

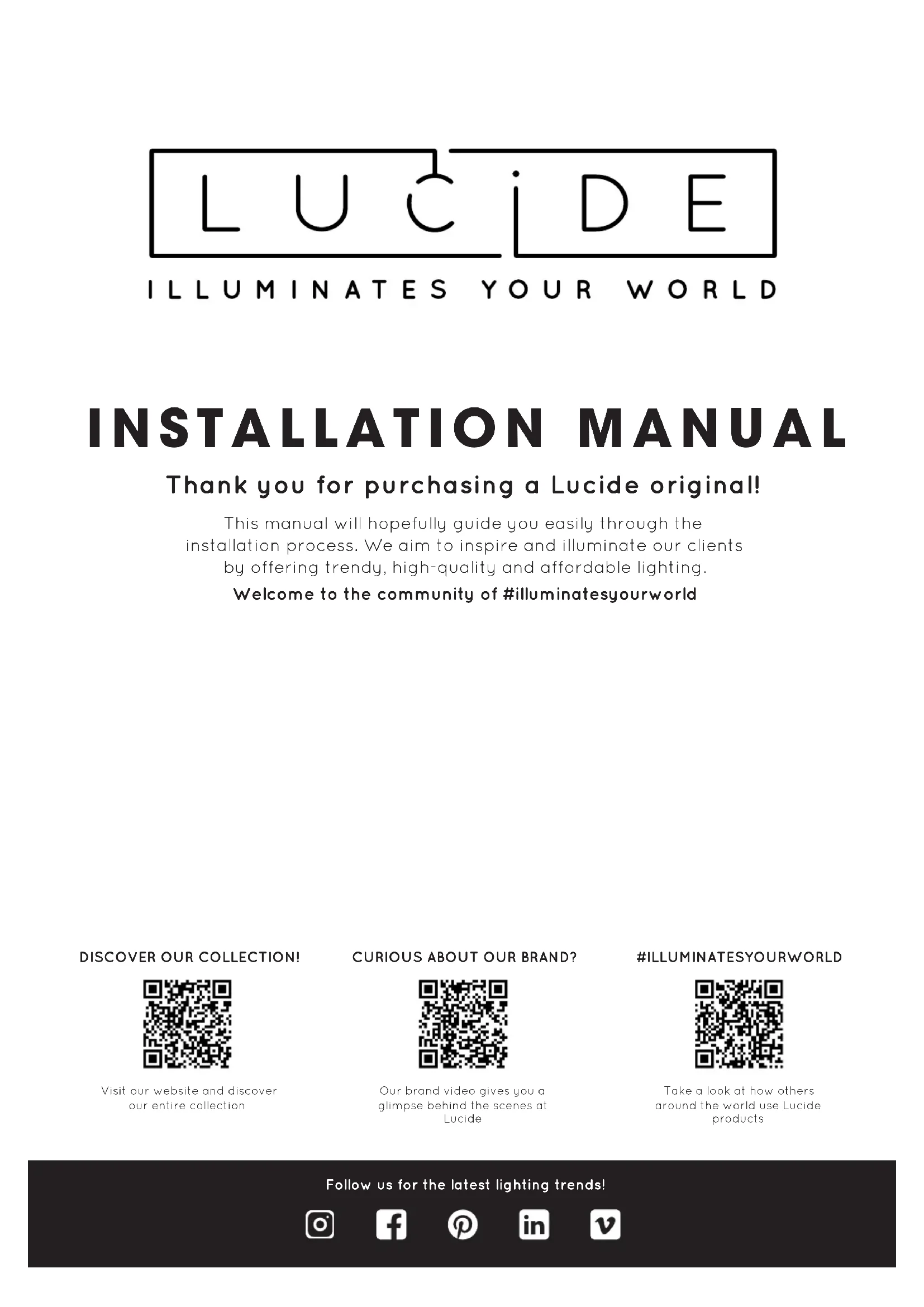

USER MANUAL Nordic 065028131 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCIDE

Item number: 06502/81/31
EAN code: 5411212060839

NORDIC

RECOMMENDED LUCIDE LIGHT SOURCE

49022/04/60

Dimmable: Yes

Included: No

General

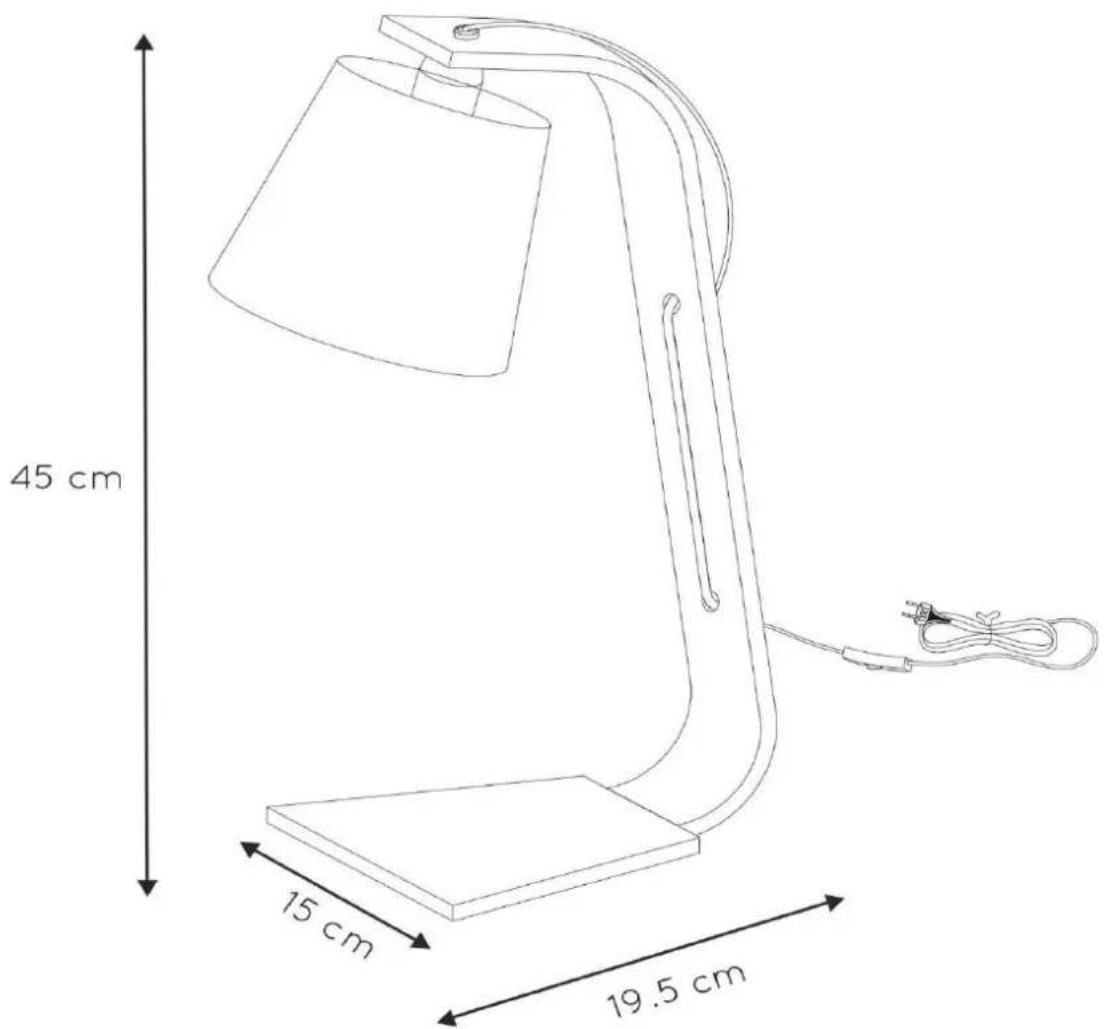

Dimensions LxW xH: 15,5cm x 19,5cm x 45cm
Main material: Plywood veneer
Color: White and Natural
Style: Scandinavian
Shape: Other
Weight: 0,50kg
Warranty: 2 Years

Specifications

Dimmable: No

Light direction: Around (Diffuse)

Adjustable in height: Not In Height Adjustable

Directional: Not Directional

Cable: Yes, Cable With Plug On Product

Cable length: 180 cm

Sensor: Without Sensor

Control: On/Off Switch - In The Cord

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 2

Number of light sources: 1

Lamp socket: E14

Wattage: 1 × 40W

Power requirements: 220 - 240V 50Hz

NORDIC

Item number: 06502/81/31

EAN code: 5411212060839

LUCIDE

NORDIC

Item number: 06502/81/31

EAN code: 5411212060839

Veiligheidsinstructures

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

Explanation of the symbols which can appear on the fixture

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.
2. Normal wear and tear, discoloring as a result from normal use.
3. Damage caused by external causes like fire, water, wrong use/ installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
