Product type	Lamp
Brand	Lucide
Model	Moda 085008136
Category	Indoor lamp
Power supply	Mains 220-240 V ~50 Hz
Protection rating	IP20
Warranty	2 years
Warranty claim	Present the device and original purchase receipt
Replacement of glass parts	Within 14 days after purchase
Safety	Unplug before any intervention
Installation	Entrust to a qualified electrician
Use	Indoor only (except bathroom if IP suitable)
Cleaning	Wipe with a dry cloth
Bulb	Use the type and maximum power indicated
Safety distance	Respect the minimum distance indicated on the lamp
Disposal	Separate collection of WEEE

Frequently Asked Questions - Moda 085008136 Lucide

How to install the lamp?

Installation must be carried out by a competent person in accordance with electrical regulations. Turn off the power before starting.

What type of bulb to use?

Use the correct bulb respecting the type and maximum power indicated on the product.

Can the lamp be used in a bathroom?

Yes, if the IP protection rating allows it. Check the lamp's IP; IP20 is not suitable for wet areas.

What to do if the glass is broken?

Damaged protective glass must be replaced immediately. The warranty covers broken glass only within 14 days of purchase.

How to clean the lamp?

Wipe with a dry cloth. Do not use water or flammable products.

Is the lamp compatible with a dimmer?

The instructions do not specify compatibility with a dimmer. Check the indications on the packaging or contact the manufacturer.

What is the warranty period?

The warranty is 2 years from the date of purchase by the end user, subject to correct installation and maintenance.

How to claim warranty?

The customer must return the defective devices/parts and the original purchase receipt.

What to do if the lamp does not light up?

Check the power supply, bulb, and connections. If the problem persists, contact a qualified electrician.

Can the lamp be used outdoors?

No, this lamp is designed for indoor use only (unless the IP allows it). Do not expose to water or humidity.

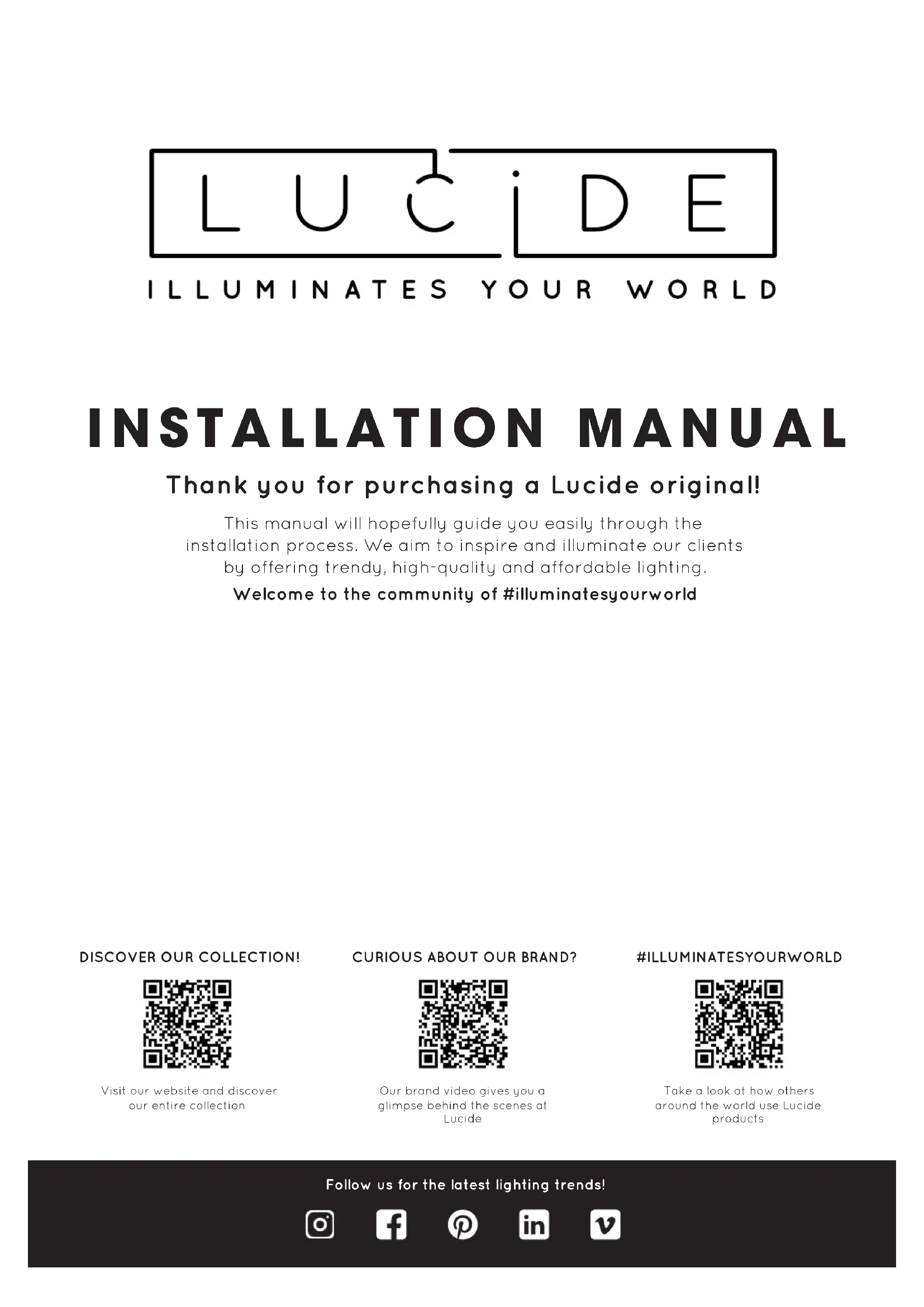

USER MANUAL Moda 085008136 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCIDE

Item number: 08500/81/36

EAN code: 5411212082008

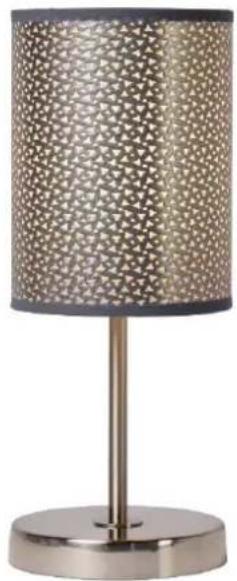

MODA

RECOMMENDED LUCIDE LIGHT SOURCE

49020/05/60

Dimmable: Yes

Included: No

General

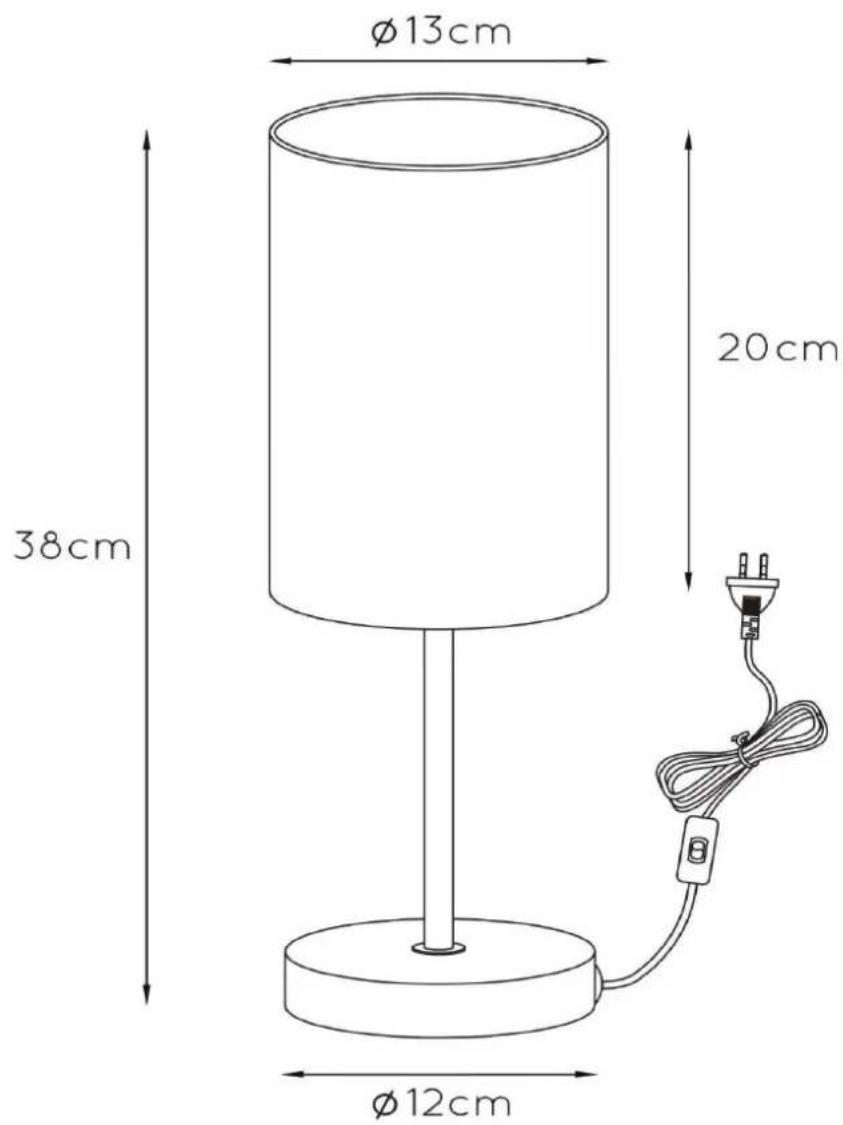

Dimensions LxW xH: 13cm x 13cm x 38cm

Main material: Metal

Color: Grey and Satin Chrome

Style: Vintage

Shape: Round

Weight: 0.65kg

Warranty: 2 Years

Specifications

Dimmable: No

Light direction: Around (Diffuse)

Adjustable in height: Not In Height Adjustable

Directional: Not Directional

Cable: Yes, Cable With Plug On Product

Cable length: 150 cm

Sensor: Without Sensor

Control: On/Off Switch - In The Cord

Power supply: Adapter/Power Grid

IP-class: 20

Electric class: 2

Number of light sources: 1

Lamp socket: E27

Wattage: 1 × 60W

Power requirements: 220 - 240V 50Hz

MODA

Item number: 08500/81/36

EAN code: 5411212082008

MODA

Item number: 08500/81/36

EAN code: 5411212082008

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.
2. Normal wear and tear, discoloring as a result from normal use.
3. Damage caused by external causes like fire, water, wrong use/ installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.

Veiligheidsinstructures

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

Explanation of the symbols which can appear on the fixture

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

In case of doubts, please contact a qualified electrician.
