Features	Details
Product type	Dishwasher
Capacity	14 place settings
Energy class	A++
Noise level	46 dB
Washing programs	6 programs, including eco, quick and intensive
Special features	Delayed start, adjustable upper basket
Dimensions (W x D x H)	60 x 60 x 85 cm
Weight	45 kg
Water consumption	9 liters per cycle
Maintenance	Filters to be cleaned regularly, descaling recommended
Safety	Anti-overflow safety system
Warranty	2 years

Frequently Asked Questions - LI 460.CHA HOTPOINT-ARISTON

Why won\u0027t my HOTPOINT ARISTON LI 460.CHA dishwasher start?

Check if the appliance is properly plugged into an electrical outlet and if the circuit breaker hasn\u0027t tripped. Also make sure the door is properly closed.

The dishwasher isn\u0027t filling with water. What should I do?

Check that the water supply tap is open. Also ensure the inlet hose isn\u0027t kinked or blocked.

Why is my dishwasher making a strange noise during the cycle?

An unusual noise may be caused by objects stuck in the spray arm or loose parts. Check inside for any items that could obstruct operation.

How do I know if my dishwasher needs maintenance?

Signs that maintenance is needed include food residues on dishes after washing, unpleasant odors, or error codes displayed on the control panel.

My dishwasher isn\u0027t heating the water. What should I do?

Check that the heating element is working properly. If the water isn\u0027t heating, it may be necessary to call a technician for repair.

How do I clean my dishwasher\u0027s filter?

Remove the filter located at the bottom of the dishwasher, rinse it under running water to remove residues, and replace it once clean.

Why is there water left at the bottom of my dishwasher after a cycle?

This may be due to a clogged filter or a blocked drain hose. Check and clean the filter as well as the drain hose.

What washing products should I use with the HOTPOINT ARISTON LI 460.CHA dishwasher?

Use detergents specially designed for dishwashers. Avoid using regular dish soap.

How do I resolve an error code displayed on the control panel?

Consult the user manual for the meaning of the error code. Follow the instructions to resolve it or contact customer service if necessary.

Can I use my dishwasher outside the recommended temperature range?

No, it is recommended not to use the dishwasher outside the specified temperature range as this may affect performance and cause damage.

USER MANUAL LI 460.CHA HOTPOINT-ARISTON

Italiano, 1ItaEngksh,13

Français, 25

Deutsch, 37

Portuges, 61

Русский, 73

LI 460

Sommario

Installazione, 2-3

Hotpoint ARISTON

Technical diagram showing three labeled pipe fittings (A, B, C) and a device with internal components, likely illustrating a piping or ventilation system.

Labeled diagram of a refrigerator interior with numbered compartments for identification

Line drawing of a wireframe shopping cart with wheels and a door (no text or symbols)

Three technical line drawings of a multi-level storage or warehouse unit (no text or symbols)

carlicator control panel 3 4

3D wire mesh structure with an upward arrow overlay (no text or symbols)

Two technical diagrams showing internal components of a device, possibly a motor or fan assembly (no text or symbols present)

Two technical line drawings of internal components, one showing a multi-layered structure with internal channels and the other showing a multi-layered device (no text or symbols present)

Diagram of a car air conditioner unit with labeled parts H, F, G and a handle mechanism

BRILLANTANTE*:

Simple line drawing of a mechanical component with no text or symbols

Diagram of a mechanical assembly with a knob, base plate, and workpiece (no text or labels)

Technical line drawing of three mechanical components labeled A, B, and C (no text or symbols beyond labels)

Positioning and levelling

Connecting the water and electricity supplies

Technical data

Description of the appliance, 16

Overall view

Control panel

Loading the racks, 17

Lower rack

Cutlery basket

Upper rack

Start-up and use, 18

Starting the dishwasher

Loading the detergent

Washing options*

LI 460

Wash cycles, 19

Wash cycle table

Rinse aid and refined salt, 20

Loading the rinse aid

Loading the refined salt

Care and maintenance, 21

Shutting off the water and electricity supplies

Cleaning the dishwasher

Preventing unpleasant odours

Cleaning the sprayer arms

Cleaning the filters

Leaving the machine unused for extended periods

Precautions and advice, 22

General safety

Disposal

Saving energy and respecting the environment

Troubleshooting, 23

Assistance, 24

Before calling for Assistance

Hotpoint ARISTON

Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.
Please read this instruction manual carefully: it contains important information regarding the safe installation, use and maintenance of the appliance.
If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

Positioning and levelling

1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.
2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent cabinets or even with the wall. This appliance can also be recessed under a single worktop* (see the Assembly instruction sheet).
3. Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position (the angle of inclination must not exceed 2 degrees). If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.
4. Adjust the height of the rear feet from the front of the appliance*: use a screwdriver to tighten or loosen the screws on the lower part of the dishwasher.

Connecting the water and electricity supplies

A Connection to the water and electricity supplies should only be performed by a qualified technician.
The dishwasher should not stand on top of the water hoses or the electricity supply cable.
The appliance must be connected to the water supply network using new piping.

- Do not use old piping.

The water inlet (A) and outlet (B) hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation (see figure).

A 86 45 120 112 144 150 112 B

Connecting the water inlet hose

• To a suitable cold water connection point: before attaching the hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a 34 gas threaded connection.
• To a suitable hot water connection point: your dishwasher may be provided with hot water from the mains supply (if you have a central heating system with radiators) provided that it does not exceed a temperature of 60^ .

Screw the hose to the tap as described for connection to a cold water supply.

If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance).
The water pressure must be within the values indicated in the Technical data table (see below).
The hose should not be bent or compressed.

Anti-flooding protection

To ensure floods do not occur, the dishwasher:

• is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.
• is provided with a Water Stop* safety device, in other words it has a water inlet hose that consists of a transparent hose on the outside and a red hose on the inside: both the hoses can withstand extremely high pressure. If the internal hose breaks, the external hose becomes a bright red colour and carries the water instead, thus avoiding any leakage.

It is very important to check the external hose regularly: if it is a bright red colour, it must be replaced by an authorised technician as soon as possible (see Assistance).

Under no circumstance should the water inlet hose be cut as it contains live electrical parts.

* Only available in selected models.

Connecting the water outlet hose

Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm. Alternatively, rest it over a sink or tub; the free end of the hose should not remain immersed in water.

Technical diagram showing three labeled components: a curved pipe with asterisk, a U-shaped tube with arrow labeled A, and a connected air conditioner unit.

The special plastic elbow* makes it easier to find the best layout: fix the elbow to the wall securely in order to prevent the outlet hose from moving and spilling the dirty water.

The part of the hose marked with the letter A should be between 40 and 100 cm above the ground (see

figure).

We advise against the use of hose extensions.

Electrical connection

Before inserting the plug into the electrical socket, make sure that:

• the socket is earthed and complies with current regulations;
• the socket can withstand the maximum load of the appliance, which is indicated on the data plate located on the inside of the door (see Description of the appliance);
• the power supply voltage falls within the values indicated on the data plate on the inside of the door;
• the socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug (see Assistance); do not use extension cables or multiple sockets.

Once the appliance has been installed, the power supply cable, the electrical plug and socket should remain accessible.

If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards. (See Assistance)

The cable should not be bent or compressed.

The Company shall not be held responsible for any incidents that occur if these regulations are not observed.

Advice regarding the first wash cycle

After the appliance has been installed, immediately before running the first wash cycle, completely fill the salt dispenser with water and add approximately 2 kg of salt (see Rinse aid and refined salt). The water may overflow: this is normal and is not a cause for concern. It is also normal that the LOW SALT* indicator light continues to flash for a few cycles after the salt has been loaded.

Anti-condensation strip\*

After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation that may form.

Technical data

Dimensions	width 44.5 cmheight 82 cmdepth 57 cm
Capacity	9 standard place-settings
Water supply pressure	0,05 ÷ 1MPa (0.5 ÷ 10 bar)4.3 psi – 145 psi
Power supply voltage	See appliance data plate
Total absorbed power	See appliance data plate
Fuse	See appliance data plate
	This dishwasher conforms to the following European Community Directives:-73/23/EEC dated 19/02/73(Low Voltage) and subsequent modifications-89/336/EEC dated 03/05/89(Electromagnetic Compatibility)and subsequent modifications-97/17/EC (Labelling)-2002/96/ CE (Waste Electrical and Electronic Equipment WEEE)

* Only available in selected models.

Description of the appliance

EN

Overall view

Labeled diagram of an open refrigerator interior with numbered compartments and internal components

1. Upper rack
2. Upper sprayer arm
3. Tip-up compartments
4. Rack height adjuster
5. Lower rack
6. Lower sprayer arm
7. Cutlery basket
8. Washing filter
9. Salt dispenser
10. Detergent and rinse aid dispensers
11. Data plate
12. Control panel***

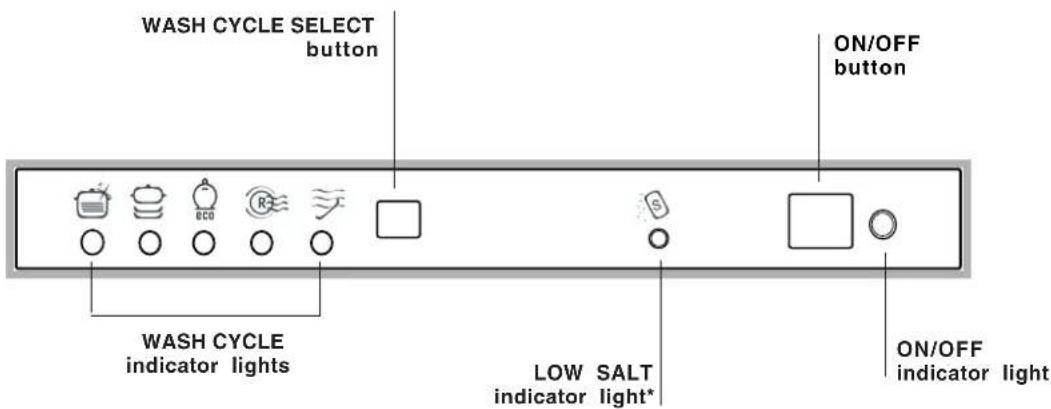

Control panel

WASH CYCLE SELECT button ON/OFF button WASH CYCLE indicator lights LOW SALT indicator light* ON/OFF indicator light

*** Only in completely built-in models.

* Only available in selected models.

Before loading the racks, remove all food residues from the crockery and empty liquids from glasses and cups. After loading the appliance, check that the sprayer arms can rotate freely.

Lower rack

The lower rack can hold pans, lids, plates, salad bowls, cutlery, etc. as seen in the Loading examples. Plates and large covers should be placed at the sides of the rack, ensuring that they do not block the rotation of the upper sprayer arm.

Line drawing of a wireframe shopping cart with wheels and a door (no text or symbols)

Some dishwasher models are fitted with tip-up sections, which can be used in a vertical position when arranging plates or in a horizontal position when arranging pans and salad bowls.

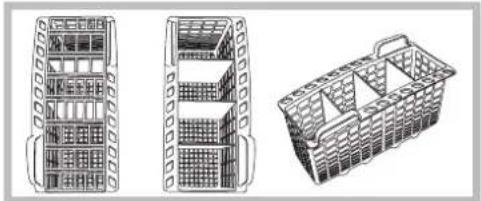

Cutlery basket

The type of cutlery basket may vary according to the dishwasher model.

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards, or they must be positioned horizontally in the tip-up compartments on the upper rack.

Three technical line drawings of a multi-tiered storage or warehouse unit (no text or symbols)

The grille element* may be positioned in the basket to separate the cutlery: place the pieces of cutlery into the appropriate compartments with the handles at the bottom.

Upper rack

Load this rack with delicate and lightweight crockery: glasses, tea and coffee cups, saucers, small salad bowls, saucepans and small saucepans that are not too soiled, using the Loading examples as a guide.

• Lightweight crockery: position these dishes so that they will not be moved by the jets of water.
• Mugs and cups: place these on the tip-up compartments**.
• Long sharp knives and serving utensils: place these on the tip-up compartments**.

Adjusting the height of the upper rack

In order to make it easier to arrange the crockery, the upper rack may be moved to a higher or lower level.

The height of the upper rack should ideally be adjusted WHEN THE RACK IS EMPTY.

Never lift or lower the rack on one side only.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

Open the left and right guide rail stops and pull out the rack; position it higher or lower as required, slide it along the guide rails until the front wheels are in place and close the stops (see figure).

3D wire mesh structure with a black arrow pointing upward, no visible text or symbols

If the rack is equipped with the click clack handles* (see figure), pull them upwards or downwards to adjust the height.

Loading examples for the upper rack

Two technical line drawings of a mechanical component with circular and rectangular features (no text or symbols)

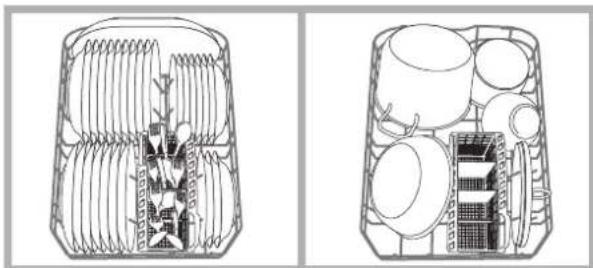

Loading examples for the lower rack

Two technical line drawings of a mechanical or electrical component cross-section, showing internal components and structural details (no text or symbols)

Items that should not be washed in the dishwasher

• Wooden items, objects with wooden or horn handles or glued-on parts.
• Items made from aluminium, copper, brass, pewter or tin.
• Items made from plastic that is not heat-resistant.
• Antique or hand-painted porcelain.
• Antique silver. Silver that is not antique may, however, be washed in the dishwasher using a delicate wash cycle, provided that it does not come into contact with other metals.

We recommend the use of crockery which is dishwasher safe.

* Only available in selected models.
** The number and position may vary.

Starting the dishwasher

1. Turn the water tap on.
2. Open the door and press the ON/OFF button: the indicator light will illuminate.
3. Measure out the detergent (see below).
4. Load the racks (see Loading the racks).
5. Select the programme by pressing the WASH CYCLE SELECT button; the corresponding indicator light will illuminate.
6. Select the wash options (see below).
7. Start the wash cycle by shutting the door: the machine will emit a confirmation beep.
8. At the end of the cycle two short beeps will sound and the WASH CYCLE indicator light will flash. Open the door, switch off the appliance by pressing the ON/OFF button, shut off the water tap and unplug the appliance from the electricity socket.
9. Wait for a few minutes before removing the crockery, in order to avoid burns. Unload the racks, beginning with the lower level.

Modifying a wash cycle in progress

If a mistake was made during the wash cycle selection process it is possible to change the cycle, provided that it has only just begun: open the door, taking care to avoid the escaping steam, and press the WASH CYCLE SELECT button, holding it for 4 seconds. After one long beep and three short beeps, the WASH CYCLE indicator light will switch off: select the new wash cycle and start the programme by shutting the door.

Adding extra crockery

Open the door, taking care to avoid the escaping steam, and place the crockery inside the dishwasher. Close the door: the cycle starts from the point at which it was interrupted.

Accidental interruptions

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or the electricity supply is restored.

Loading the detergent

A successful wash also depends on the correct amount of detergent being used, as recommended by the manufacturer. Exceeding the recommended amount does not result in a more effective wash and pollutes the environment.

Only use detergent which has been specifically designed for dishwashers.

DO NOT USE washing up liquid.

To obtain the best results from each washing and drying cycle, powder detergent, rinse aid liquid and salt should be used.

compartment Ac/aspalmentAgent compartment Bc/repaxhentBrgent

D A B C

1. Open cover C by pressing button D.
2. Pour in the detergent after consulting the Wash cycle table:
   • for powder detergent use compartments A and B
   • for tablets, when the cycle requires 1 tablet, place it in compartment A and close the cover; when it requires 2, place the second

tablet at the bottom of the appliance.

1. Remove detergent residues from the edges of the compartment and close the cover until it clicks.

Ariston dishwashers are fitted with an automatic filter cleaning system that may increase the cycle duration.
If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.
The number and type of wash cycles and options may vary depending on the dishwasher model.

Wash cycle selection instructions	Wash cycle	Detergent (A) = compartment A (B) = compartment B			Pre-wash	Drying	Wash cycle duration (tolerance ±10%) Hrs. Min.
		Powder	Liquid	Tablets
Extremely soiled dishes and pans (not to be used for delicate items).	Super Wash	24 g (A) 3 g (B)	24 ml (A) 3 ml (B)	No	Yes	Yes	200'
Normally soiled pans and dishes. Standard daily wash cycle.	Normal	27 g (A)	27 ml (A) No	No Yes 1:33'
Environmentally-friendly* wash cycle with low energy consumption levels, suitable for pans and dishes.		24 g (A) 3 g (B)	24 ml (A) 3 ml (B)	No	Yes	Yes	225'
Economic and fast wash cycle to be used for lightly soiled dishes. (Run cycle immediately after use.)	Rapid & Dry	20 g (A)	20 ml (A) No	No Yes 0:44'
Preliminary wash cycle for dishes while the load is awaiting completion with the dishes from the next meal. Soak		No	No	No	Yes	No	0:12'

Note

To make it easier to measure out the detergent, it is worth remembering that:

1 tablespoon = 15 grams of powder = approximately 15 ml of liquid

1 teaspoon = 5 grams of powder = approximately 5 ml of liquid

* The Eco wash cycle adheres to the regulation EN-50242. Although it has a longer duration than other wash cycles it uses less energy and is less harmful to the environment.

Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt, or washing up liquid.

If using a multi-functional product it is not necessary to add rinse aid; however, we recommend that you add salt, especially if you live in an area where the water is hard or very hard. If you do not add salt or rinse aid, the LOW SALT* and LOW RINSE AID* indicator lights will flash continuously.

Loading the rinse aid

Rinse aid makes it easier for the crockery to dry, as water runs off surfaces more readily and therefore does not leave streaks or marks.

The rinse aid dispenser should be filled:

• whenever the indicator light (H) signals that it is empty. Illuminated light: add rinse aid; unlit light: there is no shortage of rinse aid in the dispenser.
• when the LOW RINSE AID* indicator light on the panel flashes;

Diagram of a car air conditioner unit with labeled parts H, F, G and a hand holding the fan.

1. Open the dispenser by turning the lid (G) in an anticlockwise direction.
2. Pour in the rinse aid, making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Screw the lid back on.
   NEVER pour the rinse aid directly into the appliance tub.

Adjusting the amount of rinse aid

If you are not completely satisfied with the washing or drying results, you may adjust the quantity of rinse aid used. Use a screwdriver to turn the dosage adjuster to one of the 6 pre-set positions (the default position is set to 4):

• if there are bluish streaks on the crockery, set the adjuster to a lower number (1-3).
• if drops of water remain on the crockery or there are limescale marks present after the cycle has finished, set the adjuster to a higher number (4-6).

If you are using multi-functional tablets and you wish to further improve the drying performance of the appliance, fill the dispenser and set the dosage adjuster to 2.

Loading the refined salt

In order to obtain the best possible results from a wash cycle, make sure that the dispenser is never empty. Refined salt removes limescale from the water, thus avoiding the formation of deposits on crockery. The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:

• when the green float* cannot be seen by simply looking at the cap of the salt dispenser;
• when the LOW SALT* indicator light on the panel flashes;
• if your machine is not equipped with an indicator light or a

green float:

approximately every 30 wash cycles;

Simple line drawing of a cylindrical container with a handle and two protruding rods (no text or symbols)

1. Remove the lower rack and unscrew the cap of the dispenser (in an anti-clockwise direction).
2. For the first wash cycle only: fill the dispenser up to the edges with water.
3. Position the funnel* provided correctly (see figure) and fill the salt

dispenser up to the edges (approximately 2 kg); it is normal for a little water to leak out.

1. Remove the funnel*, wipe away any salt residue from the thread and screw the cap on tightly, so that detergent does not leak into the dispenser during the wash cycle (this could damage the water softening system beyond repair).

When necessary, measure out the salt before a wash cycle so that any saline solution which has leaked out of the salt dispenser is removed.

Adjusting the amount of salt\*

It is possible to adjust the amount of salt used according to the hardness of the water in your area (this information is available from your local water board).

1. Unscrew the dispenser cap.
2. Turn the arrow on the neck of the dispenser (see figure) towards the + or - symbols, using the table below as a guide.

Hardness of the water			Selector knob position	Salt consumption (grams/cycle)	Autonomy (cycles/2 kg)
°dH	°fH	°mmol/l
0 - 10	0 - 17	0 - 17 / 0 /
10 - 25	18 - 44	1.8 - 4.4	-	20	60
25 - 50	45 - 89	4.5 - 8.9	MED	40
>50	>89	>8.9	+	60	25

40

The default setting of the water softening system is +. - If using multi-functional tablets fill the salt dispenser and set the adjuster to -; if the hardness of the water is greater than 60^ fH, set it to +.

* Only available in selected models.

Shutting off the water and electricity supplies

• Turn off the water tap after every wash cycle to avoid leaks.
• Remove the plug from the socket when cleaning the machine and when carrying out maintenance work.

Cleaning the dishwasher

• The external surfaces of the machine and the control panel may be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products.
• Any marks on the appliance interior may be removed using a cloth dampened with water and a little vinegar.

Preventing unpleasant odours

• Always keep the door of the appliance ajar in order to avoid moisture from forming and being trapped inside the machine.
• Clean the seals around the door and detergent dispensers regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause of the formation of unpleasant odours.

Cleaning the sprayer arms

Diagram of a mechanical assembly with a knob, two tools, and a base plate (no text or symbols)

Food residue may become encrusted onto the sprayer arms and block the holes used to spray the water. It is therefore recommended that the arms are checked from time to time and cleaned with a small non-metallic brush.

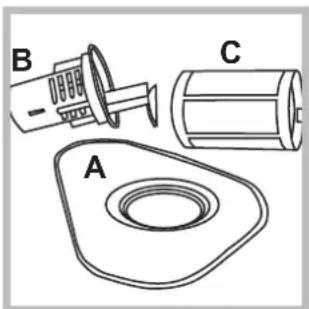

Cleaning the filters

The filters remove food residue from the water used in the wash cycle: to obtain the best results from each wash, they should be cleaned.

Clean the filters regularly.
After cleaning check that the filter assembly has been replaced correctly.
The dishwasher should not be used without filters or when the filter is loose..

1. Remove the filters by pulling the handle upwards.

2. Clean the filters:

C 1 2 A B

• after every wash cycle, remove the largest pieces of residue from semicircular plate A and glass B (these may be removed by pulling the handle) by rinsing them under running water.

B A C

- The entire filter assembly should be cleaned thoroughly once a month: this includes the semicircular plate A, the glass B and the cylinder C (this may be removed by turning it in an anti-clockwise

direction). Use a small non-metallic brush to clean these parts.

1. Reconstruct the filter assembly and replace it in the correct position, following movements 1 and 2 as shown in the figure, until it clicks into place.

Leaving the machine unused for extended periods

• Disconnect the appliance from the electricity supply and shut off the water tap.
• Leave the door of the appliance ajar.
• When you return, run a wash cycle when the dishwasher is empty.

The appliance was designed and manufactured in compliance with current international safety standards. The following information has been provided for safety reasons and should therefore be read carefully.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used by adults only, to wash domestic crockery according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms
• Do not touch the appliance when barefoot.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• The water supply tap must be shut off and the plug should be removed from the electrical socket before cleaning the appliance or carrying out any maintenance work.
• If the appliance breaks down, do not under any circumstances touch the internal parts in an attempt to carry out the repair work yourself.
• Never touch the heating element.
• Do not lean or sit on the open door of the appliance: this may cause the appliance to overturn.
• The door should not be left open as it may create a dangerous obstacle.
• Keep detergent and rinse aid out of reach of children.
• The packaging material should not be used as a toy: it can become a choking or suffocation hazard.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

Saving water and energy

• Only start a wash cycle when the dishwasher is full. While waiting for the dishwasher to be filled, prevent unpleasant odours with the Soak cycle (see Wash Cycles).
• Select a wash cycle that is suited to the type of crockery and to the soil level of the crockery using the Wash cycle table:
• for dishes with a normal soil level, use the Eco wash cycle, which guarantees low energy and water consumption levels.
• if the load is smaller than usual activate the Half load option (see Start-up and use).
• If your electricity supply contract gives details of electricity saving time bands, run wash cycles during the periods when a lower tariff is applied. The Delayed start* button (see Start-up and use) helps you organise the wash cycles accordingly.

Phosphate-free and chlorine-free detergents containing enzymes

• We strongly recommend that you use detergents that do not contain phosphates or chlorine, as these products are harmful to the environment.
- Enzymes provide a particularly effective action at temperatures around 50^ C, and as a result detergents containing enzymes can be used in conjunction with low-temperature wash cycles in order to achieve the same results as a normal 65^ C wash cycle.
- To avoid wasting detergent, use the product in appropriate quantities based on the manufacturer's recommendations, the hardness of the water and the soil level and quantity of the crockery. Even if they are biodegradable, detergents contain substances that may alter the balance of nature.

Whenever the appliance fails to work, check for a solution from the following list before calling for Technical Assistance Centre.

Problem:	Possible causes /
The dishwasher does not start.	· The plug has not been inserted into the electrical socket properly, or there is no power in the house.· The dishwasher door has not been shut properly.· A delayed start has been programmed (see Start-up and use).
No water drains out from the dishwasher.	· The dishwasher cycle has not yet finished.· The water inlet hose is bent (see Installation).· The drain duct is blocked.· The filter is clogged up with food residues (see Care and maintenance).
The dishwasher makes excessive noise.	· The dishes are rattling against each other or against the sprayer arms.
The dishes and glasses are covered in a white film or limescale deposits.	· The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt).· The lid on the salt dispenser is not closed properly.· The rinse aid has been used up or the dosage is too low.· The crockery is made from non-stick material.
The dishes and glasses are streaked or have a bluish tinge.	· The rinse aid dosage is too high (see Rinse aid and salt).
The crockery has not been dried properly.	· The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).· The rinse aid dispenser setting is not high enough.· A wash cycle without a drying programme has been selected.
The dishes are not clean.	· The racks are overloaded (see Loading the racks).· The crockery has not been arranged well.· The sprayer arms cannot move freely.· The wash cycle is too gentle (see Wash cycles).· An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use).· The lid on the rinse aid compartment has not been shut correctly.· The filter is dirty or blocked (see Care and maintenance).· The refined salt level is low (see Rinse aid and salt).
The dishwasher does not take any water in/Tap shut-off alarm.(several short beeps are emitted)* Only available in selected models.(the second and third WASH CYCLE indicator lights from the right flash).	· There is no water in the mains supply.· The water inlet hose is bent (see Installation).· Turn on the tap and the appliance will start after a few minutes.· The appliance lock has been activated because no action was taken when the beeps sounded.* Switch off the machine using the ON/OFF button, turn on the tap and switch the machine back on after 20 seconds by pressing the same button. Re-programme the machine and restart the wash cycle.
Foam/Blocked filter alarm(the second and fourth WASH CYCLE indicator lights from the right flash).	· Switch off the appliance by pressing the ON/OFF button.· There is an excess of foam inside the machine.· A detergent which is not suitable for use in the dishwasher has been used;· The lid on the rinse aid compartment has not been shut correctly.· Remove any food residues from the filters (see Care and maintenance). Replace the filter assembly correctly and switch the machine back on by pressing the ON/OFF button. Re-programme the machine and restart the wash cycle.
Water intake solenoid valve malfunction alarm(the third WASH CYCLE indicator light from the right flashes).	· Switch off the appliance by pressing the ON/OFF button and switch it back on after a minute. If the alarm continues, shut off the water tap to eliminate the risk of flooding, remove the plug from the electrical socket and contact Assistance.

Before calling for Assistance:

• Check whether you can solve the problem on your own (see Troubleshooting);
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre on the telephone number provided on the guarantee certificate.

Always request the assistance of authorised servicemen.

Notify the operator of:

• the type of problem.
  • the appliance model (Mod.).
  • the serial number (S/N).

This information can be found on the data plate situated on the internal edge of the stainless steel door (see Description of the appliance).

FR

Français, 25

LI 460

Sommaire

Installation, 26-27

Technical diagram showing pipe fittings and a device with labeled components A and B, including a warning symbol.

Labeled diagram of a refrigerator interior with numbered components for identification

Line drawing of a multi-level wireframe shopping cart (no text or symbols)

Three technical line drawings of a multi-tiered storage or packing unit (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Diagram of a reinforced concrete structure with rebar grid and upward arrow (no text or symbols)

Two technical diagrams showing internal mechanical components with no visible text or symbols

Two technical line drawings of a mechanical or electrical component cross-section, showing internal components and housing (no text or symbols)

Diagram of a car air conditioner unit with labeled parts H, F, G and a hand holding a tool

Simple line drawing of a cylindrical container with a side outlet and a protruding rod (no text or symbols)

Simple line drawing of a mechanical device with a knob and base components (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts A, B, and C (no text or symbols beyond labels)

Technical line drawing of a washing machine with hoses and a control panel (no text or symbols)

Labeled diagram of an electronic device interior with numbered components for identification

Isometric wireframe model of a multi-level shopping cart (no text or symbols)

Technical line drawings of three different plastic crates (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

3D wire mesh structure with an arrow pointing to a structural element (no text or symbols)

Technical line drawing of a mechanical assembly with multiple circular components and a central handle (no text or labels)

Top-down schematic of a mechanical component with multiple circular components and a meshed base (no text or symbols)

Cross-sectional diagram of a mechanical component with internal channels and internal structures (no text or symbols)

Technical line drawing of a mechanical assembly with multiple circular components and a central housing (no text or symbols)

Diagram of a car air conditioner system with labeled parts H, F, and G

Simple line drawing of a cylindrical container with a handle and two protruding rods (no text or symbols)

Simple line drawing of a mechanical setup with a lever and base components (no text or symbols)

Technical line drawing of three mechanical components labeled A, B, and C (no text or symbols beyond labels)

Technical diagram showing three labeled pipe fittings (A, B, C) with a separate schematic below illustrating the internal structure.

Labeled diagram of a refrigerator interior with numbered components for identification

Line drawing of a wireframe shopping cart with wheels and a small door (no text or symbols)

Three technical line drawings of a multi-tiered storage unit (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

3D wire mesh structure with an arrow pointing to a structural element (no text or symbols)

Technical line drawing of a mechanical assembly with multiple circular components and internal gears (no text or labels)

Technical line drawing of a mechanical component with multiple circular holes and threaded surfaces (no text or symbols)

Cross-sectional diagram of a mechanical component with internal channels and internal structure (no text or symbols)

Top-down line drawing of a multi-tiered storage unit with circular and rectangular components (no text or symbols)

Diagram of a car air conditioner unit with labeled parts H, F, G and a hand holding a valve

Simple line drawing of a cylindrical container with a handle and a spout, no text or symbols present.

Technical diagram showing pipe fittings and a control unit with labeled components A and B

Labeled diagram of a refrigerator interior with numbered components for identification

Line drawing of a multi-level shopping cart with wheels and a door (no text or symbols)

Three technical line drawings of stacked plastic crates, no text or symbols present

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

3D wire mesh structure with an arrow pointing to a structural element (no text or symbols)

Two technical line drawings of a mechanical component with gears and housing (no text or symbols)

Two technical line drawings of a mechanical or electrical component cross-section, showing internal components and housing (no text or symbols)

Diagram of a car air conditioner unit with labeled parts H, F, and G indicating components like fan, bulb, and handle.

Simple line drawing of a container with a handle and spout, no text or symbols present

Technical line drawing of a mechanical assembly with a knob and base components (no text or symbols)

Technical line drawing of three mechanical components labeled A, B, and C (no text or symbols beyond labels)

Technical line drawing of a washing machine with tubing and a fan (no text or symbols)

Labeled diagram of a refrigerator interior with numbered components for identification

Line drawing of a shopping cart with wheels and a small door (no text or symbols)

Three technical line drawings of stacked plastic crates, no text or symbols present

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

3D wire mesh structure with a black arrow pointing to a structural element (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components (no text or labels)

Technical line drawing of a mechanical component with multiple circular features and a central threaded section (no text or symbols)

Cross-sectional diagram of a mechanical component with internal channels and internal features (no text or labels)

Line drawing of a multi-tiered storage unit with circular components and a central rack (no text or symbols)

Diagram of a car air conditioner unit with labeled parts H, F, G and a hand holding a tool

Simple line drawing of a container with a handle and spout, no text or symbols present

Simple line drawing of a mechanical device with a handle and base components (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts A, B, and C (no text or symbols beyond labels)
