ROSIERES RGV 95 WFM PN - Cooker

RGV 95 WFM PN - Cooker ROSIERES - Free user manual and instructions

Find the device manual for free RGV 95 WFM PN ROSIERES in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

Pick your language and provide your email: we'll send you a specifically translated version.
Brand Rosieres
Model RGV 95 WFM PN
Product Type Mixed gas and electric cooker
Gas Burners 5 burners: 1 auxiliary, 1 semi-rapid, 2 rapid, 1 quadruple crown
Electric Plate 1 electric plate 1500 W
Ignition Integrated electronic with safety thermocouple
Power Supply 220-240 V, 50/60 Hz
Electric Power 1500 W
Compatible Gas Type Natural gas G20/G20.5 (20/25 mbar) and LPG G30/G31 (28-30/37 mbar) via injector kit

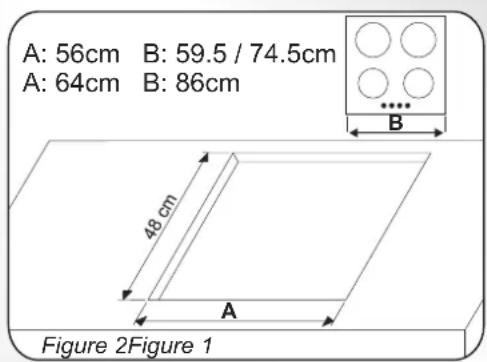

Recess Dimensions 860 x 510 mm (estimate for 5-burner models)
Table Material Stainless steel and enamel
Safety Thermocouple, automatic gas shut-off, child lock
Maintenance Clean with soapy water, non-corrosive detergent. Do not use steam cleaners.
Included Accessories Special folding support for auxiliary burner, LPG injector kit

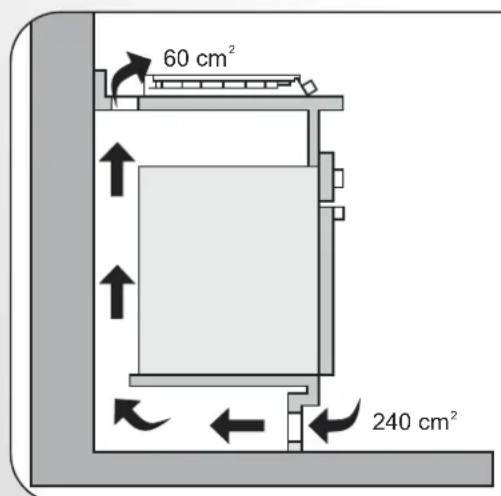

Installation Class 3 (appliance not connected to an exhaust duct)
Environmental Protection Compliant with WEEE Directive 2012/19/EC, recycling
Warranty 2 years (standard)
Country of Manufacture France (French brand)

Frequently Asked Questions - RGV 95 WFM PN ROSIERES

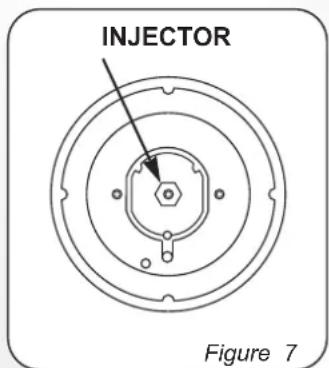

How to adapt the cooker to another gas type?
Replace the burner injectors with those suitable for the new gas (kit provided) and adjust the minimum flame adjustment screw using a screwdriver. See the instruction manual for details.
What if a burner does not ignite?
Check that the burner and cap are correctly positioned, that the gas supply is open, and that the electronic ignition works. If the problem persists after several attempts, contact technical service.
How to clean the burners and grates?
Use warm soapy water and a non-corrosive detergent. Dry thoroughly before reassembling. For stainless steel, a specific cleaner can restore shine. Never use abrasive products.
Can I use aluminum containers on the electric plate?
Avoid direct contact with aluminum or plastic when the plate is hot. Use containers with a flat bottom suited to the plate diameter.
What is the minimum distance between the cooker and a hood?
The distance between the cooktop and any appliance above (hood, cabinet) must be at least 70 cm.

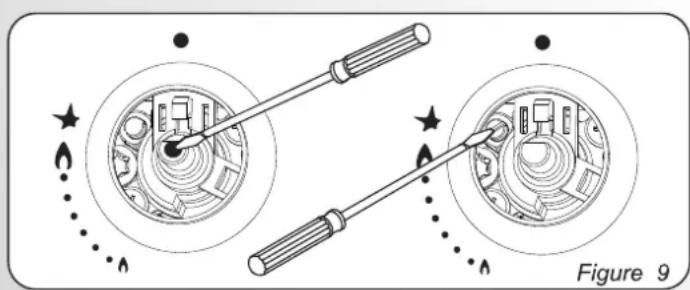

How to adjust the minimum flame?
After lighting the burner, turn the knob to the minimum position, remove it, then adjust the adjustment screw with a fine screwdriver to obtain a flame of 3 to 4 mm.
What to do in case of a gas leak?
Immediately shut off the gas supply, open windows, do not create sparks, and call a qualified professional. Do not search for a leak with a flame.
Can children use this appliance?
Children under 8 years old must be kept away. Persons with reduced capabilities must be supervised or trained by a safety supervisor.
How to maintain the electric plate?
Clean with a damp cloth and mild detergent. After cleaning, turn it on empty for a few minutes to dry. Do not scrape residues with hard objects.
Where to find spare parts?
Spare parts (injectors, burners, grates) are available from Rosieres after-sales service or authorized dealers.
