10031828 - Vacuum Cleaner Klarstein - Free user manual and instructions

Technical Specifications	Klarstein Vacuum Cleaner 10031828
Type of Vacuum Cleaner	Canister Vacuum Cleaner
Power	1600 W
Tank Capacity	2.5 liters
Filtration System	HEPA Filter
Weight	5.5 kg
Dimensions	30 x 40 x 25 cm
Usage	Suitable for hard floors and carpets
Included Accessories	Brush for hard floors, brush for carpets, flat nozzle
Maintenance	Regular filter cleaning, tank emptying
Safety	Overheat protection
General Information	2-year warranty, customer service available

Frequently Asked Questions - 10031828 Klarstein

How can I clean the filter of the Klarstein Vacuum Cleaner 10031828?

To clean the filter, remove it from the vacuum cleaner and gently tap it to remove dust. You can also rinse it with lukewarm water, but make sure it is completely dry before putting it back in place.

What should I do if my Klarstein Vacuum Cleaner 10031828 does not turn on?

First, check that the vacuum cleaner is properly plugged in and that the outlet is working. If everything seems fine, try resetting the device by unplugging the power cord for a few minutes before plugging it back in.

How can I remove pet hair from my Klarstein Vacuum Cleaner 10031828?

Use a sticky roller to remove pet hair from the brushes and the body of the vacuum cleaner. Also, make sure to regularly clean the filter and the tank to maintain good performance.

What is the tank capacity of the Klarstein Vacuum Cleaner 10031828?

The tank of the Klarstein Vacuum Cleaner 10031828 has a capacity of 2.5 liters, allowing you to vacuum large areas without having to empty it constantly.

My Klarstein Vacuum Cleaner 10031828 makes an unusual noise, what should I do?

An unusual noise may indicate a blockage or a problem with the motor. Check the hoses and brushes to ensure they are not obstructed. If the problem persists, contact customer service.

How can I change the accessories of my Klarstein Vacuum Cleaner 10031828?

To change the accessories, simply pull off the currently used accessory to remove it, then insert the new accessory until it is securely in place.

Does the Klarstein Vacuum Cleaner 10031828 have a dry cleaning function?

No, the Klarstein Vacuum Cleaner 10031828 is designed only for wet cleaning. It is not recommended to use it for dry cleaning.

Where can I find spare parts for the Klarstein Vacuum Cleaner 10031828?

Spare parts can be ordered directly from Klarstein customer service or on their official website in the accessories section.

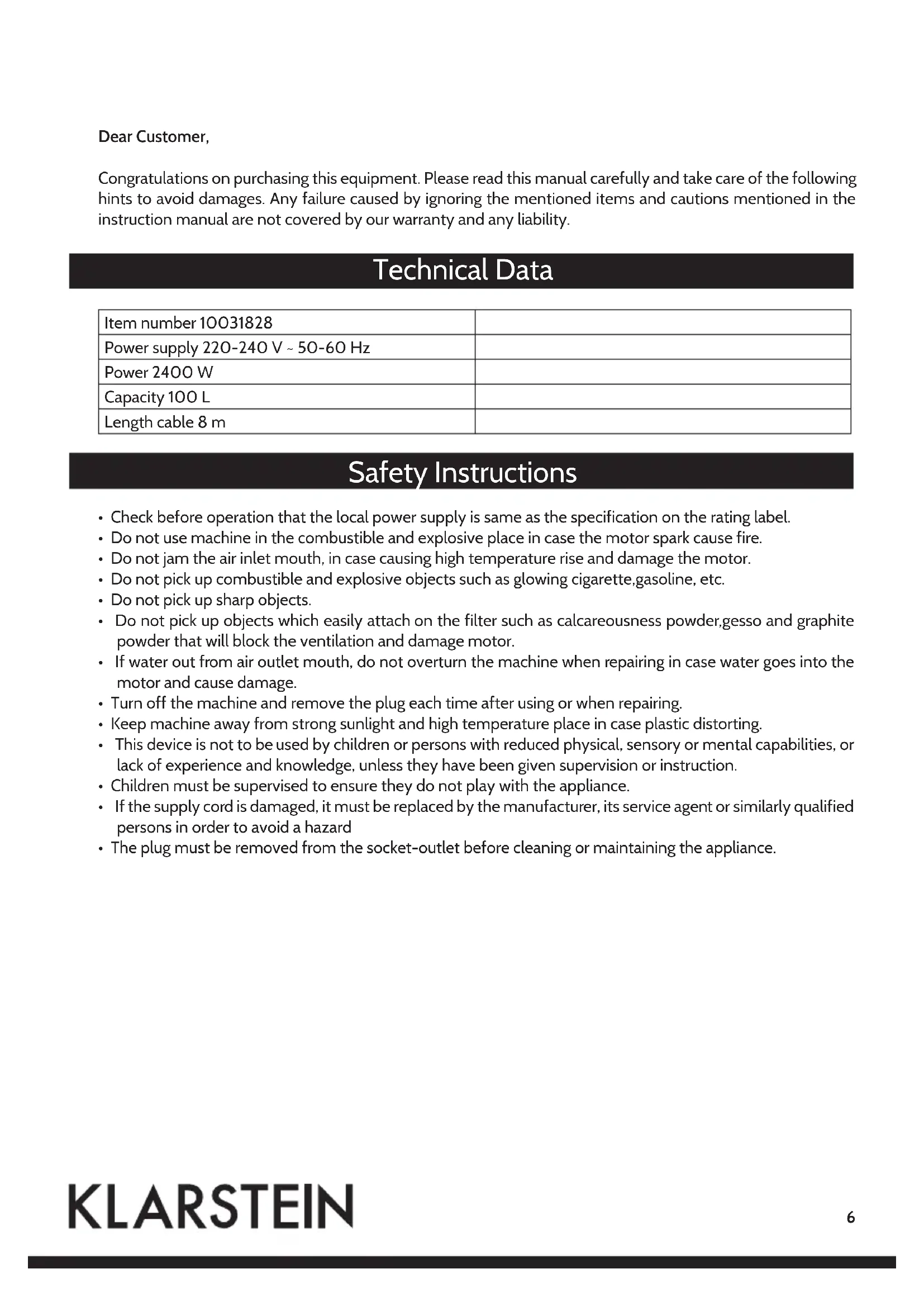

USER MANUAL 10031828 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Technical Data

Item number 10031828
Power supply 220-240 V ~ 50-60 Hz
Power 2400 W
Capacity 100 L
Length cable 8 m

Safety Instructions

• Check before operation that the local power supply is same as the specification on the rating label.
• Do not use machine in the combustible and explosive place in case the motor spark cause fire.
• Do not jam the air inlet mouth, in case causing high temperature rise and damage the motor.
• Do not pick up combustible and explosive objects such as glowing cigarette, gasoline, etc.
• Do not pick up sharp objects.
• Do not pick up objects which easily attach on the filter such as calcareousness powder, gesso and graphite powder that will block the ventilation and damage motor.
• If water out from air outlet mouth, do not overturn the machine when repairing in case water goes into the motor and cause damage.
• Turn off the machine and remove the plug each time after using or when repairing.
• Keep machine away from strong sunlight and high temperature place in case plastic distorting.
• This device is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  Children must be supervised to ensure they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

Protective Device

• When the barrel is full, the vacuum will lose suction and emit a noise to indicate the motor is under strain. Turn off and unplug the vacuum cleaner immediately, then empty the barrel and reassemble according to the instructions.
• Should the vacuum cleaner be turned on its side, immediately turn the unit off. Right the vacuum cleaner, then turn it on again.
• If the vacuum cleaner loses suction or emits sounds, turn it off and empty the barrel before continuing use.

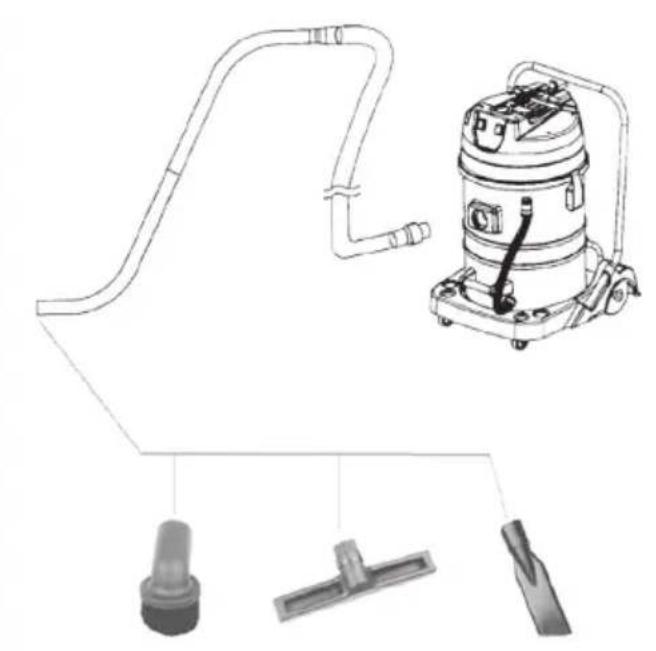

Accessories and Assembly

1 Suction hose

2 Short Connector

3 Long Connector

4 Metal Tube

5 Dry floor nozzle

6 Wet floor nozzle

7 Crevice nozzle

8 Dust brush

How to use the Accessory

Bristle for bookshelf, window and table, etc.

Crevice noodle for crevice, corner, etc.

Floor nozzles for floor and carpet, etc.

Assembly

1. Connection: Insert the hose connector into the air inlet mouth as picture shows,make sure the connector is tightly fastened.
2. Check whether the dust filter is put in before operation
3. Take away all the things in barrel including the dust filter before the wet use
4. Insert the plug into the supply socket
5. Press switch button, the machine begin to work

Cleaning and Care

Cleaning the Barrel

After use or when the barrel is full of dust (which is accompanied by a noticeable loss of suction), the barrel must be emptied.

1. Unfasten the locking knob and remove the top cover.
2. Remove the filter bag and clean out the dust from the dust barrel.
3. Replace the filter bag and top cover, and fasten the locking knob.

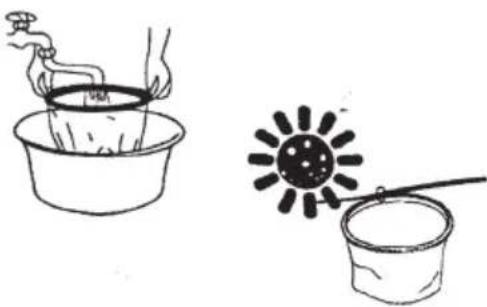

Cleaning the filter bag.

1. Remove the filter.
2. Gently wash in clean, warm water only.
3. Allow to dry completely before reassembly.

Hints on Disposal

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
