Technical Features	Canister vacuum cleaner, 800 W power, energy class A
Tank Capacity	2-liter tank
Filtration	HEPA filter, ideal for allergy sufferers
Included Accessories	Brush for hard floors, brush for carpets, narrow nozzle
Usage	Suitable for hard surfaces and carpets, suction power adjustment
Maintenance	Washable filter, easy-to-empty tank
Safety	Overheat protection system
General Information	Lightweight, compact design for easy storage

Frequently Asked Questions - Mister Eco 10032946 Klarstein

How can I clean the filter of the Klarstein Mister Eco 10032946 vacuum cleaner?

To clean the filter, remove it from the vacuum cleaner and rinse it with lukewarm water. Let it dry completely before putting it back in place.

What should I do if the vacuum cleaner does not turn on?

Check that the vacuum cleaner is properly plugged in and that the outlet is working. If the vacuum cleaner still does not turn on, check the power cord for any damage.

How do I empty the dust tank?

To empty the dust tank, remove it from the vacuum cleaner, open it following the instructions in the manual, and empty it into a trash bin. Make sure to put it back correctly afterwards.

The vacuum cleaner makes a strange noise, what should I do?

A strange noise may indicate a blockage or a dirty filter. Check the hoses and brushes for obstructions and clean the filter if necessary.

How do I adjust the suction power?

The suction power can be adjusted using the control knob located on the body of the vacuum cleaner. Turn it to increase or decrease the power.

Is the Klarstein Mister Eco 10032946 vacuum cleaner suitable for carpets?

Yes, this vacuum cleaner is designed to work effectively on different types of surfaces, including carpets.

Where can I find spare parts for this vacuum cleaner?

Spare parts can be ordered via the Klarstein website or from authorized dealers. Check the manual for specific part references.

USER MANUAL Mister Eco 10032946 Klarstein

Vacuum cleaner Mister Eco

QR code image containing encoded data, no visible human-readable text

INHALT

Technische Daten 3

A B C D E I H J F K L M N G

Technical line drawing of a vacuum cleaner with a mounted sensor and control panel (no text or symbols)

Line drawing of a car with visible engine compartment and dashboard (no text or symbols)

Line drawing of a hand operating a vacuum cleaner on a car (no text or symbols visible)

Line drawing of a hand inserting a component into a vacuum cleaner's air vent (no text or symbols)

Technical line drawing of a mechanical device with open lid and internal components (no text or symbols)

Two-panel image showing a device being placed on a case and its hexagonal grid pattern displayed in a square (no text or symbols)

Diagram of a mechanical tool interacting with a row of vertical rods (no text or symbols present)

Simple line drawing of a window with curtains and a handle (no text or symbols)

Symbol of a trash bin with no text or labels, including a crossed-out box and a solid rectangle below (no readable text or symbols)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENT

Technical data 11

Declaration of Conformity 11

Safety Instructions 12

Device Description 13

Assembly 14

Operation 15

Maintenance and cleaning 16

Disposal Considerations 18

TECHNICAL DATA

Item number 10032946 10032947
Power supply 220-240V~50/60Hz, 450 W
Accessories dust bag (size) SWIRL PH96

DECLARATION OF CONFORMITY

C€

Producer:

This product is conform to the following European Directives:

2014/30/EU (EMV)

2014/35/EU (LVD)

2011/65/EU (RoHS)

2009/125/EG (ErP)

SAFETY INSTRUCTIONS

• Read this instruction booklet carefully.
• Before using the appliance, check that the mains power voltage corresponds to the voltage shown on the rating plate.
• Always remove the plug from the power socket when the appliance is not in use and before carrying out any cleaning or maintenance operation.
  • Always remove the plug from the power socket before opening the appliance.
• Never use mentholated spirits or other solvents to clean the appliance.
• Do not use appliance to vacuum liquids.
• This appliance is for domestic use only. Use as described in this instruction booklet.
• Do not switch the appliance on if it appears to be faulty in any way.
• For repairs or accessories, contact your dealer or an authorized Service Center.
• If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

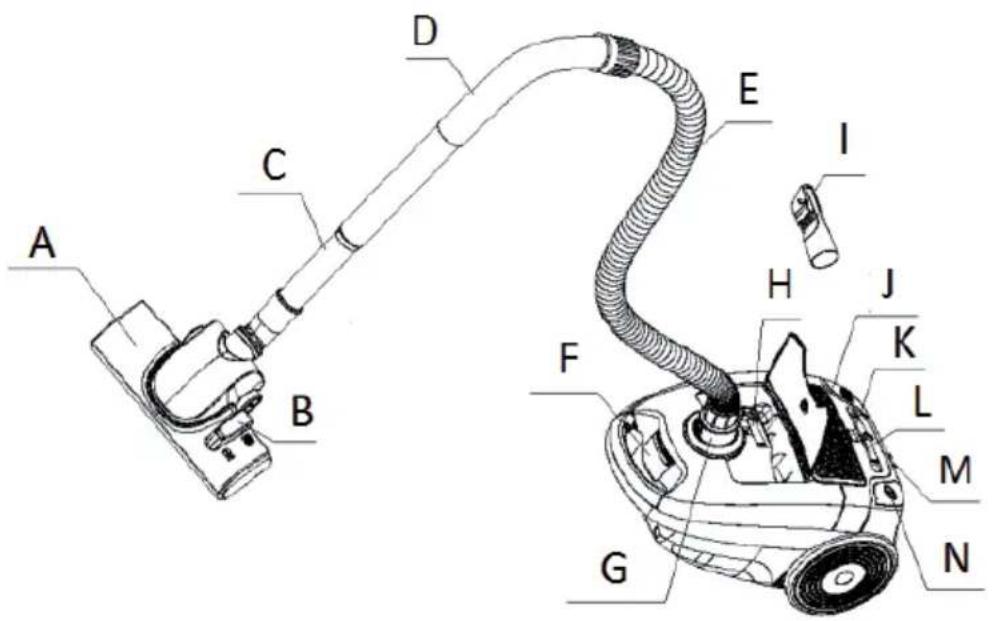

DEVICE DESCRIPTION

A B C D E I H J F K L M G N

A. Nozzle
B. Pedal for changing functions
C. Extention tube
D. Handle
E. Hose
F. Front cover button
G. Plug tube
H. Suction automatic controller

I. Sofa brush

J. Cord rewind button

K. Filter button

L. Speed control button

M. Nozzle Holder

N. On/Off switch

ASSEMBLY

Assembling the Vacuum Cleaner

Always remove the plug from the power socket before fitting or removing accessories.

Line drawing of a vacuum cleaner with a mounted sensor and mechanical components (no text or symbols)

Fitting the flexible tube

Insert the flexible tube into the air intake duct on the appliance. To do this, slide the intake duct cover insert the tube and press until it clicks into position.

Removing the flexible tube

Remove the plug from the power socket. To release the flexible tube, press the button on the end of the tube firmly the air intake duct.

Fitting the extension tubes and accessories

handle extension tube

extension tube extension tube

extension tube brush

Removing the extension tubes and accessories.

To remove the accessories, pull firmly apart.

OPERATION

Before use

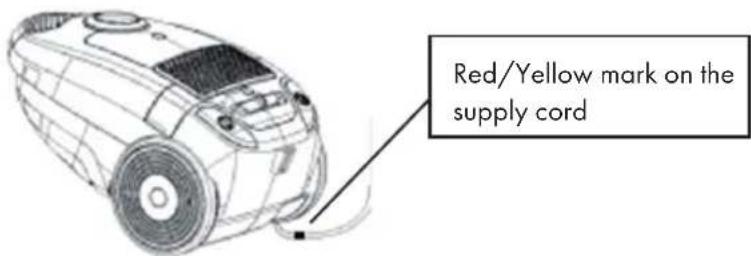

1. Unwind length of cable and insert the plug into the power socket. A YELLOW mane on the power cable shows the ideal cable length. Do not extend the cable beyond the RED mark.

Red/Yellow mark on the supply cord

1. To rewind the power cable, press the rewind button with hand and guide the other hand to ensure that it does not whip causing damage. If the power cable can't rewinded completely, please pull out the power cable a little bit and press the rewinder button again. You can repeat the rewinding steps until the cable is rewinded completely.

Use

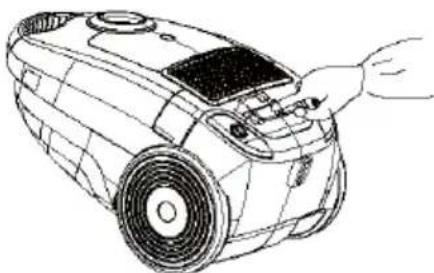

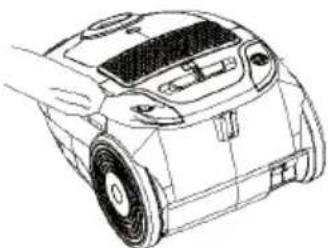

1. Press the ON/OFF button to switch the appliance on.

Line drawing of a car's front view showing dashboard and wheel (no text or symbols)

1. Variable power: A Variable power switch L varies the suction power as required. For example, maximum suction can be used for cleaning carpets, hard floors etc. and reduced suction for cleaning upholstery and curtains.

Line drawing of a hand holding a vacuum cleaner's device (no text or symbols)

MAINTANANCE AND CLEANING

Replacing the dust bag

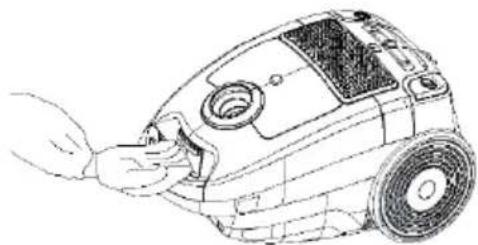

1. After removing the flexible tube, open front cover by pressing the button and pulling upwards.

Line drawing of a hand inserting a component into a vacuum cleaner's air vent (no text or symbols)

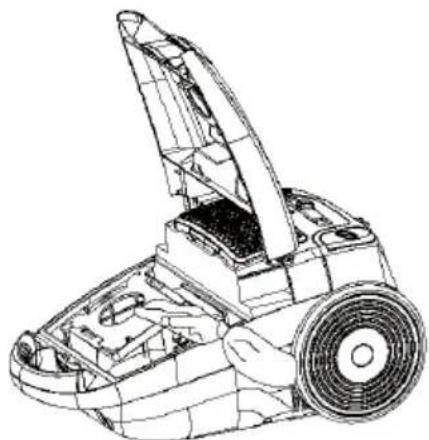

1. Remove the dust bag.

Technical line drawing of a mechanical device with a cylindrical component and housing (no text or symbols)

1. Insert a new dust bag (dust bag size: SWIRL PH96).

Replacing the filter

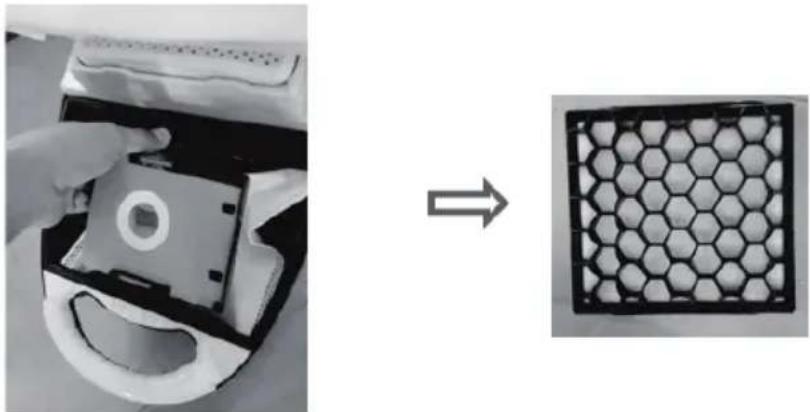

1. The motor filter protects the motor against dust residue. It is located between the paper filter and the motor, and is removed after first opening the vacuum cleaner. The filter must be replaced, if it is obviously damaged. Otherwise simply shake or blow the dust out. Replace the filter in its housing. Ensure that the filter is sitting straight in its housing and closes evenly. The exhaust air tiller ensures clean air during the vacuuming process. The filter should be replaced regularly whenever it becomes dirty.

2. To remove the exhaust air filter, open the vacuum cleaner and remove the filter grill. Now remove the filter from the grill. Insert the new filter into the grill and refit it to the rear side of the unit. Ensure that the filter is sitting straight in its housing and closes flush.

Two-panel image showing a device being placed on a hard disk and its hexagonal patterned inset (no text or symbols)

1. Replace the filter every 2-3 months, depending on how frequently it is used.

Using the cleaning accessories

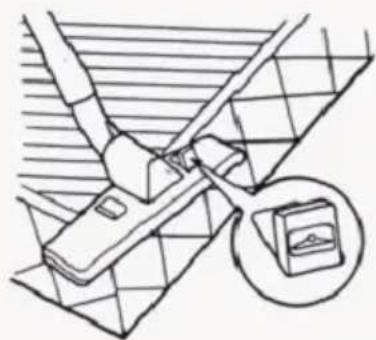

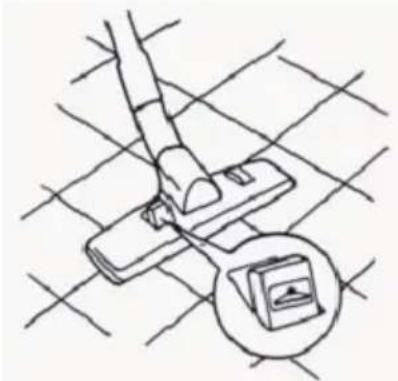

Dual-position floor/carpet brush

Line drawing of a hand using a tool to lift a component on a grid-patterned surface, with an inset showing a close-up of a device (no text or symbols)

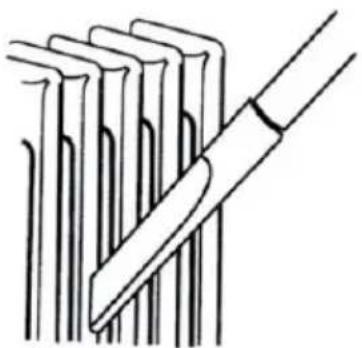

Narrow nozzle for cleaning radiators, corners edges, drawers etc.

Technical line drawing of a mechanical assembly with a magnified inset showing a component (no text or symbols)

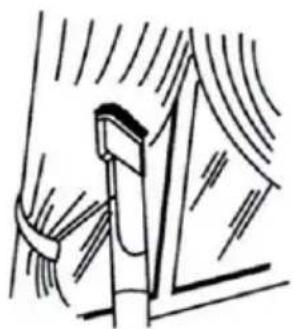

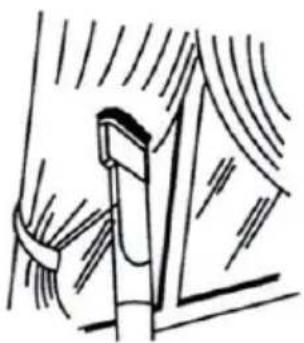

Small brush for cleaning curtains, shelves, books, lamps and other delicate objects.

Diagram of a mechanical component interacting with layered vertical rods (no text or symbols)

Simple line drawing of a window with curtains and a handle (no text or symbols)

Note: In order to reach high-level efficiency ashile cleaning, please clean the floor brusch regularly

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Chère cliente, cher client,,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Fiche technique 19

DÉCLARATION DE CONFORMITÉ

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

A B C D E I H J F K L M N G

Line drawing of a car's front view showing the engine compartment and wheel (no text or symbols)

Line drawing of a car with visible engine and dashboard components (no text or symbols)

Line drawing of a hand operating a vacuum cleaner on a car (no text or symbols visible)

MAINTENANCE ET NETTOYAGE

Line drawing of a hand inserting a component into a vacuum cleaner's air vent (no text or symbols)

Technical line drawing of a mechanical device with open lid and internal components (no text or symbols)

Two-panel image showing a device being placed into a housing and then processed into a hexagonal grid pattern (no text or symbols visible)

Diagram of a mechanical component interacting with layered structures (no text or symbols)

Simple line drawing of a window with curtains and a handle (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Datos técnicos 27

A B C D E I H J F K L M N G

Line drawing of a car's front view showing the engine compartment and wheel (no text or symbols)

Conectar el tubo

Line drawing of a car with visible engine compartment and dashboard (no text or symbols)

Line drawing of a hand operating a vacuum cleaner on a car (no text or symbols visible)

MANTENIMIENTO Y LIMPIEZA

Line drawing of a hand inserting a component into a vacuum cleaner's air vent (no text or symbols)

Technical line drawing of a mechanical device with open lid and internal components (no text or symbols)

Two-panel image showing a device being placed on a case and its hexagonal grid pattern displayed in a square (no text or symbols)

Diagram of a mechanical component inserted into a layered structure (no text or symbols)

Simple line drawing of a window with curtains and a handle (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INDICE

Dati tecnici 35

A B C D E I H J F K L M N G

Line drawing of a car's front view showing the engine compartment and wheel (no text or symbols)

Line drawing of a car with visible engine compartment and dashboard (no text or symbols)

Line drawing of a hand operating a vacuum cleaner on a car (no text or symbols visible)

Line drawing of a hand inserting a component into a vacuum cleaner's air vent (no text or symbols)

Technical line drawing of a mechanical device with open lid and internal components (no text or symbols)

Two-panel image showing a device being placed on a case and its hexagonal grid pattern displayed in a square (no text or symbols)

Diagram of a mechanical component inserted into a row of vertical rods (no text or symbols)

Simple line drawing of a window with curtains and a handle (no text or symbols)

Symbol of a waste bin with no text or labels, crossed by diagonal lines and a solid rectangle below (no readable text or symbols)
