10029182 - Vacuum Cleaner Klarstein - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	Klarstein
Model	10029182
Power supply	220-240 V, 50 Hz
Maximum power	2200 W (1200 W appliance + 1000 W outlet)
Noise level	< 82 dB (A)
Package contents	Vacuum cleaner, flexible hose, wet brush, 2 handles, brush
Filter type	Washable dust filter
Tank capacity	Approximately 2 L (estimate)
Cable length	Approximately 5 m (estimate)
Usage	Domestic
Functions	Dry dust vacuuming, wet brush for hard floors
Maintenance	Empty the tank after each use; clean the filter with water and let it dry
Safety	Do not use by persons with reduced capabilities without supervision; unplug before cleaning; do not vacuum burning or sharp objects
Repairability	Filter and tank accessible; cable replaceable by professional
Dimensions (approx.)	35 x 25 x 25 cm (estimate)
Weight (approx.)	4.5 kg (estimate)

Frequently Asked Questions - 10029182 Klarstein

How to empty the vacuum cleaner tank?

Open the motor head, remove the dust filter, then empty the tank into a trash bin. Close properly before reuse.

How to clean the dust filter?

Remove the filter from the motor head, rinse it with clean water, then let it dry completely before reinstalling. Do not use harsh detergents.

Why is the suction of my vacuum cleaner weakening?

This may be due to a full tank, a clogged filter, an obstruction in the hose, or improper tank attachment. Check and clean these items.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry dust. Use the wet brush only for floors, but do not vacuum liquid into the tank.

How to connect the flexible hose?

Insert the end of the hose into the vacuum inlet until it clicks into place. To remove it, press the release button if present.

What to do if the motor does not start?

Check that the plug is fully inserted into the electrical outlet and that the outlet works. Make sure the on/off switch is in the 'on' position.

Is it dangerous to use the vacuum without a filter?

Yes, never use the vacuum without the tank or filter. This could damage the motor and reduce performance.

How to maintain the power cord?

Do not pull on the cord to unplug, always grasp the plug. Avoid pinching the cord under furniture or bending it excessively. If damaged, have it replaced by a professional.

What accessories are included with the vacuum?

The package includes a flexible hose, a wet brush, two handles, and a standard brush (nozzle). You can also use other compatible attachments.

How to store the vacuum after use?

Unplug the device, wrap the cord around the provided hooks, empty the tank, and clean the filter if necessary. Store it in a dry place.

USER MANUAL 10029182 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 9
Scope of Supply 9
Security Instructions. 10
Assembly. 12
Operation 13
Cleaning and maintenance. 14
Troubleshooting 15
Disposal Considerations 15
Declaration of Conformity 15

Technical Data

Item number 10029182 10029183
Power supply 220-240 V 50/60 Hz
Rated power max. 2200 W (1200 W device, 1000 W socket)
Sound level <82 dB (A)

Scope of Supply

Vacuum cleaner x1
- Flexible hose x 1
Wet brush × 1
- Operating instructions x 1
- Extension tube x 2
- Assembled brush x1

Security Instructions

• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

	Do not vacuum any sharp-edged, hot or incandescent materi-als..
	The appliance should not be exposed to heat.
	Unplug the appliance form the mains supply socket after use and before every cleaning. Pull the plug, not the mains cable, in order to disconnect the appliance from the mains.
	Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair etc.
	Do not use the vacuum cleaner without dust container or dust filter in place.
	Do not use the vacuum cleaner without dust container or dust filter in place
⊗	Do not vacuum any flour, cement etc, in order to avoid the overloads.
⊗	This appliance is intended for domestic use only and not for commercial applications.	⊗
⊗	Avoid the nozzle or brush touching the surface of the furniture.	⊗
⊗	Do not use the mains wire to carry the appliance. Do not pull the mains wire over sharp edges.	⊗

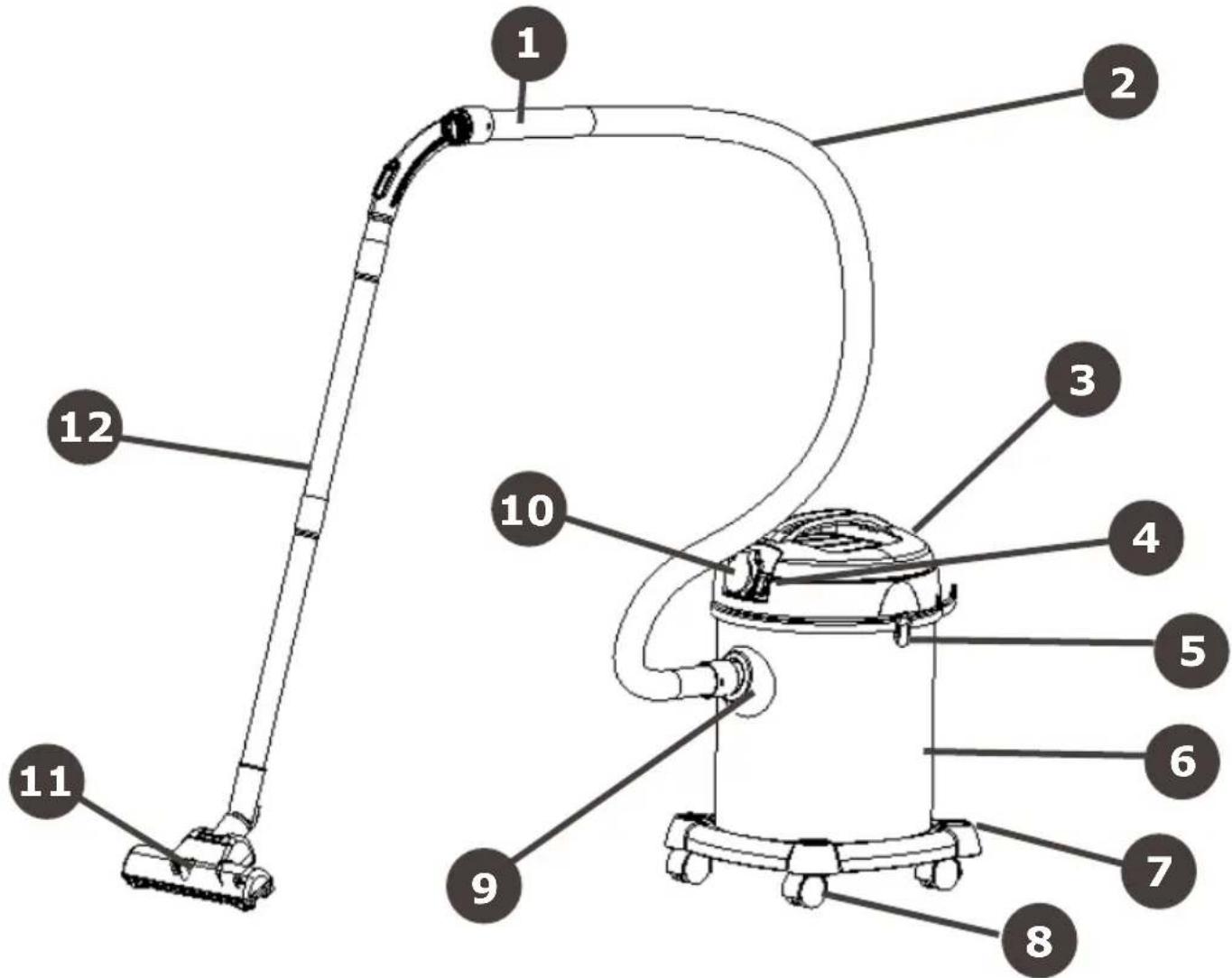

Assembly

1 Hose handle

7 Base

2 Hose

8 Wheel

3 Cover

9 Inlet

4 On/Off switch

10 Electrical outlet

5 Hook

11 Brush

6 Dust container

12 Plastic tube

Operation

Assembly

Dust filter Put the dust filter carefully in the machine head.
Dust container Attach the dust container to the hand vacuum cleaner.
Flexible hose To use the flexible hose, insert the end of the hose into the suction hole. Make sure, that it is snapped in the positioning.
Accessories Choose your desired accessory (brush or nozzle) and attach it to the suction hole.
Unwind the power cord.
Plug the appliance and switch on. Rated power for electrical outlet.

Cleaning and maintenance

Open the machine head.
Take out the dust filter
Empty the dust container.
Wash off the dust filter with cleaning water. Dry up the dust filter.
Assemble the vacuum cleaner.

Troubleshooting

Problem Possible reason Advice
Motor does not start -Power cord	not firmly plugged into outlet. Outlet damaged Cleaner not switched on.	Plug unit firmly Check the Outlet Switch on the appliance
Suction power is weaker Unit clogged	Dust filter needs cleaning	Remove the blockage. Clean the dust filter. Attach the dust container again to the cleaner
	Dust container not in position. Filter blocked	Clean the filter.

Disposal Considerations

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer:Chal-TecGmbH, Wallstraße 16, 10179 Berlin.

This product is conform to the following European Directives:

2004/108/EC (EMC)

2011/65/EU (RoHS)

2006/95/EC (LVD)
