Total Motion 10033287 - Vacuum Cleaner Klarstein - Free user manual and instructions

Brand	Klarstein
Model	Total Motion 10033287
Type	Cyclonic vacuum cleaner
Power	750 W
Supply voltage	220-240 V~
Article number	10033287
Filtration system	HEPA filter and motor protection filter
Brush type	Rotating brush (straight brush)
Height adjustment	Yes, on the handle
Telescopic rod	Yes
Included accessories	Flat nozzle/2-in-1 brush, upholstery nozzle, flexible nozzle
Dust container	Removable with release
Filter maintenance	Washable in lukewarm water (max 40°C) every 3 months
Thermal protection	Automatic thermal switch in case of overheating
Use	Domestic, indoor, dry surfaces only
Certifications	ErP, RoHS, EMC, LVD

Frequently Asked Questions - Total Motion 10033287 Klarstein

How to assemble the vacuum cleaner?

Place the handle with the tube onto the main unit, then adjust the desired height. Attach the accessories (flat nozzle/2-in-1 brush and upholstery nozzle) into their storage slots.

How to empty the dust container?

Press the release button to remove the container, hold it over a bin and press the dust filter button to open it and release the dust.

How to clean the filters?

Wash the filters (motor filter and HEPA filter) in lukewarm water (max 40°C) at least every 3 months. Never use the vacuum cleaner without all filters.

What to do in case of overheating?

The vacuum cleaner is equipped with a thermal switch that automatically turns it off in case of overheating. Let the appliance cool down and eliminate the cause (blockage, dirty filter, etc.).

How to unblock the straight brush?

Turn off and unplug the vacuum cleaner. Turn it over, unscrew the screw on the back of the brush cover, remove the cover and remove any debris, hair or threads stuck using scissors.

Can I vacuum liquids?

No, this vacuum cleaner is designed only for dry surfaces. Never vacuum liquids, flammable materials or hot objects.

How to use the vacuum cleaner on stairs?

To vacuum stairs, connect the extension hose to the unit, then to the telescopic tube. Hold the unit firmly at height. Turn off the straight brush to avoid any risk.

What accessories are included?

The vacuum cleaner comes with a flat nozzle and 2-in-1 brush, an upholstery nozzle, a flexible nozzle, a telescopic extension tube and an integrated rotating brush.

How to store the vacuum cleaner?

Store the vacuum cleaner in a cool, dry place. Wind the cable using the cable winder. Place the accessories in their storage slots on the unit.

What if the red light flashes after unblocking the brush?

If the light is still flashing red, the brush may still be blocked. Cut any stuck threads or hair with scissors. Make sure the brush rotates freely.

USER MANUAL Total Motion 10033287 Klarstein

Cyclone Vacuum Cleaner

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENTS

Technical Data 17

Safety Instructions 18

Device Description 20

Getting Started 22

Filter Cleaning and Maintenance 26

Disposal Considerations 30

TECHNICAL DATA

Item number 10033287
Power supply 220-240 V~
Power rating 750 W

SAFETY INSTRUCTIONS

This vacuum cleaner is intended for household use only and NOT for commercial or industrial use.

Please keep instructions for further use.

• Only use the vacuum cleaner indoors on dry surfaces.
• Turn off the on/off switch on the vacuum cleaner controls before disconnecting or connecting from the mains supply.
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
  Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by children under eight years of age and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and understands the hazards involved.
• Cleaning and maintenance shall not be made by children without supervision.
• The appliance should only be used as described in the quick start guide or in the full online user guide.
• Only Vax recommended attachments should be used with this appliance.
• Do not use this vacuum cleaner if it has been dropped, damaged, left outdoors or dropped into water.
• Do not pull or carry this appliance by the cord. Do not use the cord as a handle, close a door on the cord or pull the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord. Keep the cord away from heated surfaces.
• Do not handle the plug or the vacuum cleaner with wet hands.
• Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
• Do not pick up any hot coals, cigarette butts, matches or any hot, smoking or burning objects.
• Do not pick up any flammable or combustible materials (lighter fluid, petrol, kerosene etc.) or use in the presence of explosive liquids or vapours.
• Do not vacuum up harmful or toxic material (chlorine, bleach, ammonia, drain cleaner etc.).
• Do not vacuum up hard or sharp objects such as glass, nails, screws, coins etc.
• Store the vacuum cleaner in a cool, dry area.
• Use only CE approved 13 amp extension cords. Non-approved cords may overheat. Care should be taken to arrange the cord so that the cord cannot be tripped over.
• Do not put any objects into openings. Do not use with any openings blocked and do not restrict airflow. Keep all openings free of dust, lint, hair or anything that might reduce airflow.
• Do not use without all of the filters in place.
  Take extra care when positioning the vacuum cleaner on the stairs.
• Please ensure that the brush bar is turned off when you are vacuuming on the stairs.
• Keep vacuuming area well lit.

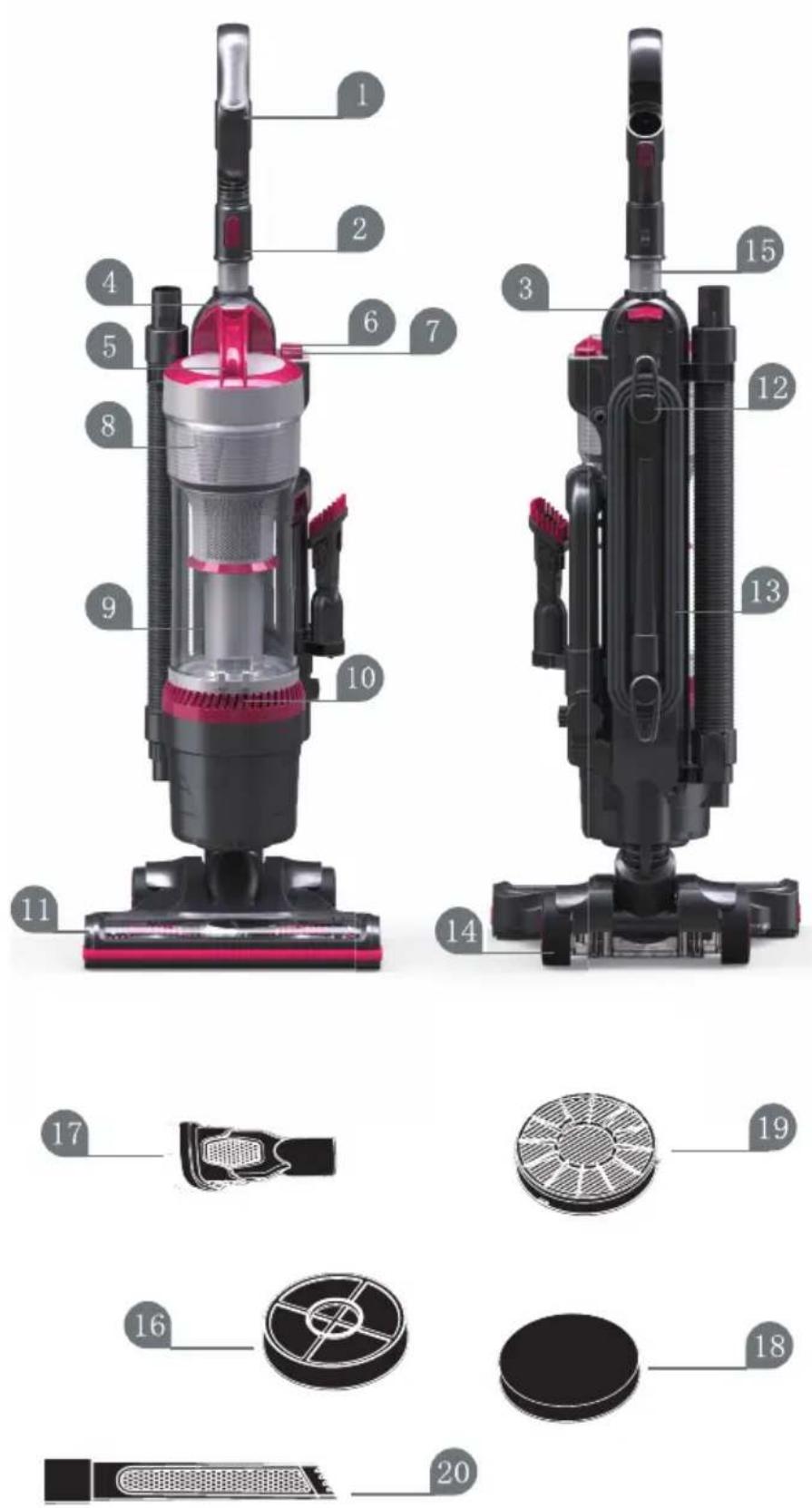

DEVICE DESCRIPTION

1 Handle
2 Handle height adjuster
3 Handle release button
4 Dirt container release button
5 Carry handle
6 Power on/off button
7 Brush bar on/off button
8 Inner cyclones
9 Dirt container
10 Post-motor filter cover
11 Rotating brush bar
12 Quick release cord wrap
13 Cord
14 Wheels
15 Telescopic extension tube
16 2-in-1 crevice tool and dusting brush
17 Upholstery tool
18 Pre-motor filter
19 Post-motor filter
20 Flexi crevice tool

GETTING STARTED

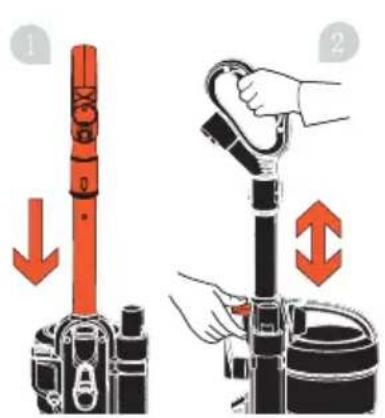

Assembly

1. Insert the handle
2. Adjust handle up/down to the desired height.

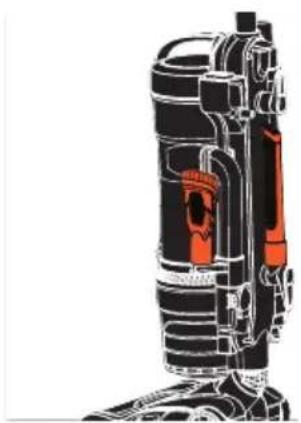

Attach the 2-in-1 and upholstery tool to their on board storage area.

How to use

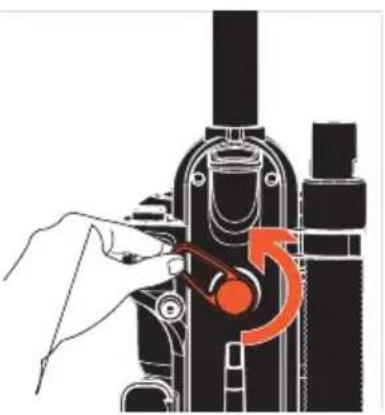

Twist the cord holder to release the cord.

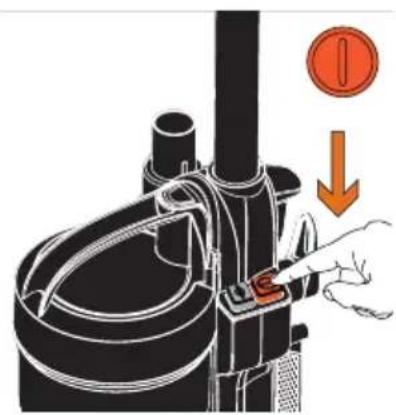

Plug in your machine and turn it on.

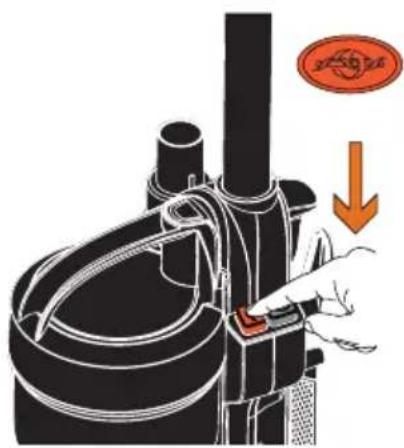

For brush bar position, press the brush bar on/off button at the top of the unit.

Brush bar on - carpets.

Brush bar off -hard floors.

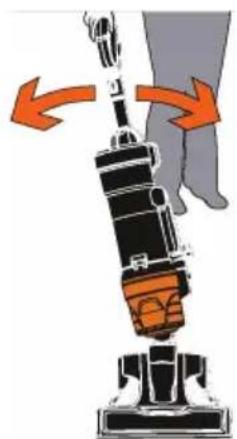

Recline the unit and twist the handle to manoeuvre under and around furniture.

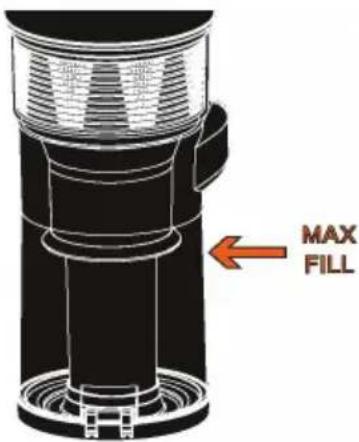

Do not overfill the container to avoid clogging your filters. Decline the unit and twist the handle to manoeuvre under and around furniture.

Using accessories

Notes

• The 2-in-1 tool, TurboTool and other tools can be attached to the telescopic tube or directly to the hose.
• Switch off the brush bar before us8ing any accessories (hose, .

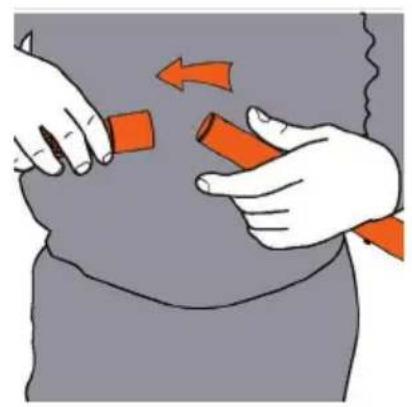

Hose

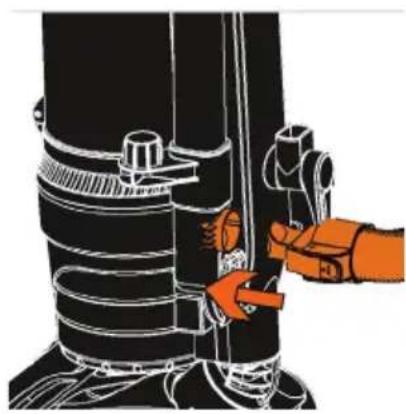

Remove hose.

Attach accessory to hose.

Attach accessory to hose.

Attach accessory to hose.

Telescopic extension tube

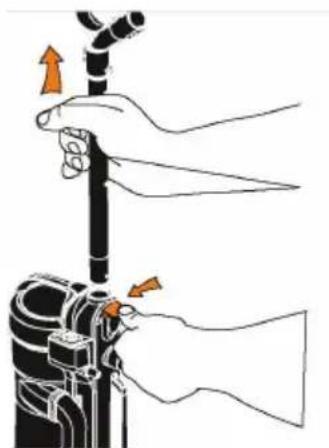

Remove telescopic extension tube

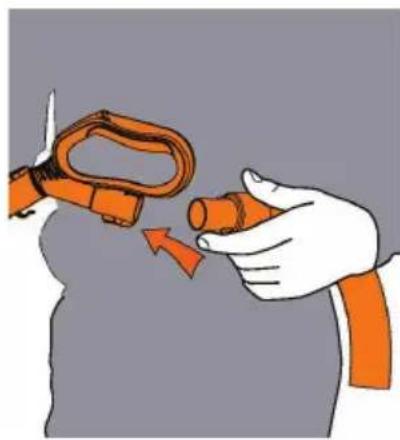

Attach hose to telescopic extension tube.

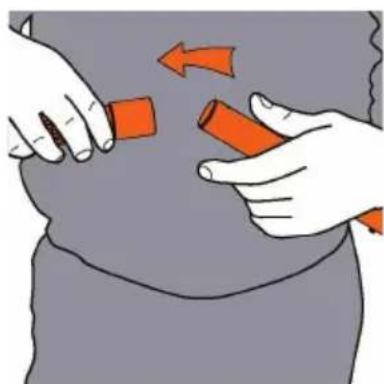

Attach accessory to telescopic extension tube.

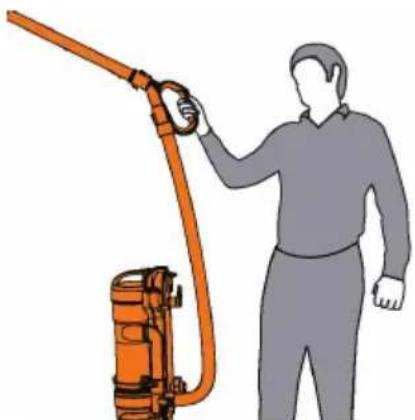

IMPORTANT Hold unit when using hose or telescopic extension tube for above floor cleaning.

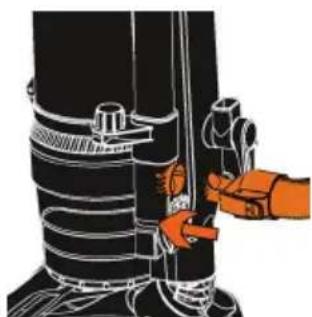

Stair cleaning

Remove stretch hose. Attach stretch hose to telescopic extension tube.

Now you can easily clean the full height of your stairs.

FILTER CLEANING AND MAINTENANCE

Cleaning the filter

WARNING: Danger of electric shock

Always switch off and the plug m us t be removed from the socketoutlet before cleaning or maintaining the appliance.

Note: Wash filters with warm water (40°C max) at least every 3 months for best cleaning results. Do not use your vacuum cleaner without all of the filters in place.
- Important. The motor is equipped with a thermal cut-out. If for any reason the unit should overheat, the thermos' automatically turn the unit off.

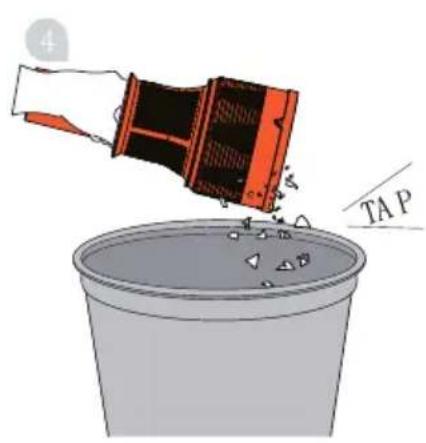

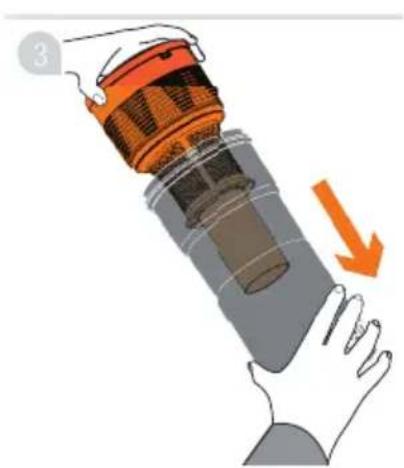

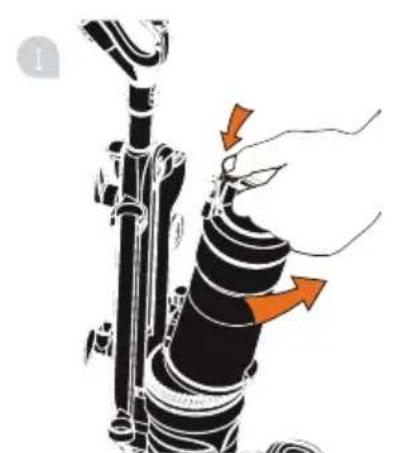

Emptying and cleaning the dirt container

Press dirt container release button to remove the dirt container.

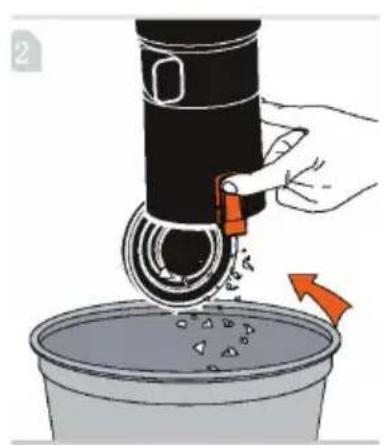

Hold dirt container over a bin and press dirt release button to open, allowing dirt to fall out.

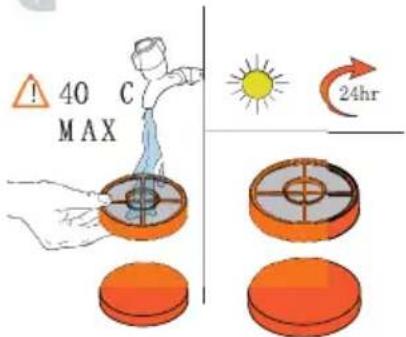

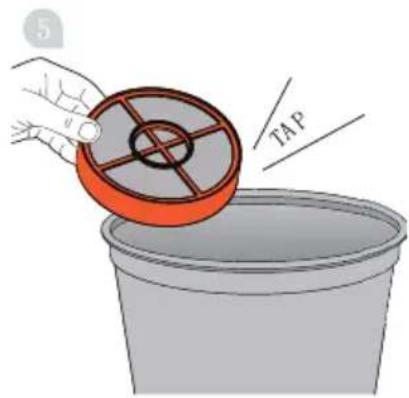

Cleaning the pre-motor filter

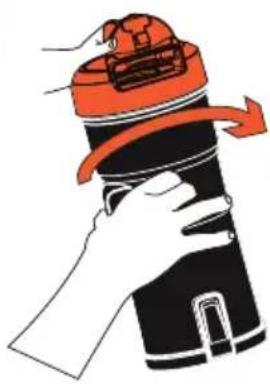

Turn the dirt container lid anti-clockwise to remove.

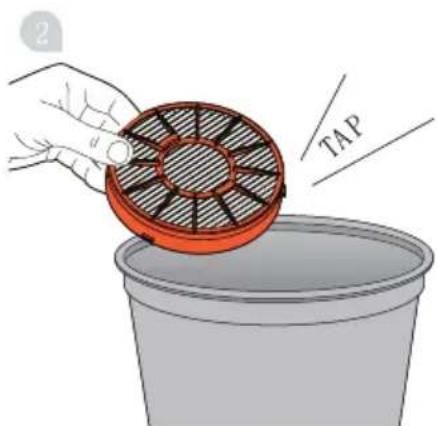

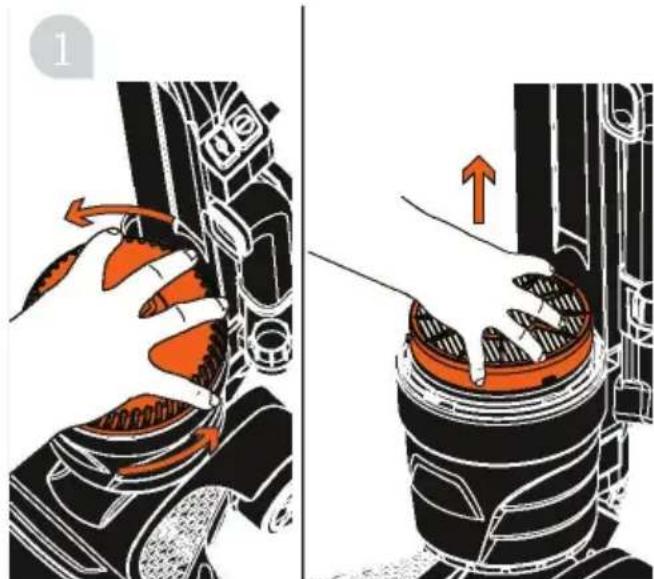

Cleaning the HEPA post-motor filter

Remove the post-motor filter from the body of the vacuum cleaner.

Removing blockages

IMPORTANT: If the air inlet, hose or telescopic tube is blocked, switch off the vacuum cleaner and remove the blockage (s) before re-starting the vacuum cleaner.

Removing debris from the brush bar

NOTE: Brush bar and belt are not removable.

If the light continues to flash red after resetting, the brush bar may still be blocked. Using a pair of scissors, cut through any threads or hairs caught around the brush bar. To access brush bar: Place the vacuum cleaner on the floor upside down.

Place the vacuum cleaner on the floor upside down.

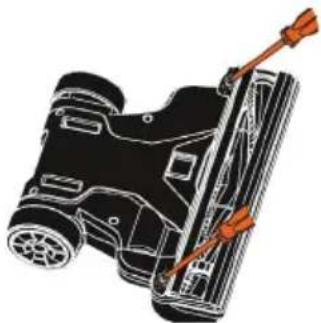

Remove the screw on the back of the brush bar cover.

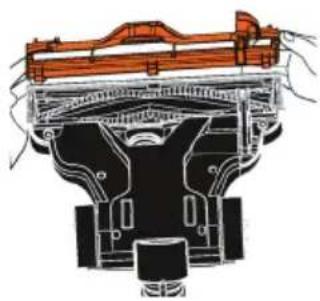

Remove the brush bar cover and remove and debris, hair and dirt from the brush bar and belt.

DISPOSAL CONSIDERATIONS

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Produder: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2009/125/EC (ErP)

2011/65/EU (RoHS)

2014/30/EU (EMC)

2014/35/EU (LVD)
