IVC80 - Vacuum Cleaner Klarstein - Free user manual and instructions

Product type	Multifunction vacuum cleaner with suction and blowing
Brand	Klarstein
Model	IVC80
Power supply	230 V ~ 50 Hz
Power	3000 W
Tank capacity	80 L
Weight	6.6 kg
Filter type	Washable HEPA filter
Included accessories	Brush nozzle, upholstery nozzle, floor nozzle, suction hose, tubes, liquid nozzle
Functions	Dry and wet suction, blowing
Wheels	2 swivel casters and 2 rubber tires (depending on model)
Safety	Overheat protection (do not block air inlets)
Usage	Dry and wet suction
Collector maintenance	Drain and clean regularly
Filter maintenance	Wash with warm water, thorough drying recommended
Compliance	Directives 2014/30/EU, 2014/35/EU, 2011/65/EU
Article number	10007545

Frequently Asked Questions - IVC80 Klarstein

How to assemble the IVC80 vacuum cleaner?

To assemble the vacuum cleaner, connect the suction hose to the air inlet pushing until it clicks into place. For the blowing function, insert the hose connector into the blowing outlet. Attach the accessories according to the use. Refer to the assembly diagram in the manual.

Can I vacuum liquids with this vacuum cleaner?

Yes, the IVC80 vacuum cleaner can vacuum liquids thanks to a dedicated wet nozzle. Make sure to empty the tank after vacuuming liquids and clean the HEPA filter. Do not tilt the device if water flows from the air outlet.

How to clean the HEPA filter?

The HEPA filter should be washed with clear warm water when covered with dust. Optionally use a mild abrasive. Remove the filter, wash it, then let it dry completely before reinstalling. Regular maintenance maintains performance.

What are the important safety instructions?

Do not use the vacuum cleaner near flammable or explosive materials. Do not block air intakes to avoid overheating. Do not vacuum cigarettes or gasoline. Turn off and unplug the device before any cleaning. Keep away from moisture and direct heat. Refer to the full manual.

How to use the blowing function?

To use the blowing function, first unplug the device. Unscrew the hose from the suction inlet, then insert the coupling head into the air outlet. Tighten one turn. Plug in and turn the switch to on. Wear safety goggles and a dust mask if necessary.

What to do if the vacuum cleaner does not start?

Check that the power cord is plugged into a working outlet. Make sure the switch is in the on position. If the problem persists, check the filter and the collector (do not block). If nothing works, contact an authorized service.

How to maintain the collector?

When the collector is full or after use, unplug the device. Loosen the lock and lift the lid. Remove the HEPA filter, empty and clean the collector with a dry cloth. Replace the filter and close the lid. Clean regularly to avoid blockages.

Can I use additional accessories?

The vacuum cleaner is supplied with several accessories: brush nozzle, upholstery nozzle, floor nozzle, suction hose, tubes, and a liquid nozzle. You can also use compatible accessories from Klarstein. Make sure they fit the standard diameter.

How to recycle the device at end of life?

The device is subject to European directive 2012/19/EU (crossed-out wheelie bin). Do not dispose of it with household waste. Ask your local municipality or a collection point for recycling of waste electrical and electronic equipment. Recycling protects the environment.

What is the power of the IVC80 vacuum cleaner?

The Klarstein IVC80 vacuum cleaner has a power of 3000 W and a power supply of 230 V ~ 50 Hz. It offers a tank capacity of 80 L and weighs 6.6 kg. Its high power enables efficient suction of dust and liquids.

USER MANUAL IVC80 Klarstein

Wet/dry vacuum cleaner

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 10

Product Overview 11

Operation 12

Cleaning and Care 14

Hints on Disposal 14

TECHNICAL DATA

Item number 10007545
Power supply 230 V ~ 50 Hz
Power consumption 3000 W
Volume 80 L
Weight 6,6 kg

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European

Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Before use, check the voltage on the device badge. Connect the device only to sockets which correspond to the voltage of the device.
• Do not vacuum near flammable or explosive materials as these may be ignited by the motor.
• Do not obstruct the air intakes as heat accumulation may damage the motor.
• Do not vacuum fl ammable or explosive materials such as burning cigarettes or gasoline. Do not suck up any sharp objects that may stick to the fl liter or clog it. Do not absorb powdery materials such as lime powder, gypsum or graphite powder, which could damage the engine.
• Do not turn the unit over as water may enter the motor.
• Switch off the appliance after each use and before cleaning and disconnect it from the mains supply.
• Keep the unit away from direct sunlight or intense heat as this may deform the plastic.
  • To avoid damage, do not twist or step on the suction hose.
• Do not allow water to run on or into the cover during cleaning as this may damage the electrical components.
• Only use the product as described in the instructions. Any other use may result in damage to the product or personal injury.
• Modification or alteration of the product may affect product safety.

CAUTION

Risk of injury! Never open the product without authorization and never carry out repairs yourself!

• Handle the product with care. It can be damaged by shocks, blows or falling from a low height.
• Keep the product away from moisture and extreme heat.
• Repairs to the device should only be carried out by an authorised specialist workshop. Do not open the unit under any circumstances. Incorrect assembly may result in malfunction or total failure.
• The unit should be protected from all moisture and direct sunlight.
• Do not clean the unit with cleaning agents. Use a dry or slightly damp (microfiber) cloth for cleaning.

Note: If water escapes from the air outlet, do not tilt the unit as this will damage the motor. Do not use the unit as a pump, as this may damage the motor.

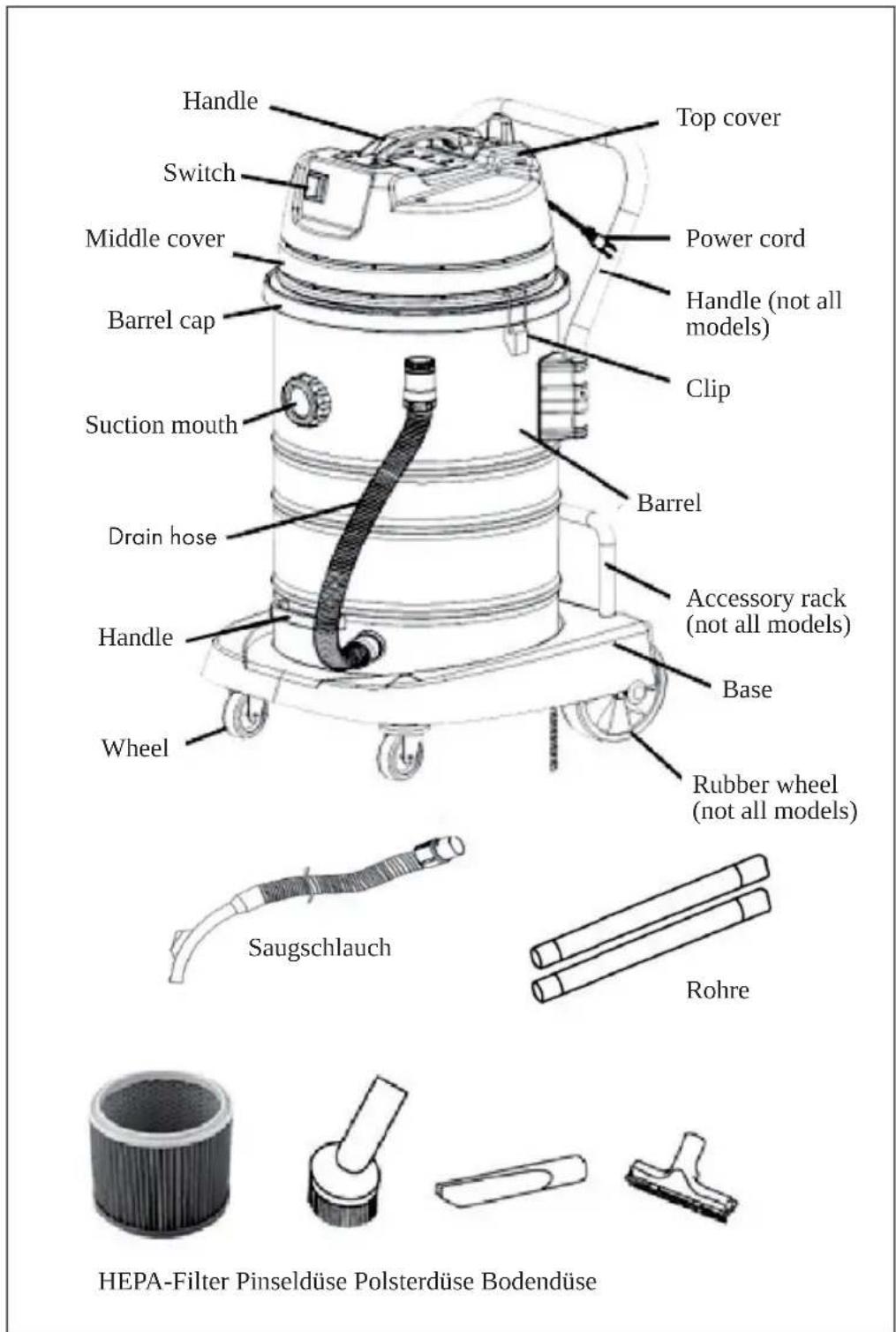

PRODUCT OVERVIEW

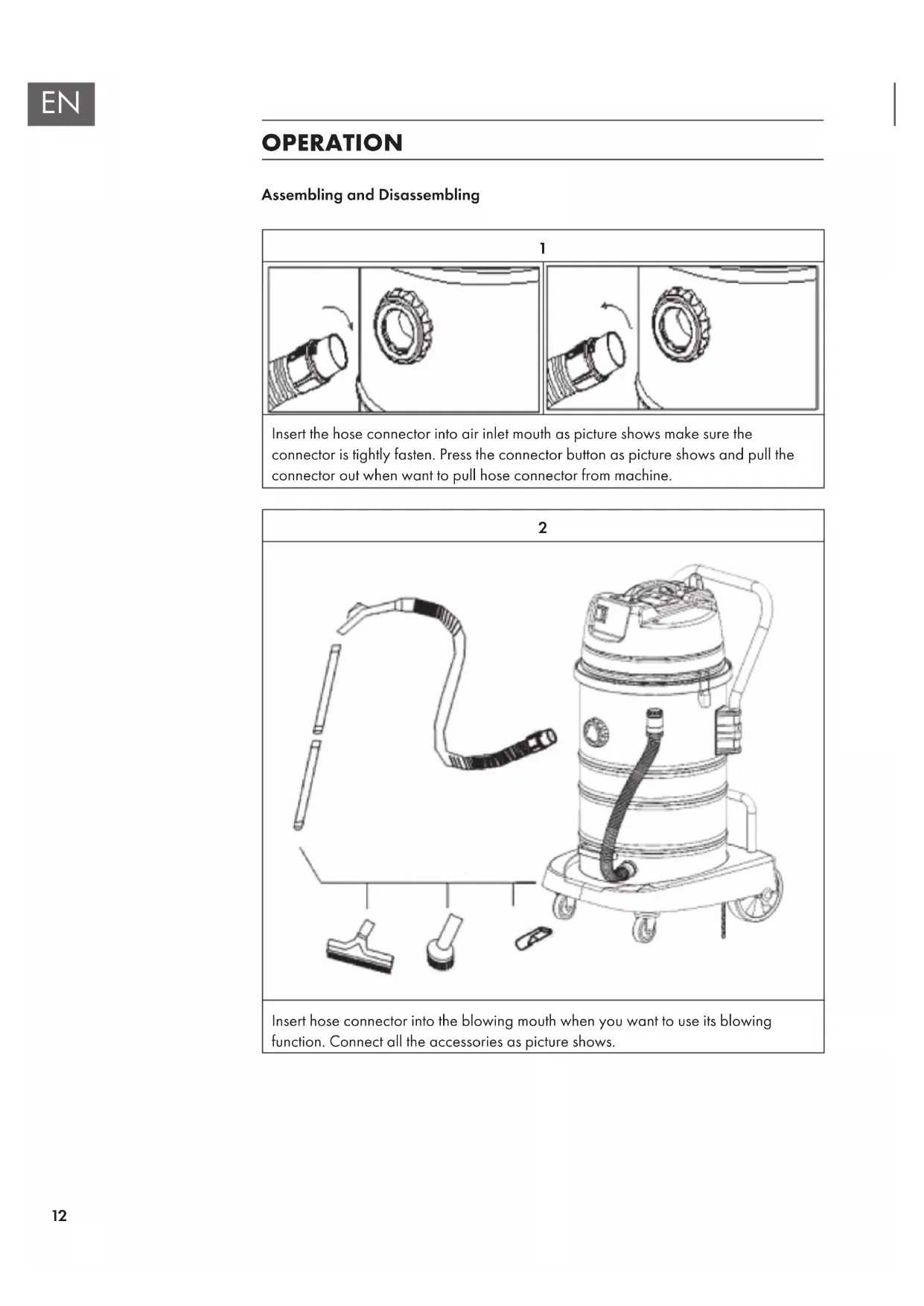

OPERATION

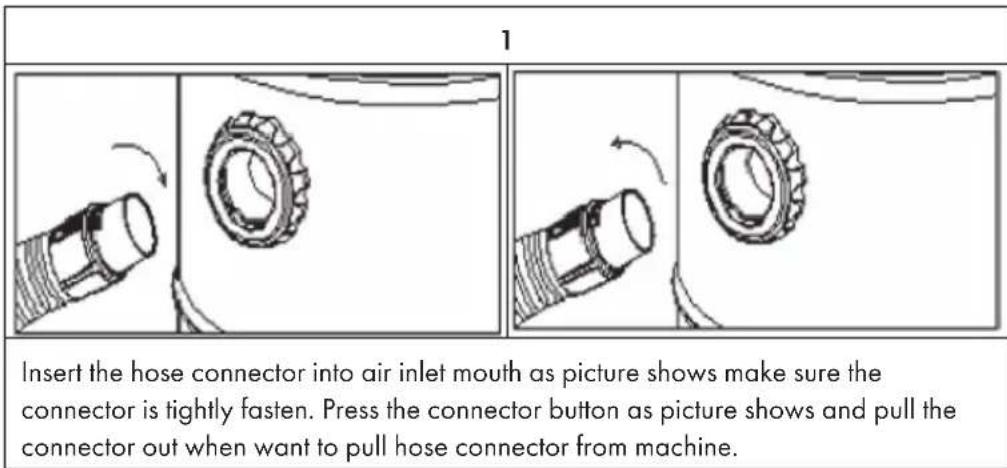

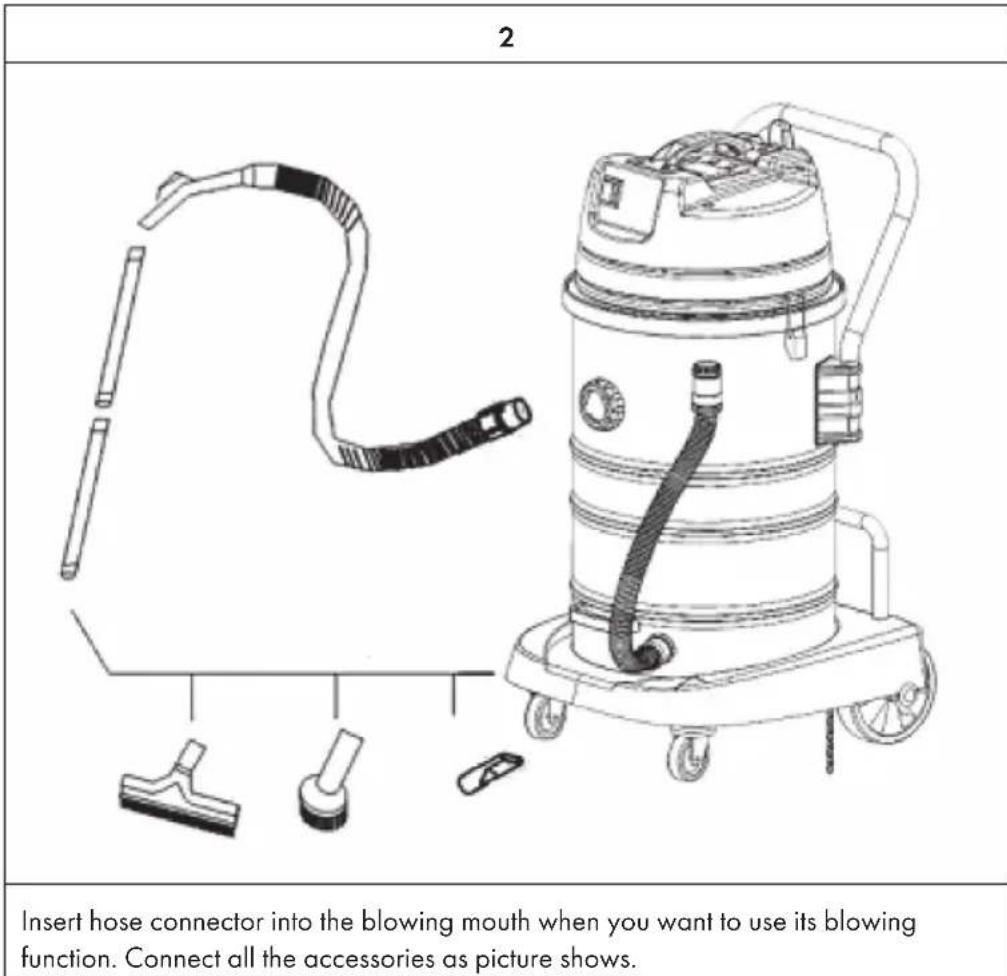

Assembling and Disassembling

Getting Started

Insert plug into the supply socket. Press switch button, the machine begin to work. You can adjust the airflow by pushing the sliding block up and down.

Operation of blower

• Always wear safety goggles before using the blower.
- Keep bystanders clear from blowing debris.
- Wear a dust mask if blowing creates dust that might be inhaled.

1
2
3
4
5
6

1	Make sure that the power cord is disconnected from the socket.
2	Unscrew the inserted hose assembly from the suction port with a left-hand rotation.
3	Insert the main cannula of the hose assembly into the air outlet on the top of the head and tighten it with the right hand rotation.
4	Insert the power cord.
5	Start the switch button.
6	Hold the hose assembly, let outlet port aimed at the leaves and so on.

Using the Accessory

Wet floor nozzle for floor, carpet, etc.	Bristle for Windows, table, etc.	Crevice nozzle for crevice, corner, etc.	Blowing mouth for blowing the dust away in the crevice of the machine.

CLEANING AND CARE

Barrel Cleaning

After working or when the barrel is full of dust which cause suction decreases considerably, you should cut off the electricity and clean the dust away from the barrel.

• Unfasten the locking knob, lift up the top cover.
  • Take off the filter bag, clean the dust away in the dust barrel.
  • Install the filter bag back and place the top cover.

Cleaning the HEPA filter

The HEPA filter should be washed with clean, warm water if it is covered with dust. If necessary, use a mild detergent.

• Remove the HEPA filter.
• Wash it.
• Let it dry.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or labels present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
