Technical Features	Bagless vacuum cleaner, suction power of 800 W, 2.5 L tank capacity, HEPA filter, noise level of 78 dB.
Usage	Suitable for hard surfaces and carpets, equipped with multiple accessories for versatile cleaning.
Maintenance and Repair	Washable HEPA filter, tank to be emptied regularly, brush maintenance recommended.
Safety	Overheat protection, 5 m power cable for extended reach.
General Information	Dimensions: 30 x 30 x 40 cm, weight: 5 kg, 2-year warranty, color: black and red.

Frequently Asked Questions - IVC30 Klarstein

How do I turn on the Klarstein IVC30 vacuum cleaner?

To turn on the Klarstein IVC30 vacuum cleaner, press the power button located on the top of the device.

How do I clean the vacuum cleaner filter?

To clean the filter, remove it from the vacuum cleaner, gently tap it to remove dust, and rinse it with lukewarm water. Let it dry completely before putting it back in place.

What should I do if the vacuum cleaner does not work?

Check if the vacuum cleaner is properly plugged in, if the power cable is not damaged, and if the bag or tank is full. Empty or replace it if necessary.

How do I change the dust bag?

Open the dust bag compartment, remove the old bag, and insert a new bag making sure it is properly secured.

The vacuum cleaner makes a strange noise, what should I do?

A strange noise may be caused by an object stuck in the hose or brush. Check and remove any obstructing objects, then test the vacuum cleaner again.

How do I adjust the suction power?

The suction power can be adjusted using the power control button located on the vacuum cleaner's control panel.

Can I use the vacuum cleaner on delicate surfaces?

Yes, the Klarstein IVC30 vacuum cleaner is designed to be used on different surfaces, including carpets and hard floors. Use the appropriate accessories for delicate surfaces.

How do I store the vacuum cleaner?

To store the vacuum cleaner, unplug it, empty the tank or replace the bag, then store it in a dry and cool place.

Where can I buy replacement accessories for the vacuum cleaner?

Replacement accessories can be purchased from the manufacturer, on their website, or in specialized appliance stores.

What is the warranty for the Klarstein IVC30 vacuum cleaner?

The warranty for the Klarstein IVC30 vacuum cleaner is generally 2 years from the date of purchase. Please refer to the manual for more details.

USER MANUAL IVC30 Klarstein

Wet/dry vacuum cleaner

CLEANINGCI LEANINGLE ANINGLEAN NINGCLEAN NGCLEANINGCI CLEANINGLE LEANINGLE ANINGLEAN

KLARSTEIN

www.klarstein.com

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 14

Product Overview 15

Operation 16

Cleaning and Care 18

Disposal Considerations 19

Manufacturer & Importer (UK) 19

TECHNICAL DATA

Item number 10007543
Power supply 230 V ~ 50 Hz
Power consumption 1800 W
Volume 30 L
Weight 6,6 kg

SAFETY INSTRUCTIONS

• Children over the age of 8 and persons with reduced physical, sensory or mental capabilities or those with a lack of experience and knowledge may only use the device if they are instructed on how to do so by a person responsible for their safety, or if they are supervised and understand the hazards associated with the use of the device.
• Before use, check the voltage on the device badge. Connect the device only to sockets which correspond to the voltage of the device.
• Do not vacuum near flammable or explosive materials as these may be ignited by the motor.
• Do not obstruct the air intakes as heat accumulation may damage the motor.
• Do not vacuum flammable or explosive materials such as burning cigarettes or gasoline. Do not suck up any sharp objects that may stick to the filter or clog it. Do not absorb powdery materials such as lime powder, gypsum or graphite powder, which could damage the engine.
• Do not turn the unit over as water may enter the motor.
• Switch off the appliance after each use and before cleaning and disconnect it from the mains supply.
• Keep the unit away from direct sunlight or intense heat as this may deform the plastic.
  • To avoid damage, do not twist or step on the suction hose.
• Do not allow water to run on or into the cover during cleaning as this may damage the electrical components.
• Only use the product as described in the instructions. Any other use may result in damage to the product or personal injury.
• Modification or alteration of the product may affect product safety.
• Handle the product with care. It can be damaged by shocks, blows or falling from a low height.
• Keep the product away from moisture and extreme heat.
• Repairs to the device should only be carried out by an authorised specialist workshop. Do not open the unit under any circumstances. Incorrect assembly may result in malfunction or total failure.
  • The unit should be protected from all moisture and direct sunlight.
• Do not clean the unit with cleaning agents. Use a dry or slightly damp (microfiber) cloth for cleaning.

Note: If water escapes from the air outlet, do not tilt the unit as this will damage the motor. Do not use the unit as a pump, as this may damage the motor.

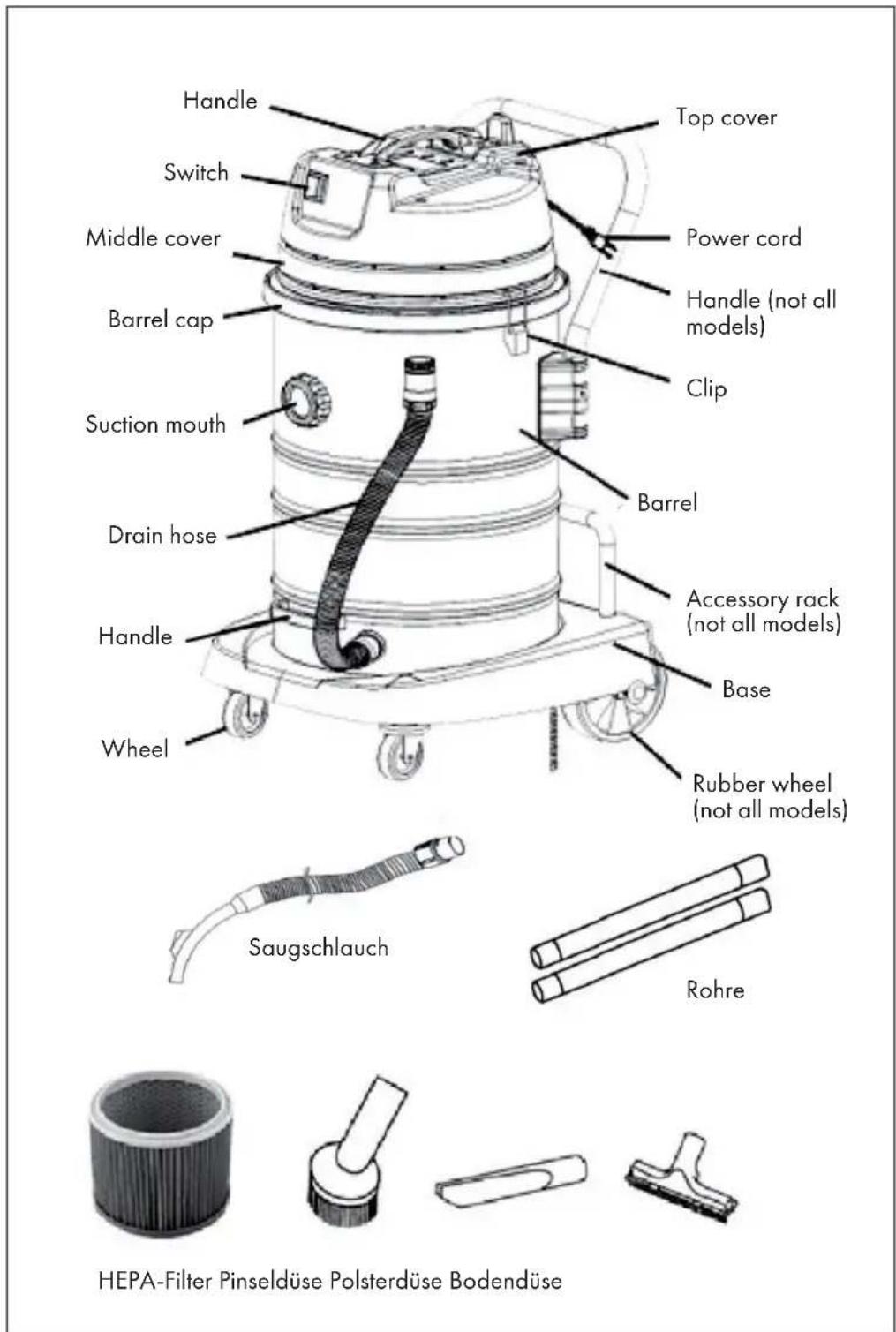

PRODUCT OVERVIEW

Handle Top cover Switch Power cord Middle cover Handle (not all models) Barrel cap Clip Suction mouth Barrel Drain hose Accessory rack (not all models) Handle Base Wheel Rubber wheel (not all models) Saugschlauch Rohre HEPA-Filter Pinseldüse Polsterdüse Bodendüse

OPERATION

Assembling and Disassembling

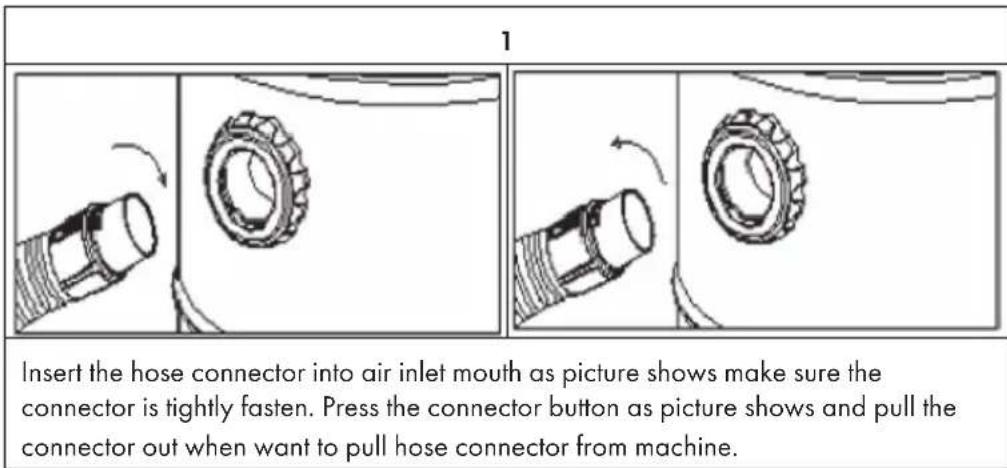

1 Insert the hose connector into air inlet mouth as picture shows make sure the connector is tightly fasten. Press the connector button as picture shows and pull the connector out when want to pull hose connector from machine.

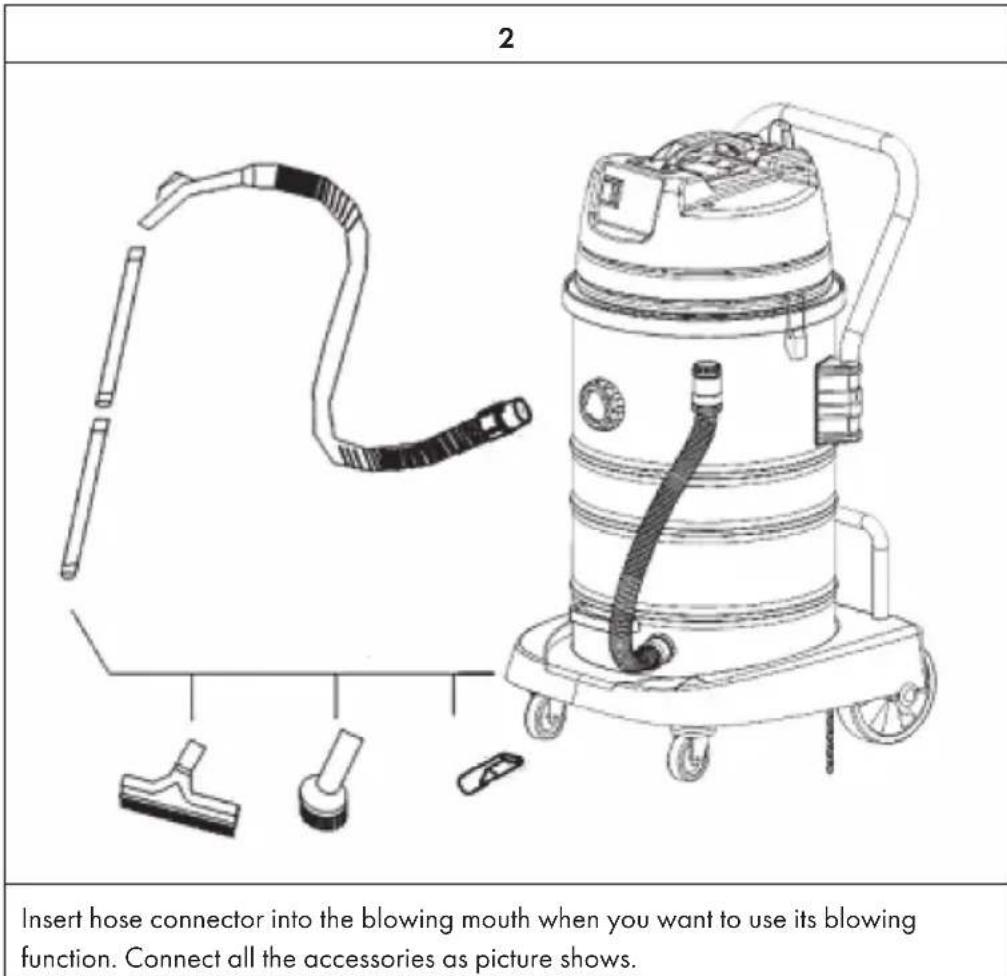

2 Insert hose connector into the blowing mouth when you want to use its blowing function. Connect all the accessories as picture shows.

Getting Started

Insert plug into the supply socket. Press switch button, the machine begin to work. You can adjust the airflow by pushing the sliding block up and down.

Operation of blower

• Always wear safety goggles before using the blower.
- Keep bystanders clear from blowing debris.
- Wear a dust mask if blowing creates dust that might be inhaled.

1	Make sure that the power cord is disconnected from the socket.
2	Unscrew the inserted hose assembly from the suction port with a left-hand rotation.
3	Insert the main cannula of the hose assembly into the air outlet on the top of the head and tighten it with the right hand rotation.
4	Insert the power cord.
5	Start the switch button.
6	Hold the hose assembly, let outlet port aimed at the leaves and so on.

Using the Accessory

Wet floor nozzle for floor, carpet, etc.	Bristle for Windows, table, etc.	Crevice nozzle for crevice, corner, etc.	Blowing mouth for blowing the dust away in the crevice of the machine.

CLEANING AND CARE

Barrel Cleaning

After working or when the barrel is full of dust which cause suction decreases considerably, you should cut off the electricity and clean the dust away from the barrel.

• Unfasten the locking knob, lift up the top cover.
  • Take off the filter bag, clean the dust away in the dust barrel.
  • Install the filter bag back and place the top cover.

Cleaning the HEPA filter

The HEPA filter should be washed with clean, warm water if it is covered with dust. If necessary, use a mild detergent.

• Remove the HEPA filter.
• Wash it.
• Let it dry.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
